Model GE TFX22JRSMWH Refrigerator – Common Parts & Diagrams
0
1
FREEZER SECTION

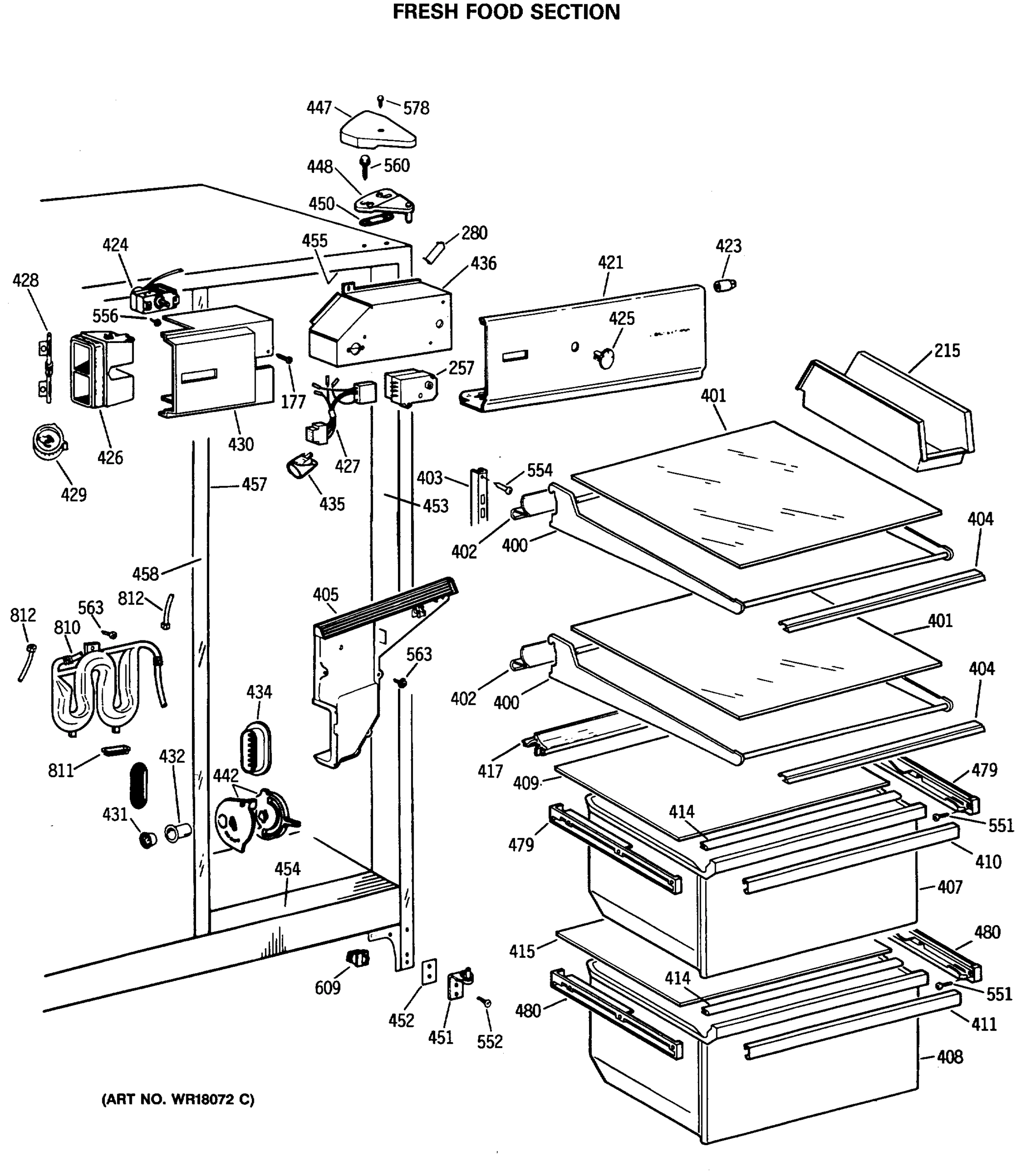

FRESH FOOD SECTION
Common parts from model GE TFX22JRSMWH Refrigerator
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
13
GEN WR02X7490 GEN WR02X7490 Contact Us For Availability
14
GEN WR24X0527 GEN WR24X0527 Contact Us For Availability
15
GEN WR17X3119 GEN WR17X3119 Contact Us For Availability
17
GEN WR02X7491 GEN WR02X7491 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X0600 GEN WR77X0600 Contact Us For Availability
21
GEN WR17X2953 GEN WR17X2953 Contact Us For Availability
23
GEN WR17X3221 GEN WR17X3221 Contact Us For Availability
24
GEN WR17X3222 GEN WR17X3222 Contact Us For Availability
29
GEN WR49X0350 GEN WR49X0350 Contact Us For Availability
31
GEN WR02X8656 GEN WR02X8656 Contact Us For Availability
32
GEN WR17X3303 GEN WR17X3303 Contact Us For Availability
33
GEN WR51X0353 GEN WR51X0353 Contact Us For Availability
39
GEN WR55X0073 GEN WR55X0073 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
46
GEN WR02X8702 GEN WR02X8702 Contact Us For Availability
47
GEN WR02X8681 GEN WR02X8681 Contact Us For Availability
48
GEN WR02X8723 GEN WR02X8723 Contact Us For Availability
53
GEN WR17X3220 GEN WR17X3220 Contact Us For Availability
56
LAMP 7C7 GEN STD372071 Contact Us For Availability
56
GEN WR02X8662 GEN WR02X8662 Contact Us For Availability
56
GEN WR02X8725 GEN WR02X8725 Contact Us For Availability
58
GEN WR17X3139 GEN WR17X3139 Contact Us For Availability
60
GEN WR02X8674 GEN WR02X8674 Contact Us For Availability
61
GEN WR17X3125 GEN WR17X3125 Contact Us For Availability
63
GEN WR02X8663 GEN WR02X8663 Contact Us For Availability
69
GEN WR17X3095 GEN WR17X3095 Contact Us For Availability
70
GEN WR02X8943 GEN WR02X8943 Contact Us For Availability
71
GEN WR17X3478 GEN WR17X3478 Contact Us For Availability
72
GEN WR23X0366 GEN WR23X0366 Contact Us For Availability
75
GEN WR17X3614 GEN WR17X3614 Contact Us For Availability
76
GEN WR02X8933 GEN WR02X8933 Contact Us For Availability
80
GEN WR02X4265 GEN WR02X4265 Contact Us For Availability
86
GEN WH02X0940 GEN WH02X0940 Contact Us For Availability
89
GEN WR02X7971 GEN WR02X7971 Contact Us For Availability
103
GEN WR24X0529 GEN WR24X0529 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X1816 GEN WR38X1816 Contact Us For Availability
106
GEN WR22X0462 GEN WR22X0462 Contact Us For Availability
108
GEN WR77X0599 GEN WR77X0599 Contact Us For Availability
109
GEN WR71X2355 GEN WR71X2355 Contact Us For Availability
110
GEN WR02X8989 GEN WR02X8989 Contact Us For Availability
112
GEN WR71X2232 GEN WR71X2232 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
154
GEN WR01X1765 GEN WR01X1765 Contact Us For Availability
154
GEN WR01X1859 GEN WR01X1859 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
GEN WR40X1719 GEN WR40X1719 Contact Us For Availability
201
GEN WR40X1721 GEN WR40X1721 Contact Us For Availability
202
GEN WR40X1715 GEN WR40X1715 Contact Us For Availability
206
GEN WR71X1888 GEN WR71X1888 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
209
GEN WR38X1753 GEN WR38X1753 Contact Us For Availability
211
GEN WR21X0180 GEN WR21X0180 Contact Us For Availability
212
GEN WR17X2950 GEN WR17X2950 Contact Us For Availability
214
GEN WR01X1332 GEN WR01X1332 Contact Us For Availability
214
GEN WR02X8950 GEN WR02X8950 Contact Us For Availability
214
GEN WR14X0455 GEN WR14X0455 Contact Us For Availability
214
GEN WR17X3485 GEN WR17X3485 Contact Us For Availability
215
GEN WR32X1439 GEN WR32X1439 Contact Us For Availability
224
GEN WR02X8657 GEN WR02X8657 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
225
GEN WR02X8293 GEN WR02X8293 Contact Us For Availability
230
GEN WR02X8671 GEN WR02X8671 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR02X4845 GEN WR02X4845 Contact Us For Availability
247
GEN WR17X3483 GEN WR17X3483 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
258
GEN WR17X3484 GEN WR17X3484 Contact Us For Availability
260
GEN WR32X1427 GEN WR32X1427 Contact Us For Availability
265
GEN WR02X3595 GEN WR02X3595 Contact Us For Availability
265
GEN WR02X3598 GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
GEN WR23X0312 GEN WR23X0312 Contact Us For Availability
269
GEN WR02X7927 GEN WR02X7927 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
GEN WR17X3136 GEN WR17X3136 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X3660 GEN WR17X3660 Contact Us For Availability
280
GEN WR02X8518 GEN WR02X8518 Contact Us For Availability
288
GEN WR74X0216 GEN WR74X0216 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
303
GEN WD01X1440 GEN WD01X1440 Contact Us For Availability
324
GEN WR02X7069 GEN WR02X7069 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
326
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X2060 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
GEN WR17X2760 GEN WR17X2760 Contact Us For Availability
346
HELIX REAR-DISP GEN WR17X2056 Contact Us For Availability
346
HELIX FRONT-DISP GEN WR17X2057 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X2740 GEN WR17X2740 Contact Us For Availability
352
GEN WR30X0257 GEN WR30X0257 Contact Us For Availability
360
GEN WR02X8730 GEN WR02X8730 Contact Us For Availability
360
GEN WR71X2444 GEN WR71X2444 Contact Us For Availability
361
GEN WR71X2350 GEN WR71X2350 Contact Us For Availability
362
GEN WR02X8839 GEN WR02X8839 Contact Us For Availability
363
GEN WR02X8952 GEN WR02X8952 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X8459 GEN WR02X8459 Contact Us For Availability
375
GEN WR23X0194 GEN WR23X0194 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
387
GEN WR17X2999 GEN WR17X2999 Contact Us For Availability
388
GEN WR38X1497 GEN WR38X1497 Contact Us For Availability
395
GEN WR17X2904 GEN WR17X2904 Contact Us For Availability
400
GEN WR71X2292 GEN WR71X2292 Contact Us For Availability
401
GEN WR32X1346 GEN WR32X1346 Contact Us For Availability
402
GEN WR38X1928 GEN WR38X1928 Contact Us For Availability
403
GEN WR71X2124 GEN WR71X2124 Contact Us For Availability
404
GEN WR38X2032 GEN WR38X2032 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
GEN WR17X1523 GEN WR17X1523 Contact Us For Availability
407
GEN WR32X1277 GEN WR32X1277 Contact Us For Availability
408
GEN WR32X1278 GEN WR32X1278 Contact Us For Availability
409
GEN WR32X1264 GEN WR32X1264 Contact Us For Availability
410
GEN WR17X2960 GEN WR17X2960 Contact Us For Availability
411
GEN WR17X2961 GEN WR17X2961 Contact Us For Availability
414
GEN WR14X0451 GEN WR14X0451 Contact Us For Availability
415
GEN WR32X0886 GEN WR32X0886 Contact Us For Availability
417
GEN WR02X7359 GEN WR02X7359 Contact Us For Availability
421
GEN WR17X2971 GEN WR17X2971 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR09X0499 GEN WR09X0499 Contact Us For Availability
425
GEN WR02X8555 GEN WR02X8555 Contact Us For Availability
426
GEN WR02X8425 GEN WR02X8425 Contact Us For Availability
426
GEN WR02X8514 GEN WR02X8514 Contact Us For Availability
426
GEN WR14X0369 GEN WR14X0369 Contact Us For Availability
427
GEN WR23X0316 GEN WR23X0316 Contact Us For Availability
428
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
429
GEN WR02X8553 GEN WR02X8553 Contact Us For Availability
430
GEN WR17X2209 GEN WR17X2209 Contact Us For Availability
431
GEN WR02X8722 GEN WR02X8722 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
434
GEN WR02X9021 GEN WR02X9021 Contact Us For Availability
436
GEN WR02X7736 GEN WR02X7736 Contact Us For Availability
442
GEN WR02X8651 GEN WR02X8651 Contact Us For Availability
446
GEN WR13X0647 GEN WR13X0647 Contact Us For Availability
447
GEN WR02X8262 GEN WR02X8262 Contact Us For Availability
448
GEN WR13X0646 GEN WR13X0646 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
GEN WR02X4497 GEN WR02X4497 Contact Us For Availability
452
GEN WR02X7143 GEN WR02X7143 Contact Us For Availability
453
GEN WR40X1717 GEN WR40X1717 Contact Us For Availability
454
GEN WR40X1714 GEN WR40X1714 Contact Us For Availability
455
GEN WR40X1720 GEN WR40X1720 Contact Us For Availability
456
GEN WR40X1716 GEN WR40X1716 Contact Us For Availability
457
GEN WR40X1718 GEN WR40X1718 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR02X8721 GEN WR02X8721 Contact Us For Availability
458
GEN WR40X1677 GEN WR40X1677 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
479
GEN WR72X0206 GEN WR72X0206 Contact Us For Availability
479
GEN WR72X0230 GEN WR72X0230 Contact Us For Availability
480
GEN WR72X0208 GEN WR72X0208 Contact Us For Availability
480
GEN WR72X0209 GEN WR72X0209 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
554
SCR 10-24 BP PA 1 1/2 S GEN WR01X1483 Contact Us For Availability
560
GEN WR01 GEN WR01 Contact Us For Availability
560
GEN WR01X1249 GEN WR01X1249 Contact Us For Availability
560
GEN WR01X1806 GEN WR01X1806 Contact Us For Availability
562
GEN WX05X0558 GEN WX05X0558 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
584
GEN WZ02X0509 GEN WZ02X0509 Contact Us For Availability
616
GEN WR82X0346 GEN WR82X0346 Contact Us For Availability
627
GEN WR17X3108 GEN WR17X3108 Contact Us For Availability
636
GEN WH02X0765 GEN WH02X0765 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR60X0220 GEN WR60X0220 Contact Us For Availability
683
GEN WR01X1825 GEN WR01X1825 Contact Us For Availability
689
GEN WR01X1598 GEN WR01X1598 Contact Us For Availability
691
GEN WX02X0560 GEN WX02X0560 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
730
GEN WR84X0188 GEN WR84X0188 Contact Us For Availability
731
GEN WR02X8951 GEN WR02X8951 Contact Us For Availability
734
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0113 GEN WR08X0113 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
GEN WR84X0169 GEN WR84X0169 Contact Us For Availability
747
GEN WR17X3643 GEN WR17X3643 Contact Us For Availability
749
GEN WR17X3646 GEN WR17X3646 Contact Us For Availability
751
GEN WR17X3645 GEN WR17X3645 Contact Us For Availability
753
GEN WB01K5052 GEN WB01K5052 Contact Us For Availability
762
GEN WR02X7493 GEN WR02X7493 Contact Us For Availability
765
GEN WR01X1972 GEN WR01X1972 Contact Us For Availability
788
GEN WB17X5079 GEN WB17X5079 Contact Us For Availability
804
GEN WR02X4046 GEN WR02X4046 Contact Us For Availability
810
GEN WR17X3227 GEN WR17X3227 Contact Us For Availability
811
GEN WR02X8659 GEN WR02X8659 Contact Us For Availability
830
COVER WIRING CASE RR WH GEN WR17X3087 Contact Us For Availability
900
GEN WR78X8562 GEN WR78X8562 Contact Us For Availability
910
GEN WR78X8561 GEN WR78X8561 Contact Us For Availability
1458
GEN WB17X5061 GEN WB17X5061 Contact Us For Availability
1458
GEN WB17X5062 GEN WB17X5062 Contact Us For Availability
× ![]()
