Model Whirlpool TER56W2BW0 ELECTRIC RANGE – Common Parts & Diagrams

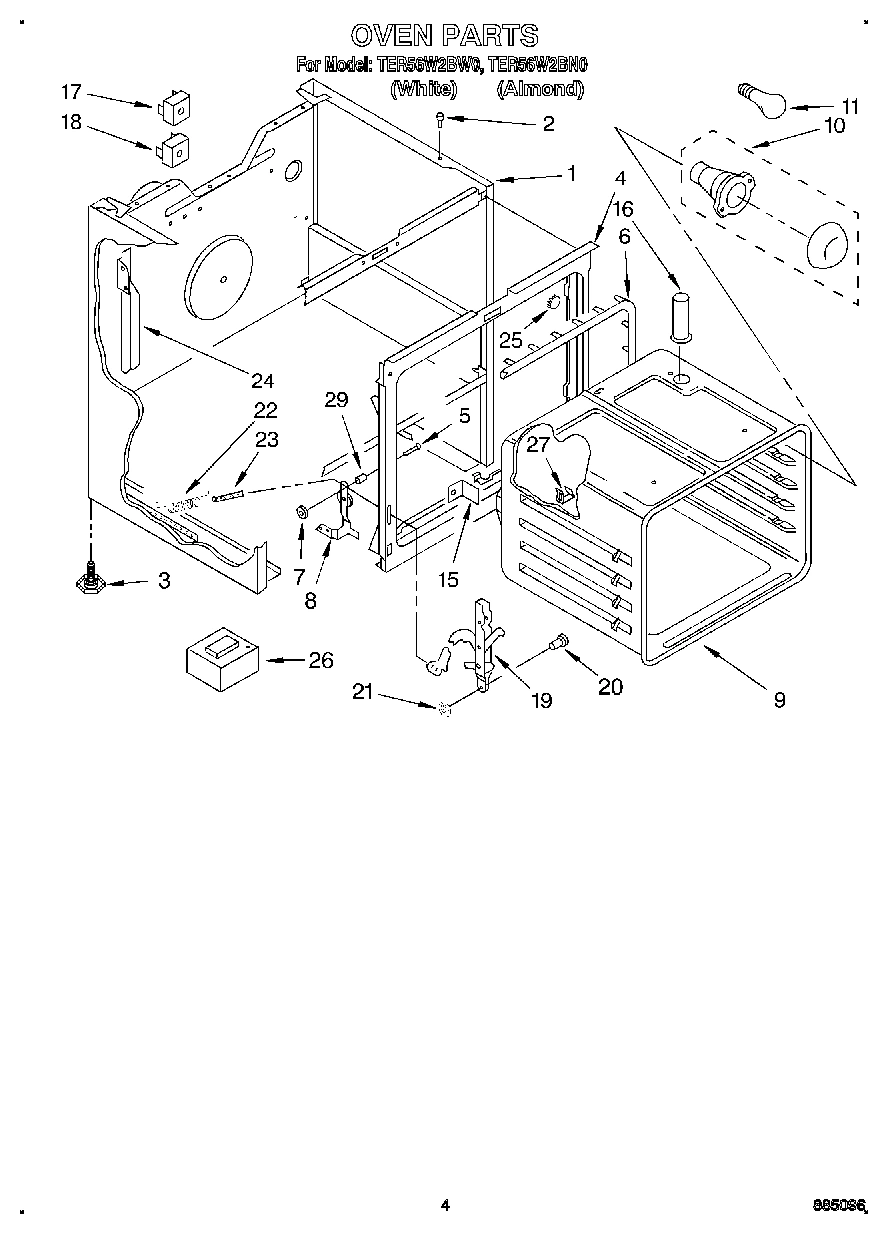

03 - OVEN

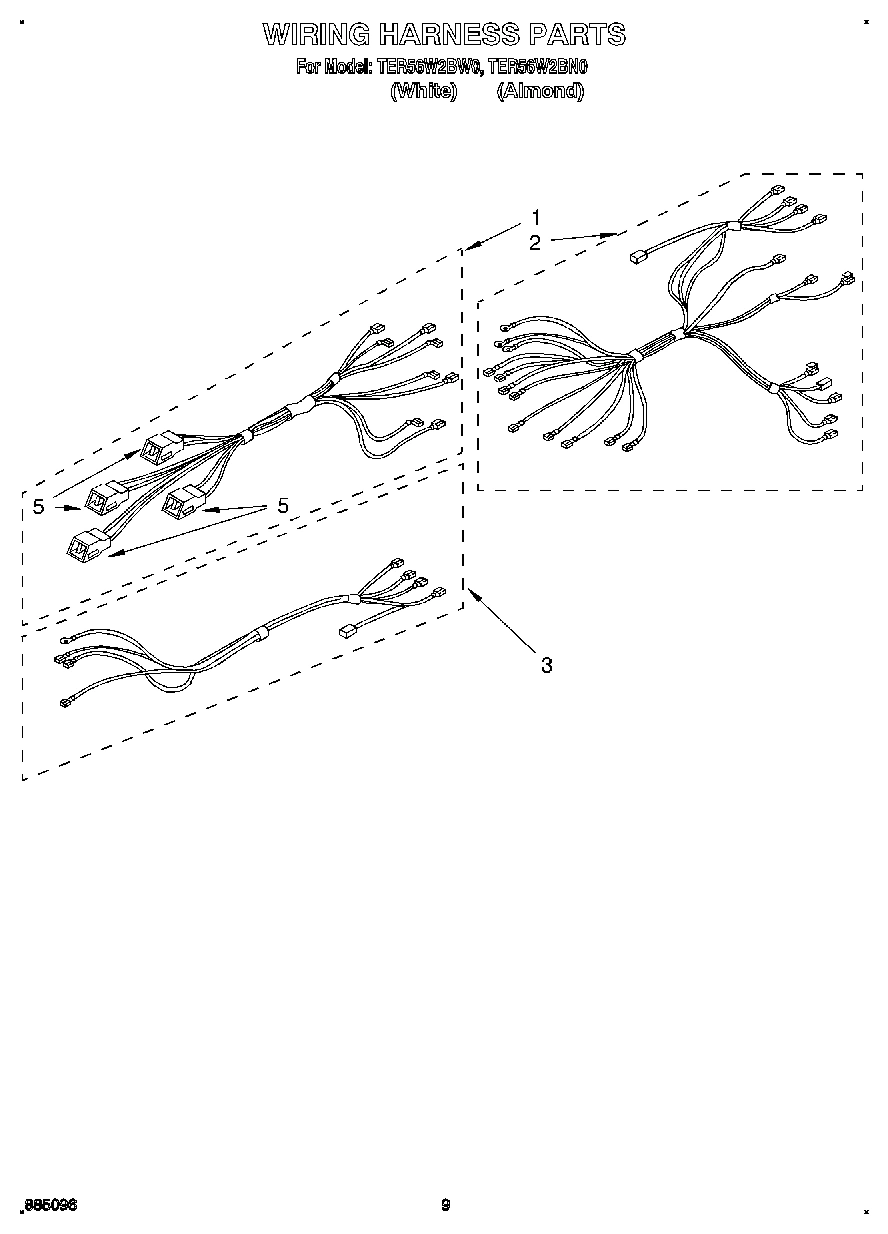

06 - WIRING HARNESS, OPTIONAL
02 - CONTROL PANEL
04 - DOOR AND DRAWER
05 - UNIT
01 - COOKTOP, LITERATURE
Common parts from model Whirlpool TER56W2BW0 ELECTRIC RANGE
WPL 241430 WPL 241430 Contact Us For Availability
Manual, Range WPL LIT677973 Contact Us For Availability
Installation Instr (Templet) WPL LIT3150400 Contact Us For Availability
Wiring Diagram WPL LIT3169415 Contact Us For Availability
Instructions, Installation WPL LIT3187321 Contact Us For Availability
Use & Care Guide WPL LIT3187694 Contact Us For Availability
1
Wiring Harness (Suface Unit) WPL 3149881 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
1
Liner, Oven Door WPL 3172218 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Latch Asm Complete W/Wiring Harness WPL 3183322 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3169411 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3150441 Contact Us For Availability
2
End Cap L.H. WPL 3150442 Contact Us For Availability
2
Frame, Glass WPL 3148234 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
Safety Switch WPL 3182741 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
3
Harness, Wire (Lock Switch) WPL 3183324 Contact Us For Availability
3
Seal, Foam WPL 3148441 Contact Us For Availability
3
Screw (2) WPL 307748 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
4
Switch, Rocker WPL 3182717 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Screw (2) WPL 308422 Contact Us For Availability
4
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
4
Shield, Latch Terminal WPL 313035 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
5
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
5
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
5
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
5
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
5
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
5
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
5
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
5
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
5
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
5
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
5
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
5
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
5
Grease WPL 261582 Contact Us For Availability
5
Coffee WPL 261886 Contact Us For Availability
5
New Avocado WPL 261888 Contact Us For Availability
5
Harvest Gold WPL 261890 Contact Us For Availability
5
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
5
Toast WPL 285365 Contact Us For Availability
5
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
5
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
5
Platinum (Uncut) WPL 285368 Contact Us For Availability
5
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
5
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
5
WPL 799832 WPL 799832 Contact Us For Availability
5
WPL 978883 WPL 978883 Contact Us For Availability
5
Screw (2) WPL 3150532 Contact Us For Availability
5
Unit, Broil (208V) WPL 312308 Contact Us For Availability
5
Handle, Latch WPL 3169081 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
8
Screw (4) 8-18 x 3/8 WPL 3185647 Contact Us For Availability
8
Retainer, Glass WPL 3148187 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
10
Timer, Digital WPL 3183188 Contact Us For Availability
10
Glass, Door WPL 3148185 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Latch Mechanism WPL 3148668 Contact Us For Availability
11
Foil WPL 3169191 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Bracket (2) WPL 307965 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
13
Insulation, Door WPL 3147951 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
14
Top, Door WPL 3148223 Contact Us For Availability
14
Rack, Oven (2) WPL 308173 Contact Us For Availability
15
Clip (2) WPL 3148282 Contact Us For Availability
15
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
15
Panel, Control WPL 3188148 Contact Us For Availability
17
Switch, Infinite (Screw, 8-32 x 1/4 (8)) WPL 308119 Contact Us For Availability
18
Switch, Selector (5 Position) WPL 3148419 Contact Us For Availability
18
Frame, Glass WPL 3148235 Contact Us For Availability
19
Thermostat, 0ven Pyro WPL 3185625 Contact Us For Availability
19
Glide, Rear WPL 307980 Contact Us For Availability
20
Light, Indicator (Oven Unit) (Includes Illus. WPL 314031 Contact Us For Availability
20
Panel, Drawer (White) WPL 3150676 Contact Us For Availability
20
Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
21
Light, Indicator WPL 3183695 Contact Us For Availability
21
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
21
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
22
Knob, Infinite (4) WPL 3183118 Contact Us For Availability
22
Drawer, Utility WPL 327887 Contact Us For Availability
23
Designer White Mdl WPL 3183104 Contact Us For Availability
23
Knob, Temp WPL 3183105 Contact Us For Availability
23
Nut (4) WPL 814102 Contact Us For Availability
24
Tube Clip WPL 313570 Contact Us For Availability
24
Protector, Drawer (2) WPL 309329 Contact Us For Availability
25
Rear Cover WPL 3187332 Contact Us For Availability
26
Lens, Amber (2) WPL 313101 Contact Us For Availability
28
Shield, Glass (2) WPL 313608 Contact Us For Availability
29
Knob (Selector) WPL 3183115 Contact Us For Availability
× ![]()
