Model LG T1772HFFT.ABWETUS – Common Parts & Diagrams

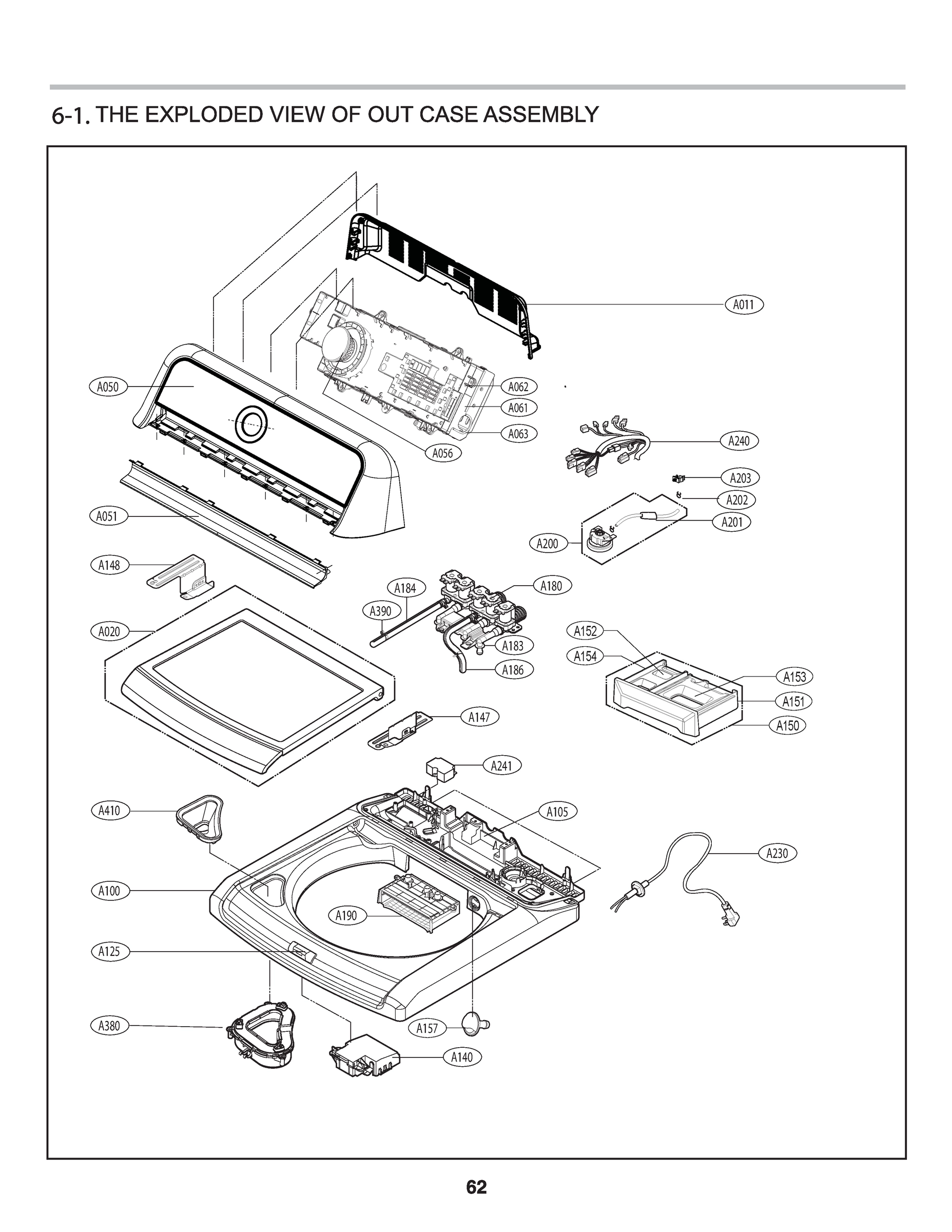

CASE ASSEMBLY

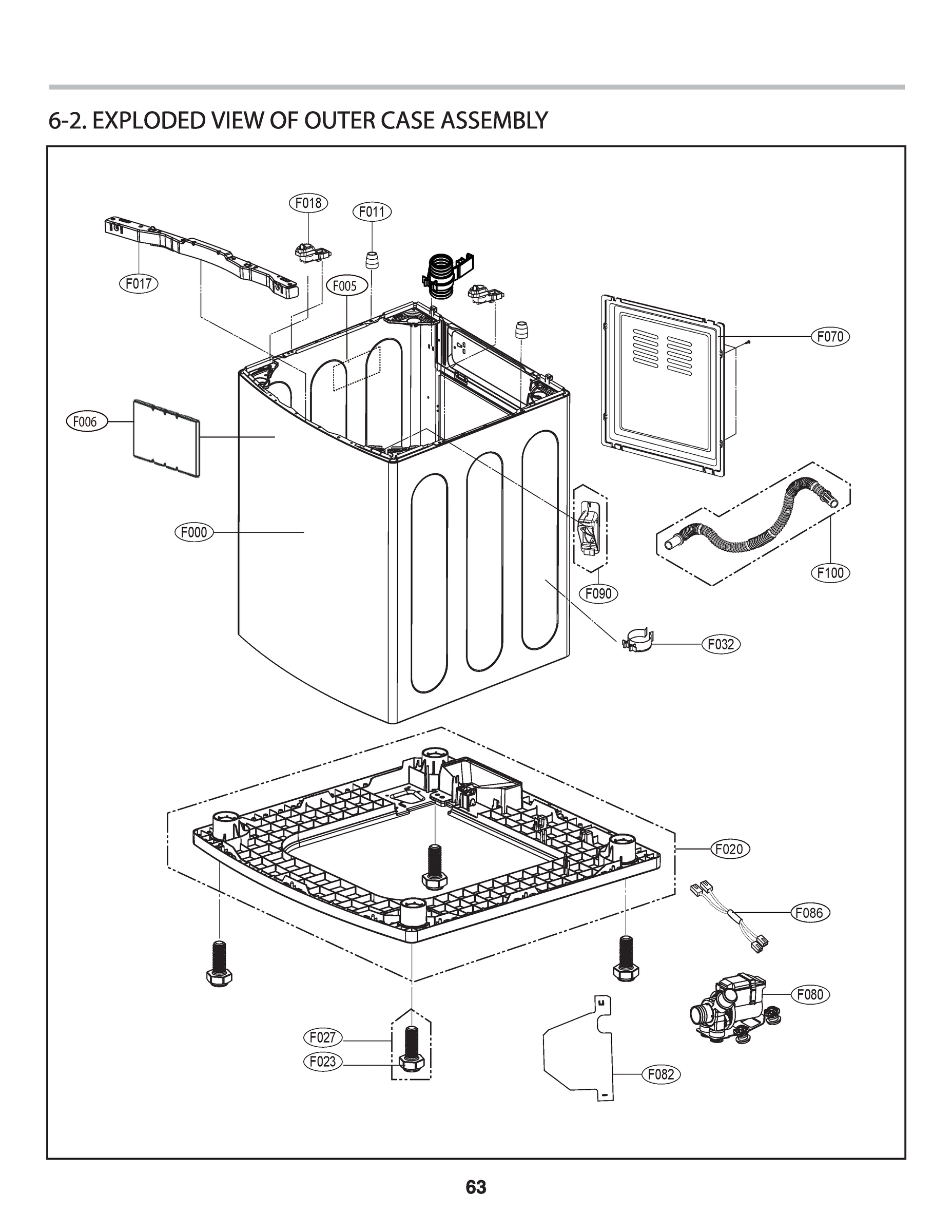

OUTER CASE ASSEMBLY

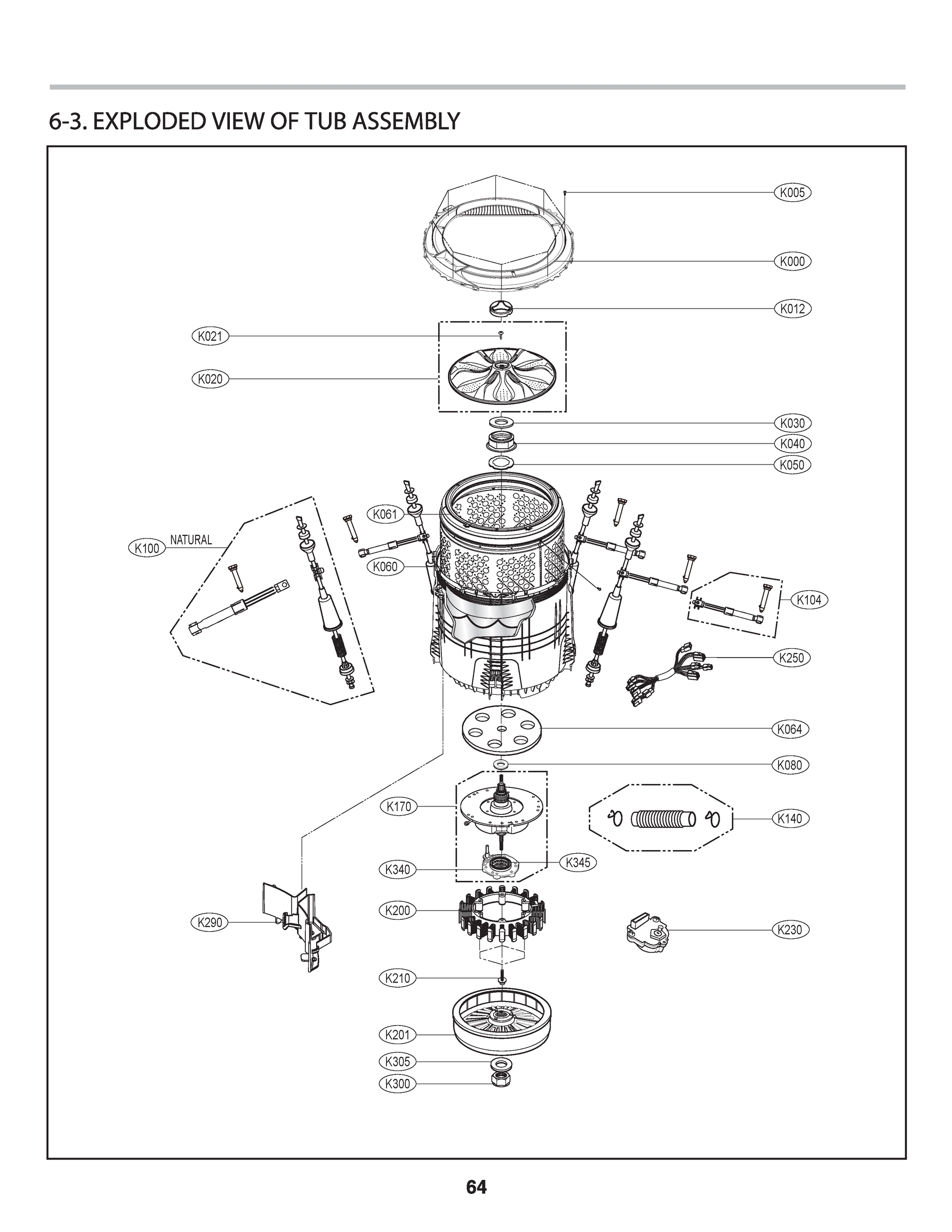

TUB ASSEMBLY
Common parts from model LG T1772HFFT.ABWETUS
A050
Panel Assembly,Front LGE AGL75452907 Contact Us For Availability
A056
Knob Assembly LGE AEZ73913401 Contact Us For Availability
A061
PCB Assembly,Main LGE EBR81634304 Contact Us For Availability
A062
PCB Assembly,Display LGE EBR81634406 Contact Us For Availability
A063
Cover,Protect LGE MCK65833301 Contact Us For Availability
A100
Cover,Top LGE MCK62185510 Contact Us For Availability
A105
Case LGE MBN61861101 Contact Us For Availability
A125
Cover,Guide LGE MCK62185701 Contact Us For Availability
A140
Switch Assembly LGE EBF61674802 Contact Us For Availability
A147
Bracket Assembly LGE ABA72939701 Contact Us For Availability
A148
Bracket Assembly LGE ABA73249001 Contact Us For Availability
A150
Box Assembly,Detergent LGE AAZ73855914 Contact Us For Availability
A157
Nozzle Assembly LGE AGB72932401 Contact Us For Availability
A180
Valve Assembly,Inlet LGE AJU73213301 Contact Us For Availability
A180
Valve Assembly,Inlet LGE AJU75152601 Contact Us For Availability
A184
Hose,Inlet LGE MEJ62524903 Contact Us For Availability
A184
Hose,Connector LGE MEJ61841803 Contact Us For Availability
A186
Hose,Inlet LGE 5214EA3004B Contact Us For Availability
A186
Hose,Inlet LGE MEJ62565301 Contact Us For Availability
A190
Housing Assembly,Detergent LGE AEN72910503 Contact Us For Availability
A200
Switch Assembly,Sensor LGE 6501EA1001R Contact Us For Availability
A241
Filter Assembly LGE EAM60930604 Contact Us For Availability
A241
Filter Assembly LGE EAM60930603 Contact Us For Availability
A410
Cap,Cover LGE MBL62061401 Contact Us For Availability
F005
Damper LGE MCQ67395225 Contact Us For Availability
F006
Damper LGE MCQ67395226 Contact Us For Availability
F011
Holder Assembly LGE AEJ33026401 Contact Us For Availability
F011
Holder Assembly LGE AEJ33026605 Contact Us For Availability
F018
Holder Assembly LGE AEJ73820101 Contact Us For Availability
F020
Base Assembly,Cabinet LGE AAN73431009 Contact Us For Availability
F032
Holder LGE 4930EA3002A Contact Us For Availability
F070
Cover,Rear LGE MCK67652502 Contact Us For Availability
F086
Harness,Single LGE EAD64205501 Contact Us For Availability
F090
Connector,Drain Hose LGE MCD62647002 Contact Us For Availability
F100
Hose Assembly,Drain LGE AEM73732904 Contact Us For Availability
F100
Hose Assembly,Drain LGE AEM73732906 Contact Us For Availability
K000
Cover Assembly,Tub LGE ACQ88516303 Contact Us For Availability
K005
Screw,Tapping LGE FAB32139901 Contact Us For Availability
K012
Cap,Pulsator LGE 5006EA3009B Contact Us For Availability
K012
Cap,Pulsator LGE MBL65219301 Contact Us For Availability
K021
Screw,Customized LGE FAB30598601 Contact Us For Availability
K030
Washer,Common LGE FAF30369201 Contact Us For Availability
K040
Nut,Common LGE 4020FA4208J Contact Us For Availability
K040
Nut,Common LGE 4020FA4208N Contact Us For Availability
K050
Washer,Common LGE 4040FA4045C Contact Us For Availability
K080
Gasket LGE 4036FA4364B Contact Us For Availability
K104
Damper,Parts Assembly,SVC LGE AGM74269801 Contact Us For Availability
K140
Hose Assembly,Drain LGE AEM73213001 Contact Us For Availability
K170
Housing Assembly,Clutch Coupling LGE AEN73651402 Contact Us For Availability
K200
Stator Assembly LGE AJB73816004 Contact Us For Availability
K201
Rotor Assembly LGE AHL72914404 Contact Us For Availability
K210
Bolt,Common LGE FAA30850701 Contact Us For Availability
K250
Harness,Multi LGE EAD64149701 Contact Us For Availability
K300
Nut,Common LGE 1NZZEA4001A Contact Us For Availability
K305
Washer,Customized LGE 4W50100D Contact Us For Availability
K340
Coupling Assembly LGE 4323EA2001C Contact Us For Availability
K345
Coupling LGE MCJ61861201 Contact Us For Availability
× ![]()
