Model Speed Queen SDELYFGW171TN01 Dryer – Common Parts & Diagrams
Control and Control Panel - Rear Control Coin Drop Models
Control and Control Panel - Rear Control Card Ready Models

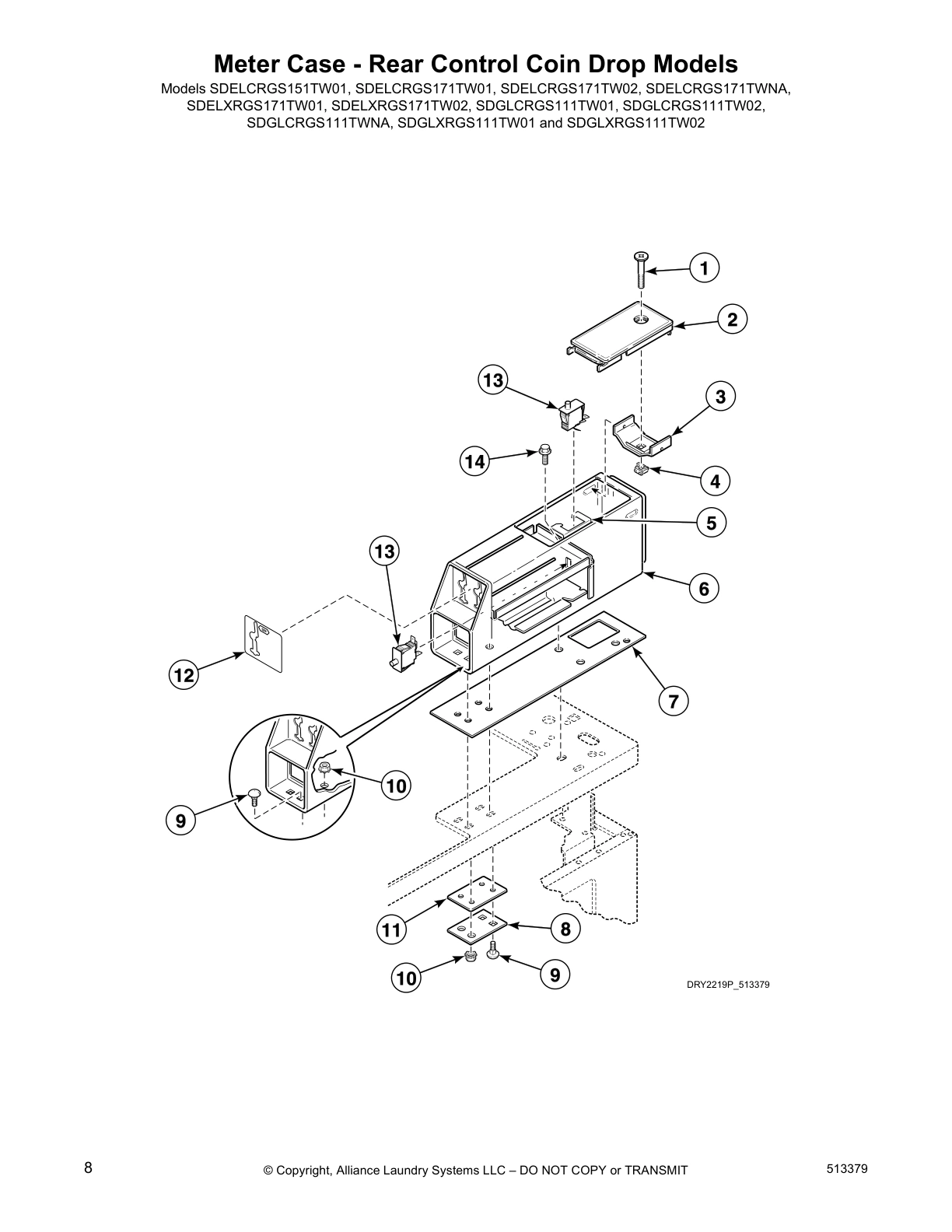

Meter Case - Rear Control Coin Drop Models
Electronic Coin Drop - Rear Control Coin Drop Models

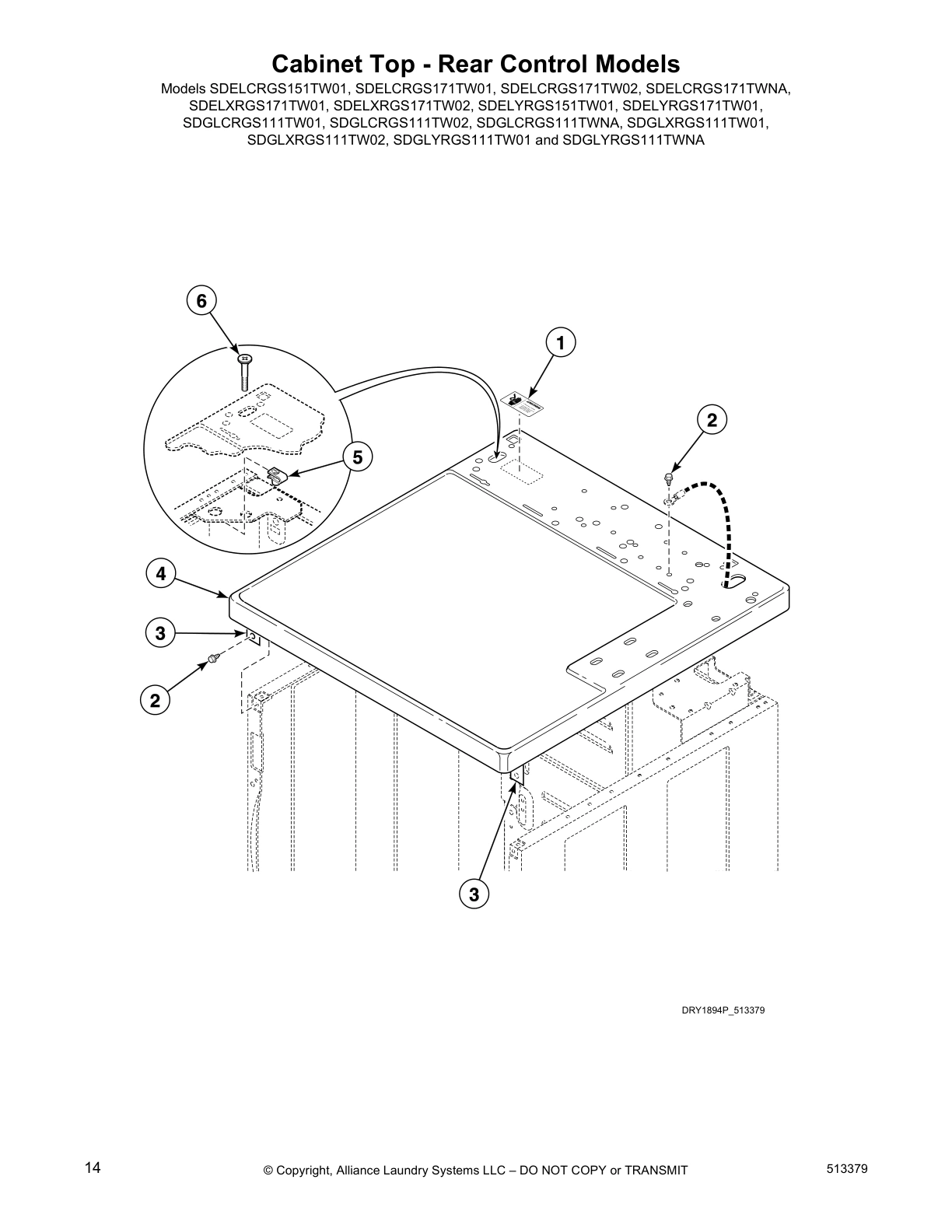

Cabinet Top - Rear Control Models
Control Panel and Controls -

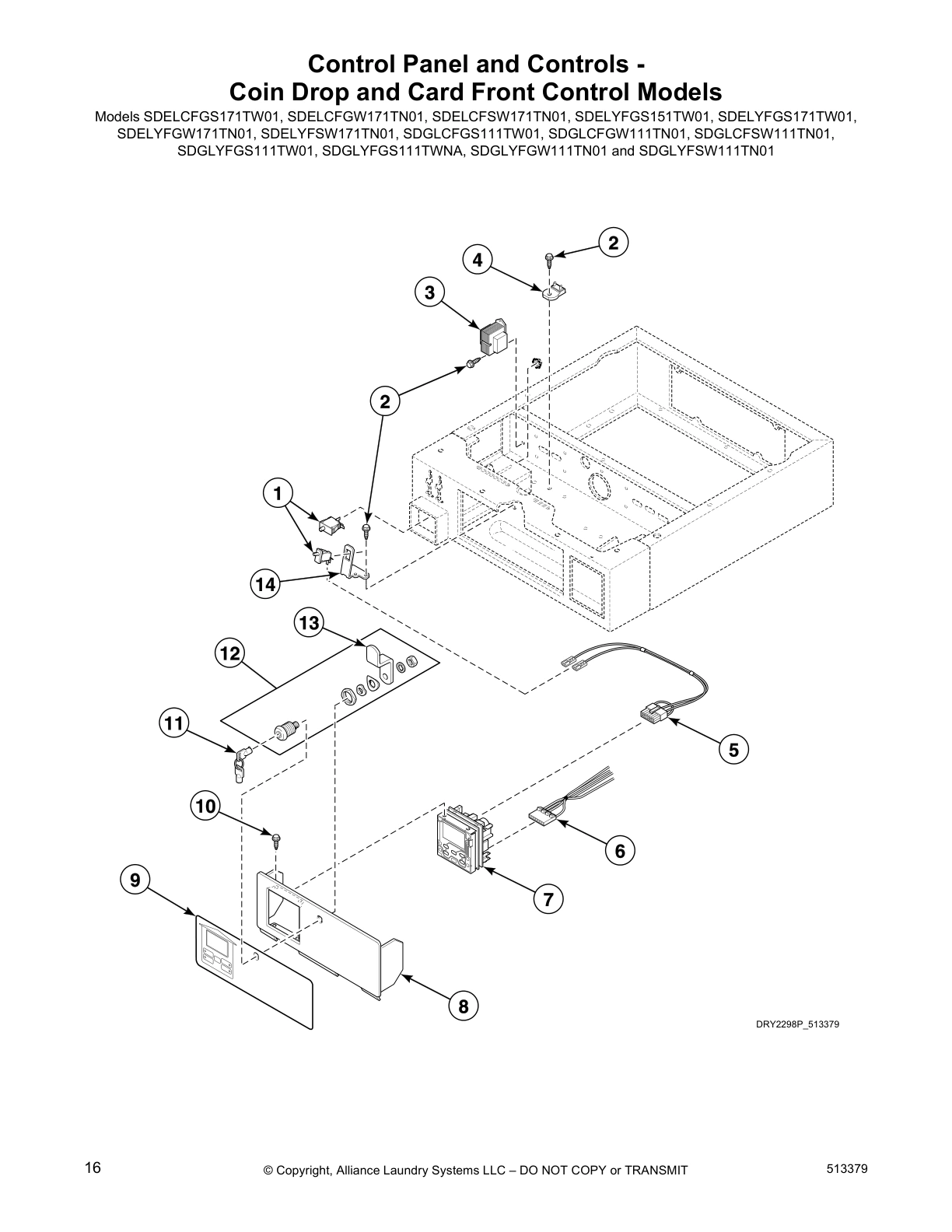

Coin Drop and Card Front Control Models

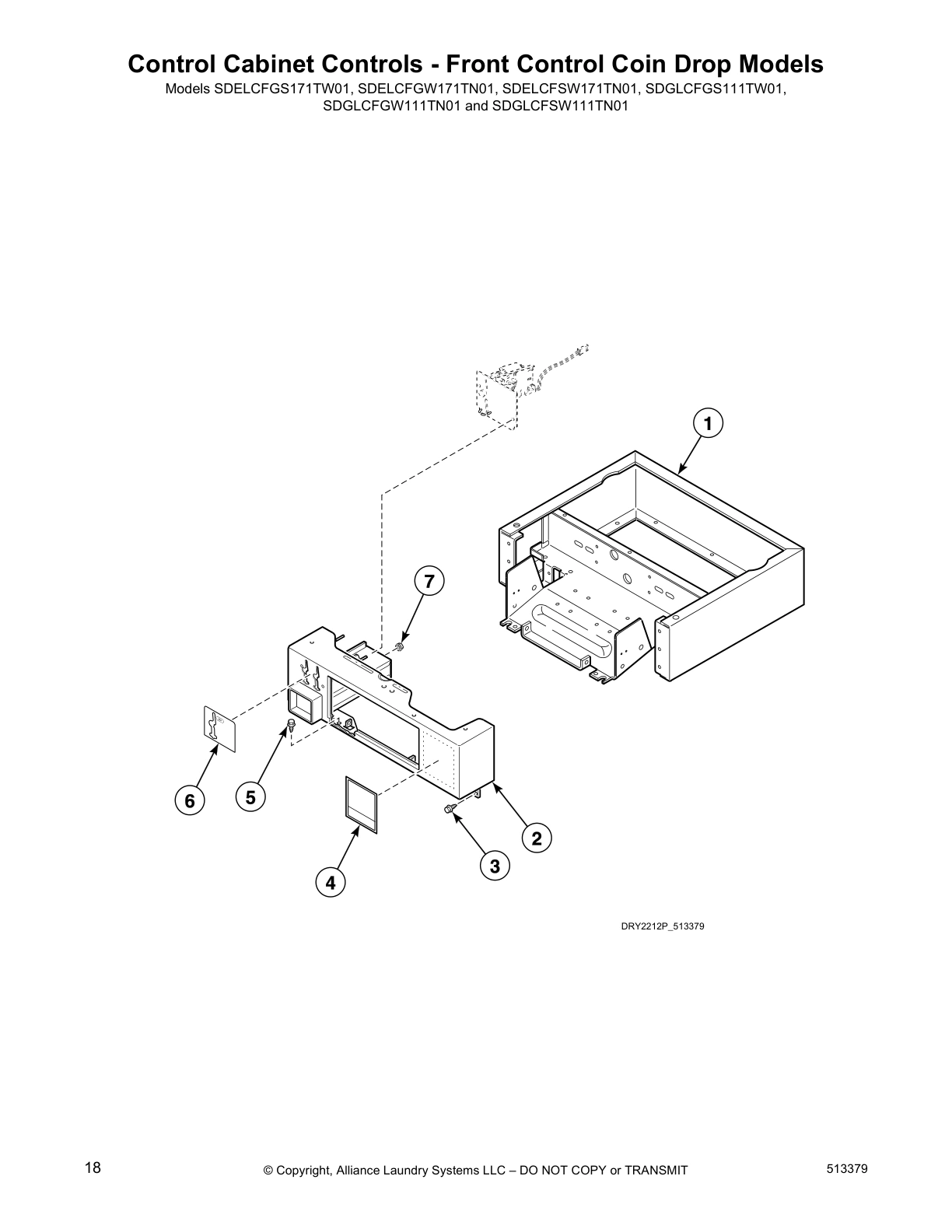

Control Cabinet Controls - Front Control Coin Drop Models

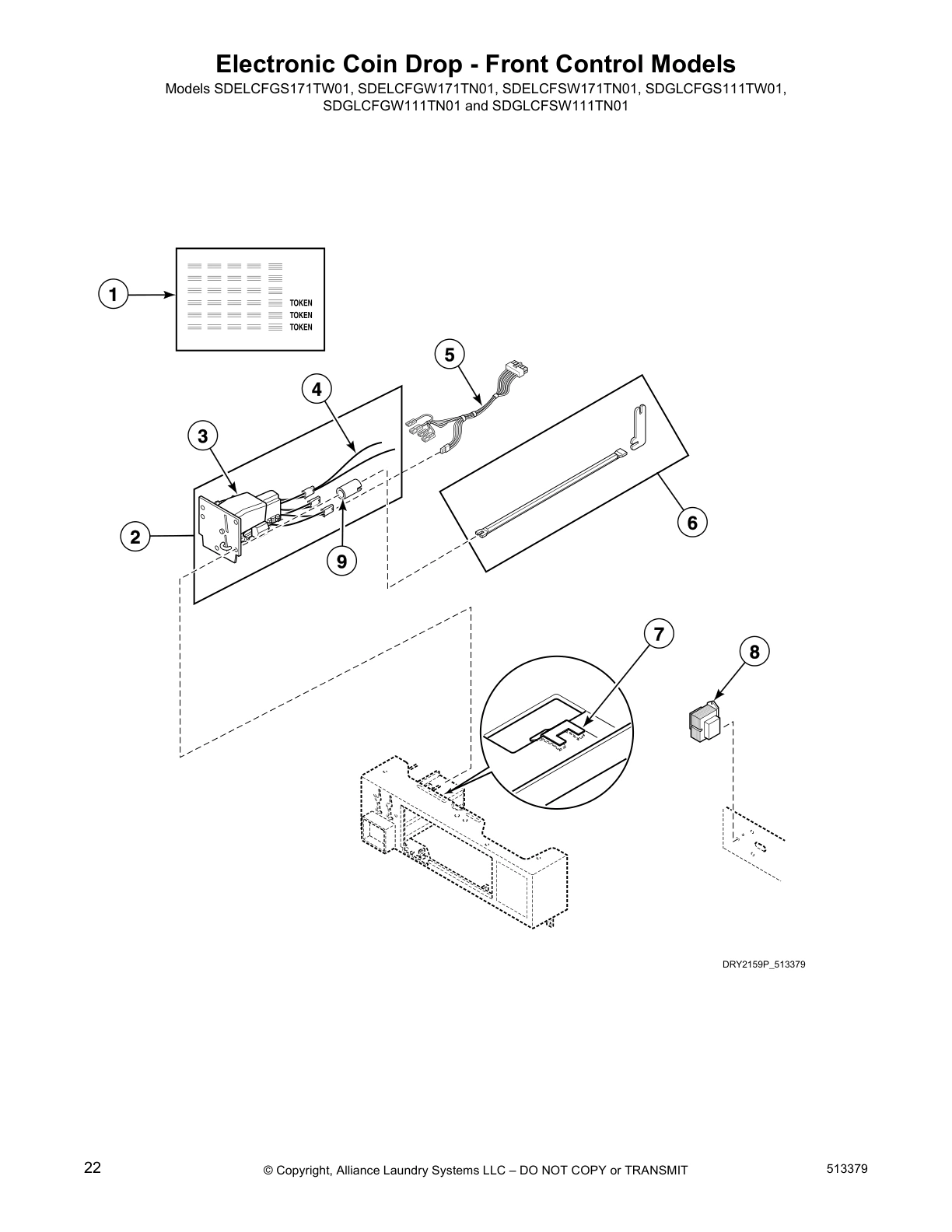

Electronic Coin Drop - Front Control Models

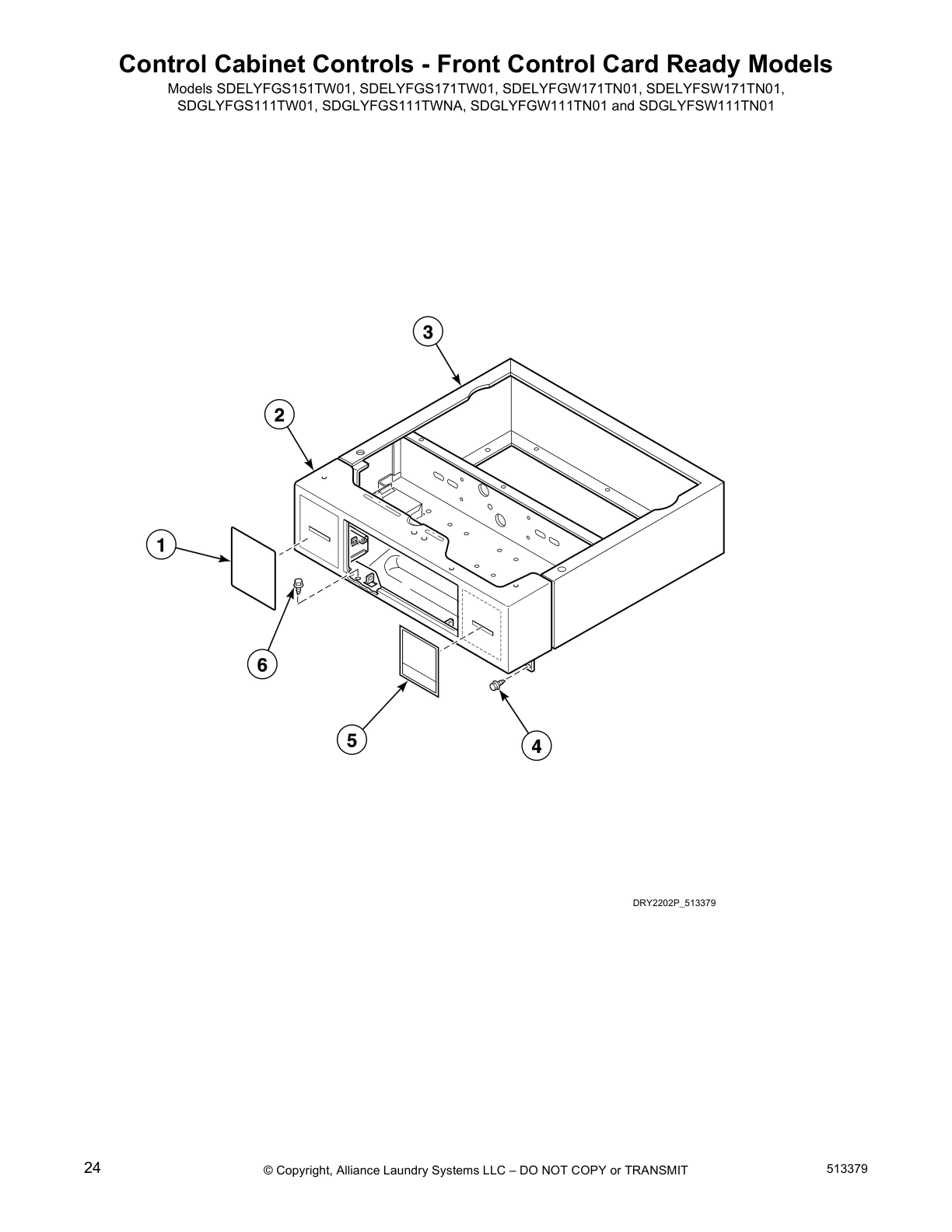

Control Cabinet Controls - Front Control Card Ready Models

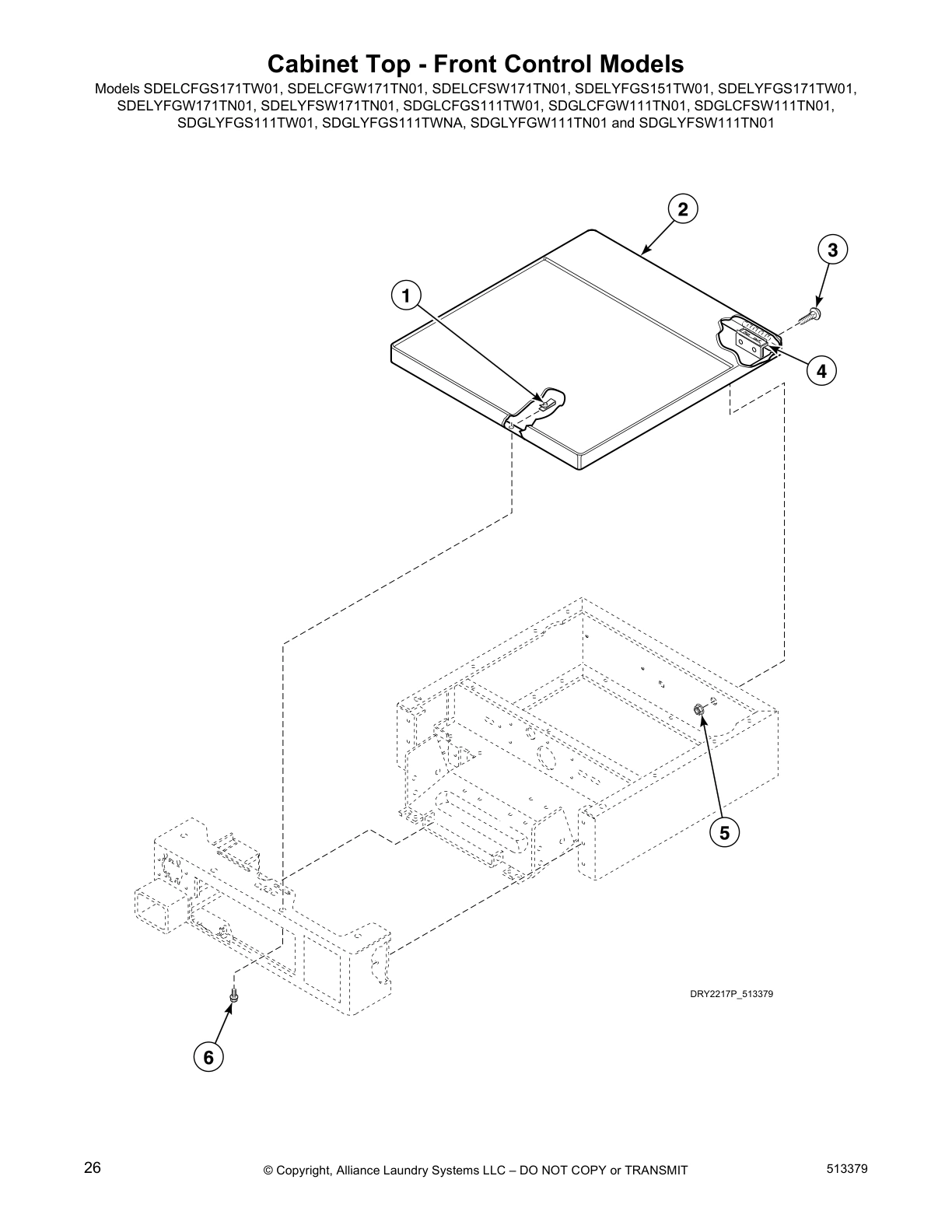

Cabinet Top - Front Control Models

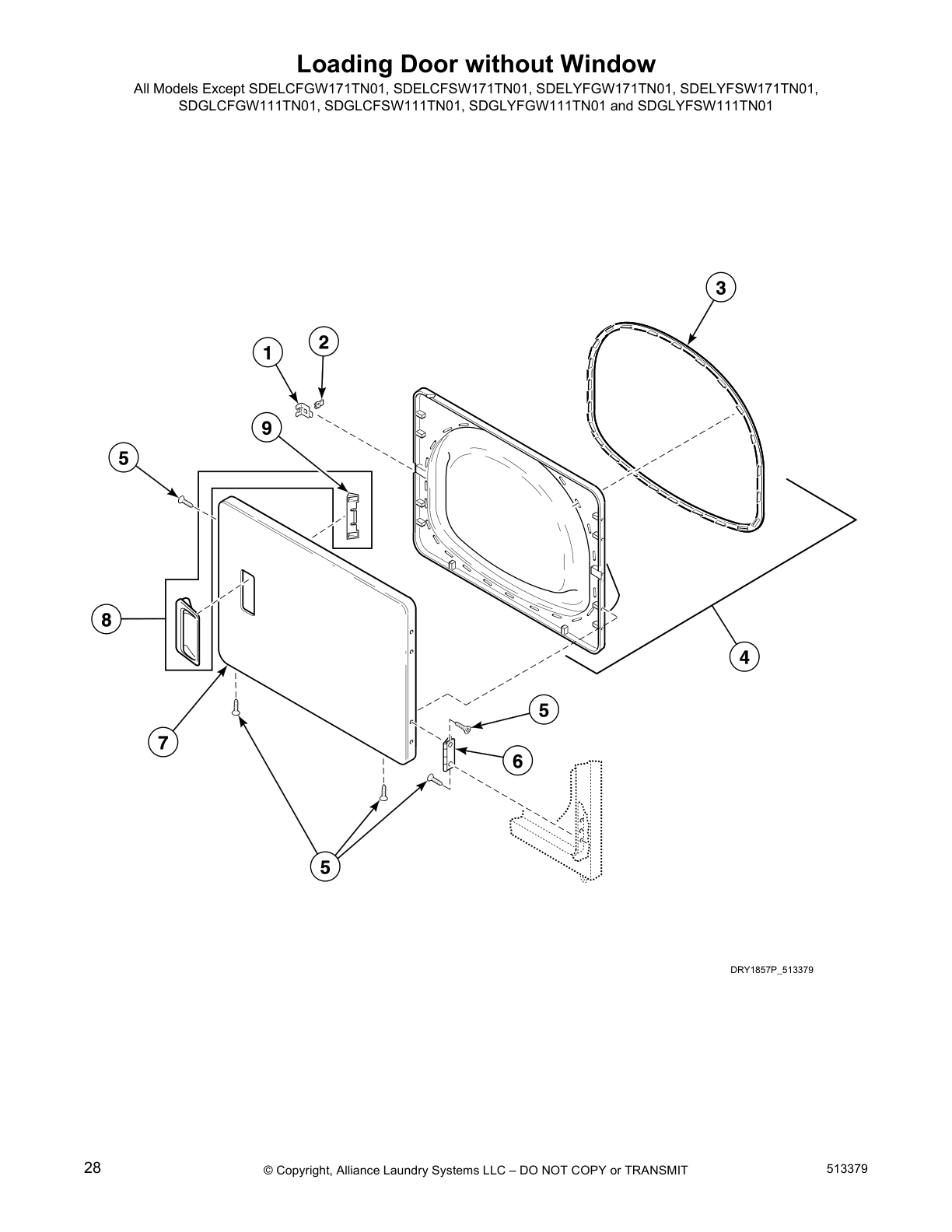

Loading Door without Window

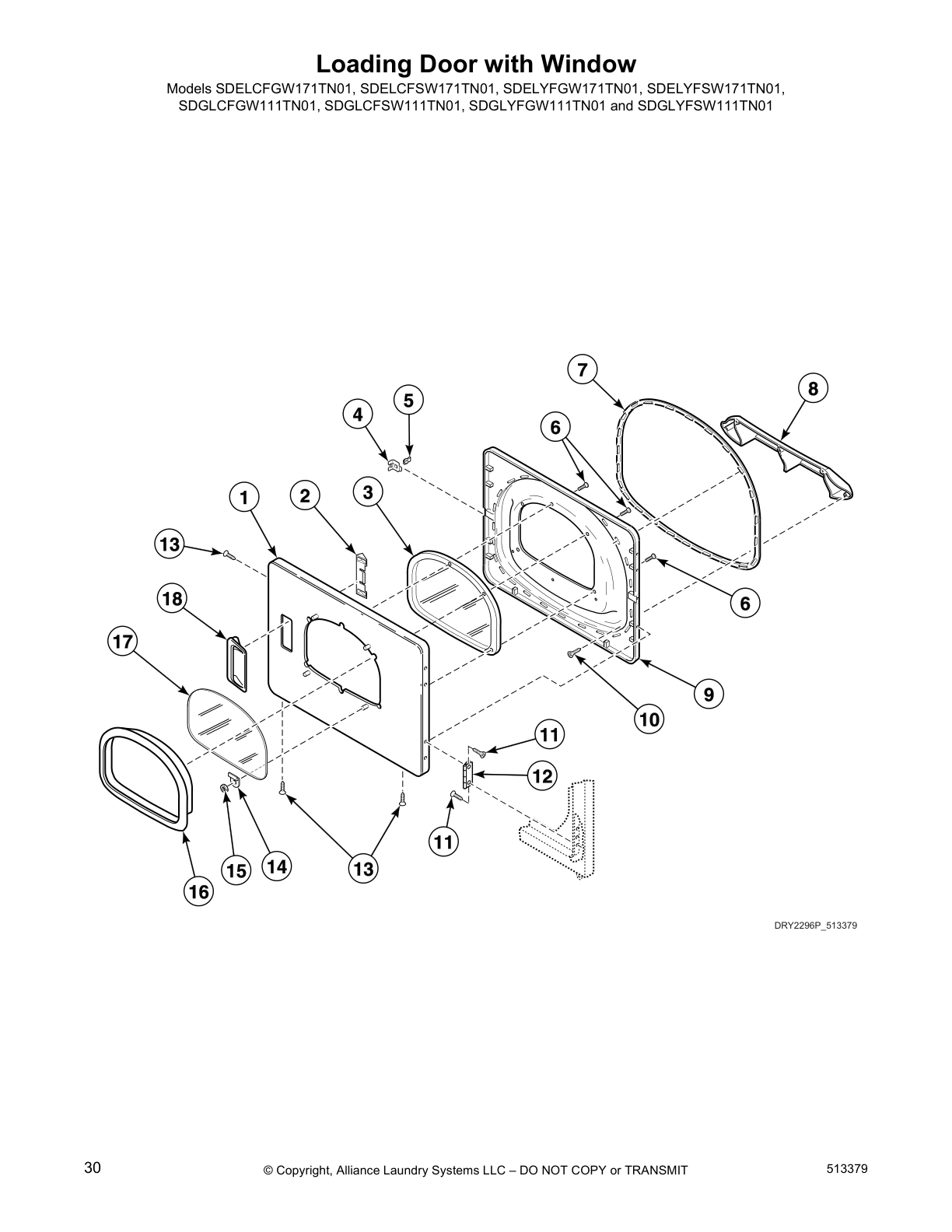

Loading Door with Window

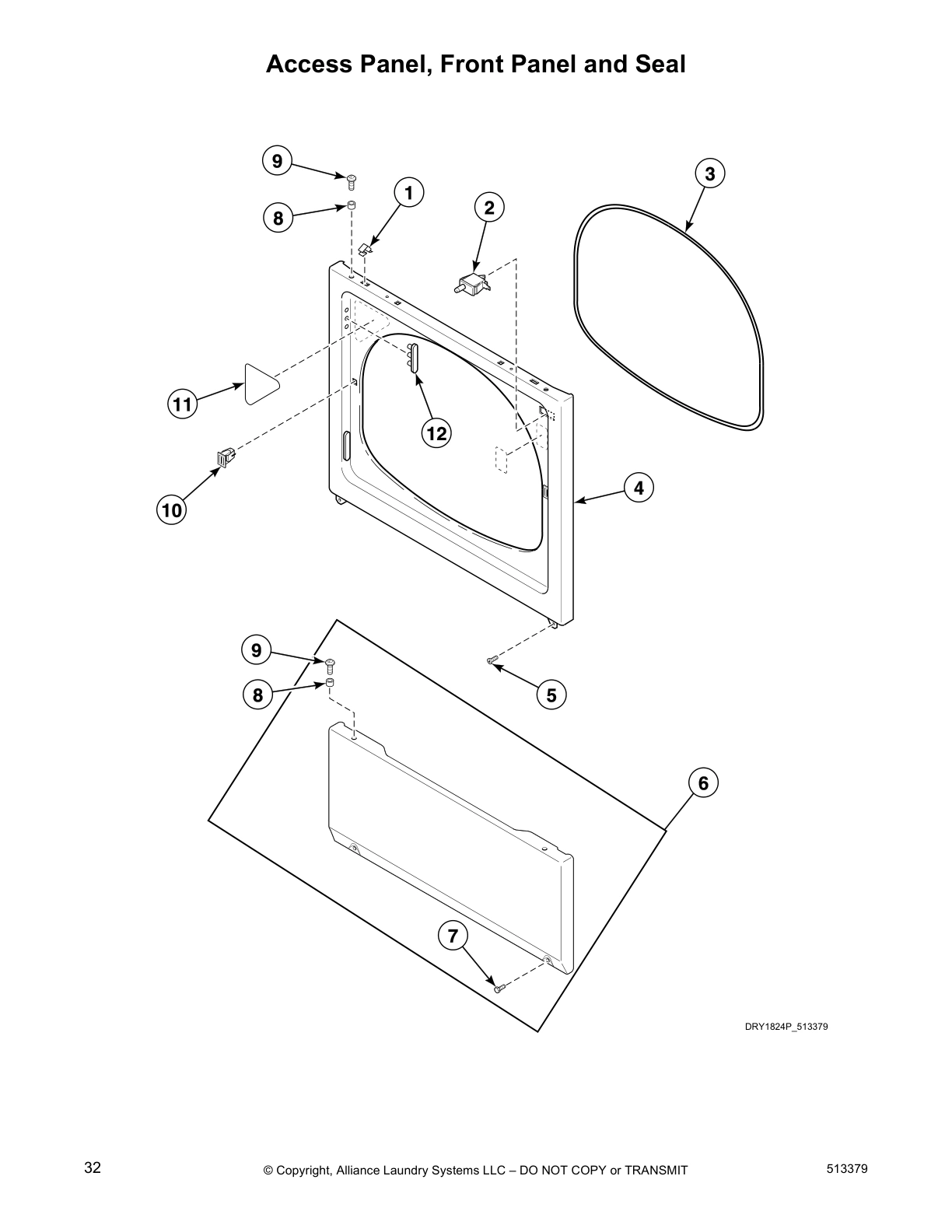

Access Panel, Front Panel and Seal

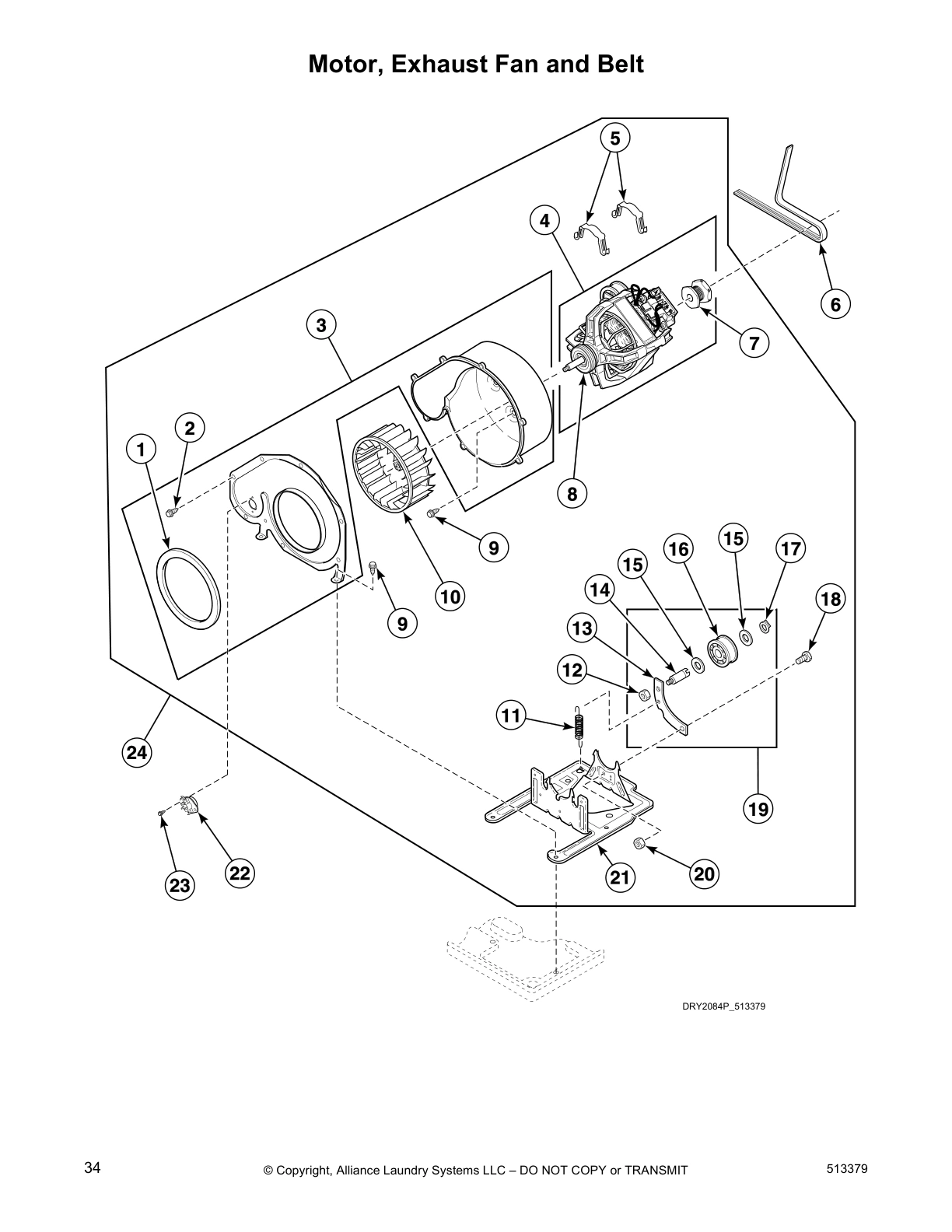

Motor, Exhaust Fan and Belt

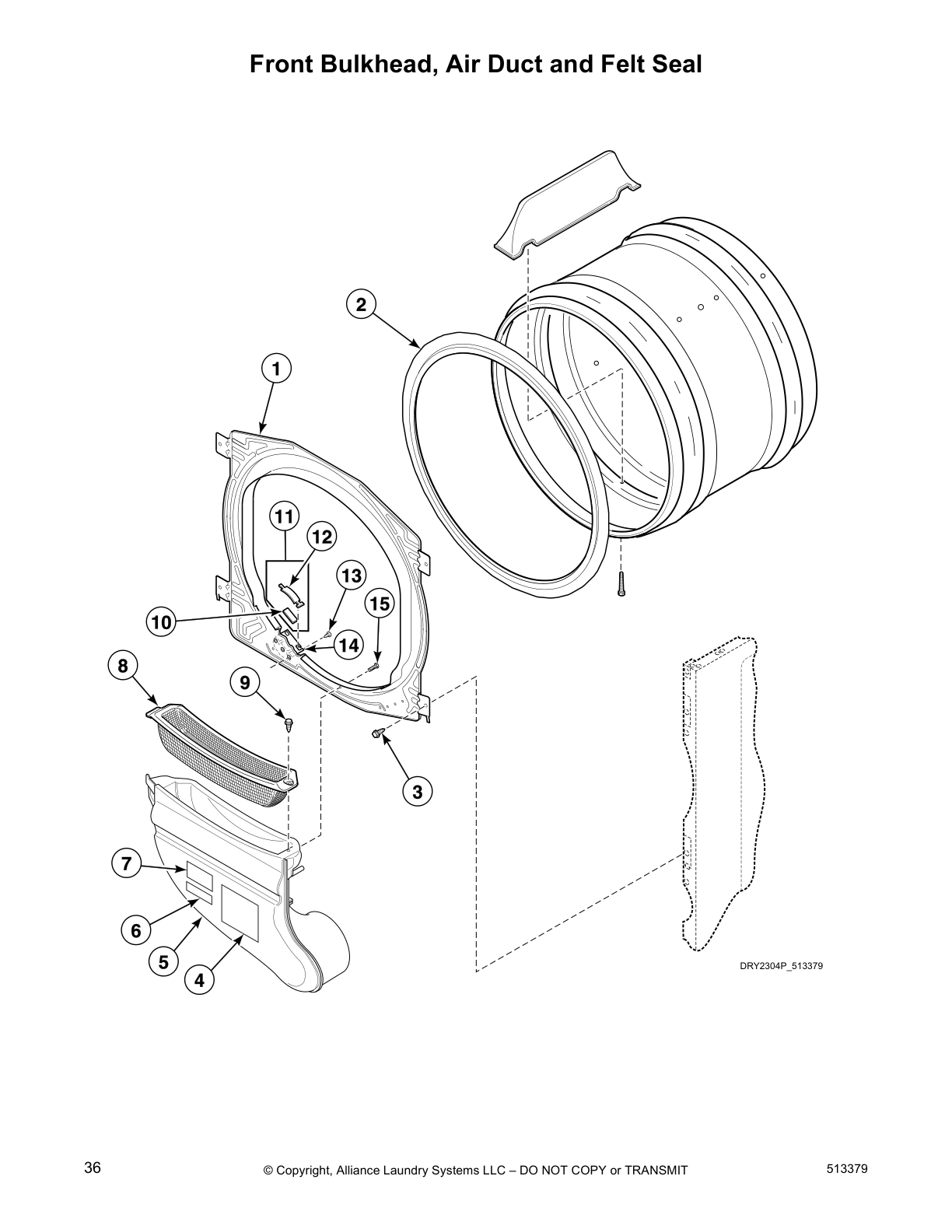

Front Bulkhead, Air Duct and Felt Seal
Cylinder Assembly

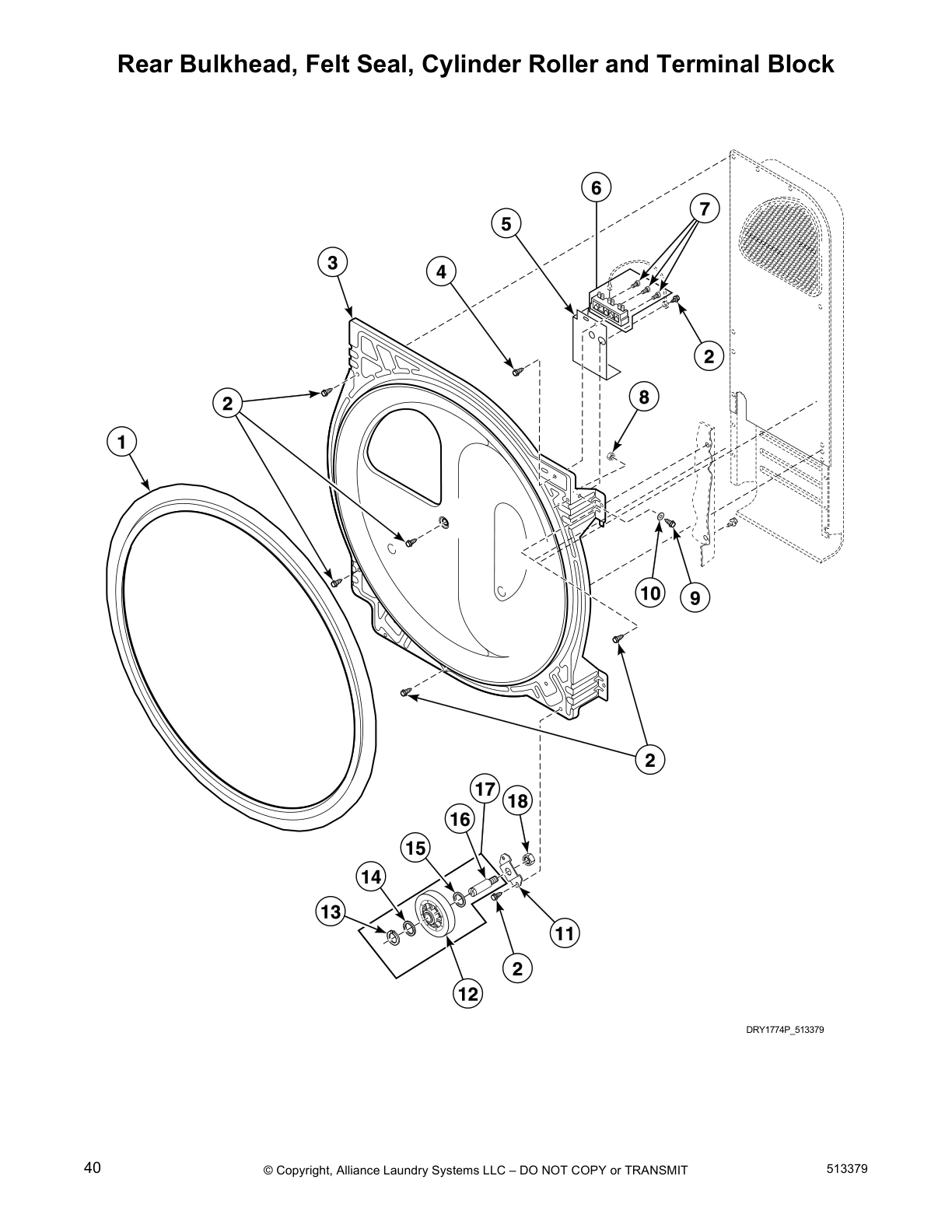

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

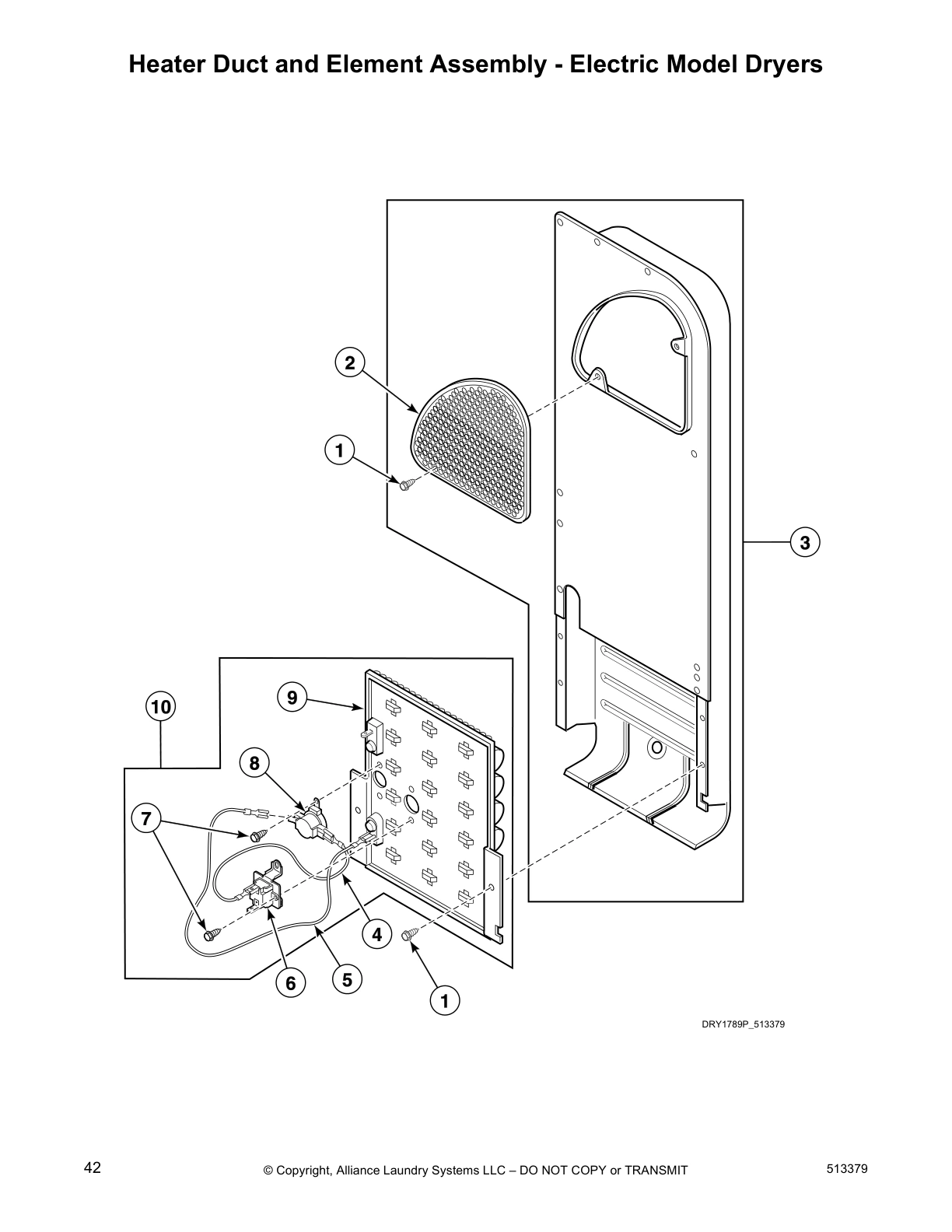

Heater Duct and Element Assembly - Electric Model Dryers

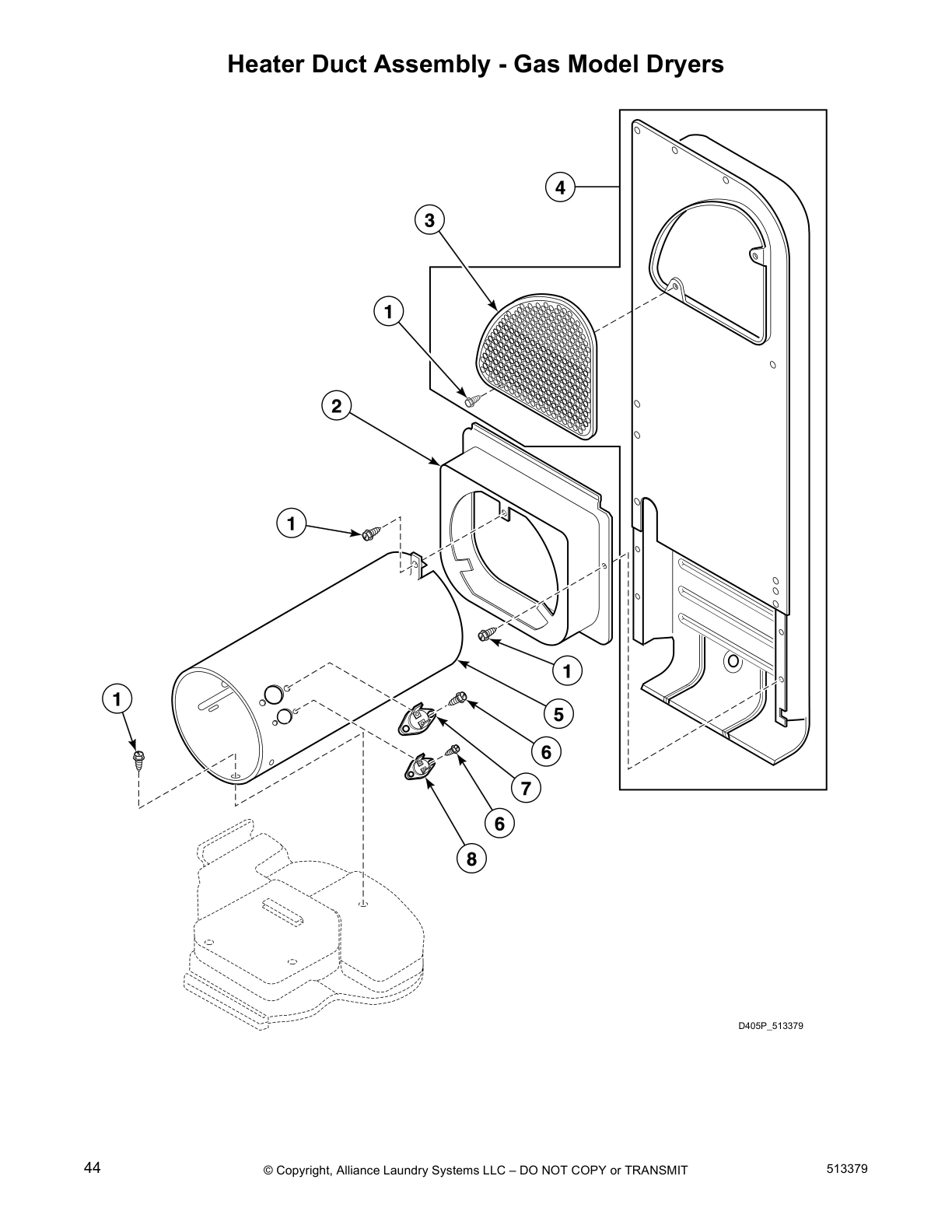

Heater Duct Assembly - Gas Model Dryers

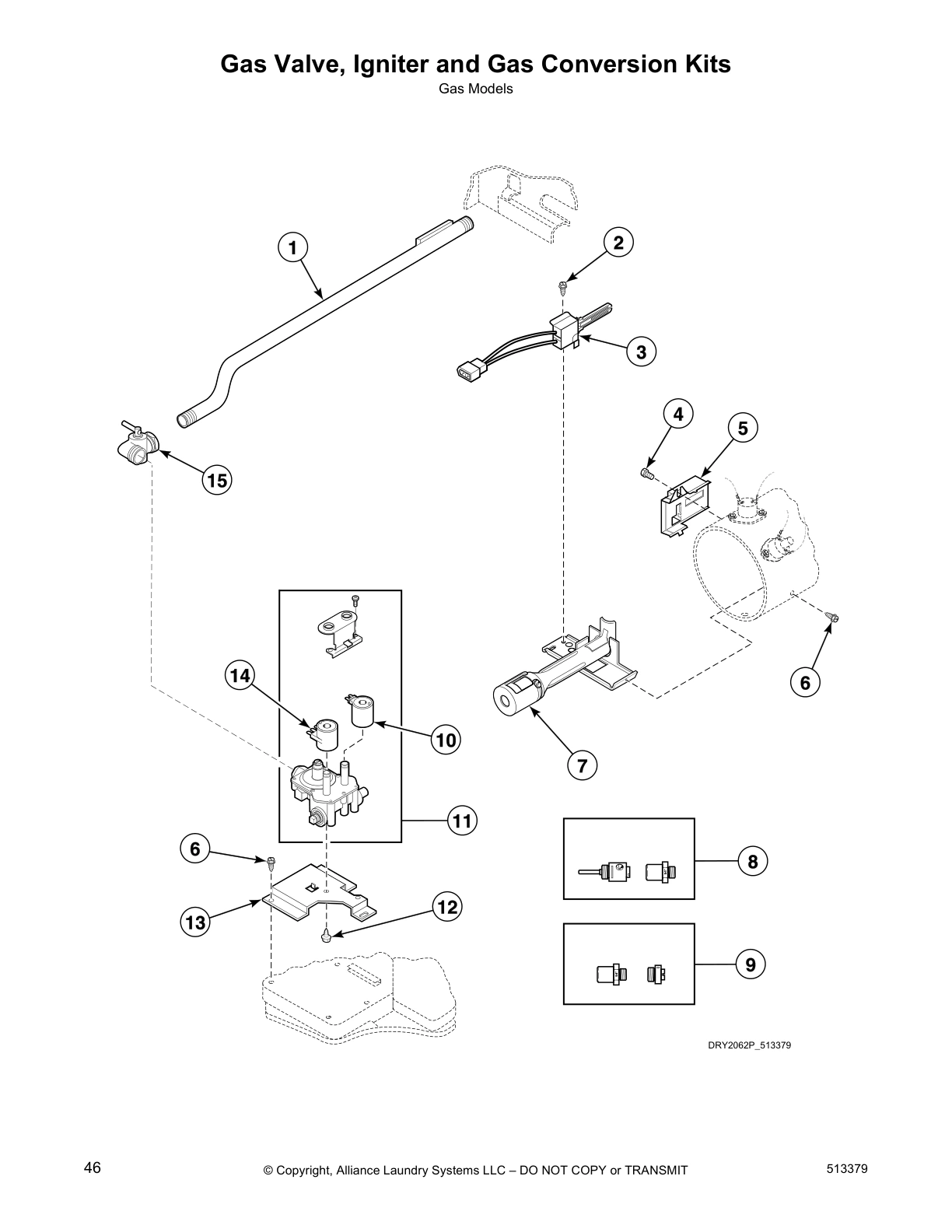

Gas Valve, Igniter and Gas Conversion Kits

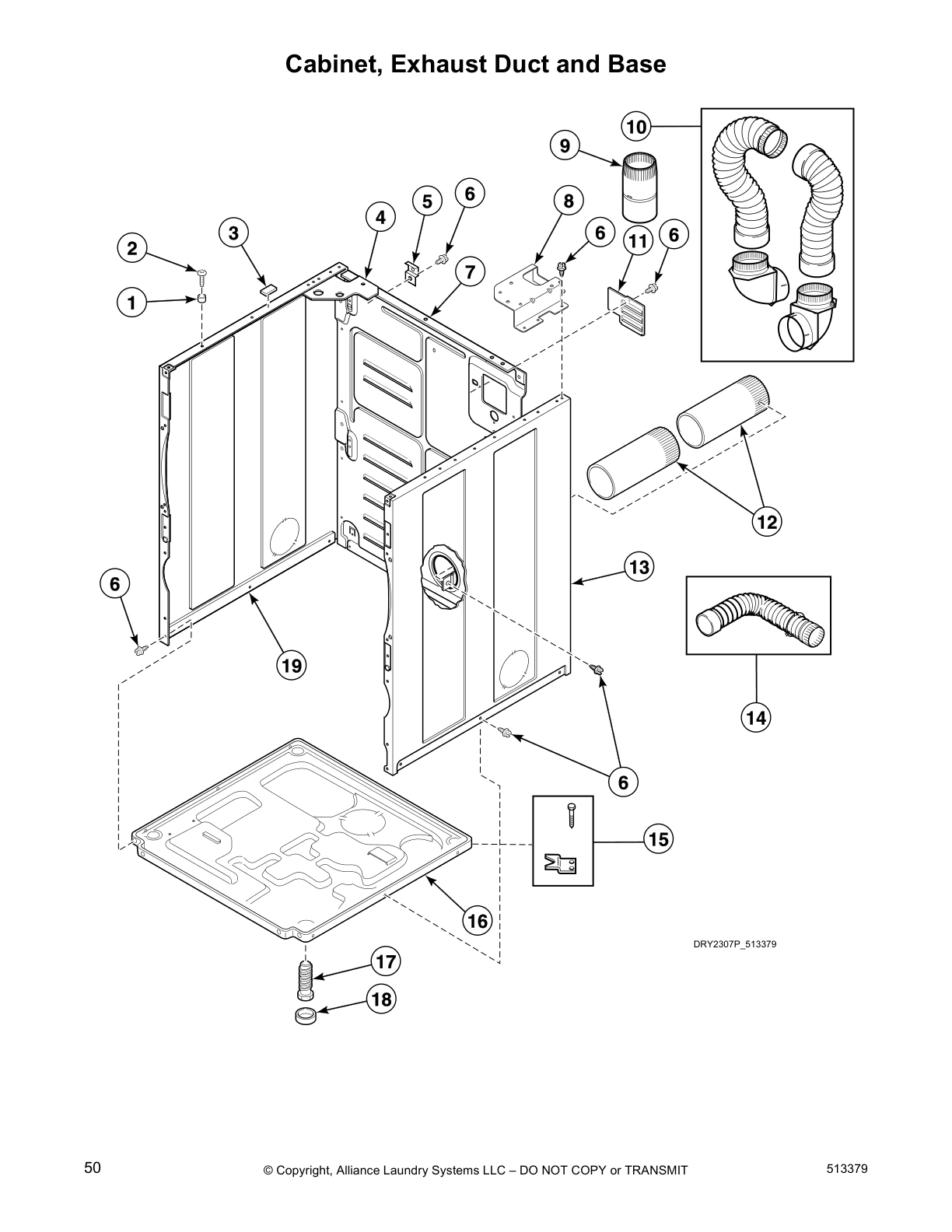

Cabinet, Exhaust Duct and Base

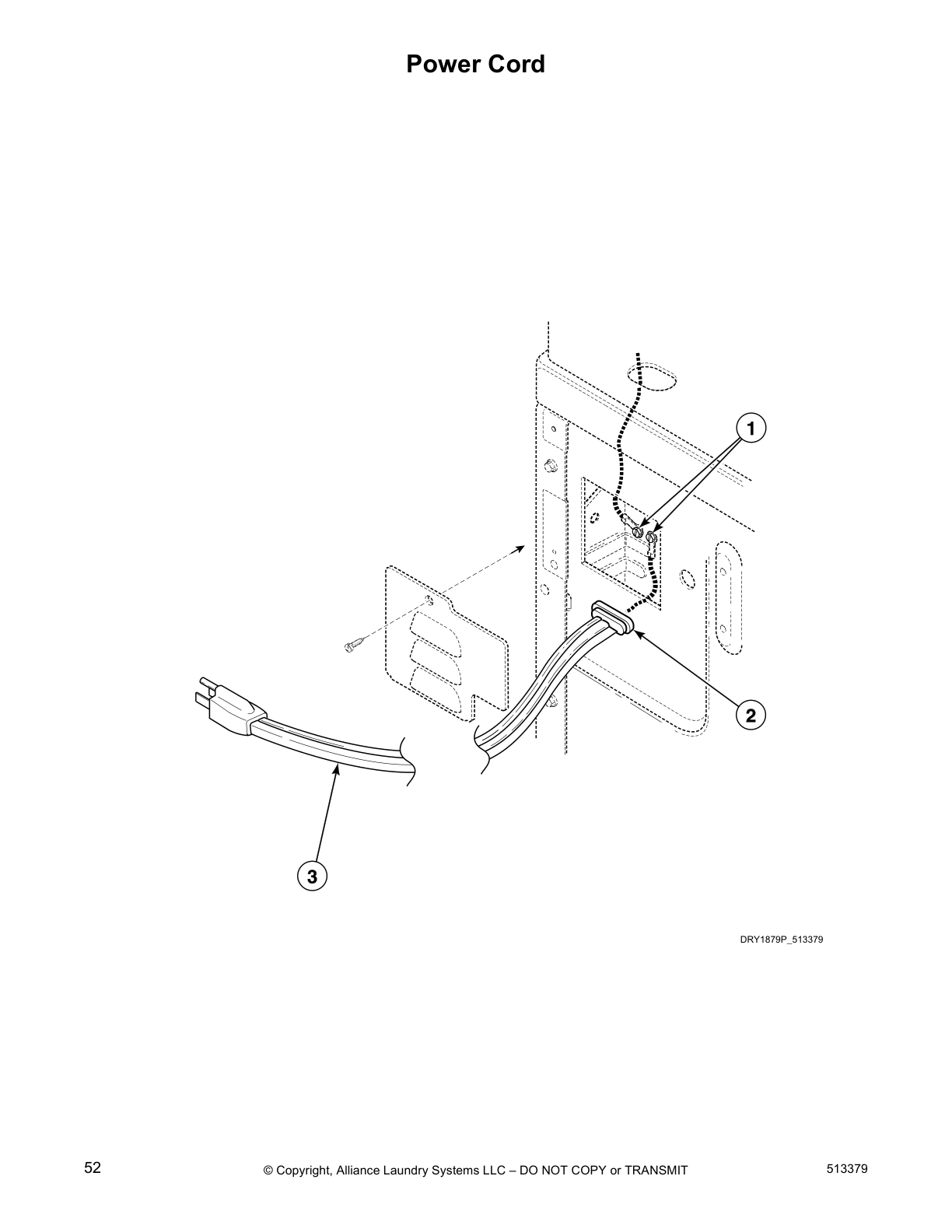

Power Cord

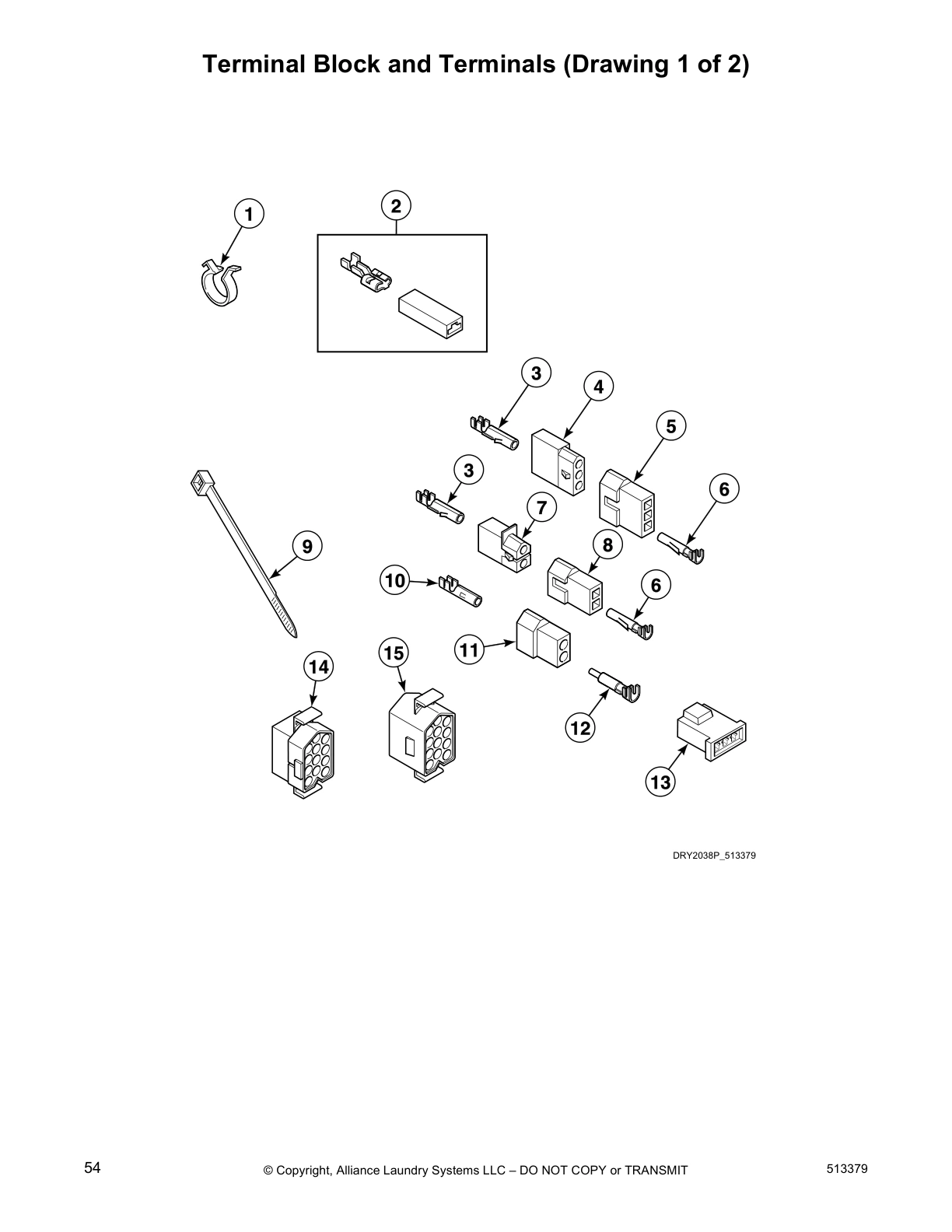

Terminal Block and Terminals (Drawing 1 of 2)

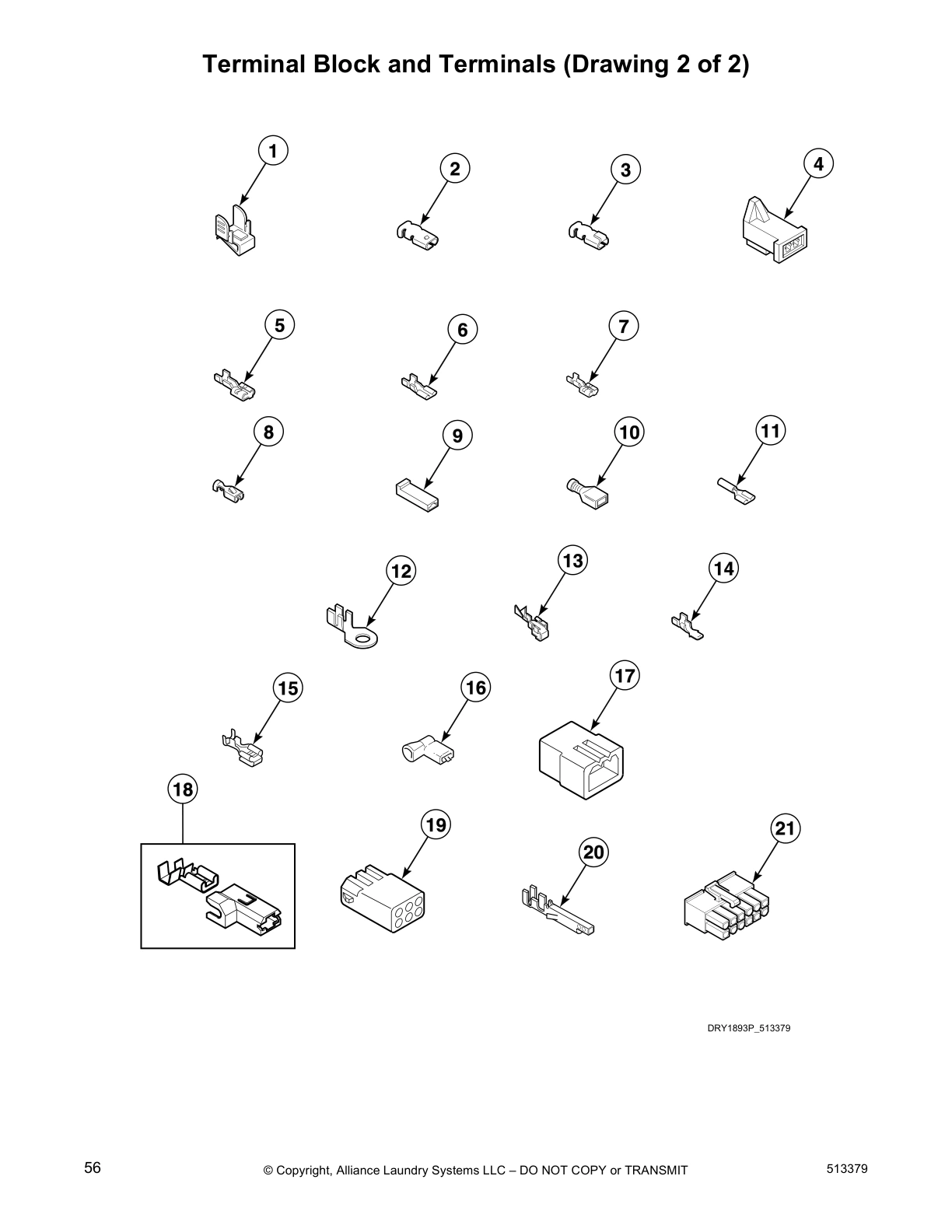

Terminal Block and Terminals (Drawing 2 of 2)

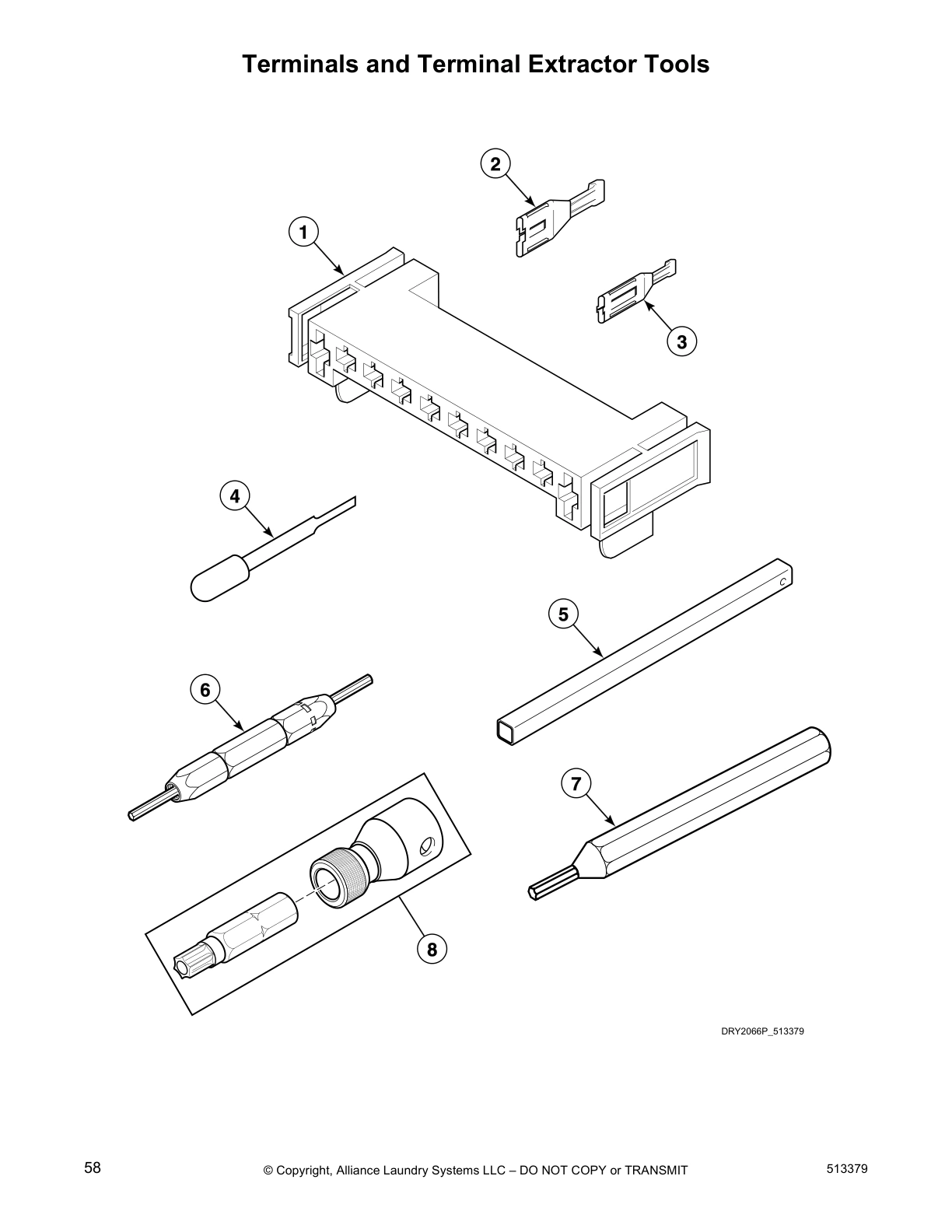

Terminals and Terminal Extractor Tools

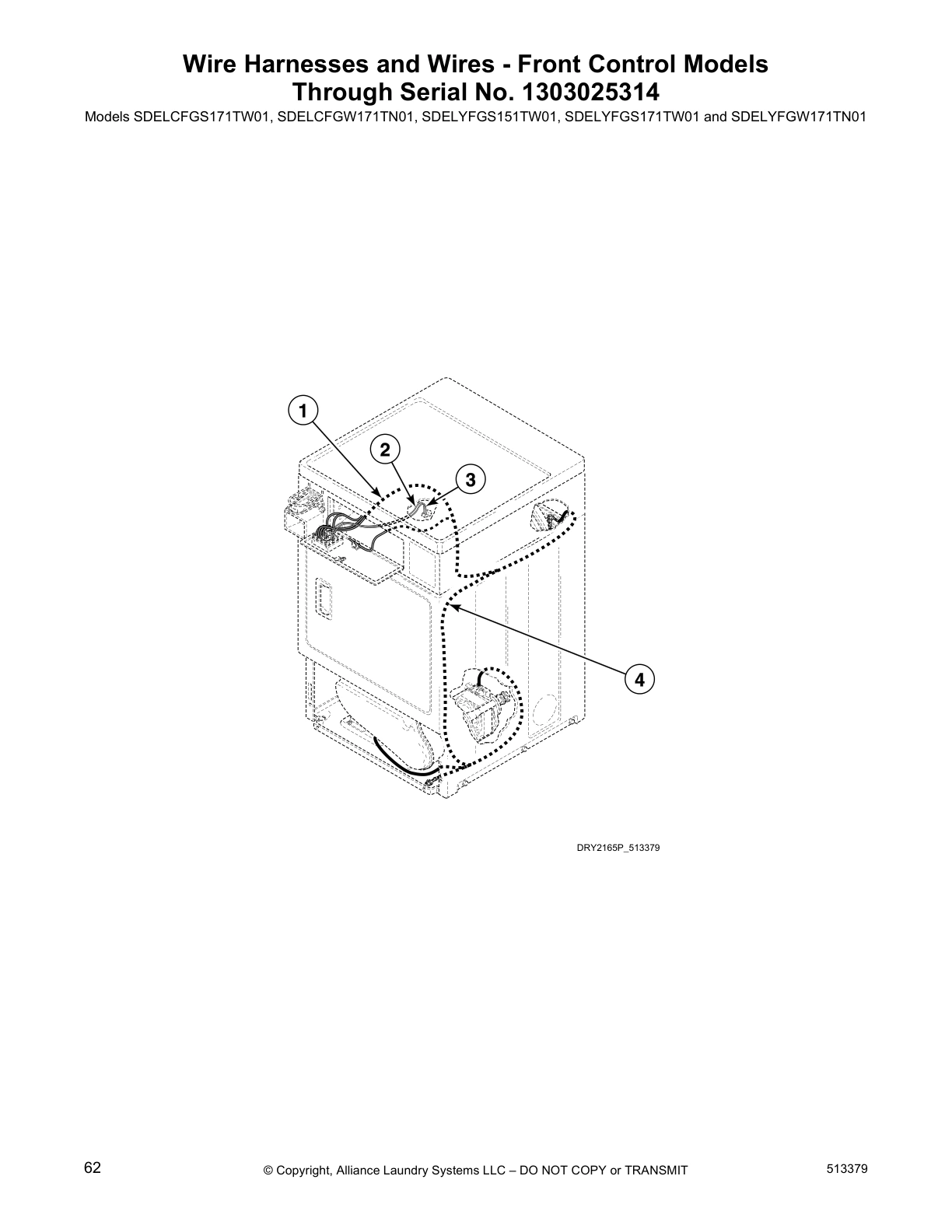

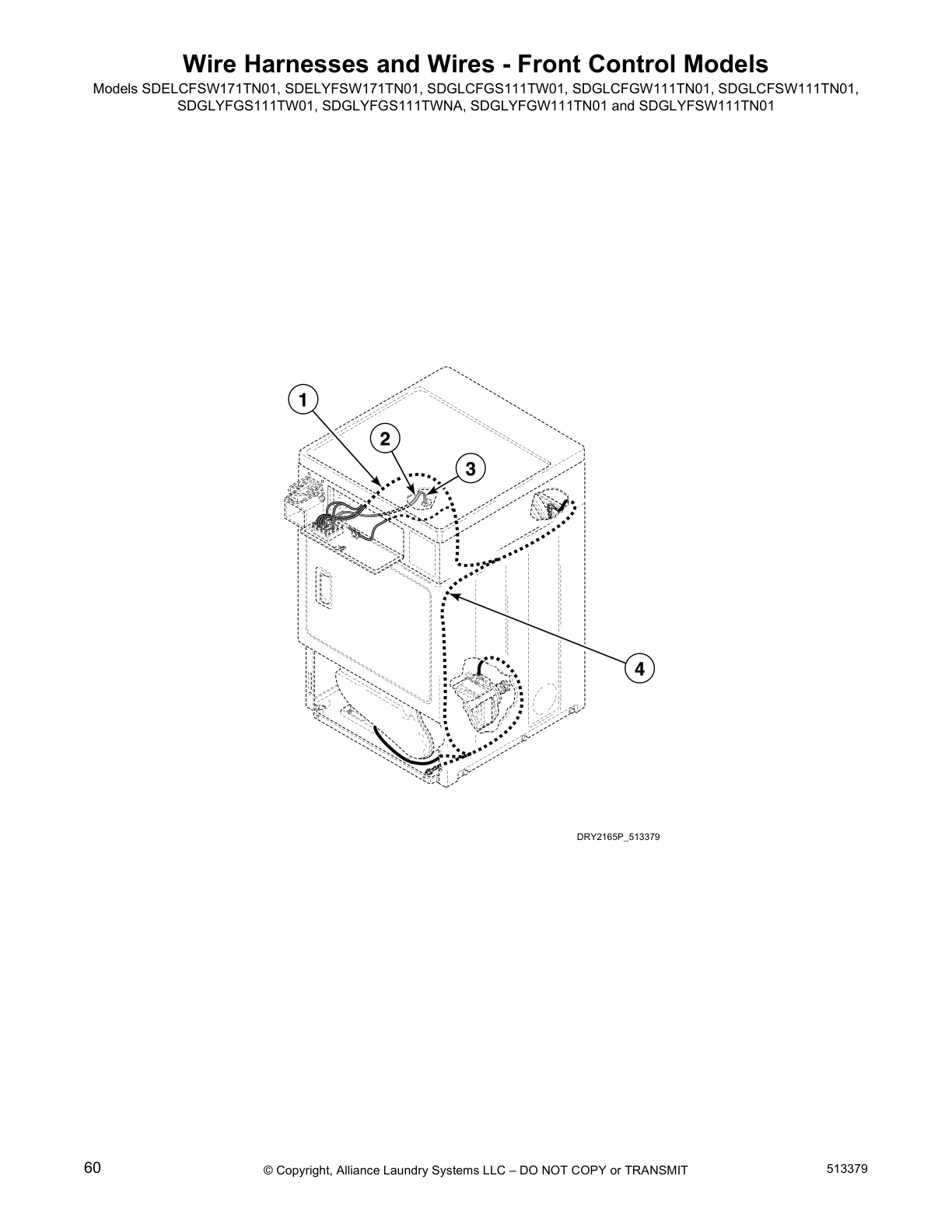

Wire Harnesses and Wires - Front Control Models
Wire Harnesses and Wires - Front Control Models
Through Serial No. 1303025314
Wire Harnesses and Wires - Front Control Models

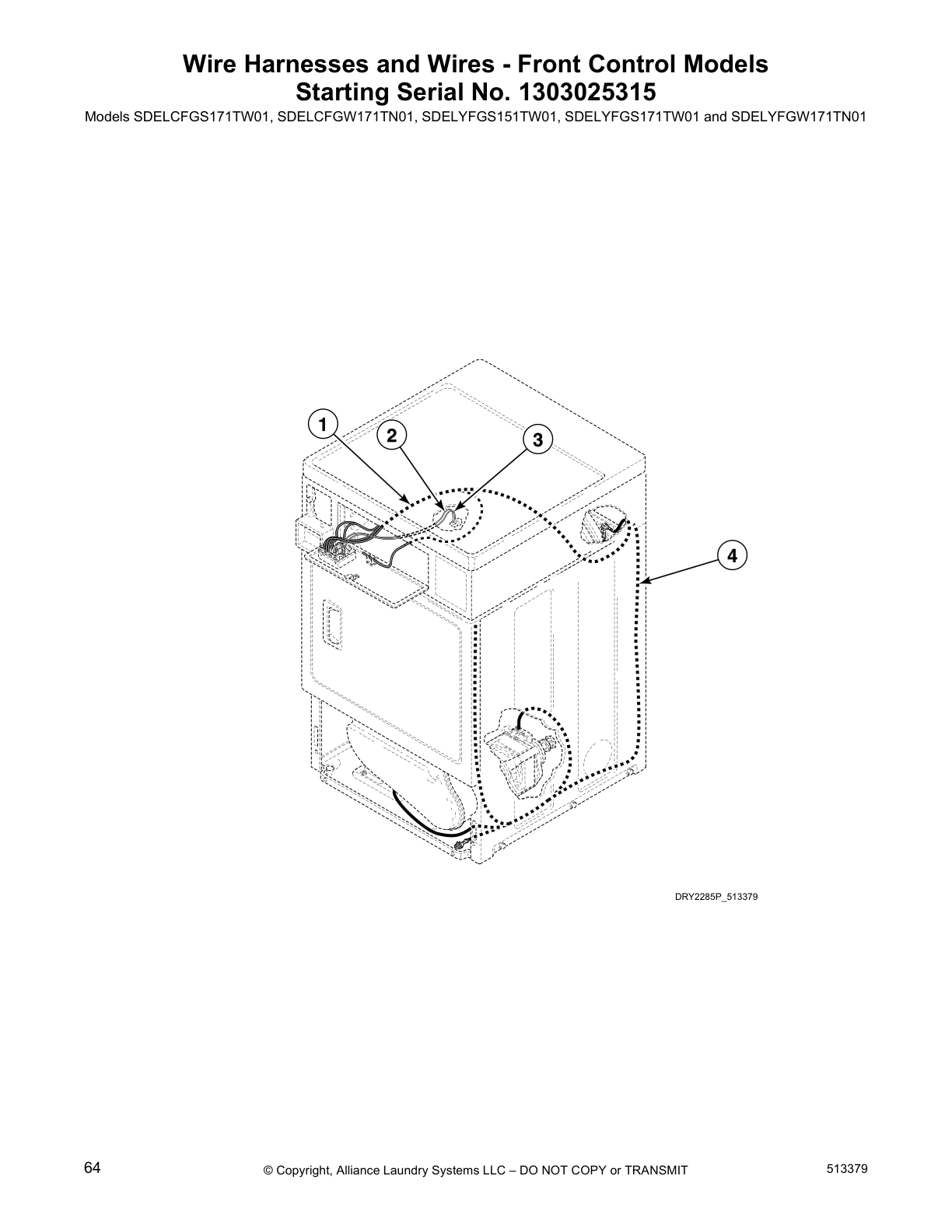

Starting Serial No. 1303025315

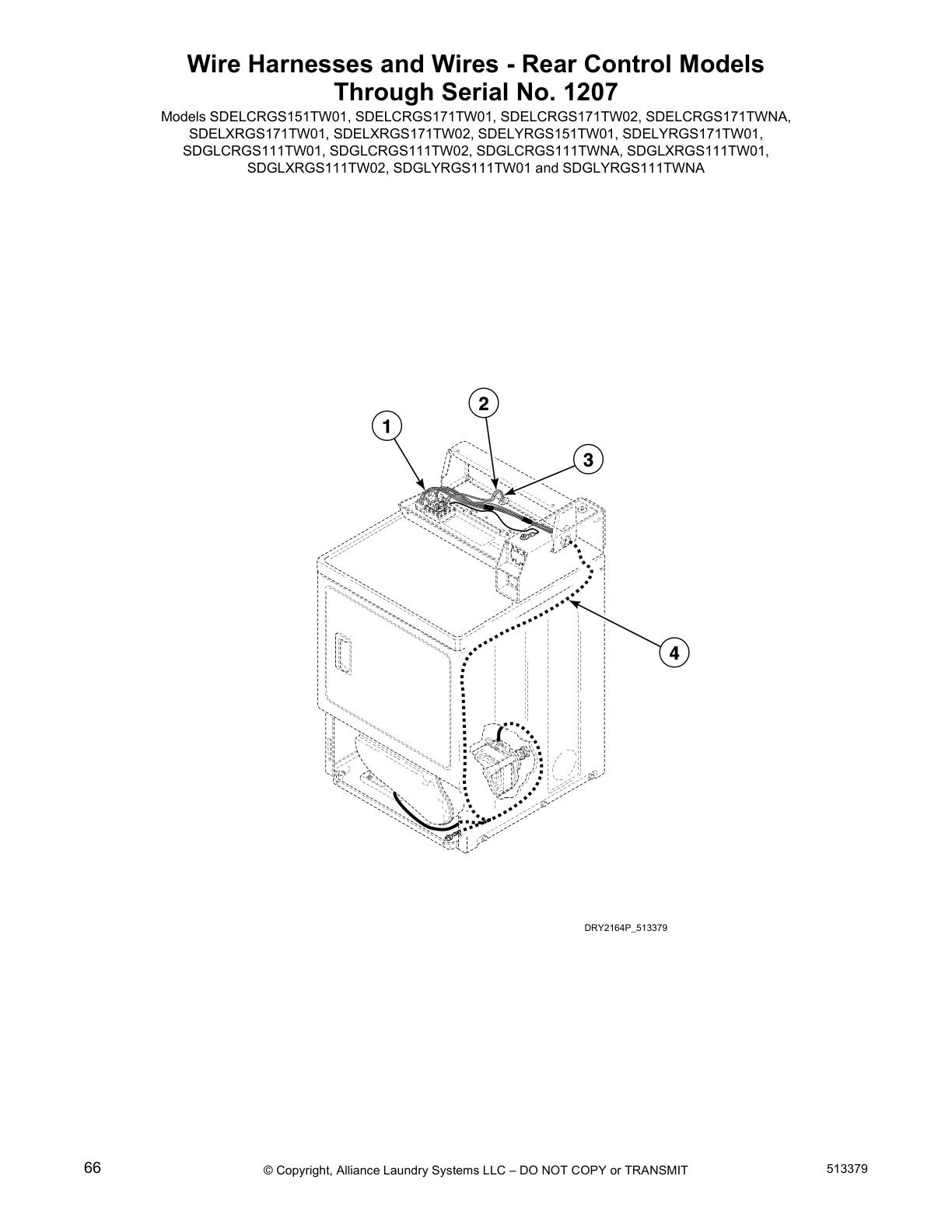

Wire Harnesses and Wires - Rear Control Models
Through Serial No. 1207

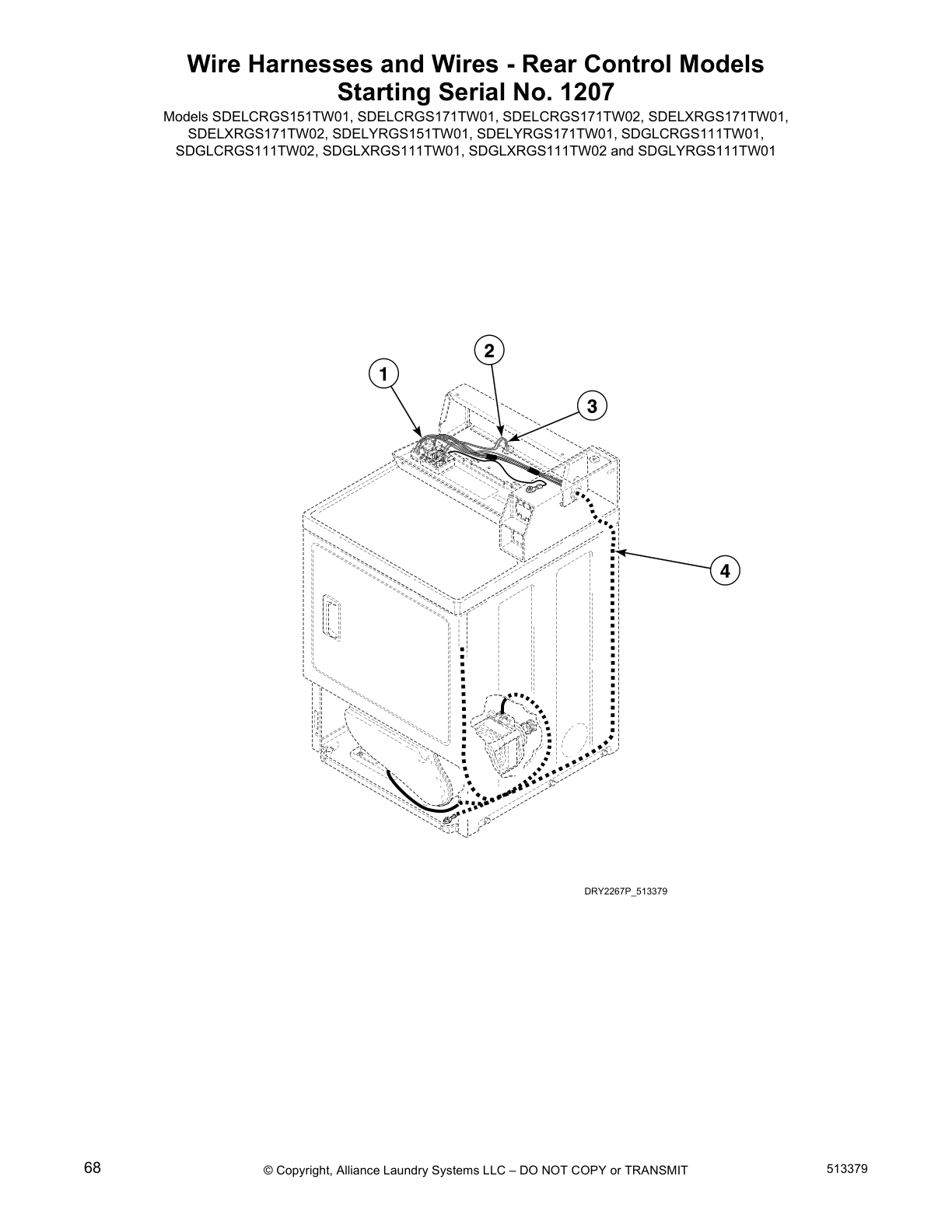

Wire Harnesses and Wires - Rear Control Models
Starting Serial No. 1207
Common parts from model Speed Queen SDELYFGW171TN01 Dryer
1
Wire Harness Assembly SPQ 512422P Contact Us For Availability
5
Wire Assembly SPQ 510528 Contact Us For Availability
6
Wire Assembly SPQ 510527 Contact Us For Availability
9
Door Handle Wedge SPQ 510129 Contact Us For Availability
13
Idler Lever SPQ 510133 Contact Us For Availability
21
Blower and Fan Kit SPQ 510060 Contact Us For Availability
NI
SPQ 62853 SPQ 62853 Contact Us For Availability
× ![]()
