Model Whirlpool RT21DKXGN01 – Common Parts & Diagrams
05 - SHELF, LIT/OPTIONAL
03 - LINER

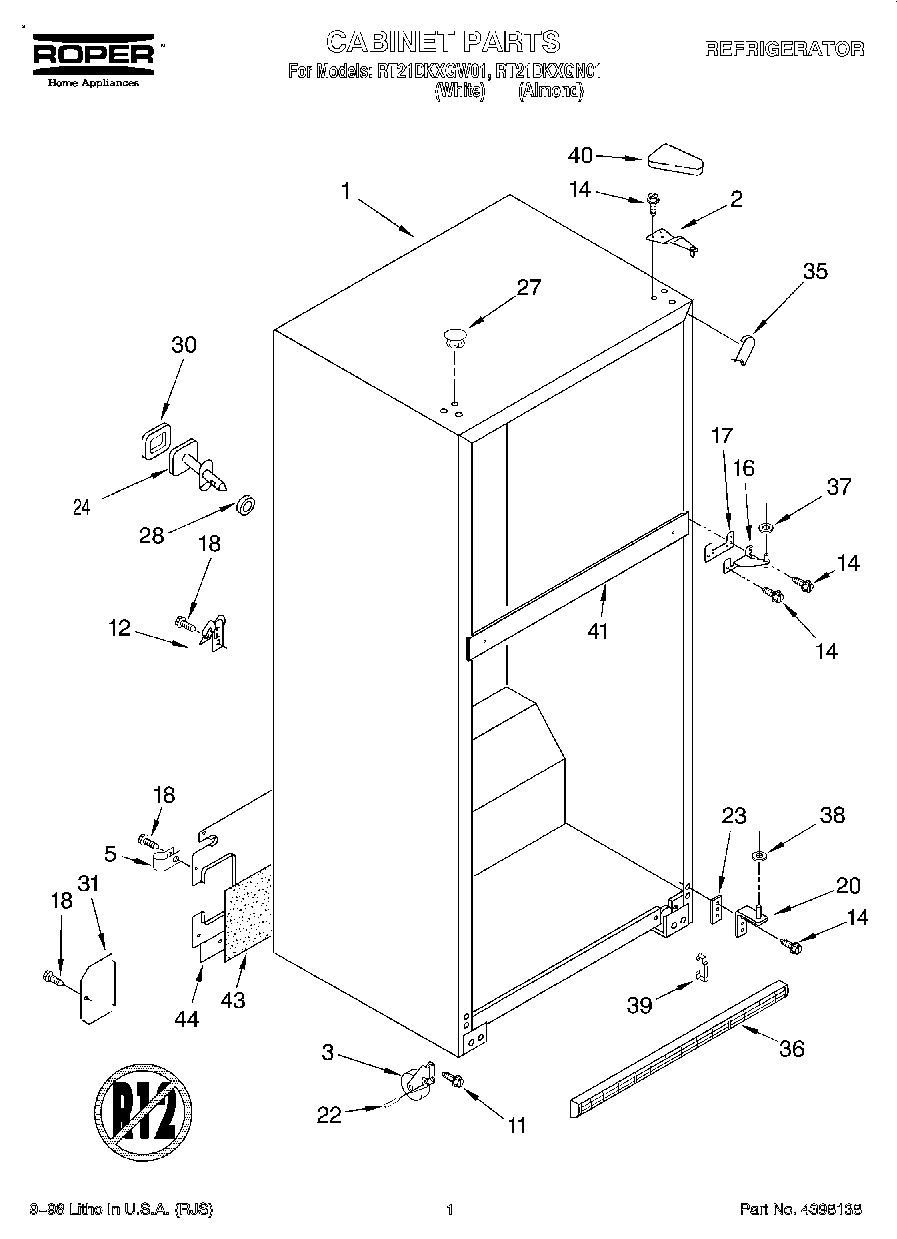

01 - CABINET

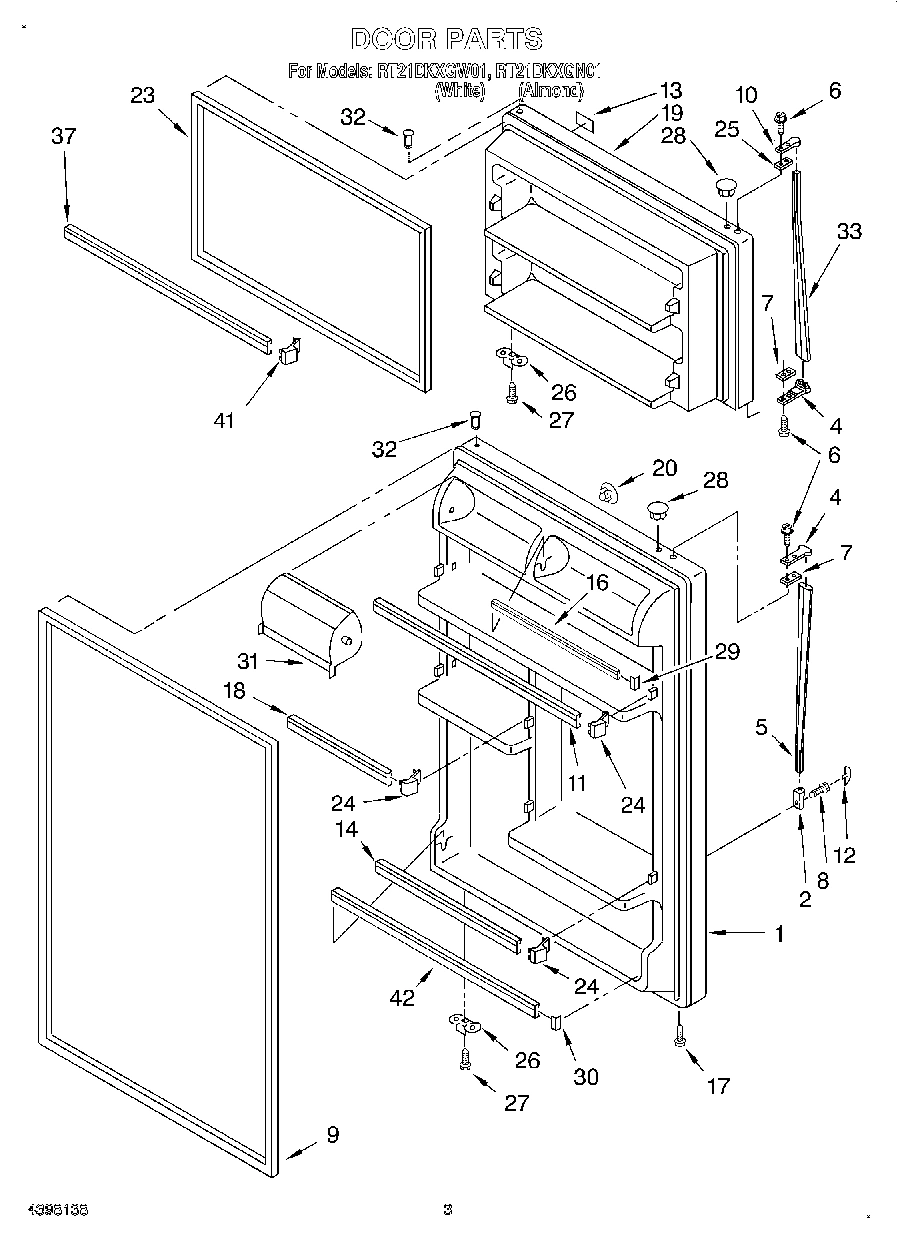

02 - DOOR

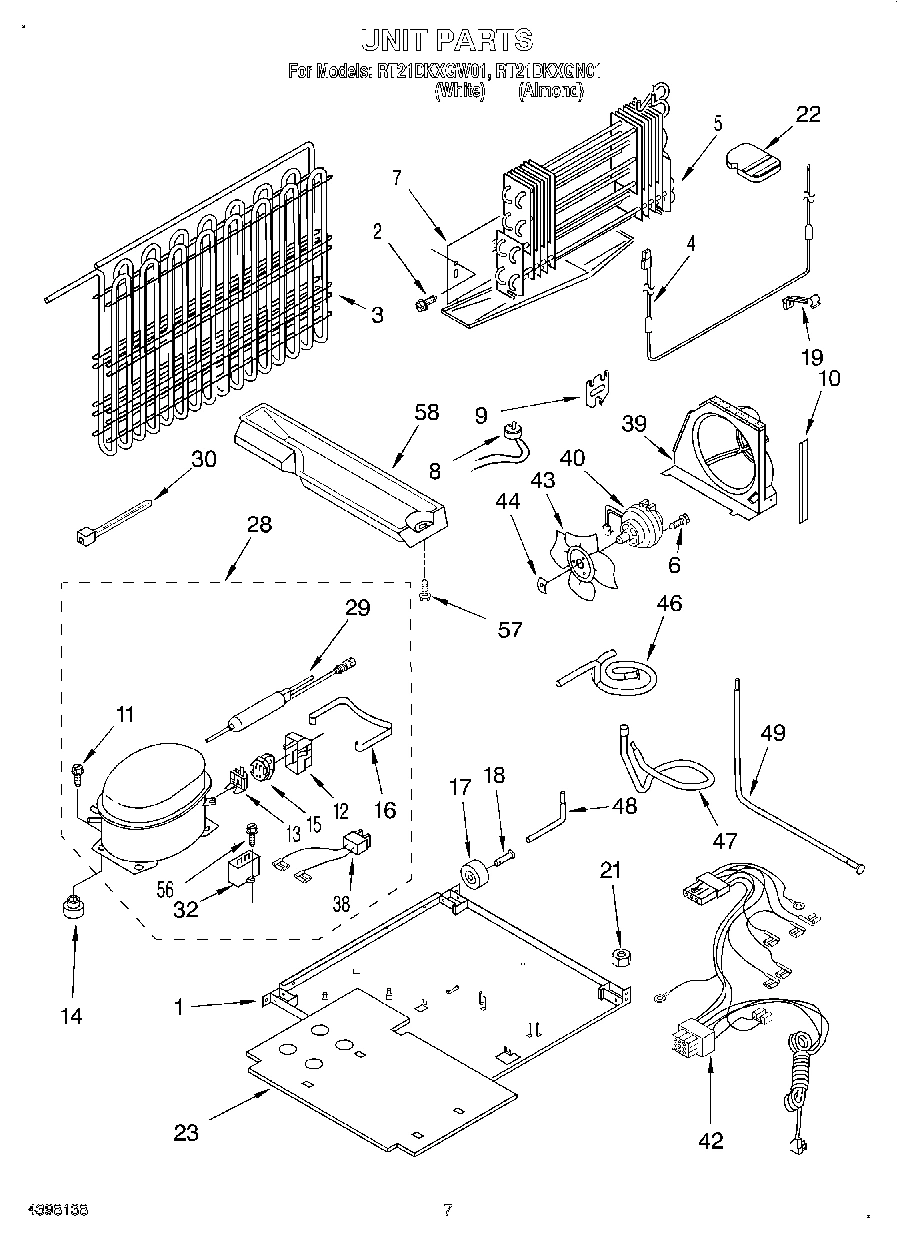

04 - UNIT
Common parts from model Whirlpool RT21DKXGN01
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.32) (Wh WPL 2183946 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.32) (Al WPL 2183947 Contact Us For Availability
1
Plate, Unit Mounting WPL 2188167 Contact Us For Availability
3
Screw Support Center WPL 2189314 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
5
Handle, Center WPL 1109166 Contact Us For Availability
5
Evaporator Assy. WPL 2195390 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
8
Cover, Meat Pan WPL 2163848 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Shelf, Full Cantilever WPL 2195398 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Trim, Door Shelf WPL 2195944 Contact Us For Availability
11
Screw WPL 489473 Contact Us For Availability
12
Cover WPL 1105055 Contact Us For Availability
13
Thermostat Assy. (Includes Items 5, 18 & 36) WPL 2200859 Contact Us For Availability
13
Nameplate WPL 2163676 Contact Us For Availability
16
Cover, Strap WPL 943322 Contact Us For Availability
18
Trim, Door Shelf WPL 2195945 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.23 & No.32) (Almond WPL 2184400 Contact Us For Availability
20
Hole Plug (Almond) WPL 2189008 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI127970A Contact Us For Availability
22
Support Block WPL 2189906 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Cover, Unit WPL 2198740 Contact Us For Availability
25
Shim WPL 943187 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
33
Handle, F.C. WPL 2173344 Contact Us For Availability
37
TRIM, DOOR (2) WPL 2195947 Contact Us For Availability
39
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI127968A Contact Us For Availability
42
Wire Assy. Unit WPL 2200629 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Insulation WPL 2200778 Contact Us For Availability
44
Cover, Unit WPL 2200508 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
57
Screw WPL 489462 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2189433 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
FeaturePak (Includes 11,14, 16,18,29,30,31, 3 WPL 2182576 Contact Us For Availability
× ![]()
