Model Whirlpool RT21AKXGW01 REFRIGERATOR – Common Parts & Diagrams
05 - SHELF, LIT/OPTIONAL
03 - LINER

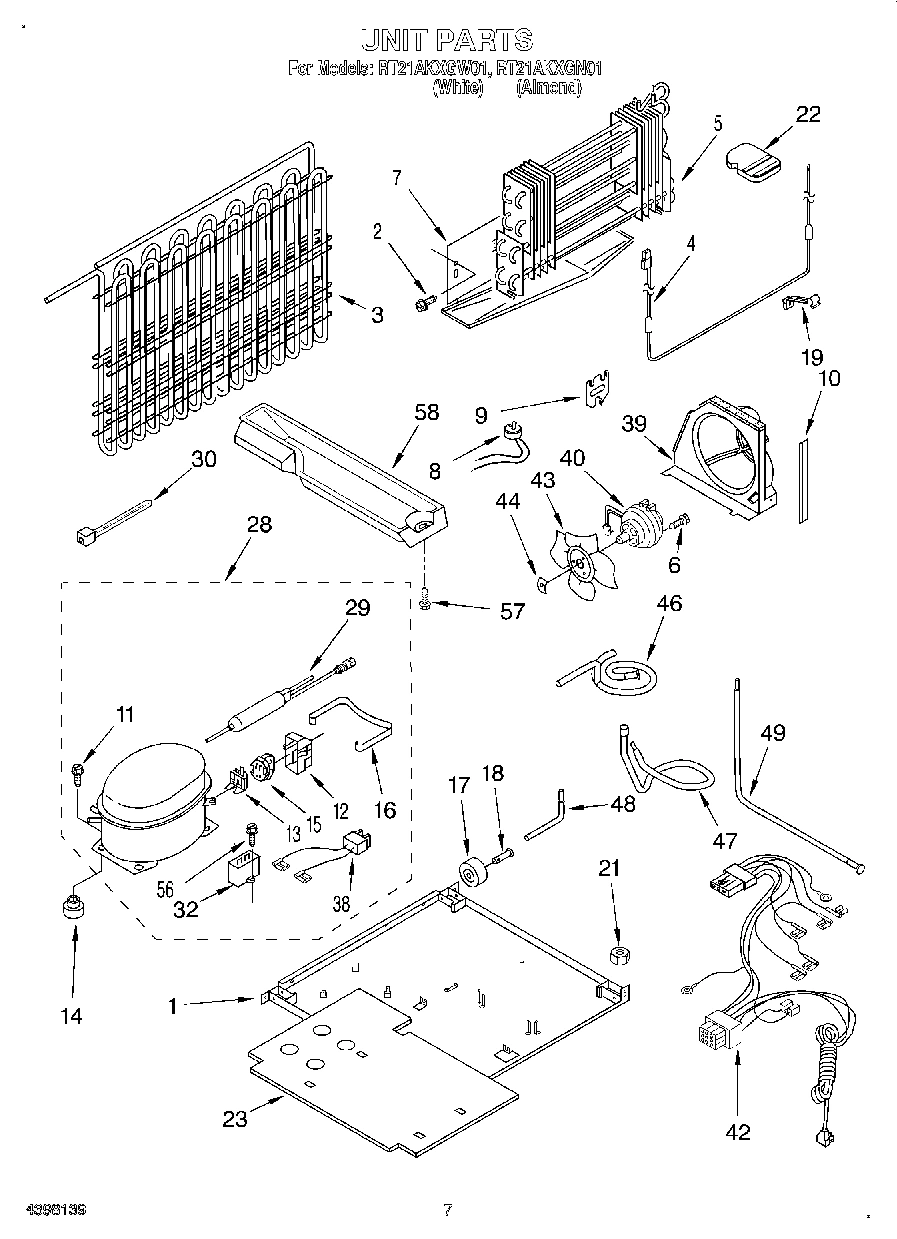

04 - UNIT

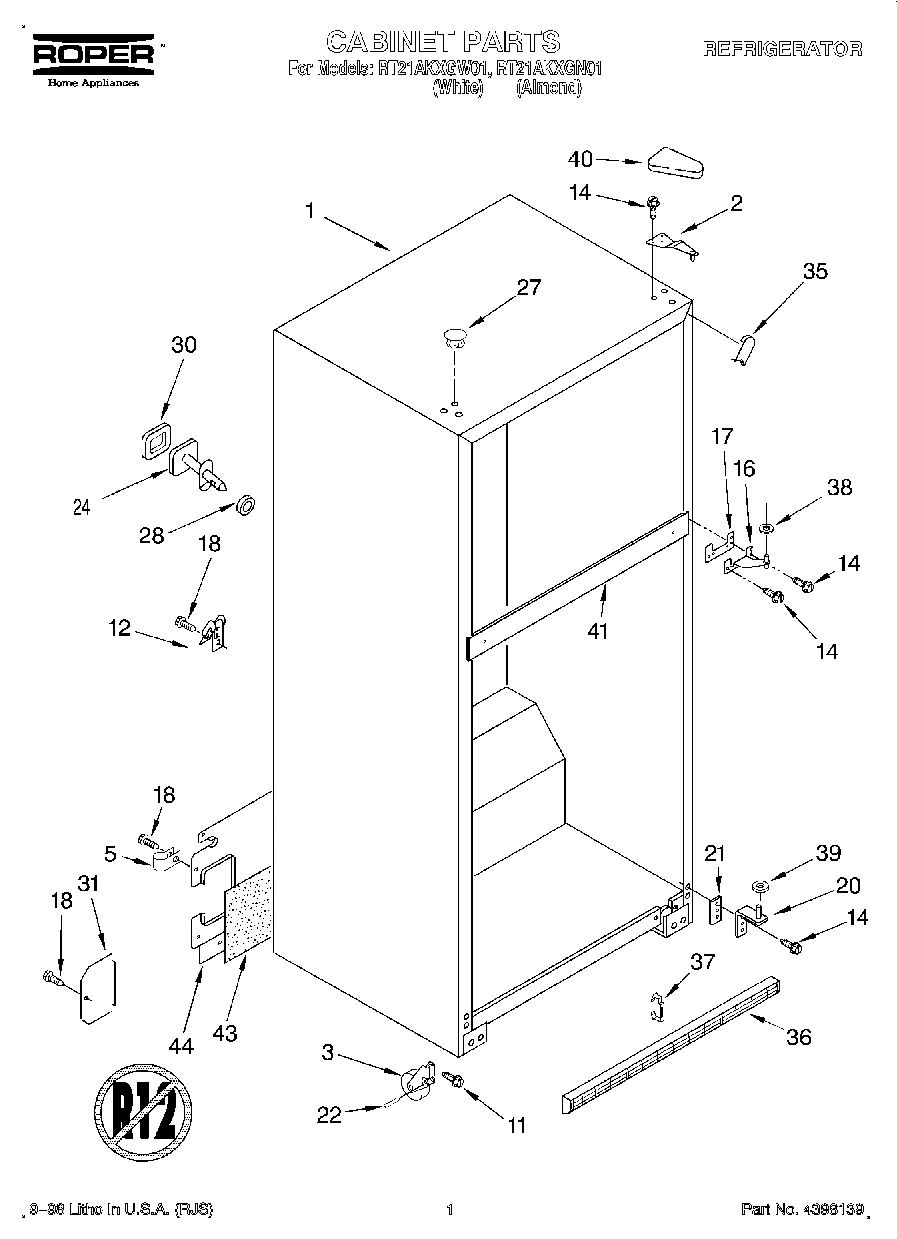

01 - CABINET

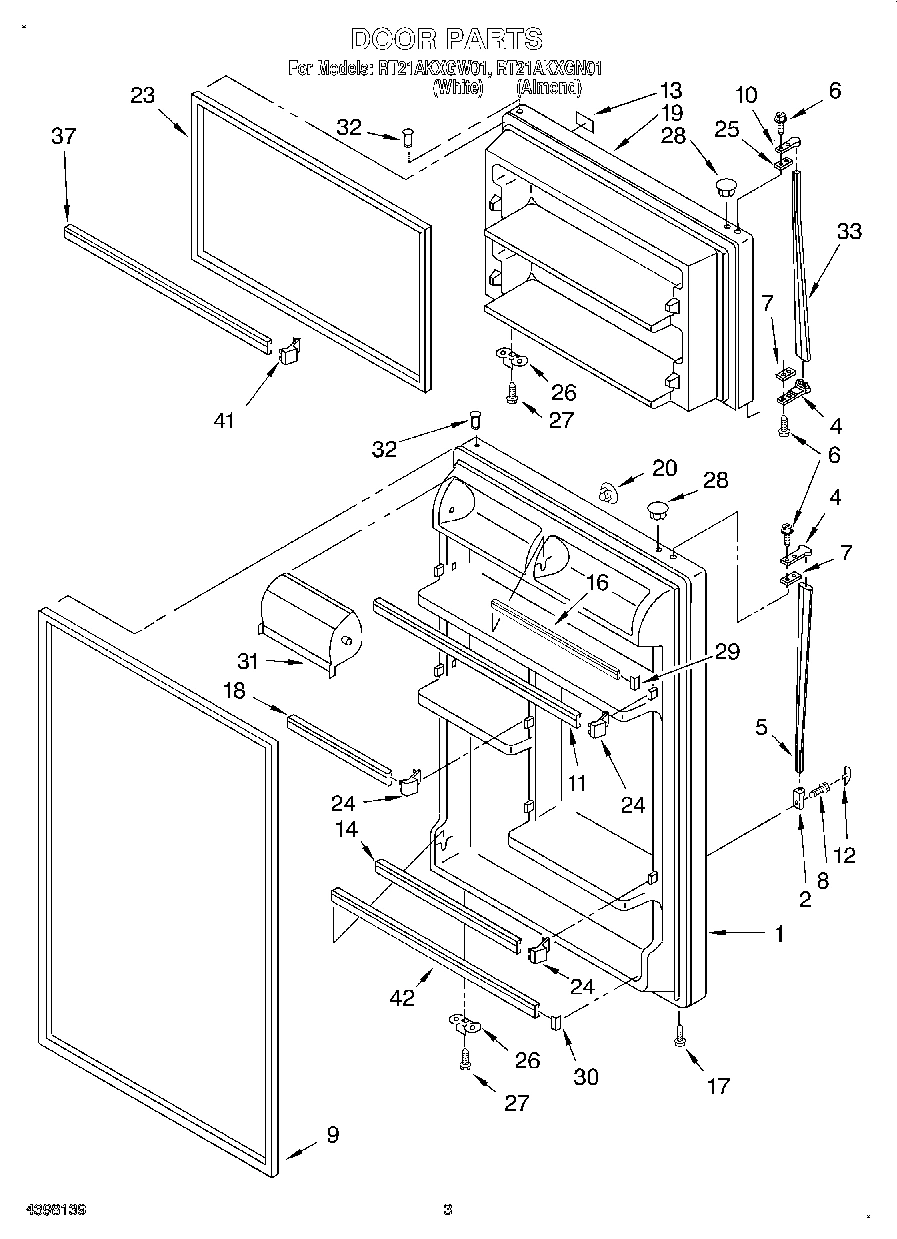

02 - DOOR
Common parts from model Whirlpool RT21AKXGW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI127806A Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.32) (Wh WPL 2183946 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.32) (Al WPL 2183947 Contact Us For Availability
3
Screw Support Center WPL 2189314 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
11
Trim, Door Shelf WPL 2195944 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
13
Thermostat Assy. (Includes Items 5, 18 & 36) WPL 2200859 Contact Us For Availability
13
Nameplate (White) WPL 2200503 Contact Us For Availability
13
Nameplate (Almond) WPL 2200504 Contact Us For Availability
16
Cover, Strap WPL 943322 Contact Us For Availability
18
Trim, Door Shelf WPL 2195945 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.23 & No.32) (Almond WPL 2184400 Contact Us For Availability
20
Hole Plug (Almond) WPL 2189008 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI127812A Contact Us For Availability
22
Support Block WPL 2189906 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Glass, Shelf WPL 2174694 Contact Us For Availability
23
Cover, Unit WPL 2198740 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI127807A Contact Us For Availability
25
Shim WPL 943187 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2201013 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI127808A Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI127809A Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2201015 Contact Us For Availability
36
Grille (White) WPL 2201006 Contact Us For Availability
36
Grille (Almond) WPL 2201007 Contact Us For Availability
37
TRIM, DOOR (2) WPL 2195947 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI127810A Contact Us For Availability
42
Wire Assy. Unit WPL 2200629 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Insulation WPL 2200778 Contact Us For Availability
44
Cover, Unit WPL 2200508 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
57
Screw WPL 489462 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2189433 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
FeaturePak (Includes 11, 14, 16, 18, 24, 29, WPL 2199045 Contact Us For Availability
× ![]()
