Model Whirlpool RT20DKXFN01 – Common Parts & Diagrams
04 - UNIT
05 - SHELF, LIT/OPTIONAL

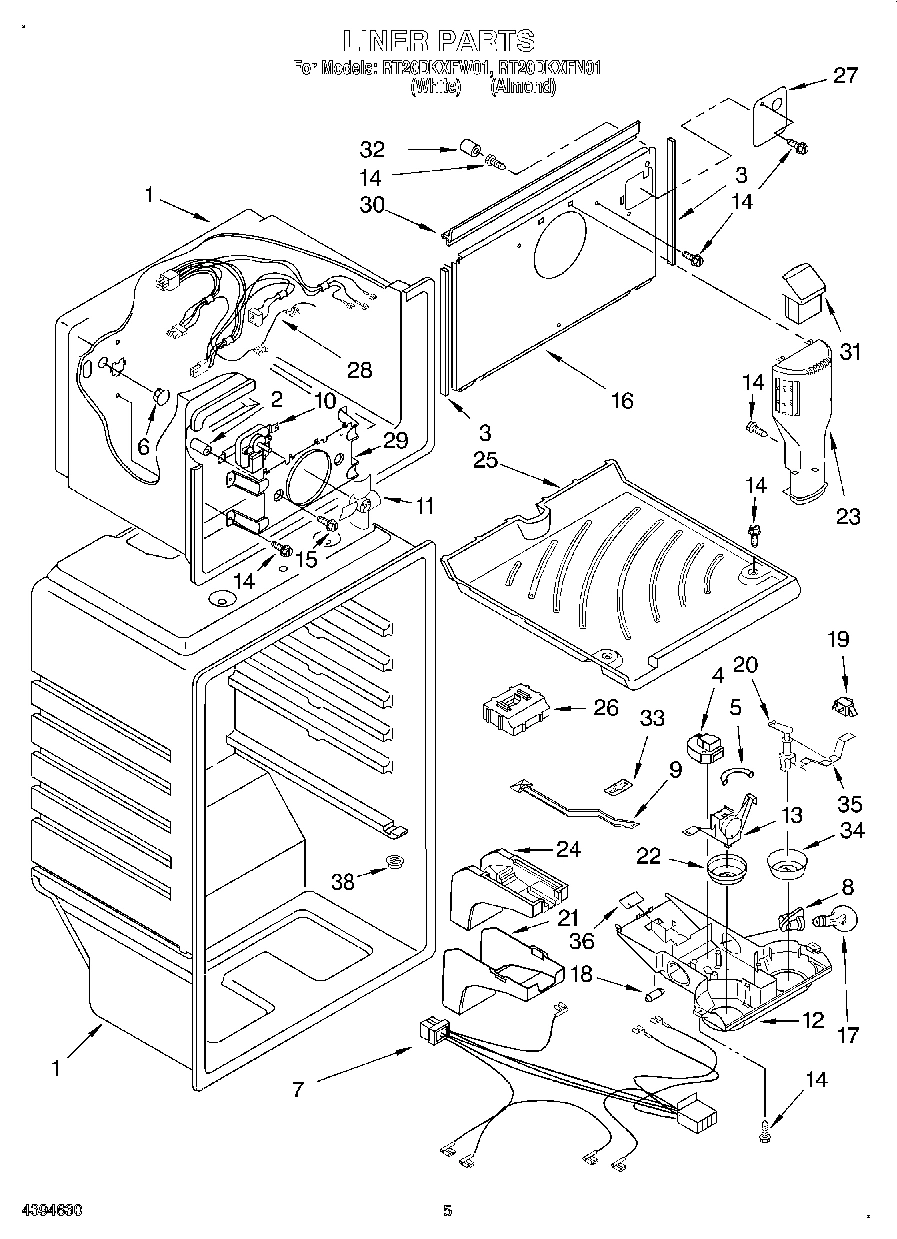

03 - LINER

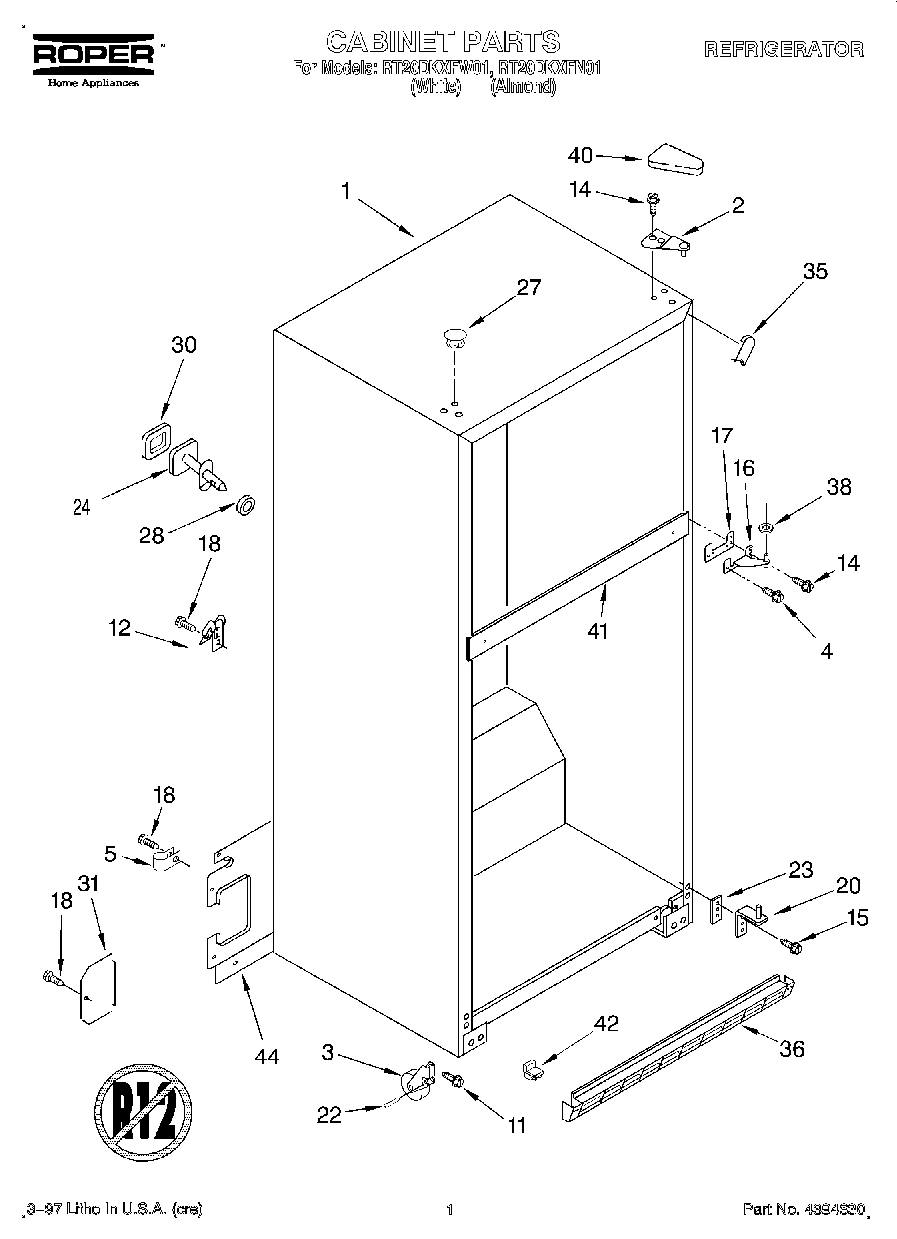

01 - CABINET

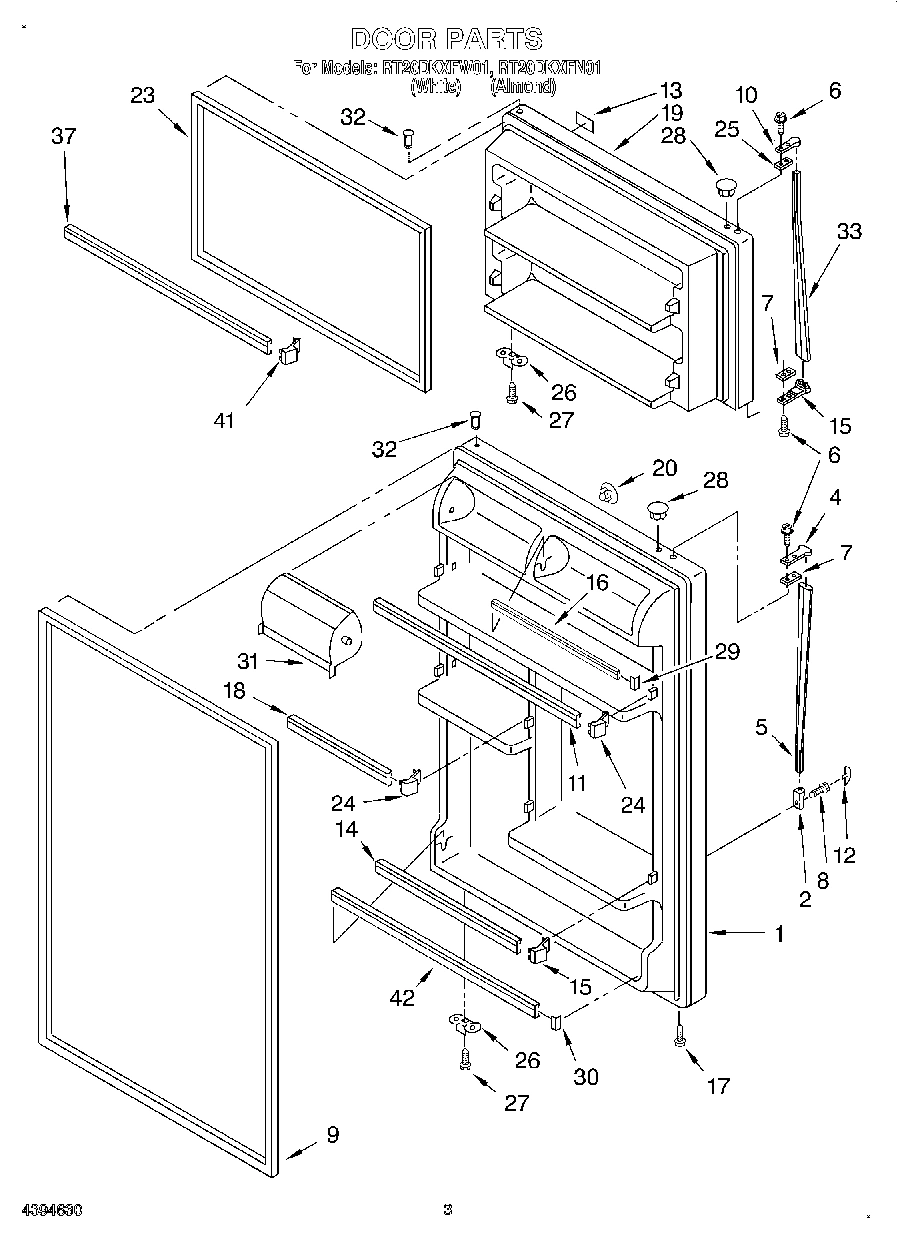

02 - DOOR
Common parts from model Whirlpool RT20DKXFN01
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI127767A Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.32) (Wh WPL 2183946 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.32) (Al WPL 2183947 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
5
Handle, Center WPL 1109166 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
8
Cover, Meat Pan WPL 2163848 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Shelf, Full Cantilever WPL 2195398 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
11
Trim, Door Shelf WPL 2195379 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
Nameplate WPL 2163676 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Screw WPL 489459 Contact Us For Availability
16
Cover-Evaporator WPL 2189823 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Trim, Door WPL 2195380 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.23 & No.32) (Almond WPL 2184400 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
20
Hole Plug (Almond) WPL 2189008 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI127768A Contact Us For Availability
25
Shim WPL 943187 Contact Us For Availability
25
Floor, Freezer WPL 2184617 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Wire Assembly, Frz. Compartment WPL 2195656 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI127769A Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI127770A Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
33
Handle, F.C. WPL 2173344 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille (Almond) WPL 2189156 Contact Us For Availability
36
Grille (White) WPL 2189154 Contact Us For Availability
37
Trim-Door (2) WPL 2171265 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI127771A Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2189060 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
FeaturePak (Includes 11,14, 16,18,29,30,31, 3 WPL 2182576 Contact Us For Availability
× ![]()
