Model Whirlpool RS20AQXFW00 – Common Parts & Diagrams

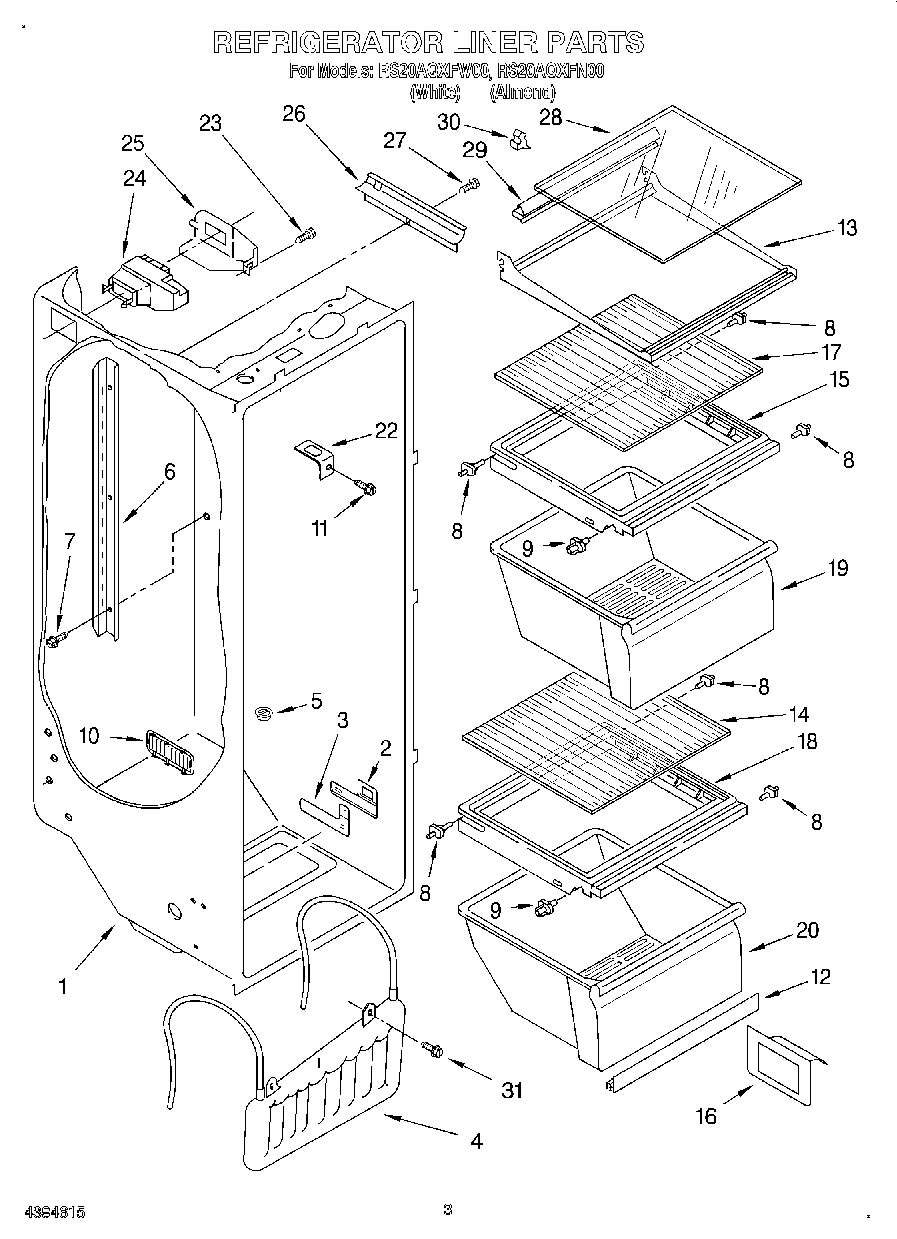

02 - REFRIGERATOR LINER

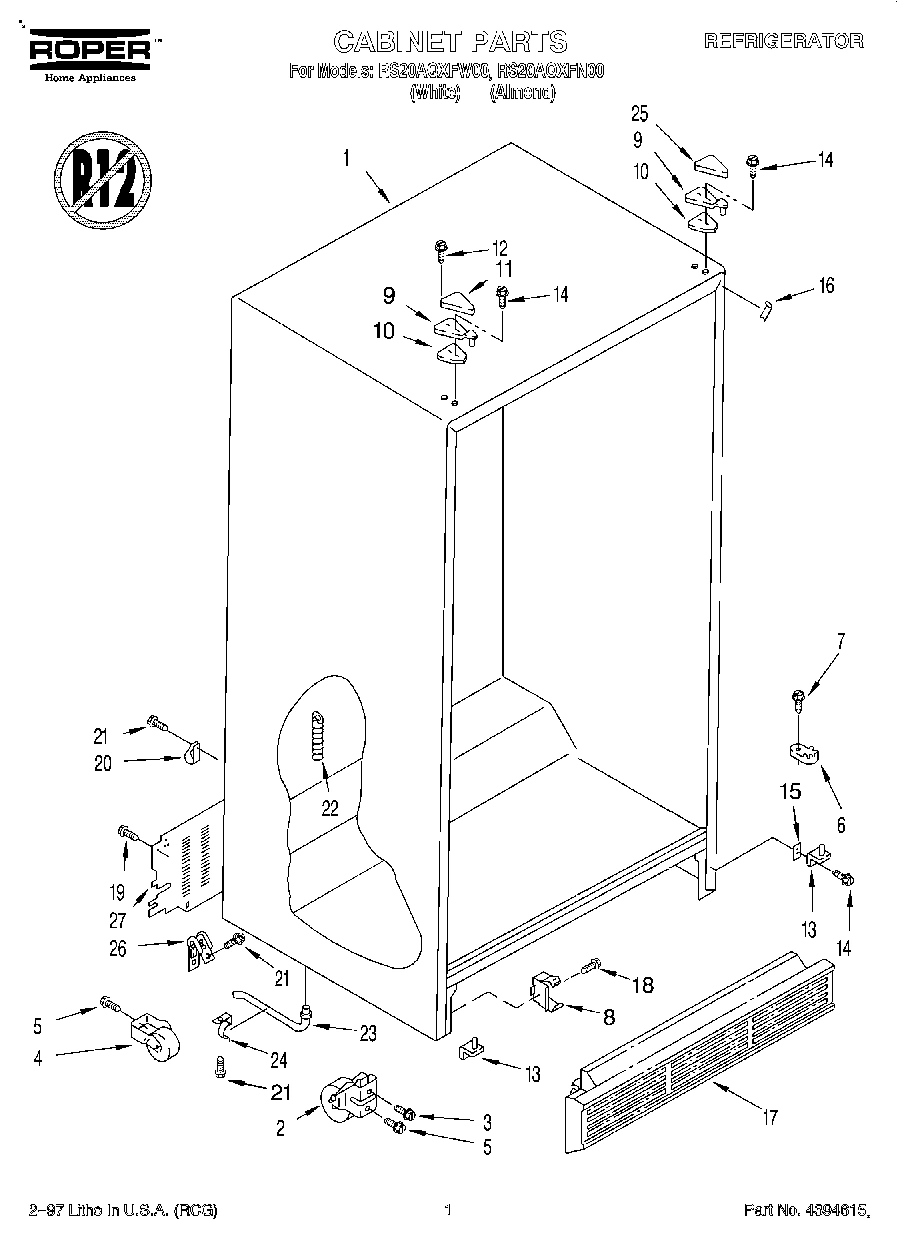

01 - CABINET

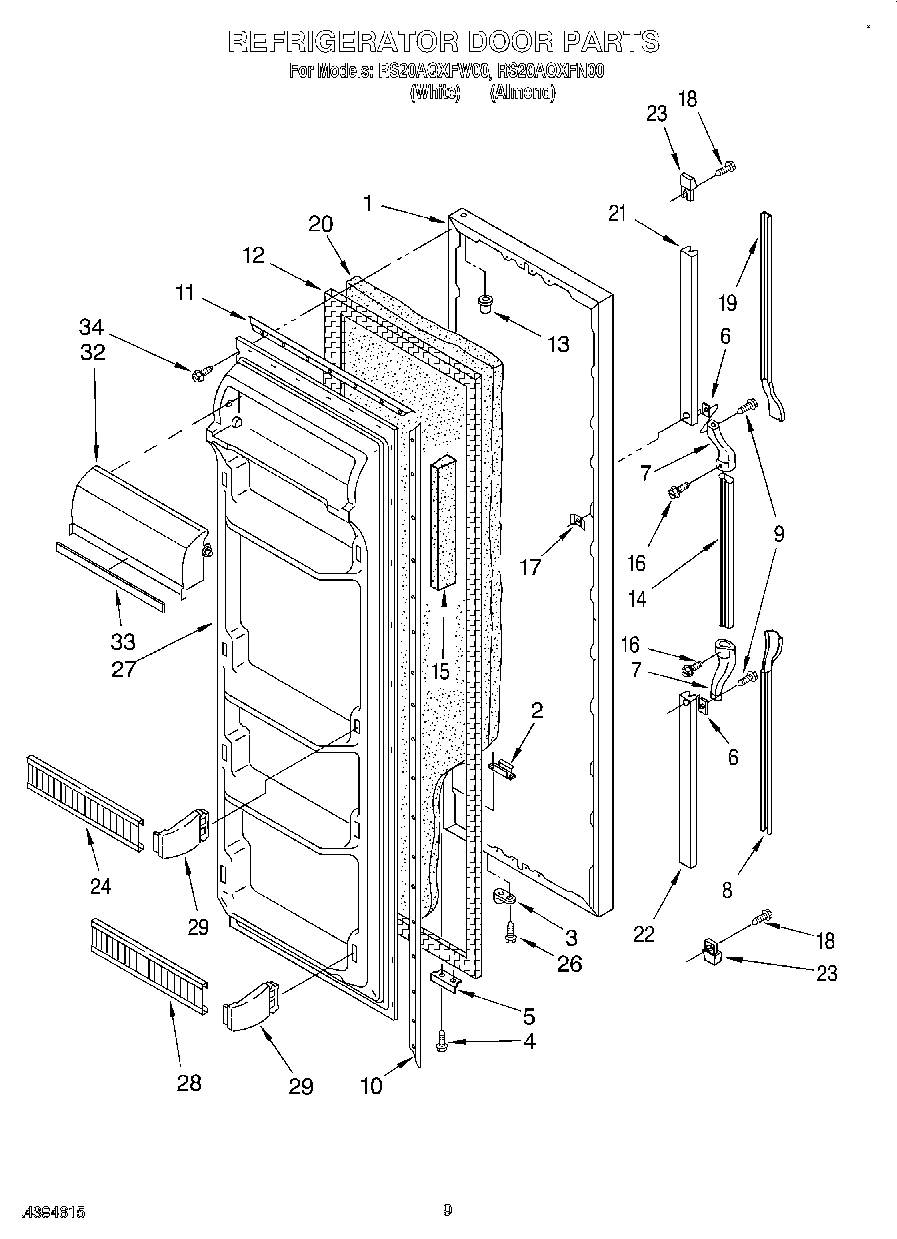

06 - REFRIGERATOR DOOR

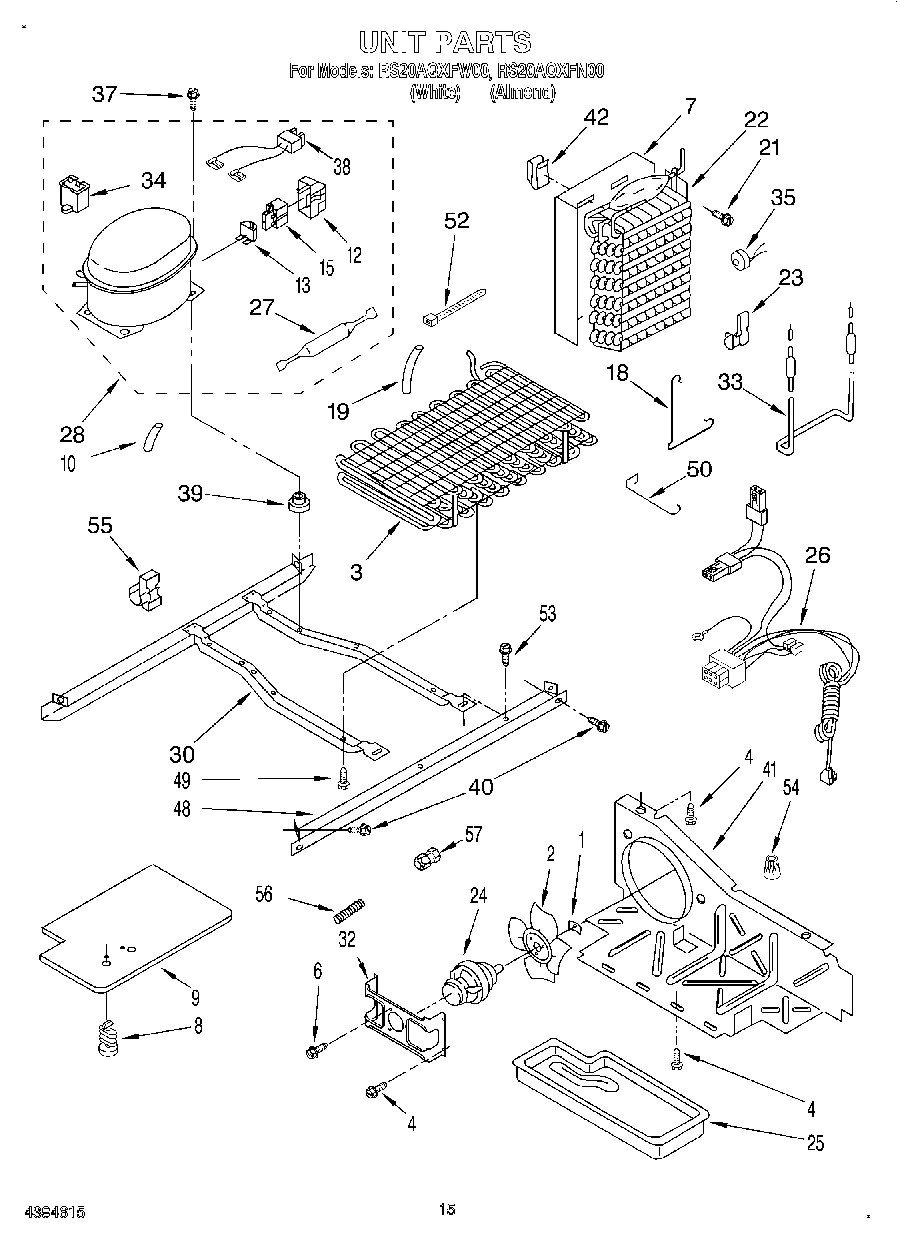

09 - UNIT
04 - AIR FLOW

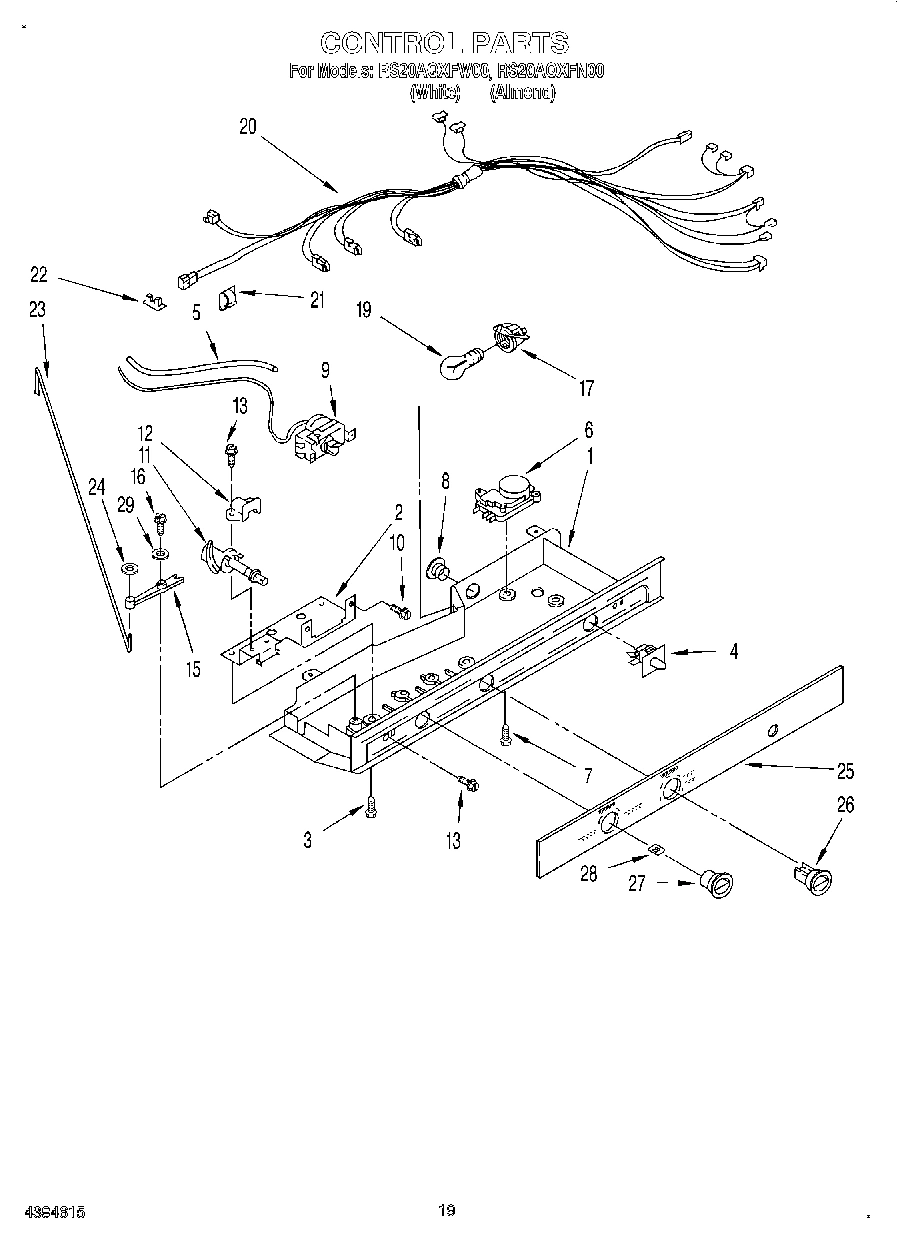

11 - CONTROL, LIT/OPTIONAL

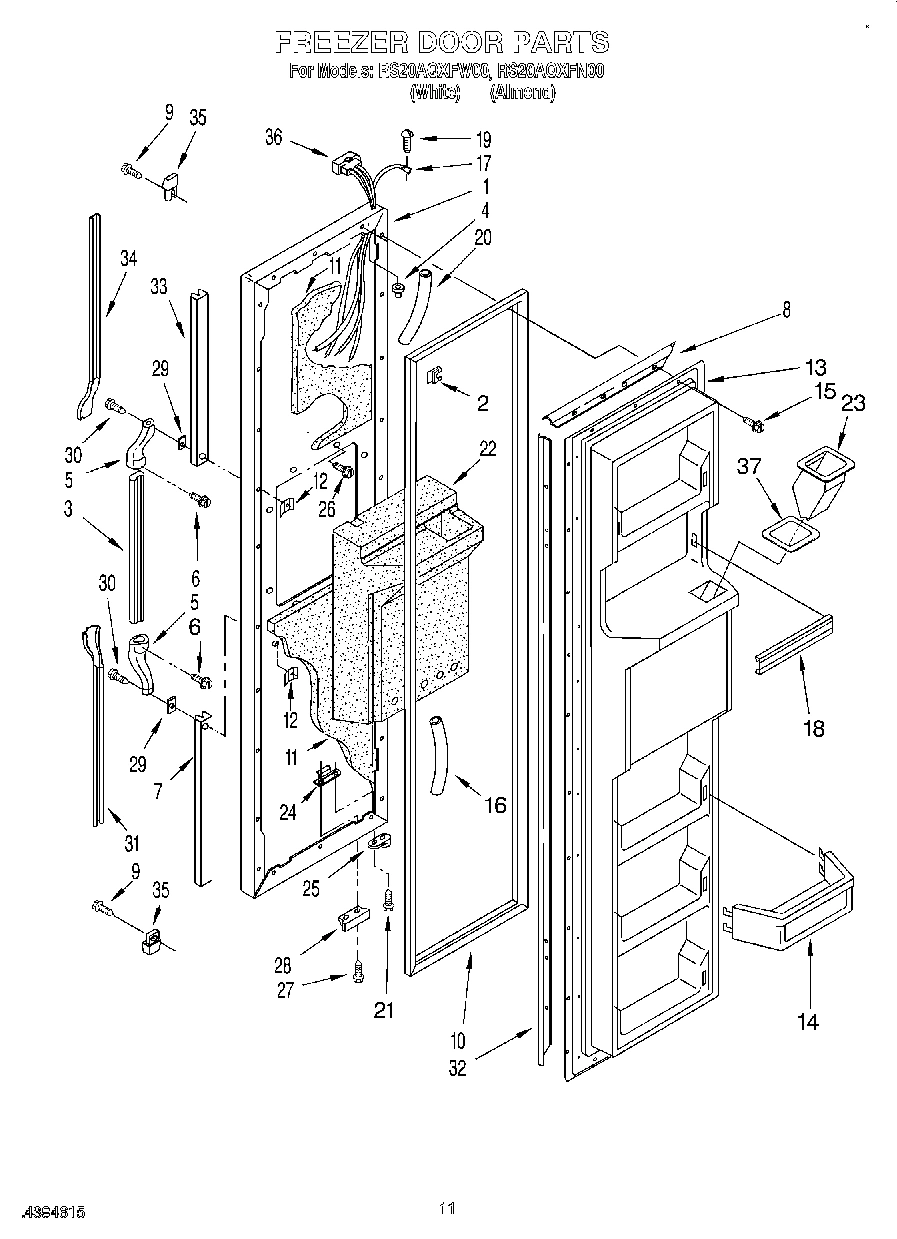

07 - FREEZER DOOR

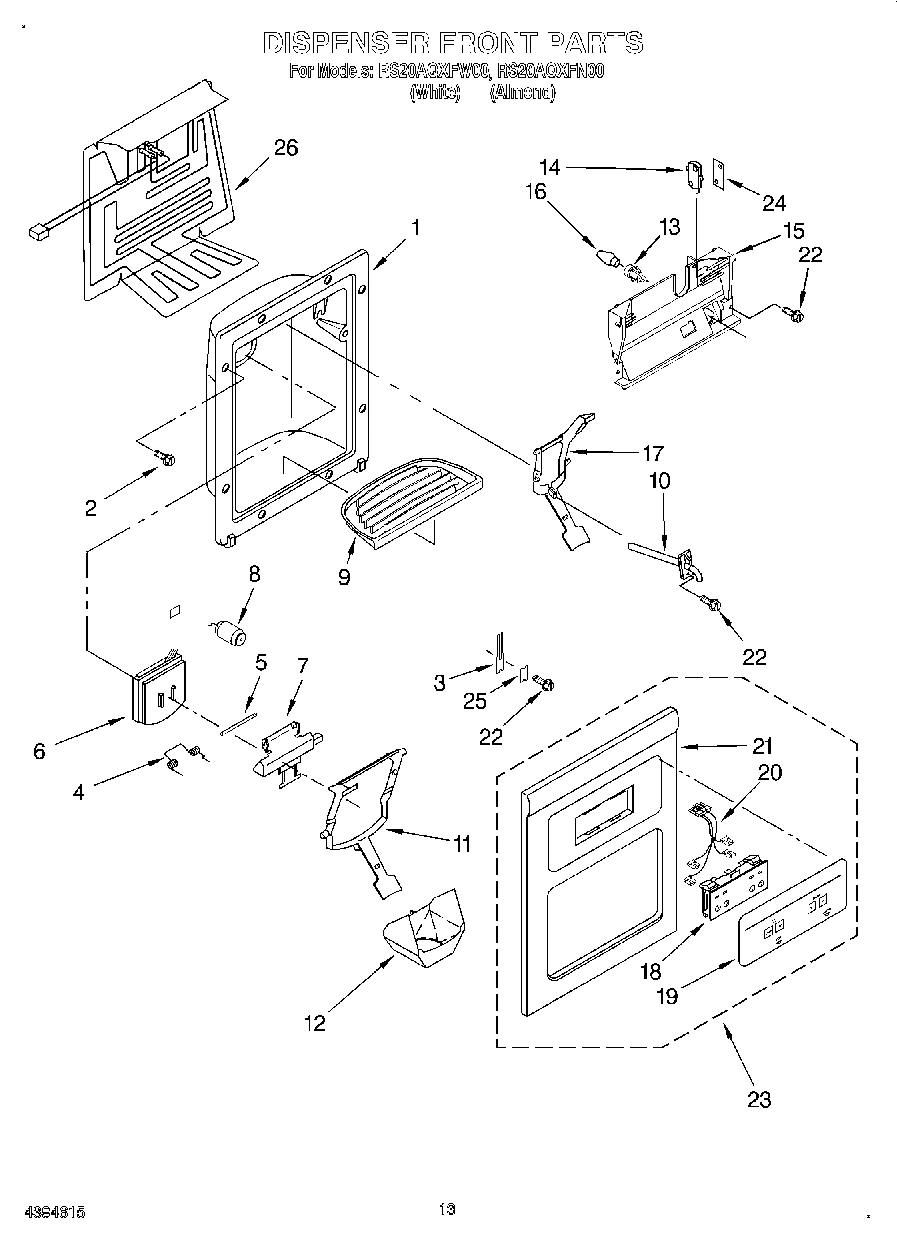

08 - DISPENSER FRONT

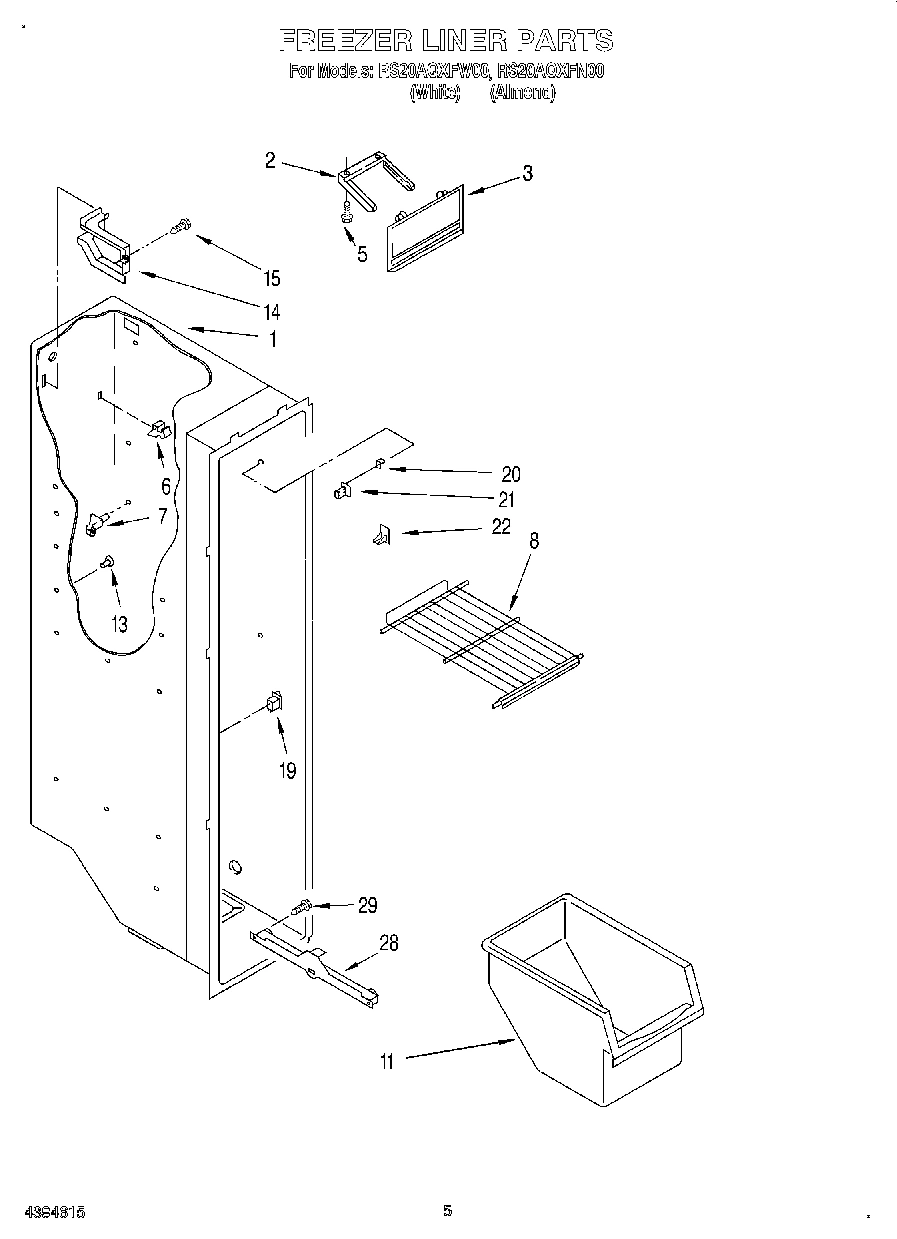

03 - FREEZER LINER

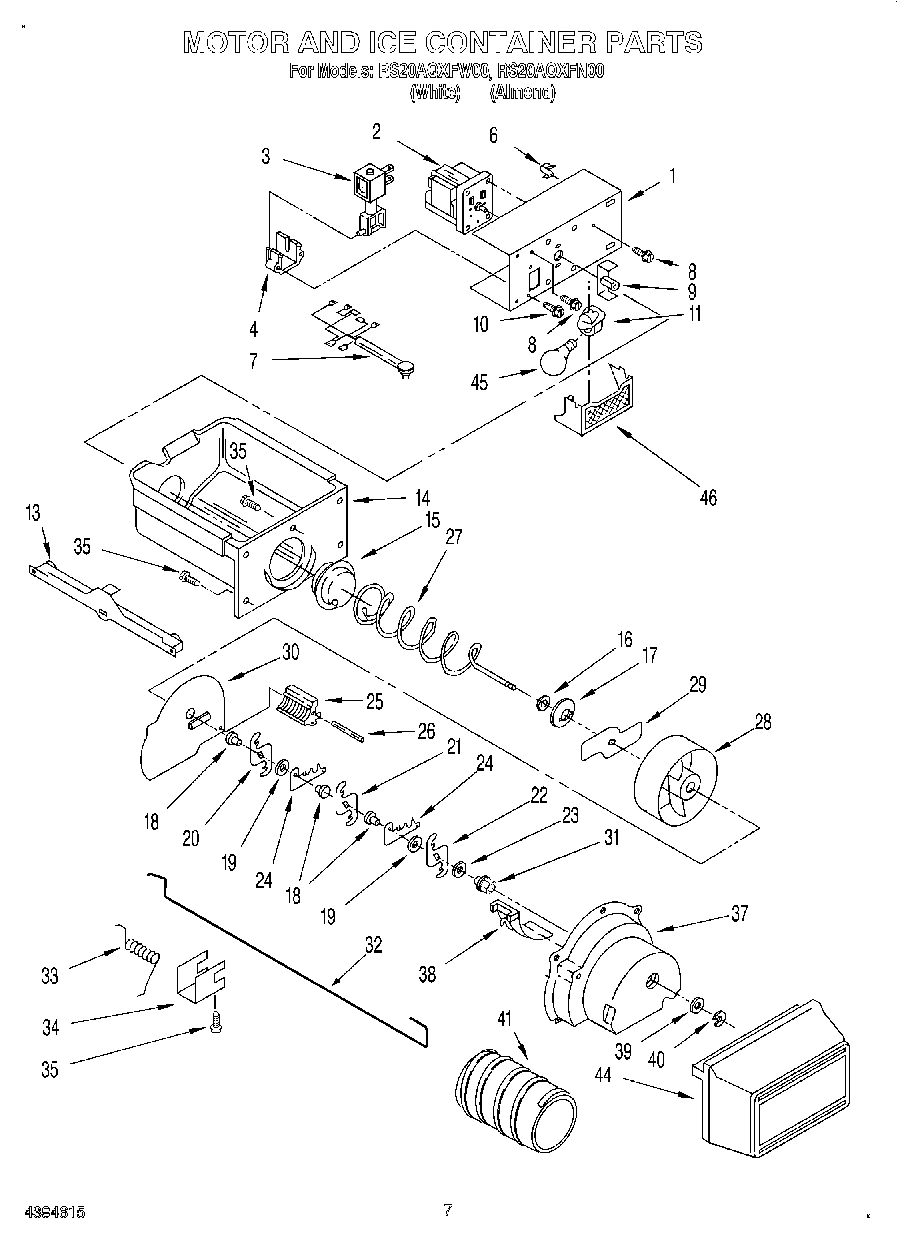

05 - MOTOR AND ICE CONTAINER

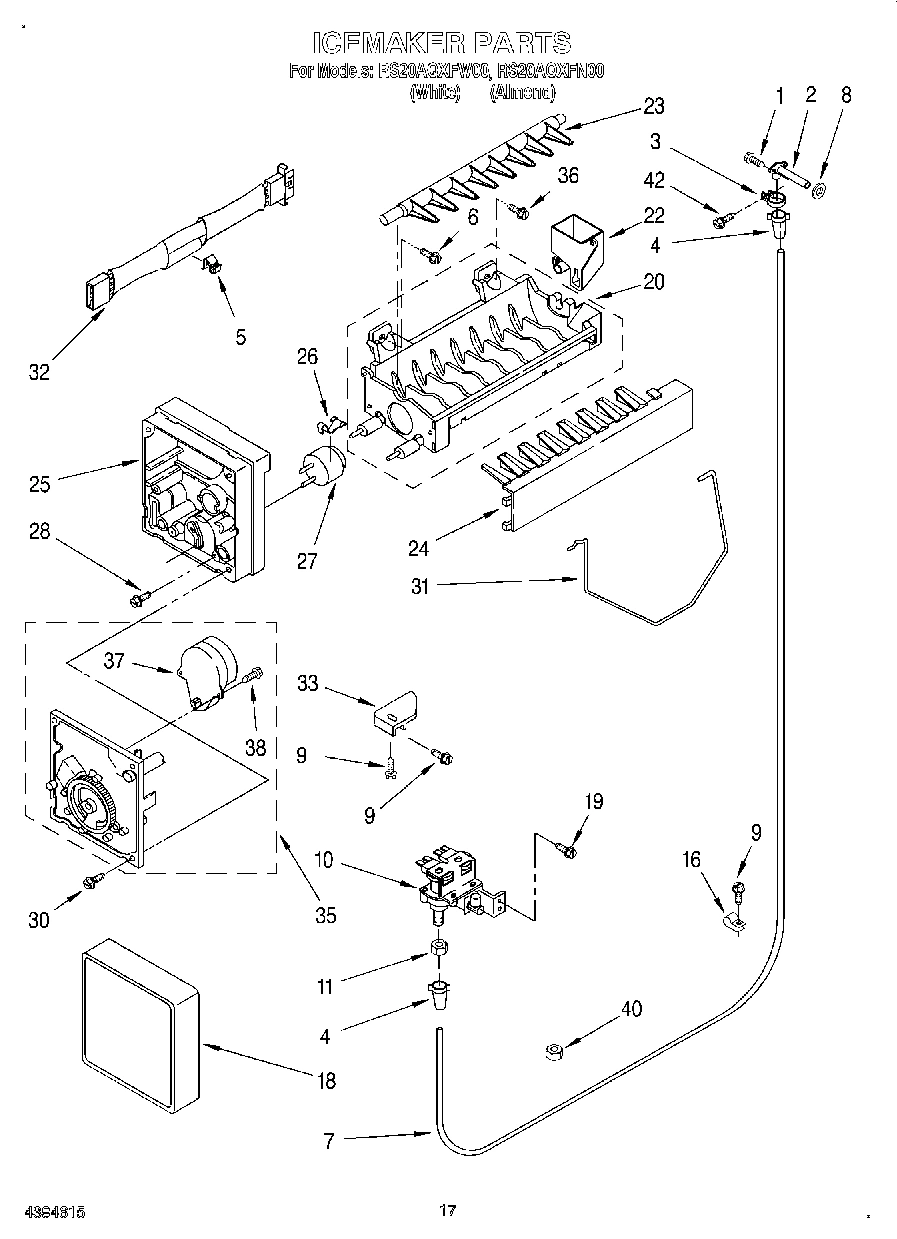

10 - ICEMAKER
Common parts from model Whirlpool RS20AQXFW00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2194925 WPL LIT2194925 Contact Us For Availability
WPL LIT2198029 WPL LIT2198029 Contact Us For Availability
WPL LIT2198054 WPL LIT2198054 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 2194998 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 2194998N Contact Us For Availability
1
Housing, Dispenser (White) WPL 2180220 Contact Us For Availability
1
Housing, Dispenser (Almond) WPL 2180221 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI123748A Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Clip WPL 2197720 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Handle (Almond) WPL 2194767N Contact Us For Availability
3
Handle (White) WPL 2194767W Contact Us For Availability
4
Cap, Hinge Sleeve WPL 939886 Contact Us For Availability
5
End Cap WPL 1119359 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
6
Screw WPL 489022 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Insert Retainer (Bottom) WPL 2194770 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
Retainer, Gasket WPL 1117767 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
8
Shelf (1) WPL 2174269 Contact Us For Availability
8
Shelf (2) WPL 2174270 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Cover, Unit Compartment WPL 2182057 Contact Us For Availability
9
Screw WPL 489075 Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability
11
Bin, Freezer WPL 2171707 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Panel, Interior Door WPL 1126179 Contact Us For Availability
14
Trim, Door Shelf (4) WPL 2169749 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
Tube, Water Line WPL 2147080 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Harness, Door WPL 2183713 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
19
Plaque, Front Cover (Almond) WPL 2194837N Contact Us For Availability
19
Plaque, Front Cover (White) WPL 2194837W Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Tube, Door Wiring WPL 2194838 Contact Us For Availability
20
Wire Assembly WPL 2180331 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI123749A Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insulation, Dispenser WPL 2149014 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
Chute, Ice WPL 2180204 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194835N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194835W Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Tap, Plate WPL 2155335 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Escutcheon, Control Box WPL 2194977 Contact Us For Availability
26
Heater WPL 2198094 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Conveyor WPL 2181957 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Bracket, Door Stop WPL 2155332 Contact Us For Availability
28
Slide, Ice Container (Left Side) WPL 1115383 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
WPL 799344 WPL 799344 Contact Us For Availability
29
Ice Crusher Mechanism Assembly WPL 2169939 Contact Us For Availability
29
Ice Container Assembly WPL 2196013 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, B WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Shim WPL 935075 Contact Us For Availability
31
Insert, Bottom (Almond) WPL 2194773N Contact Us For Availability
31
Insert, Bottom (White) WPL 2194773W Contact Us For Availability
32
Retainer, Gasket WPL 1117766 Contact Us For Availability
32
Control Arm WPL 2169938 Contact Us For Availability
33
Insert Retainer (Top) WPL 2194771 Contact Us For Availability
34
Insert, Top (Almond) WPL 2194774N Contact Us For Availability
34
Insert, Top (White) WPL 2194774W Contact Us For Availability
35
End Cap WPL 2156220 Contact Us For Availability
36
Screw WPL 489486 Contact Us For Availability
37
Seal, Door WPL 2180203 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2196005 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
