Model Whirlpool RS20AQXFN01 – Common Parts & Diagrams

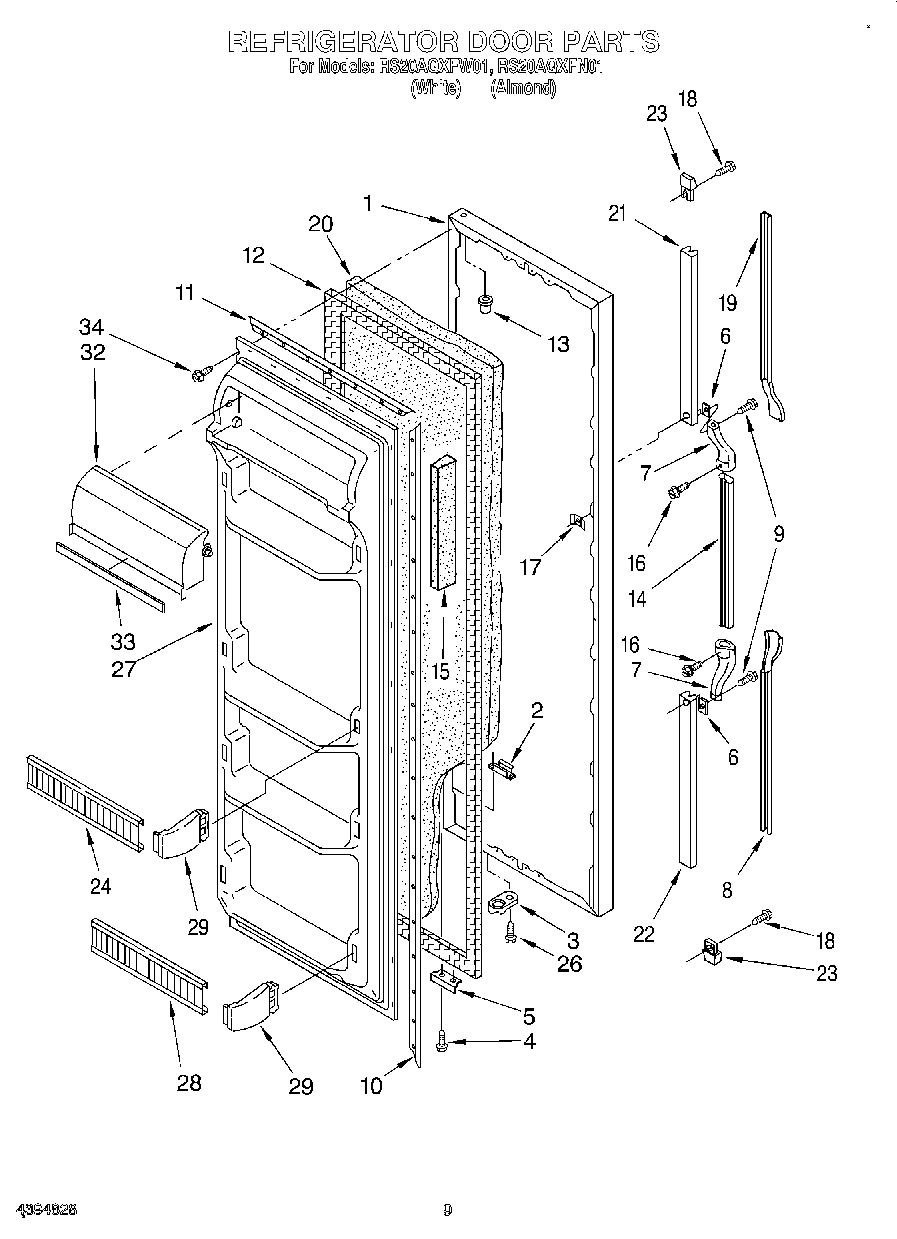

06 - REFRIGERATOR DOOR

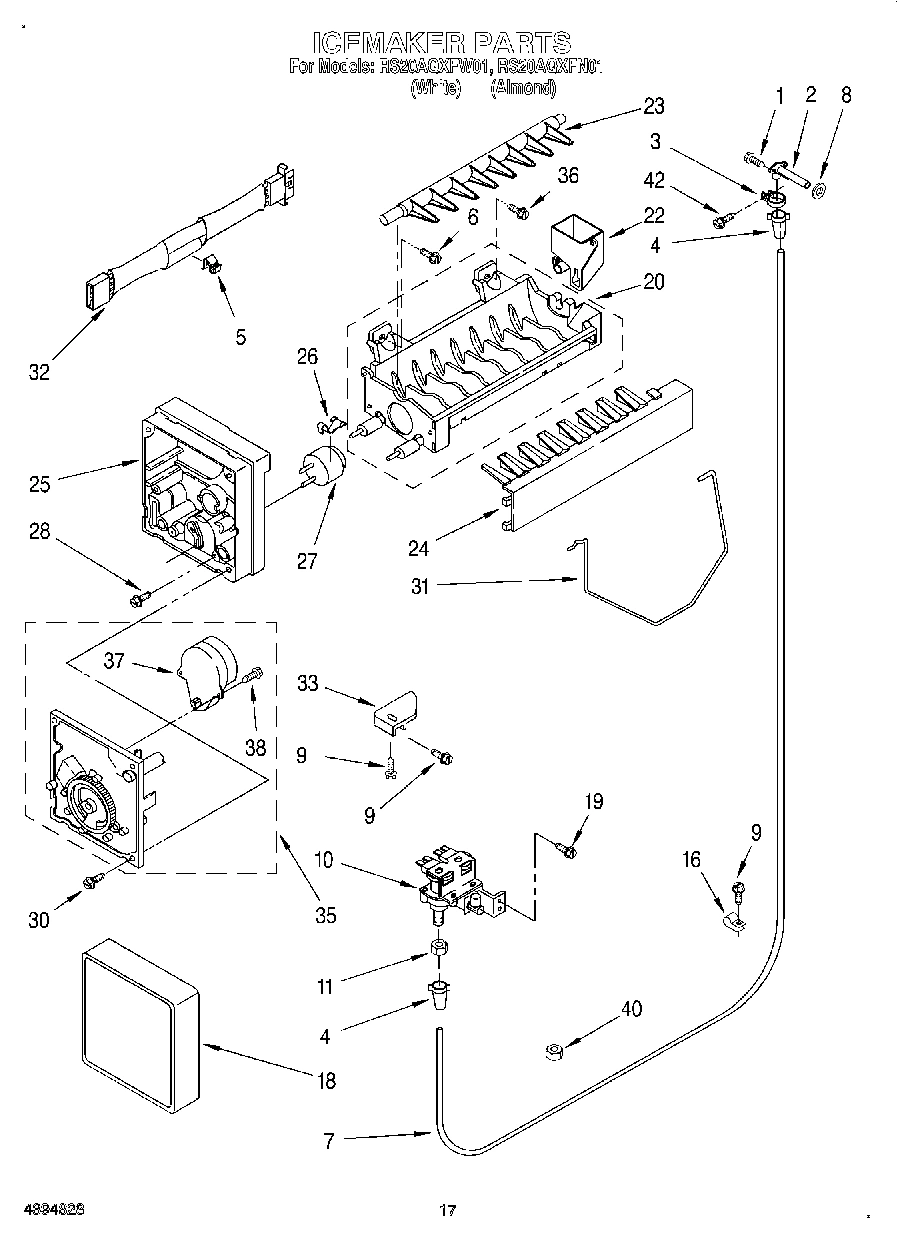

10 - ICEMAKER
09 - UNIT
11 - CONTROL, LIT/OPTIONAL
05 - MOTOR AND ICE CONTAINER
07 - FREEZER DOOR
02 - REFRIGERATOR LINER
03 - FREEZER LINER
08 - DISPENSER FRONT
01 - CABINET
04 - AIR FLOW
Common parts from model Whirlpool RS20AQXFN01
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 2194998N Contact Us For Availability
1
Freezer, Door Panel (White) WPL 2194998W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI123743A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI123744A Contact Us For Availability
1
Housing, Dispenser (White) WPL 2180220 Contact Us For Availability
1
Housing, Dispenser (Almond) WPL 2180221 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI123742A Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Clip WPL 2198369 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Handle (Almond) WPL 2194767N Contact Us For Availability
3
Handle (White) WPL 2194767W Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 939886 Contact Us For Availability
5
Bracket, Door Stop WPL 2195950 Contact Us For Availability
5
End Cap WPL 1119359 Contact Us For Availability
6
Screw WPL 489022 Contact Us For Availability
6
Shelf Ladder (2) WPL 2181796 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Insert Retainer (Bottom) WPL 2194770 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Retainer, Gasket WPL 1117767 Contact Us For Availability
8
Shelf (1) WPL 2174269 Contact Us For Availability
8
Shelf (2) WPL 2174270 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Cover, Unit Compartment WPL 2182057 Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability
10
Louver WPL 2182147 Contact Us For Availability
10
Shim, Hinge (2) WPL 2196048 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Bin, Freezer WPL 2171707 Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability
11
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
12
Extension WPL 2179561 Contact Us For Availability
12
Screw WPL 489284 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161478 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Panel, Interior Door WPL 1126179 Contact Us For Availability
13
Shelf, Cantilever WPL 2173178 Contact Us For Availability
14
Trim, Door Shelf (4) WPL 2169749 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Tube, Water Line WPL 2147080 Contact Us For Availability
16
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
16
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Harness, Door WPL 2198271 Contact Us For Availability
17
Grille (White) WPL 2155477 Contact Us For Availability
17
Grille (Almond) WPL 2155478 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
19
Plaque, Front Cover (Almond) WPL 2194837N Contact Us For Availability
19
Plaque, Front Cover (White) WPL 2194837W Contact Us For Availability
20
Tube, Door Wiring WPL 2198196 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
20
Wire Assembly WPL 2180331 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI123745A Contact Us For Availability
22
Insulation, Dispenser WPL 2149014 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
23
Chute, Ice WPL 2180204 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194835N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2194835W Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Tap, Plate WPL 2155335 Contact Us For Availability
25
Hinge Cover (2) (White) WPL 1119787 Contact Us For Availability
25
Hinge Cover (2) (Almond) WPL 1119789 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
26
Heater WPL 2198094 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Conveyor WPL 2181957 Contact Us For Availability
28
Glass, Shelf WPL 2177978 Contact Us For Availability
28
Slide, Ice Container (Left Side) WPL 1115383 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
WPL 799344 WPL 799344 Contact Us For Availability
29
Shim WPL 935075 Contact Us For Availability
29
Reflector WPL 1125594 Contact Us For Availability
31
Insert, Bottom (Almond) WPL 2194773N Contact Us For Availability
31
Insert, Bottom (White) WPL 2194773W Contact Us For Availability
31
Screw WPL 488280 Contact Us For Availability
32
Control Arm WPL 2169938 Contact Us For Availability
32
Retainer, Gasket WPL 1117766 Contact Us For Availability
33
Insert Retainer (Top) WPL 2194771 Contact Us For Availability
34
Insert, Top (Almond) WPL 2194774N Contact Us For Availability
34
Insert, Top (White) WPL 2194774W Contact Us For Availability
35
End Cap WPL 2156220 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
