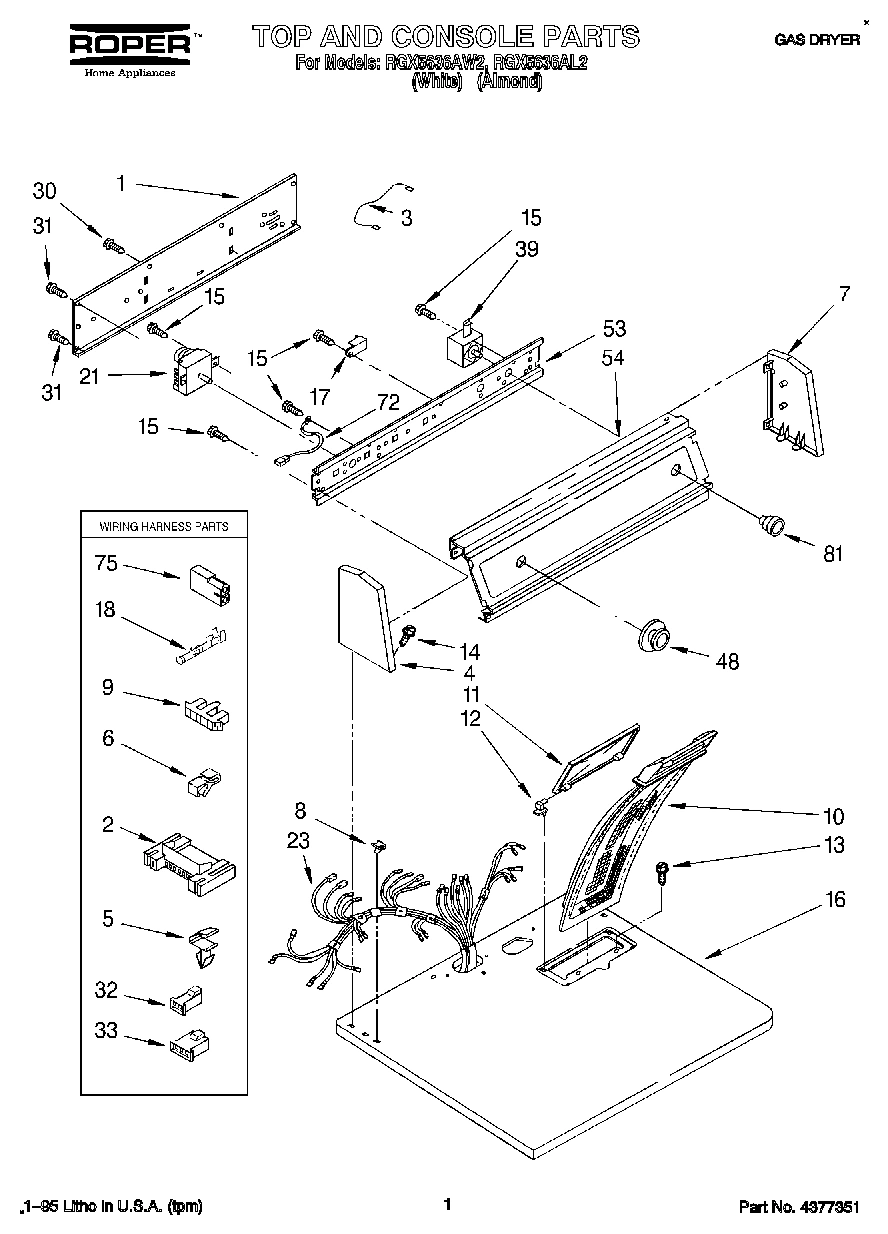

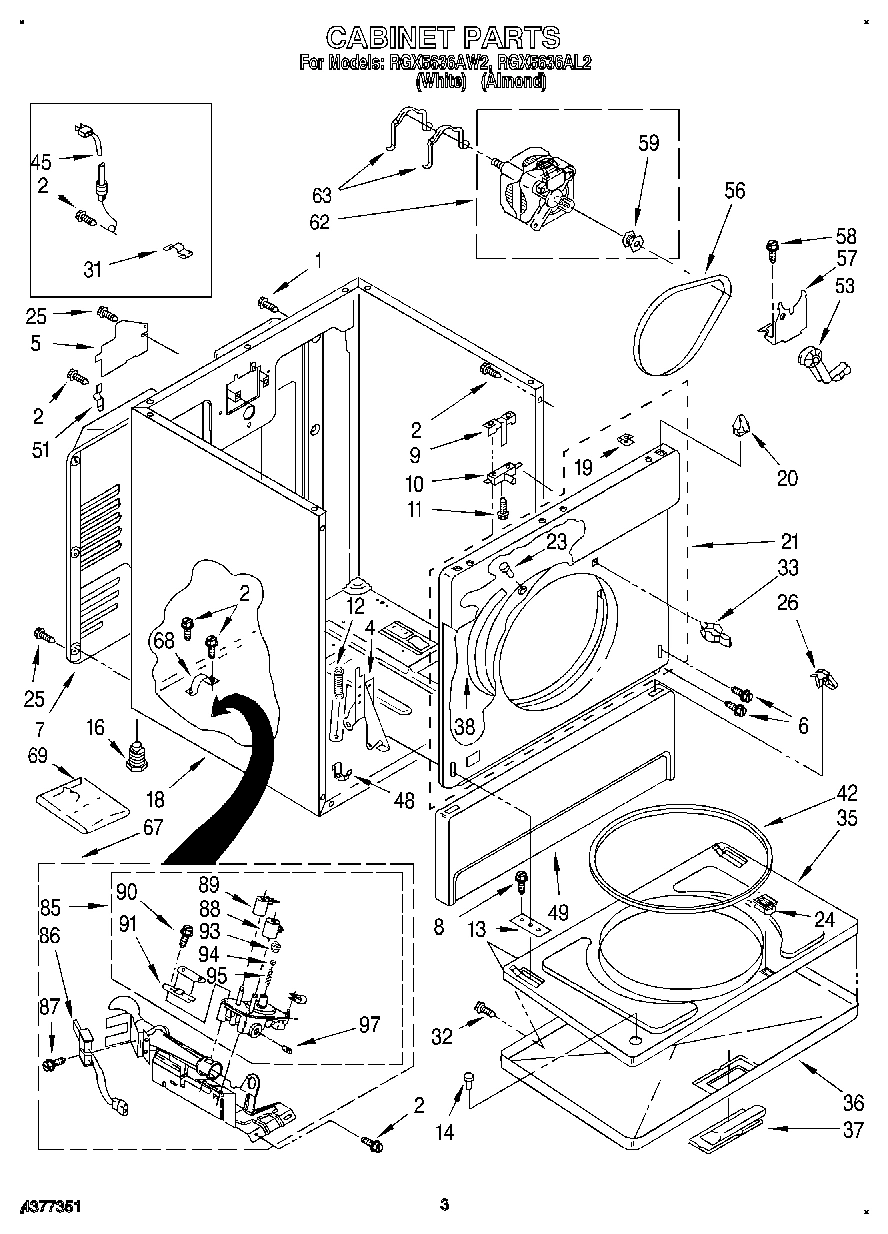

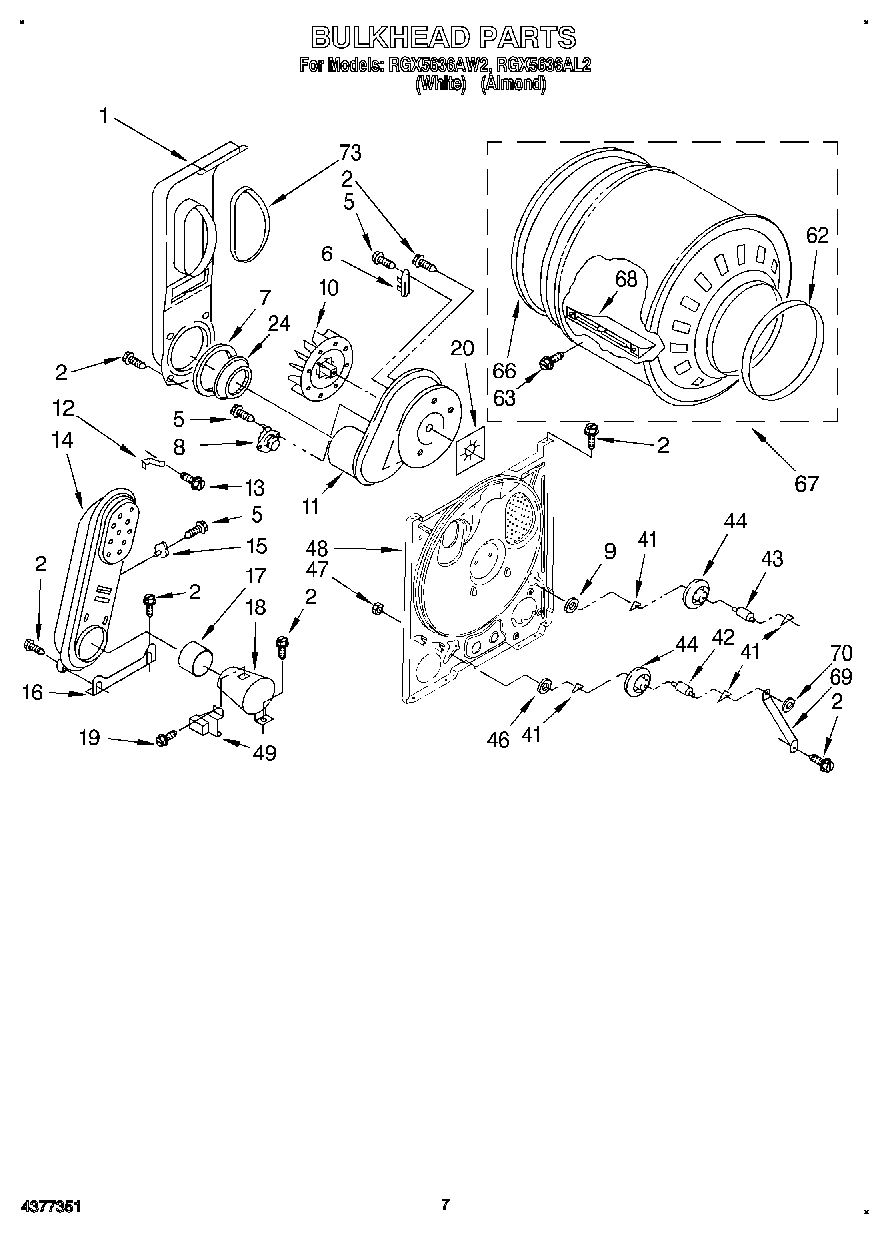

Model Whirlpool RGX5636AL2 – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Instructions, Installation WPL LIT3395332 Contact Us For Availability

Guide, Use & Care WPL LIT3401084 Contact Us For Availability

Label, Wiring Diagram WPL LIT3401728 Contact Us For Availability

1

Panel, Rear Console WPL 3397545 Contact Us For Availability

1

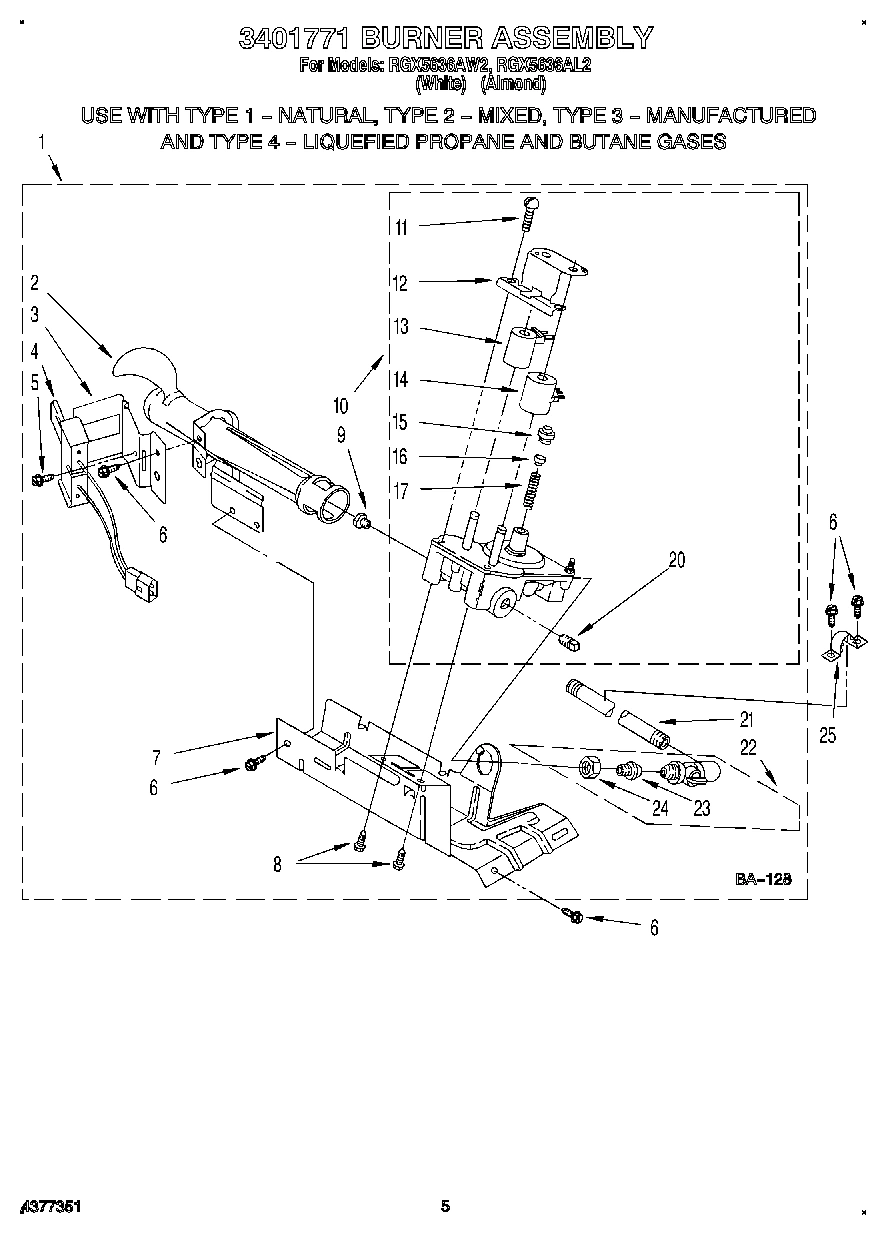

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 3401771 Contact Us For Availability

2

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $72.29

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

3

Wire, Jumper (Black) WPL 3393814 Contact Us For Availability

3

Wire, Jumper (Blue) WPL 3393815 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

4

Hinge, R.H. WPL 687905 Contact Us For Availability

4

Cap, End (L.H.) WPL 3358016 Contact Us For Availability

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $3.33

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.49

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

6

Clip, Retainer WPL 689180 Contact Us For Availability

7

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.98

7

Cap, End (R.H.) WPL 3357998 Contact Us For Availability

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.90

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $4.70

9

Connector, Timer WPL 3397269 Contact Us For Availability

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $151.32

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $18.21

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

11

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

11

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

694538 Whirlpool Bracket Backorder WPL 694538 $42.00

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $4.52

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $4.52

13

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $3.33

14

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

14

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

15

W11568973 Whirlpool Thermostat Fix Backorder WPL W11568973 $6.13

15

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $3.33

49621 Whirlpool Leveling Feet In Stock WPL 49621 $3.22

Support, Heater Box WPL 348484 Contact Us For Availability

Top (White) WPL 3396022 Contact Us For Availability

Top (Almond) WPL 3396023 Contact Us For Availability

17

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

18

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

19

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.60

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

Seal, Blower WPL 3392123 Contact Us For Availability

21

WP3976569 Whirlpool Timer In Stock WPL WP3976569 $147.09

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $59.98

23

Harness, Wiring WPL 3401622 Contact Us For Availability

24

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

24

Nut, Compression WPL 233076 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $17.60

26

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.70

31

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.33

32

Connector, 2-Position (Gas Valve) WPL 3399964 Contact Us For Availability

33

Connector, 3-Position (Gas Valve) WPL 3399963 Contact Us For Availability

39

WP3395382 Whirlpool Push To Start Switch In Stock WPL WP3395382 $35.38

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.34

42

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $39.67

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.12

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $17.40

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $4.52

48

Bulkhead WPL 3399464 Contact Us For Availability

48

Timer Knob Assembly WPL 3391823 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $6.71

53

Bracket, Control WPL 3396293 Contact Us For Availability

54

Panel, Control WPL 3397312 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.94

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $44.08

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $3.33

66

Seal, Rear Drum WPL 3397509 Contact Us For Availability

67

Drum Assembly WPL 3396778 Contact Us For Availability

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $52.08

69

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

Seal WPL 3398160 Contact Us For Availability

75

Receptacle, 2 Way WPL 717252 Contact Us For Availability

81

Knob, Push-To-Start WPL 3391829 Contact Us For Availability

93

WP694424 Whirlpool Limiter In Stock WPL WP694424 $13.40

94

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

95

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42
