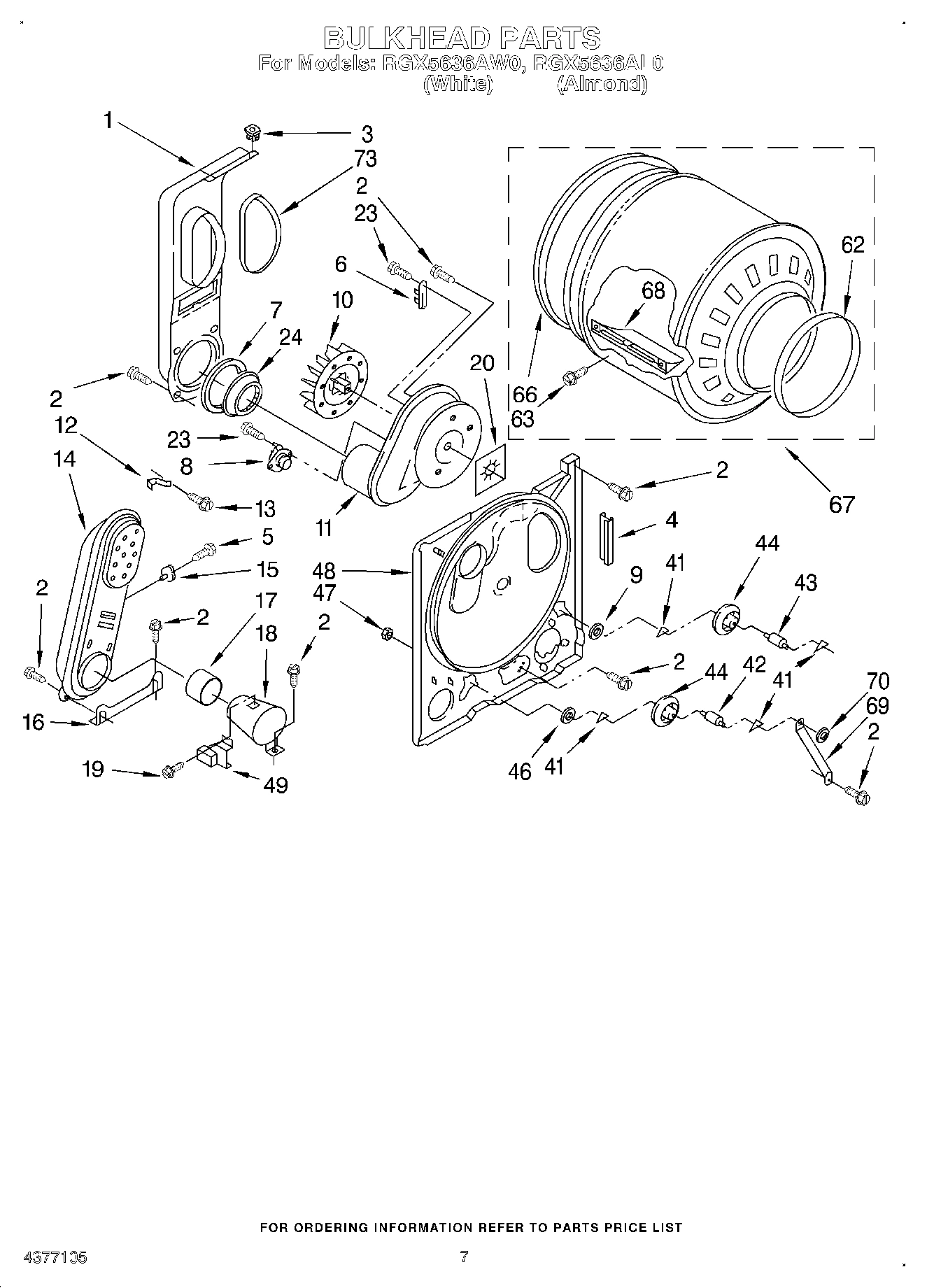

Model Whirlpool RGX5636AL0 – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Instructions, Installation WPL LIT3395324 Contact Us For Availability

Use & Care Guide WPL LIT3396298 Contact Us For Availability

1

W11117429 Whirlpool Chute Assembly In Stock WPL W11117429 $66.93

1

Panel, Rear Console WPL 3397545 Contact Us For Availability

1

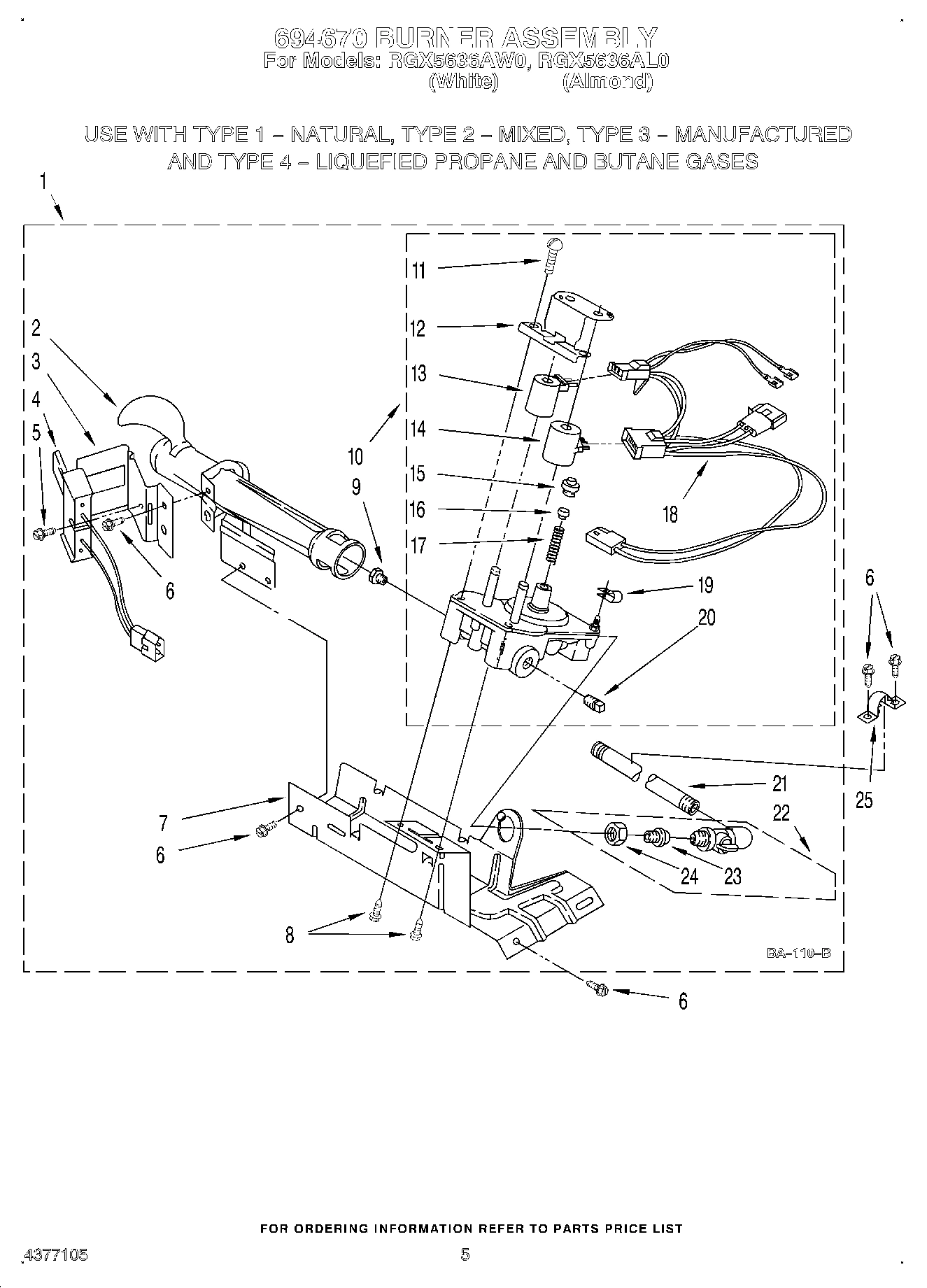

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $72.29

3

98460 Whirlpool Nut Backorder WPL 98460 $9.59

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

3

Wire, Jumper (Black) WPL 3393814 Contact Us For Availability

3

Wire, Jumper (Blue) WPL 3393815 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

4

686889 Whirlpool Pad Backorder WPL 686889 $10.76

4

Hinge, R.H. WPL 687905 Contact Us For Availability

4

Cap, End (L.H.) WPL 3358016 Contact Us For Availability

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

6

Clip, Retainer WPL 689180 Contact Us For Availability

7

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

7

Cap, End (R.H.) WPL 3357998 Contact Us For Availability

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $11.52

8

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Screw, 8-32 x 1/2 (2) WPL 694427 Contact Us For Availability

Housing, Blower WPL 695081 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

694538 Whirlpool Bracket Backorder WPL 694538 $42.00

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

14

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

14

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

(Alt.) WPL 341196 Contact Us For Availability

(Alt.) WPL 338471 Contact Us For Availability

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

16

Top (White) WPL 3396022 Contact Us For Availability

16

Top (Almond) WPL 3396023 Contact Us For Availability

16

Support, Heater Box WPL 348484 Contact Us For Availability

17

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

18

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

18

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $107.10

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

19

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Clip, Harness WPL 694510 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

Seal, Blower WPL 3392123 Contact Us For Availability

21

WP3976569 Whirlpool Timer In Stock WPL WP3976569 $147.09

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $59.98

23

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

23

Harness, Wiring WPL 3396224 Contact Us For Availability

24

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

24

Nut, Compression WPL 233076 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $16.78

25

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

26

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.88

30

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

31

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

34

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $54.24

39

Switch, Push-To-Start WPL 660936 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $39.67

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $32.30

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $17.40

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Timer Knob Assembly WPL 3391823 Contact Us For Availability

48

Bulkhead WPL 3396446 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

53

Bracket, Control WPL 3396293 Contact Us For Availability

54

Panel, Control WPL 3397312 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.12

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $44.08

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

66

Seal, Rear Drum WPL 3397509 Contact Us For Availability

67

Drum Assembly WPL 3396778 Contact Us For Availability

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $52.08

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

Seal WPL 3396466 Contact Us For Availability

75

Receptacle, Latching (3-Way) (Uses Terminal 9 WPL 691707 Contact Us For Availability

81

Knob, Push-To-Start WPL 3391829 Contact Us For Availability

93

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

94

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

95

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42
