  • Whirlpool RGL3422AL0

Model Whirlpool RGL3422AL0 – Common Parts & Diagrams

PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
Leveler (Thinner)
Leveler (Thinner) WPL 350941 Contact Us For Availability
View on Model
Almond (Uncut)
Almond (Uncut) WPL 978883 Contact Us For Availability
View on Model
Instructions, Installation
Instructions, Installation WPL LIT3395325 Contact Us For Availability
View on Model
Use & Care Guide
Use & Care Guide WPL LIT3396298 Contact Us For Availability
View on Model
List, Service Parts
List, Service Parts WPL LIT4377005 Contact Us For Availability
View on Model
1

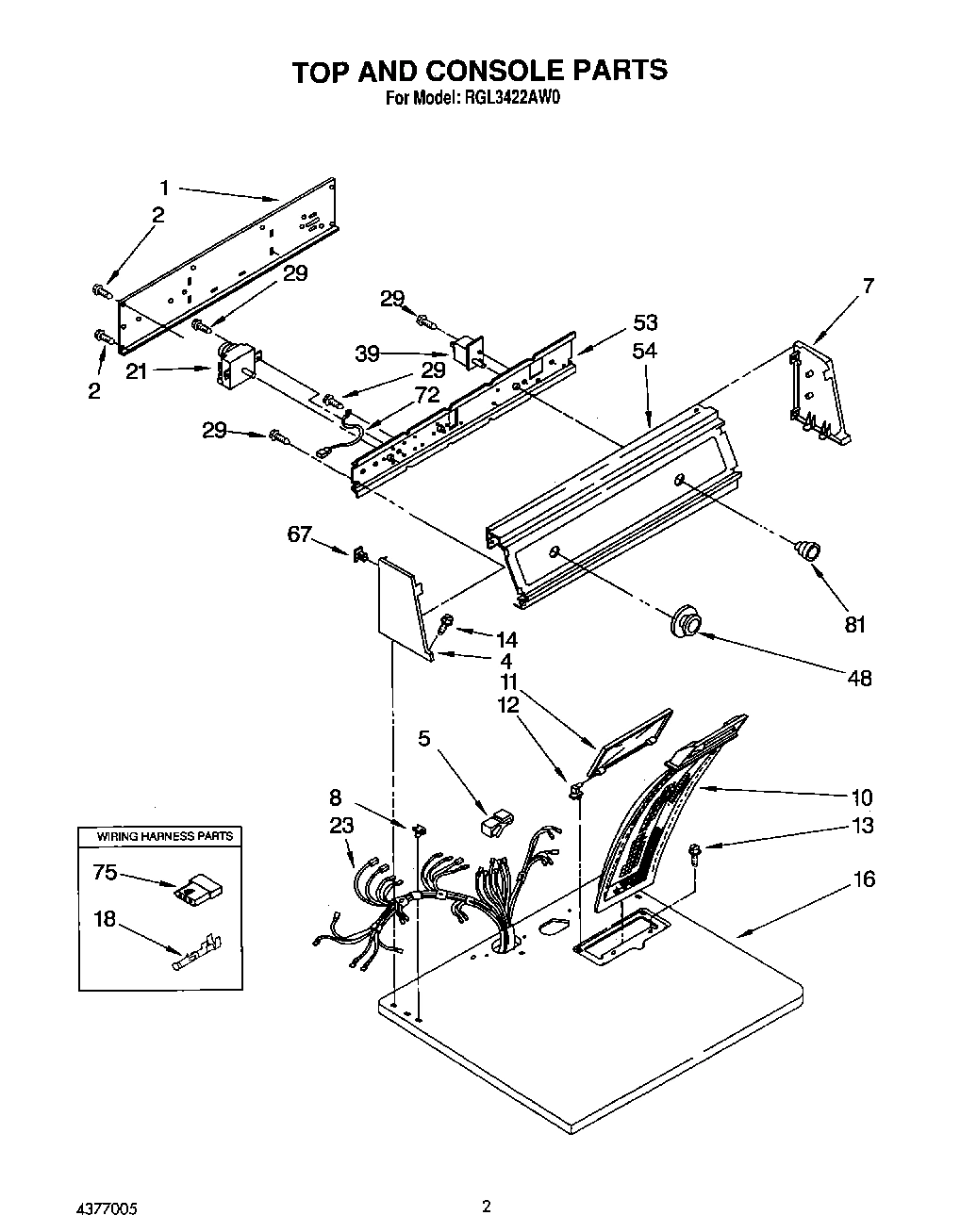

Panel, Rear Console
Panel, Rear Console WPL 3397545 Contact Us For Availability
View on Model
4
Cap, End (L.H.)
Cap, End (L.H.) WPL 3358013 Contact Us For Availability
View on Model
5
Clip, Retainer
Clip, Retainer WPL 689180 Contact Us For Availability
View on Model
6
Plug, Front Panel (White)
Plug, Front Panel (White) WPL 3394975 Contact Us For Availability
View on Model
6
Plug, Front Panel (Almond)
Plug, Front Panel (Almond) WPL 3394976 Contact Us For Availability
View on Model
7
Cap, End (R.H.)
Cap, End (R.H.) WPL 3357995 Contact Us For Availability
View on Model
7
Panel, Rear
Panel, Rear WPL 347736 Contact Us For Availability
View on Model
11
Cover, Lint Screen (White)
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
View on Model
11
Cover, Lint Screen (Almond)
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
View on Model
15
(Alt.)
(Alt.) WPL 341196 Contact Us For Availability
View on Model
16
Top (White)
Top (White) WPL 3396022 Contact Us For Availability
View on Model
16
Top (Almond)
Top (Almond) WPL 3396023 Contact Us For Availability
View on Model
18

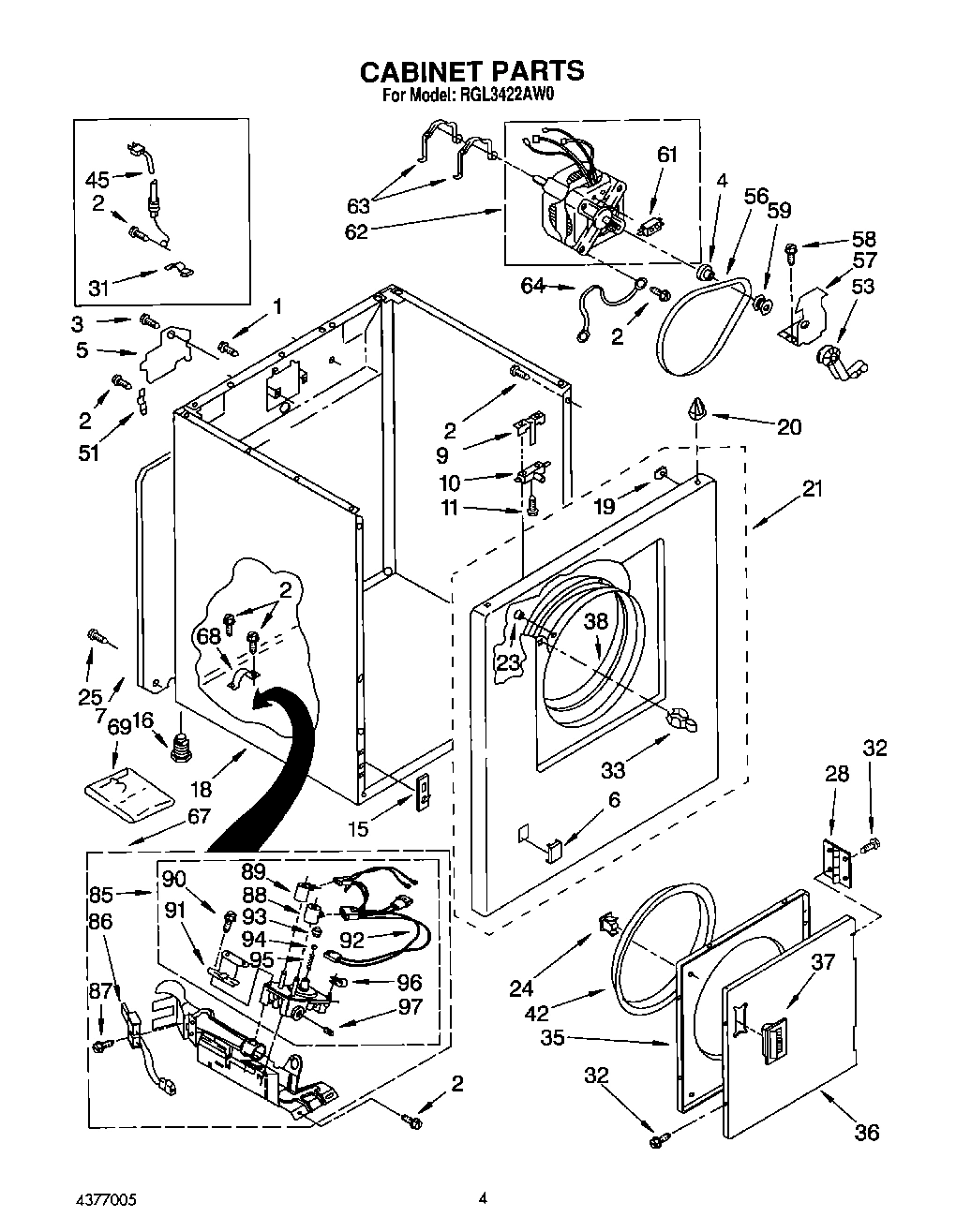

Cabinet (White)
Cabinet (White) WPL 3394109 Contact Us For Availability
View on Model
18
Cabinet (Almond)
Cabinet (Almond) WPL 3394110 Contact Us For Availability
View on Model
21
Front Panel Assembly (White)
Front Panel Assembly (White) WPL 3394895 Contact Us For Availability
View on Model
21
Front Panel Assembly (Almond)
Front Panel Assembly (Almond) WPL 3394896 Contact Us For Availability
View on Model
23
Harness, Wiring
Harness, Wiring WPL 3396218 Contact Us For Availability
View on Model
24
Nut, Compression
Nut, Compression WPL 233076 Contact Us For Availability
View on Model
36
Door, Front (Almond)
Door, Front (Almond) WPL 689314 Contact Us For Availability
View on Model
37
Handle, Door (Almond)
Handle, Door (Almond) WPL 689306 Contact Us For Availability
View on Model
39
(Alt.)
(Alt.) WPL 346364 Contact Us For Availability
View on Model
39
Switch, Push-To-Start
Switch, Push-To-Start WPL 660936 Contact Us For Availability
View on Model
39
(Alt.)
(Alt.) WPL 692021 Contact Us For Availability
View on Model
48
Timer Knob & Dial
Timer Knob & Dial WPL 3391823 Contact Us For Availability
View on Model
53
Bracket, Control
Bracket, Control WPL 3396293 Contact Us For Availability
View on Model
54
Panel, Control
Panel, Control WPL 3397304 Contact Us For Availability
View on Model
64
Wire, Ground (Motor)
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
View on Model
67
Nut, Push-On (4)
Nut, Push-On (4) WPL 689559 Contact Us For Availability
View on Model
67
Burner Assembly, 60 Hz. (Refer to Pages 6 & 7
Burner Assembly, 60 Hz. (Refer to Pages 6 & 7 WPL 694670 Contact Us For Availability
View on Model
69
Kit, Conversion (Type 1 To Type 3)
Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability
View on Model
72
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
75
Receptacle, Latching (3-Way) (Uses Terminal 9
Receptacle, Latching (3-Way) (Uses Terminal 9 WPL 691707 Contact Us For Availability
View on Model
81
Knob, Push-To-Start
Knob, Push-To-Start WPL 3391829 Contact Us For Availability
View on Model
96
WPL 694510
WPL 694510 WPL 694510 Contact Us For Availability
View on Model
