Model Whirlpool RF385PXYW2 – Common Parts & Diagrams
04 - DOOR AND DRAWER
06 - WIRING HARNESS, LIT/OPTIONAL

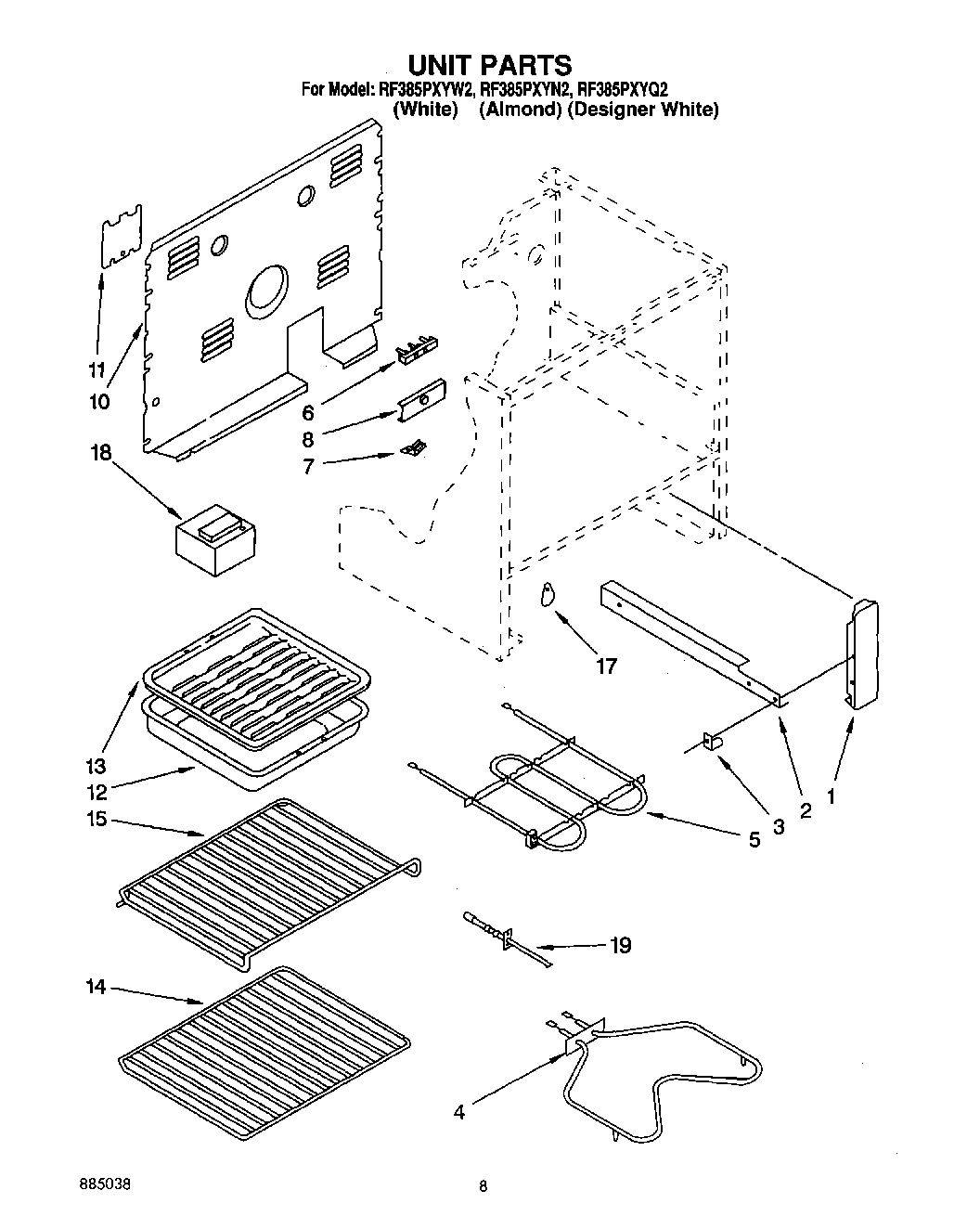

05 - UNIT

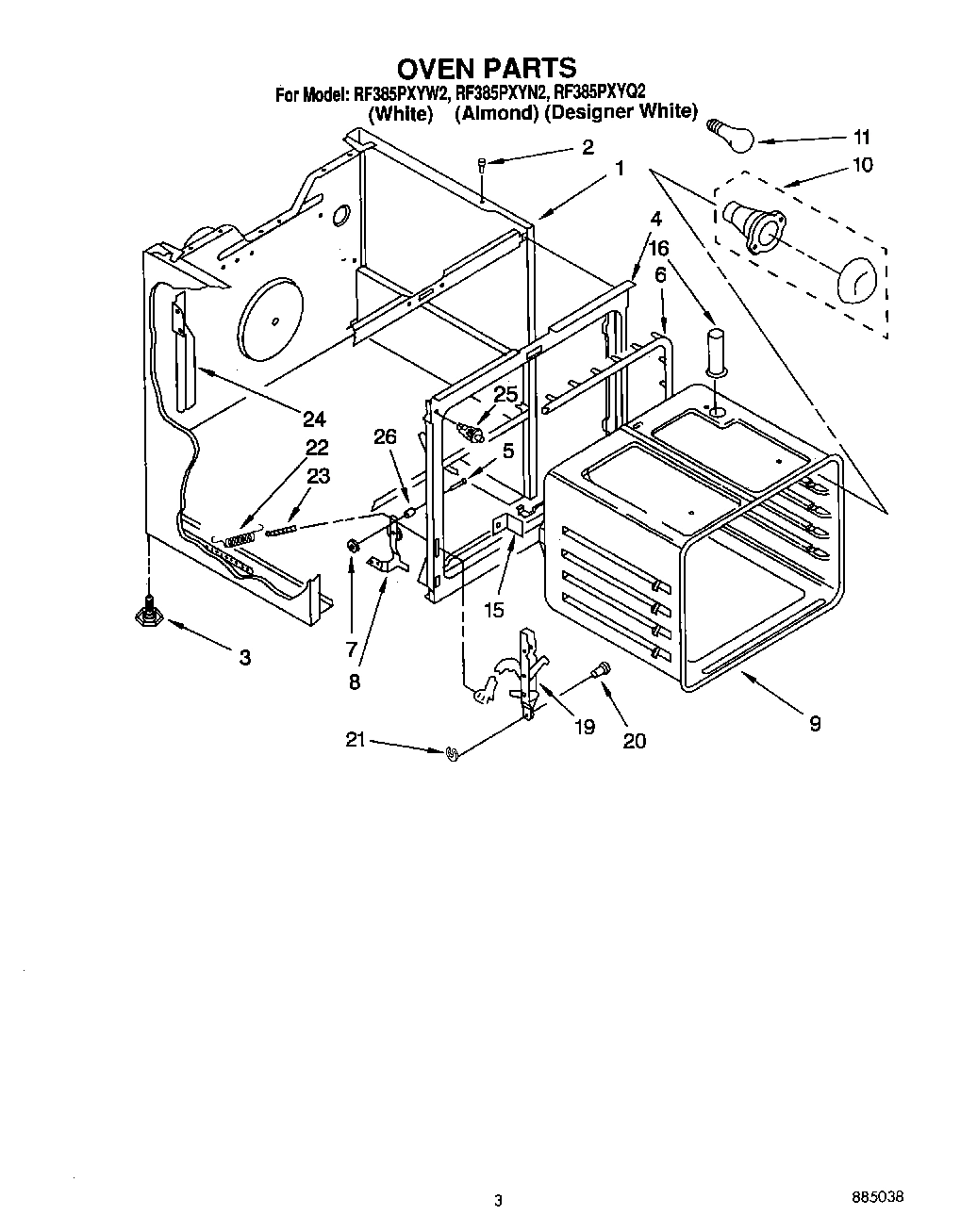

02 - OVEN

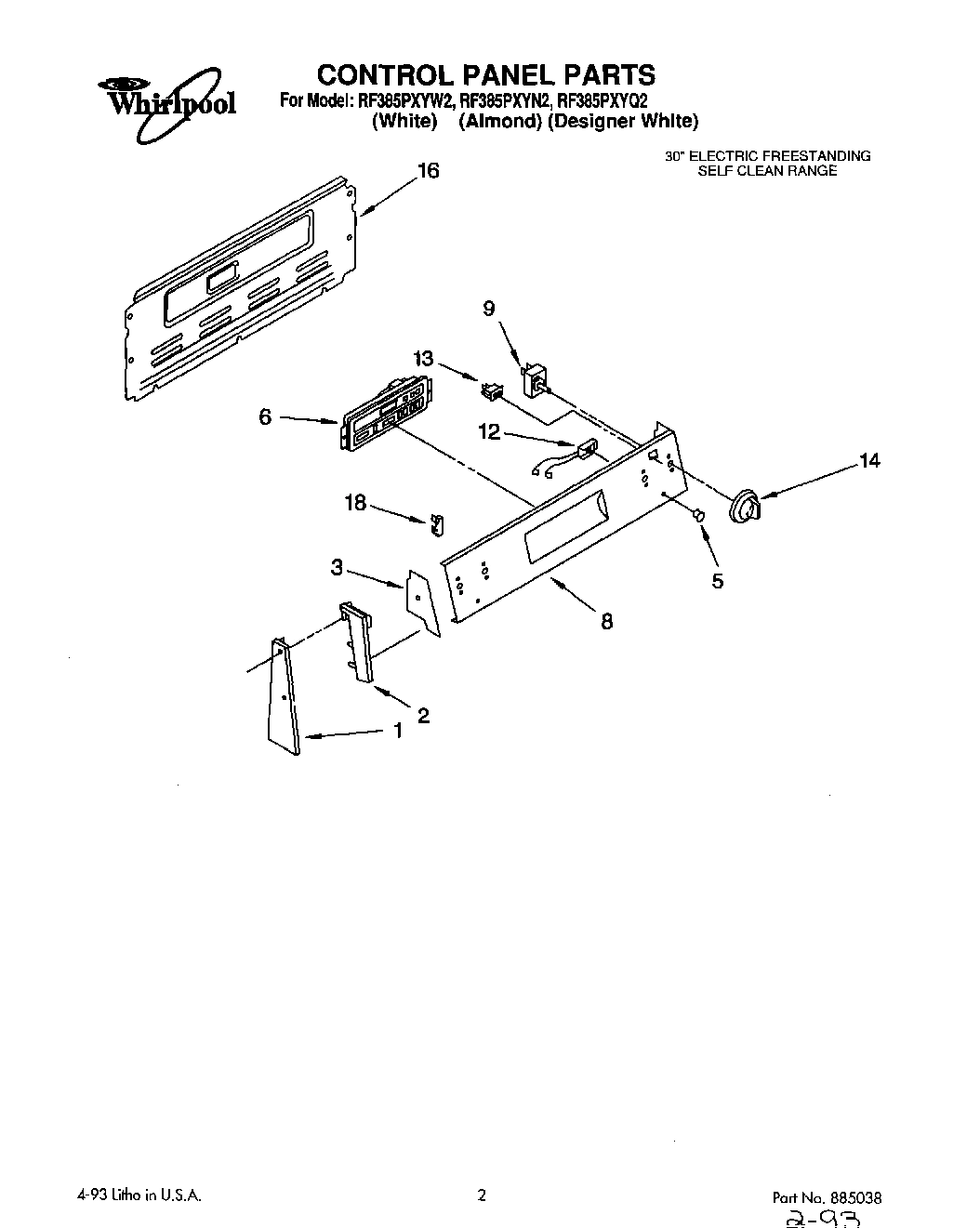

01 - CONTROL PANEL

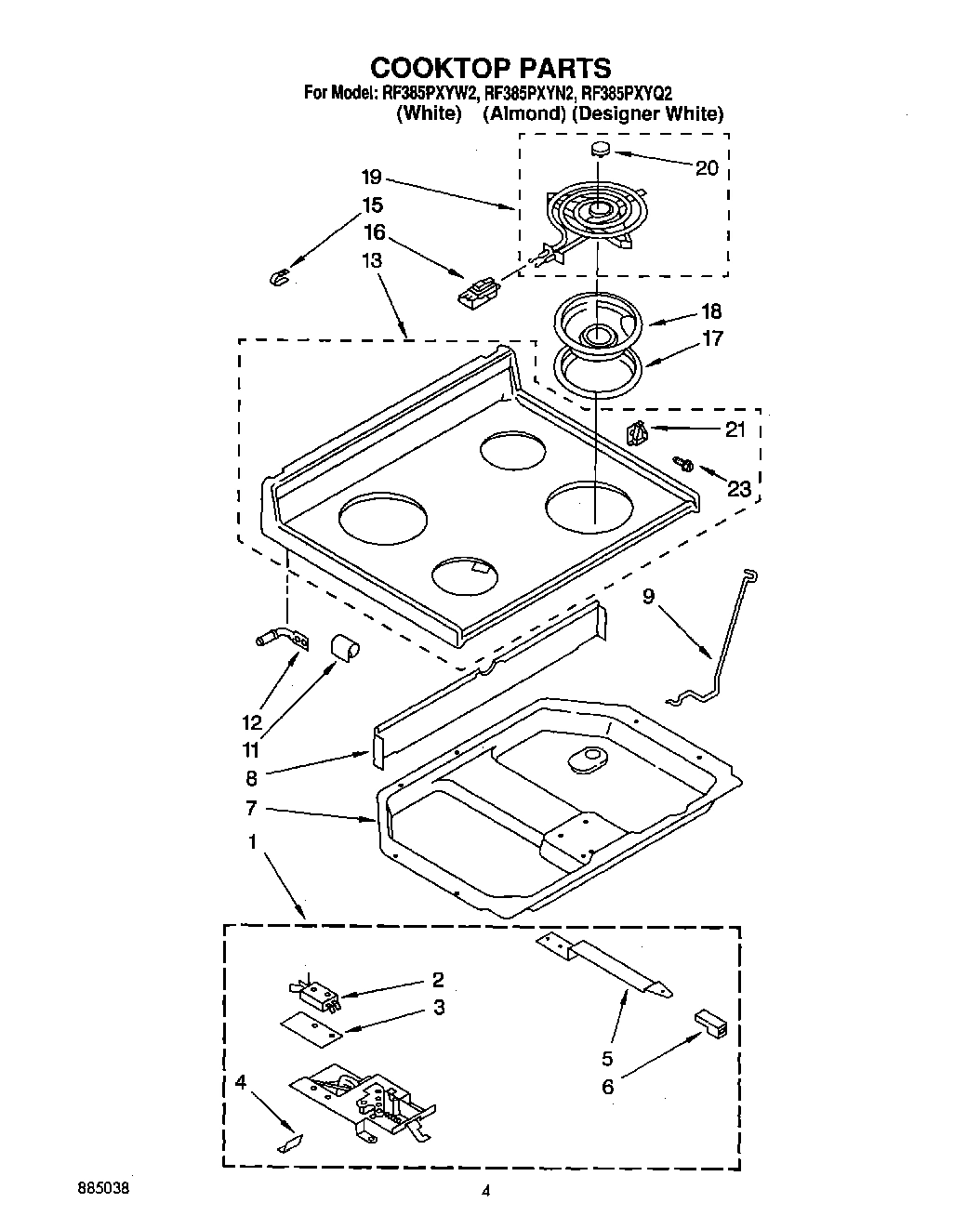

03 - COOKTOP
Common parts from model Whirlpool RF385PXYW2
WPL LIT3182484 WPL LIT3182484 Contact Us For Availability
WPL LIT885038 WPL LIT885038 Contact Us For Availability
1
Harness, Wire (Surface unit) WPL 3149881 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
1
Latch Asm Complete W/Wire Harness (Designer W WPL 3183319 Contact Us For Availability
1
Latch Asm Complete W/Wire Harness (White/Almo WPL 3183321 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3183406 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
Screw (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 313230 Contact Us For Availability
2
End Cap L.H. WPL 313231 Contact Us For Availability
2
Safety Switch WPL 3183096 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Shield, L. or R. WPL 313608 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
4
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3176698 Contact Us For Availability
4
Screw,6-3/8 (2) WPL 309258 Contact Us For Availability
4
Shield, Latch WPL 313035 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Harness, Wire (Lock Switch) WPL 3183323 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
Lens, Light (2) WPL 313101 Contact Us For Availability
5
Handle, Latch (Screw (2)) WPL 308422 Contact Us For Availability
5
Handle, Latch (Designer White) WPL 3150175 Contact Us For Availability
5
Handle, Latch (White/Almond) WPL 3169081 Contact Us For Availability
6
Knob, Latch (Black) WPL 3148684 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Seal, Door WPL 3169251 Contact Us For Availability
6
Electronic Control (White/Almond) WPL 3182391 Contact Us For Availability
6
Electronic Control (Designer White) WPL 3182392 Contact Us For Availability
6
Knob, Latch (White) WPL 3150174 Contact Us For Availability
7
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
7
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
7
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
7
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
7
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
7
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
7
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
7
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
7
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
7
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
7
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
7
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
7
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
7
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
7
Grease WPL 261582 Contact Us For Availability
7
Coffee WPL 261886 Contact Us For Availability
7
New Avocado WPL 261888 Contact Us For Availability
7
Harvest Gold WPL 261890 Contact Us For Availability
7
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
7
Toast WPL 285365 Contact Us For Availability
7
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
7
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
7
Platinum (Uncut) WPL 285368 Contact Us For Availability
7
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
7
Pain WPL 72112 Contact Us For Availability
7
WPL 799832 WPL 799832 Contact Us For Availability
7
WPL 978883 WPL 978883 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Control Panel (White/Almond) WPL 3169210 Contact Us For Availability
8
Control Panel (Designer White) WPL 3169211 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Bracket, Cooktop (2) WPL 307965 Contact Us For Availability
12
Indicator Light (2) WPL 313102 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
13
Switch, Rocker (White/Almond) WPL 3182717 Contact Us For Availability
13
Switch, Rocker (Designer White) WPL 3182718 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
14
Knob, (4) (Infinite Switch) (White/Almond) WPL 3183118 Contact Us For Availability
14
Knob, (4) (Infinite Switch) (Designer White) WPL 3183117 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Rear Cover Control Panel WPL 313195 Contact Us For Availability
17
Screw, (2) 10-32 x .437 WPL 3150532 Contact Us For Availability
17
Coverplate (2) WPL 311982 Contact Us For Availability
18
Block, Balance WPL 312804 Contact Us For Availability
18
Screw (1) WPL 98520 Contact Us For Availability
18
Reflector Pan Designer Model (6`` (2)) WPL 3150198 Contact Us For Availability
19
Sensor WPL 3148440 Contact Us For Availability
19
Channel, Arm (2) WPL 3176709 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Handle, Drawer WPL 3169105 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
25
Switch, Door (2) WPL 310345 Contact Us For Availability
26
Snubber, Door (2) WPL 309111 Contact Us For Availability
26
Insulation, Wrapper WPL 3169093 Contact Us For Availability
26
Insulation, Oven BAck WPL 3169094 Contact Us For Availability
× ![]()
