Model Whirlpool RF375PCYW3 – Common Parts & Diagrams

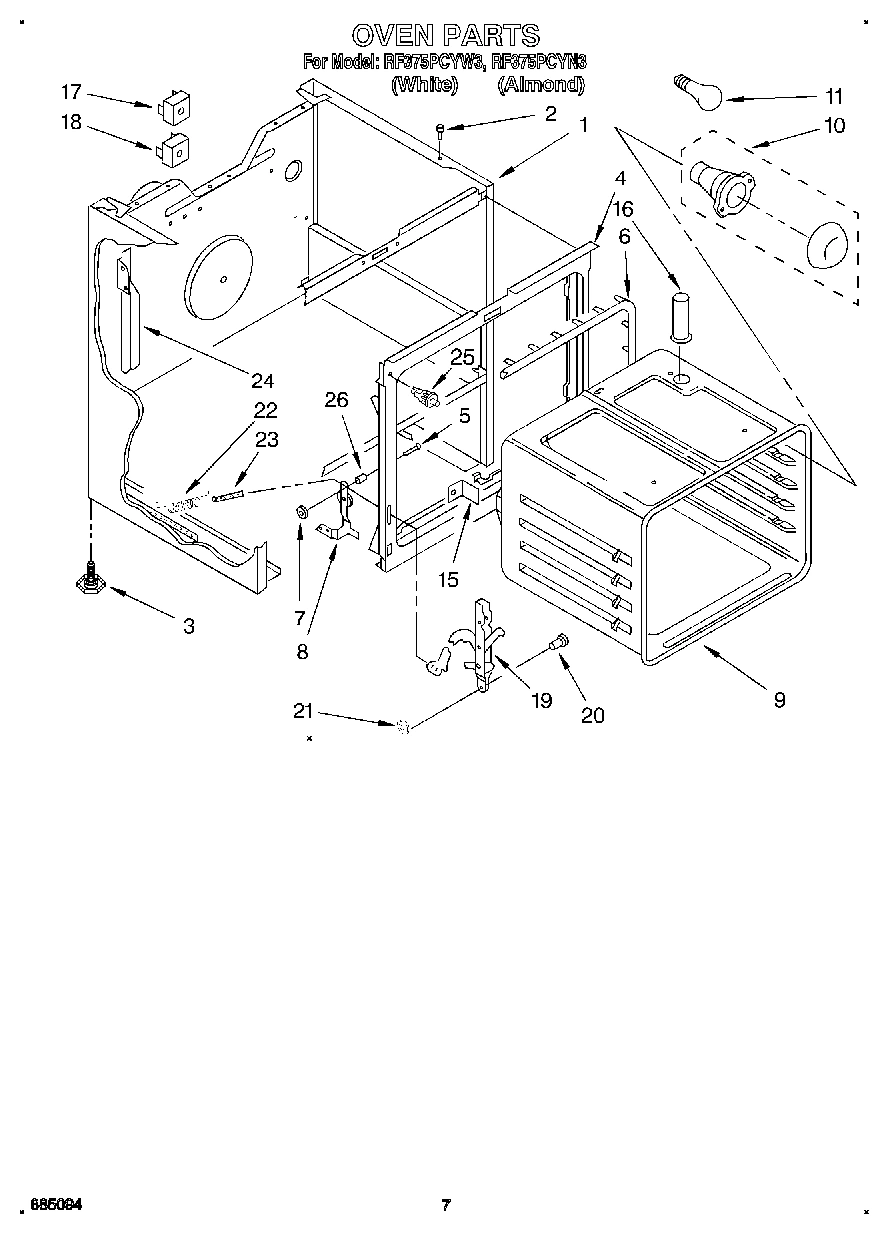

05 - OVEN

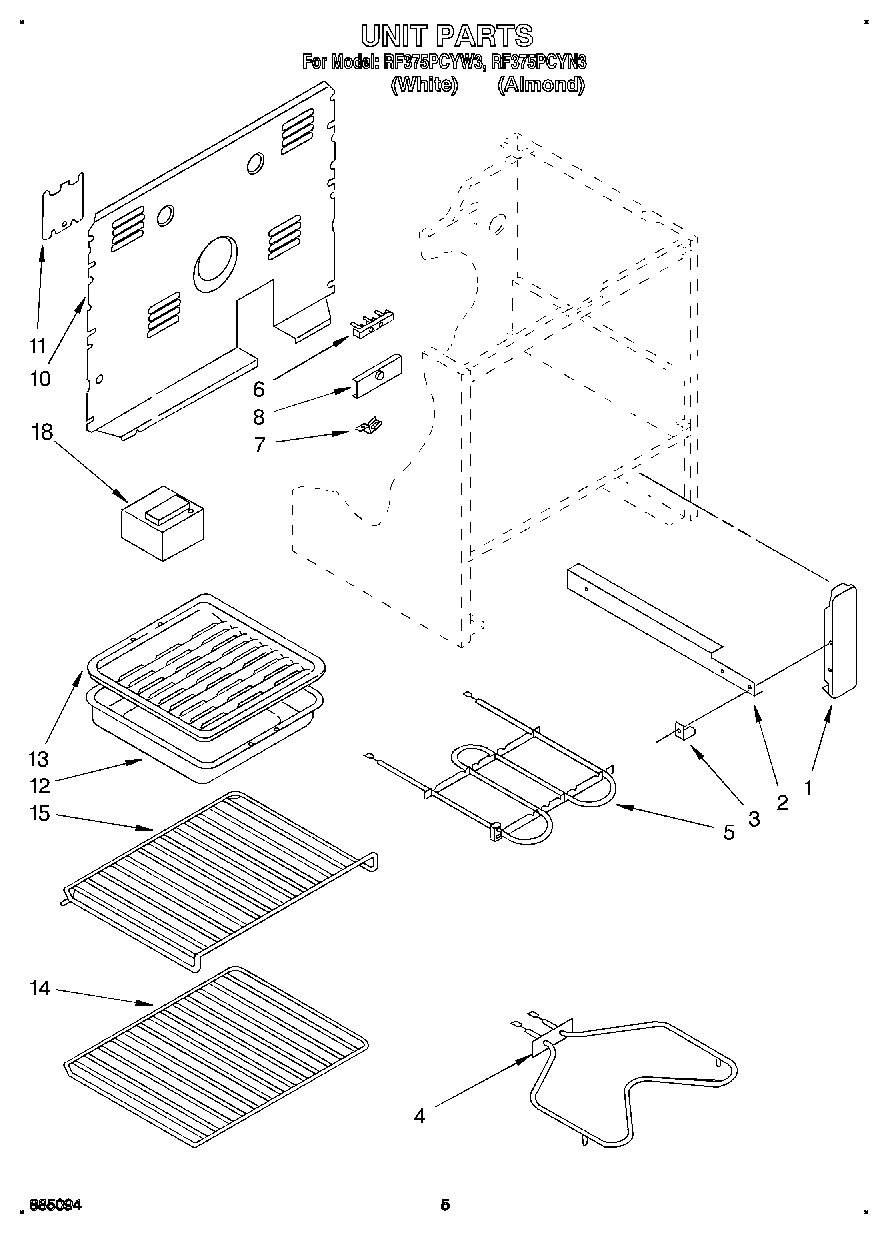

04 - UNIT
01 - COOKTOP
03 - DOOR AND DRAWER
06 - WIRING HARNESS, LIT/OPTIONAL
02 - CONTROL PANEL
Common parts from model Whirlpool RF375PCYW3
WPL LIT3150400 WPL LIT3150400 Contact Us For Availability
WPL LIT3169415 WPL LIT3169415 Contact Us For Availability
WPL LIT3187321 WPL LIT3187321 Contact Us For Availability
WPL LIT3187479 WPL LIT3187479 Contact Us For Availability
WPL LIT677973 WPL LIT677973 Contact Us For Availability
1
Latch Asm Complete W/Wire Harness WPL 3183322 Contact Us For Availability
1
Screw, 10-24 x 1/2 (2) WPL 247326 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Harness, Wire (Surface unit) WPL 3149881 Contact Us For Availability
1
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
Safety Switch WPL 3182741 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3169411 Contact Us For Availability
2
Screw (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 313230 Contact Us For Availability
2
End Cap L.H. WPL 313231 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Seal, Fiberglass (2) WPL 3148441 Contact Us For Availability
4
Screw,6-3/8 (2) WPL 309258 Contact Us For Availability
4
Shield, Latch WPL 313035 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Screw (2) WPL 308422 Contact Us For Availability
5
Handle, Latch WPL 3169081 Contact Us For Availability
5
Harness, Wire (Lock Switch) WPL 3183324 Contact Us For Availability
5
Lens, Light (2) WPL 313101 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Timer, ERC WPL 3183186 Contact Us For Availability
7
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
7
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
7
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
7
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
7
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
7
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
7
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
7
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
7
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
7
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
7
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
7
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
7
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
7
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
7
Grease WPL 261582 Contact Us For Availability
7
Coffee WPL 261886 Contact Us For Availability
7
New Avocado WPL 261888 Contact Us For Availability
7
Harvest Gold WPL 261890 Contact Us For Availability
7
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
7
Toast WPL 285365 Contact Us For Availability
7
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
7
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
7
Platinum (Uncut) WPL 285368 Contact Us For Availability
7
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
7
Pain WPL 72112 Contact Us For Availability
7
WPL 799832 WPL 799832 Contact Us For Availability
7
WPL 978883 WPL 978883 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Panel, Control WPL 3169402 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Switch, Infinite (Screw, 8-32 x 1/4 (8)) WPL 308119 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Latch Mechanism WPL 3148668 Contact Us For Availability
10
Glass, Panel (White) WPL 3149049 Contact Us For Availability
10
Glass, Panel (Almond) WPL 3149050 Contact Us For Availability
10
Switch, Selector (5 Position) WPL 3148419 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Bracket, Cooktop (2) WPL 307965 Contact Us For Availability
11
Foil, Door WPL 3169191 Contact Us For Availability
11
Thermostat, Oven WPL 3185625 Contact Us For Availability
12
Indicator Light (Oven) WPL 314031 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
12
Indicator Light (Surface Unit) WPL 3183695 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
13
Switch, Rocker WPL 3182717 Contact Us For Availability
14
Knob, (4) (Infinite Switch) WPL 3183118 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Top, Door WPL 3148223 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Knob, Thermostat WPL 3183105 Contact Us For Availability
16
Screw (6) WPL 3185647 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
16
Rear Cover Control Panel WPL 3187332 Contact Us For Availability
18
Block, Balance WPL 3169279 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Shield, Control Panel (2) WPL 313608 Contact Us For Availability
19
Knob (Selector) WPL 3183115 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
22
Handle, Drawer WPL 3169105 Contact Us For Availability
23
Screw WPL 307748 Contact Us For Availability
23
Frame, Door WPL 3148235 Contact Us For Availability
24
Insulation WPL 3147951 Contact Us For Availability
25
Switch, Door (2) WPL 310345 Contact Us For Availability
× ![]()
