Model Whirlpool RF365PXYN0 30`` ELECTRIC FREESTANDING SELF CLEAN RANGE – Common Parts & Diagrams
07 - WIRING HARNESS
01 - COVER

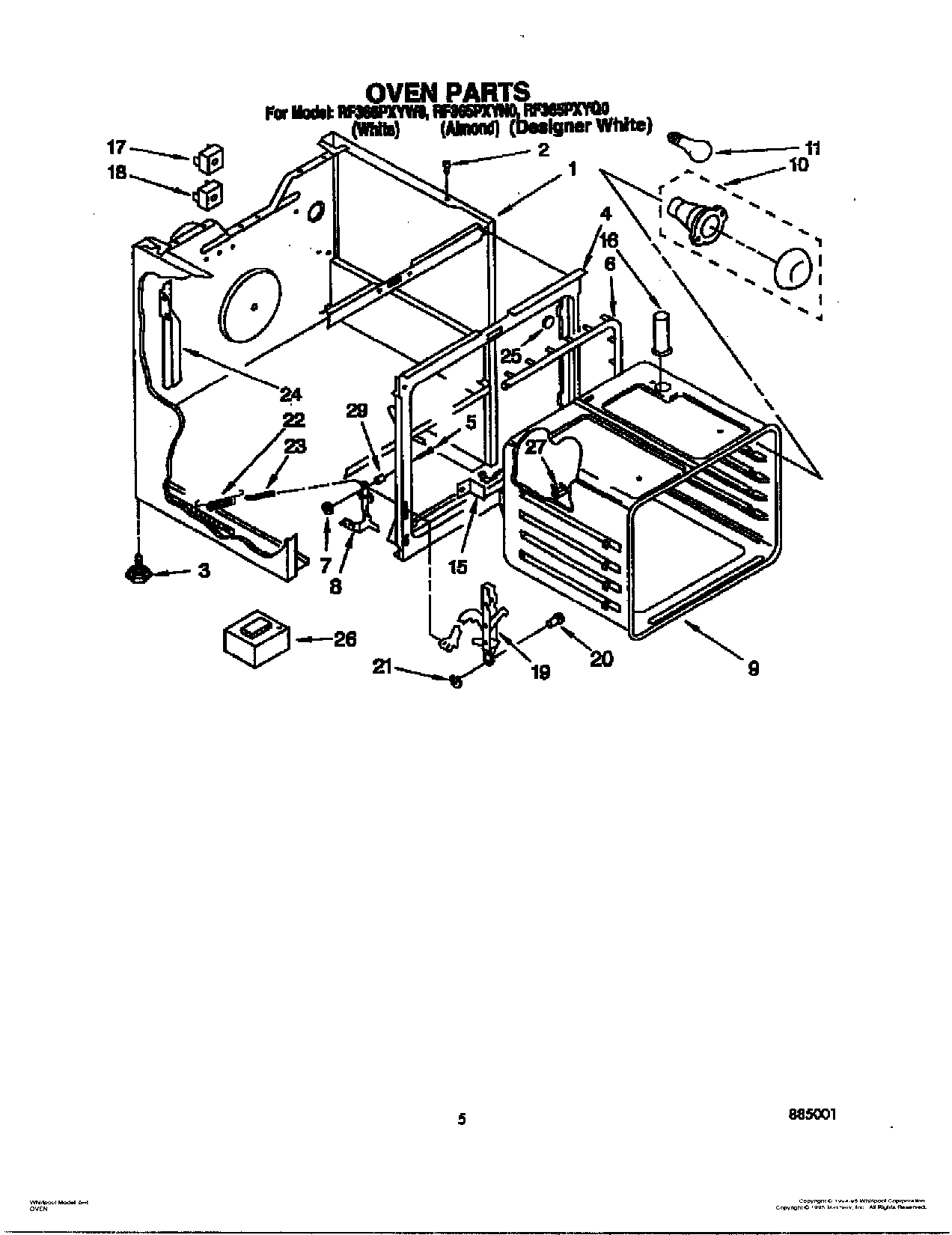

04 - OVEN

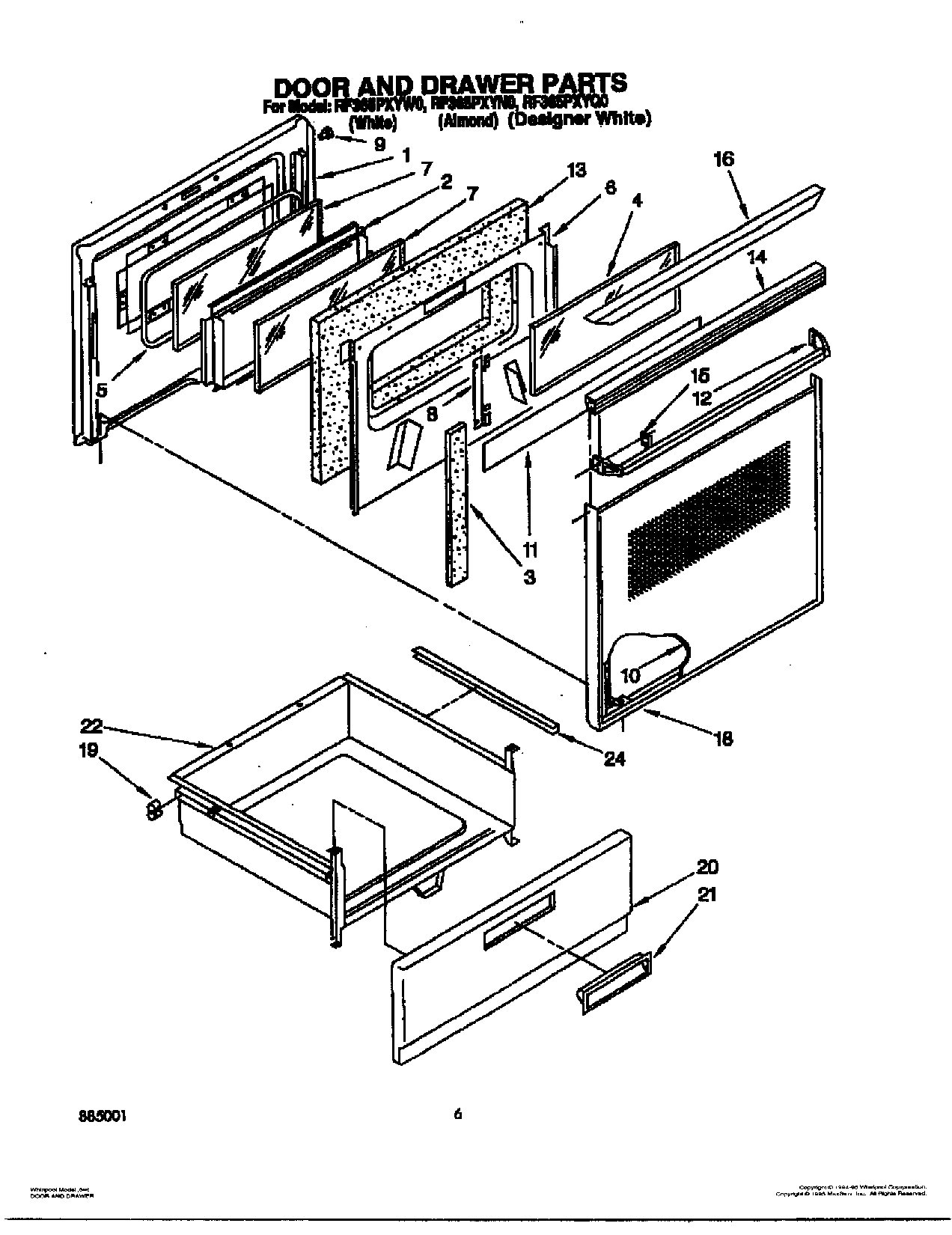

05 - DOOR AND DRAWER

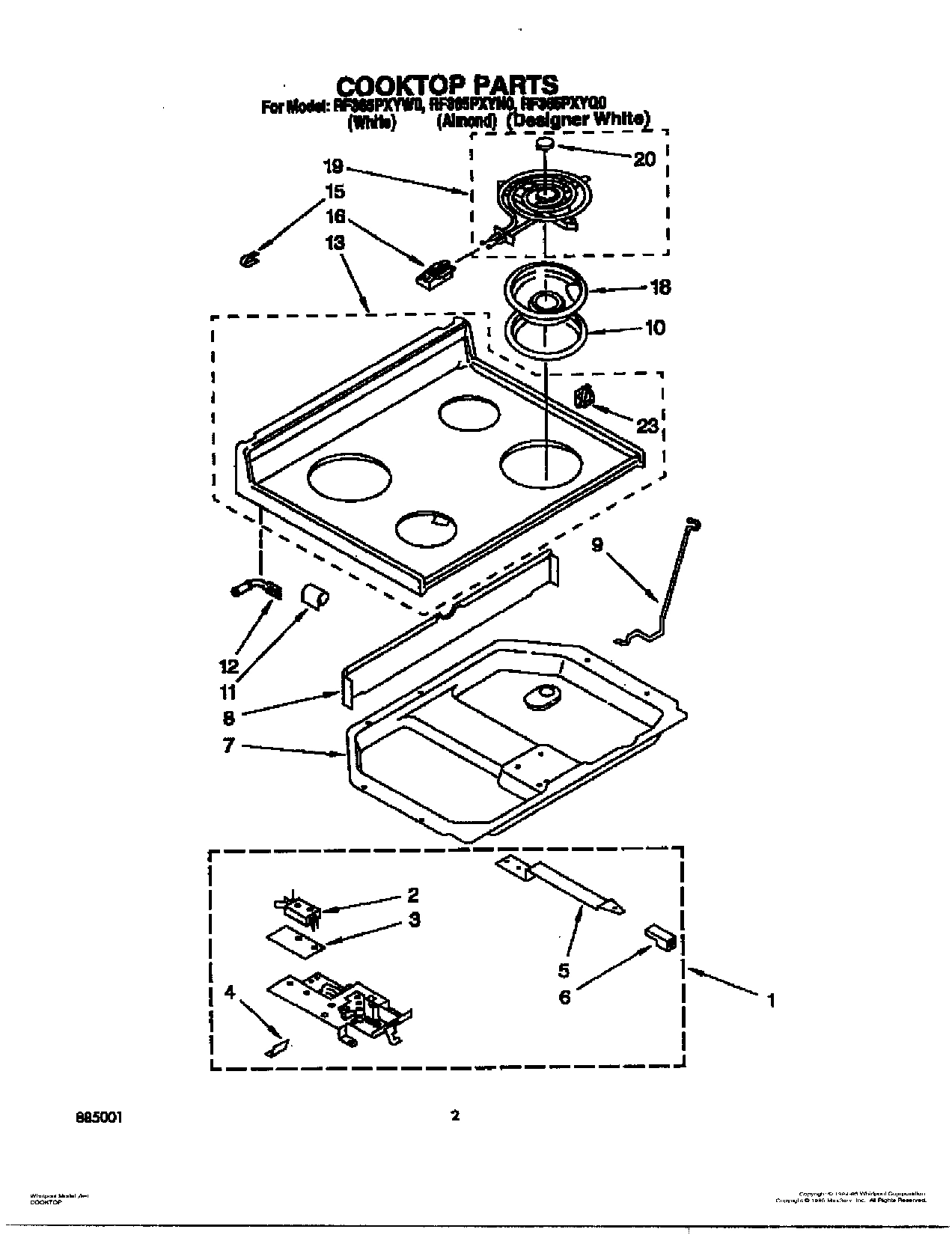

02 - COOKTOP

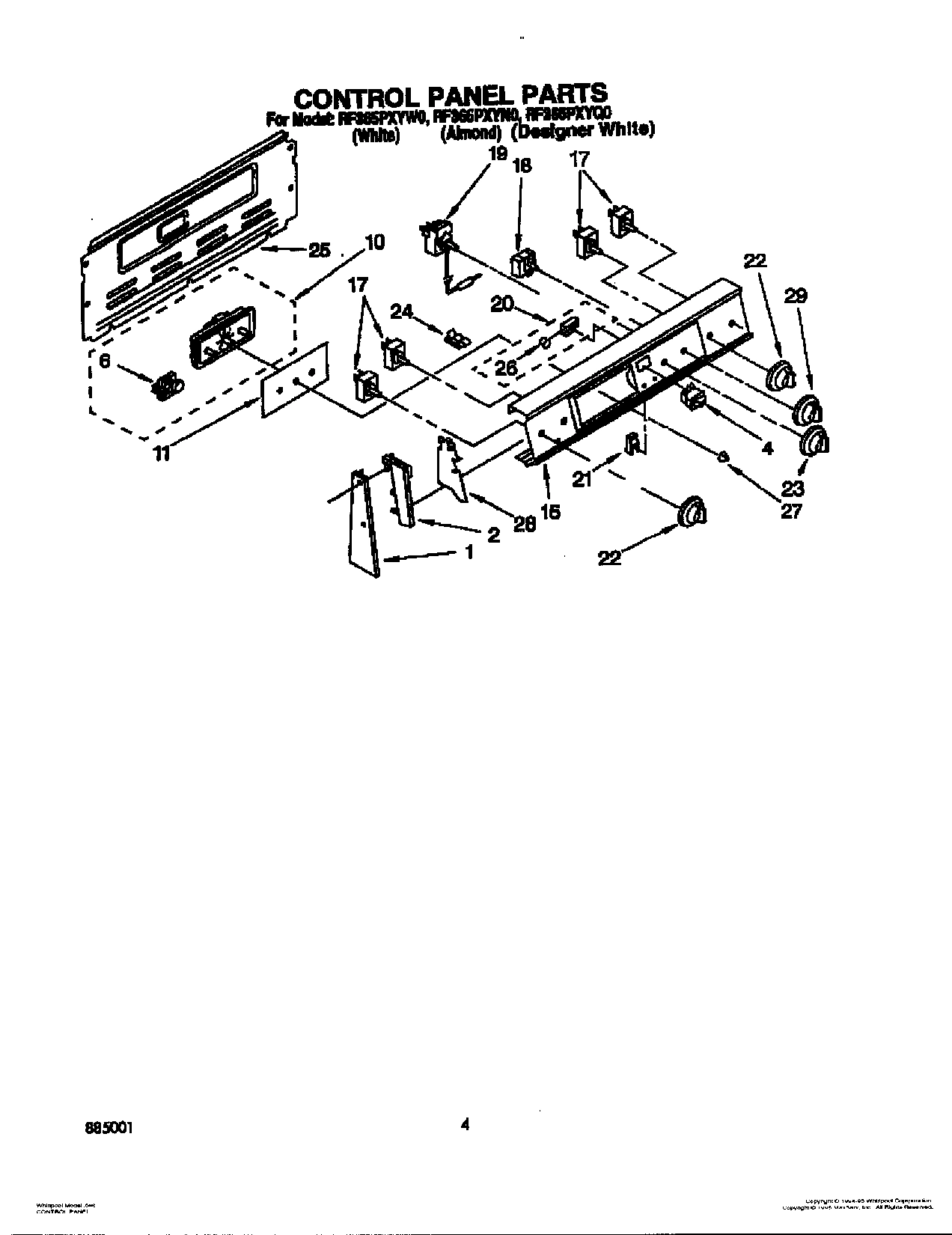

03 - CONTROL PANEL

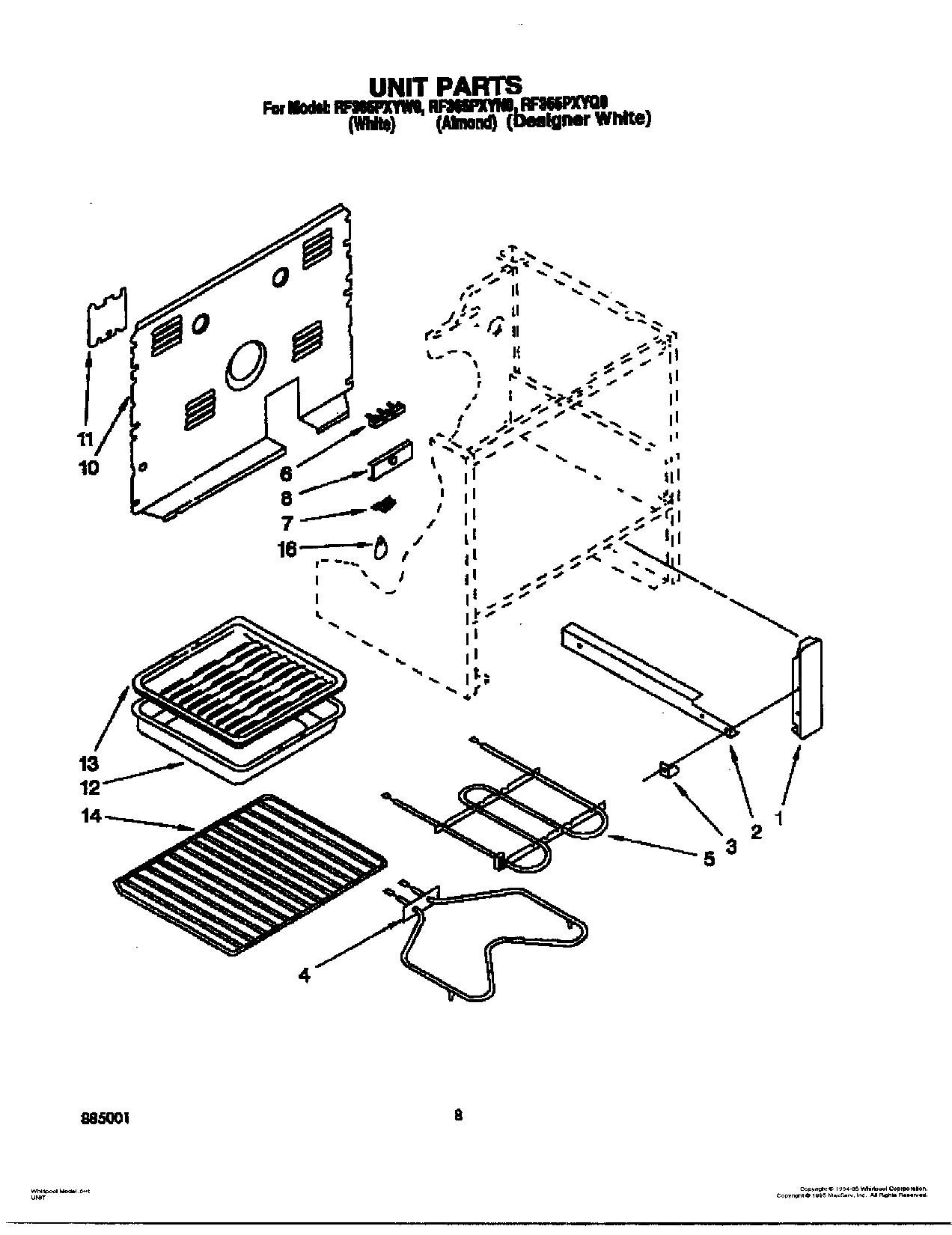

06 - UNIT
Common parts from model Whirlpool RF365PXYN0 30`` ELECTRIC FREESTANDING SELF CLEAN RANGE
WPL LIT3147395 WPL LIT3147395 Contact Us For Availability
WPL LIT3150288 WPL LIT3150288 Contact Us For Availability
WPL LIT3183707 WPL LIT3183707 Contact Us For Availability
WPL LIT885001 WPL LIT885001 Contact Us For Availability
WPL ARI122876A WPL ARI122876A Contact Us For Availability
1
Latch Asm Complete W/Wiring Harness WPL 3183959 Contact Us For Availability
1
Designer White Mdl WPL 3183960 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
2
Safety Switch WPL 308185 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
End Cap (Screw, 8BT x 1/4 (4)) WPL 254225 Contact Us For Availability
2
End Cap (R.H.) (Designer White Mdl) WPL 313230 Contact Us For Availability
2
End Cap (L.H.) (Designer White Mdl) WPL 313231 Contact Us For Availability
2
End Cap (RH-White/Almond) WPL 3150441 Contact Us For Availability
2
End Cap (LH-White/Almond) WPL 3150442 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
3
Seal, Foam WPL 3148441 Contact Us For Availability
3
Screw (2) WPL 307748 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Screw (2) WPL 308422 Contact Us For Availability
4
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
4
Shield, Latch Terminal WPL 313035 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Handle, Latch (Designer White Mdl) WPL 3150175 Contact Us For Availability
5
Handle, Latch (Almond/White) WPL 3169081 Contact Us For Availability
5
Unit, Broil (208V) WPL 312308 Contact Us For Availability
6
Knob, Latch (White/Almond) WPL 3148684 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Knob, Latch (Designer White Mdl.) WPL 3150174 Contact Us For Availability
6
Motor, Timer WPL 309822 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Screw (4) WPL 3148443 Contact Us For Availability
8
Retainer, Glass WPL 3148187 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
10
Glass, Door (White/Almond) WPL 3148185 Contact Us For Availability
10
Glass, Door (Designer White Mdl) WPL 3149049 Contact Us For Availability
10
Timer, Clock (Designer White Mdl (Includes No WPL 3183064 Contact Us For Availability
10
Timer, Clock (White/Almond) WPL 661458 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Foil WPL 3148184 Contact Us For Availability
11
Bracket (2) WPL 307965 Contact Us For Availability
11
Glass, Timer WPL 313513 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Handle, Door (White/Almond) WPL 3148228 Contact Us For Availability
12
Handle, Door (Designer White Mdl) WPL 3149354 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
13
Insulation, Door WPL 3147951 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
14
Top, Door (White-Almond) WPL 3148223 Contact Us For Availability
14
Top, Door (Designer White Mdl) WPL 3149355 Contact Us For Availability
14
Rack, Oven (2) WPL 308173 Contact Us For Availability
15
Clip (2) WPL 3148282 Contact Us For Availability
15
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
15
Panel, Control WPL 3183814 Contact Us For Availability
15
Designer White Mdl WPL 3183815 Contact Us For Availability
16
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
16
WPL 799344 WPL 799344 Contact Us For Availability
16
Cap, Door Top Designer Mdl. Only WPL 3181363 Contact Us For Availability
16
WPL 3150532 WPL 3150532 Contact Us For Availability
16
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
16
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
16
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
16
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
16
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
16
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
16
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
16
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
16
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
16
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
16
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
16
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
16
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
16
Grease WPL 261582 Contact Us For Availability
16
Coffee WPL 261886 Contact Us For Availability
16
New Avocado WPL 261888 Contact Us For Availability
16
Harvest Gold WPL 261890 Contact Us For Availability
16
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
16
Toa WPL 285365 Contact Us For Availability
16
WPL 285366 WPL 285366 Contact Us For Availability
16
WPL 285367 WPL 285367 Contact Us For Availability
16
WPL 285368 WPL 285368 Contact Us For Availability
16
WPL 311982 WPL 311982 Contact Us For Availability
16
WPL 72108 WPL 72108 Contact Us For Availability
16
WPL 72112 WPL 72112 Contact Us For Availability
16
WPL 799832 WPL 799832 Contact Us For Availability
16
WPL 978883 WPL 978883 Contact Us For Availability
18
Frame, Glass WPL 3148235 Contact Us For Availability
18
Pan, Reflector Designer Model (6`` (2)) WPL 3150198 Contact Us For Availability
18
Switch, Selector (5 Position) WPL 3148419 Contact Us For Availability
19
Glide, Rear WPL 307980 Contact Us For Availability
19
Thermostat, 0ven Pyro WPL 3185625 Contact Us For Availability
20
Light, Indicator (Oven Unit) (Includes Illus. WPL 314031 Contact Us For Availability
20
Panel, Drawer (White) WPL 3150676 Contact Us For Availability
20
Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
21
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
21
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
21
Light, Indicator (Surface Unit) (Includes Ill WPL 3150662 Contact Us For Availability
22
Knob, Infinite (4) (White/Almond) WPL 3183118 Contact Us For Availability
22
Knob, Infinite (4) (Designer White Mdl) WPL 3183117 Contact Us For Availability
22
Drawer, Utility WPL 327887 Contact Us For Availability
23
Knob (Temp) (Designer White Mdl) WPL 3183104 Contact Us For Availability
23
Knob (Temp) (White/Almond) WPL 3183103 Contact Us For Availability
23
WPL 814102 WPL 814102 Contact Us For Availability
24
Protector, Drawer (2) WPL 309329 Contact Us For Availability
24
Tube Clip WPL 313570 Contact Us For Availability
25
Rear Cover WPL 313195 Contact Us For Availability
26
Lens, Amber (2) WPL 313101 Contact Us For Availability
28
WPL 313608 WPL 313608 Contact Us For Availability
29
WPL 3183115 WPL 3183115 Contact Us For Availability
29
WPL 3183116 WPL 3183116 Contact Us For Availability
× ![]()
