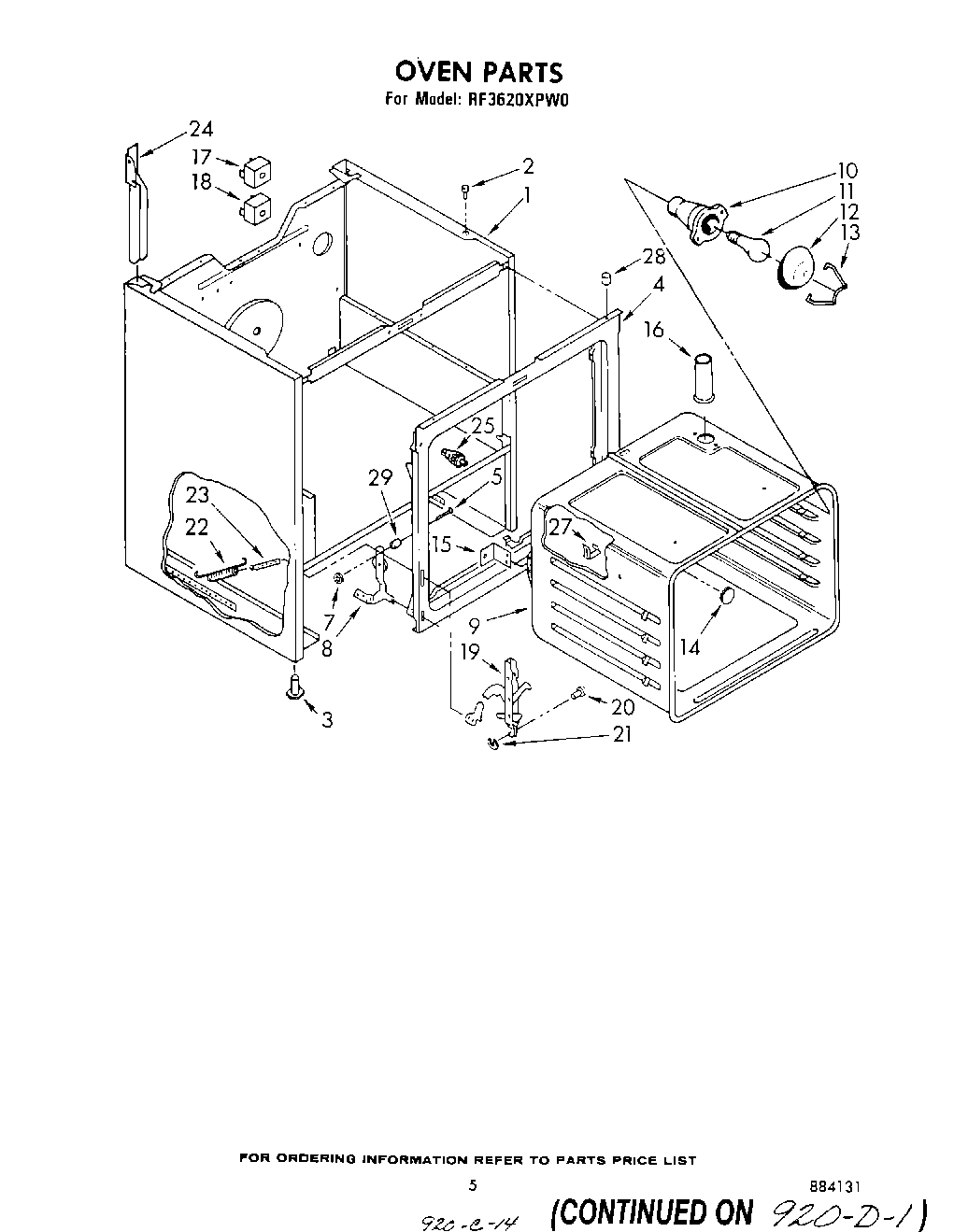

Model Whirlpool RF3620XPW0 – Common Parts &amp; Diagrams

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

WPL 312308 WPL 312308 Contact Us For Availability

WPL LIT313284 WPL LIT313284 Contact Us For Availability

WPL LIT313358 WPL LIT313358 Contact Us For Availability

WPL LIT313473 WPL LIT313473 Contact Us For Availability

WPL LIT884131 WPL LIT884131 Contact Us For Availability

1

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

1

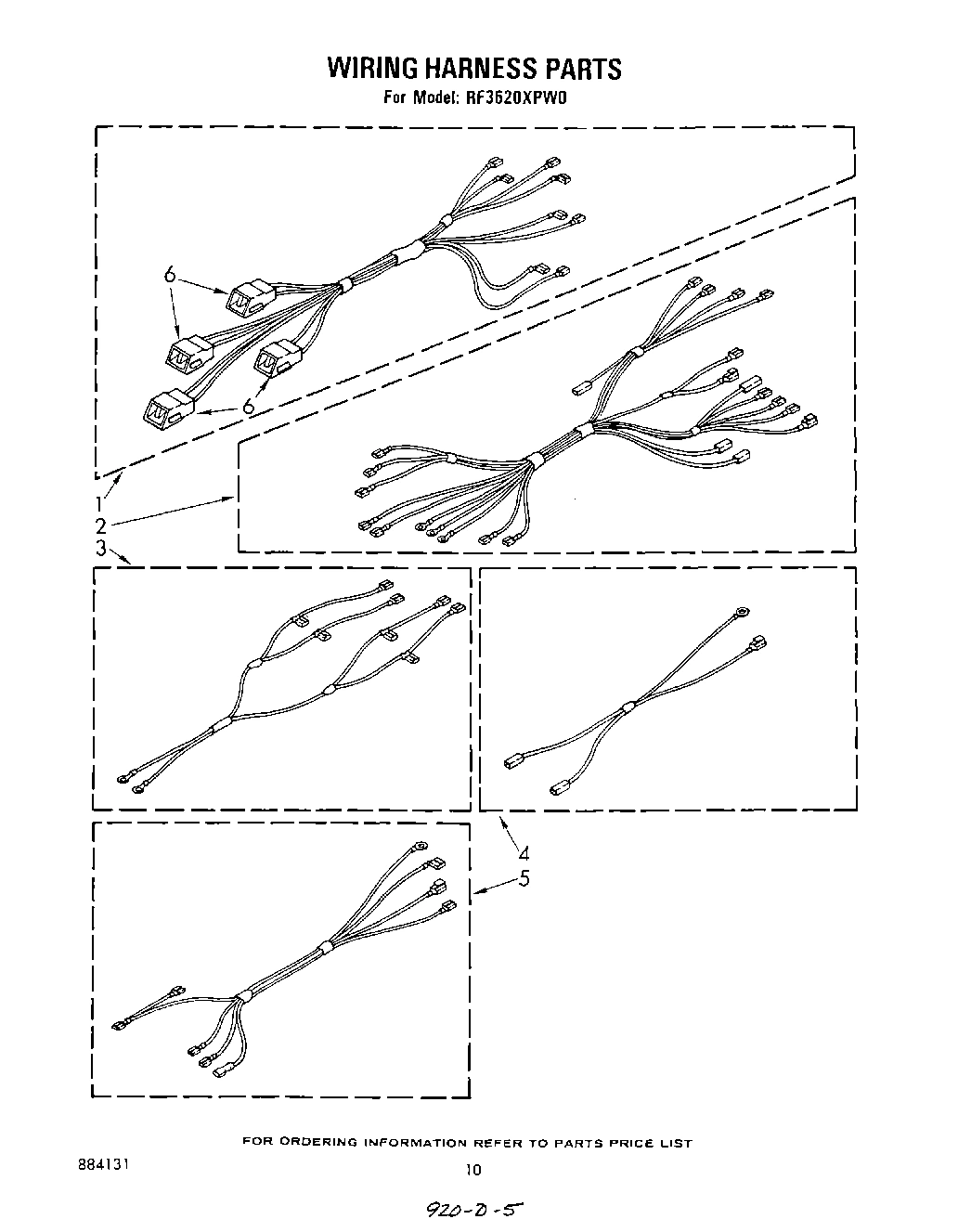

Harness, Wire (Suface Units) WPL 313148 Contact Us For Availability

1

Latch Assembly (Pyro) WPL 328585 Contact Us For Availability

1

screw, (4) WPL 311056 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

End Trim L.H. WPL 313190 Contact Us For Availability

1

End Trim R.H. WPL 313191 Contact Us For Availability

1

Liner, Door WPL 329694 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Harness, Wire (Oven) WPL 313153 Contact Us For Availability

2

Safety Switch WPL 308185 Contact Us For Availability

2

Screw (2) WPL 98106 Contact Us For Availability

2

Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability

2

rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 313230 Contact Us For Availability

2

End Cap L.H. WPL 313231 Contact Us For Availability

2

Channel, Latch WPL 308033 Contact Us For Availability

3

Harness, Wire (Supply) WPL 313147 Contact Us For Availability

3

Insulator, Switch WPL 309245 Contact Us For Availability

3

Glide, Front (2) WPL 307979 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

WP312309 Whirlpool Bake Element In Stock WPL WP312309 $70.05

4

Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability

4

Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability

4

Shield, Latch Terminal WPL 313035 Contact Us For Availability

4

Protector, Drawer WPL 309329 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Harness, Wire (Lockswitch) WPL 313155 Contact Us For Availability

5

Handle, Latch WPL 307976 Contact Us For Availability

5

Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability

5

Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability

5

Screw WPL 311054 Contact Us For Availability

5

Shield, Insulation WPL 310056 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

Knob, Latch WPL 307977 Contact Us For Availability

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

7

Burner Box WPL 307929 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Bracket, Service WPL 307970 Contact Us For Availability

9

Rod, Cooktop WPL 307968 Contact Us For Availability

10

Retainer, Cooktop WPL 307967 Contact Us For Availability

10

Cover, Rear WPL 307971 Contact Us For Availability

10

Timer, Digital WPL 313134 Contact Us For Availability

Bracket, Cooktop (2) WPL 307965 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

Panel, Door (White) WPL 307889 Contact Us For Availability

Panel, Door (Harvest Gold) WPL 307895 Contact Us For Availability

Panel, Door (Almond) WPL 307897 Contact Us For Availability

Panel, Door (Toast) WPL 313177 Contact Us For Availability

Panel, Door (Platinum) WPL 313178 Contact Us For Availability

12

WP308499 Whirlpool Nut Backorder WPL WP308499 $3.70

12

Handle, Oven Door (Black) WPL 311563 Contact Us For Availability

12

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

Cooktop (Harvest Gold) WPL 307867 Contact Us For Availability

Cooktop (White) WPL 307870 Contact Us For Availability

Cooktop (Almond) WPL 307872 Contact Us For Availability

Cooktop (Toast) WPL 313167 Contact Us For Availability

Cooktop (Platinum) WPL 313168 Contact Us For Availability

14

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability

Panel, Control WPL 313237 Contact Us For Availability

Seal, Fiberglass WPL 311904 Contact Us For Availability

16

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

16

Plate, Cover (2) WPL 311982 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

WP3149400 Whirlpool Oven Infinite Switch In Stock WPL WP3149400 $30.33

WP3149404 Whirlpool Oven Surface Element Swit In Stock WPL WP3149404 $28.08

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow WPL 242832 Contact Us For Availability

WPL 242985 WPL 242985 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Glide, Rear WPL 307980 Contact Us For Availability

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

Switch, Selector (5 Position) WPL 312288 Contact Us For Availability

Drawer, Utility WPL 327887 Contact Us For Availability

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

Channel, Arm (2) WPL 329710 Contact Us For Availability

Thermostat, Oven Pyro WPL 313068 Contact Us For Availability

Panel Drawer (White) WPL 307935 Contact Us For Availability

Panel Drawer (Harvest Gold) WPL 307938 Contact Us For Availability

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

Panel, Drawer (Toast) WPL 313171 Contact Us For Availability

Panel, Drawer (Platinum) WPL 313172 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

Medallion (4) WPL 309195 Contact Us For Availability

20

Light, Indicator (3) (Oven, Lock, Clean) (Inc WPL 313111 Contact Us For Availability

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

Light, Indicator (Surface Unit (2)) WPL 313102 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

Handle, Drawer WPL 313337 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Shield, Insulation WPL 312320 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

23

Panel, Inner WPL 328546 Contact Us For Availability

24

Support, L.H. Channel WPL 313196 Contact Us For Availability

24

Support, R.H. Channel WPL 313197 Contact Us For Availability

24

Rack, Literature WPL 357645 Contact Us For Availability

25

Switch, Door WPL 310345 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

28

Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability

28

Locator, Cooktop (2) WPL 311909 Contact Us For Availability

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

30

Knob, Control (4) WPL 330177 Contact Us For Availability

34

Screw (2) WPL 310410 Contact Us For Availability

34

Knob, Control (4) WPL 330175 Contact Us For Availability

37

Tube Clip WPL 313570 Contact Us For Availability

38

Resistor & Terminal Assembly WPL 328923 Contact Us For Availability

39

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

39

Rear Cover Control Panel WPL 313195 Contact Us For Availability

41

Lens, Amber (5) WPL 313101 Contact Us For Availability

42

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $9.28

42

Knob, Spring WPL 313311 Contact Us For Availability

50

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

50

Shield, Glass (2) WPL 313608 Contact Us For Availability

52

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

52

Knob, Control WPL 330178 Contact Us For Availability
