Model Whirlpool RF360BXYW2 – Common Parts &amp; Diagrams

Installation Instr (templet) WPL 3150400 Contact Us For Availability

Wiring Diagram WPL LIT3183707 Contact Us For Availability

Instructions, Installation WPL LIT3187321 Contact Us For Availability

Use & Care Guide WPL LIT3187473 Contact Us For Availability

WPL LIT677973 WPL LIT677973 Contact Us For Availability

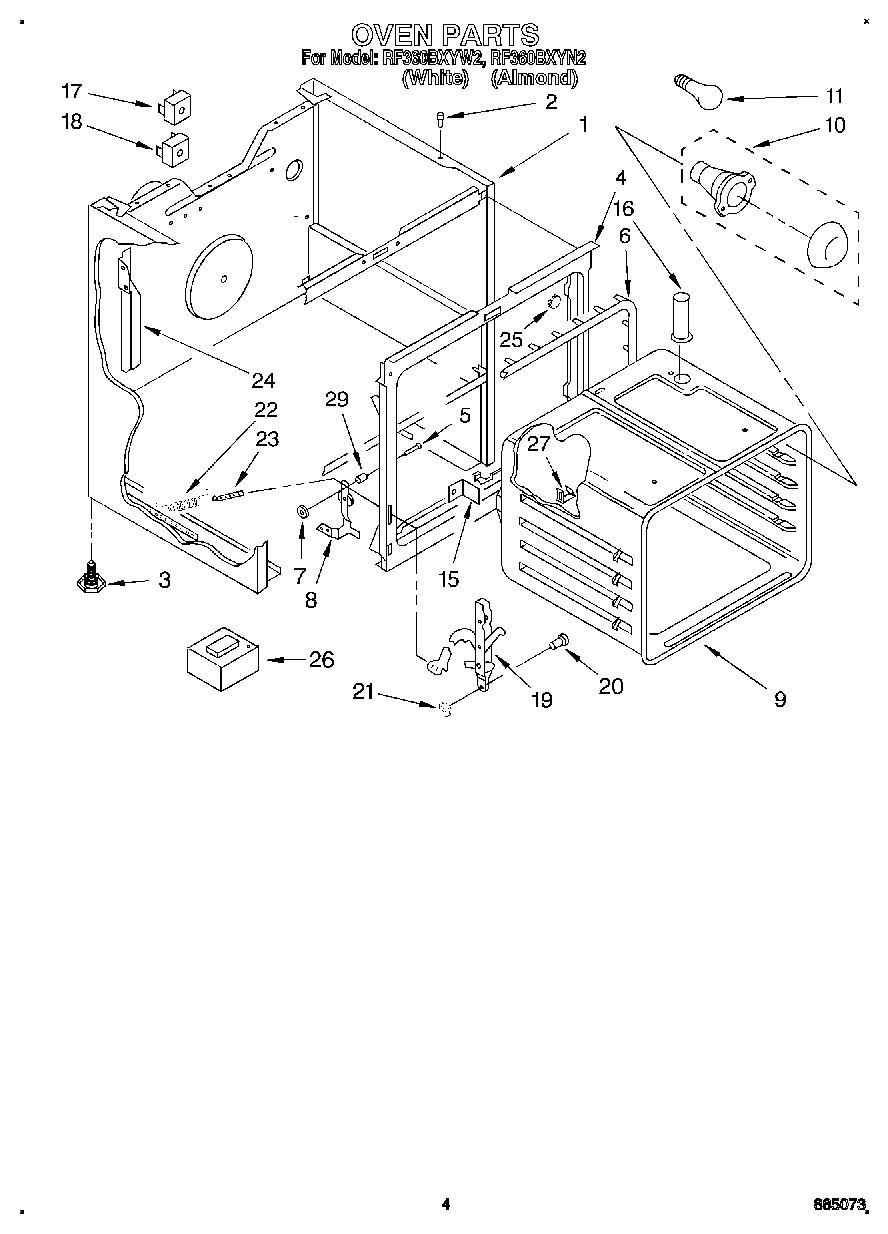

1

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

1

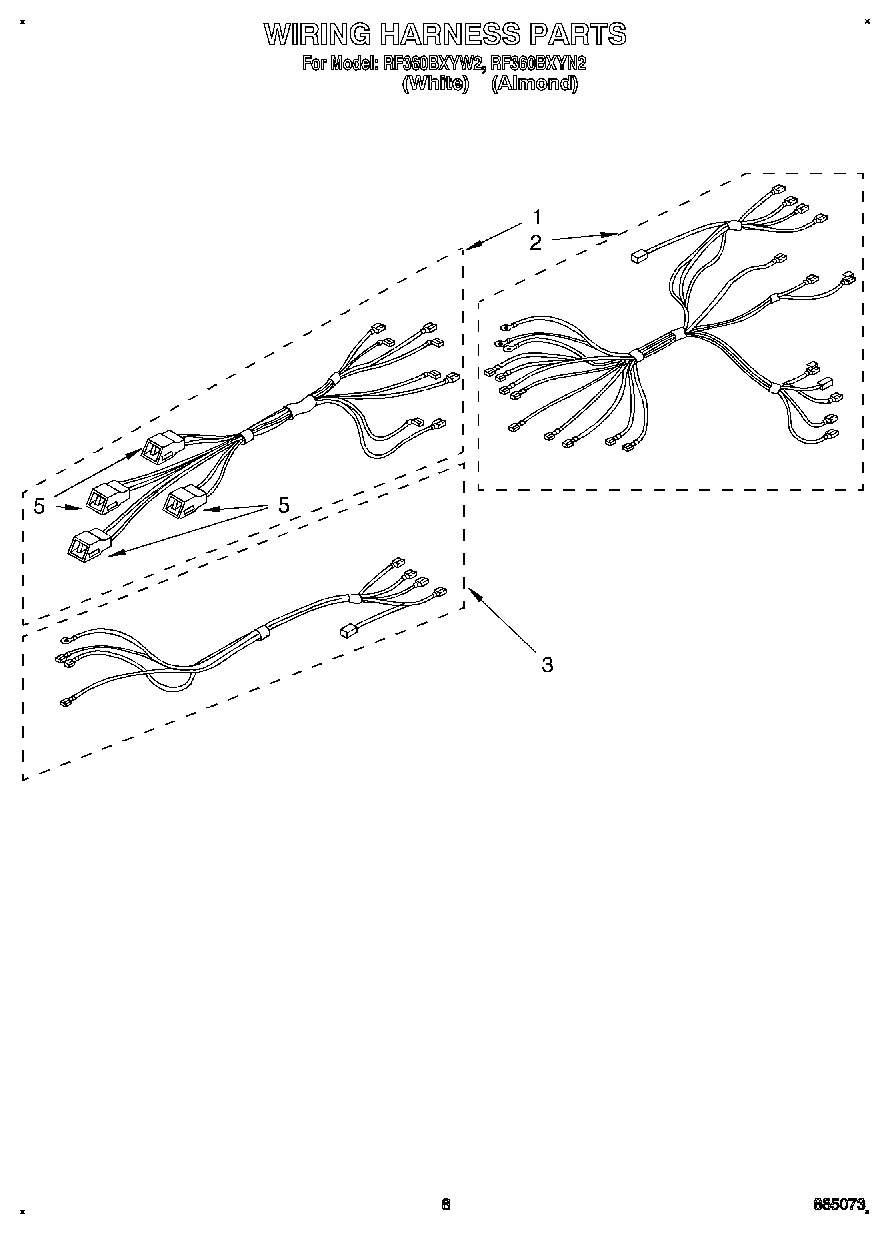

Wiring Harness (Suface Unit) WPL 3149881 Contact Us For Availability

1

Liner, Oven Door WPL 3172219 Contact Us For Availability

1

Latch Asm Complete W/Wire Harness WPL 3183959 Contact Us For Availability

1

End Trim L.H. WPL 313190 Contact Us For Availability

1

End Trim R.H. WPL 313191 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Wiring Harness (Oven) WPL 3169152 Contact Us For Availability

2

Screw (4) WPL 3148443 Contact Us For Availability

2

Retainer, Insulation WPL 3148160 Contact Us For Availability

2

Safety Switch WPL 308185 Contact Us For Availability

2

Screw (2) WPL 98106 Contact Us For Availability

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 3150441 Contact Us For Availability

2

End Cap L.H. WPL 3150442 Contact Us For Availability

2

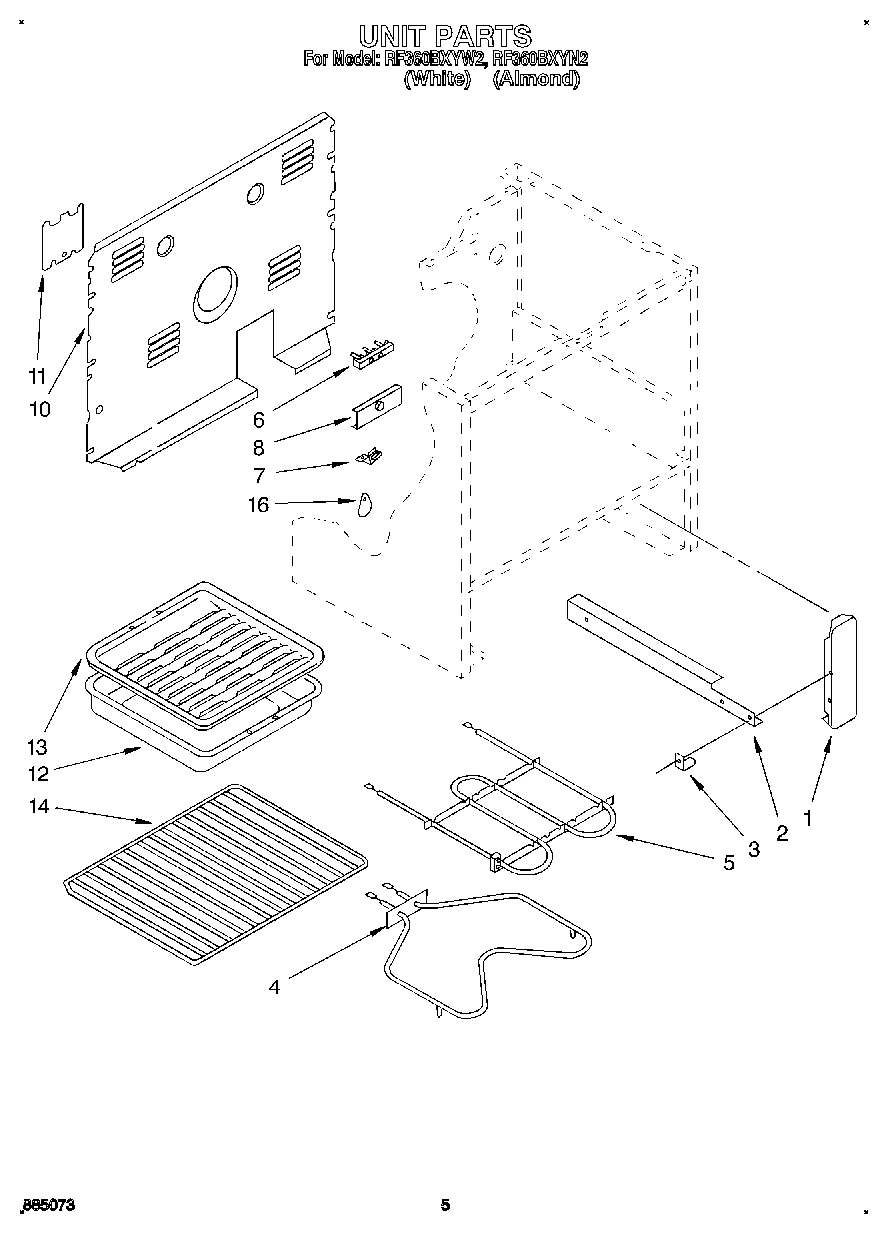

Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability

2

Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability

3

Wiring Harness (Lock Switch) WPL 3183962 Contact Us For Availability

3

Bumper, Door (4) WPL 3148182 Contact Us For Availability

3

Screw (2) WPL 307748 Contact Us For Availability

3

Insulator, Switch WPL 309245 Contact Us For Availability

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

WP312309 Whirlpool Bake Element In Stock WPL WP312309 $70.05

4

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

4

Panel, Glass WPL 3148186 Contact Us For Availability

4

Screw (2) WPL 308422 Contact Us For Availability

4

Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability

4

Shield, Latch Terminal WPL 313035 Contact Us For Availability

5

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

5

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Handle, Door WPL 3148228 Contact Us For Availability

5

Handle, Latch WPL 3169081 Contact Us For Availability

5

Unit, Broil (208V) WPL 312308 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

Knob, Latch WPL 3148684 Contact Us For Availability

6

Door Top WPL 3148223 Contact Us For Availability

6

Motor, Timer WPL 309822 Contact Us For Availability

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

7

Clip, Handle (2) WPL 3148282 Contact Us For Availability

7

Box, Burner WPL 3169186 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

8

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

8

Frame, Door WPL 3148235 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Bracket, Service WPL 3150190 Contact Us For Availability

9

Glide, Rear (2) WPL 307980 Contact Us For Availability

9

Rod, Cooktop WPL 3148659 Contact Us For Availability

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

Panel, Drawer (White) WPL 3150676 Contact Us For Availability

Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability

Timer, Clock (Includes No.6) WPL 661458 Contact Us For Availability

Cover, Rear WPL 3148975 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Handle, Snap-In (White) WPL 3150612 Contact Us For Availability

Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability

Bracket (2) WPL 307965 Contact Us For Availability

Glass, Timer WPL 313513 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

12

Drawer, Utility WPL 327887 Contact Us For Availability

12

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

Protector (2) WPL 309329 Contact Us For Availability

Cooktop (White) WPL 3170981 Contact Us For Availability

Cooktop (Almond) WPL 3170982 Contact Us For Availability

14

Insulation WPL 3147951 Contact Us For Availability

14

Rack, Oven (2) WPL 308173 Contact Us For Availability

15

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

15

Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability

15

Panel, Control WPL 3183814 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $3.70

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 3150532 WPL 3150532 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

Toa WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 311982 WPL 311982 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

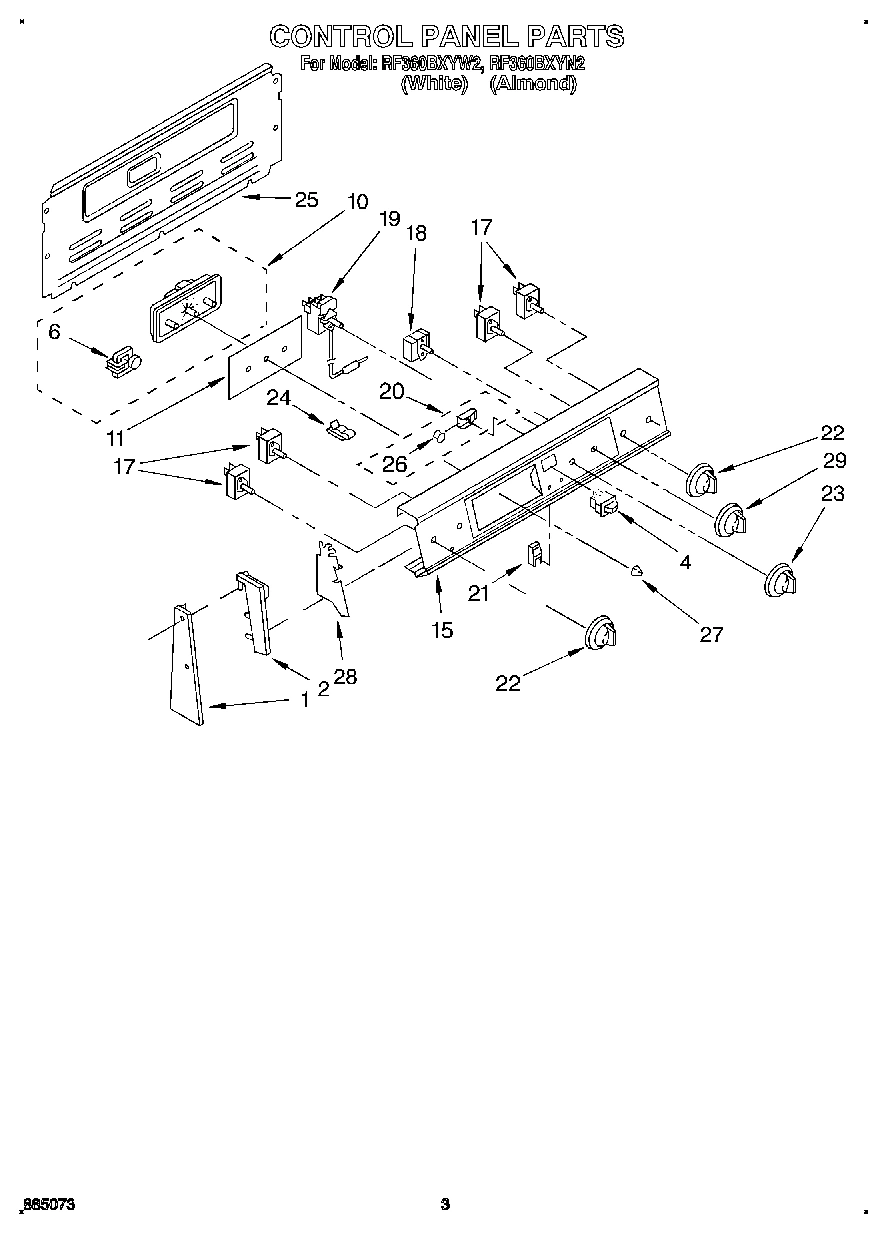

17

WP3149400 Whirlpool Oven Infinite Switch In Stock WPL WP3149400 $30.33

17

WP3149404 Whirlpool Oven Surface Element Swit In Stock WPL WP3149404 $28.08

17

Switch, Infinite (Screw, 8-32 x 1/4 (8)) WPL 308119 Contact Us For Availability

18

WPW10290350 Whirlpool Stove Drip Bowl In Stock WPL WPW10290350 $4.59

18

WPW10290353 Whirlpool Drip Bowl 6" ClimaTek In Stock WPL WPW10290353 $3.71

18

Switch, Selector (5 Position) WPL 3148419 Contact Us For Availability

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

Thermostat, 0ven Pyro WPL 3148933 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

Light, Indicator (Oven Unit) (Includes Illus. WPL 314031 Contact Us For Availability

20

Medallion (4) WPL 309195 Contact Us For Availability

21

Light, Indicator (Surface Unit) (Includes Ill WPL 3150662 Contact Us For Availability

22

Knob, (4) (Infinite Switch) WPL 3183118 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

814103 Whirlpool Clip In Stock WPL 814103 $3.95

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Knob (Temp) WPL 3183103 Contact Us For Availability

Nut (4) WPL 814102 Contact Us For Availability

24

Tube Clip WPL 313570 Contact Us For Availability

25

Rear Cover WPL 3187332 Contact Us For Availability

26

340184 Whirlpool Screw Backorder WPL 340184 $9.59

26

Lens, Amber (2) WPL 313101 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

27

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $9.28

28

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

28

Shield, Glass (2) WPL 313608 Contact Us For Availability

29

Knob (Selector) WPL 3183115 Contact Us For Availability
