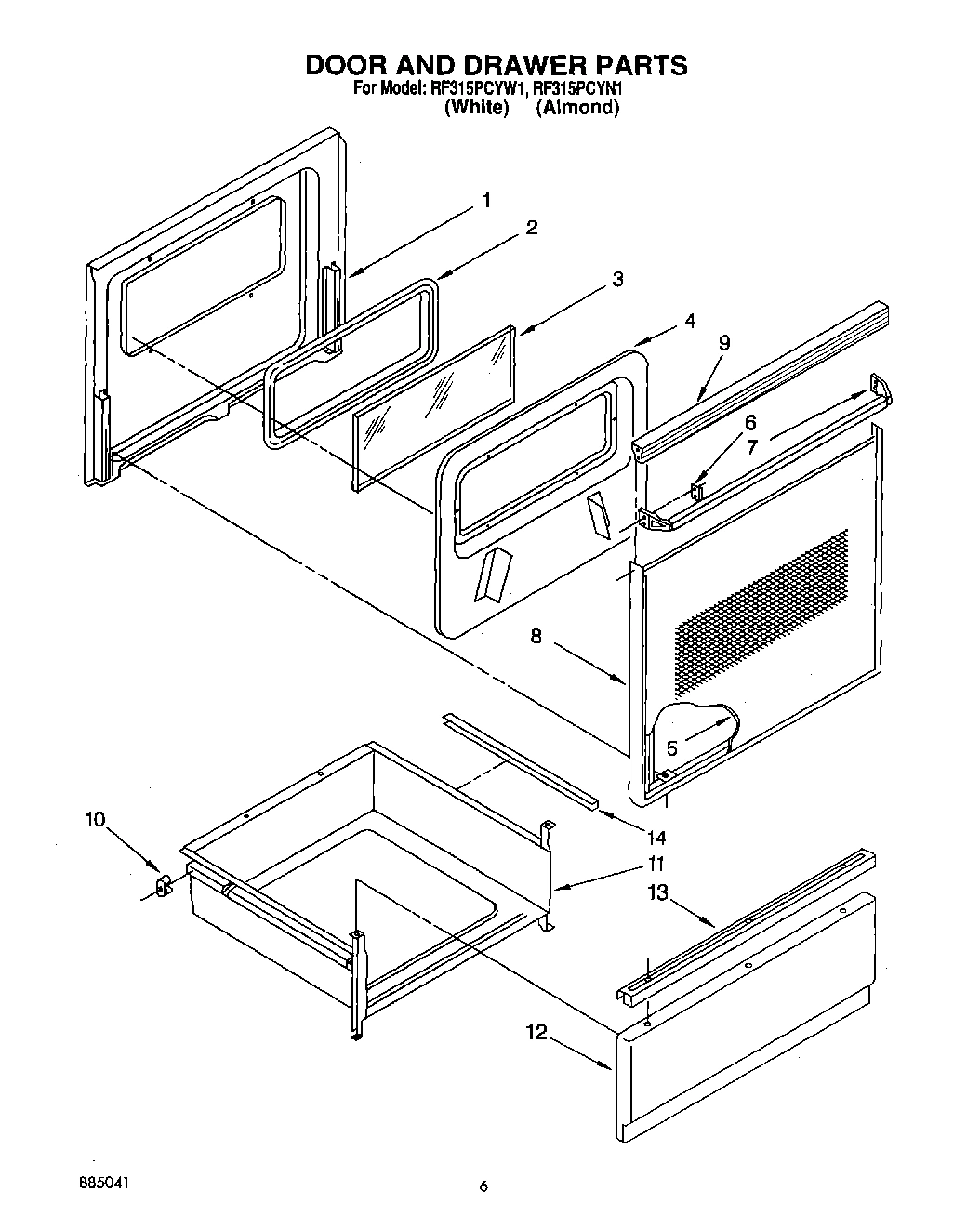

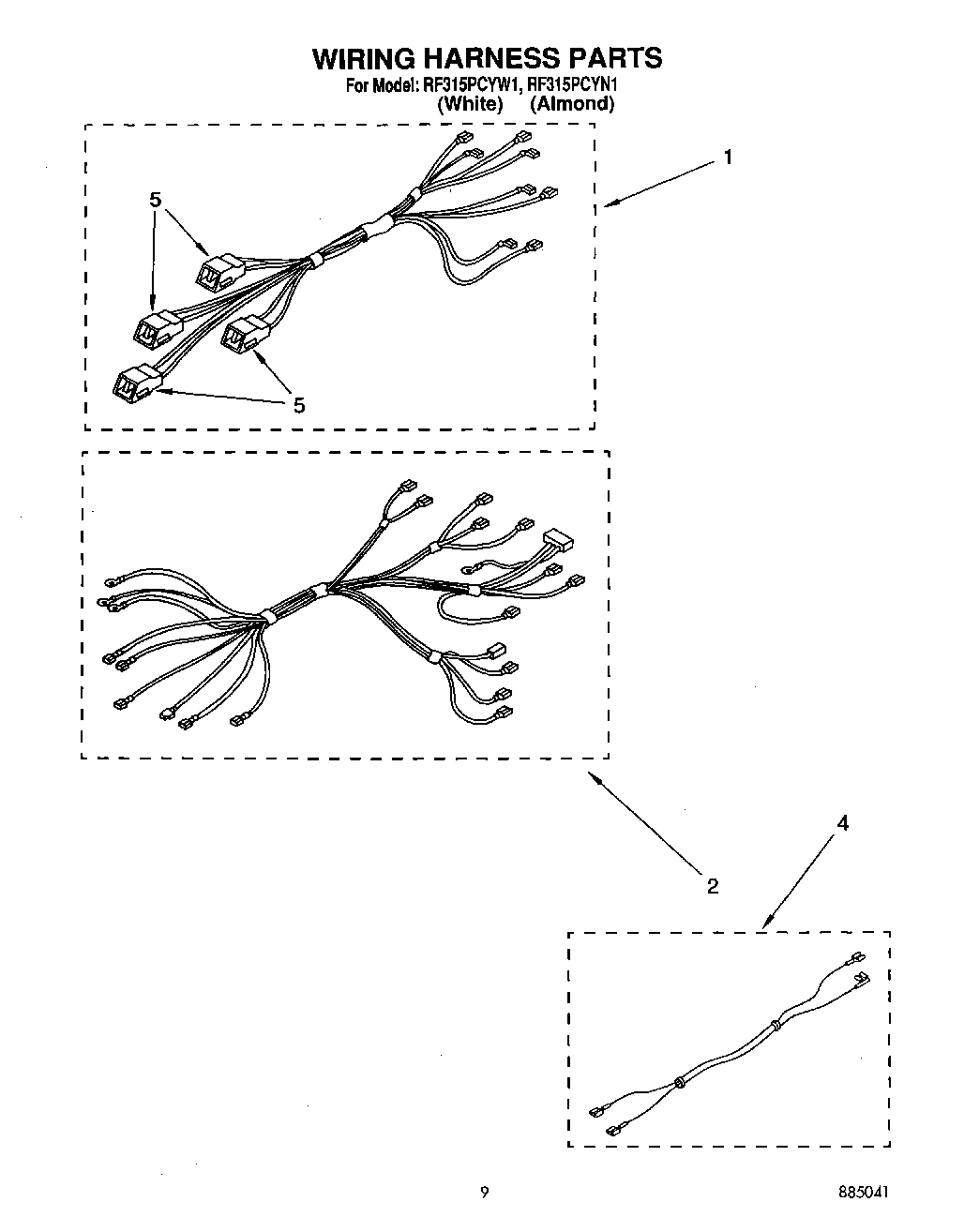

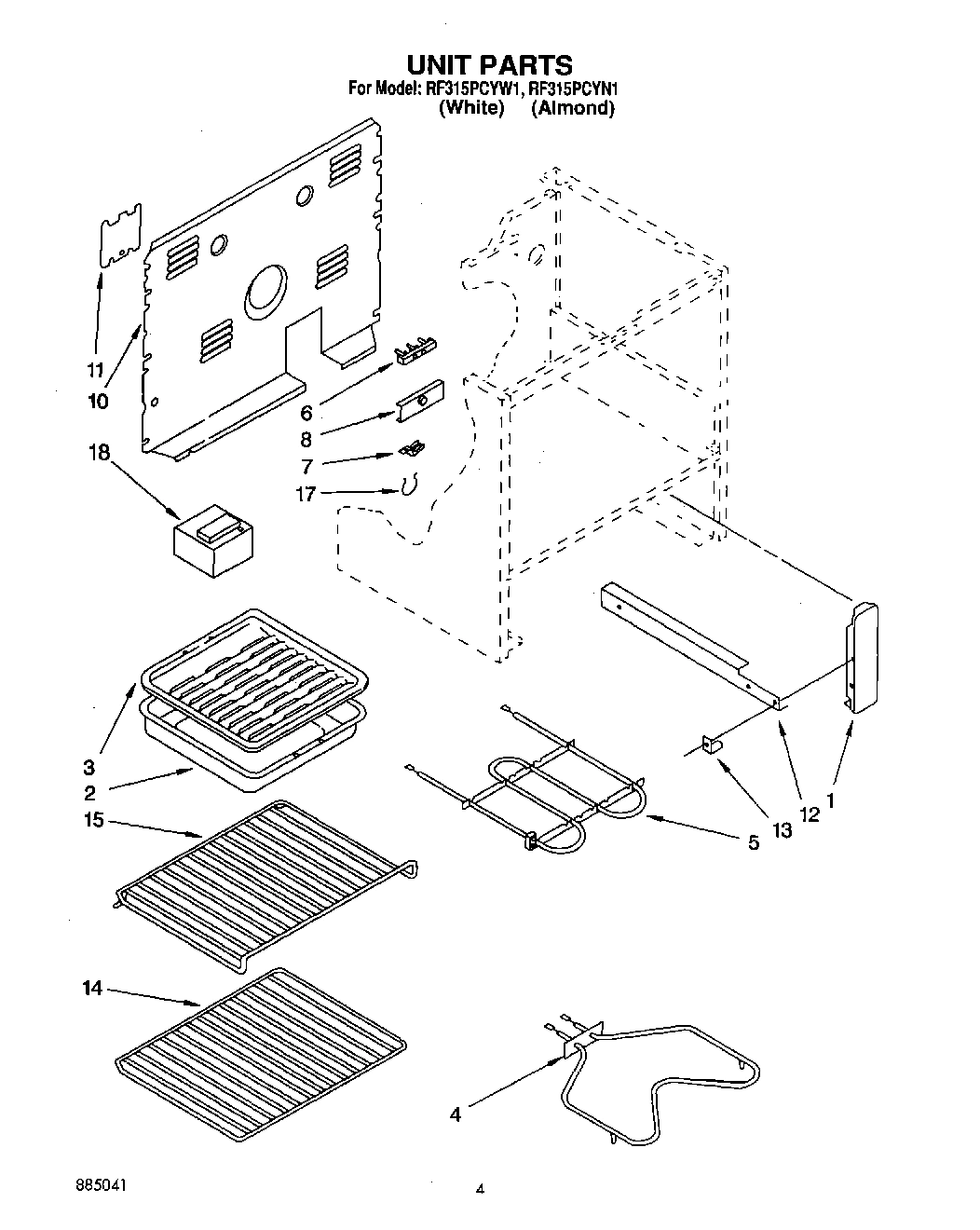

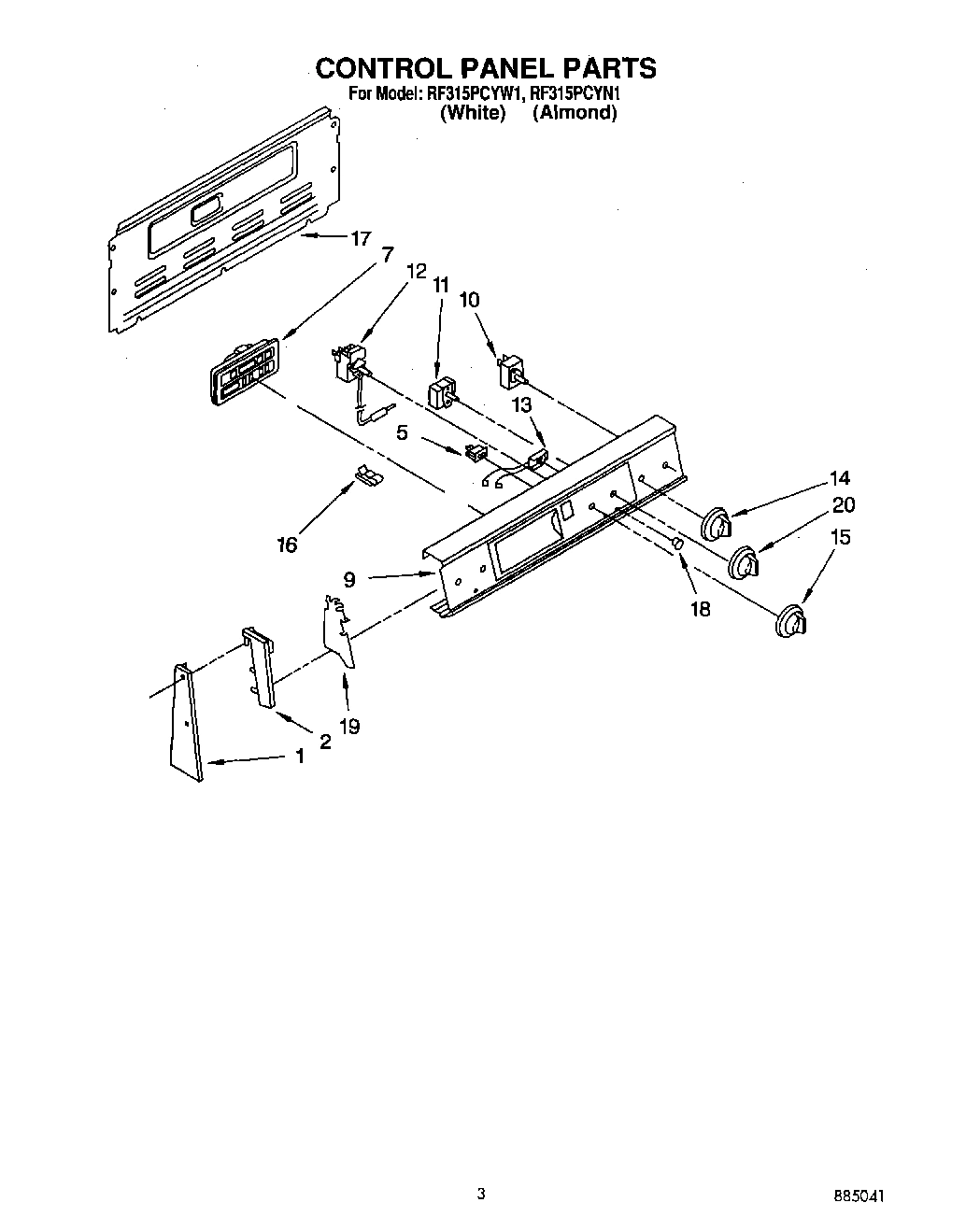

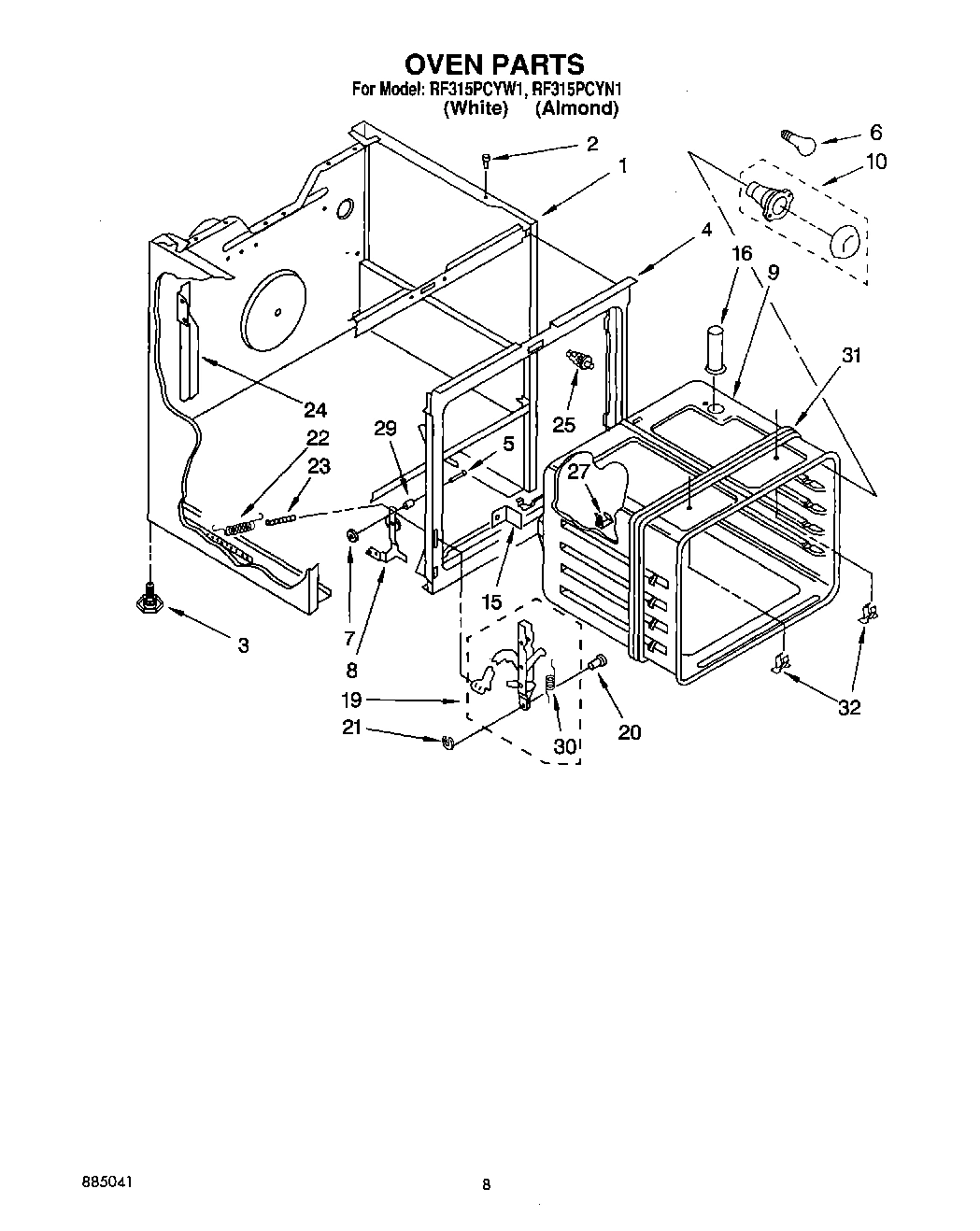

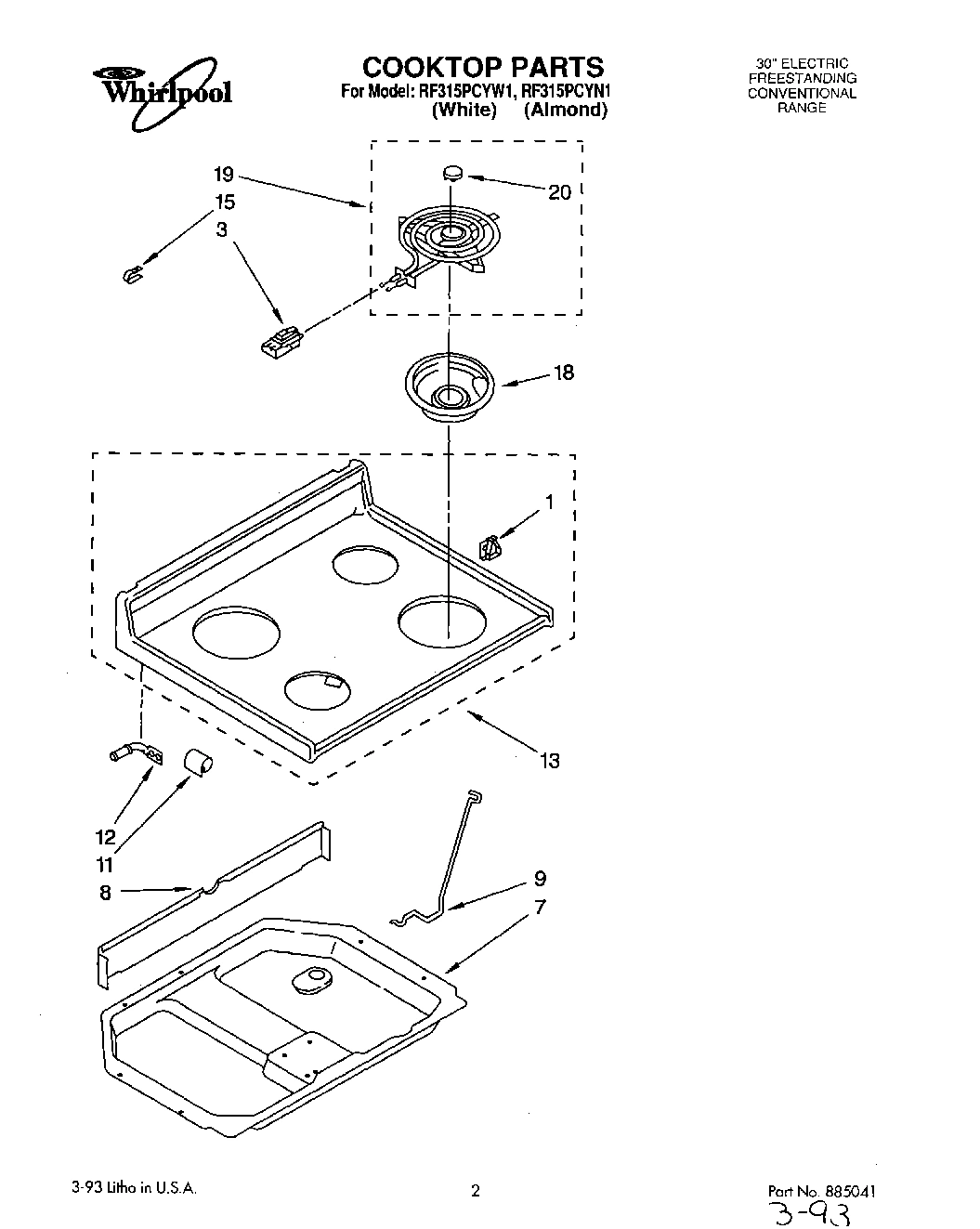

Model Whirlpool RF315PCYW1 30`` ELECTRIC FREESTANDING STANDARD CLEAN RANGE – Common Parts &amp; Diagrams

1

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

1

Nut WPL 814102 Contact Us For Availability

1

End Trim L.H. WPL 313190 Contact Us For Availability

1

End Trim R.H. WPL 313191 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

Liner, Door WPL 3172220 Contact Us For Availability

1

Wiring Harness (Suface Unit) WPL 3149881 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Seal, Glass WPL 3148183 Contact Us For Availability

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 313230 Contact Us For Availability

2

End Cap L.H. WPL 313231 Contact Us For Availability

2

Wiring Harness (Oven) WPL 3169155 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $3.70

3

Glass, Inner WPL 3169202 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

screw (6) WPL 3148443 Contact Us For Availability

4

Retainer, WPL 3148287 Contact Us For Availability

4

Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability

5

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

5

285006 Whirlpool Spray In Stock WPL 285006 $27.45

5

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

5

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

5

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

5

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

5

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

5

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

5

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

5

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

5

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

5

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

5

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

5

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

5

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

5

Switch, Rocker WPL 3182717 Contact Us For Availability

5

Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability

5

Glass Panel, Outer (White) WPL 3149049 Contact Us For Availability

5

Glass Panel, Outer (Almond) WPL 3149050 Contact Us For Availability

5

Leveler (Thinner) (2 Oz.) Paint, Bulk 1 Qt. WPL 206925 Contact Us For Availability

5

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

5

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

5

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

5

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

5

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

5

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

5

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

5

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

5

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

5

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

5

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

5

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

5

Grease WPL 261582 Contact Us For Availability

5

Coffee WPL 261886 Contact Us For Availability

5

New Avocado WPL 261888 Contact Us For Availability

5

Harvest Gold WPL 261890 Contact Us For Availability

5

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

5

Toast WPL 285365 Contact Us For Availability

5

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

5

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

5

Platinum (Uncut) WPL 285368 Contact Us For Availability

5

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

5

WPL 72112 WPL 72112 Contact Us For Availability

5

WPL 799832 WPL 799832 Contact Us For Availability

5

WPL 978883 WPL 978883 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

Clip (2) WPL 3148282 Contact Us For Availability

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

7

Box, Burner WPL 3169186 Contact Us For Availability

7

Timer, ERC Control WPL 3183184 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Handle, Door WPL 3148228 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Bracket, Service WPL 3150190 Contact Us For Availability

8

screw (3) WPL 307748 Contact Us For Availability

8

Frame, Door WPL 3148235 Contact Us For Availability

9

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

9

Rod, Cooktop (2) WPL 3148659 Contact Us For Availability

9

Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability

9

Panel, Control WPL 3182987 Contact Us For Availability

9

Top, Door Frame WPL 3148223 Contact Us For Availability

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP3149400 Whirlpool Oven Infinite Switch In Stock WPL WP3149400 $30.33

WP3149404 Whirlpool Oven Surface Element Swit In Stock WPL WP3149404 $28.08

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

Cover, Rear WPL 3148975 Contact Us For Availability

Glide, Rear WPL 307980 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Bracket, Cooktop (2) WPL 307965 Contact Us For Availability

Switch, Selector (4 Position) WPL 3149886 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

Drawer, Utility WPL 327887 Contact Us For Availability

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

(Alt.) WPL 310864 Contact Us For Availability

(Alt.) WPL 311498 Contact Us For Availability

Thermostat, 0ven WPL 661150 Contact Us For Availability

Rail, Drawer (R.H.) WPL 3149255 Contact Us For Availability

Rail, Drawer (L.H.) WPL 3149256 Contact Us For Availability

Panel Drawer (White) WPL 307935 Contact Us For Availability

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

Indicator Light (Oven Unit On) WPL 314031 Contact Us For Availability

Handle, Drawer WPL 3169105 Contact Us For Availability

Cooktop (White) WPL 3170981 Contact Us For Availability

Cooktop (Almond) WPL 3170982 Contact Us For Availability

Indicator Light (Surface Unit On) WPL 3150662 Contact Us For Availability

Glide, Drawer (2) WPL 3149257 Contact Us For Availability

14

Knob, Control (4) (Infinite Switch) WPL 3183118 Contact Us For Availability

14

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

14

Protector, Drawer (2) WPL 309329 Contact Us For Availability

15

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

15

Knob, Control (Thermostat) WPL 3183106 Contact Us For Availability

15

Rack, Offset WPL 308172 Contact Us For Availability

16

Tube Clip WPL 313570 Contact Us For Availability

17

16515 Whirlpool Clip Backorder WPL 16515 $11.62

17

Rear Cover Control Panel WPL 313195 Contact Us For Availability

340184 Whirlpool Screw Backorder WPL 340184 $9.59

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

WPW10290350 Whirlpool Stove Drip Bowl In Stock WPL WPW10290350 $4.59

WPW10290353 Whirlpool Drip Bowl 6" ClimaTek In Stock WPL WPW10290353 $3.71

Lens, Amber (2) WPL 313101 Contact Us For Availability

Insulation, Oven Wrap WPL 309961 Contact Us For Availability

Block, Balance WPL 312804 Contact Us For Availability

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Shield, Glass (2) WPL 313608 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

Knob, Control (Selector) WPL 3183112 Contact Us For Availability

20

Medallion (4) WPL 309195 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

25

Switch, Door WPL 310345 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

31

Seal, Rubber WPL 309107 Contact Us For Availability
