Model GE PTS25LHRARBB – Common Parts & Diagrams
EVAPORATOR INSTRUCTIONS
FREEZER DOOR

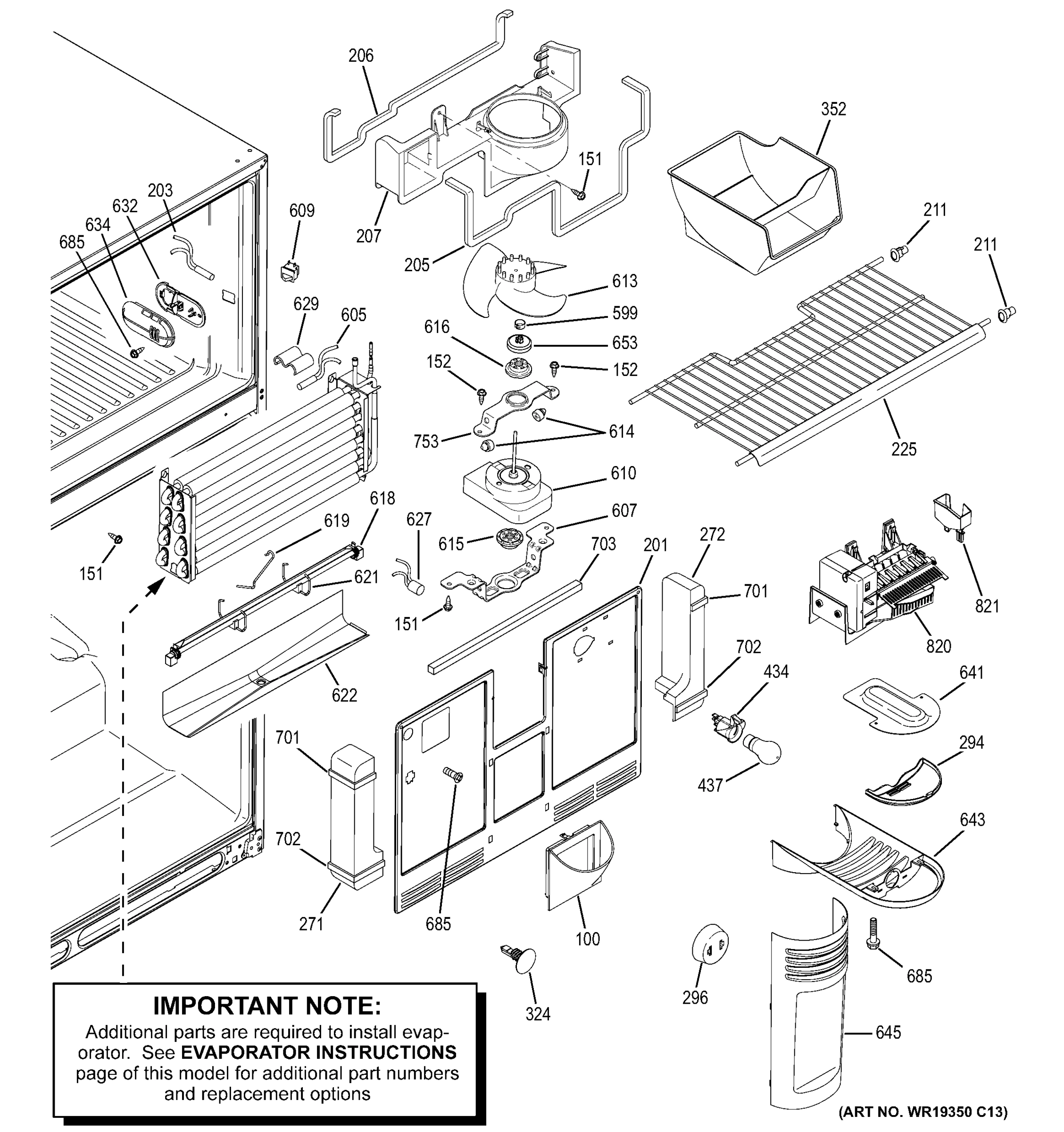

FREEZER SECTION

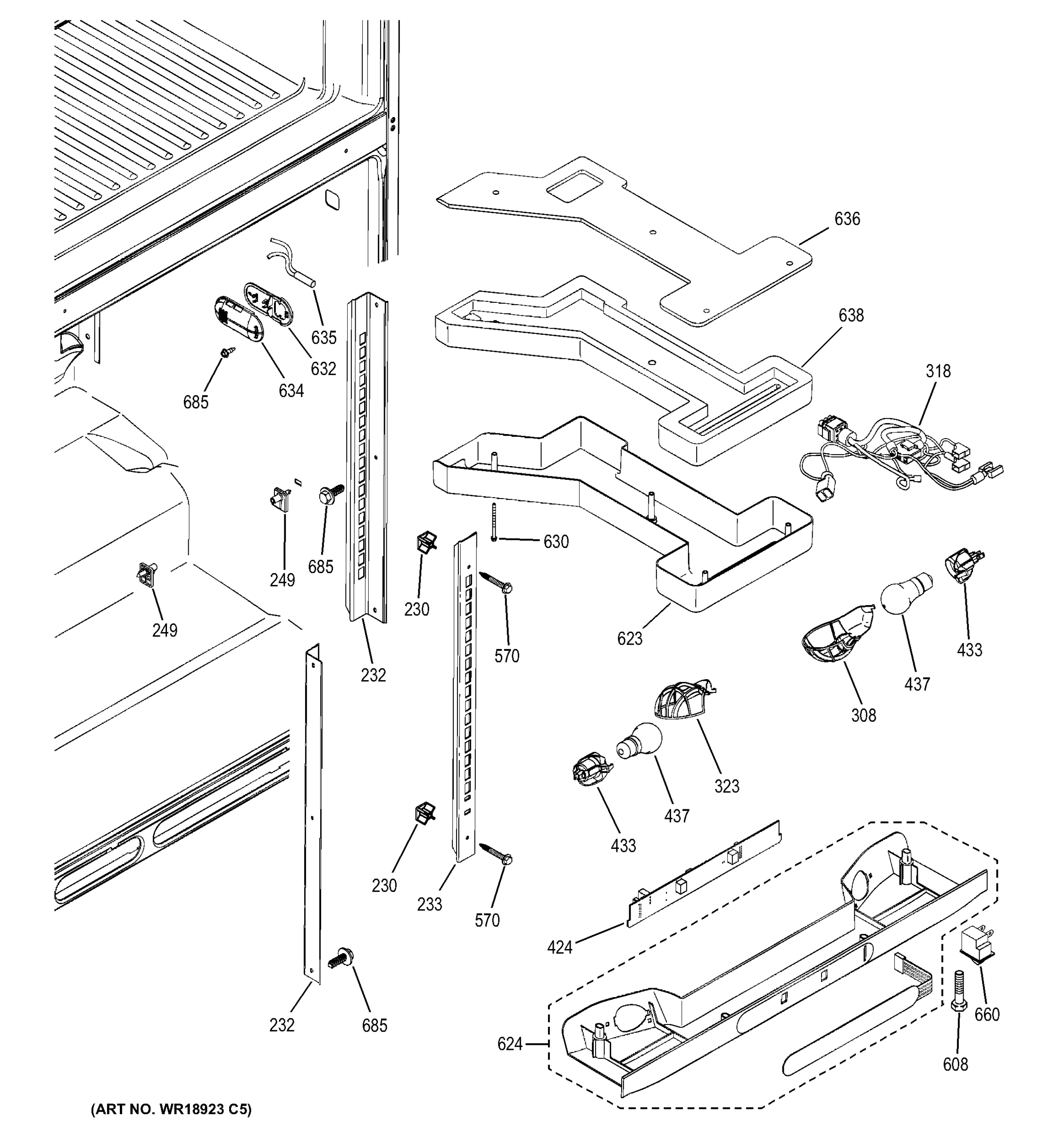

FREEZER SHELVES

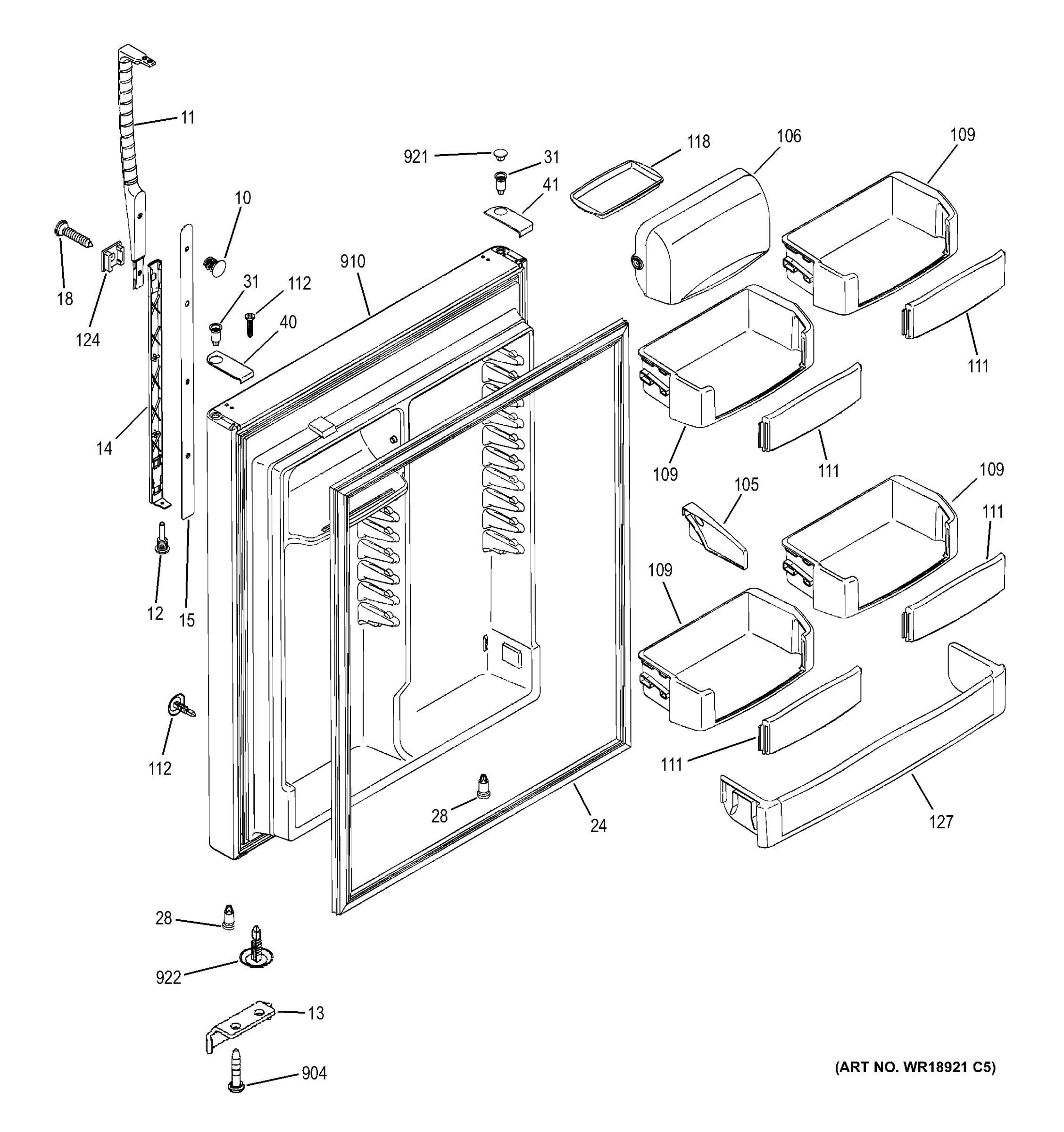

FRESH FOOD DOOR

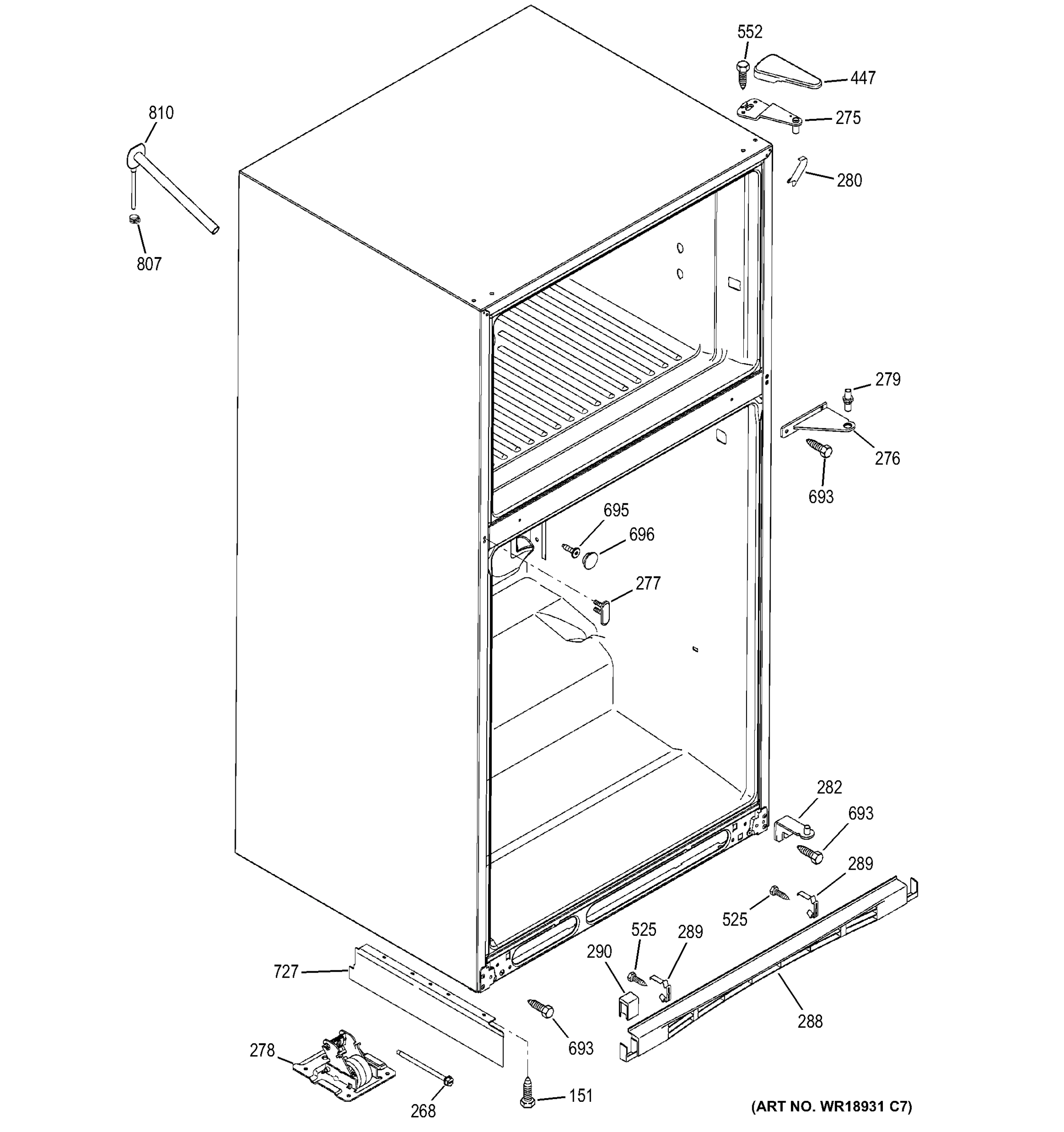

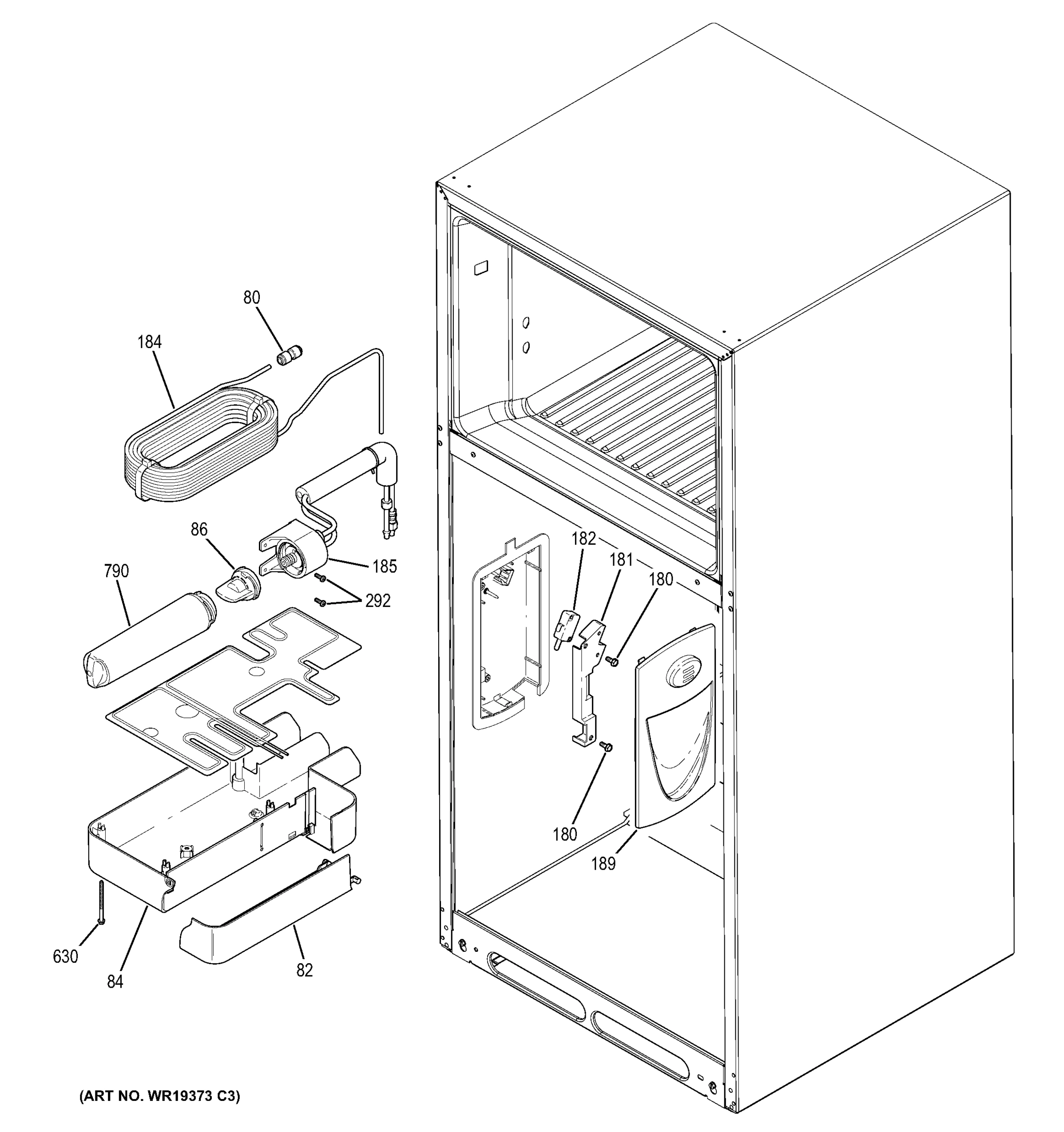

FRESH FOOD SECTION
FRESH FOOD SHELVES

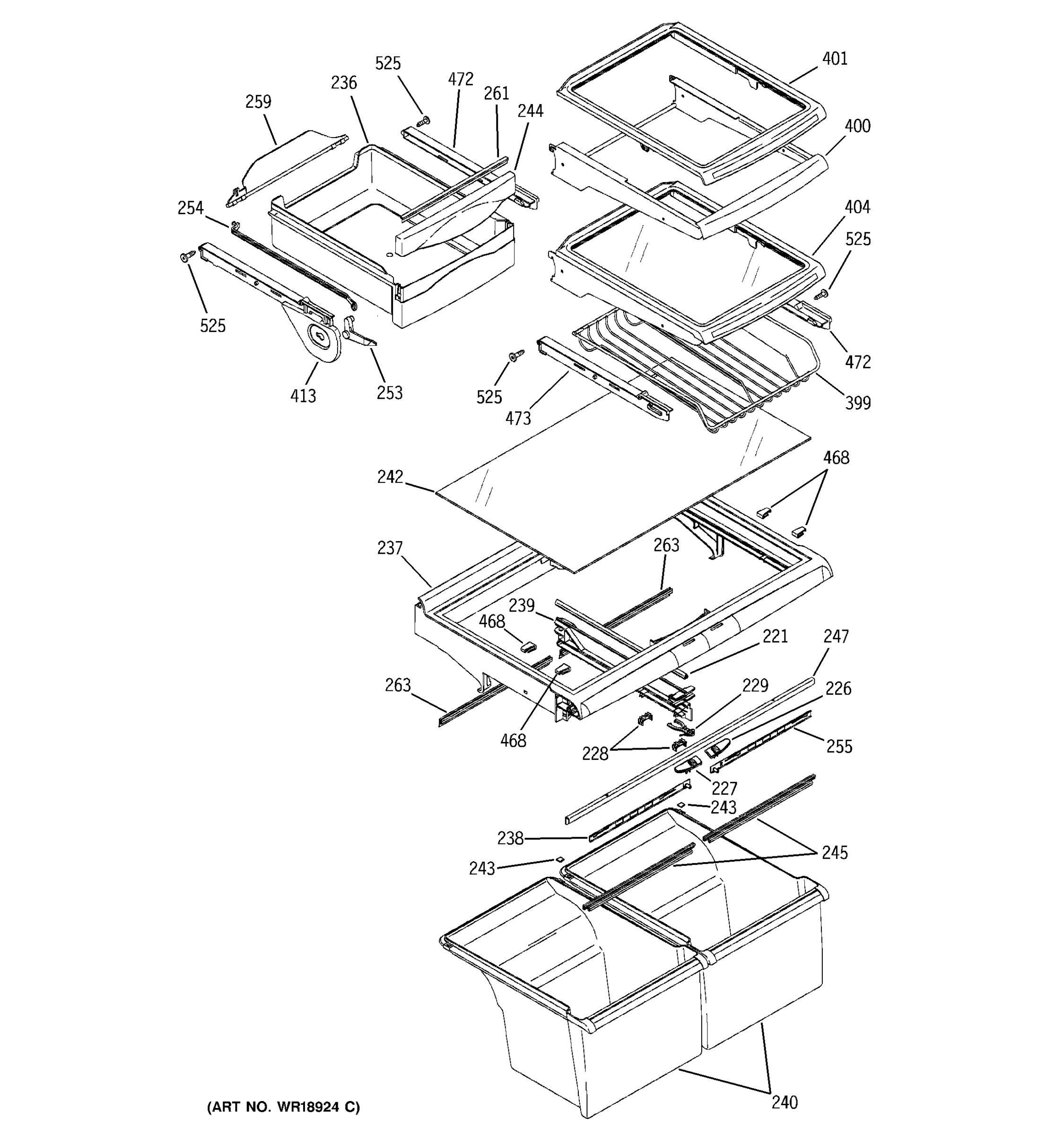

ICE MAKER & DISPENSER

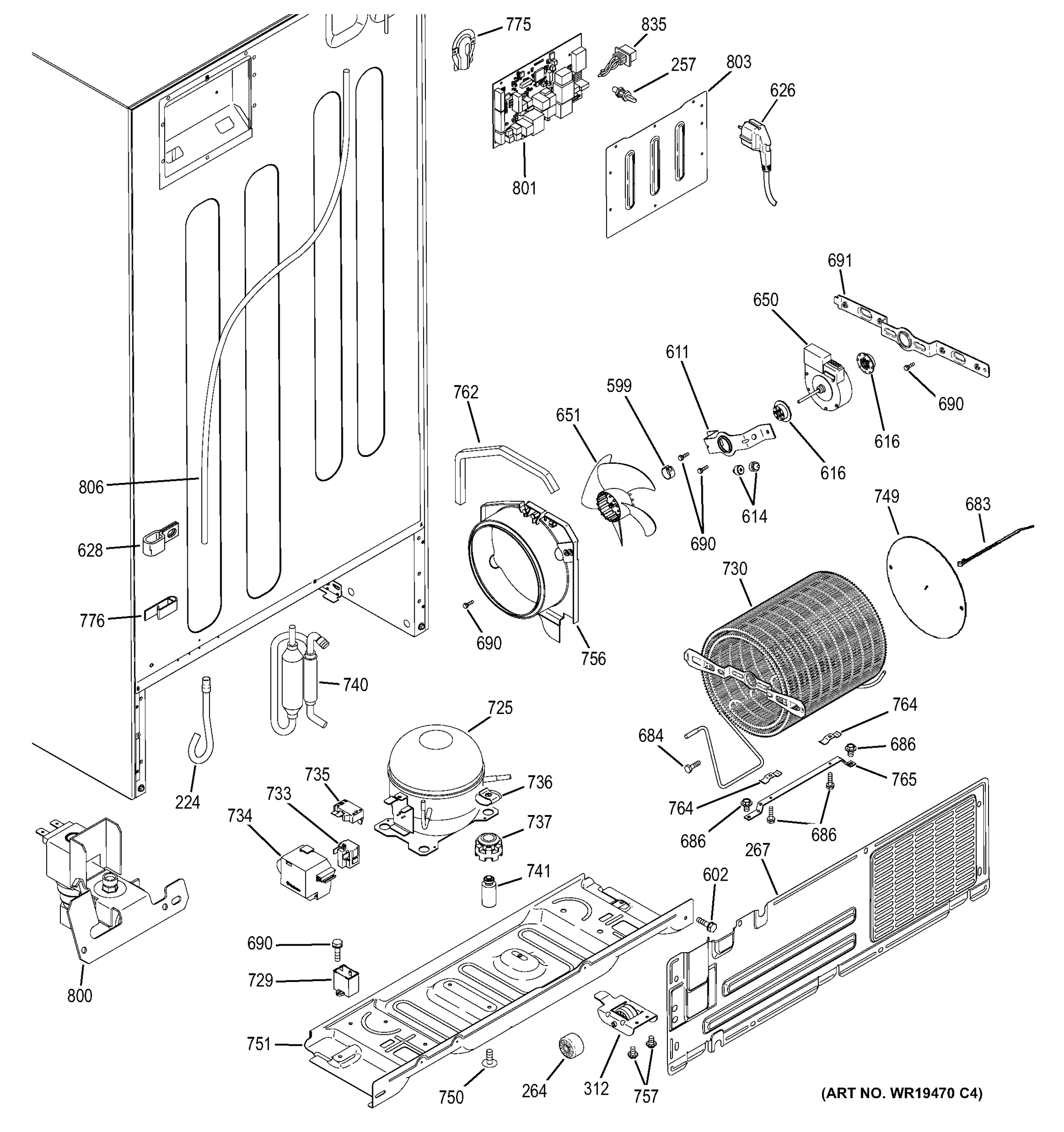

SEALED SYSTEM & MOTHER BOARD
Common parts from model GE PTS25LHRARBB
1
GEN WR17X11970 GEN WR17X11970 Contact Us For Availability
13
GEN WR01X10248 GEN WR01X10248 Contact Us For Availability
13
GEN WR02X10930 GEN WR02X10930 Contact Us For Availability
23
GEN WR24X10089 GEN WR24X10089 Contact Us For Availability
23
GEN WR24X10087 GEN WR24X10087 Contact Us For Availability
24
GEN WR24X10088 GEN WR24X10088 Contact Us For Availability
24
GEN WR24X10090 GEN WR24X10090 Contact Us For Availability
28
GEN WR02X10931 GEN WR02X10931 Contact Us For Availability
28
GEN WR02X10896 GEN WR02X10896 Contact Us For Availability
31
GEN WR02X10932 GEN WR02X10932 Contact Us For Availability
36
GEN WR02X10929 GEN WR02X10929 Contact Us For Availability
38
GEN WR02X10868 GEN WR02X10868 Contact Us For Availability
40
GEN WR02X10866 GEN WR02X10866 Contact Us For Availability
40
GEN WR02X10925 GEN WR02X10925 Contact Us For Availability
41
GEN WR02X10865 GEN WR02X10865 Contact Us For Availability
41
GEN WR02X10924 GEN WR02X10924 Contact Us For Availability
82
GEN WR17X11567 GEN WR17X11567 Contact Us For Availability
84
GEN WR17X11566 GEN WR17X11566 Contact Us For Availability
96
GEN WR17X10977 GEN WR17X10977 Contact Us For Availability
98
GEN WR17X10978 GEN WR17X10978 Contact Us For Availability
100
GEN WR74X10095 GEN WR74X10095 Contact Us For Availability
127
GEN WR71X10338 GEN WR71X10338 Contact Us For Availability
181
COVER HARNESS GEN WR02X11614 Contact Us For Availability
182
GEN WR23X10333 GEN WR23X10333 Contact Us For Availability
184
GEN WR17X11596 GEN WR17X11596 Contact Us For Availability
189
GEN WR02X11619 GEN WR02X11619 Contact Us For Availability
205
GEN WR14X10124 GEN WR14X10124 Contact Us For Availability
206
GEN WR14X10123 GEN WR14X10123 Contact Us For Availability
207
GEN WR17X10979 GEN WR17X10979 Contact Us For Availability
221
GEN WR14X10107 GEN WR14X10107 Contact Us For Availability
224
GEN WR02X11426 GEN WR02X11426 Contact Us For Availability
225
SHELF WIRE & TRIM ASM F GEN WR71X10311 Contact Us For Availability
226
GEN WR17X10986 GEN WR17X10986 Contact Us For Availability
227
GEN WR17X10985 GEN WR17X10985 Contact Us For Availability
228
GEN WR02X10864 GEN WR02X10864 Contact Us For Availability
229
GEN WR02X10882 GEN WR02X10882 Contact Us For Availability
236
GEN WR32X10415 GEN WR32X10415 Contact Us For Availability
237
GEN WR32X10252 GEN WR32X10252 Contact Us For Availability
238
GEN WR17X10970 GEN WR17X10970 Contact Us For Availability
239
SLIDE ASM CENTER GEN WR17X10976 Contact Us For Availability
240
GEN WR32X10462 GEN WR32X10462 Contact Us For Availability
242
GEN WR32X10257 GEN WR32X10257 Contact Us For Availability
243
GEN WR02X10890 GEN WR02X10890 Contact Us For Availability
244
GEN WR17X11574 GEN WR17X11574 Contact Us For Availability
245
GEN WR14X10121 GEN WR14X10121 Contact Us For Availability
247
GEN WR17X11072 GEN WR17X11072 Contact Us For Availability
249
GEN WR02X10894 GEN WR02X10894 Contact Us For Availability
253
GEN WR02X10937 GEN WR02X10937 Contact Us For Availability
254
GEN WR02X10938 GEN WR02X10938 Contact Us For Availability
255
GEN WR17X10969 GEN WR17X10969 Contact Us For Availability
257
GEN WR02X10663 GEN WR02X10663 Contact Us For Availability
259
GEN WR02X10990 GEN WR02X10990 Contact Us For Availability
261
GEN WR14X10120 GEN WR14X10120 Contact Us For Availability
263
GEN WR14X10119 GEN WR14X10119 Contact Us For Availability
264
GEN WR02X10695 GEN WR02X10695 Contact Us For Availability
267
GEN WR82X10100 GEN WR82X10100 Contact Us For Availability
268
SCREW MOBILITY 3.5 GEN WR01X10210 Contact Us For Availability
275
GEN WR13X10178 GEN WR13X10178 Contact Us For Availability
275
GEN WR13X10181 GEN WR13X10181 Contact Us For Availability
275
GEN WR13X10187 GEN WR13X10187 Contact Us For Availability
276
GEN WR13X10188 GEN WR13X10188 Contact Us For Availability
276
GEN WR13X10182 GEN WR13X10182 Contact Us For Availability
276
GEN WR13X10177 GEN WR13X10177 Contact Us For Availability
277
GEN WR02X10873 GEN WR02X10873 Contact Us For Availability
277
GEN WR02X10907 GEN WR02X10907 Contact Us For Availability
277
GEN WR02X10933 GEN WR02X10933 Contact Us For Availability
279
GEN WR13X10179 GEN WR13X10179 Contact Us For Availability
280
GEN WR02X10785 GEN WR02X10785 Contact Us For Availability
280
CAP CORNER OC WH GEN WR02X10640 Contact Us For Availability
280
CAP CORNER OC BK GEN WR02X10781 Contact Us For Availability
282
GEN WR13X10186 GEN WR13X10186 Contact Us For Availability
282
GEN WR13X10176 GEN WR13X10176 Contact Us For Availability
282
GEN WR13X10180 GEN WR13X10180 Contact Us For Availability
288
GEN WR74X10092 GEN WR74X10092 Contact Us For Availability
288
GEN WR74X10093 GEN WR74X10093 Contact Us For Availability
288
GEN WR74X10094 GEN WR74X10094 Contact Us For Availability
289
GEN WR02X10738 GEN WR02X10738 Contact Us For Availability
290
GEN WR02X10880 GEN WR02X10880 Contact Us For Availability
290
GEN WR02X10923 GEN WR02X10923 Contact Us For Availability
290
GEN WR02X10898 GEN WR02X10898 Contact Us For Availability
294
GEN WR02X11180 GEN WR02X11180 Contact Us For Availability
296
PLUG COVER AND GSKT ASM GEN WR02X10693 Contact Us For Availability
308
GEN WR02X10889 GEN WR02X10889 Contact Us For Availability
323
GEN WR02X10888 GEN WR02X10888 Contact Us For Availability
399
GEN WR71X10341 GEN WR71X10341 Contact Us For Availability
400
GEN WR32X10258 GEN WR32X10258 Contact Us For Availability
401
GEN WR32X10259 GEN WR32X10259 Contact Us For Availability
404
GEN WR32X10256 GEN WR32X10256 Contact Us For Availability
413
GEN WR72X10078 GEN WR72X10078 Contact Us For Availability
424
GEN WR55X10354 GEN WR55X10354 Contact Us For Availability
447
GEN WR13X10198 GEN WR13X10198 Contact Us For Availability
447
GEN WR13X10206 GEN WR13X10206 Contact Us For Availability
447
GEN WR13X10207 GEN WR13X10207 Contact Us For Availability
472
GEN WR72X10072 GEN WR72X10072 Contact Us For Availability
473
GEN WR72X10073 GEN WR72X10073 Contact Us For Availability
525
GEN WR01X1763 GEN WR01X1763 Contact Us For Availability
607
GEN WR02X10876 GEN WR02X10876 Contact Us For Availability
614
GEN WR02X10540 GEN WR02X10540 Contact Us For Availability
616
GEN WR02X11331 GEN WR02X11331 Contact Us For Availability
618
GEN WR51X10038 GEN WR51X10038 Contact Us For Availability
619
GEN WR51X10052 GEN WR51X10052 Contact Us For Availability
621
HOLDER ELEMENT ASM GEN WR02X10518 Contact Us For Availability
624
GEN WR17X11599 GEN WR17X11599 Contact Us For Availability
626
GEN WR23X10343 GEN WR23X10343 Contact Us For Availability
629
GEN WR02X10879 GEN WR02X10879 Contact Us For Availability
630
GEN WR01X10245 GEN WR01X10245 Contact Us For Availability
632
GEN WR02X10863 GEN WR02X10863 Contact Us For Availability
638
GEN WR02X10874 GEN WR02X10874 Contact Us For Availability
643
GEN WR17X11171 GEN WR17X11171 Contact Us For Availability
653
GEN WR02X10322 GEN WR02X10322 Contact Us For Availability
660
GEN WR23X10244 GEN WR23X10244 Contact Us For Availability
683
GEN WR02X11027 GEN WR02X11027 Contact Us For Availability
684
GEN WB01T10047 GEN WB01T10047 Contact Us For Availability
691
GEN WR02X10593 GEN WR02X10593 Contact Us For Availability
693
GEN WR01X10250 GEN WR01X10250 Contact Us For Availability
693
GEN WR01X2136 GEN WR01X2136 Contact Us For Availability
695
GEN WR01X1753 GEN WR01X1753 Contact Us For Availability
696
SCREW COVER WH GEN WR02X10992 Contact Us For Availability
696
GEN WR02X10993 GEN WR02X10993 Contact Us For Availability
696
SCREW COVER BK GEN WR02X10994 Contact Us For Availability
727
SEPARATOR AIR HI SIDE GEN WR17X10984 Contact Us For Availability
730
COND ASM FORMED GEN WR84X10022 Contact Us For Availability
734
GEN WR02X11436 GEN WR02X11436 Contact Us For Availability
735
GEN WR08X10063 GEN WR08X10063 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
753
GEN WR02X10764 GEN WR02X10764 Contact Us For Availability
762
GEN WR14X10053 GEN WR14X10053 Contact Us For Availability
765
GEN WR17X10763 GEN WR17X10763 Contact Us For Availability
775
GEN WR17X10796 GEN WR17X10796 Contact Us For Availability
776
GEN WR02X10522 GEN WR02X10522 Contact Us For Availability
790
WATER FILTER CATRIDG GEN GSWF Contact Us For Availability
803
GEN WR02X10871 GEN WR02X10871 Contact Us For Availability
810
GEN WR17X11507 GEN WR17X11507 Contact Us For Availability
835
GEN WR23X10230 GEN WR23X10230 Contact Us For Availability
921
GEN WR02X10886 GEN WR02X10886 Contact Us For Availability
922
GEN WR02X10976 GEN WR02X10976 Contact Us For Availability
× ![]()
