Model GE PS920SF2SS – Common Parts & Diagrams

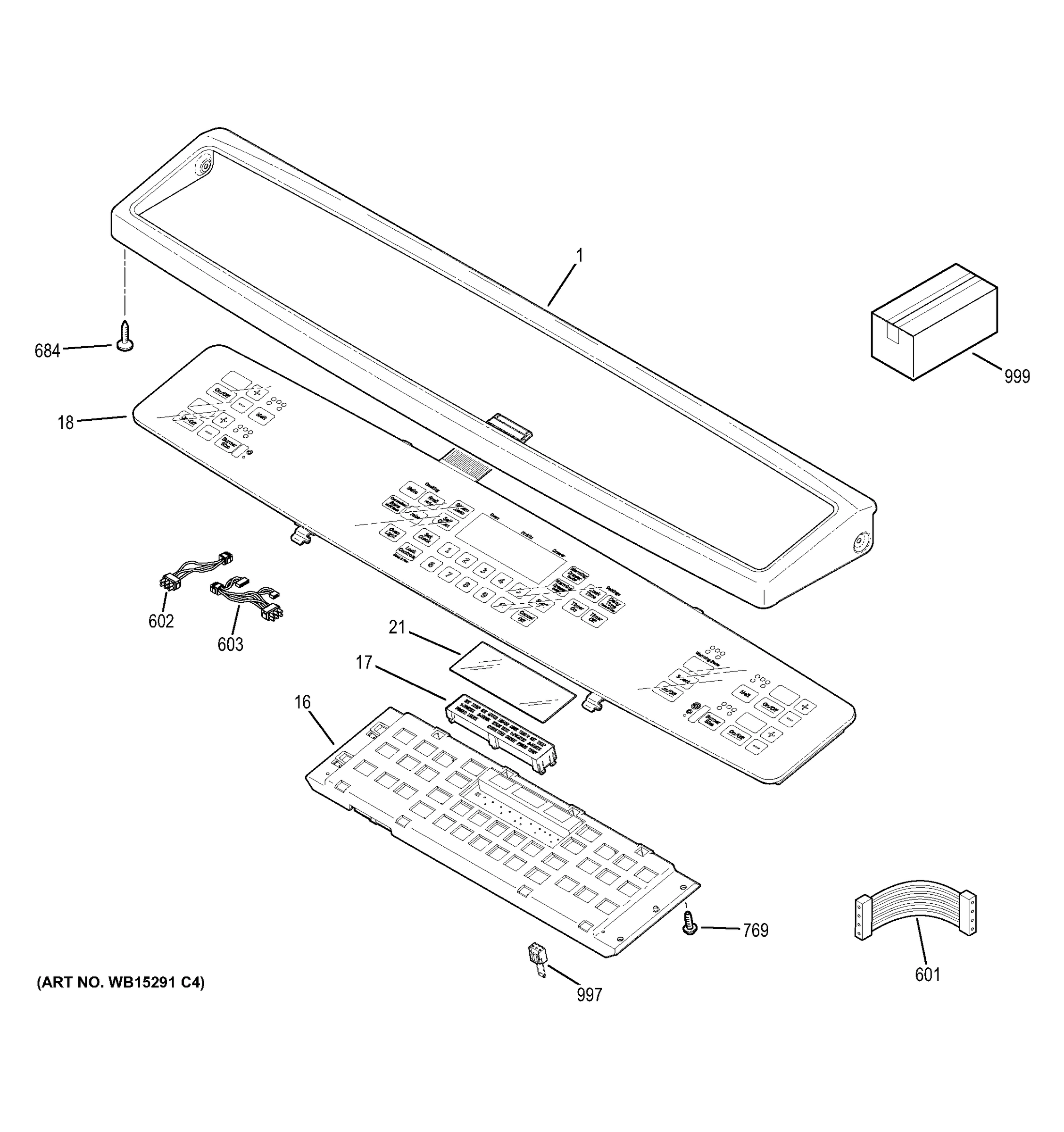

CONTROL PANEL

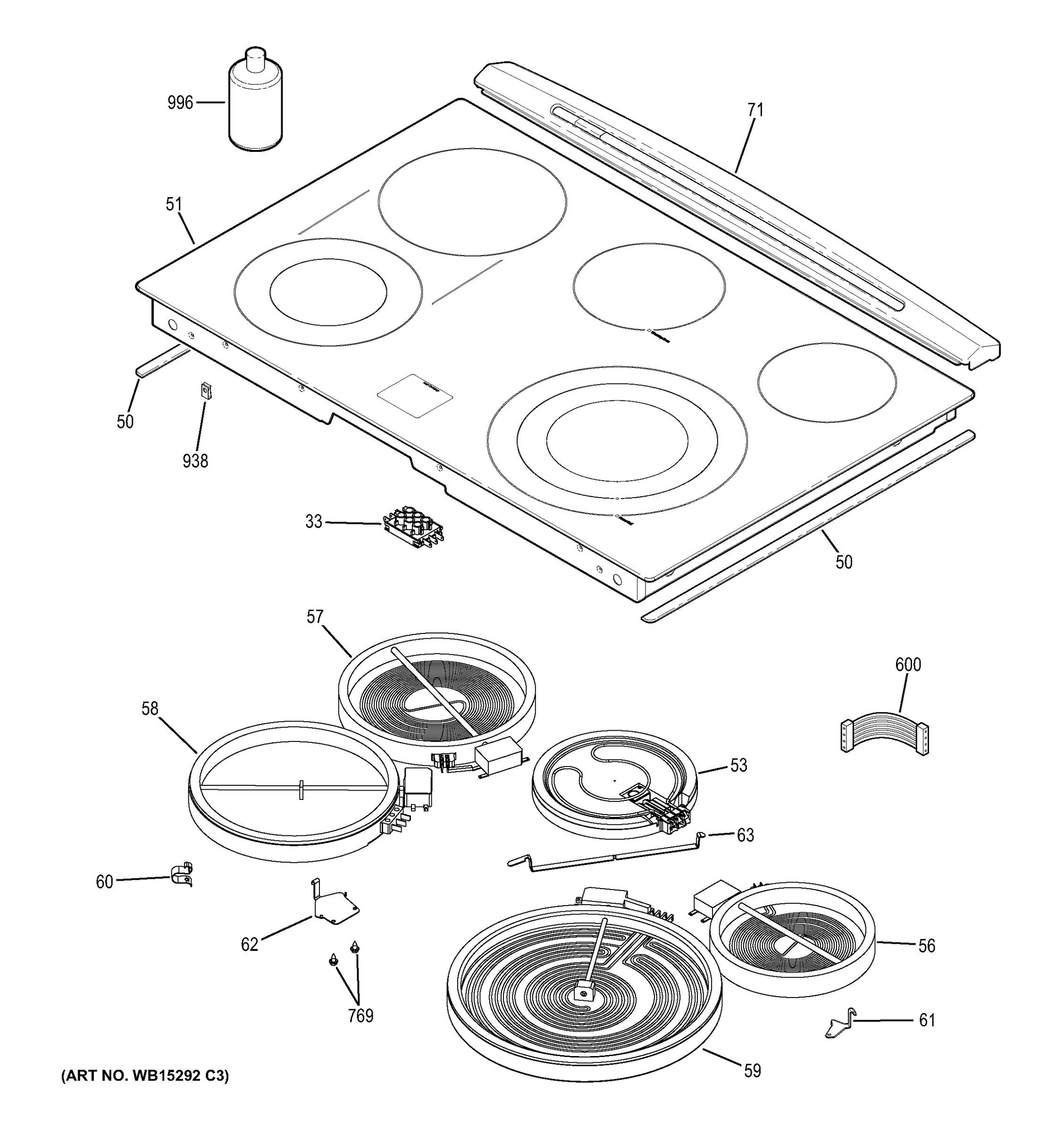

COOKTOP

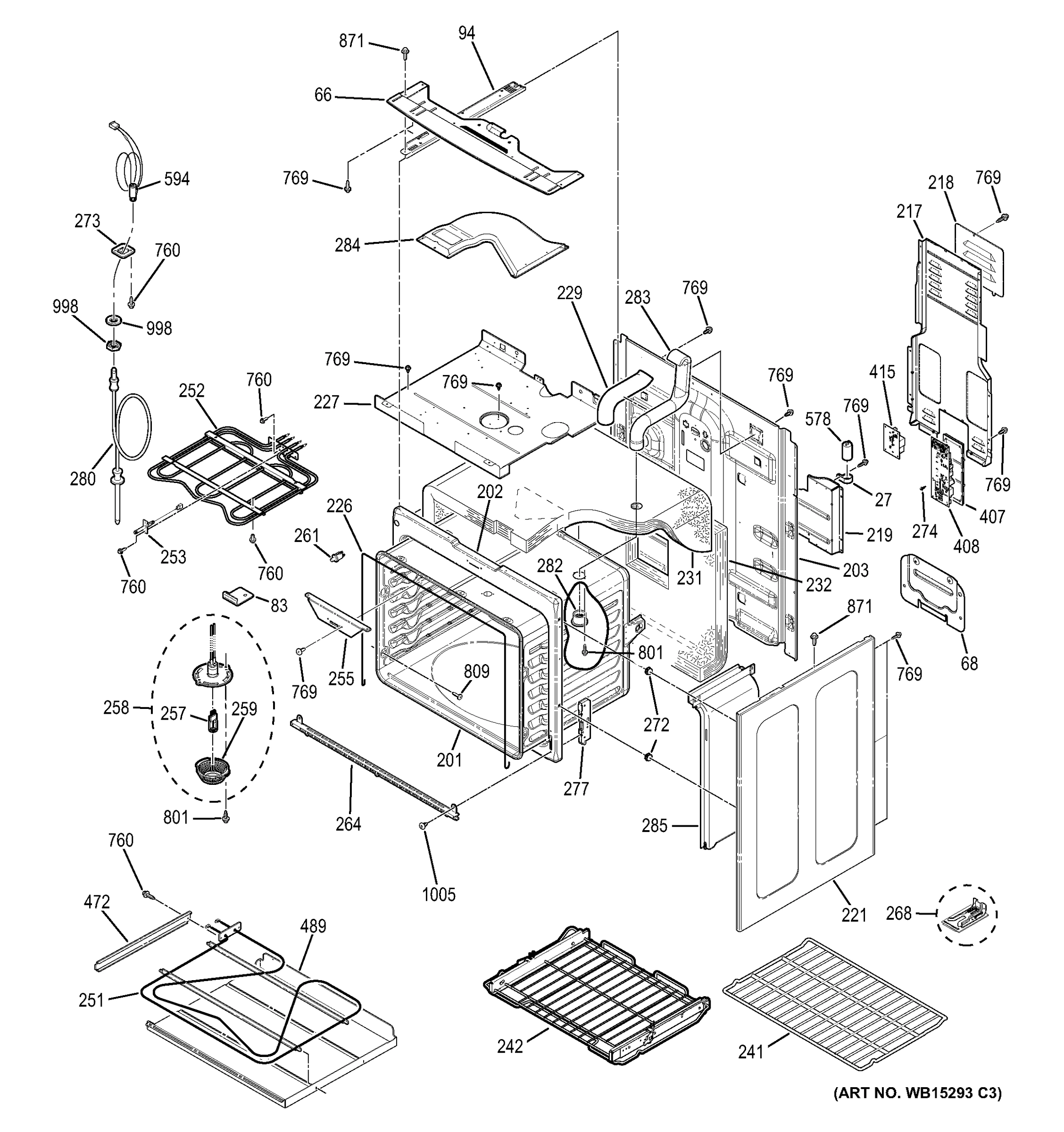

BODY PARTS

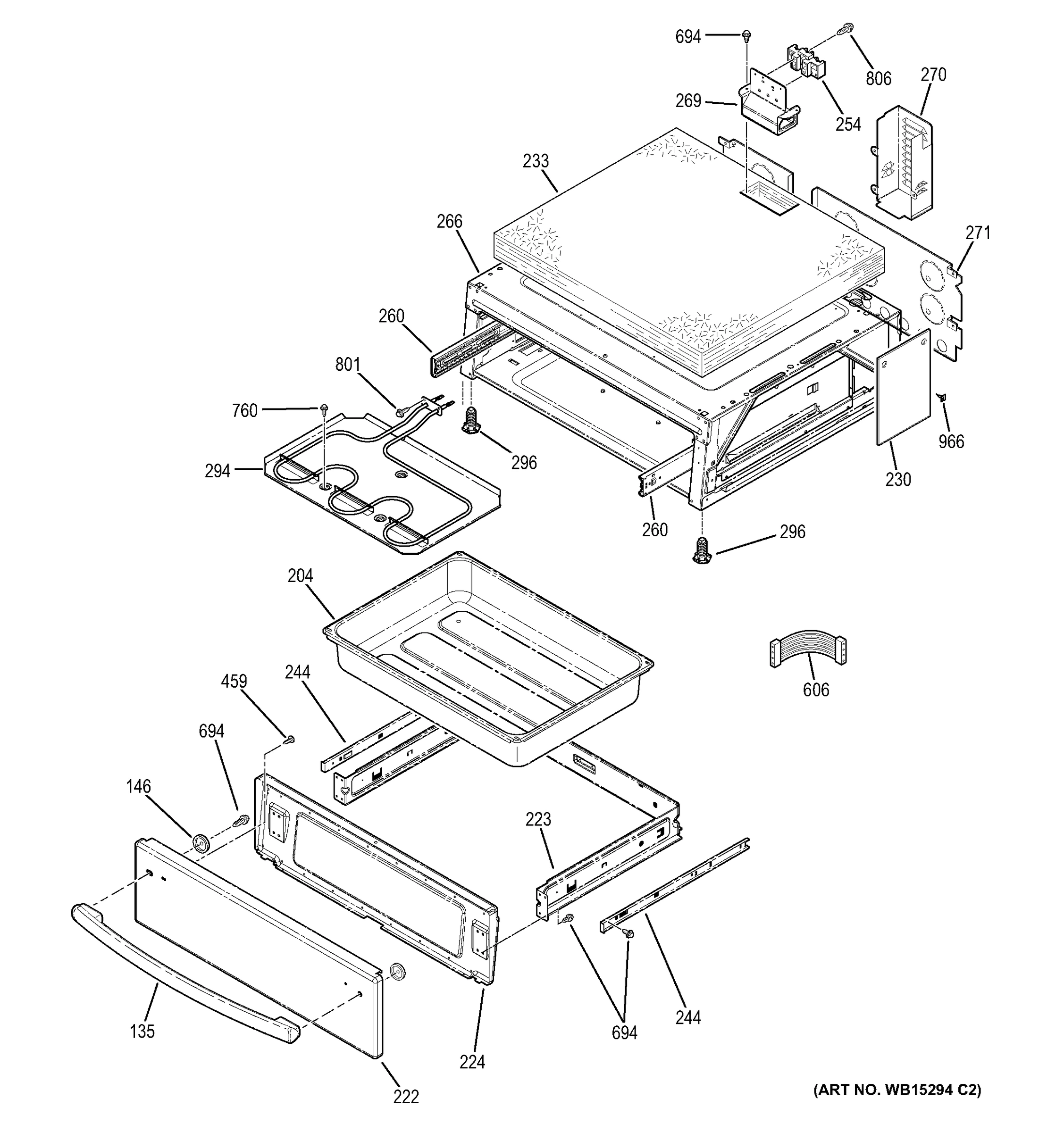

WARMING DRAWER

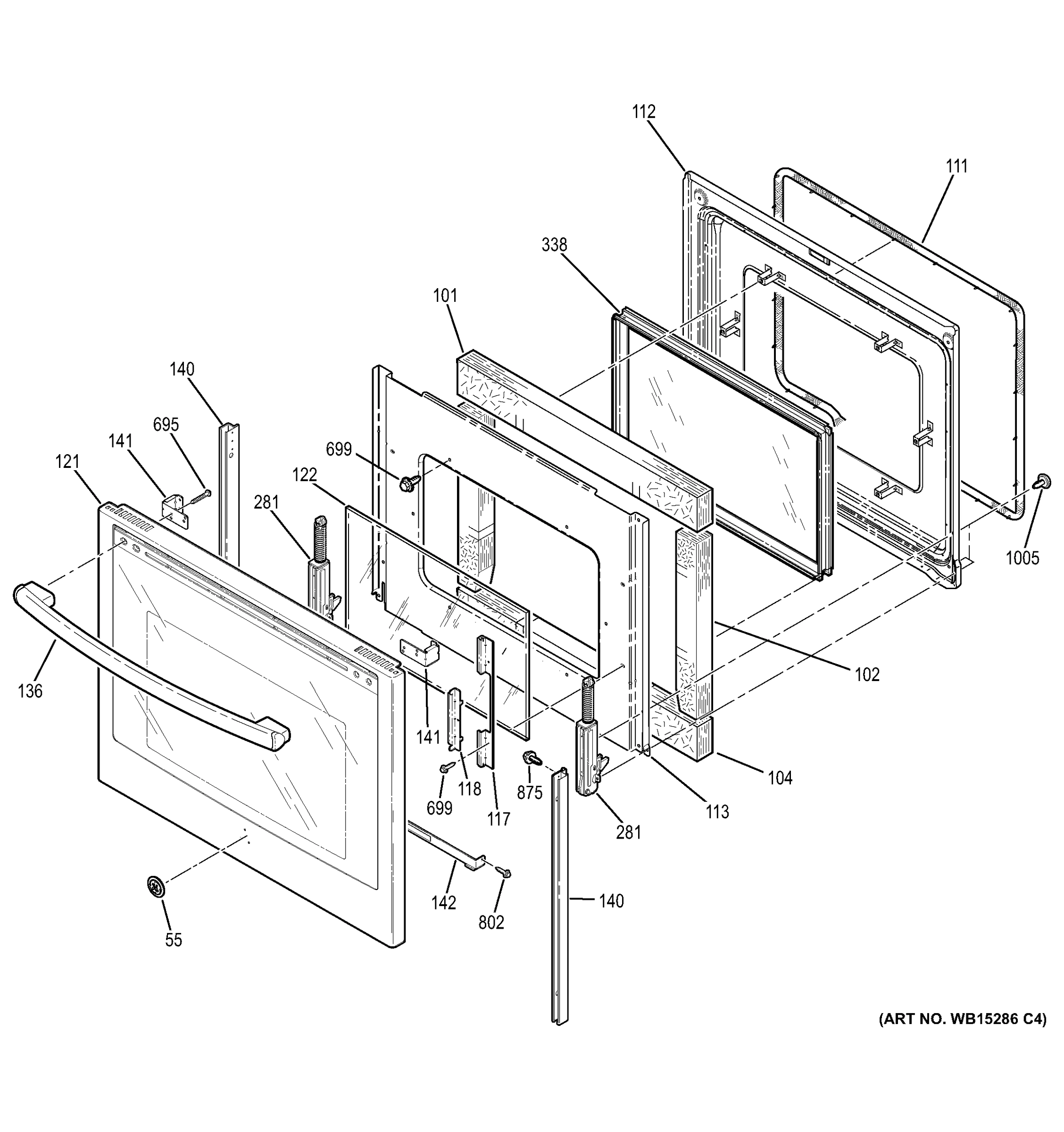

DOOR

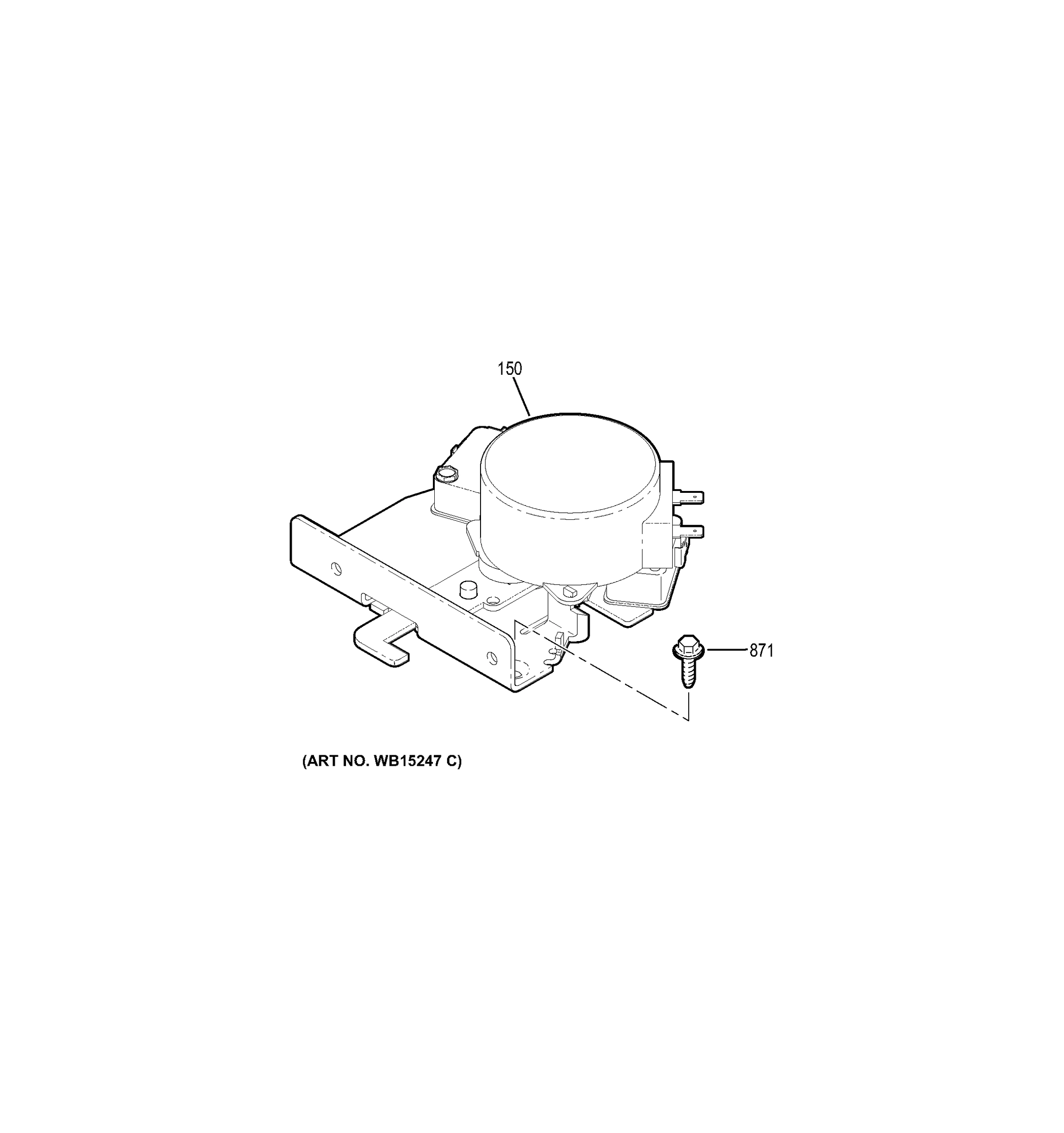

DOOR LOCK

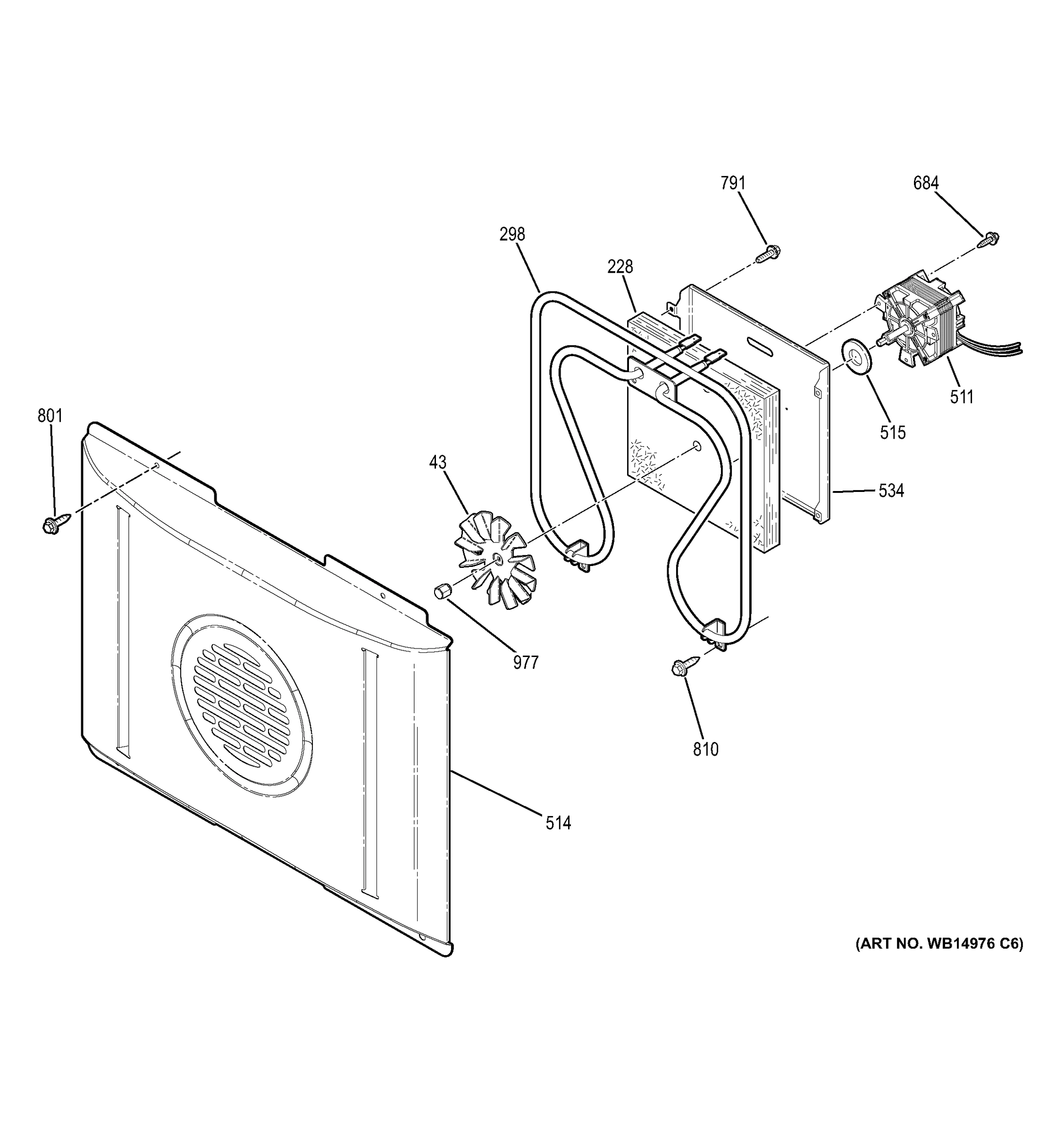

CONVECTION FAN

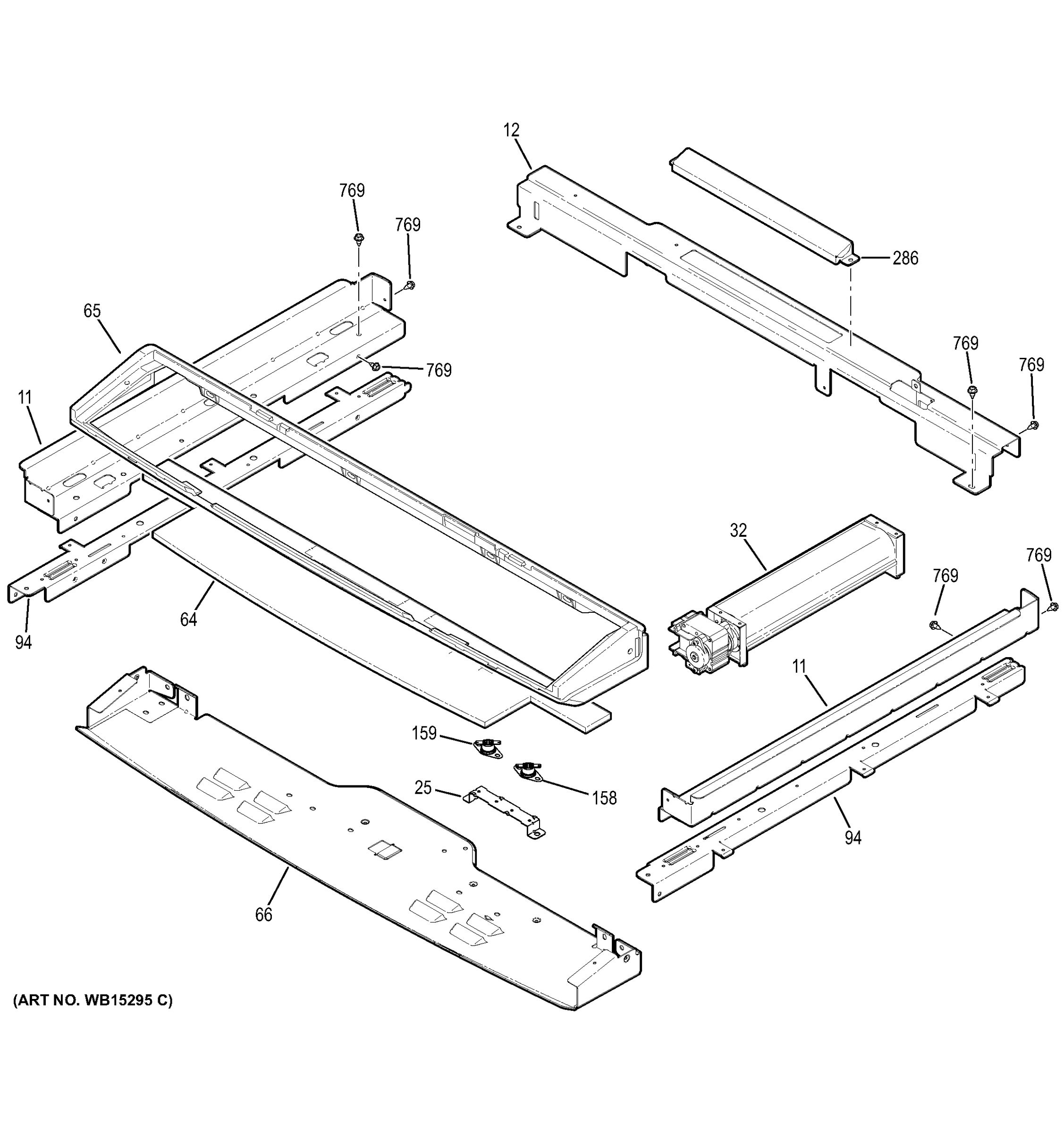

COOLING FAN
Common parts from model GE PS920SF2SS
16
CONTROL UI ASM GEN WB27X21393 Contact Us For Availability
17
GUIDE & OVERLAY ASM GEN WB27T11121 Contact Us For Availability
18
GLASS CNTL & BOARD ASM GEN WB27X21438 Contact Us For Availability
21
FILTER CLOCK DISPLAY GEN WB27T11116 Contact Us For Availability
32
BLOWER ASM GEN WB26X20894 Contact Us For Availability
33
MODULE INDICATOR LIGHT GEN WB25T10099 Contact Us For Availability
43
HUB BLADE ASM GEN WB02T10289 Contact Us For Availability
50
GASKET MAINTOP GEN WB02T10543 Contact Us For Availability
53
ELEMENT WARMER LOW PRF GEN WB30T10154 Contact Us For Availability
55
BADGE GE GEN WB02T10589 Contact Us For Availability
56
ELEMENT RADIANT 5.5 IN GEN WB30T10145 Contact Us For Availability
57
ELEMENT RADIANT 8 IN GEN WB30T10132 Contact Us For Availability
58
ELEMENT HALIANT (DUAL) GEN WB30T10135 Contact Us For Availability
59
ELEMENT HALIANT 12 TRPL GEN WB30T10155 Contact Us For Availability
61
BRACKET RADIANT ELEMENT GEN WB02X20902 Contact Us For Availability
64
INSULATION ENCLOSURE GEN WB35X21466 Contact Us For Availability
101
INSULATION DOOR GEN WB35T10134 Contact Us For Availability
102
INSULATION DOOR GEN WB35T10135 Contact Us For Availability
104
INSULATION DOOR GEN WB35T10255 Contact Us For Availability
111
GASKET OVEN GEN WB04T10079 Contact Us For Availability
112
LINER OVEN DOOR ASM (BK) GEN WB55T10203 Contact Us For Availability
113
RETAINER OVN DR INSLN GEN WB56T10178 Contact Us For Availability
117
RETAINER GLASS OVN DR GEN WB56T10320 Contact Us For Availability
118
RETAINER GLASS OVN DR GEN WB56T10321 Contact Us For Availability
121
PANEL ASM BONDED (SS) GEN WB56X21493 Contact Us For Availability
122
GLASS OVN DR INR GEN WB57T10233 Contact Us For Availability
140
FRAME DOOR SIDE (BK) GEN WB56T10287 Contact Us For Availability
150
LATCH MOTORIZED GEN WB14T10085 Contact Us For Availability
159
SWITCH LIMIT BIMETAL GEN WB24T10178 Contact Us For Availability
204
DRAWER PAN GEN WB49T10076 Contact Us For Availability
218
COVER TERMINAL BLOCK GEN WB02T10560 Contact Us For Availability
229
VENT TUBE INSULATION GEN WB35T10017 Contact Us For Availability
232
INSULATION OVN BCK & BTM GEN WB35X21424 Contact Us For Availability
233
HIDDEN BAKE INSULATION GEN WB35T10022 Contact Us For Availability
241
RACK OVEN (SC) GEN WB48T10082 Contact Us For Availability
242
RACK OVEN SLIDE ASM (BK) GEN WB48X20881 Contact Us For Availability
252
SHIELD BROIL ASM GEN WB44X20882 Contact Us For Availability
254
TERMINAL BLOCK ASM GEN WB17T10011 Contact Us For Availability
257
LAMP HALOGEN G9 GEN WB08T10045 Contact Us For Availability
258
LAMP HALOGEN ASM GEN WB25T10097 Contact Us For Availability
259
OV LAMP LENS GEN WB25T10013 Contact Us For Availability
260
DRAWER SLIDE ASSY LEFT GEN WB39K10021 Contact Us For Availability
260
DRAWER SLIDE ASSY RIGHT GEN WB39K10020 Contact Us For Availability
261
SWITCH SPDT HIGH AMP GEN WB24T10147 Contact Us For Availability
264
TRIM FRT FRM (BK) GEN WB07T10516 Contact Us For Availability
268
BRACKET ANTI-TIP ASM GEN WB02T10578 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
277
HINGE RECEIVER GEN WB10T10068 Contact Us For Availability
280
MEAT PROBE GEN WB20T10024 Contact Us For Availability
281
HINGE DOOR GEN WB10T10067 Contact Us For Availability
294
ELEMENT HEATING (WARM) GEN WB30T10144 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
407
FRAME BOARD ASM GEN WB27T11357 Contact Us For Availability
408
BOARD PCB ASM (MERLIN3) GEN WB27T11356 Contact Us For Availability
415
BOARD DAUGHTER RELAY 6 GEN WB27T11355 Contact Us For Availability
511
MOTOR PSC CONV GEN WB26T10043 Contact Us For Availability
515
GASKET CONV FAN GEN WB04T10080 Contact Us For Availability
578
CAPACITOR MOTOR GEN WB27T10662 Contact Us For Availability
594
HARNESS WIRE PROBE GEN WB18T10394 Contact Us For Availability
684
WZ04X0408 GEN WZ4X416 Contact Us For Availability
694
SCREW 8-18 AB IHW 3/8 S GEN WB01T10017 Contact Us For Availability
695
SCREW 10-32 HEX 1 3/4 IN GEN WB01T10132 Contact Us For Availability
802
SCREW-PKG 12 GEN WZ4X245D Contact Us For Availability
871
340531 GEN WB1K5200 Contact Us For Availability
875
SCR 10-16 AB HXW .532 GEN WB01T10103 Contact Us For Availability
977
NUT GEN WB02T10017 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
× ![]()
