Model Primus PF3JGBSG403UG06 Washer – Common Parts & Diagrams

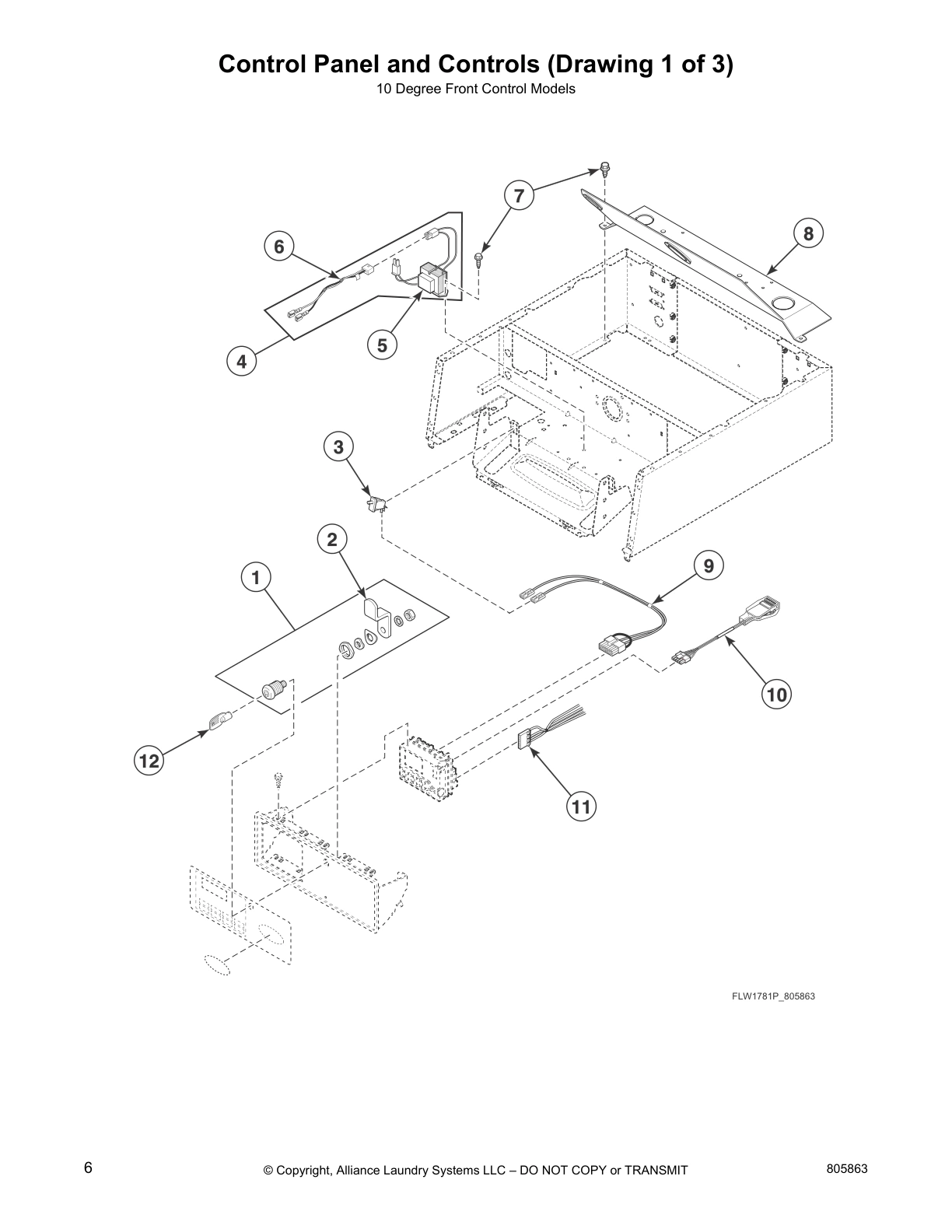

Control Panel and Controls (Drawing 1 of 3)

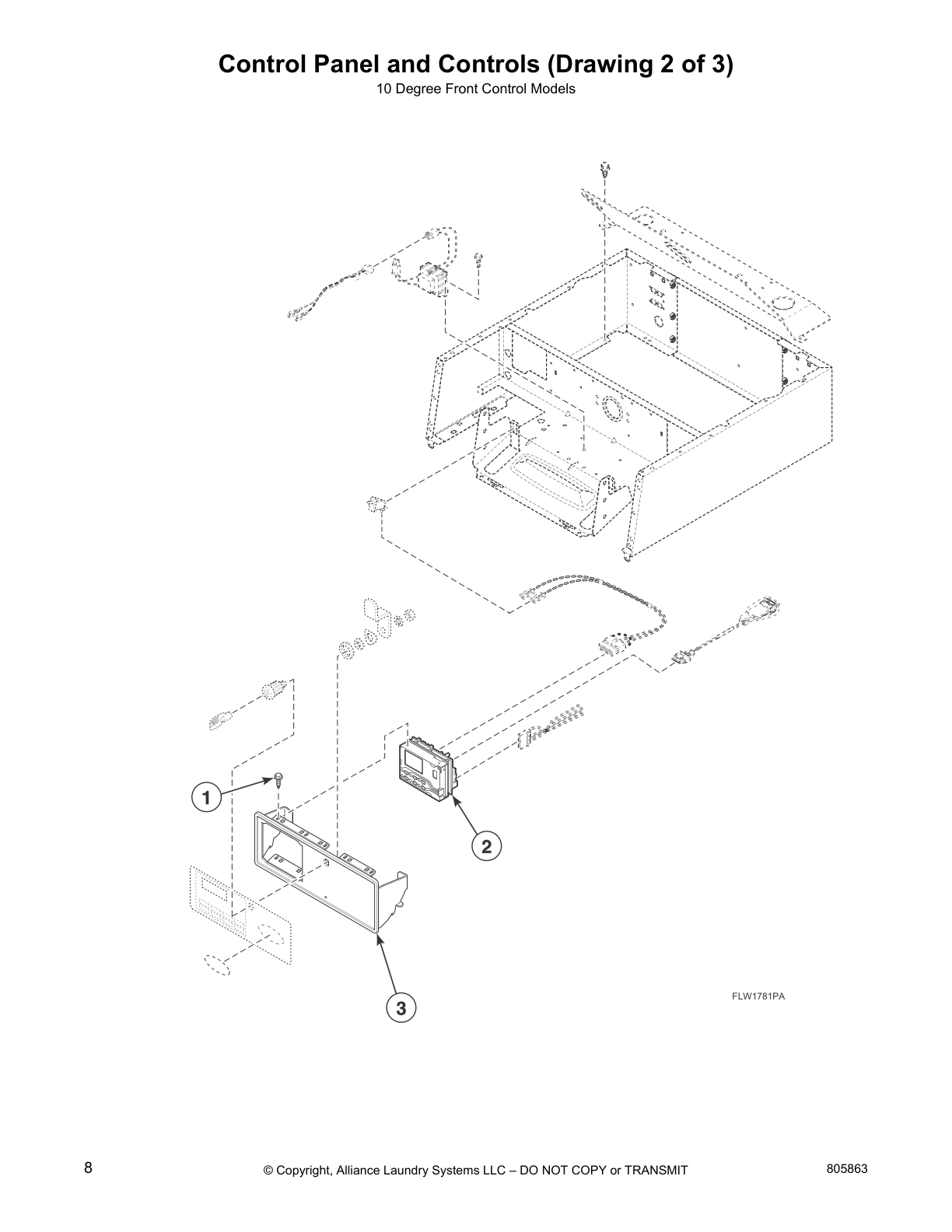

Control Panel and Controls (Drawing 2 of 3)
Top Assembly
Network Board Assembly
Electrical Access Panel, Filters and Terminal Block
(Drawing 1 of 4)
Electrical Access Panel, Filters and Terminal Block
(Drawing 2 of 4)
Electrical Access Panel, Filters and Terminal Block
(Drawing 3 of 4)
Electrical Access Panel, Filters and Terminal Block
(Drawing 4 of 4)
Control Cabinet - Front Control Coin Drop Models (Drawing 1 of 2)
Control Cabinet - Front Control Coin Drop Models (Drawing 2 of 2)
Control Cabinet - Front Control Bill Acceptor Models
Non-Electronic Coin Drop, Cabinet Front and Wrapper Assembly
Electronic Coin Drop
Control Cabinet Controls - Front Control
Card Reader Ready and OPL Models
Control Cabinet (Drawing 1 of 3)
Control Cabinet (Drawing 2 of 3)
Control Cabinet (Drawing 3 of 3)
Coin Drop, Meter Case and Cabinet Top
Control Panel, Control Hood and Controls
Front Panel, Door Assembly and Door Seal
Dispenser Inlet Hose
Dispenser Assembly (Drawing 1 of 2)
Dispenser Assembly (Drawing 2 of 2)
Mixing Valve
Fill Hose
Outer Tub, Clamp Ring and Shock Absorbers
Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt
Drain Hoses and Valve
Drain Hose and Pump
Side, Base and Rear Panels
Junction Box
Junction Box and Power Cord
Shipping Materials
Wire Ties, Harness Clips and Lead-In Cord
Special Tools
Washer Labels
Wire Harnesses and Wires - Through Serial No. 2012999999
Wire Harnesses and Wires - Starting Serial No. 2101000001
Common parts from model Primus PF3JGBSG403UG06 Washer
