Model Whirlpool NG6519 WASHER – Common Parts & Diagrams

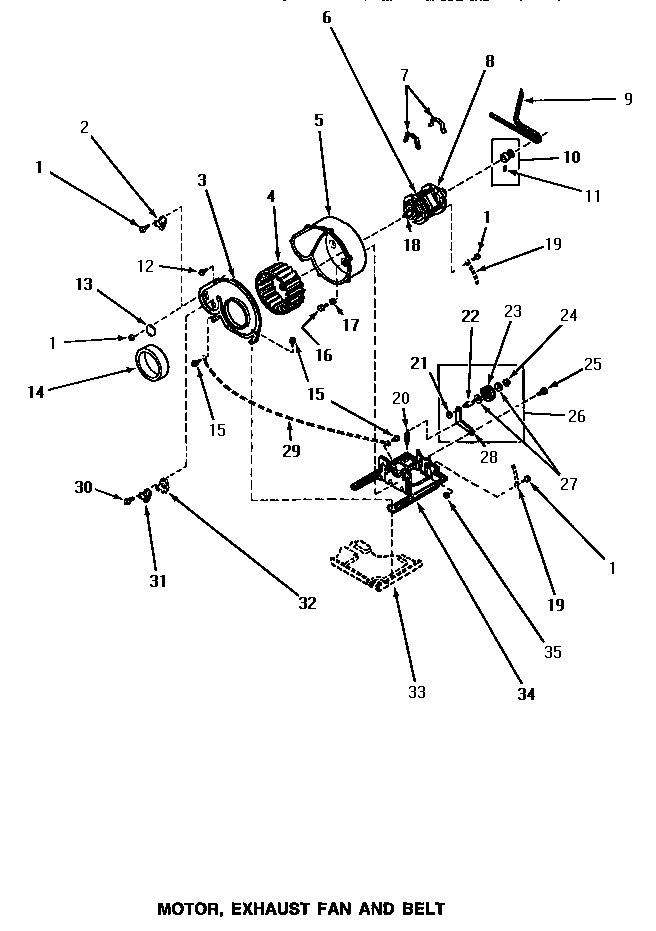

09 - MOTOR, EXHAUST FAN & BELT

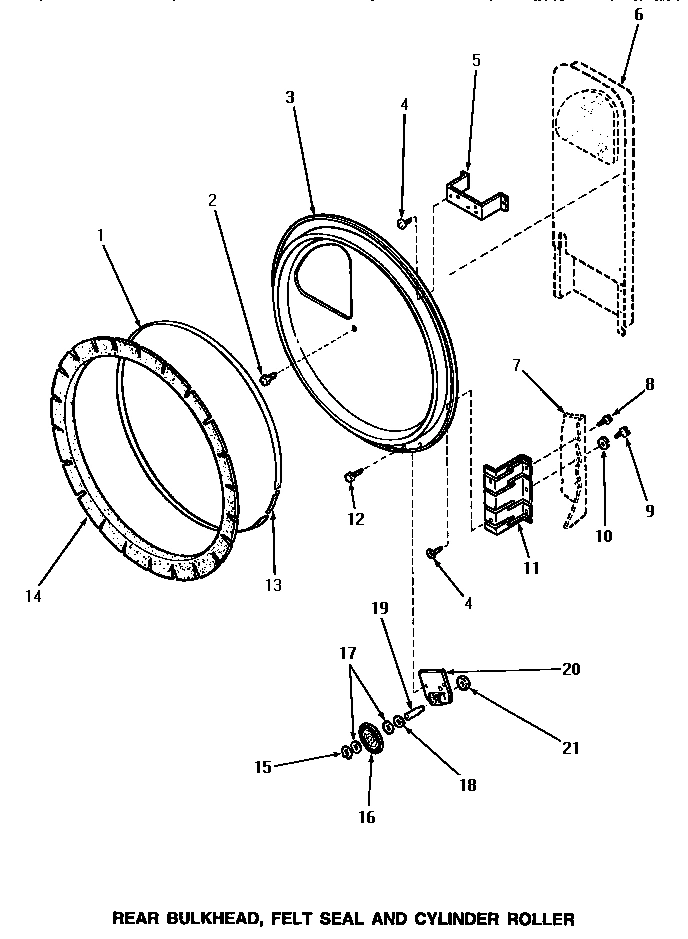

11 - REAR BLKHD, FELT SEAL & CYLINDER ROLLER

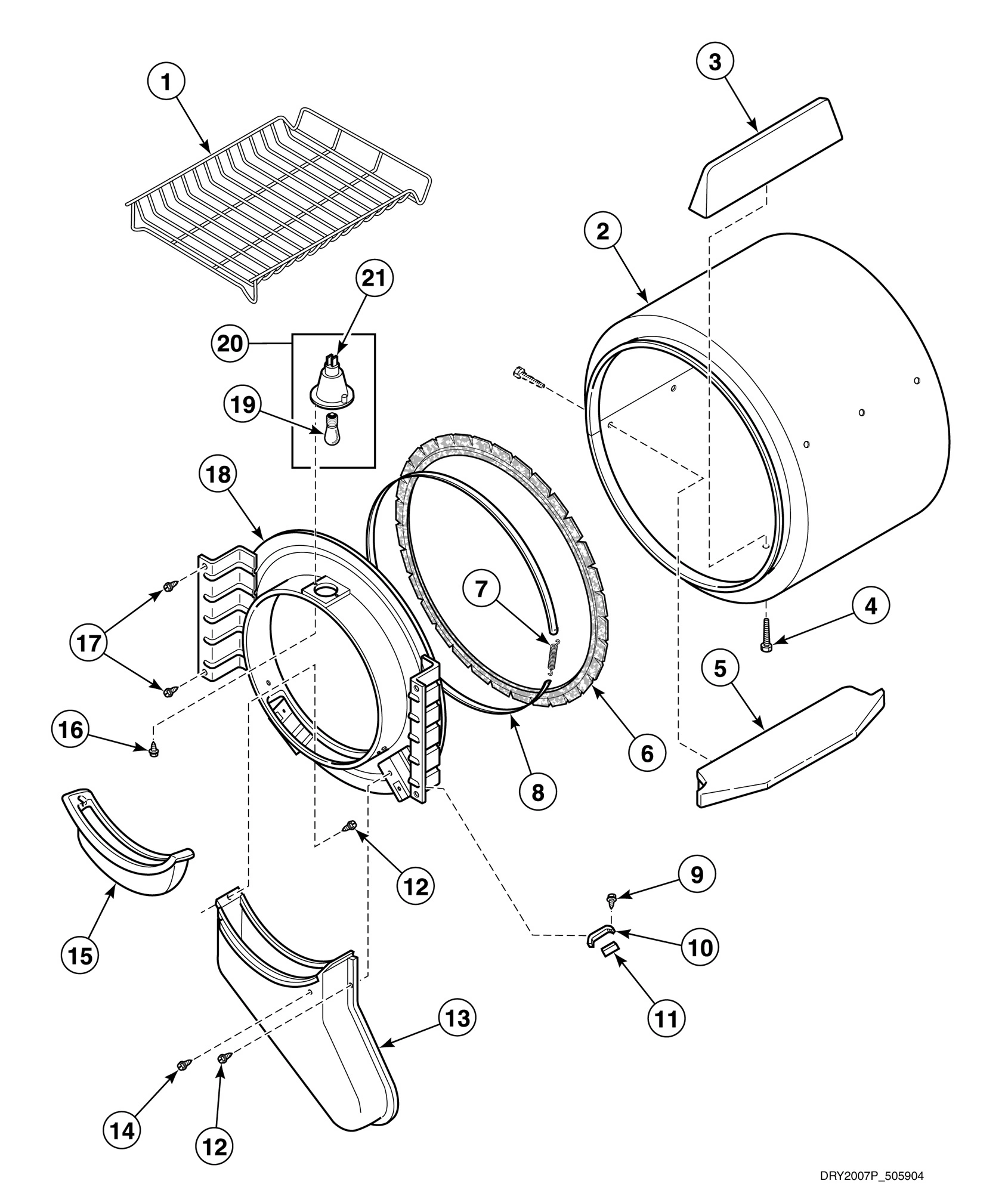

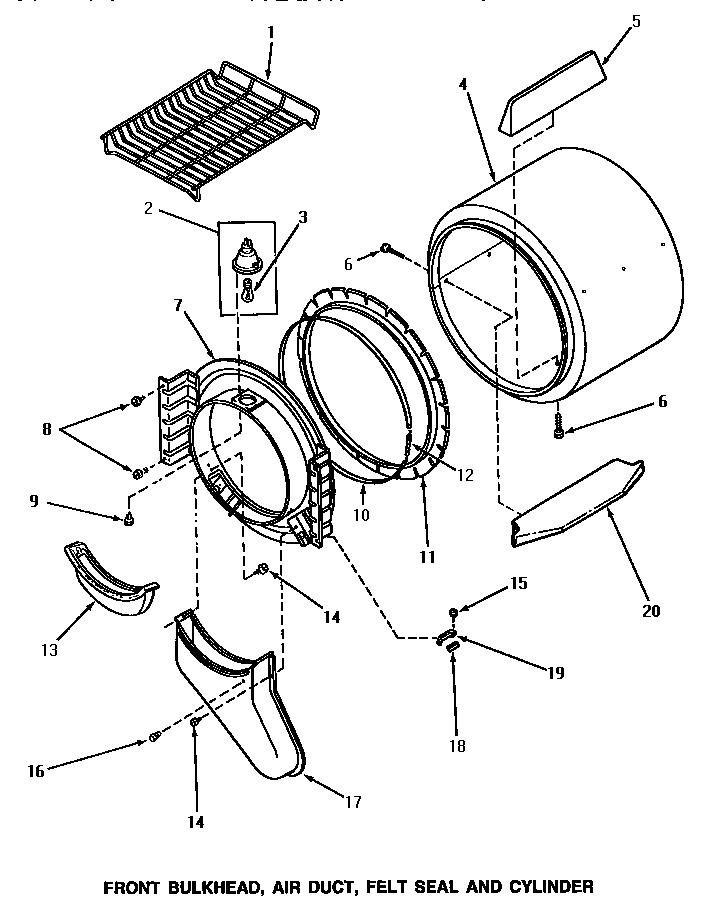

03 - FR BLKHD, AIR DUCT, FELT SEAL & CYLINDER

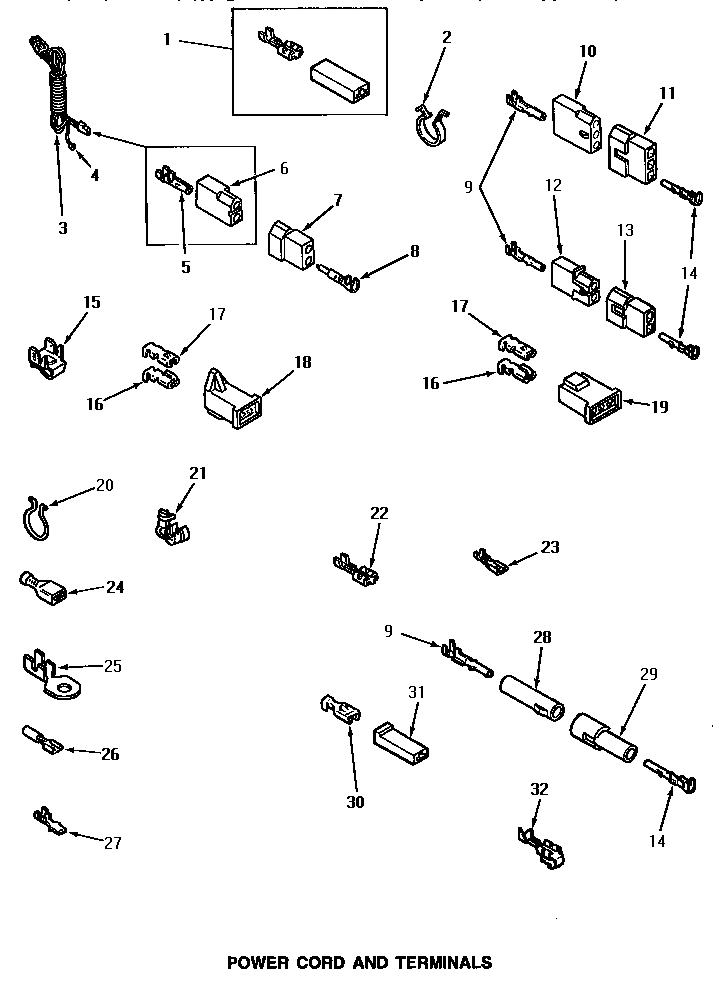

10 - POWER CORD & TERMINALS

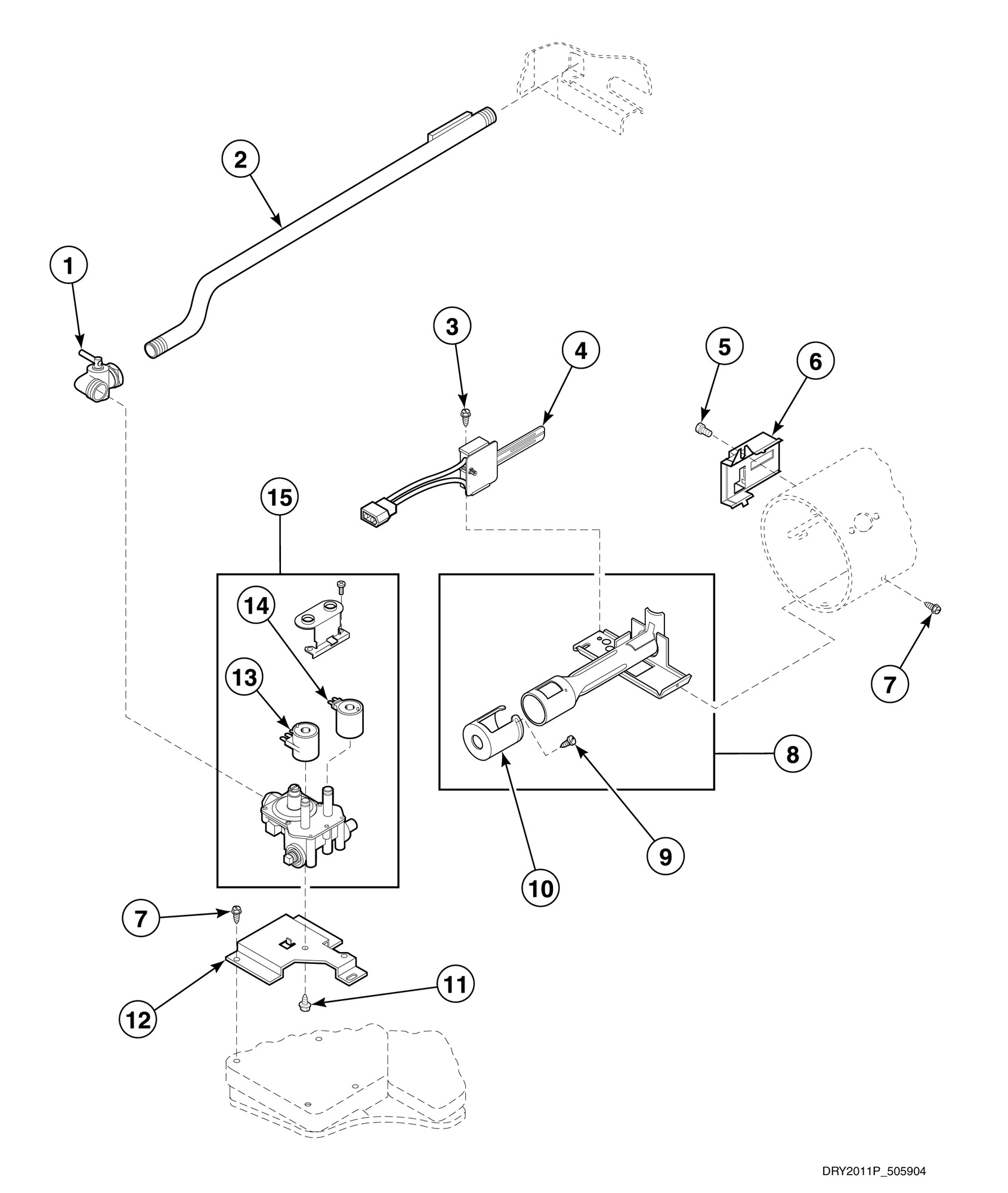

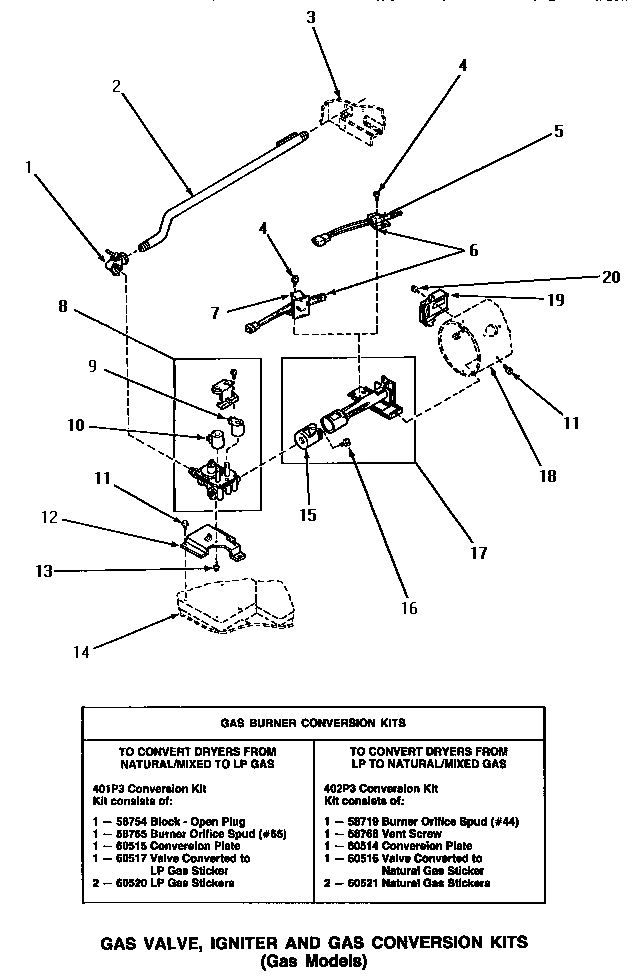

04 - GAS VALVE, IGNITER & GAS CONVERSION KITS

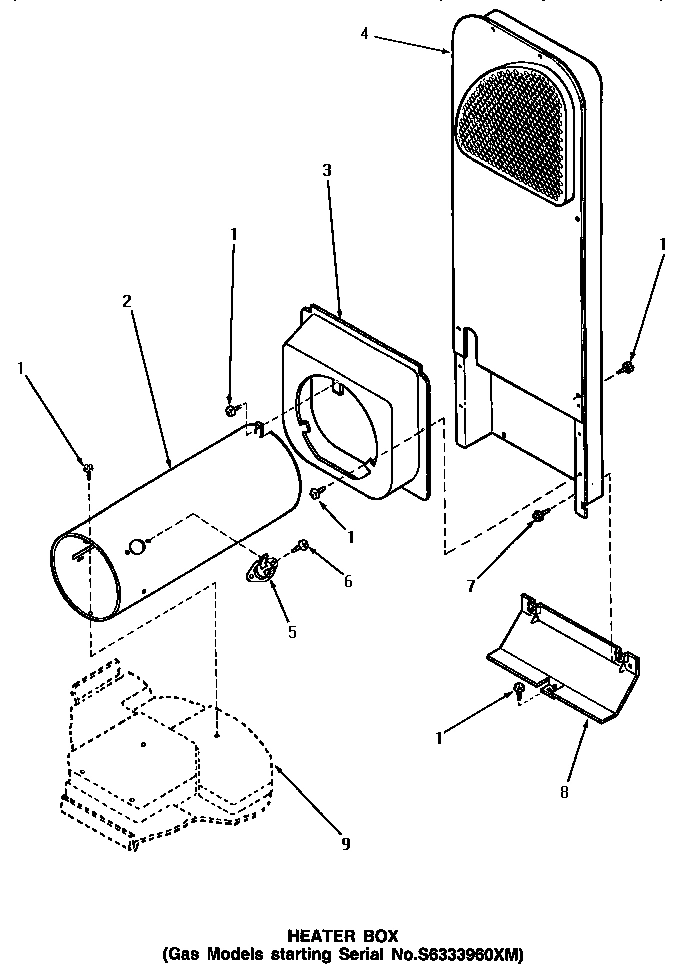

06 - HEATER BOX (STARTING SN S6333960XM)

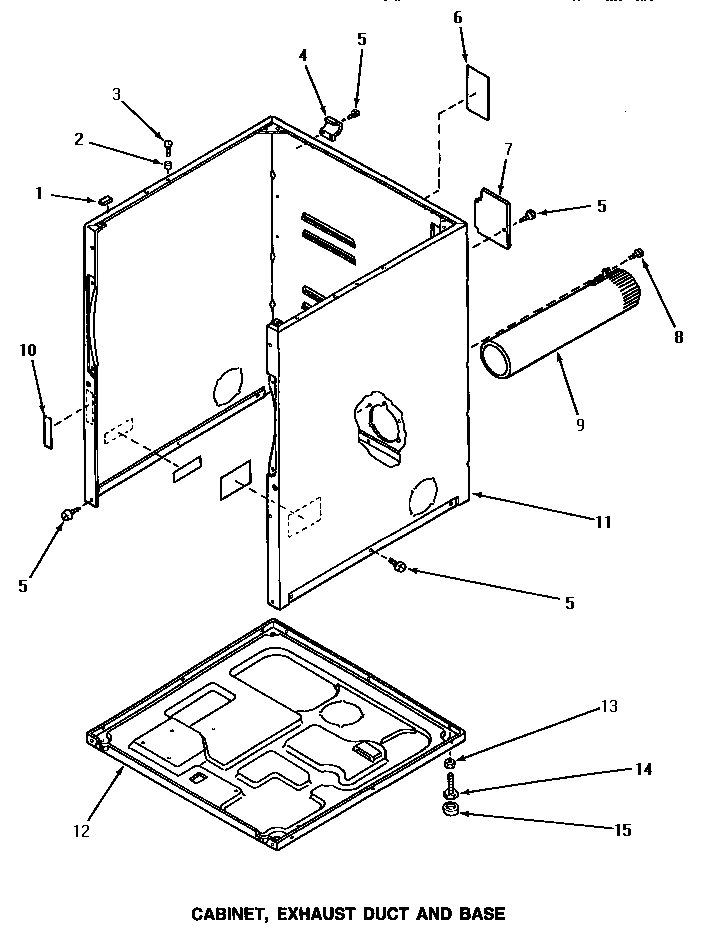

02 - CABINET, EXHAUST DUCT & BASE

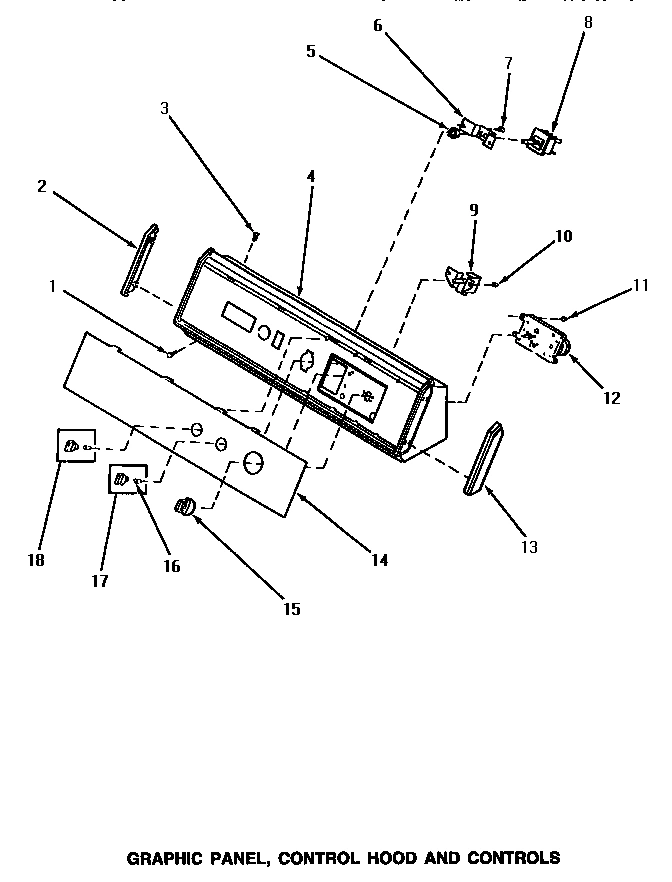

05 - GRAPHIC PANEL, CONTROL HOOD & CONTROLS

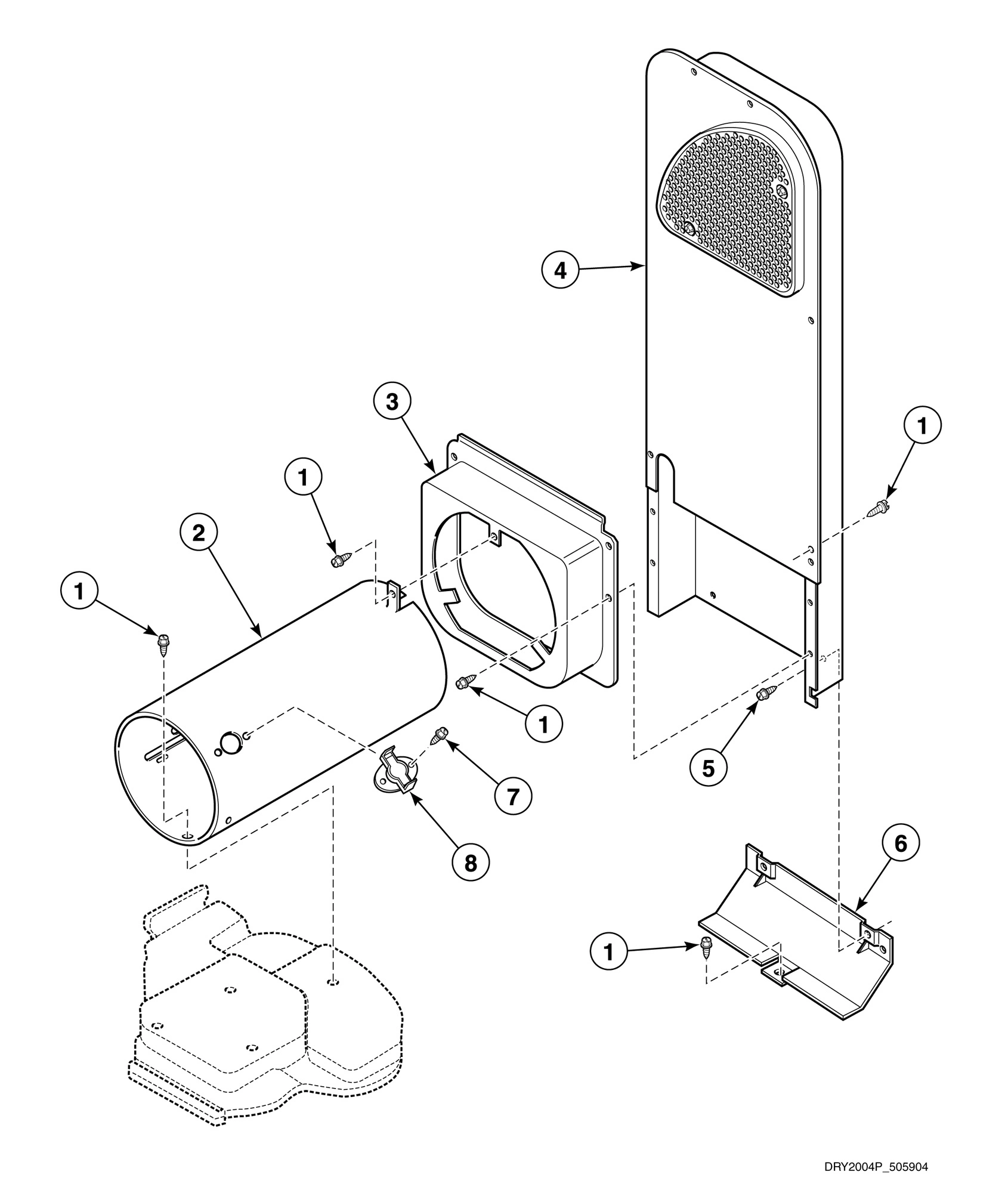

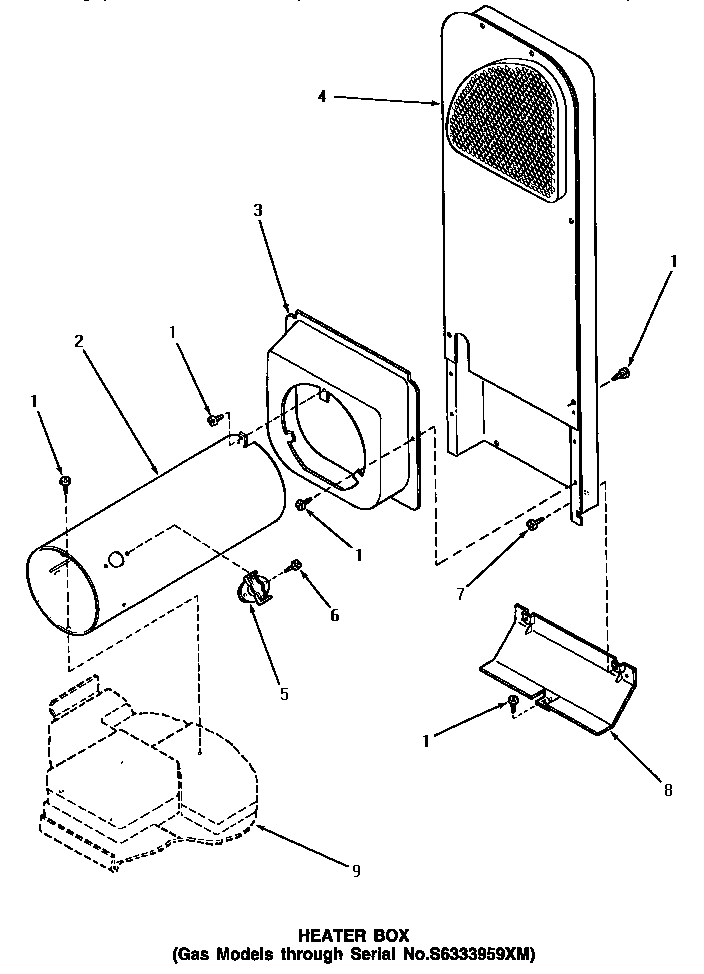

07 - HEATER BOX (THRU SN S6333959XM)

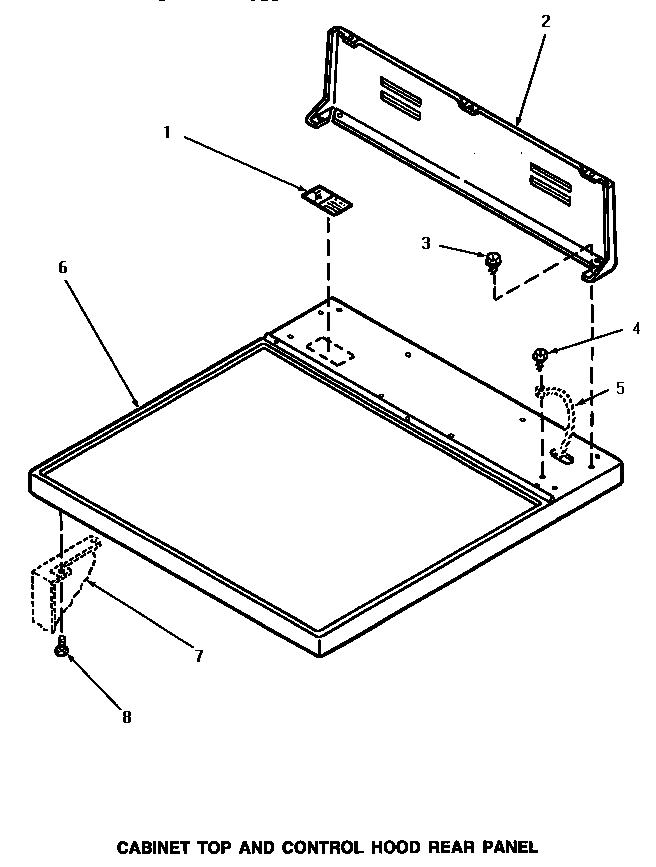

01 - CABINET TOP & CONTROL HOOD REAR PANEL

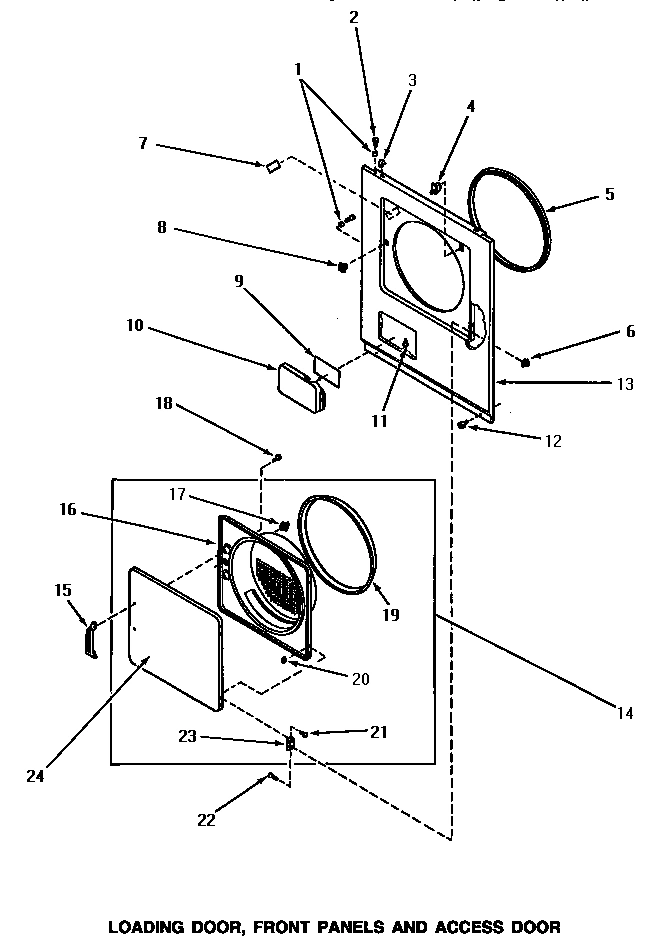

08 - LOADING DOOR, FRONT PANELS & ACCESS DOOR
Common parts from model Whirlpool NG6519 WASHER
WE USE DIFFERENT TIMER VENDORS. ALTHOUGH THE WPL NOTE Contact Us For Availability
1
RACK,DRYING WPL 58846 Contact Us For Availability
1
TERMINAL,SPADE-1/4 FEM WPL Y00237 Contact Us For Availability
1
VALVE,ELBOW SHUT-OFF WPL Y56229 Contact Us For Availability
1
PAD, BUMPER WPL Y56128 Contact Us For Availability
1
LOCATER, PANEL WPL 56079 Contact Us For Availability
1
STICKER,DISCONNECT POW WPL 24903 Contact Us For Availability
2
CYLINDER LIGHT ASSEMBLY WPL 60953P Contact Us For Availability
2
CLIP,WIRE WPL 61510 Contact Us For Availability
2
ASSY,LEAD-IN PIPE WPL 58911 Contact Us For Availability
2
BURNER HOUSING WPL 61974 Contact Us For Availability
2
CAP,END-L.H.-CHROME WPL 31249 Contact Us For Availability
2
BURNER HOUSING WPL 56240 Contact Us For Availability
2
CONTROL HOOD, REAR PANEL WPL 59970 Contact Us For Availability
3
ASSY,REAR BULKHEAD WPL 61135P Contact Us For Availability
3
LIGHT BULB WPL Y54608 Contact Us For Availability
3
CORD,LEAD-IN WPL Y56222 Contact Us For Availability
3
HEAT SHROUD WPL Y60948 Contact Us For Availability
3
SCREW,No.8ABX3/4 POZIDRI WPL 31752 Contact Us For Availability
3
SHROUD,HEAT DUCT WPL 56237 Contact Us For Availability
4
M400664 WPL 56078 Contact Us For Availability
4
ASSY,CYLINDER PACK WPL 60645P Contact Us For Availability
4
ASSY,CYLINDER-WHITE WPL 61073P Contact Us For Availability
4
SCREW,No.6-20X.44/.41 IN WPL 56693 Contact Us For Availability
4
HEATER BOX WPL 61161P Contact Us For Availability
4
HINGE, TOP WPL 60826 Contact Us For Availability
4
ASSY,HOOD & MOUNTING P WPL 59955 Contact Us For Availability
5
LIMIT THERMOSTAT WPL 489P3 Contact Us For Availability
5
BRACKET,TERMINAL BLOCK WPL 60823P Contact Us For Availability
5
BAFFLE,CYLINDER-SHORT- WPL Y61399 Contact Us For Availability
5
TERMINAL,PIN-1/8 FEMAL WPL 00130 Contact Us For Availability
5
NUT WPL 57584 Contact Us For Availability
5
LIMIT THERMOSTAT WPL 58366 Contact Us For Availability
5
SEAL,FRONT PANEL WPL Y61380 Contact Us For Availability
6
SCREW,10BT X 1 TAPPING WPL 56131 Contact Us For Availability
6
RECEPTACLE,2 CIRCUIT WPL 56265 Contact Us For Availability
6
SCREW, 6B-20X5/16 WPL 51782 Contact Us For Availability
6
BRACKET,SWITCH MOUNT WPL 59704 Contact Us For Availability
6
ASSY,TOP PANEL-DOMESTI WPL 60815H Contact Us For Availability
6
CABINET TOP, ALMOND WPL 60815L Contact Us For Availability
6
ASSY, TOP & CARTON WPL 60815W Contact Us For Availability
6
NUT K WPL 51236 Contact Us For Availability
7
SEE NOTE CABINET WPL Y00000000 Contact Us For Availability
7
ASSY,BULKHEAD-FRONT-SV WPL 62142W Contact Us For Availability
7
PLUG WPL 56266 Contact Us For Availability
7
ACESS COVER WPL 60821 Contact Us For Availability
7
REPL BY 500281 WPL 58854 Contact Us For Availability
8
SWITCH,MOTOR WPL 53226 Contact Us For Availability
8
SWITCH WPL 53249 Contact Us For Availability
8
MOTOR SWITCH, INTERNAL MOUNTED WPL 59895 Contact Us For Availability
8
TERMINAL,PIN-1/8 MALE WPL Y00127 Contact Us For Availability
8
ASSY,VALVE-GAS-SINGLE- WPL 58804 Contact Us For Availability
8
SHIELD,HEAT DUCT WPL 60952 Contact Us For Availability
8
SWITCH WPL 58813 Contact Us For Availability
8
SWITCH,FABRIC SELECTOR WPL Y61511 Contact Us For Availability
9
SCREW,10B-16 X 1/2 HEX WPL 52909 Contact Us For Availability
9
FEMALE SOCKET TERMINAL WPL Y00117 Contact Us For Availability
9
STICKER WPL 56427 Contact Us For Availability
9
ASSY, EXHAUST DUCT WPL 56118 Contact Us For Availability
9
SIGNAL,ROTARY WPL 59447 Contact Us For Availability
10
MOTOR PULLEY ASSEMBLY WPL 59173 Contact Us For Availability
10
SEAL STRAP WPL Y56090 Contact Us For Availability
10
WASHER,13/64IDX1/2ODX. WPL 51474 Contact Us For Availability
10
SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability
10
RECEPTACLE,3 CIRCUIT WPL 23039 Contact Us For Availability
10
DOOR,ACCESS WPL 60795H Contact Us For Availability
10
DOOR,ACCESS WPL 60795L Contact Us For Availability
10
DOOR,ACCESS WPL 60795W Contact Us For Availability
11
SETSCREW WPL 52906 Contact Us For Availability
11
BRACKET,BULKHEAD-REAR WPL 56055 Contact Us For Availability
11
PLUG, 3 CIRCUIT WPL 23040 Contact Us For Availability
11
CABINET, HARVEST GOLD WPL 60813PH Contact Us For Availability
11
CABINET, ALMOND WPL 60813PL Contact Us For Availability
11
CABINET, WHITE WPL 60813PW Contact Us For Availability
11
BARREL,SUPPORT WPL 56534 Contact Us For Availability
12
SPRING WPL 52310 Contact Us For Availability
12
RECEPTACLE,2 CIRCUIT WPL 56451 Contact Us For Availability
12
MOUNTING BRACKET WPL 58912 Contact Us For Availability
12
ASSY,BASE-COMPLETE WPL 60811 Contact Us For Availability
12
TIMER, 5 CYCLE WPL 59421 Contact Us For Availability
13
FILTER,LINT-WHITE W/INST. WPL 61376P Contact Us For Availability
13
PLUG 2 CIRCUIT WPL 56448 Contact Us For Availability
13
CAP,END-R.H.-CHROME WPL 31248 Contact Us For Availability
13
PANEL,FRONT-GAS WPL 62421H Contact Us For Availability
13
PANEL, FRONT WPL 62421L Contact Us For Availability
13
PANEL, FRONT WPL 62421W Contact Us For Availability
14
SEAL WPL 56065 Contact Us For Availability
14
TERMINAL,PIN-MALE WPL Y00116 Contact Us For Availability
14
PANEL,GRAPHIC WPL 60729 Contact Us For Availability
14
ASSY,DOOR WPL 62151H Contact Us For Availability
14
ASSY,DOOR WPL 62151L Contact Us For Availability
14
ASSY,DOOR WPL 62151W Contact Us For Availability
15
GROUND CLIP WPL Y00161 Contact Us For Availability
15
SHUTTER,AIR WPL 53007 Contact Us For Availability
15
ASSY,TIMER KNOB & SKIR WPL 59791 Contact Us For Availability
15
PULL,DOOR WPL 54068P Contact Us For Availability
16
CYLINDER ROLLER WPL 56457 Contact Us For Availability
16
BUMPER WPL 56938 Contact Us For Availability
16
CONNECTOR,RECEPTACLE WPL Y00190 Contact Us For Availability
16
SCREW,6-32 X 5/16 RD H WPL 51356 Contact Us For Availability
16
RETAINER WPL 10519 Contact Us For Availability
16
INNER DOOR PANEL, HARVEST GOLD WPL 62152H Contact Us For Availability
16
LINER,DOOR WPL 62152L Contact Us For Availability
16
LINER,DOOR WPL 62152W Contact Us For Availability
17
WASHER WPL 20492 Contact Us For Availability
17
ASSY,AIR DUCT-FRONT WPL 60786 Contact Us For Availability
17
TERMINAL,SPADE WPL Y00189 Contact Us For Availability
17
ASSY,KNOB-ROTARY-BLK/O WPL 31286 Contact Us For Availability
18
NEVER-SEEZE 1 OZ TUBE WPL 27604P Contact Us For Availability
18
WASHER,.578IDX1.25ODX1 WPL 23886 Contact Us For Availability
18
PAD,THIN WPL 58049 Contact Us For Availability
18
CONNECTOR,2 CIRCUIT WPL 58799 Contact Us For Availability
18
ASSEMBLY, BURNER WPL Y56234 Contact Us For Availability
18
CONTROL KNOB ASSEMBLY WPL 60758 Contact Us For Availability
19
GLIDE,CYLINDER-RULON F WPL 61448 Contact Us For Availability
19
CONNECTOR,3 CIRCUIT WPL 58800 Contact Us For Availability
19
DOOR SEAL WPL 61379 Contact Us For Availability
20
BRACKET,CYLINDER ROLLER WPL 56042 Contact Us For Availability
20
BAFFLE,CYLINDER-EXTEND WPL Y61027 Contact Us For Availability
20
CLIP,WIRE WPL 51291 Contact Us For Availability
20
NUT,SPEED-8A TINN C15 WPL 23407 Contact Us For Availability
21
NUT, 3/8-16 SERRATED WPL 56156 Contact Us For Availability
21
STRAIN RELIEF WPL 21903 Contact Us For Availability
21
SCREW, 8B-16X5/8 TAP WPL 52864 Contact Us For Availability
22
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
22
SPADE TERMINAL(12 GAUGE) WPL Y00121 Contact Us For Availability
22
TERMINAL,FEMALE-1/4 SP WPL Y00222 Contact Us For Availability
22
SCREW,8-32 X 13/32 FL WPL 22649 Contact Us For Availability
23
TERMINAL,SPADE 3/16 WPL 00156 Contact Us For Availability
23
TERMINAL,SPADE-3/16 FE WPL Y00124 Contact Us For Availability
23
TERMINAL,3/16 SPADE WPL Y00209 Contact Us For Availability
23
HINGE (DRYER) WPL 56045 Contact Us For Availability
24
DOOR (GOLD) WPL 62153H Contact Us For Availability
24
DOOR WPL 62153L Contact Us For Availability
24
PANEL OUTER DOOR WPL 62153W Contact Us For Availability
25
SCREW,1/4-20 HEX HD SH WPL 56587 Contact Us For Availability
25
TERMINAL,RING-10 STUD WPL 00110 Contact Us For Availability
25
TERMINAL,RING-10 STUD WPL Y00111 Contact Us For Availability
26
TERMINAL,1/4 SPADE PRE WPL Y00214 Contact Us For Availability
26
TERMINAL,1/4 SPADE PRE WPL Y00215 Contact Us For Availability
27
TERMINAL,TAB 1/4 MALE WPL Y00138 Contact Us For Availability
27
MALE TAB TERMINAL(12 GAUGE) WPL Y00139 Contact Us For Availability
28
LEVER,IDLER WPL 56057 Contact Us For Availability
28
RECEPTACLE,MOLEX WPL 26301 Contact Us For Availability
29
PLUG,1 CIRCUIT WPL 26302 Contact Us For Availability
30
SCREW, THERMOSTAT WPL 52150 Contact Us For Availability
30
TERMINAL,SPADE-1/4 FEM WPL 00122 Contact Us For Availability
30
TERMINAL,SPADE-1/4 FEM WPL Y00115 Contact Us For Availability
31
THERMOSTAT WPL 56471 Contact Us For Availability
31
THERMOSTAT WPL Y61372 Contact Us For Availability
31
CONNECTOR WPL 90789 Contact Us For Availability
32
THERMOSTAT HEATER WPL 61401 Contact Us For Availability
32
TERMINAL,SPADE-1/4 FEM WPL Y00114 Contact Us For Availability
34
MOTOR MOUNTING BRACKET WPL Y60816 Contact Us For Availability
NI
KIT, CONVERSION-LP WPL 401P3 Contact Us For Availability
NI
KIT,CONVERSION-NG WPL 402P3 Contact Us For Availability
NI
ORIFICE,SCREW WPL 58719 Contact Us For Availability
NI
PLUG,BLOCK OPEN WPL 58754 Contact Us For Availability
NI
ORIFICE,LP WPL 58755 Contact Us For Availability
NI
SCREW,VENT WPL 58768 Contact Us For Availability
NI
PLATE,CONVERSION WPL 60514 Contact Us For Availability
NI
PLATE,CONVERSION WPL 60515 Contact Us For Availability
NI
STICKER,VALVE CONVERTED WPL 60516 Contact Us For Availability
NI
VALVE CONVERTED TO LP GAS STIC WPL 60517 Contact Us For Availability
NI
STICKER,LP GAS WPL 60520 Contact Us For Availability
NI
STICKER,NG OR MIXED GAS WPL 60521 Contact Us For Availability
× ![]()
