Model Alliance NDENXAGS173MW01 Dryer – Common Parts & Diagrams

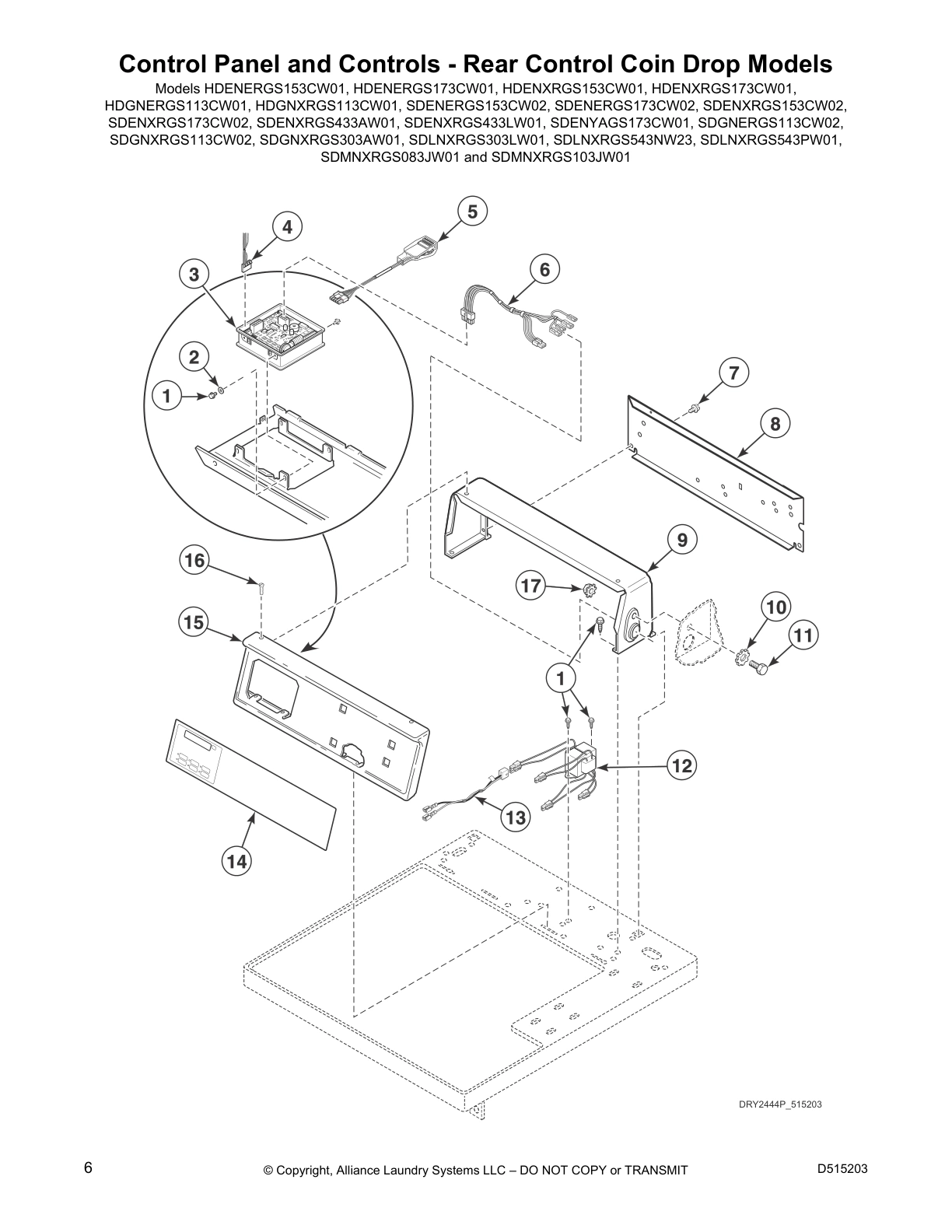

Control Panel and Controls - Rear Control Coin Drop Models

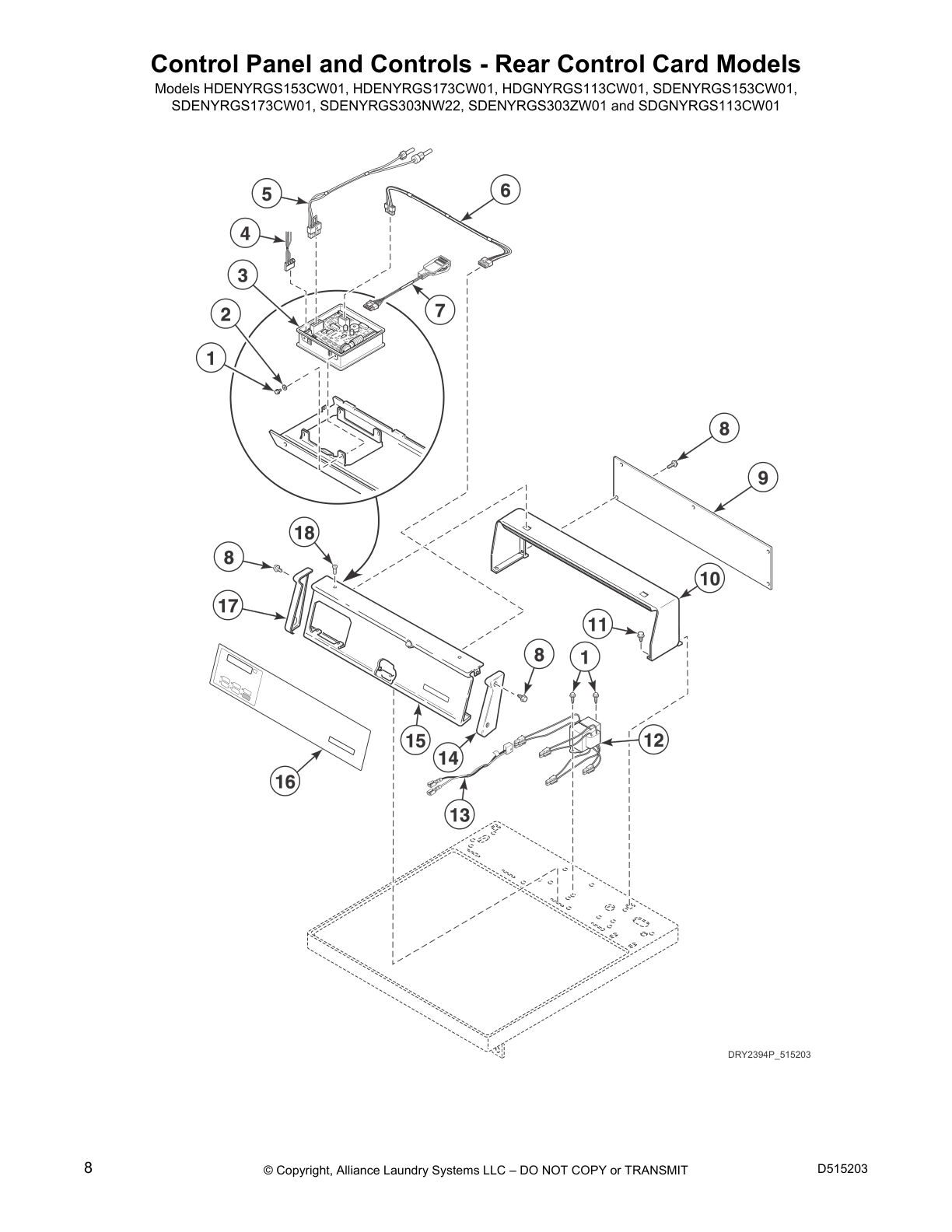

Control Panel and Controls - Rear Control Card Models

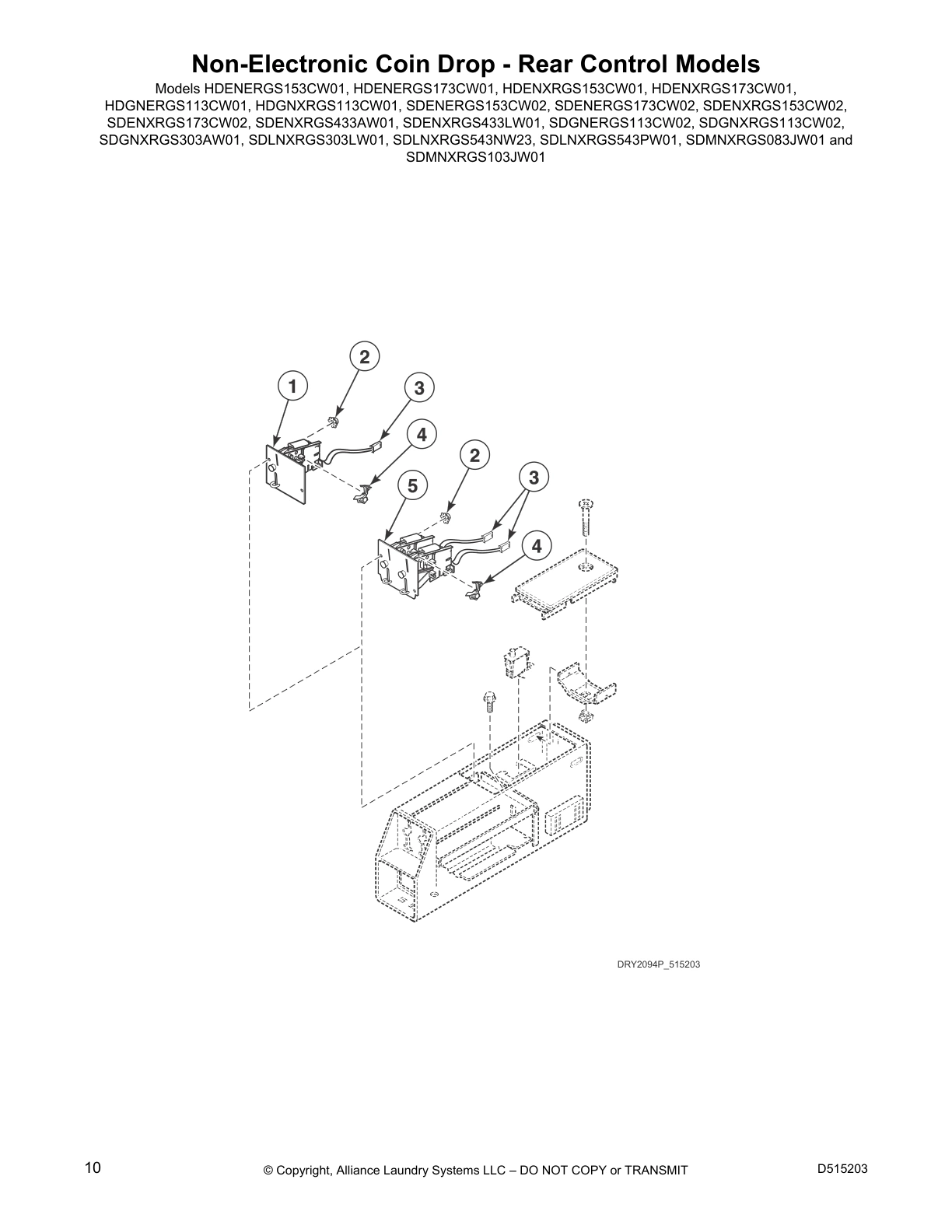

Non-Electronic Coin Drop - Rear Control Models

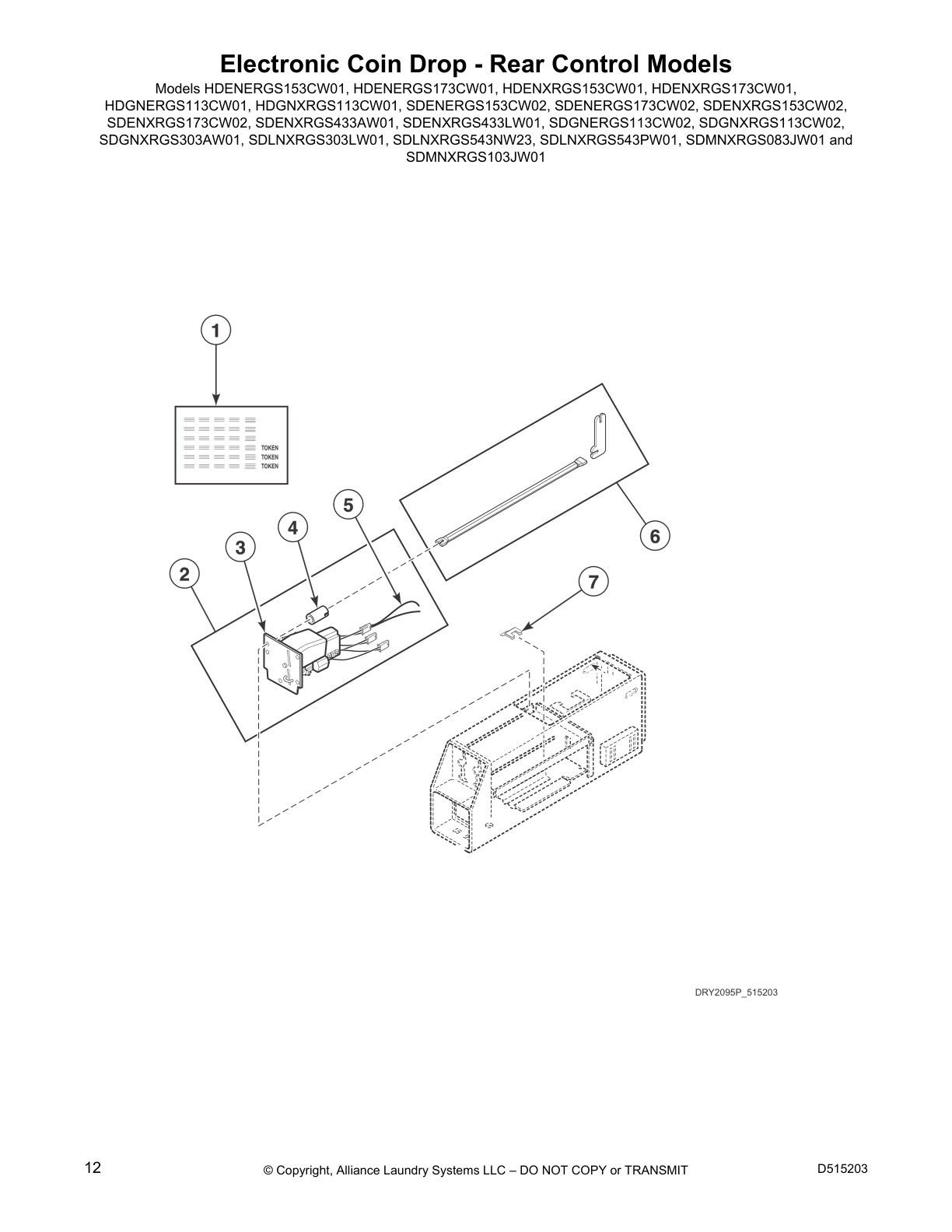

Electronic Coin Drop - Rear Control Models

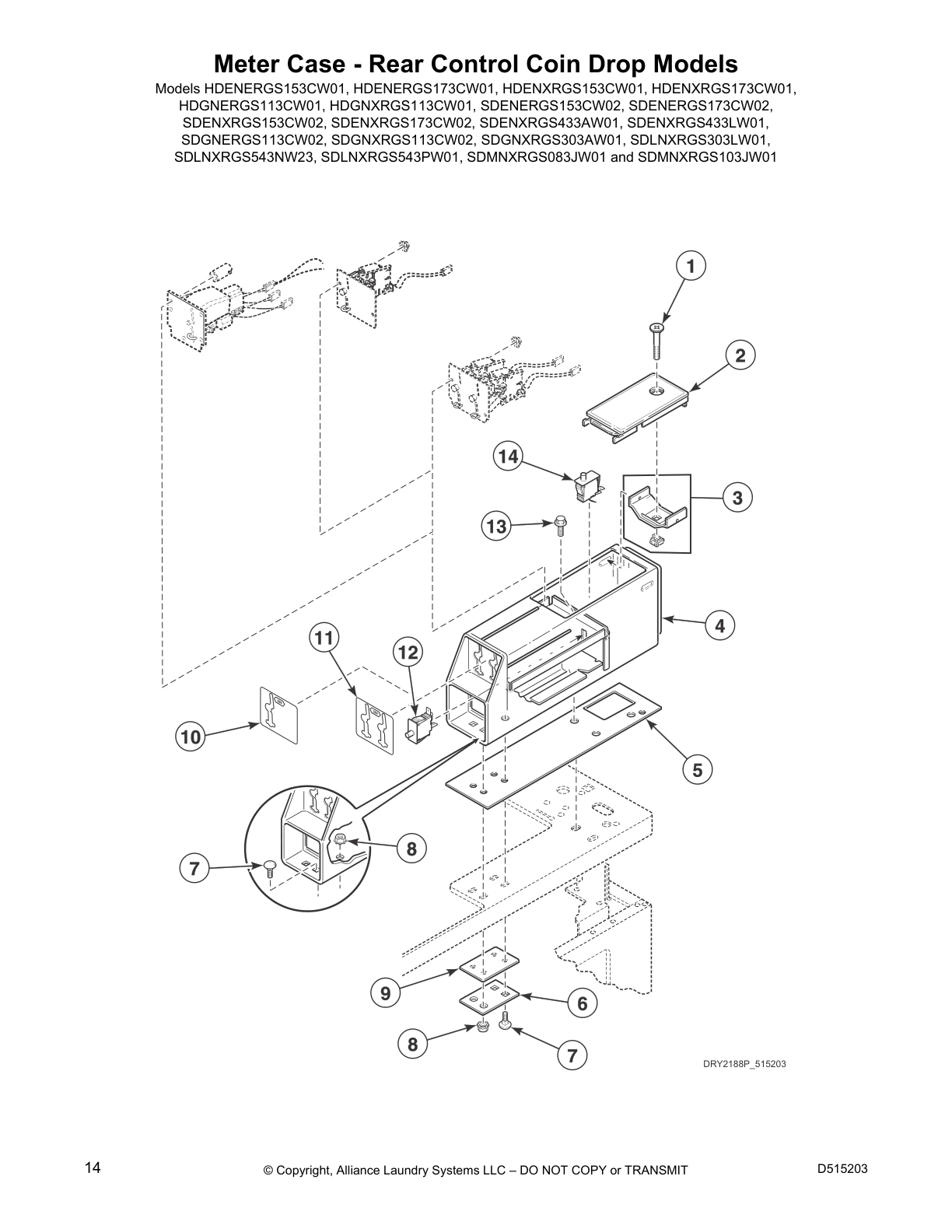

Meter Case - Rear Control Coin Drop Models

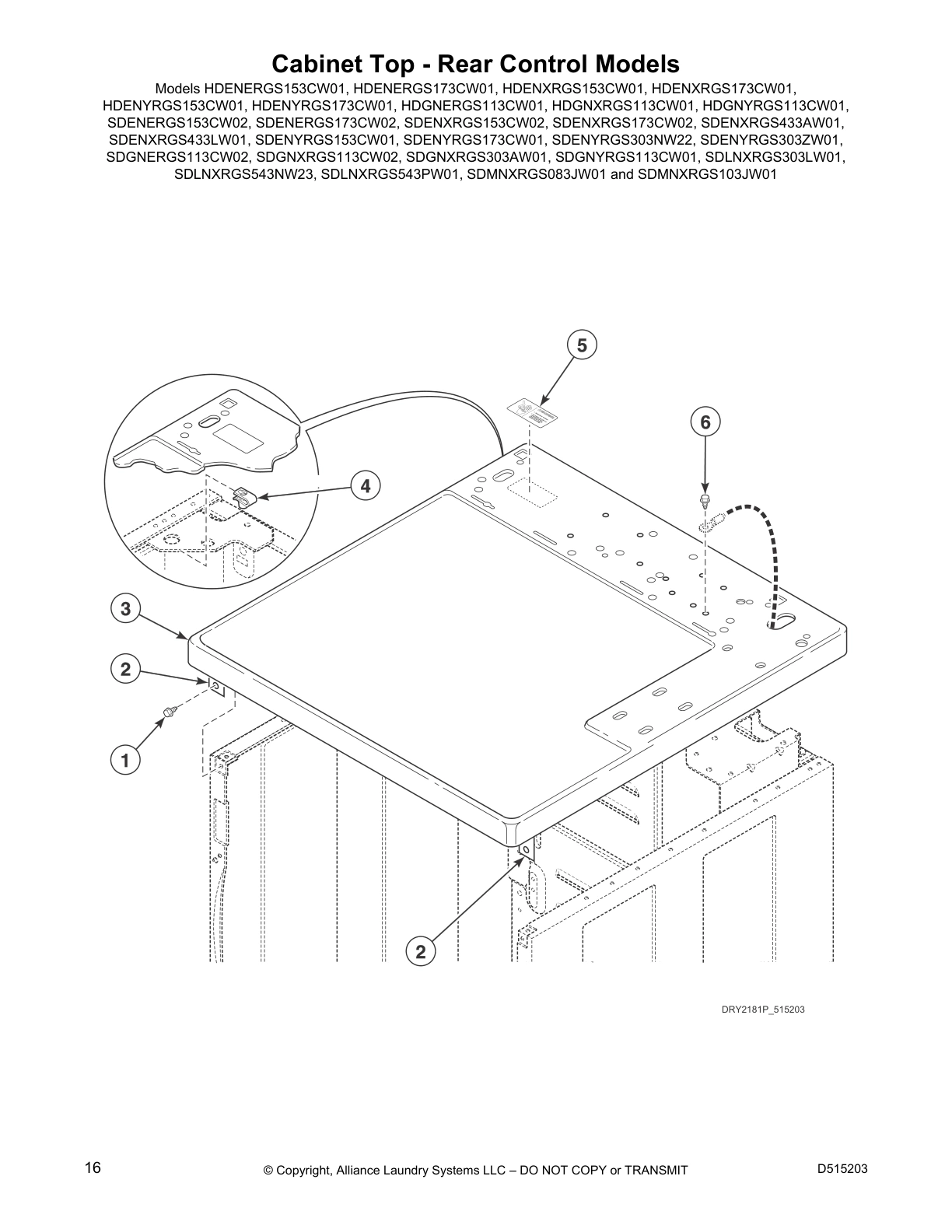

Cabinet Top - Rear Control Models

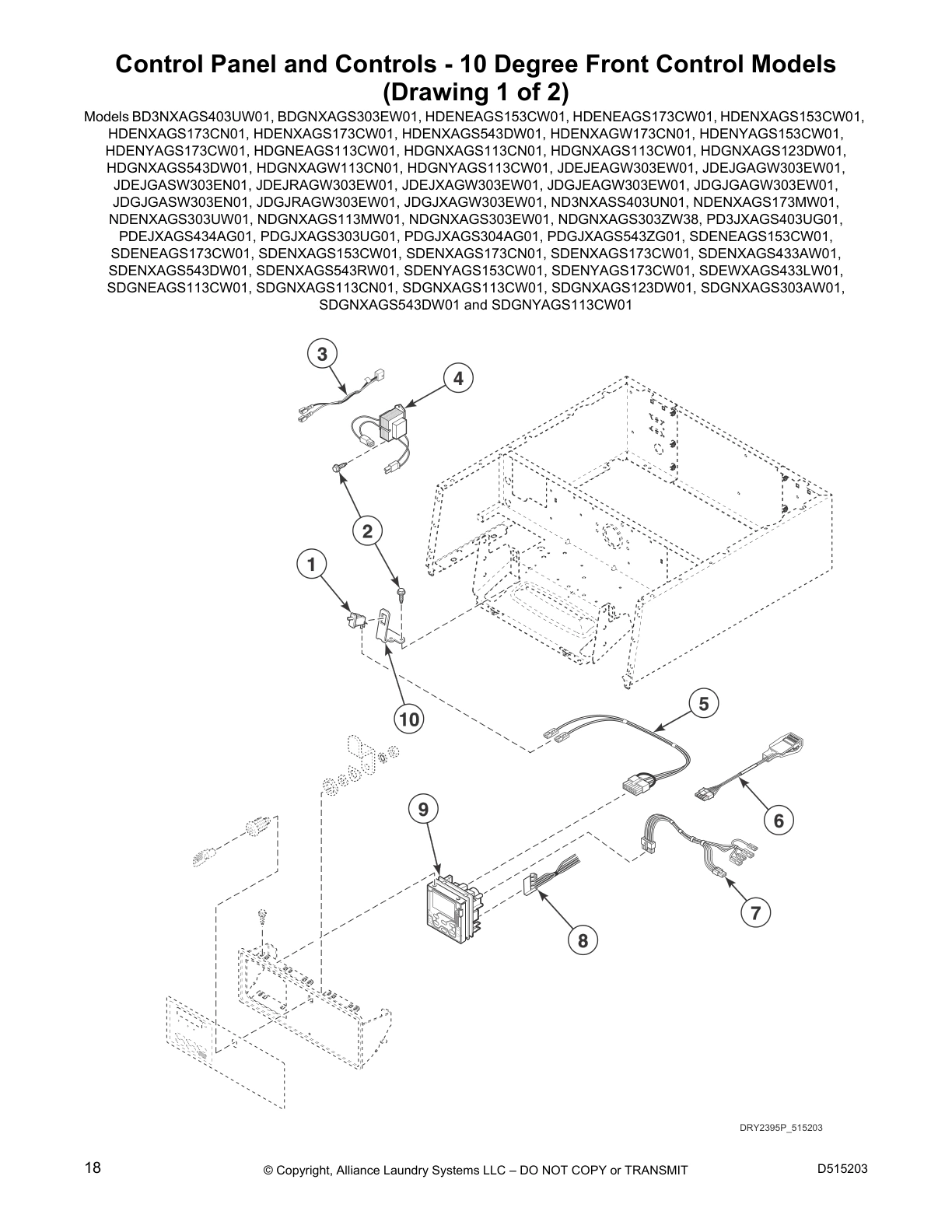

Control Panel and Controls - 10 Degree Front Control Models
(Drawing 1 of 2)

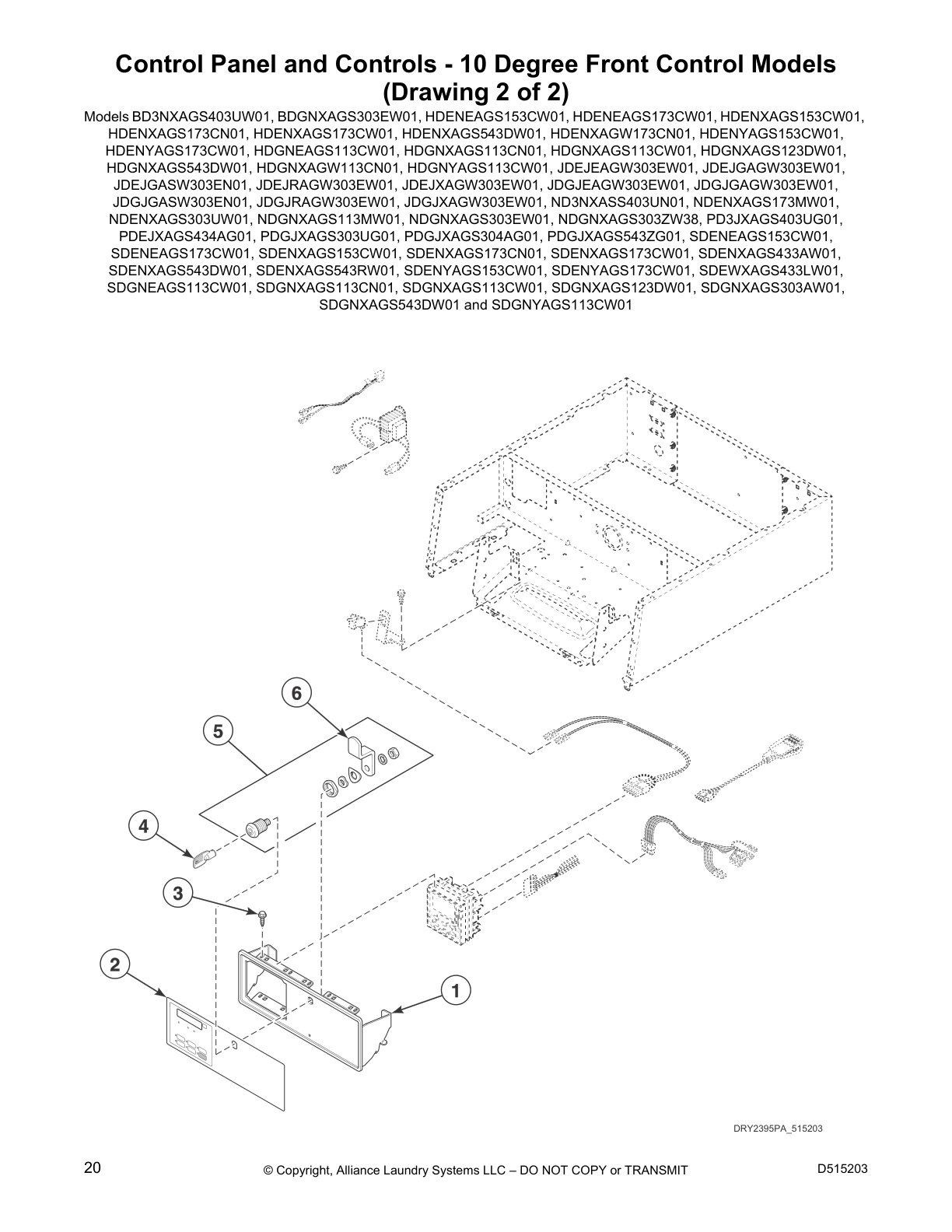

Control Panel and Controls - 10 Degree Front Control Models
(Drawing 2 of 2)

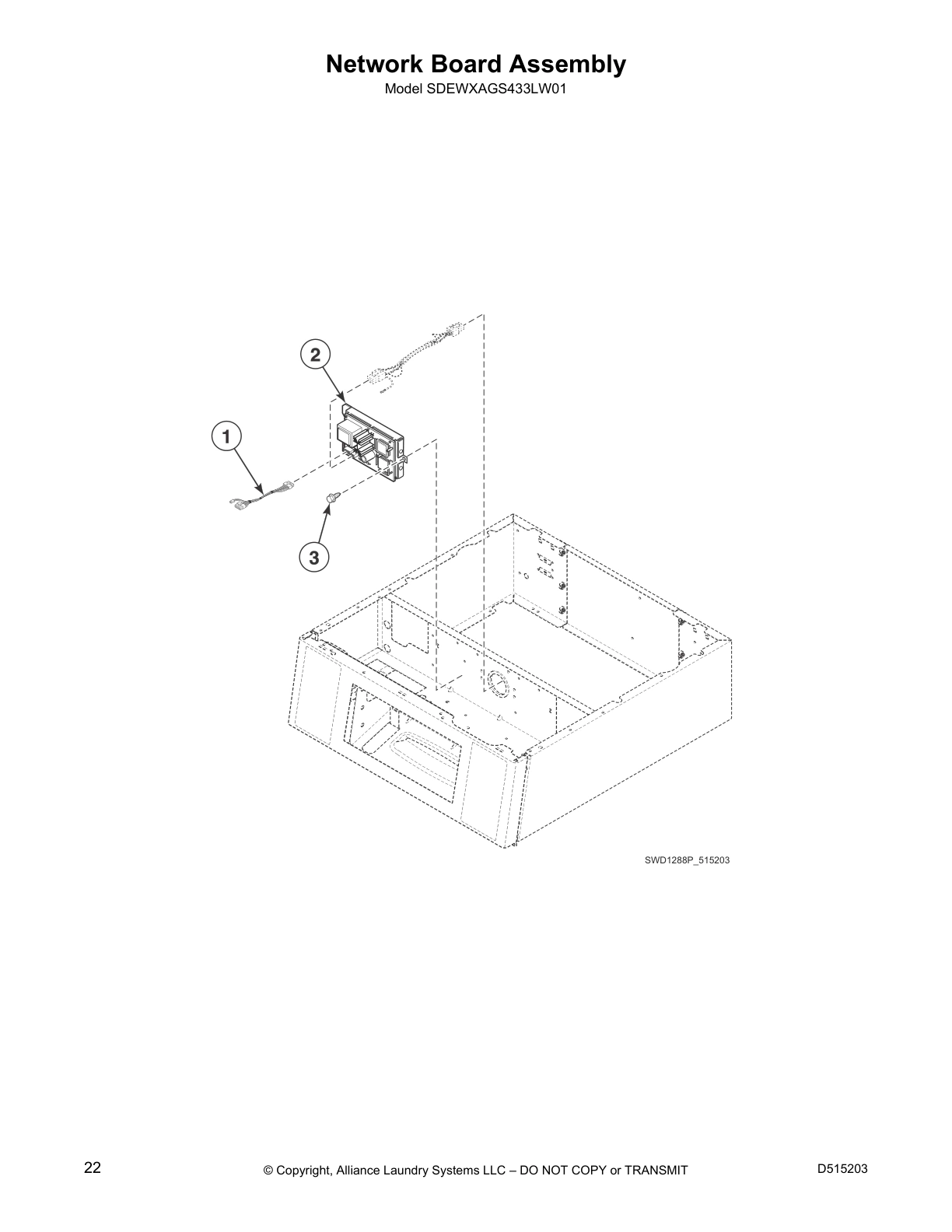

Network Board Assembly

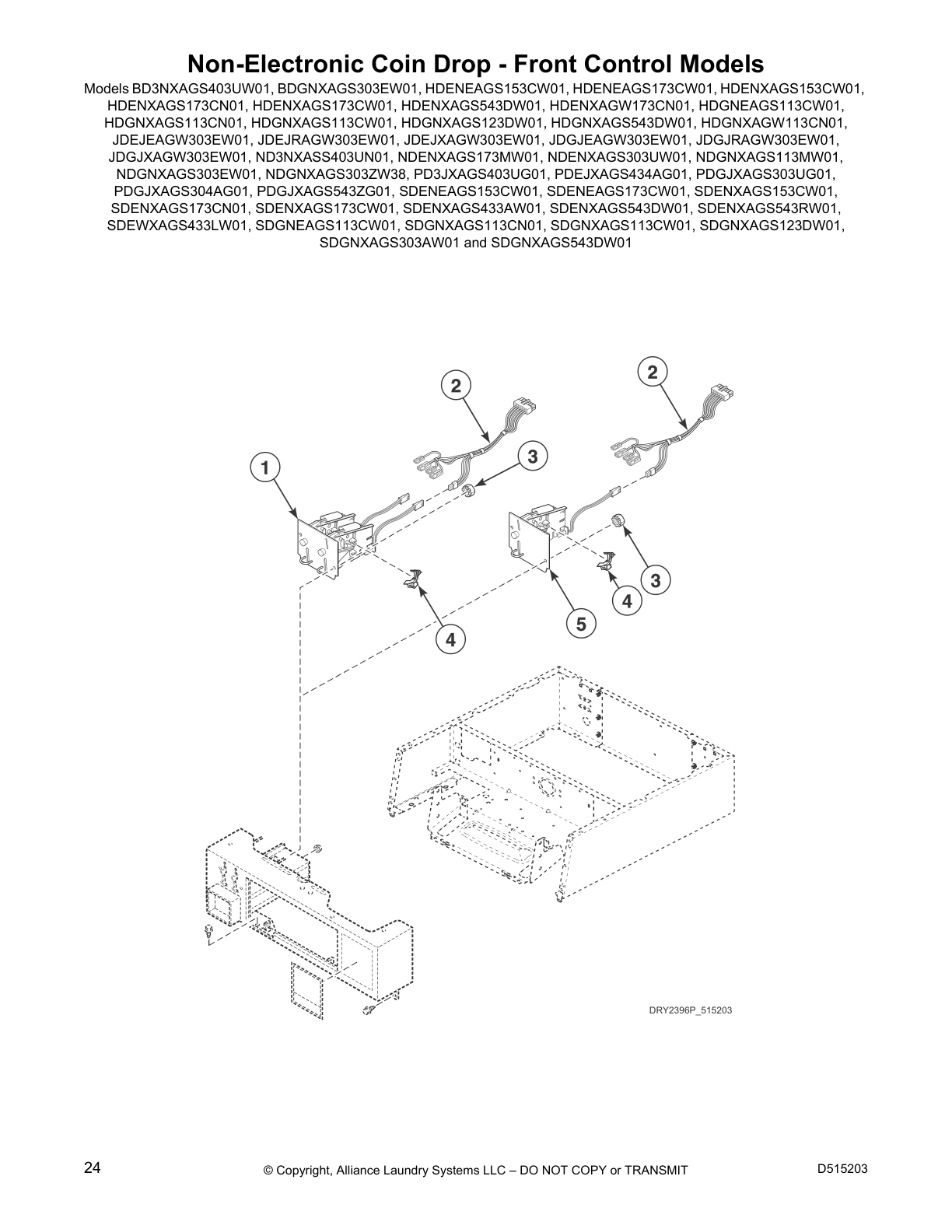

Non-Electronic Coin Drop - Front Control Models

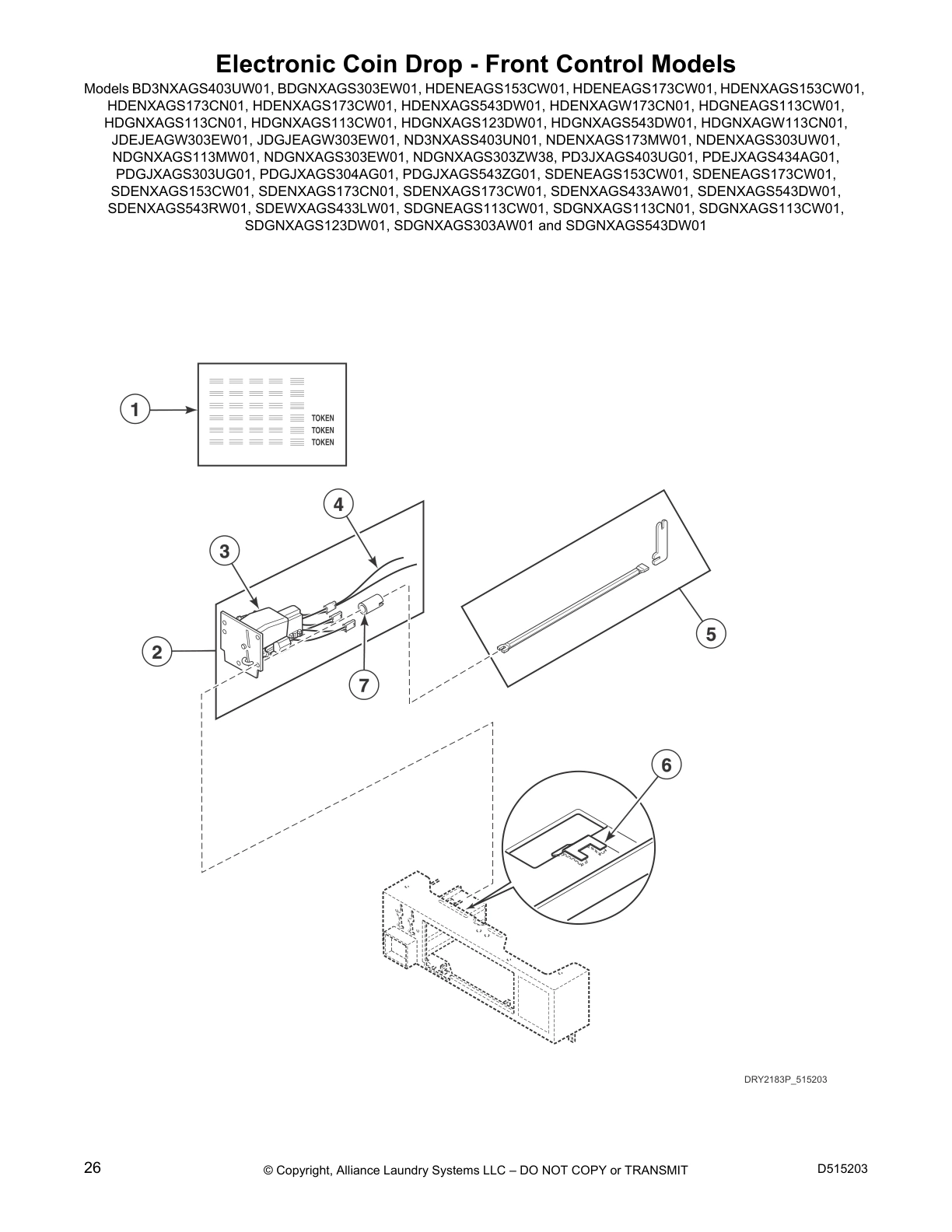

Electronic Coin Drop - Front Control Models

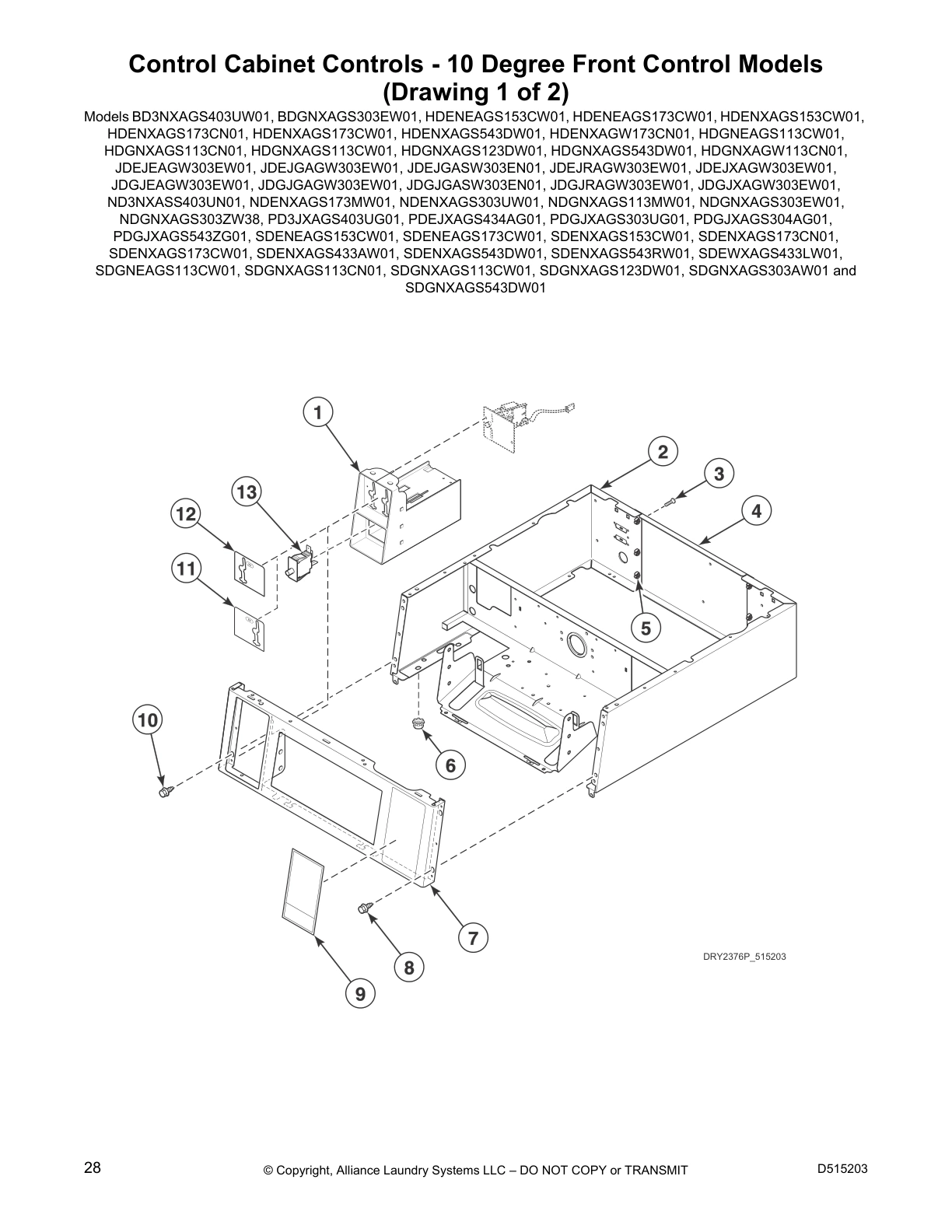

Control Cabinet Controls - 10 Degree Front Control Models
(Drawing 1 of 2)

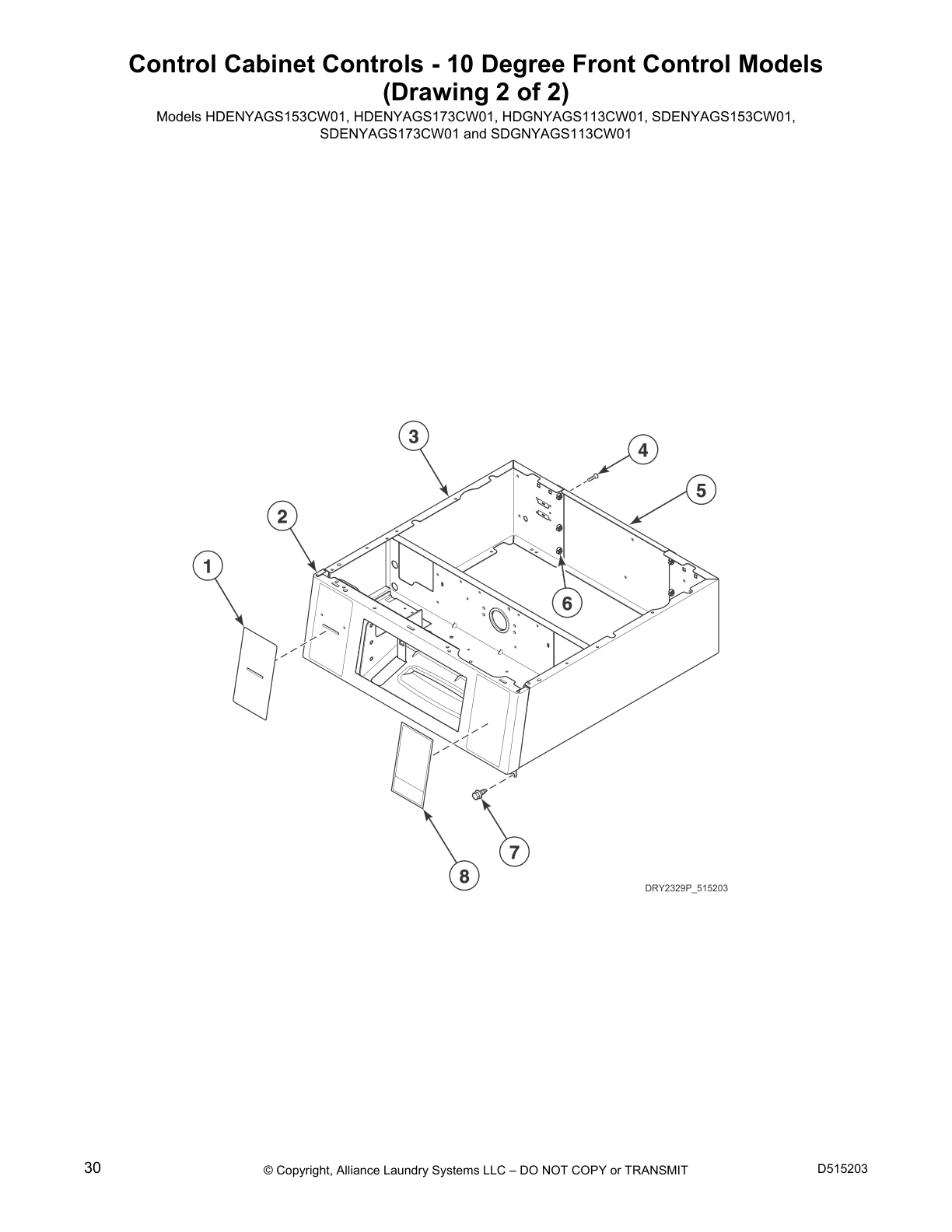

Control Cabinet Controls - 10 Degree Front Control Models
(Drawing 2 of 2)

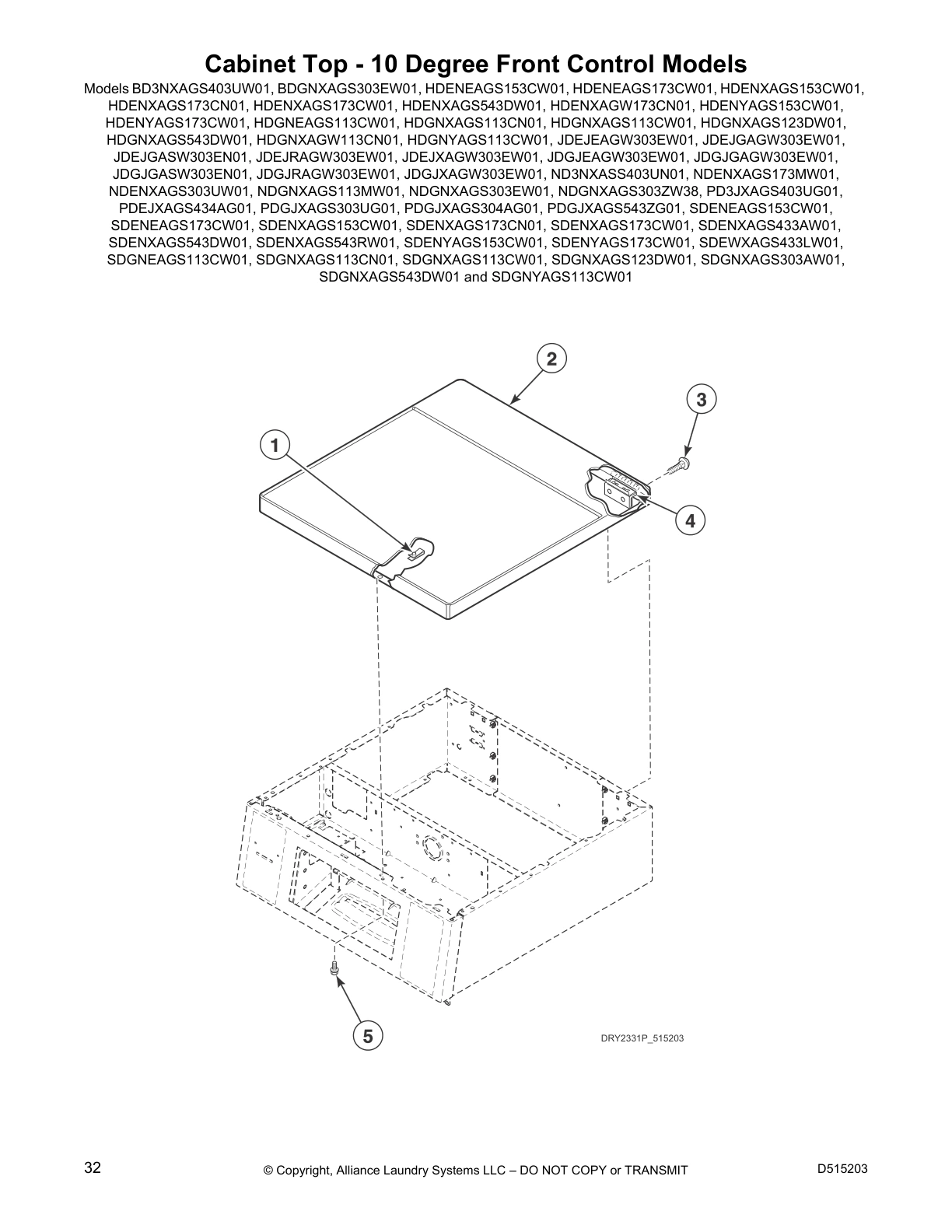

Cabinet Top - 10 Degree Front Control Models

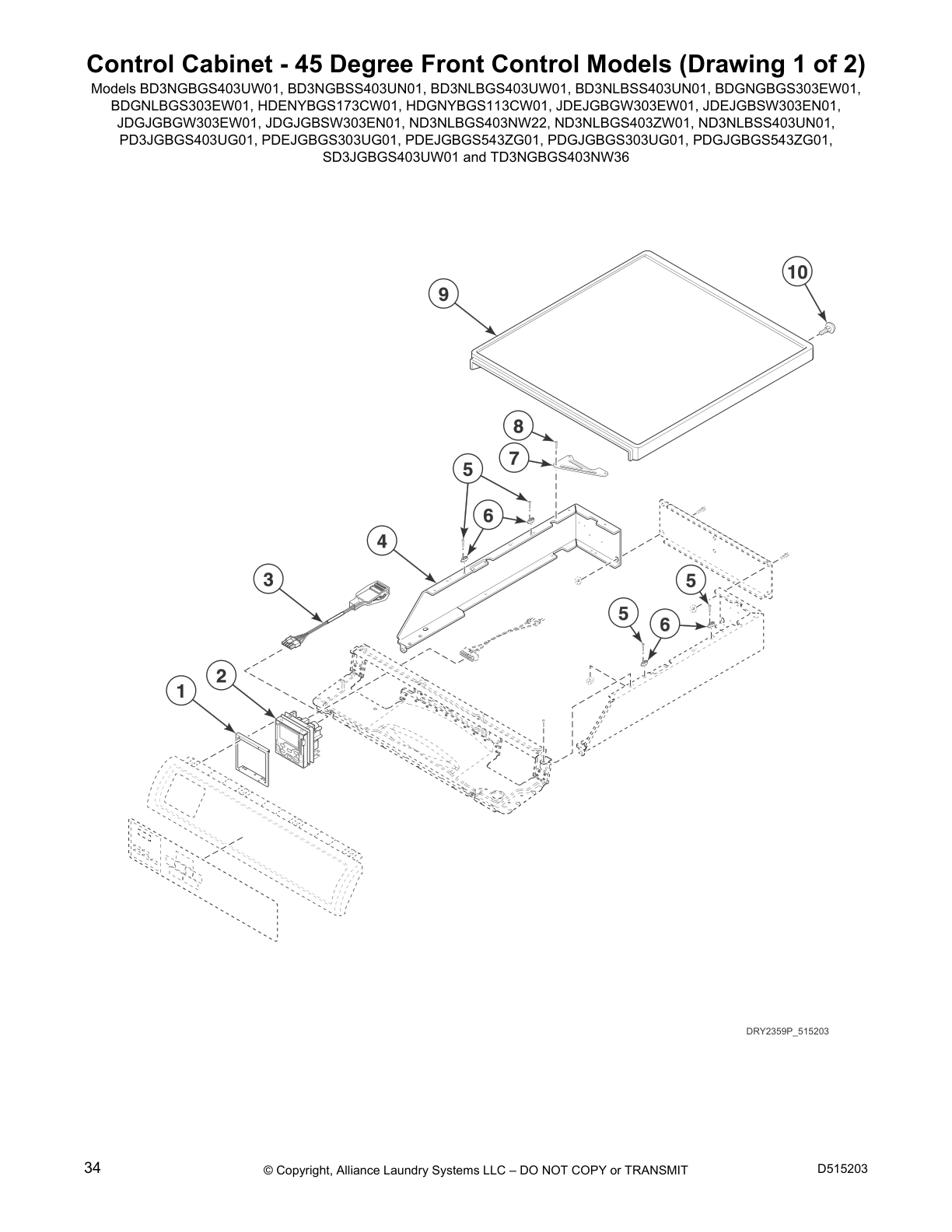

Control Cabinet - 45 Degree Front Control Models (Drawing 1 of 2)

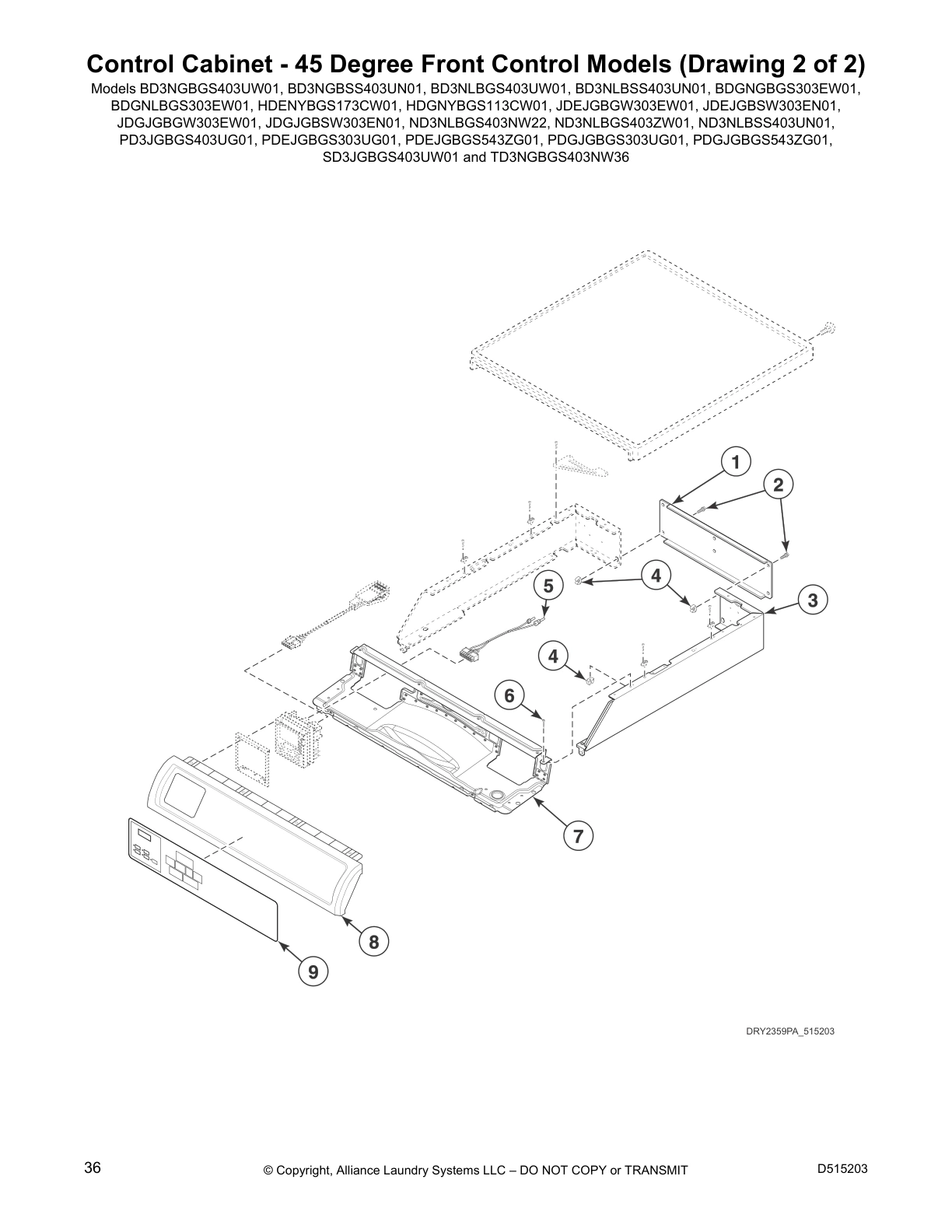

Control Cabinet - 45 Degree Front Control Models (Drawing 2 of 2)

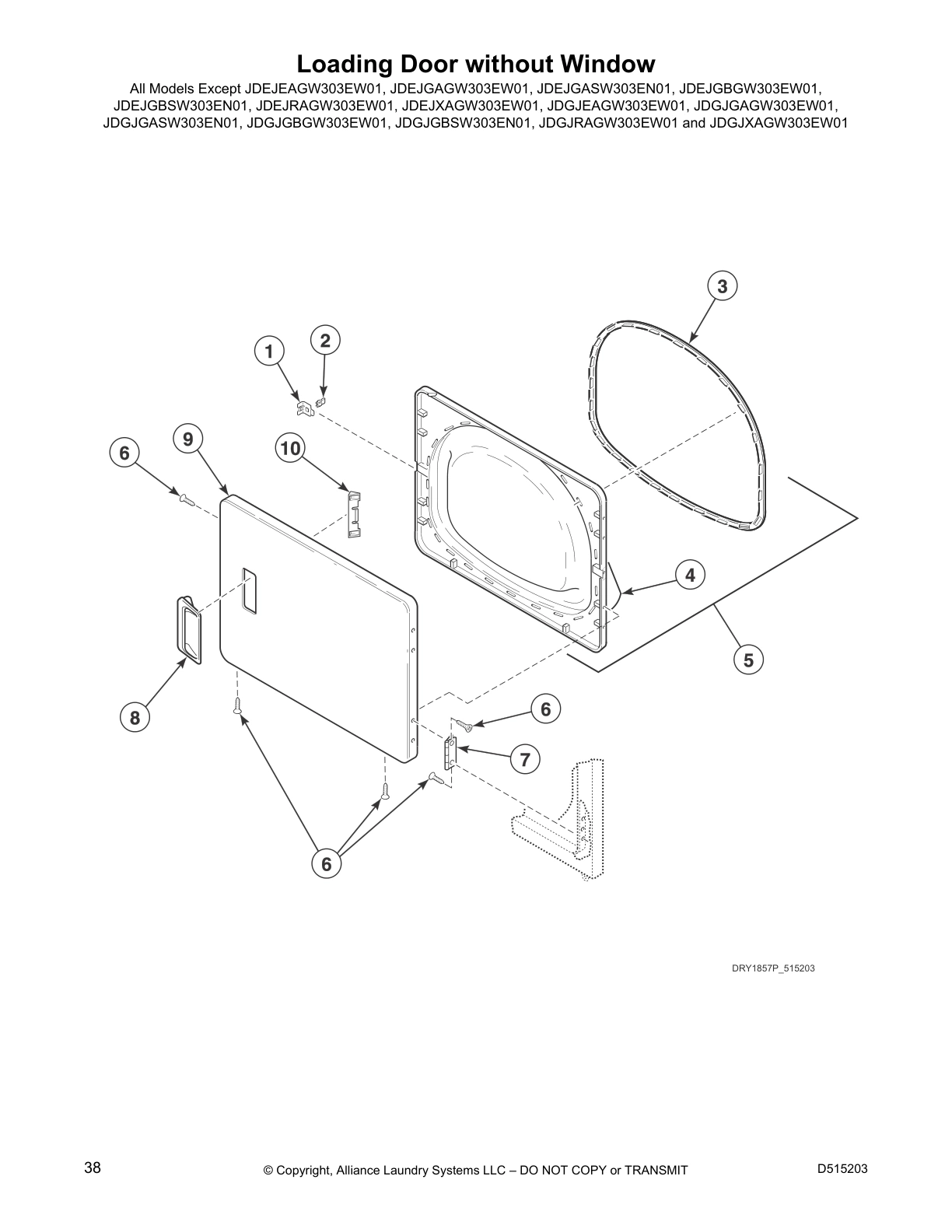

Loading Door without Window

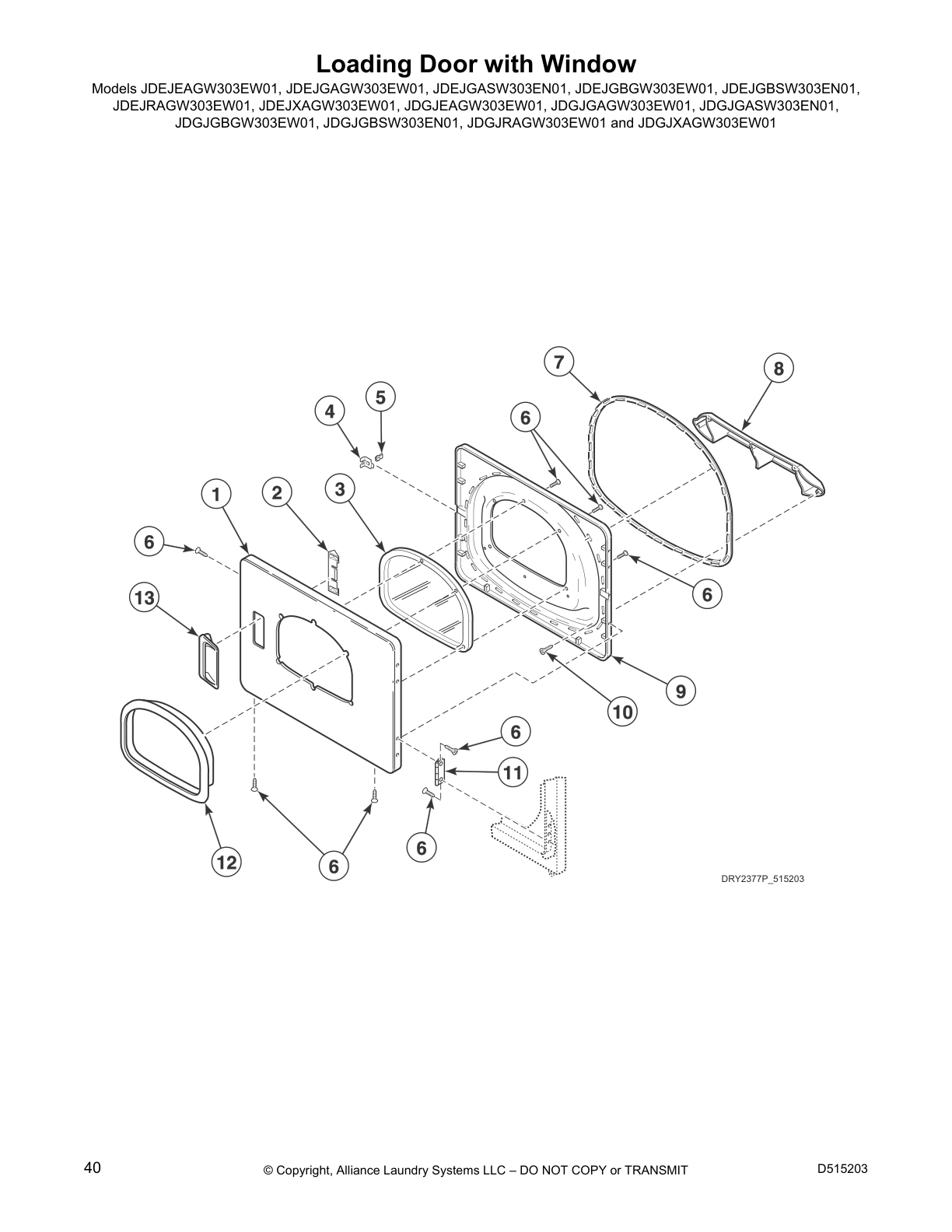

Loading Door with Window

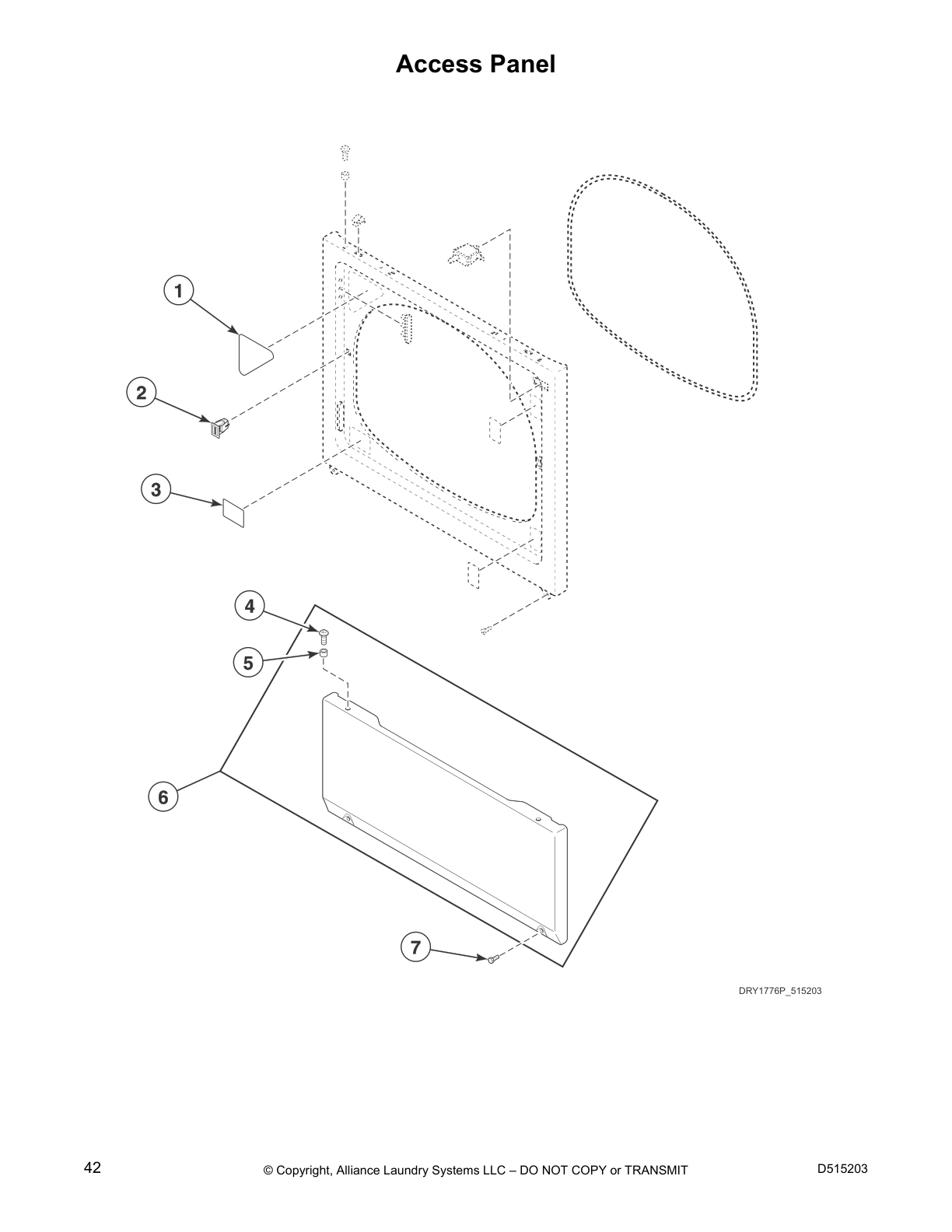

Access Panel

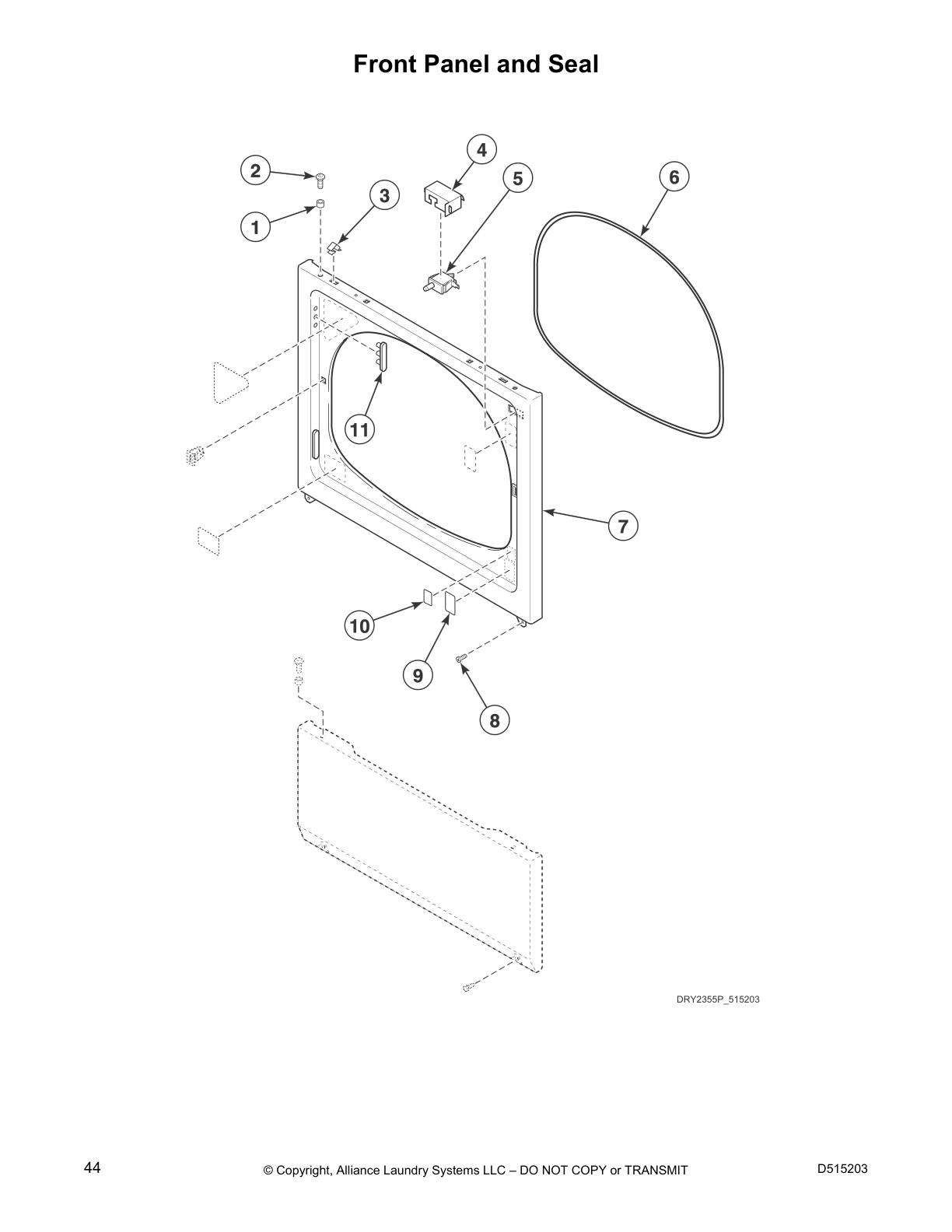

Front Panel and Seal
Motor and Belt

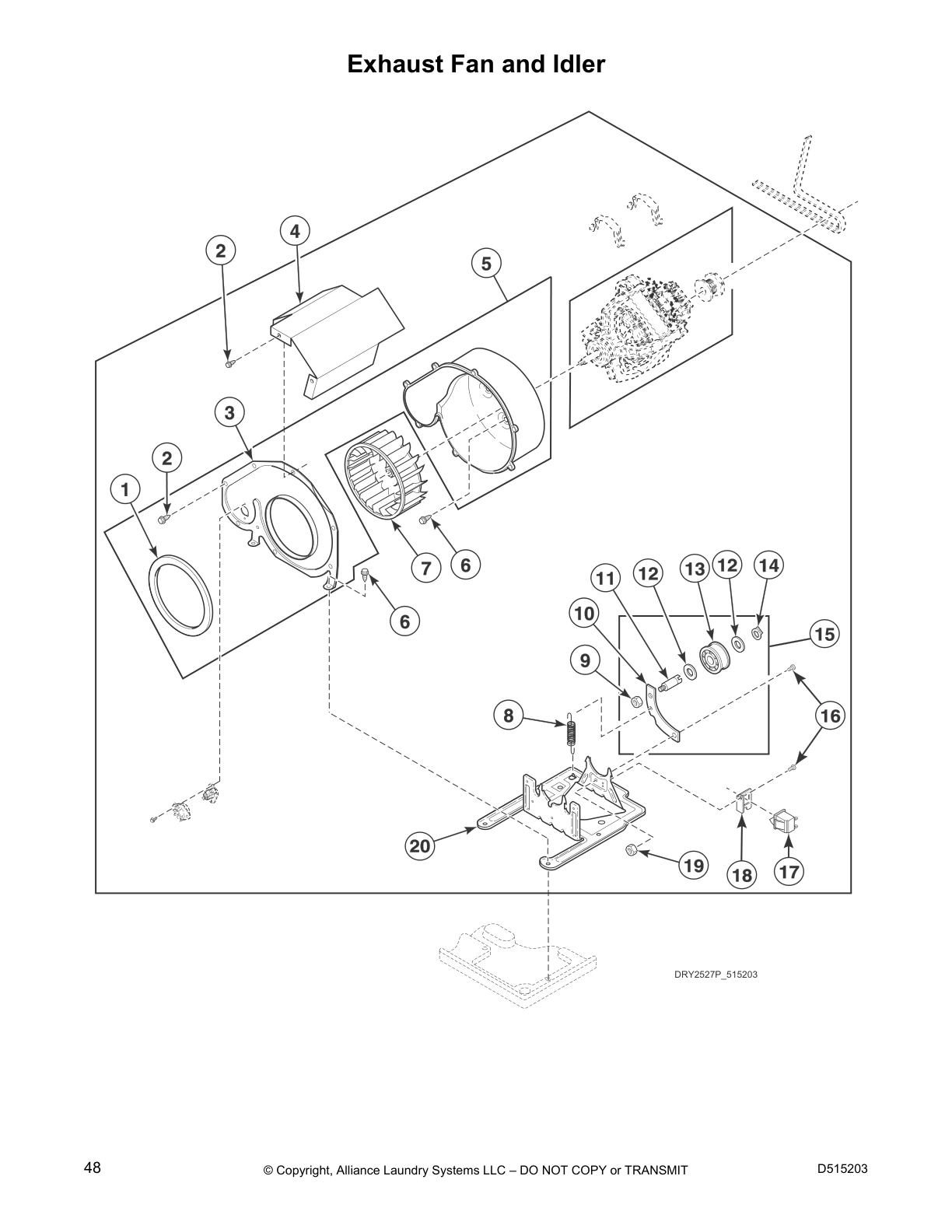

Exhaust Fan and Idler
Thermistor

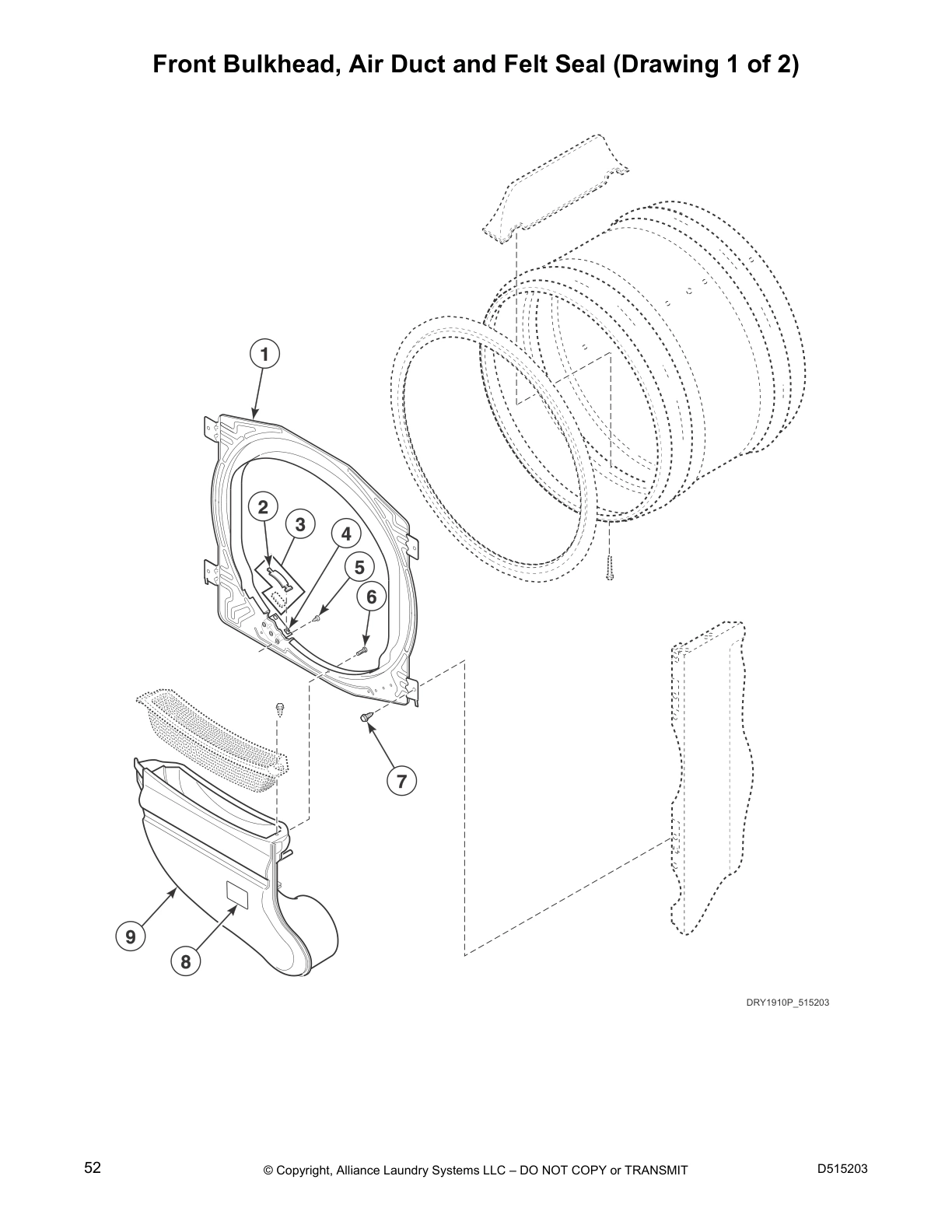

Front Bulkhead, Air Duct and Felt Seal (Drawing 1 of 2)

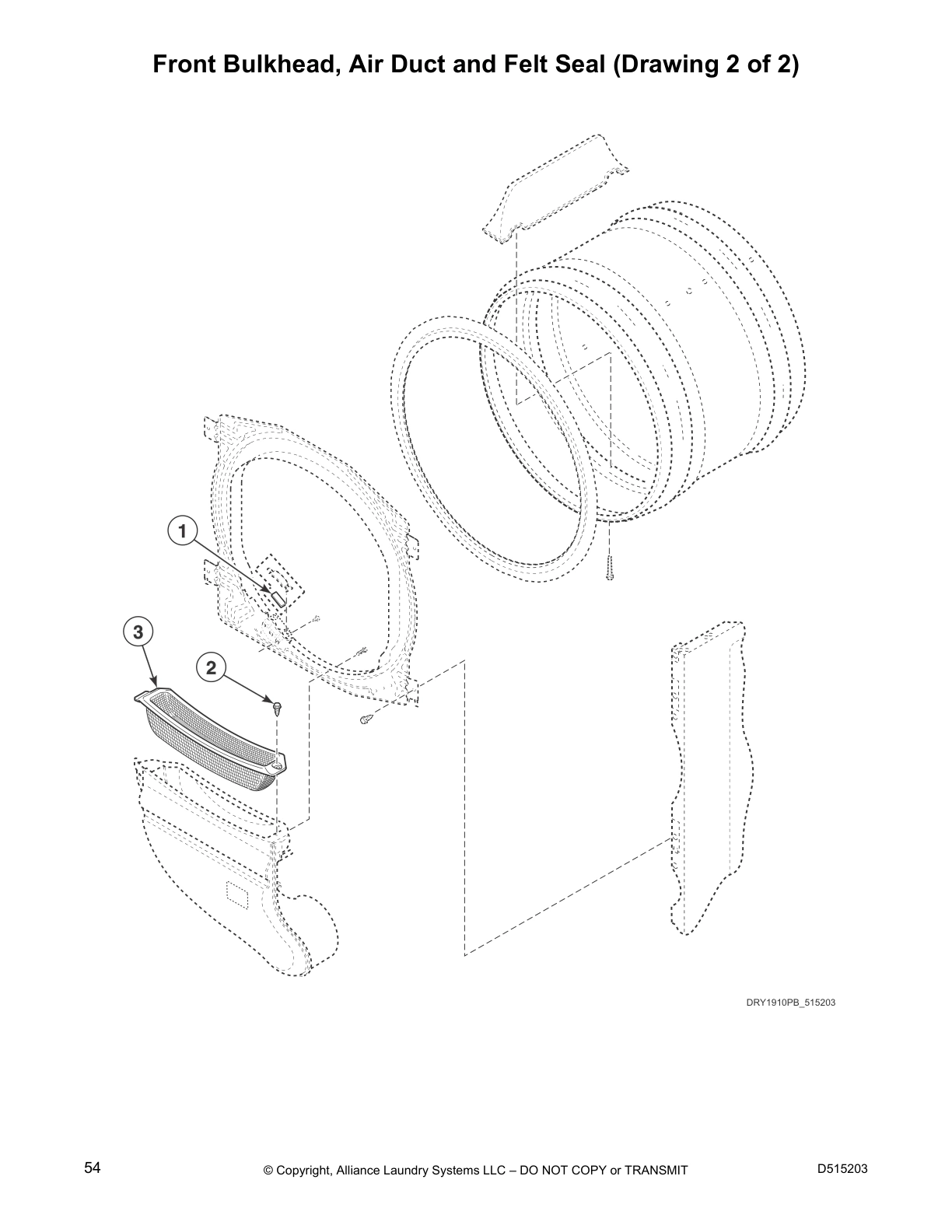

Front Bulkhead, Air Duct and Felt Seal (Drawing 2 of 2)
Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller

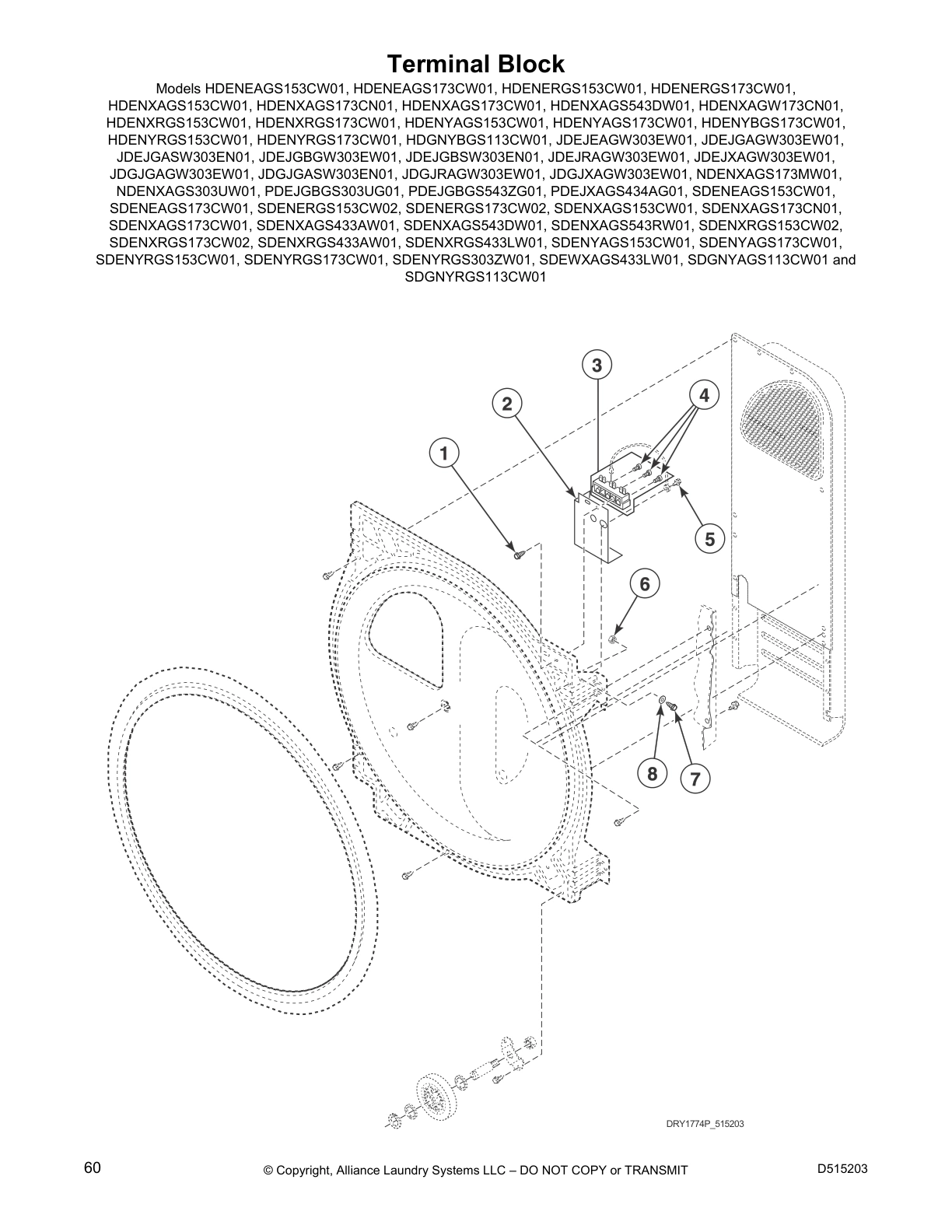

Terminal Block

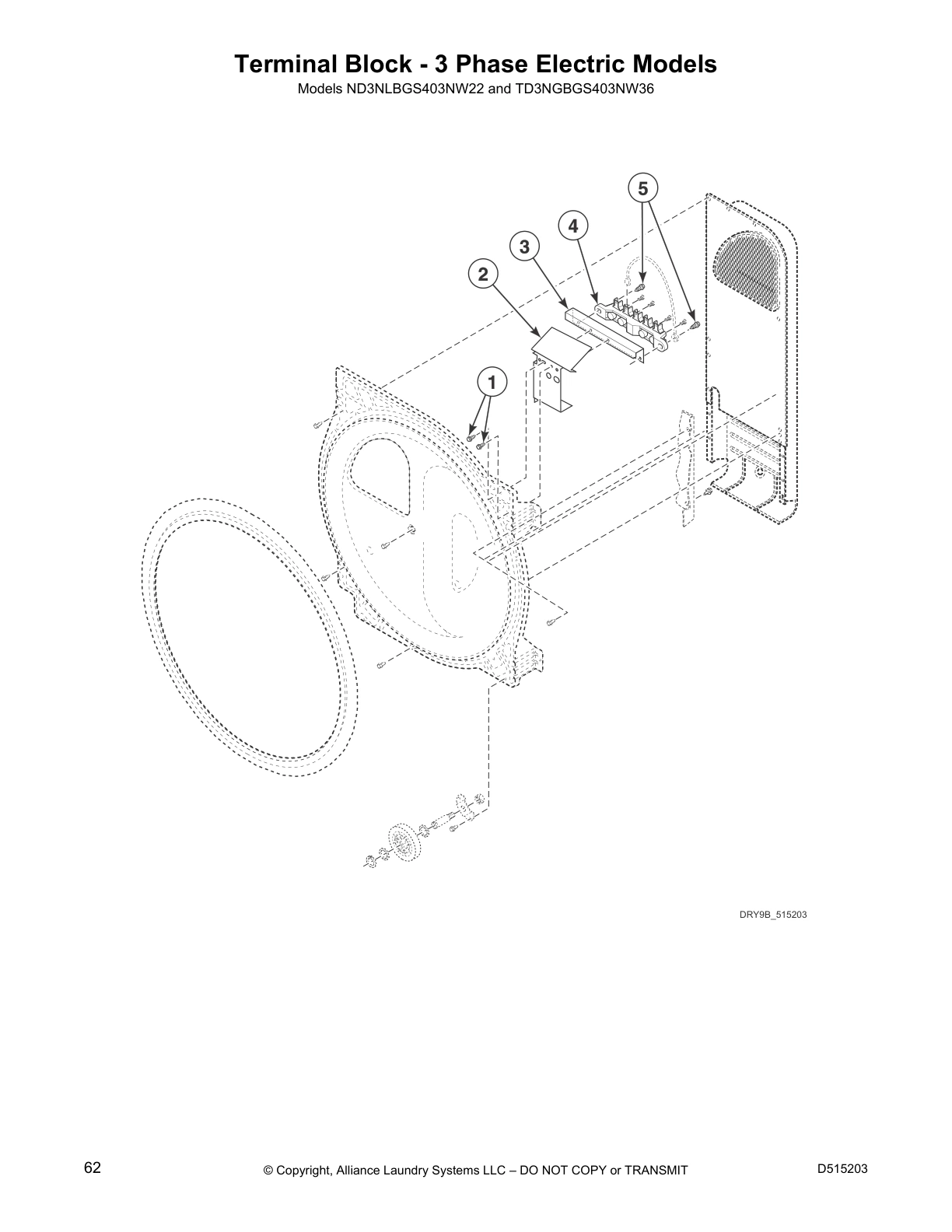

Terminal Block - 3 Phase Electric Models
Heater Duct Assembly - 3 Phase Electric Models

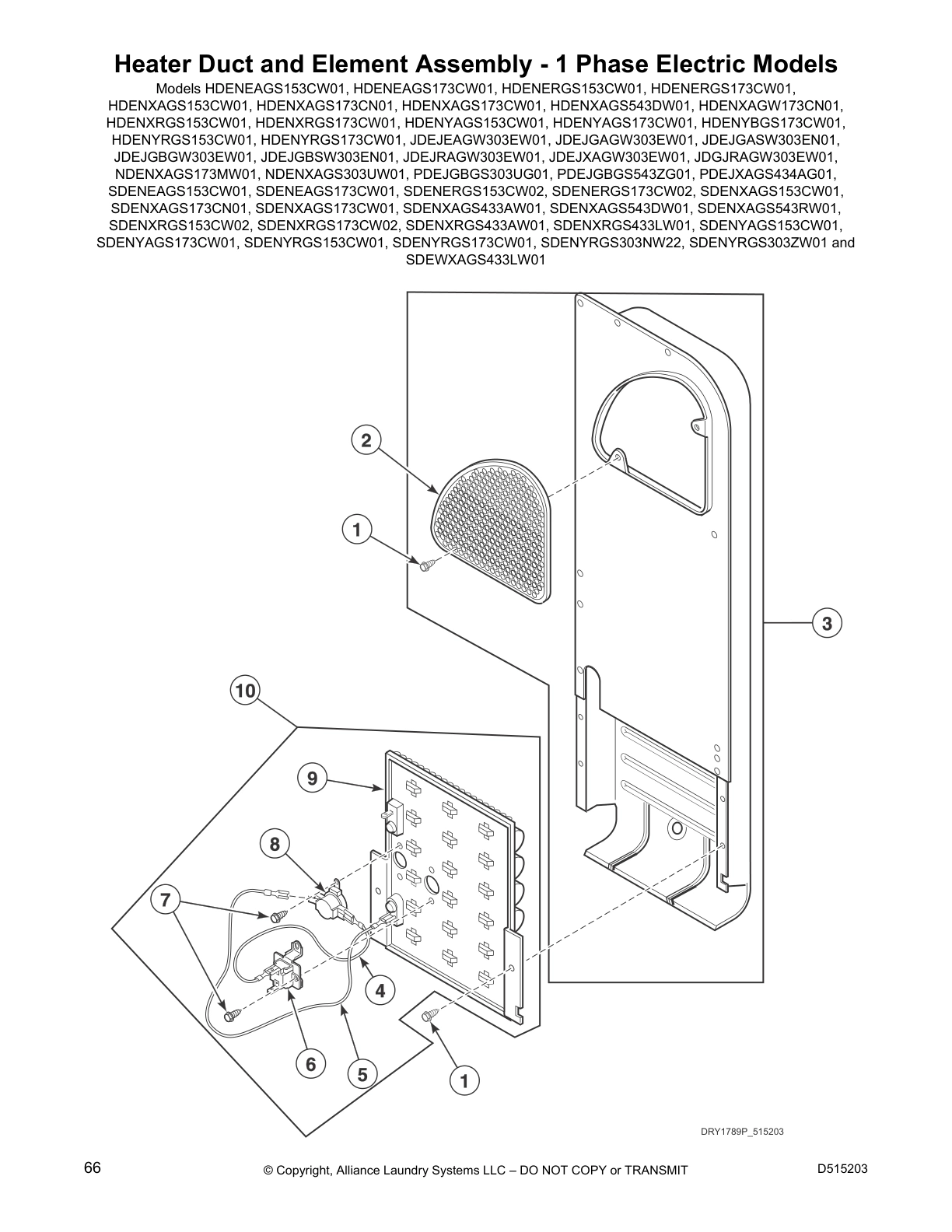

Heater Duct and Element Assembly - 1 Phase Electric Models
Heater Duct Assembly

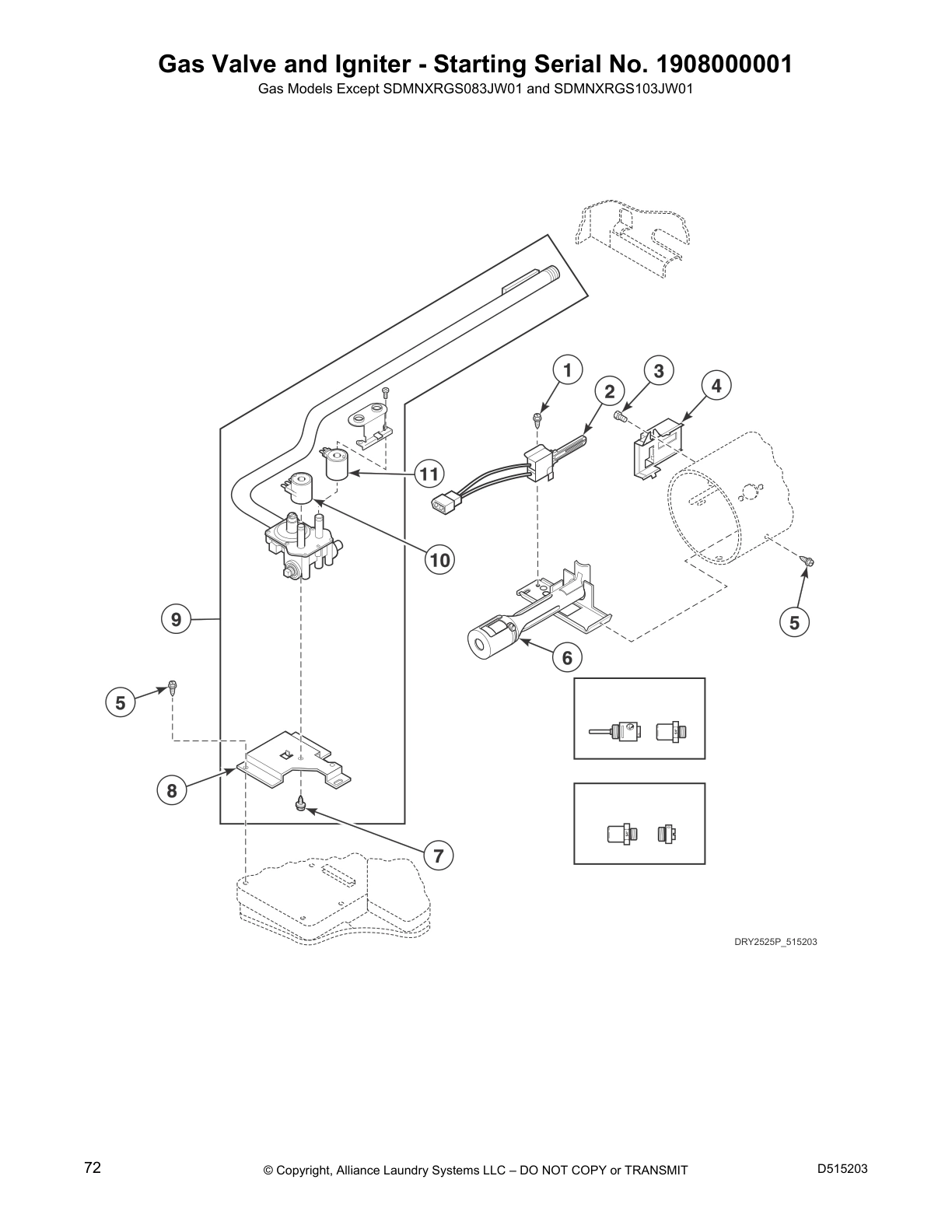

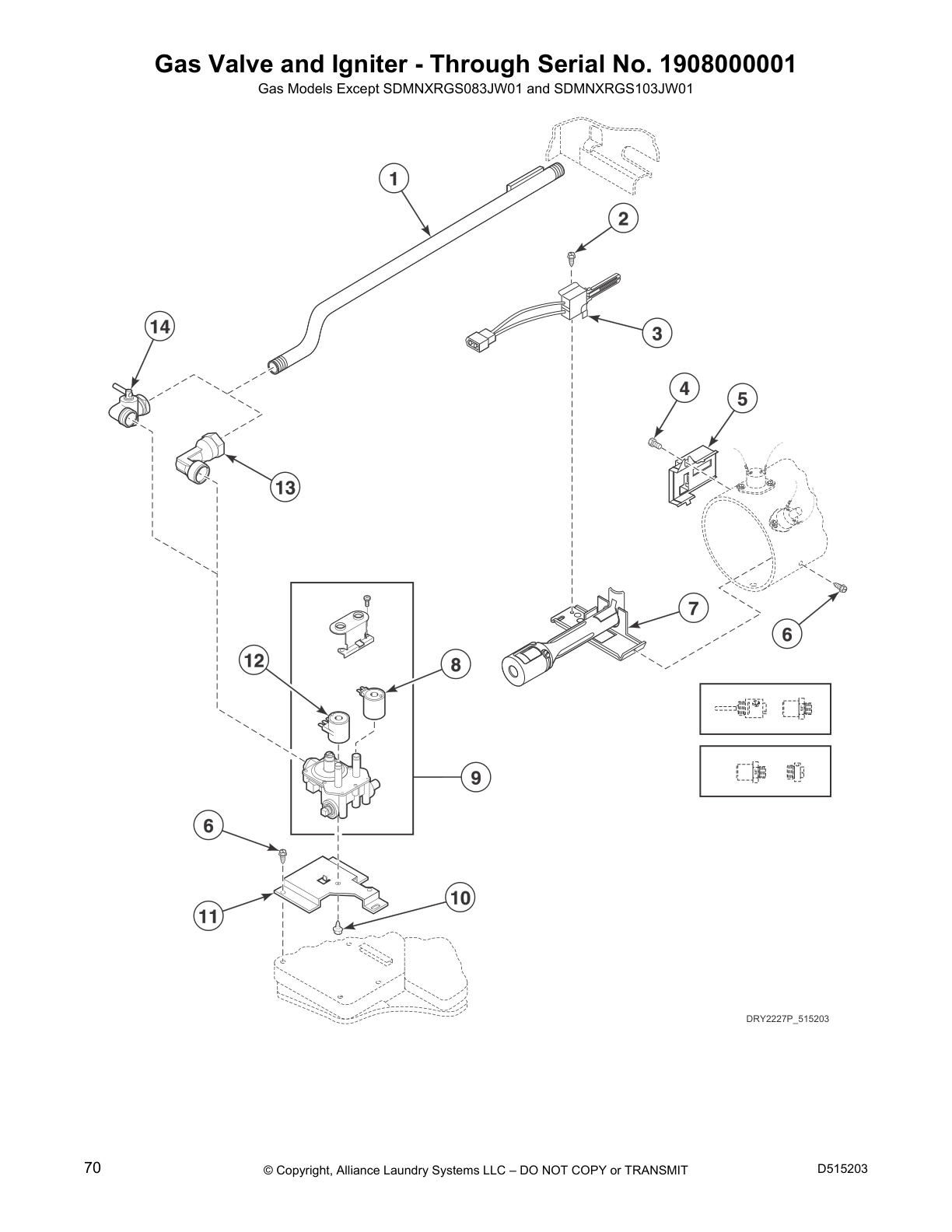

Gas Valve and Igniter - Through Serial No. 1908000001
Gas Valve and Igniter - Starting Serial No. 1908000001

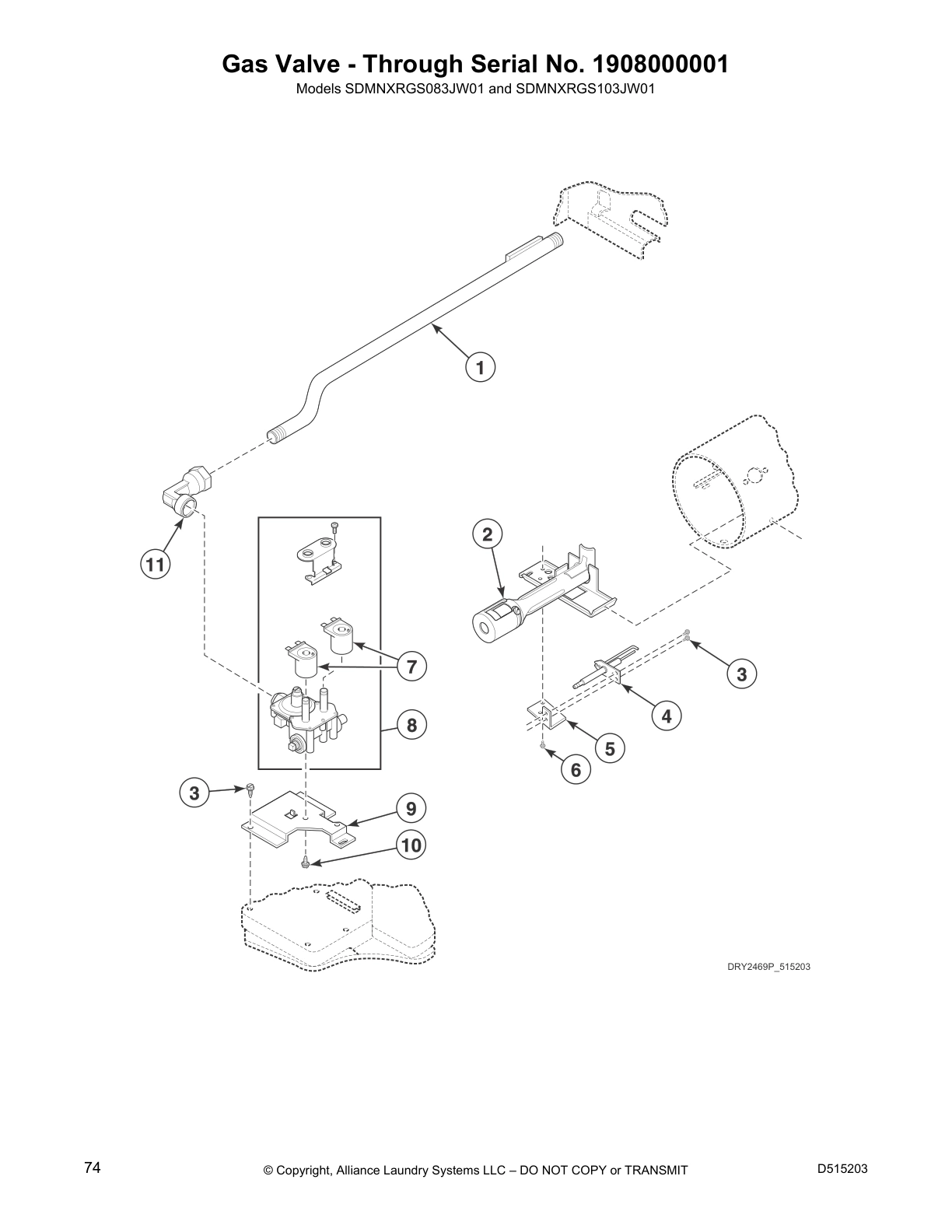

Gas Valve - Through Serial No. 1908000001

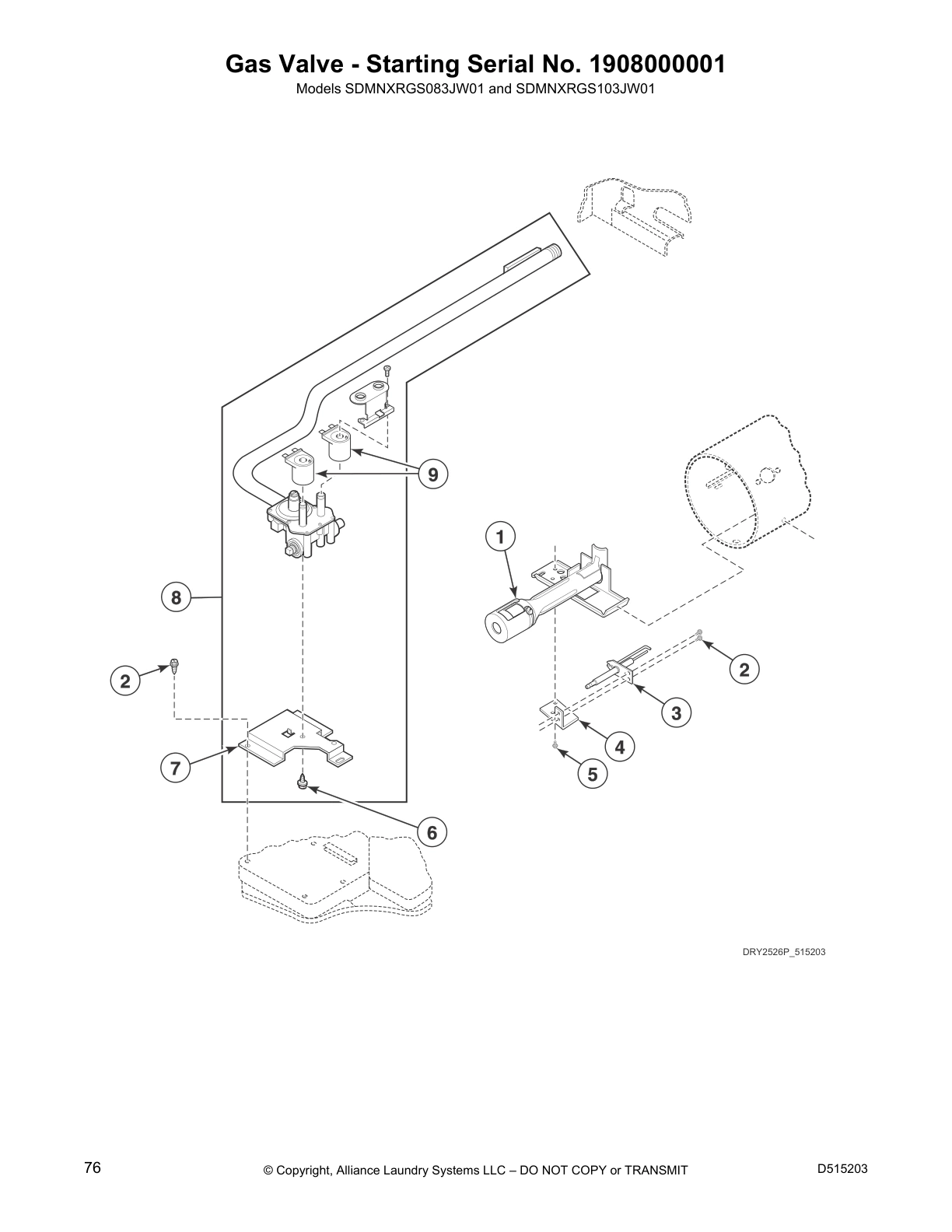

Gas Valve - Starting Serial No. 1908000001
Cabinet, Exhaust Duct and Base

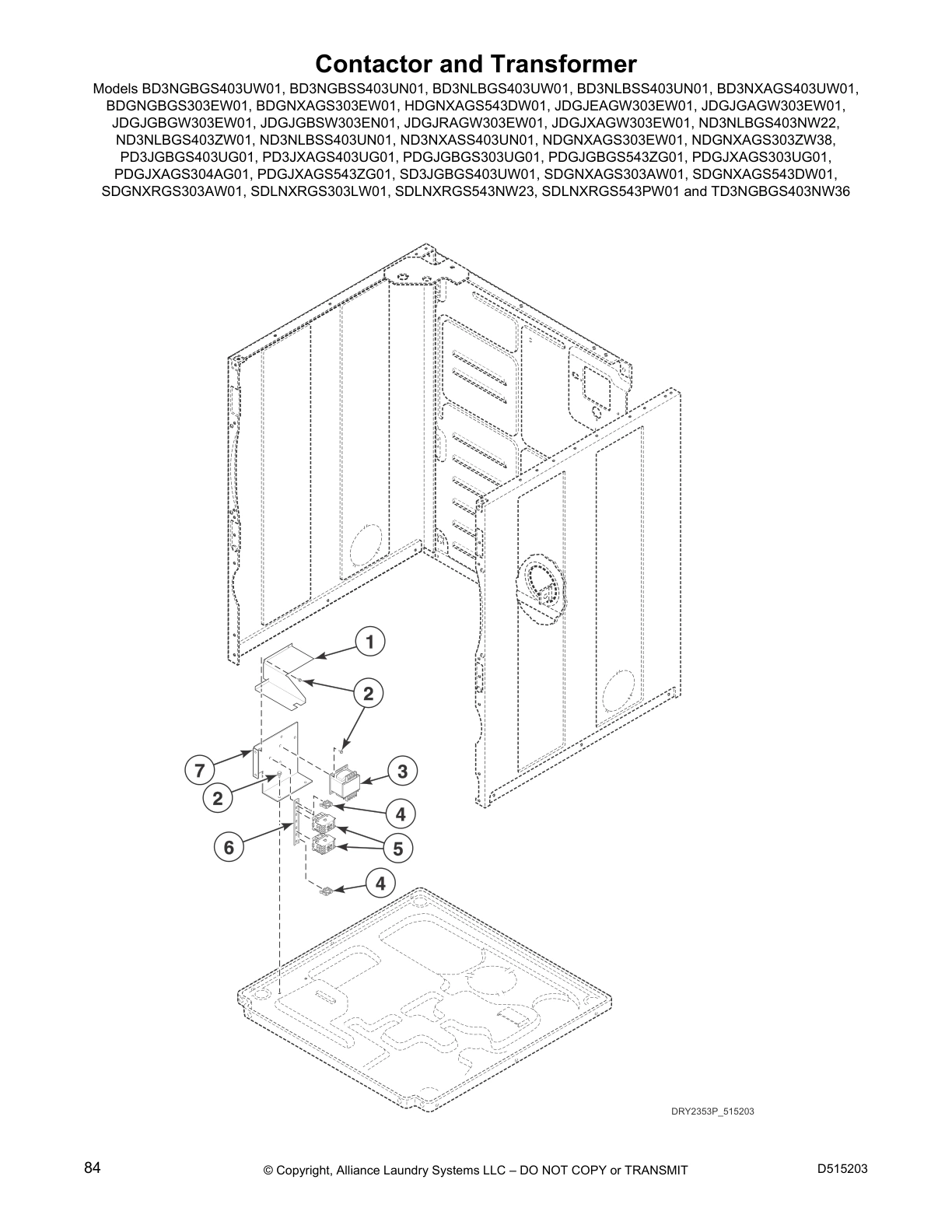

Contactor and Transformer

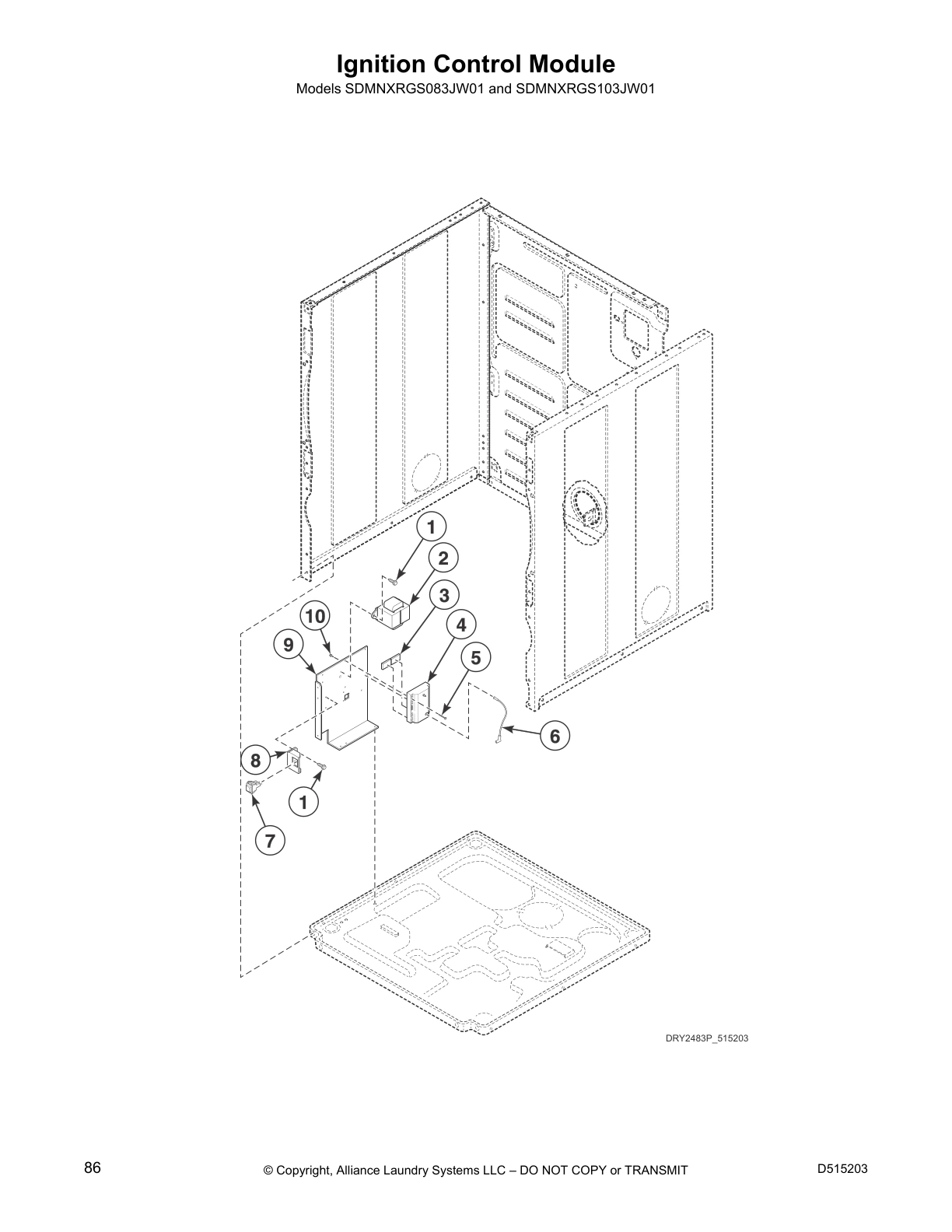

Ignition Control Module

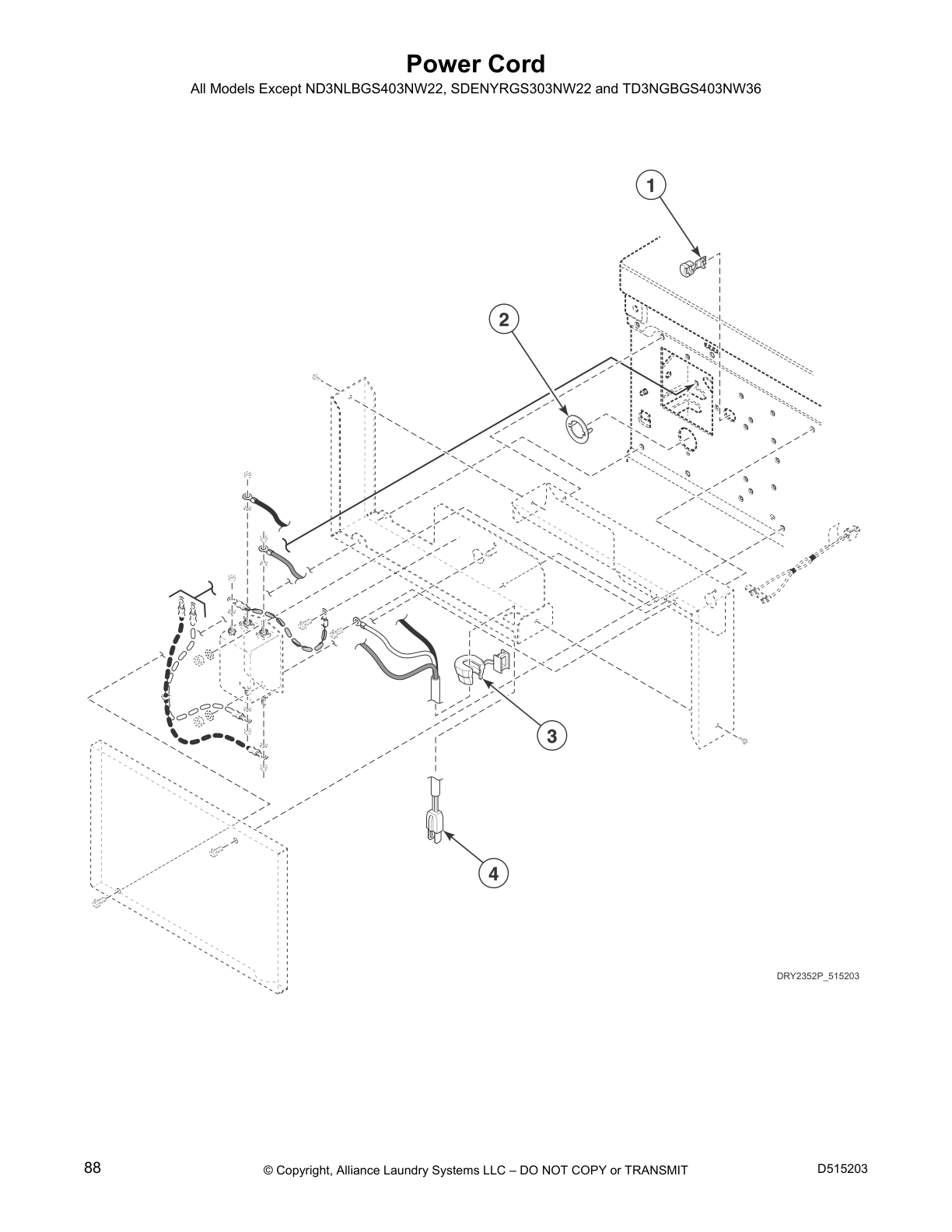

Power Cord

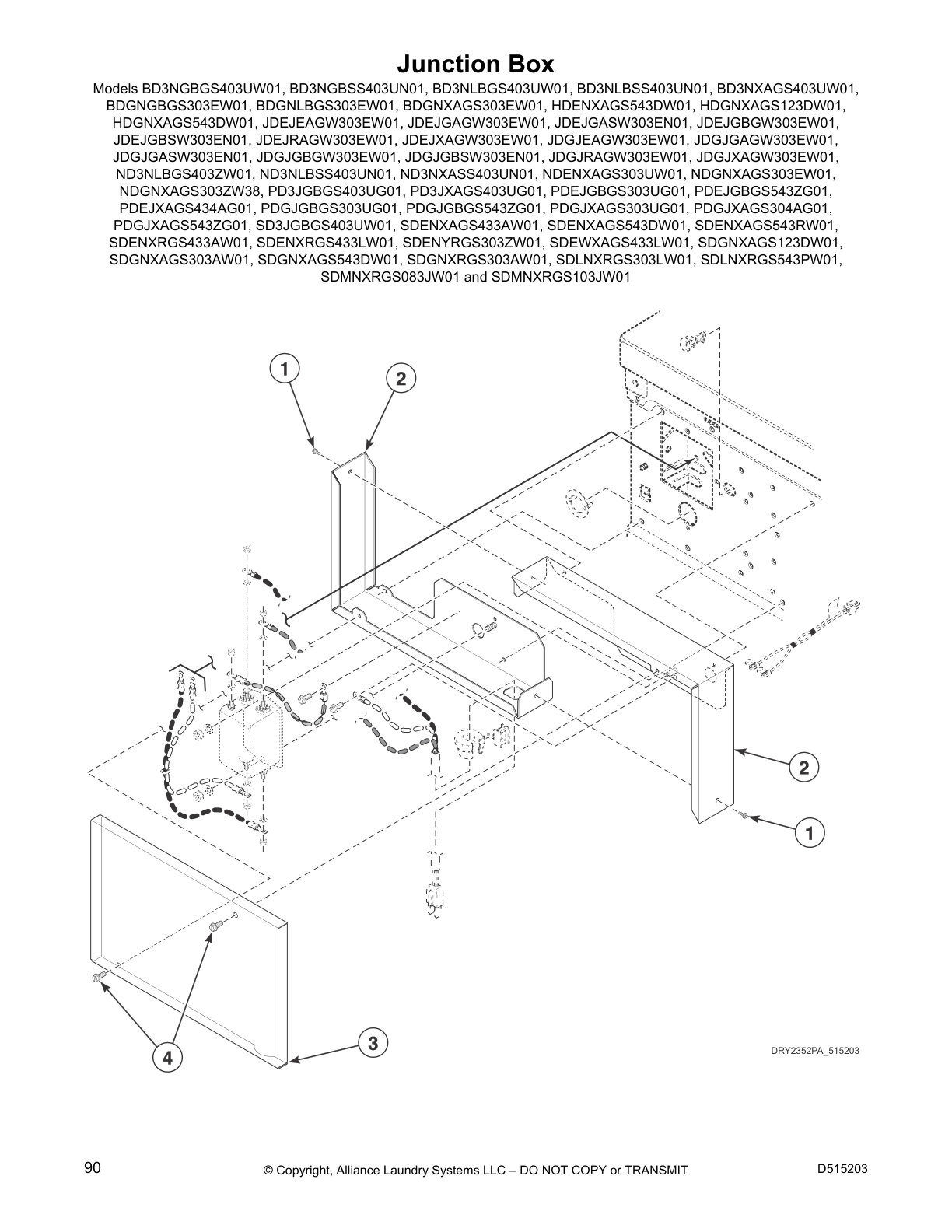

Junction Box

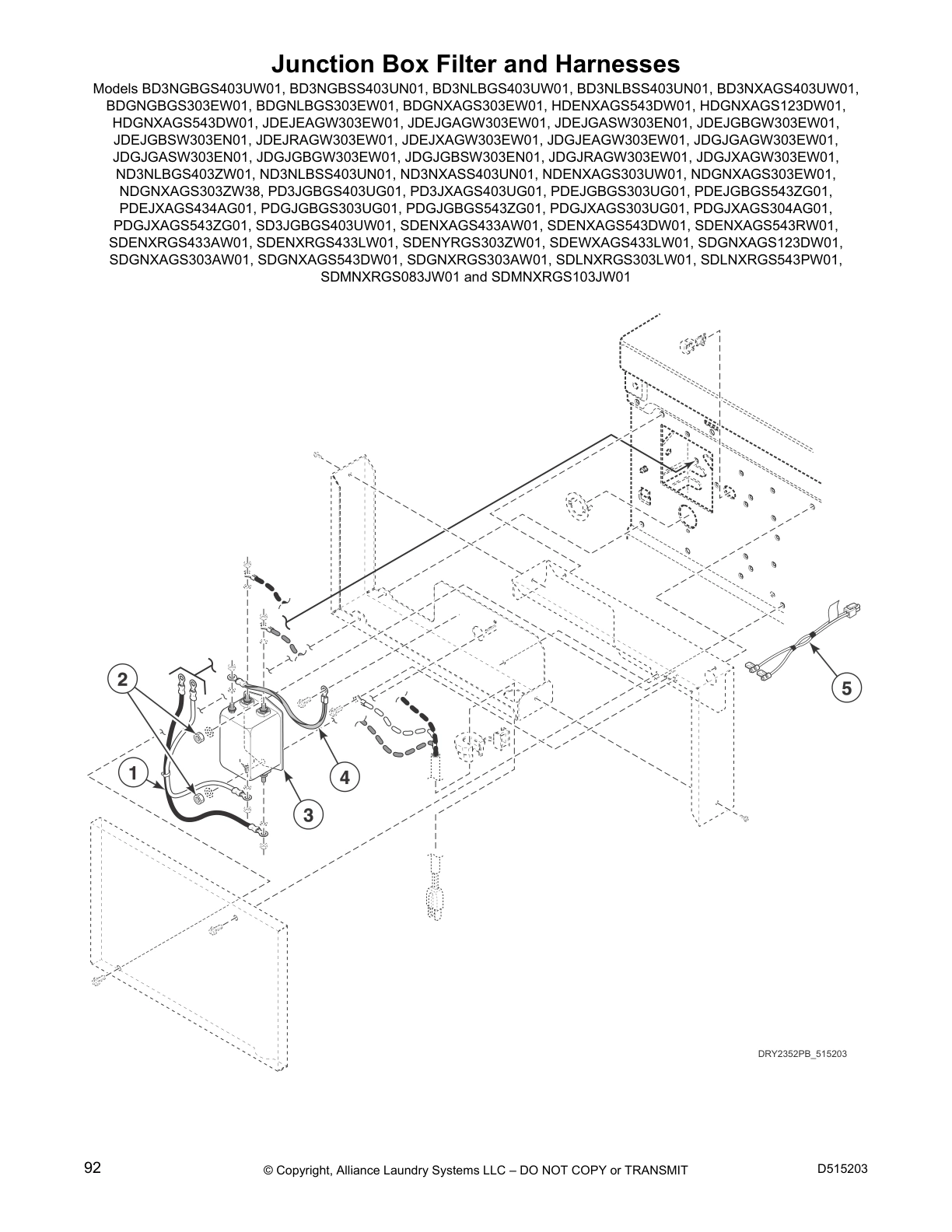

Junction Box Filter and Harnesses
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools

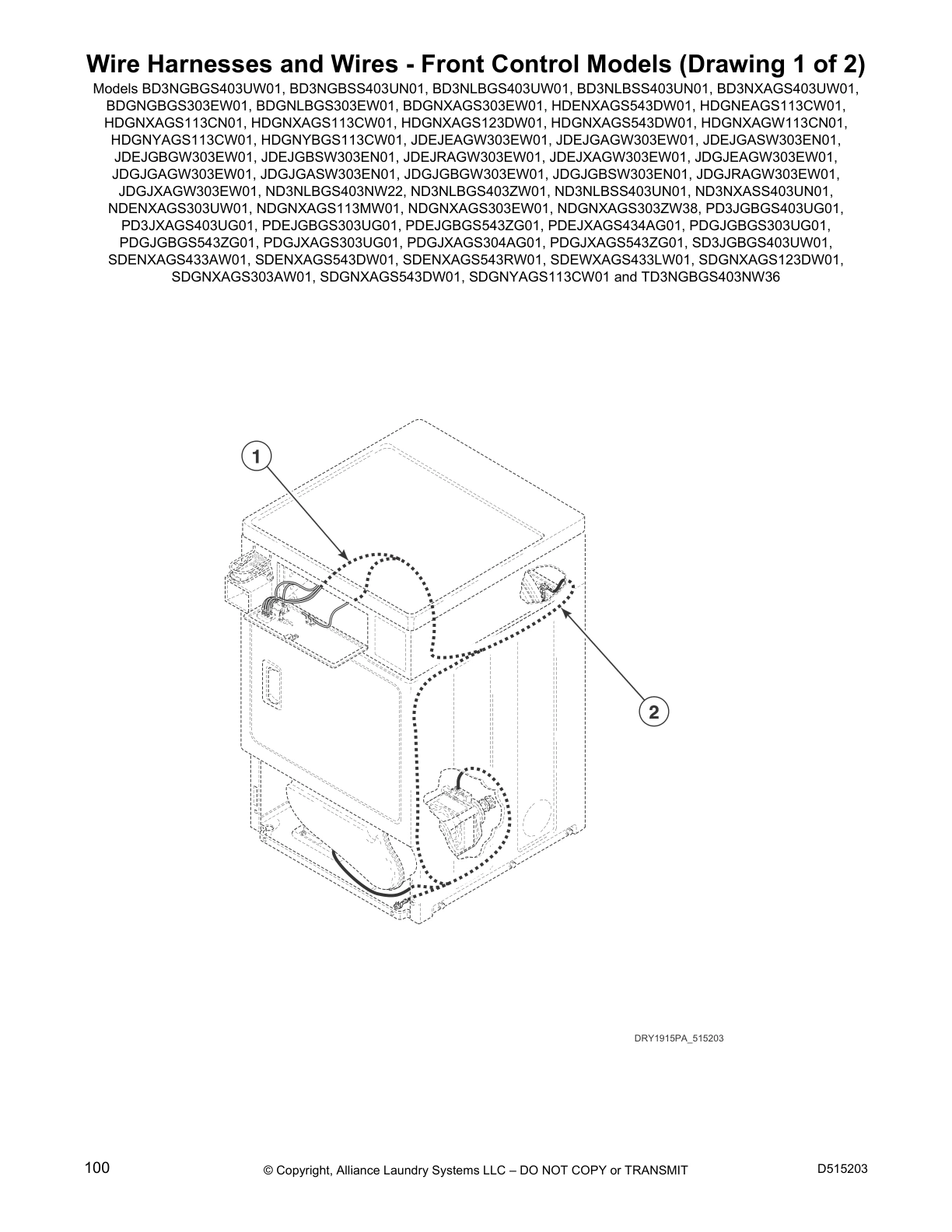

Wire Harnesses and Wires - Front Control Models (Drawing 1 of 2)

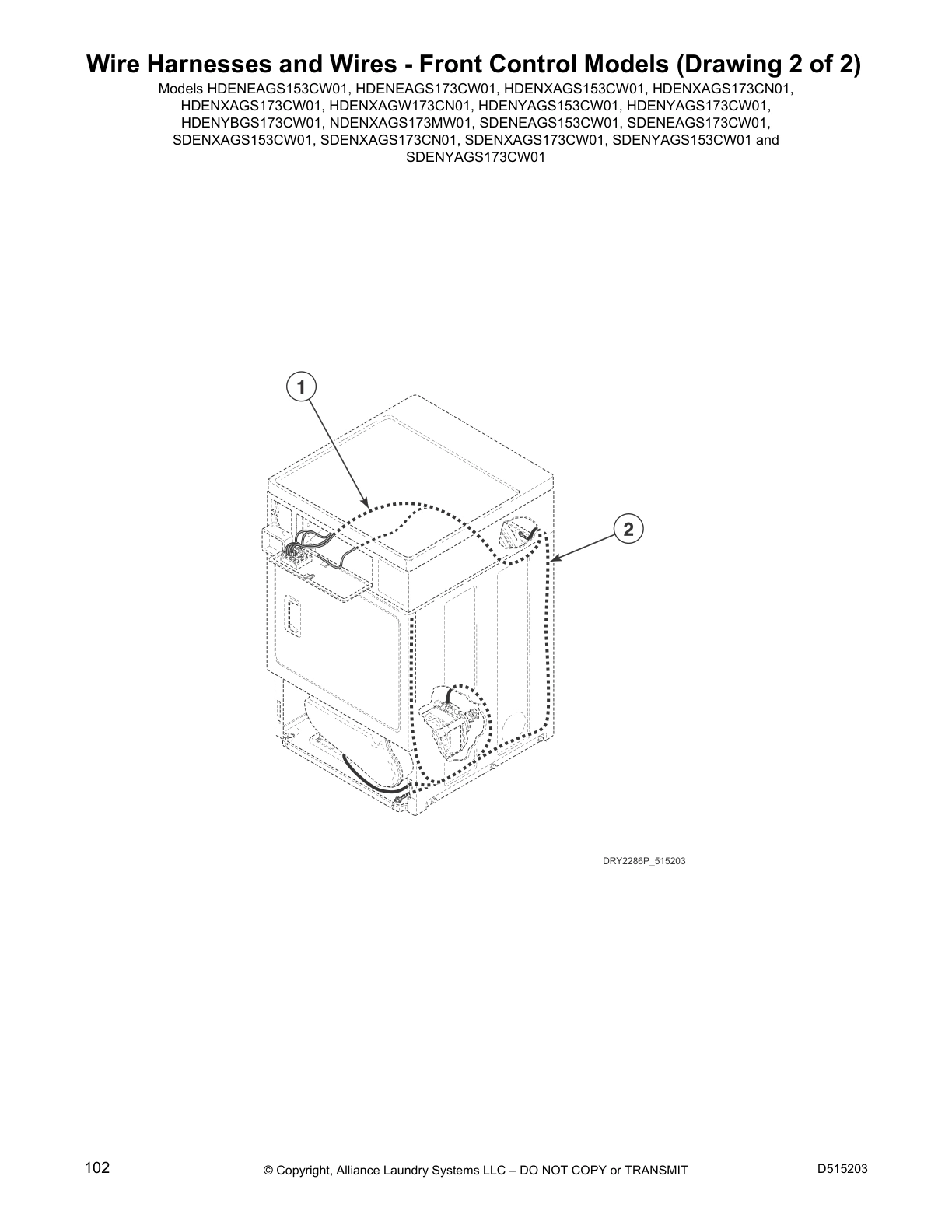

Wire Harnesses and Wires - Front Control Models (Drawing 2 of 2)

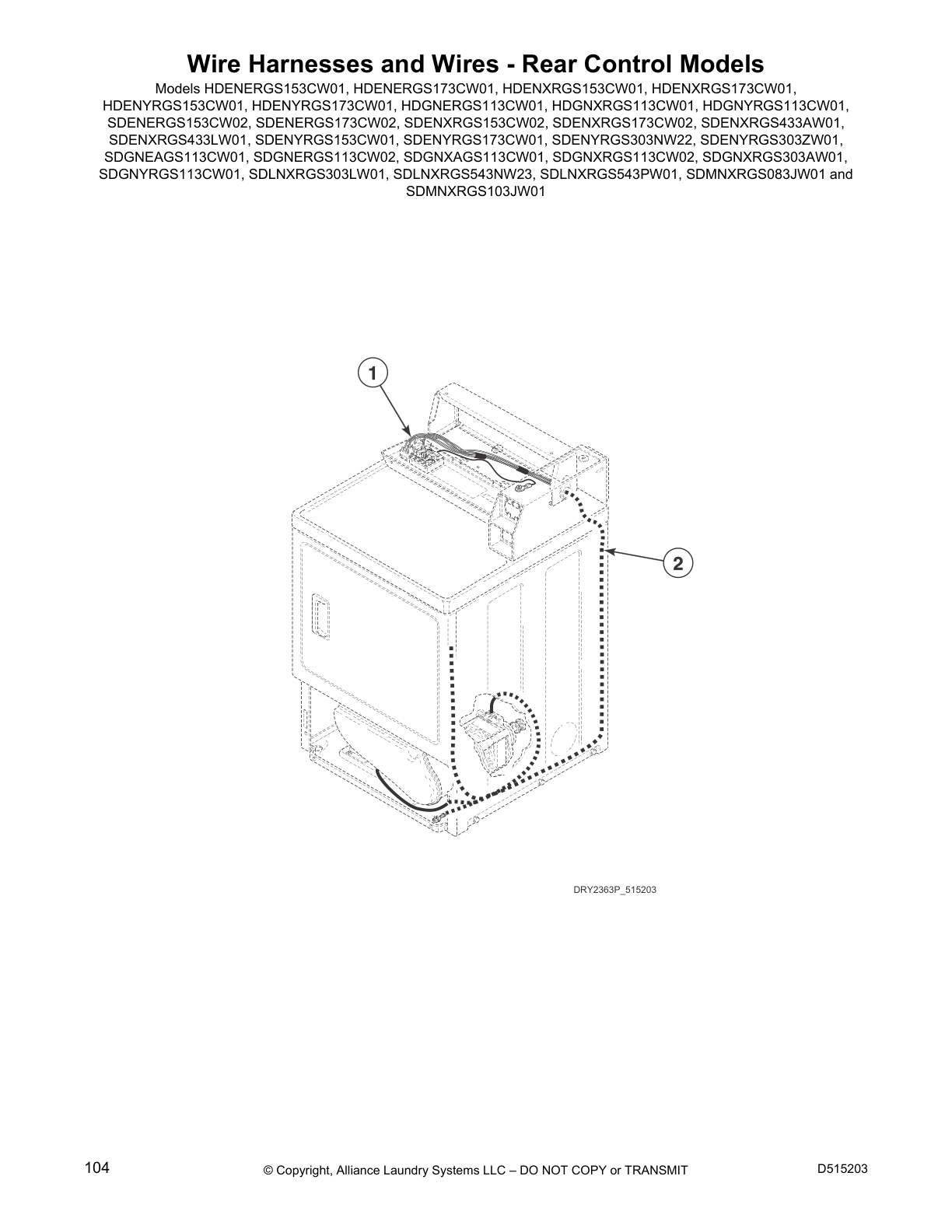

Wire Harnesses and Wires - Rear Control Models
Common parts from model Alliance NDENXAGS173MW01 Dryer
4
Key SPQ 54612 Contact Us For Availability
NI
SPQ 70441601P No Longer Available
NI
SPQ 70294106 SPQ 70294106 Contact Us For Availability
× ![]()
