Model Alliance NDEBXAGS303UW01 Dryer – Common Parts & Diagrams
Control Panel and Controls - Rear Control Coin Drop Models
Control Panel, Control Hood and Controls - Nonmetered Rear
Control Models
Control Panel and Control Hood - Coin Slide Rear Control Models
Meter Case - Rear Control Coin Drop Models

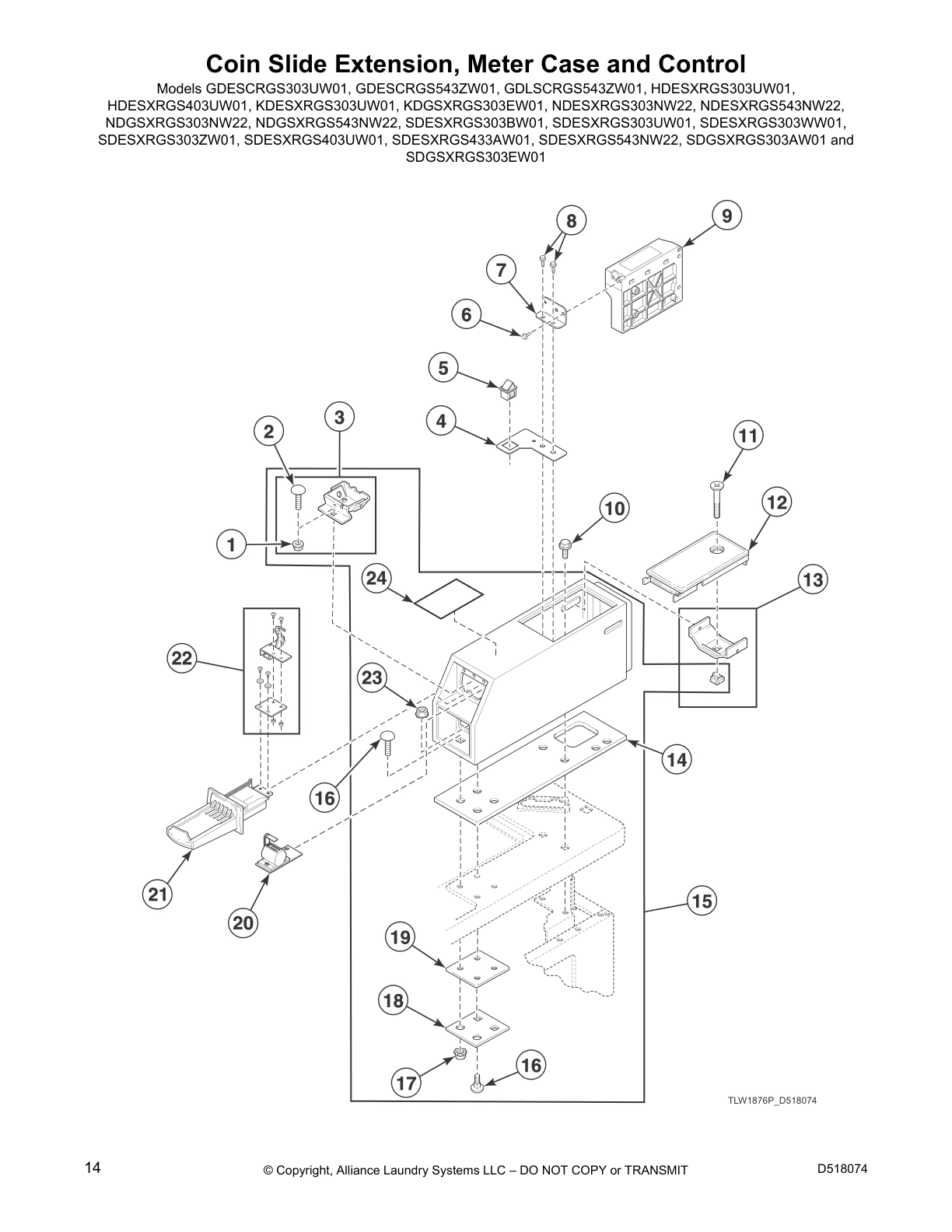

Coin Slide Extension, Meter Case and Control

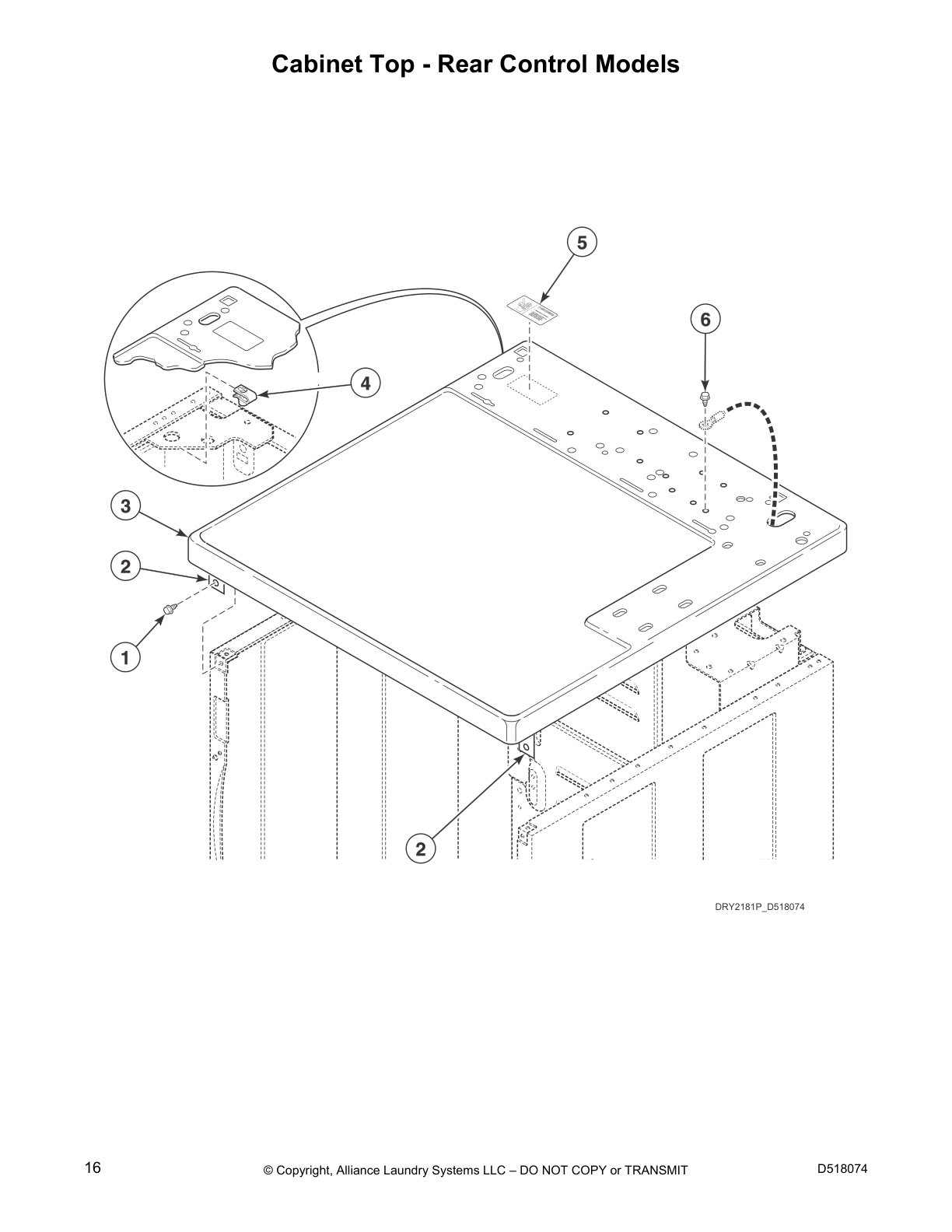

Cabinet Top - Rear Control Models
Non-Electronic Coin Drop
Electronic Coin Drop

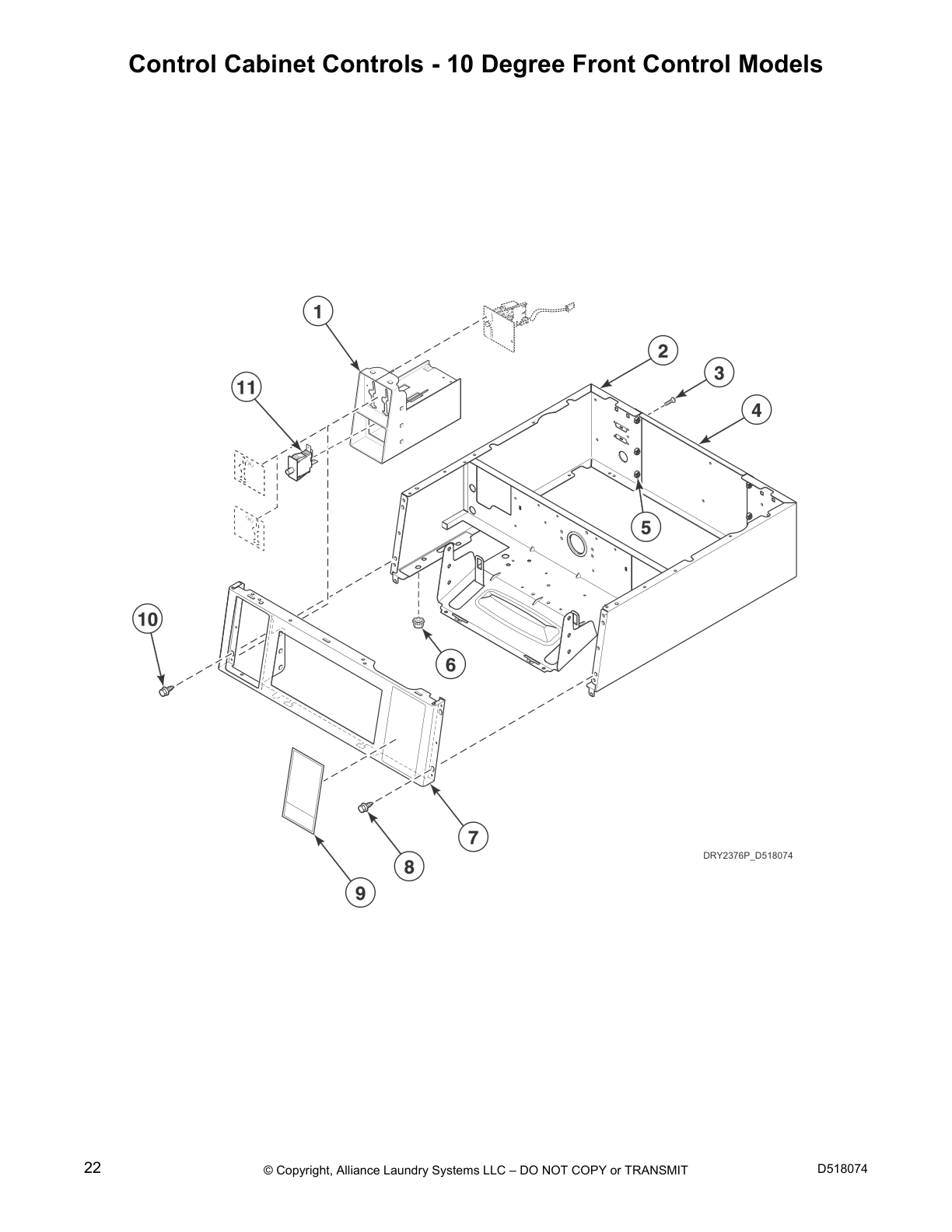

Control Cabinet Controls - 10 Degree Front Control Models
Control Panel and Controls - 10 Degree Front Control Models
(Drawing 1 of 2)

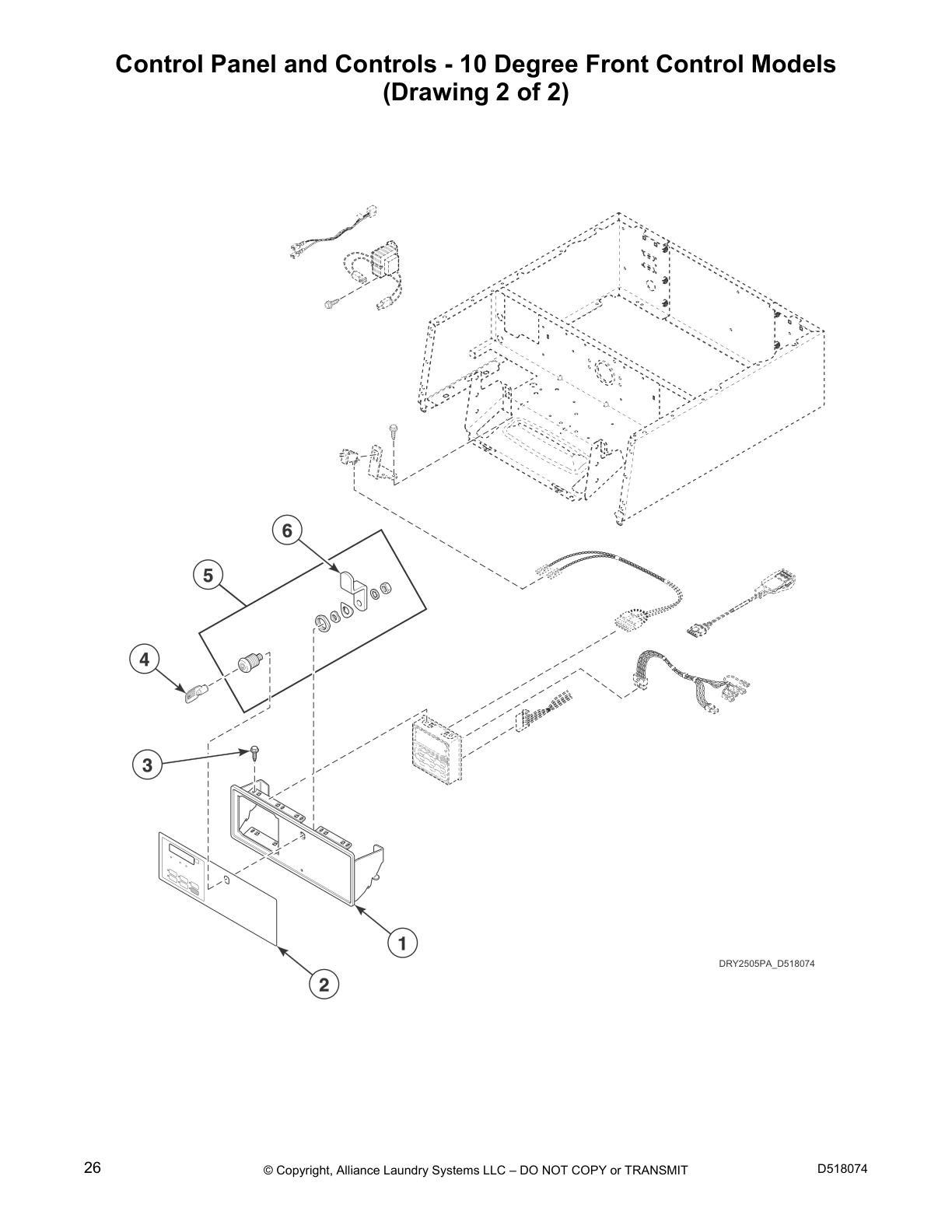

Control Panel and Controls - 10 Degree Front Control Models
(Drawing 2 of 2)

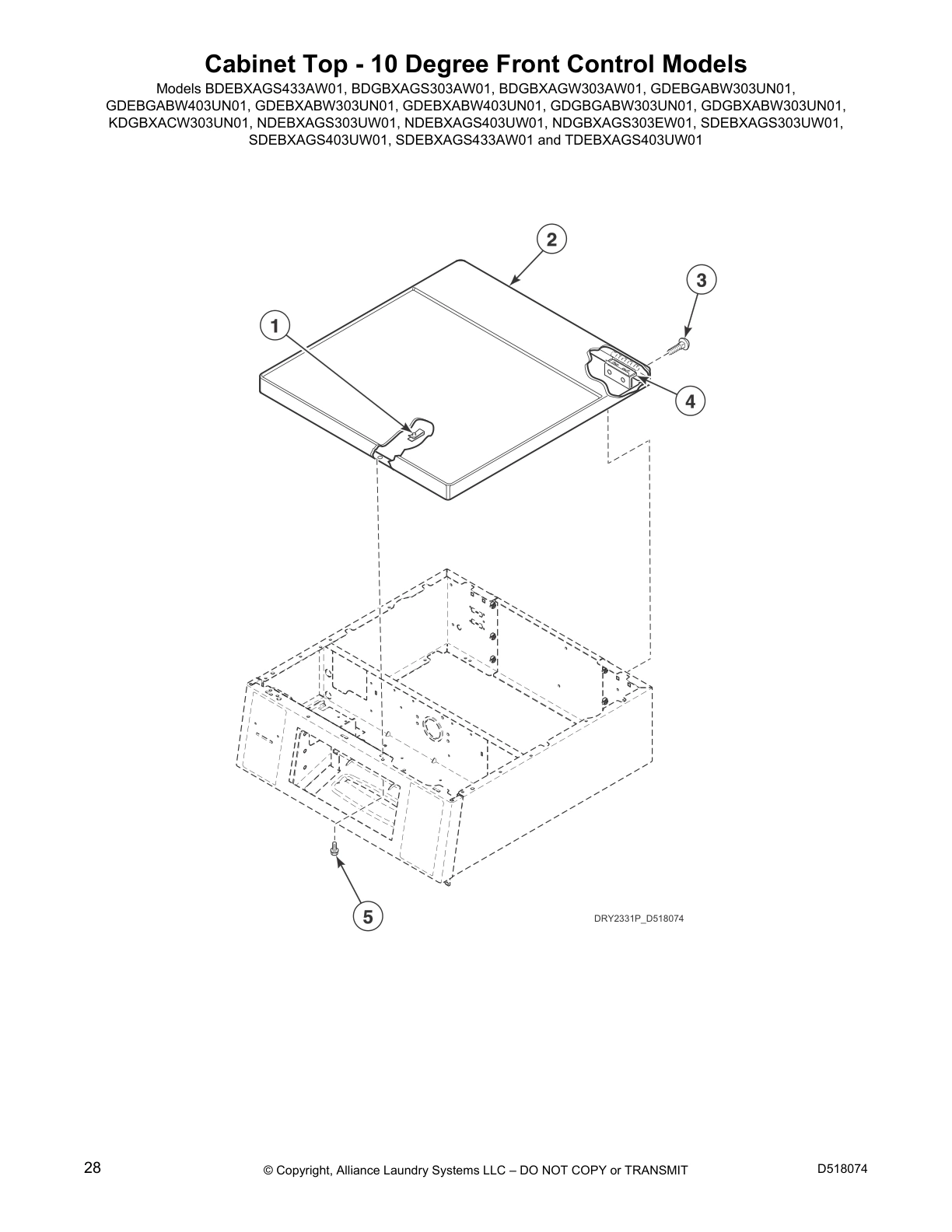

Cabinet Top - 10 Degree Front Control Models
Control Panel and Controls - 45 Degree Front Control Models
Loading Door Without Window
Loading Door With Window
Loading Door With Window

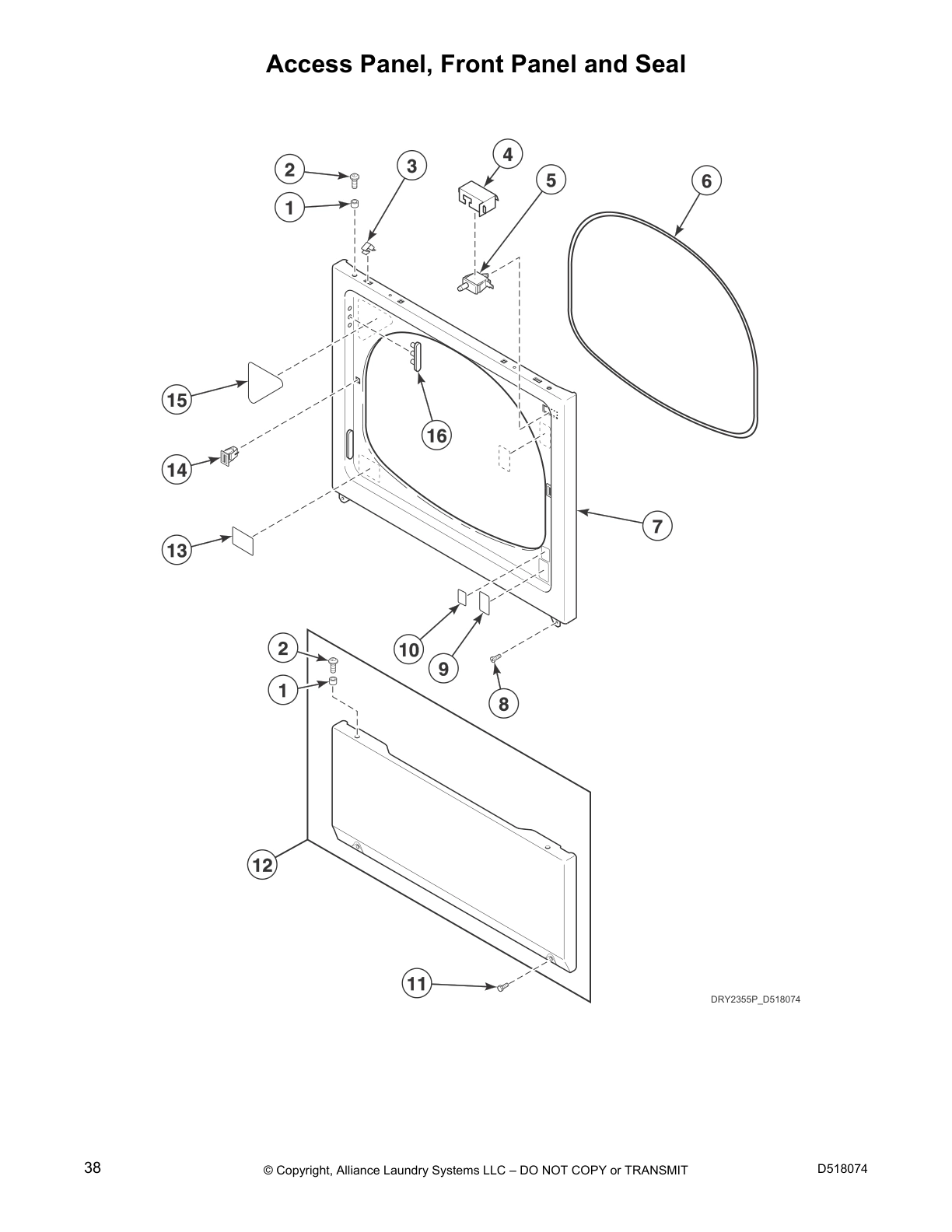

Access Panel, Front Panel and Seal
Motor and Belt

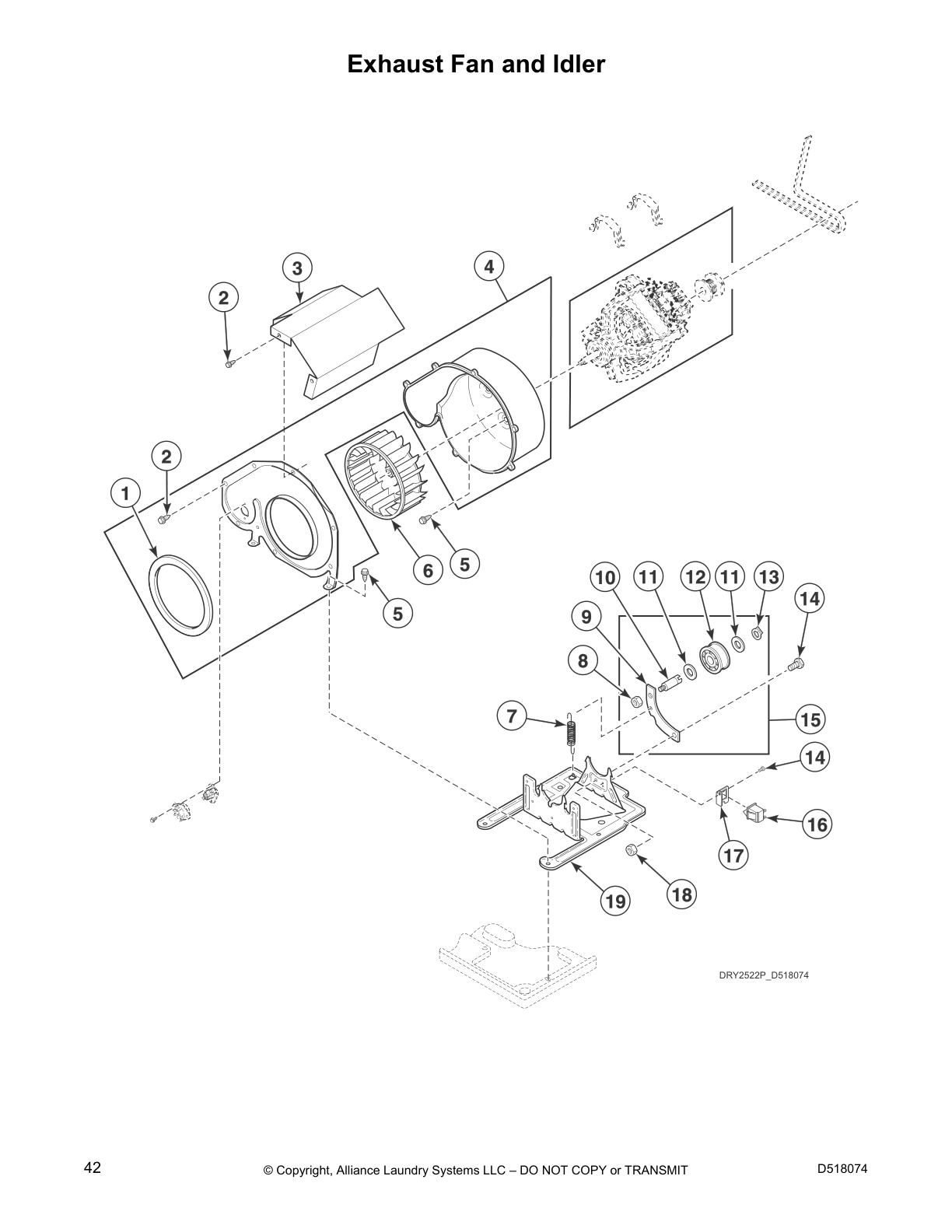

Exhaust Fan and Idler

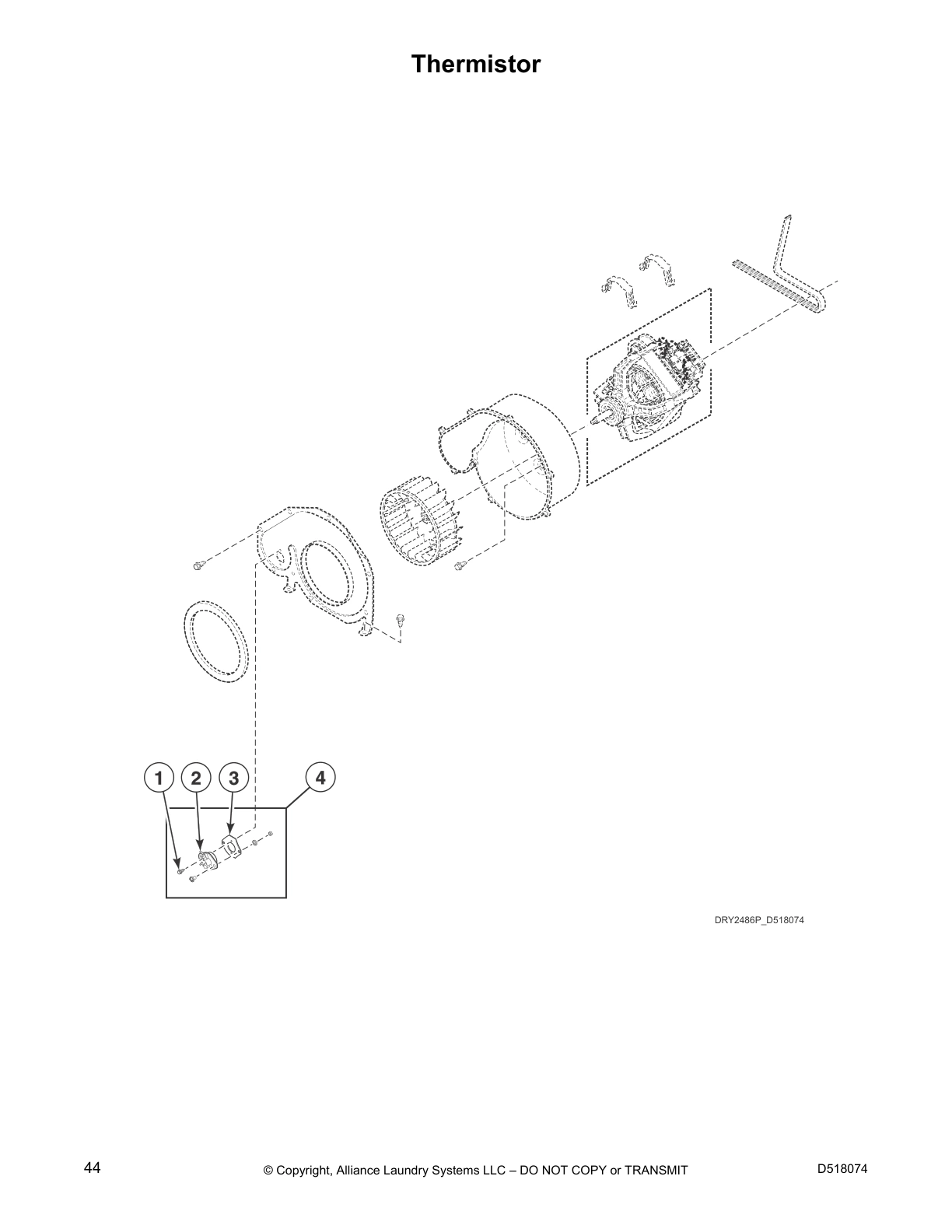

Thermistor
Front Bulkhead, Air Duct and Felt Seal (Drawing 1 of 2)
Front Bulkhead, Air Duct and Felt Seal (Drawing 2 of 2)
Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller

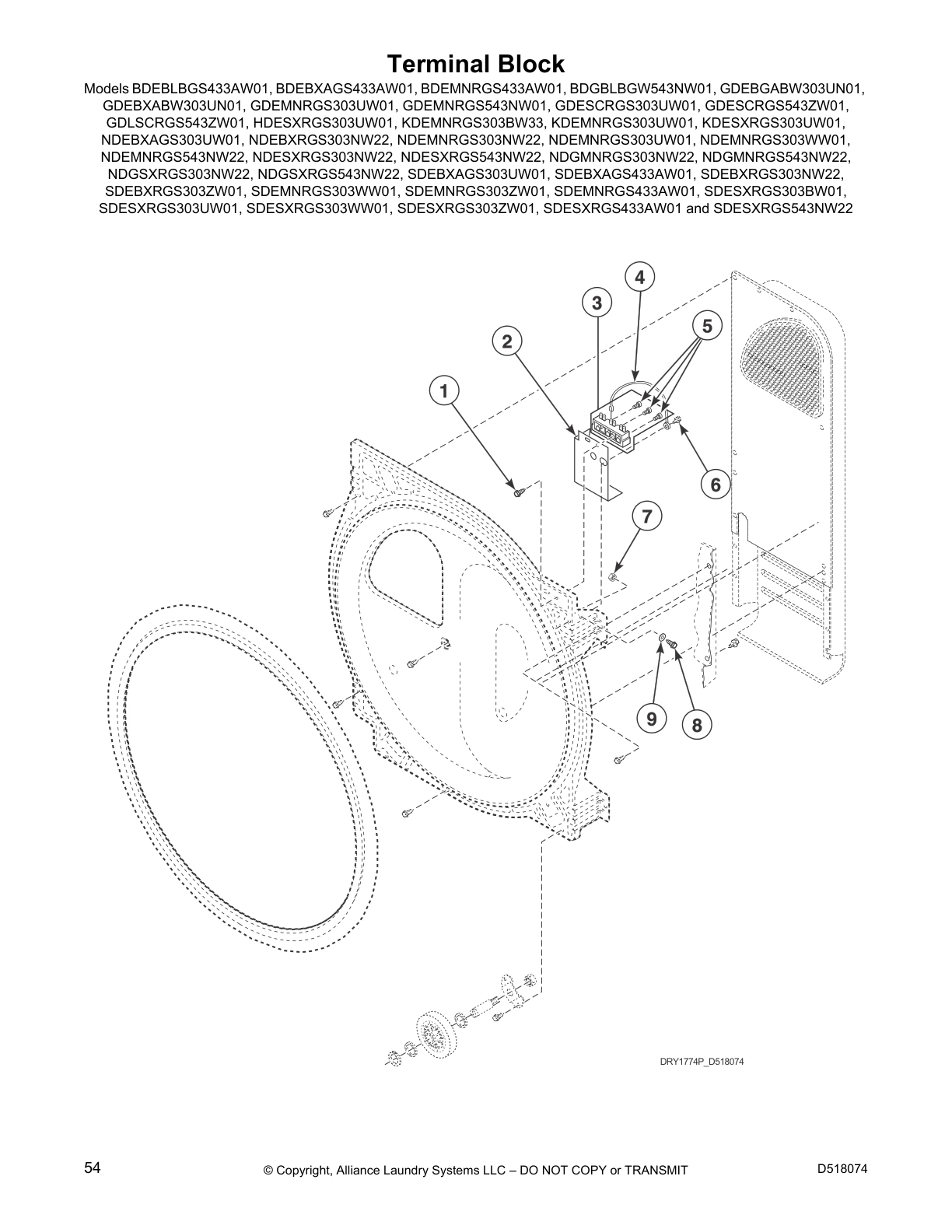

Terminal Block

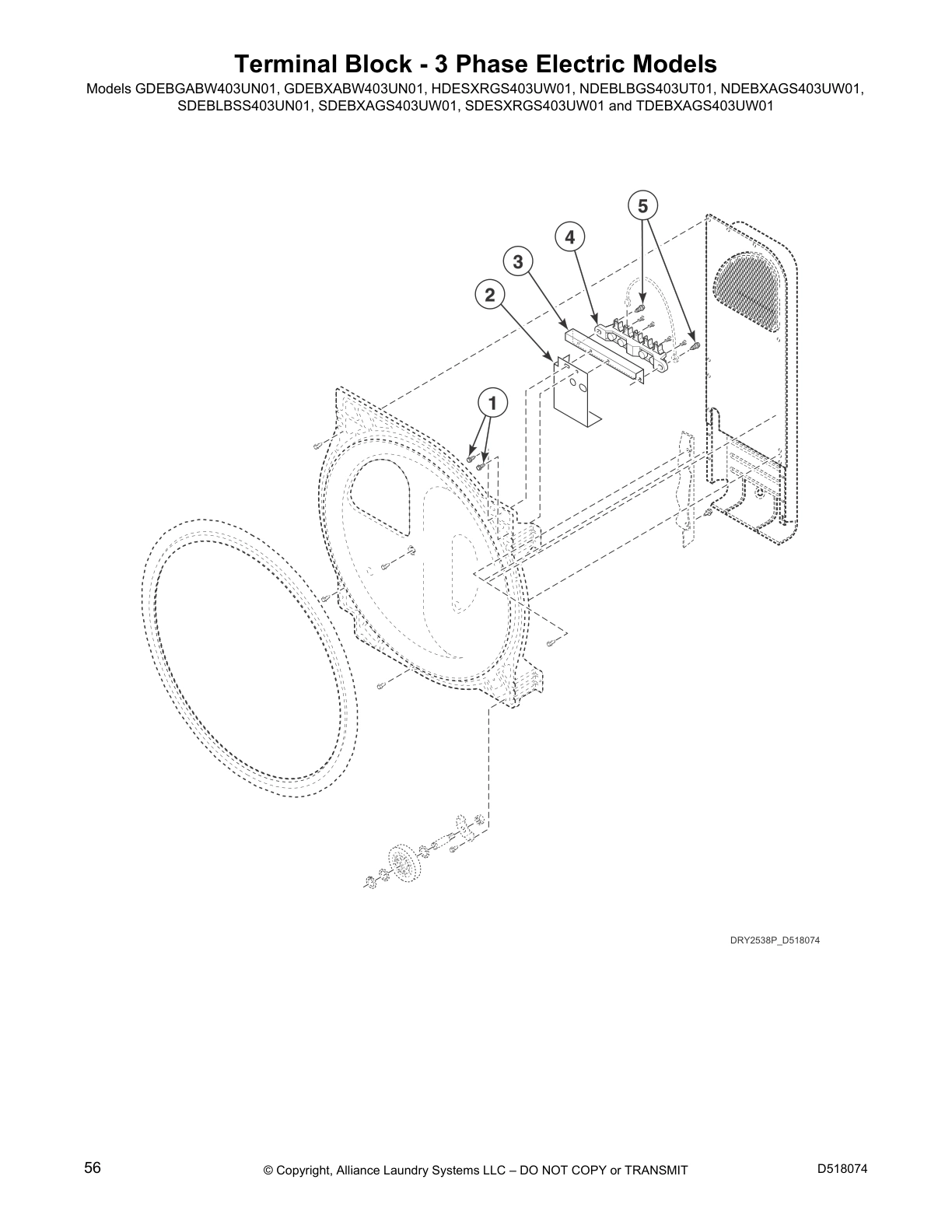

Terminal Block - 3 Phase Electric Models
Heater Duct and Element Assembly - 1 Phase Electric Models
Heater Duct Assembly - 3 Phase Electric Models
Heater Duct Assembly

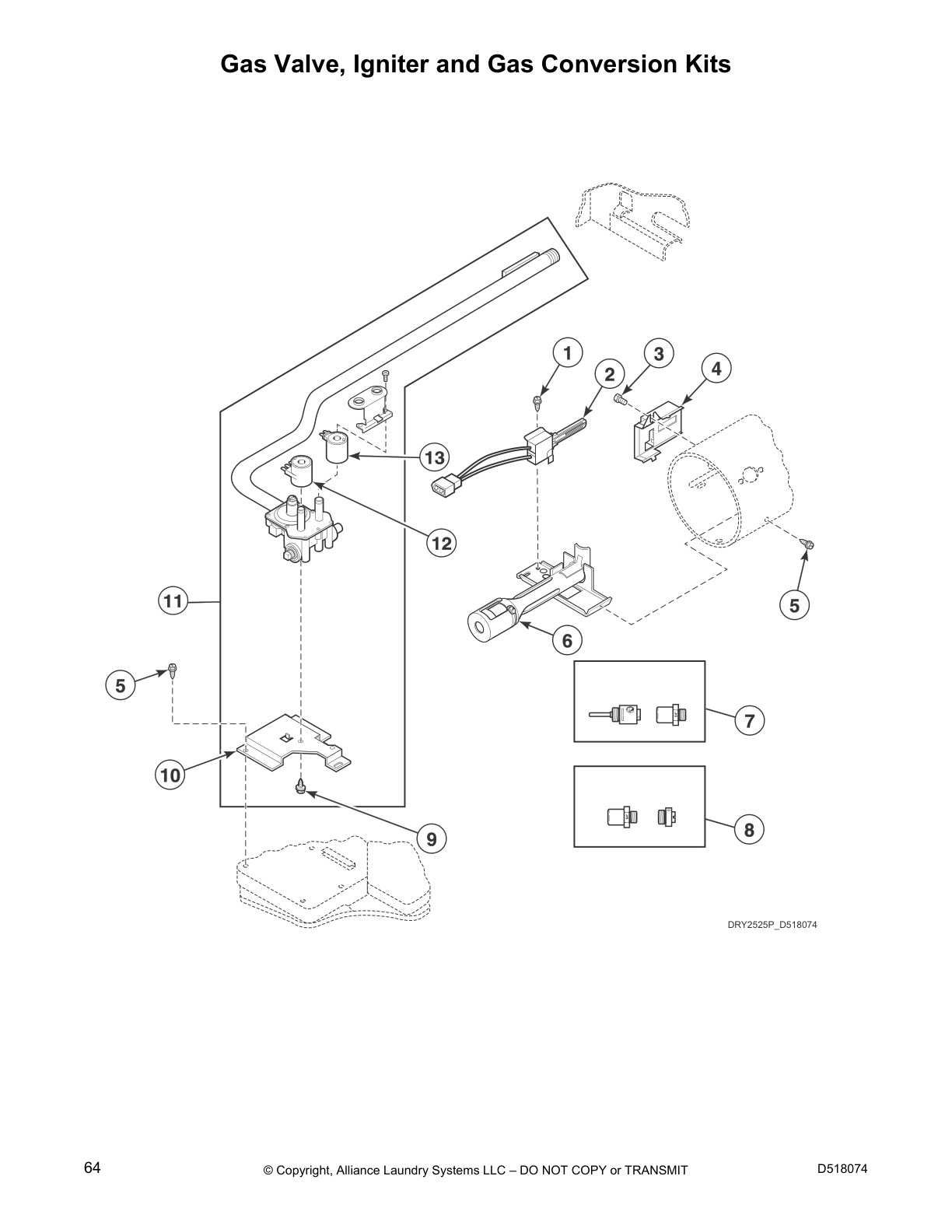

Gas Valve, Igniter and Gas Conversion Kits
Cabinet, Exhaust Duct and Base

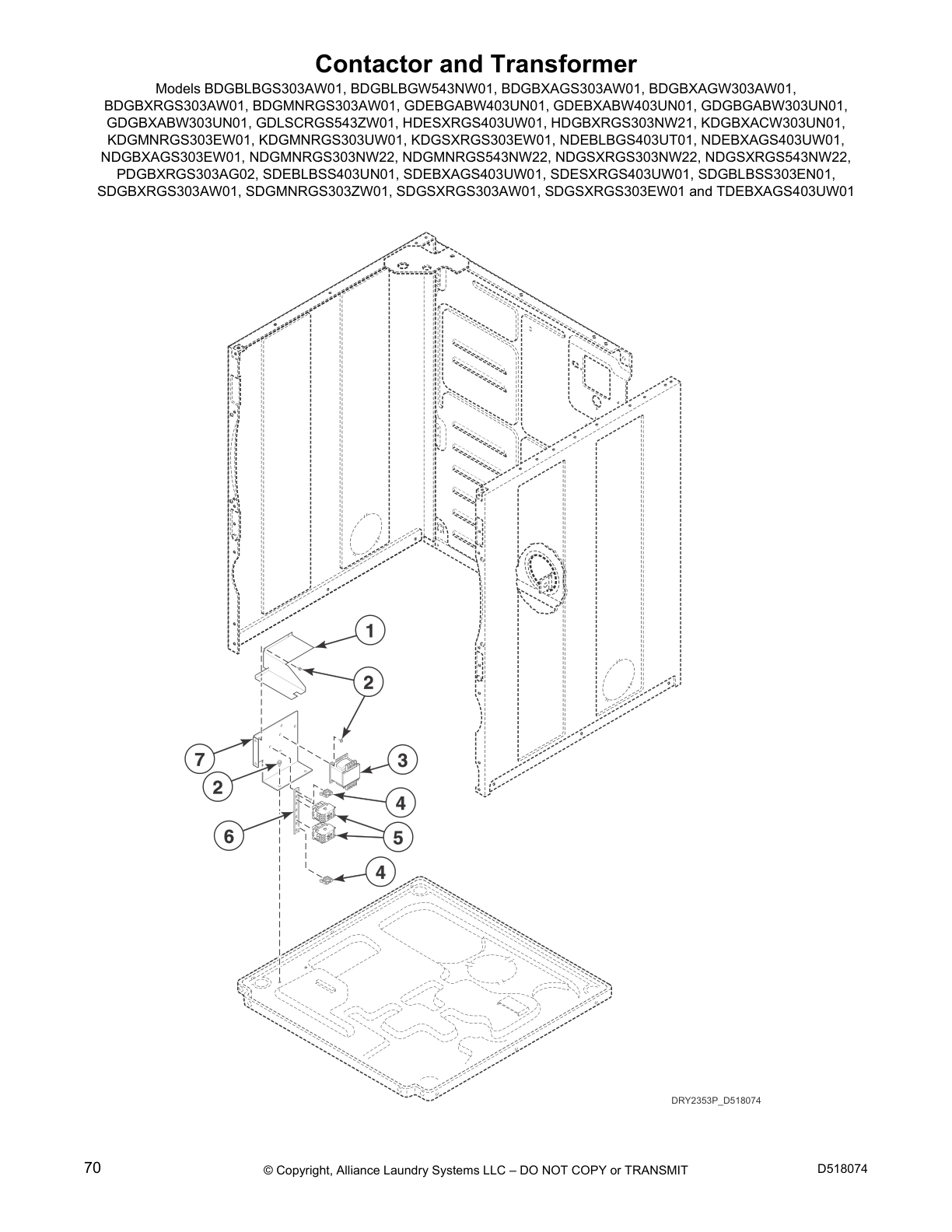

Contactor and Transformer
Power Cord
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools

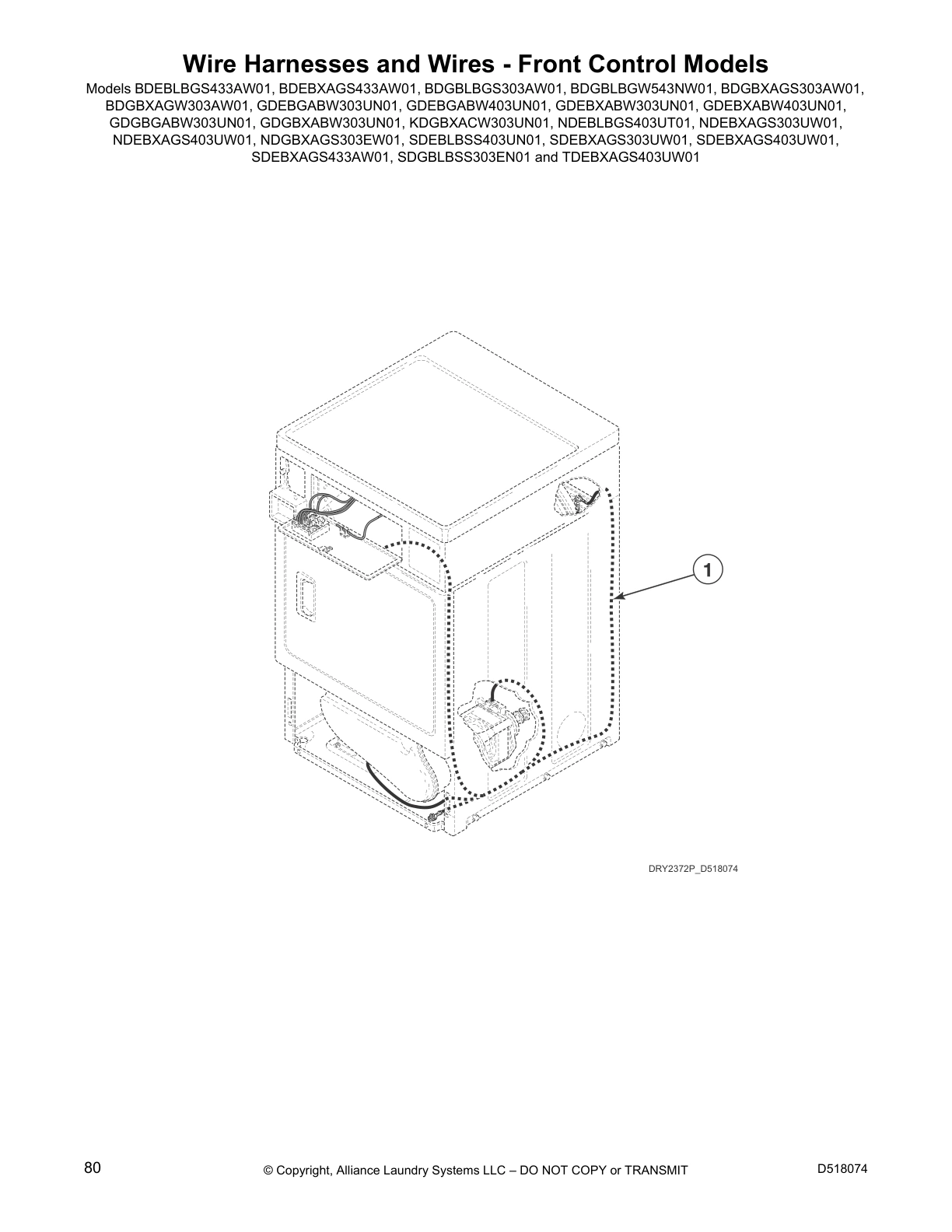

Wire Harnesses and Wires - Front Control Models

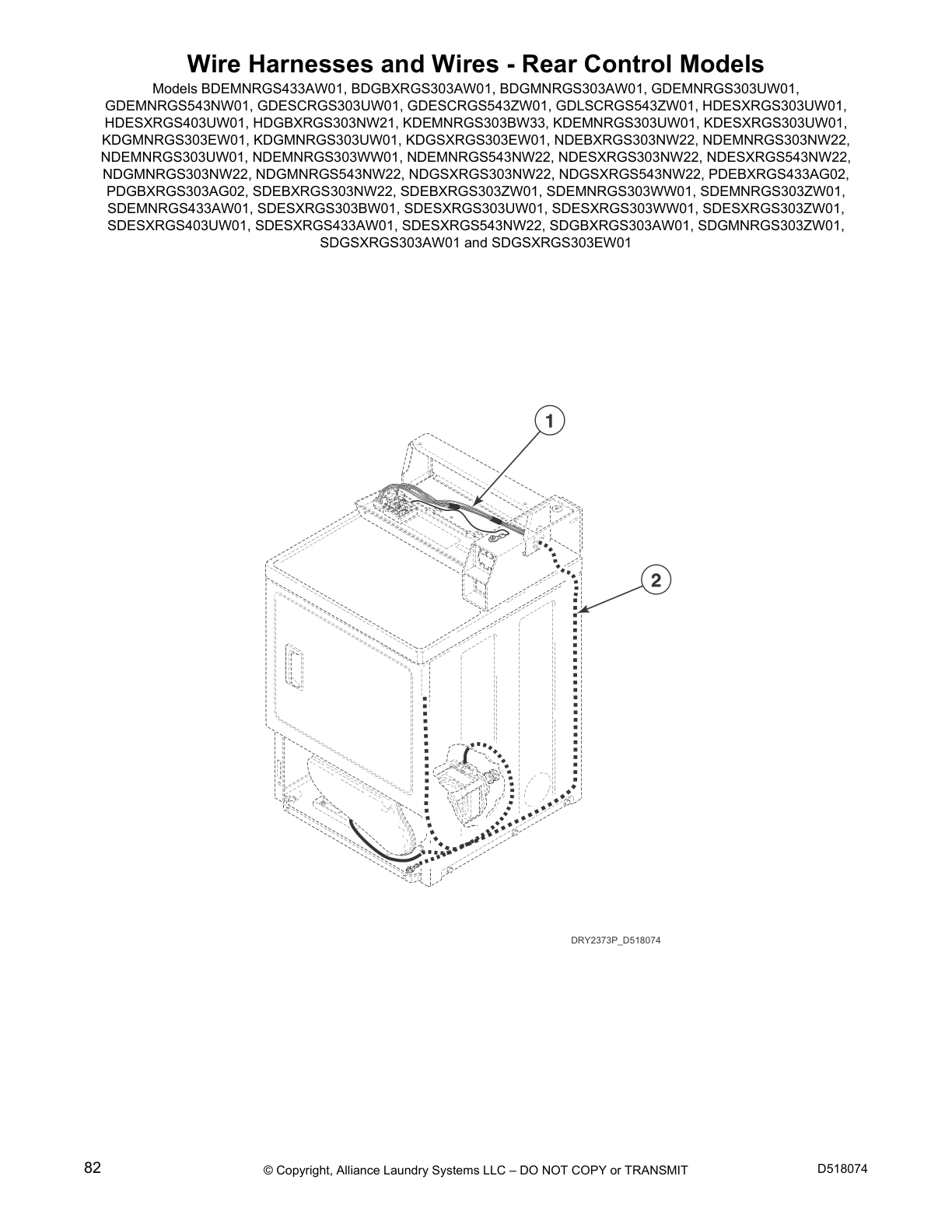

Wire Harnesses and Wires - Rear Control Models

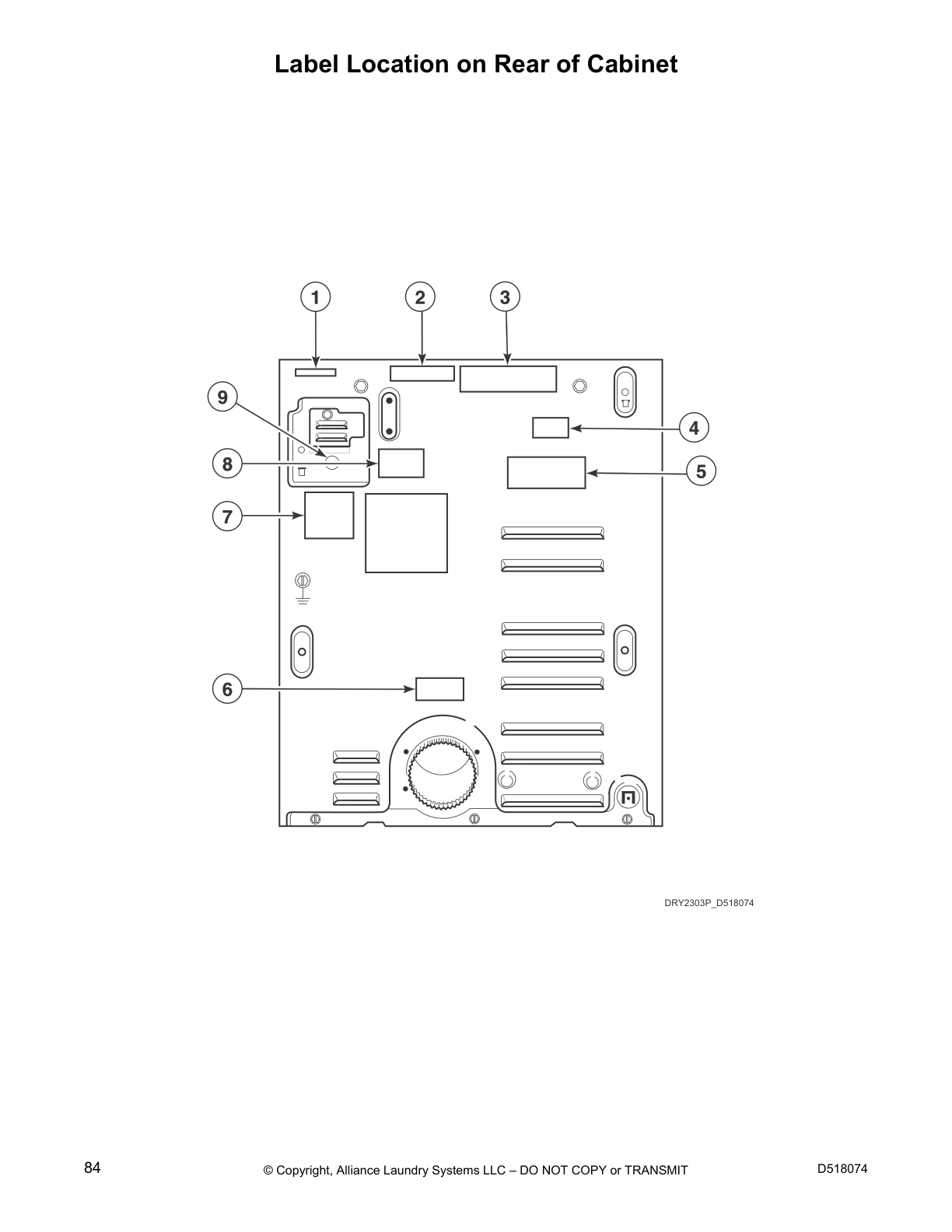

Label Location on Rear of Cabinet
Common parts from model Alliance NDEBXAGS303UW01 Dryer
× ![]()
