Model Maytag NAV3200AWW WASHER – Common Parts & Diagrams
01 - BASE
02 - CABINET

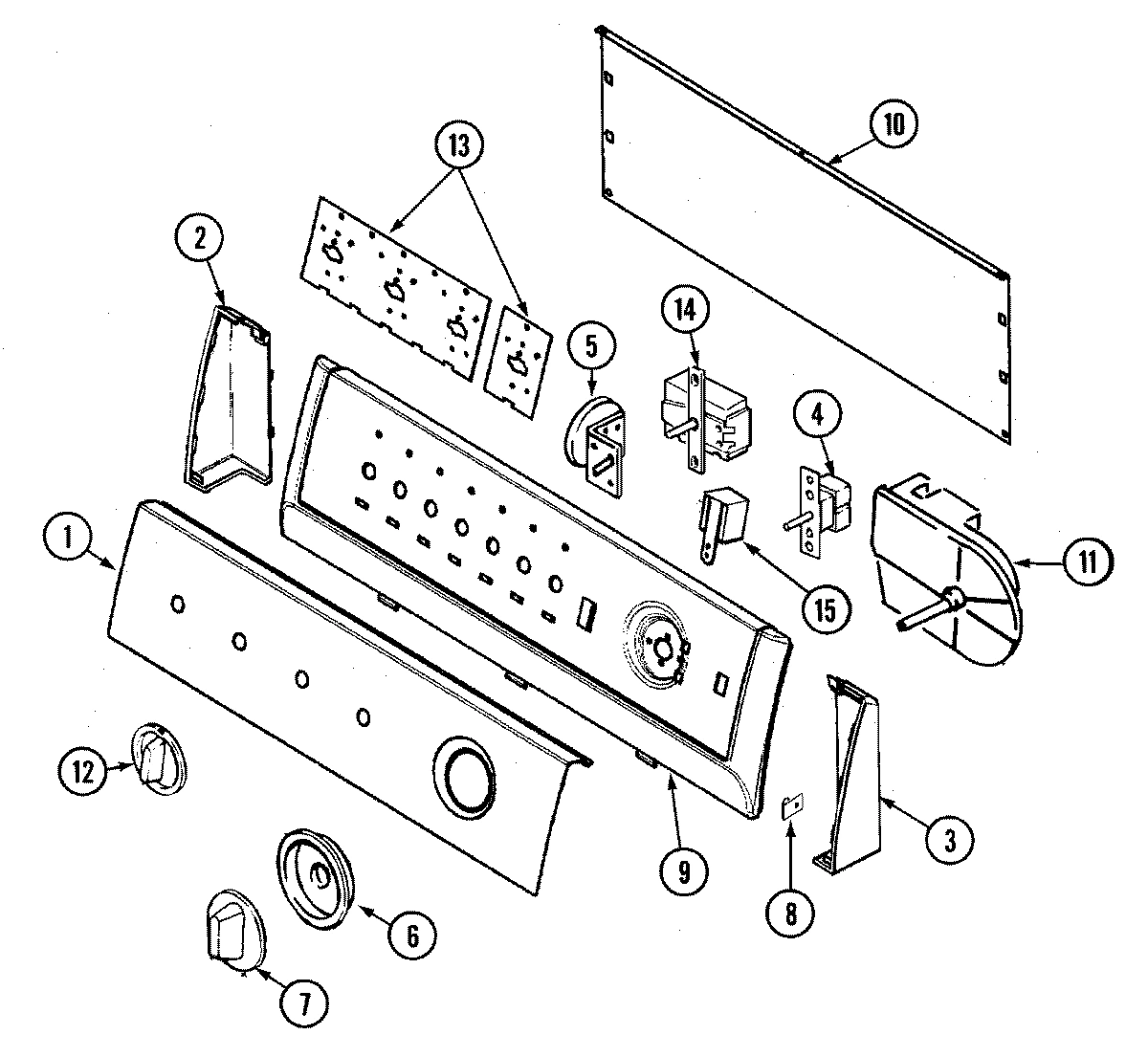

03 - CONTROL PANEL
04 - TOP

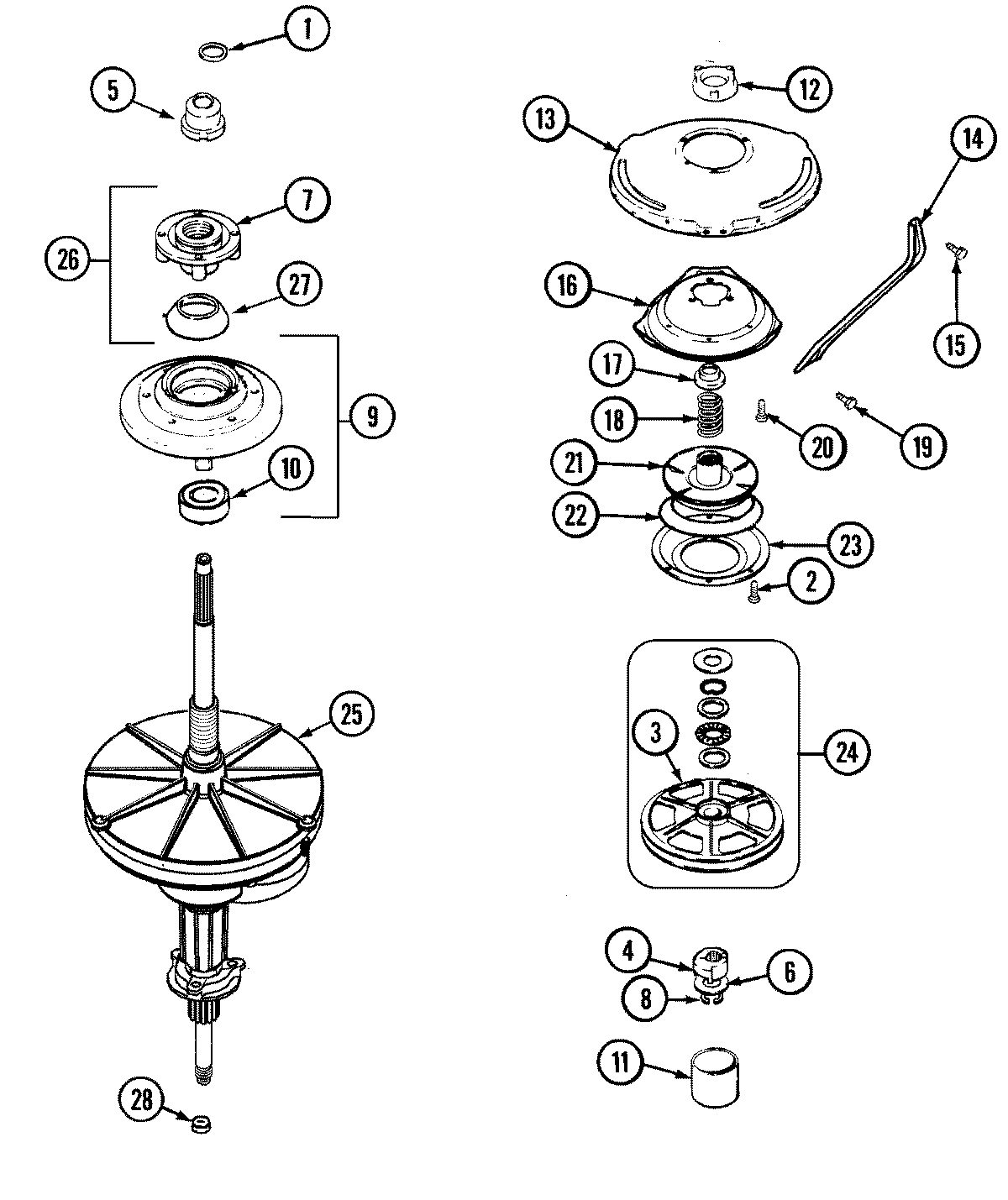

05 - TRANSMISSION

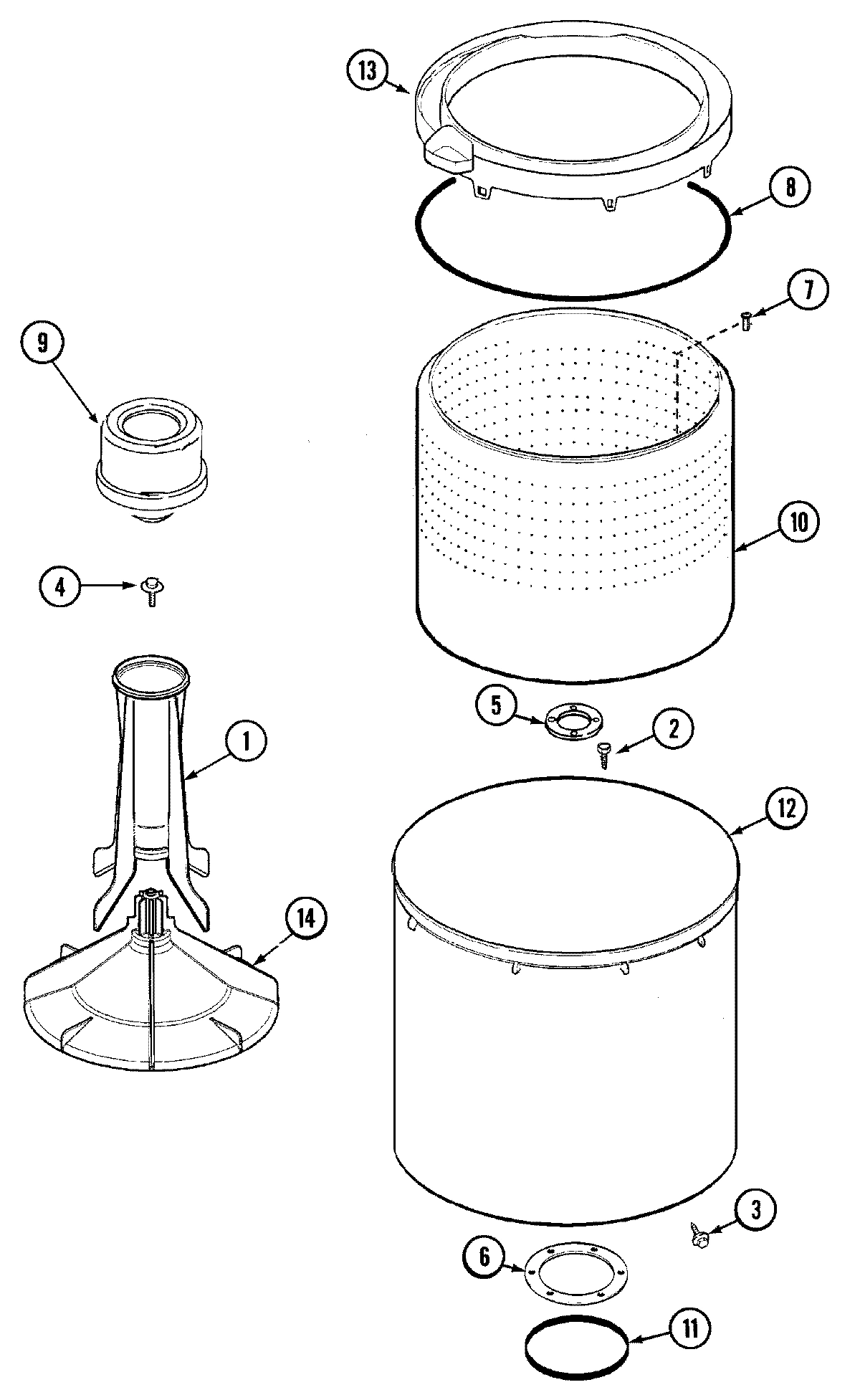

06 - TUB

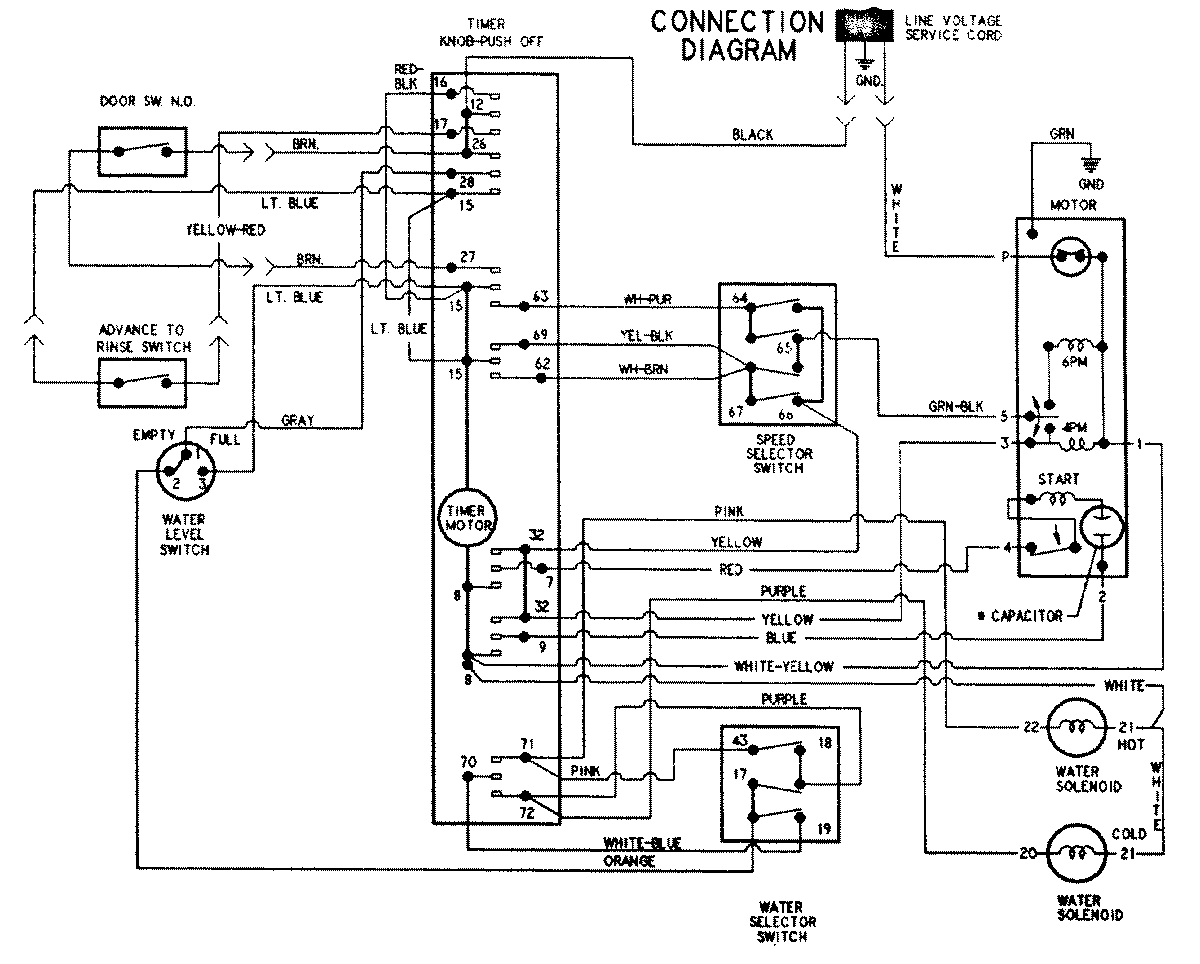

07 - WIRING INFORMATION
Common parts from model Maytag NAV3200AWW WASHER
1
MAY 21001521 MAY 21001521 Contact Us For Availability
1
MAY 25-7941 MAY 25-7941 Contact Us For Availability
1
MAY 35-2026 MAY 35-2026 Contact Us For Availability
1
MAY 21001653 MAY 21001653 Contact Us For Availability
2
MAY 21001065 MAY 21001065 Contact Us For Availability
2
MAY 21001546 MAY 21001546 Contact Us For Availability
3
MAY 35-4128 MAY 35-4128 Contact Us For Availability
3
MAY 21001547 MAY 21001547 Contact Us For Availability
3
MAY 25-7438 MAY 25-7438 Contact Us For Availability
3
MAY 35-3829 MAY 35-3829 Contact Us For Availability
4
MAY 21001226 MAY 21001226 Contact Us For Availability
5
MAY 35-3685 MAY 35-3685 Contact Us For Availability
5
MAY 21001625 MAY 21001625 Contact Us For Availability
5
MAY 21001533 MAY 21001533 Contact Us For Availability
6
MAY 35-3686 MAY 35-3686 Contact Us For Availability
6
MAY 35-2082 MAY 35-2082 Contact Us For Availability
6
MAY 35-2132 MAY 35-2132 Contact Us For Availability
6
MAY 21001520 MAY 21001520 Contact Us For Availability
7
MAY 21001526 MAY 21001526 Contact Us For Availability
7
MAY 33-9946 MAY 33-9946 Contact Us For Availability
7
MAY 35-0581 MAY 35-0581 Contact Us For Availability
7
MAY 21001515 MAY 21001515 Contact Us For Availability
7
MAY 25-7117 MAY 25-7117 Contact Us For Availability
8
MAY 35-2328 MAY 35-2328 Contact Us For Availability
8
MAY 35-3570 MAY 35-3570 Contact Us For Availability
8
MAY 25-7851 MAY 25-7851 Contact Us For Availability
8
MAY 35-2063 MAY 35-2063 Contact Us For Availability
9
MAY 21001552 MAY 21001552 Contact Us For Availability
9
MAY 21001137 MAY 21001137 Contact Us For Availability
9
MAY 21001508 MAY 21001508 Contact Us For Availability
10
MAY 21001529 MAY 21001529 Contact Us For Availability
10
MAY 21001527 MAY 21001527 Contact Us For Availability
10
MAY 25-3457 MAY 25-3457 Contact Us For Availability
10
MAY 25-7853 MAY 25-7853 Contact Us For Availability
10
MAY 21001136 MAY 21001136 Contact Us For Availability
11
MAY 21001595 MAY 21001595 Contact Us For Availability
11
MAY 35-2978 MAY 35-2978 Contact Us For Availability
11
MAY 21001148 MAY 21001148 Contact Us For Availability
11
MAY 35-2007 MAY 35-2007 Contact Us For Availability
11
NOT REQUIRED PART OR SEE NOTE KITTED WITH PUL MAY W10124350 Contact Us For Availability
12
MAY 35-3700 MAY 35-3700 Contact Us For Availability
12
MAY 35-2205 MAY 35-2205 Contact Us For Availability
12
MAY 21001544 MAY 21001544 Contact Us For Availability
12
MAY 21001511 MAY 21001511 Contact Us For Availability
13
MAY 21001531 MAY 21001531 Contact Us For Availability
13
MAY 25-7878 MAY 25-7878 Contact Us For Availability
13
MAY 21001517 MAY 21001517 Contact Us For Availability
13
MAY 21001603 MAY 21001603 Contact Us For Availability
13
MAY 53-2504 MAY 53-2504 Contact Us For Availability
13
MAY 21001518 MAY 21001518 Contact Us For Availability
14
MAY 21001530 MAY 21001530 Contact Us For Availability
14
MAY 21001134 MAY 21001134 Contact Us For Availability
14
MAY 35-3571 MAY 35-3571 Contact Us For Availability
14
MAY 21001173 MAY 21001173 Contact Us For Availability
14
MAY 21001532 MAY 21001532 Contact Us For Availability
15
MAY 21001602 MAY 21001602 Contact Us For Availability
15
MAY 31001190 MAY 31001190 Contact Us For Availability
15
MAY 25-7895 MAY 25-7895 Contact Us For Availability
16
MAY 25-7047 MAY 25-7047 Contact Us For Availability
16
MAY 21001163 MAY 21001163 Contact Us For Availability
16
MAY 16002080 MAY 16002080 Contact Us For Availability
16
MAY 21001648 MAY 21001648 Contact Us For Availability
16
MAY 21001725 MAY 21001725 Contact Us For Availability
16
MAY 21001597 MAY 21001597 Contact Us For Availability
17
MAY 35-2017 MAY 35-2017 Contact Us For Availability
17
MAY 21001592 MAY 21001592 Contact Us For Availability
18
MAY 31001285 MAY 31001285 Contact Us For Availability
19
MAY 25-7930 MAY 25-7930 Contact Us For Availability
20
MAY 21001509 MAY 21001509 Contact Us For Availability
21
MAY 35-2046 MAY 35-2046 Contact Us For Availability
21
MAY 35-2948 MAY 35-2948 Contact Us For Availability
22
MAY 35-2052 MAY 35-2052 Contact Us For Availability
23
MAY 35-2018 MAY 35-2018 Contact Us For Availability
25
MAY 21001536 MAY 21001536 Contact Us For Availability
26
MAY 12001598 MAY 12001598 Contact Us For Availability
27
MAY 35-2974 MAY 35-2974 Contact Us For Availability
27
MAY 35-2051 MAY 35-2051 Contact Us For Availability
28
MAY 35-2010 MAY 35-2010 Contact Us For Availability
35
MAY 22002721 MAY 22002721 Contact Us For Availability
NI
MAY 15002610 MAY 15002610 Contact Us For Availability
× ![]()
