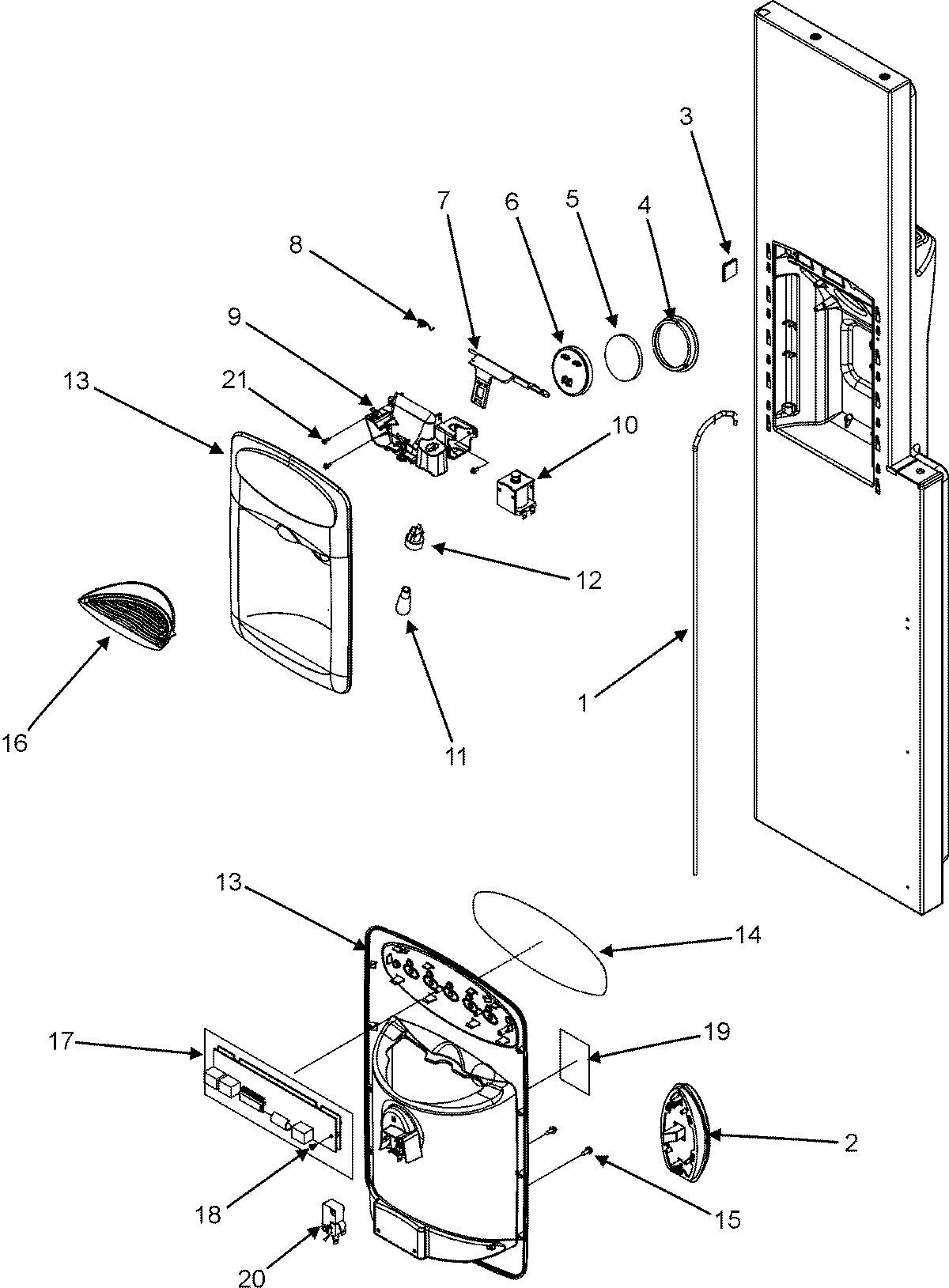

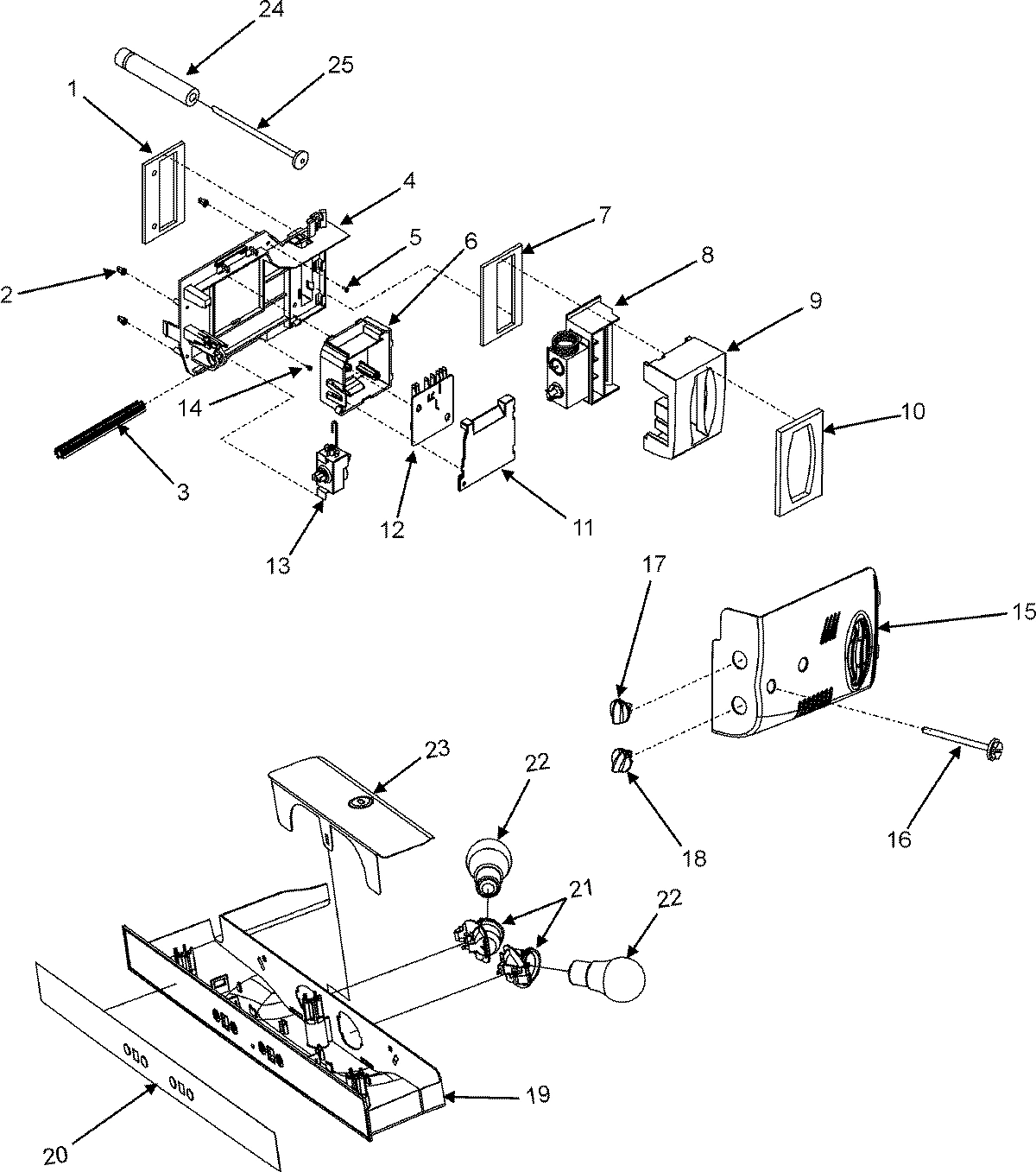

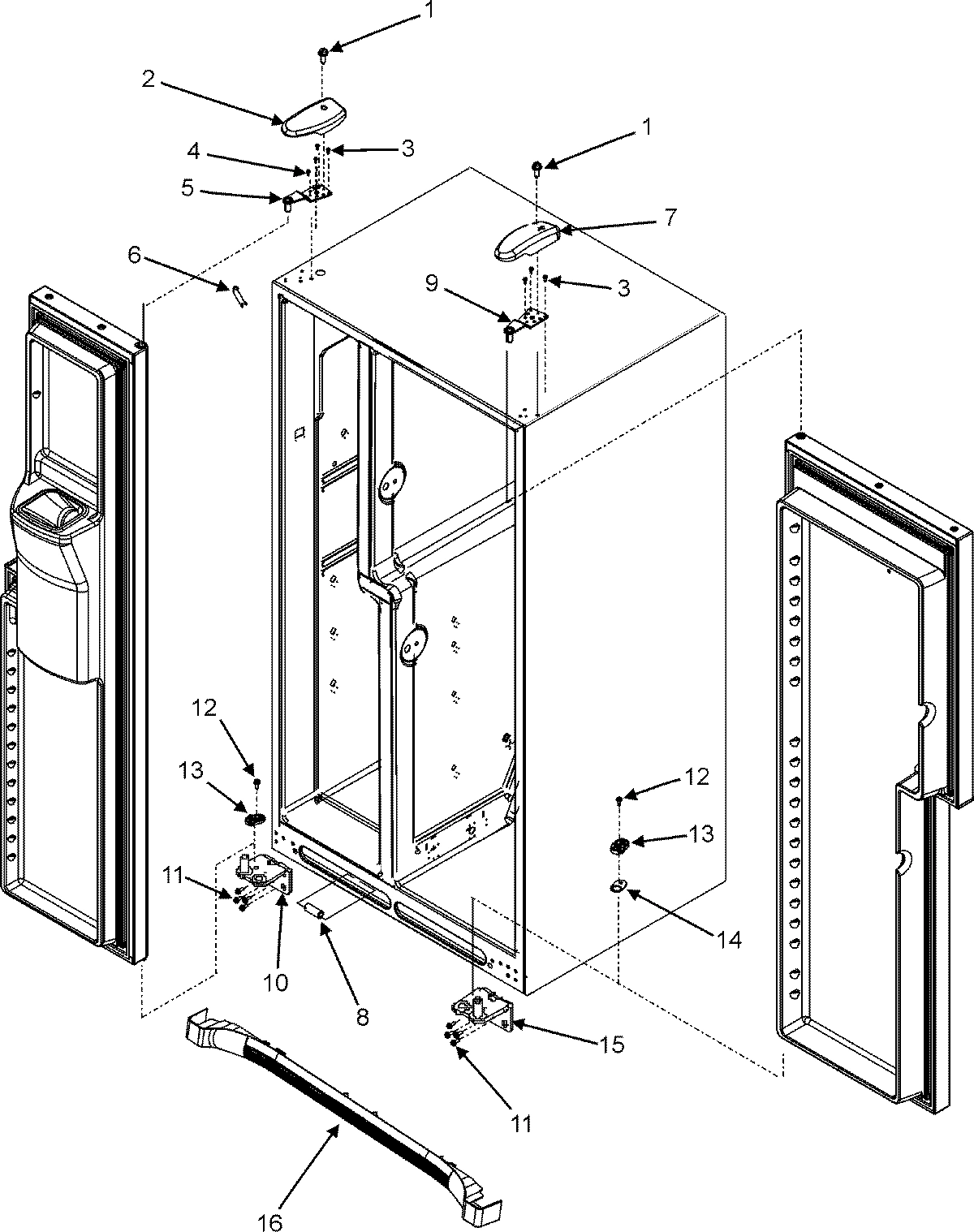

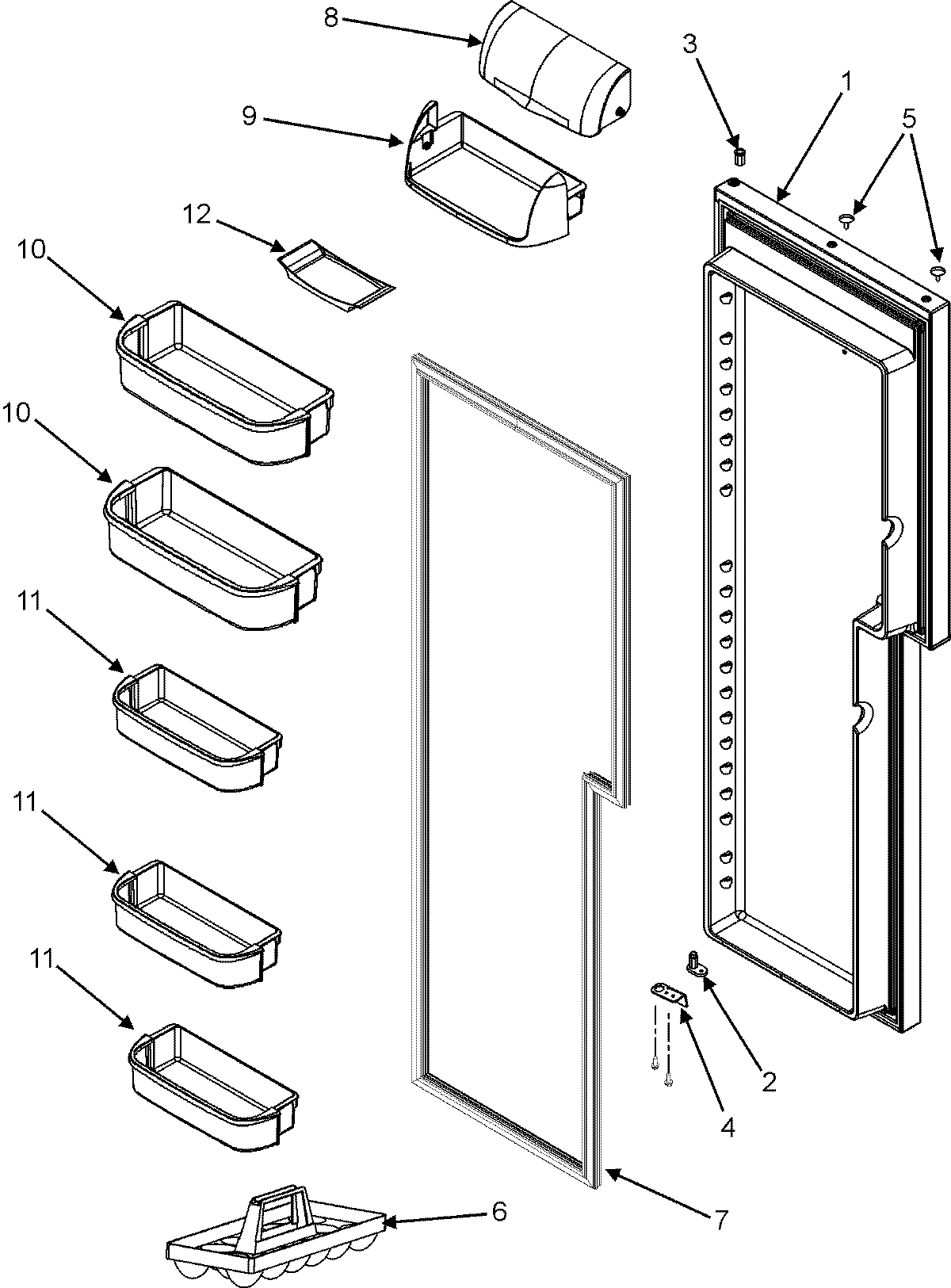

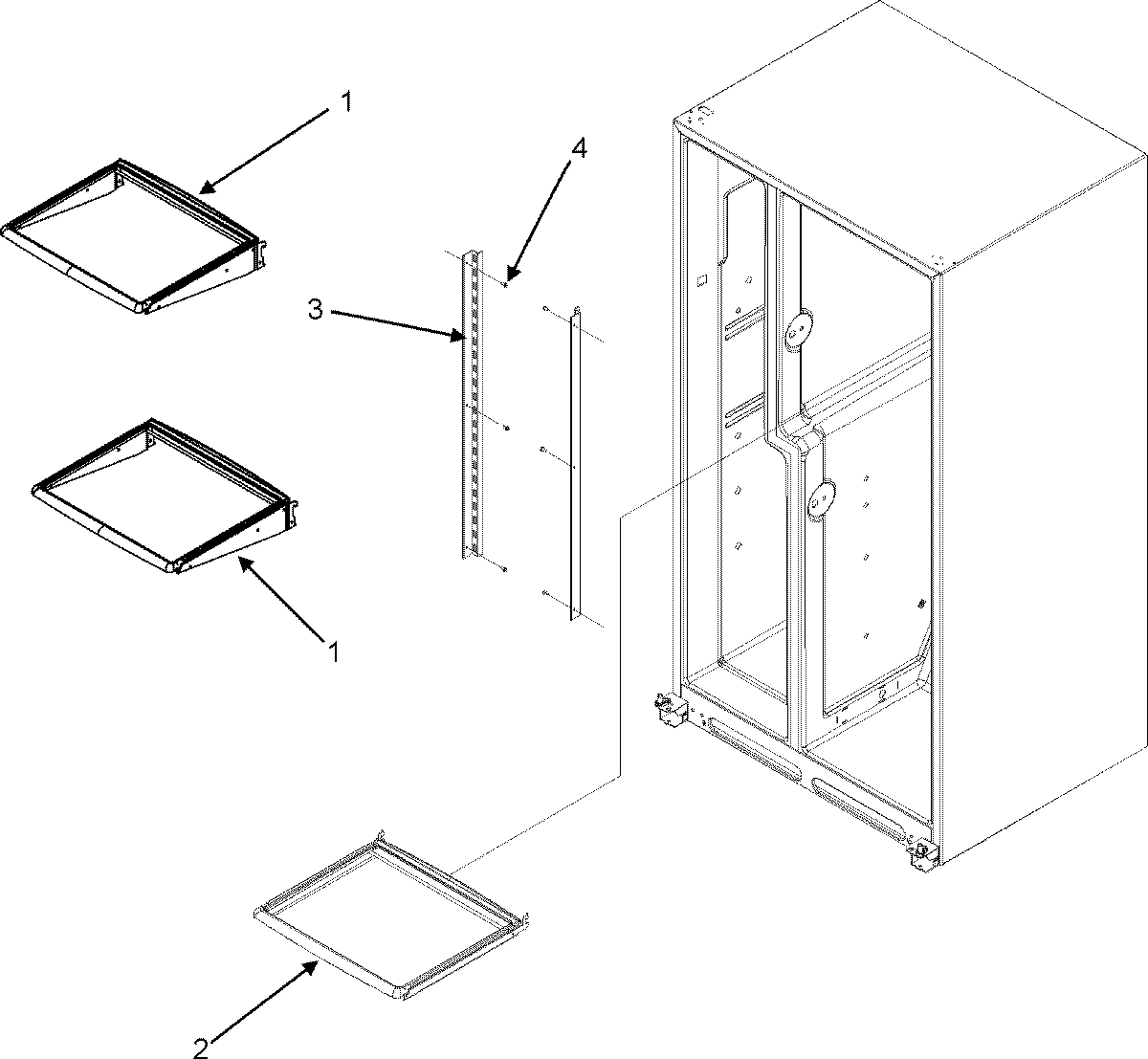

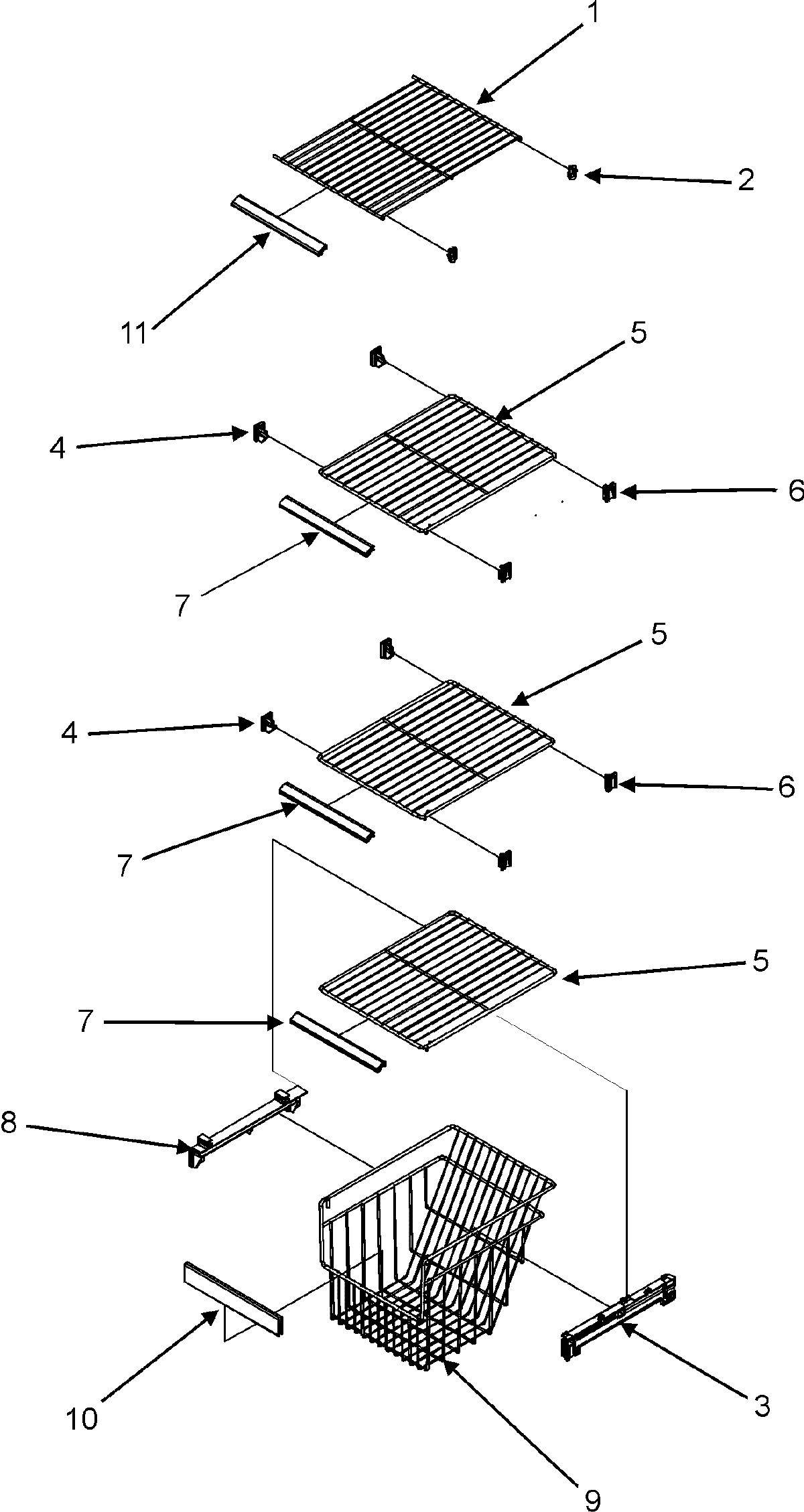

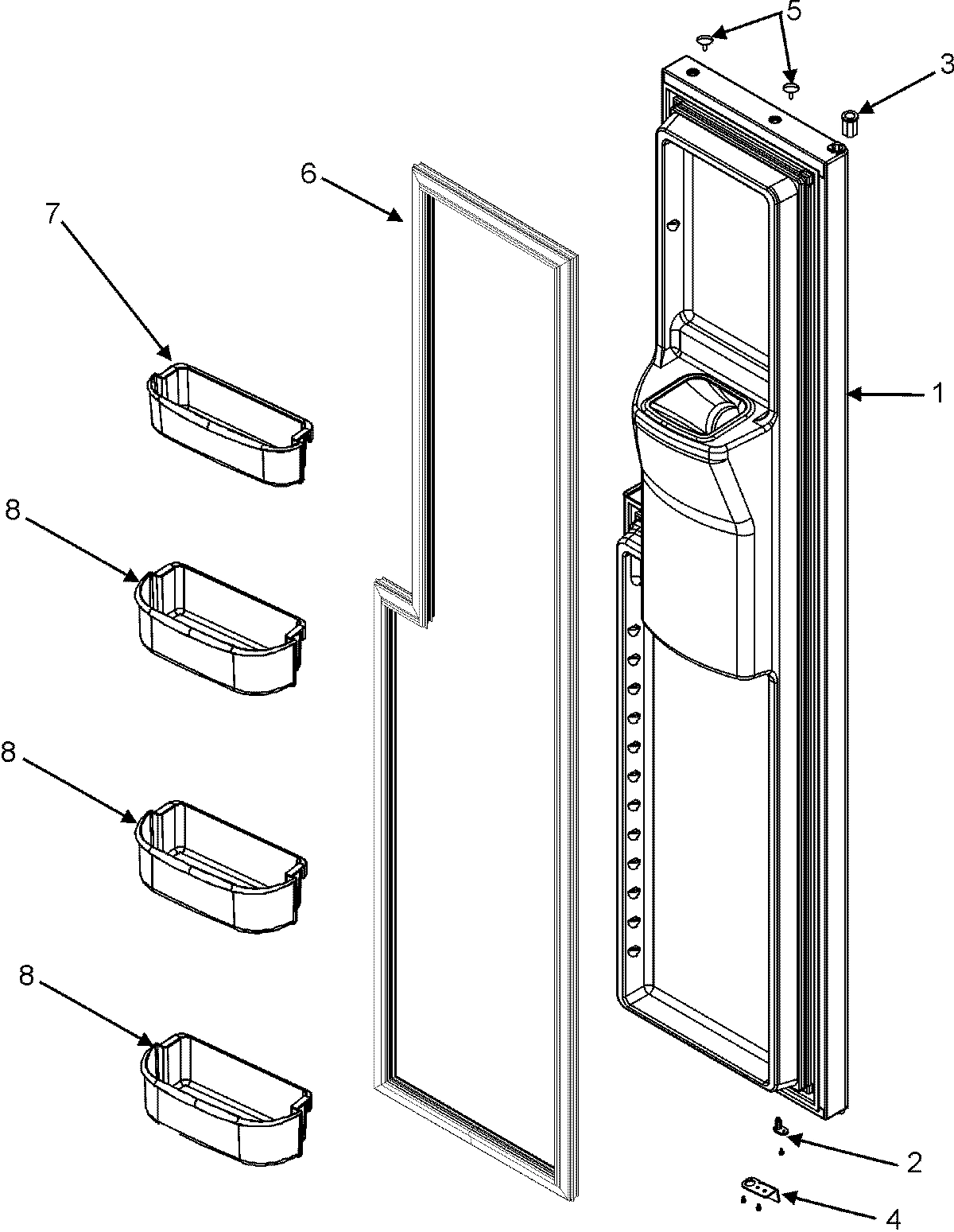

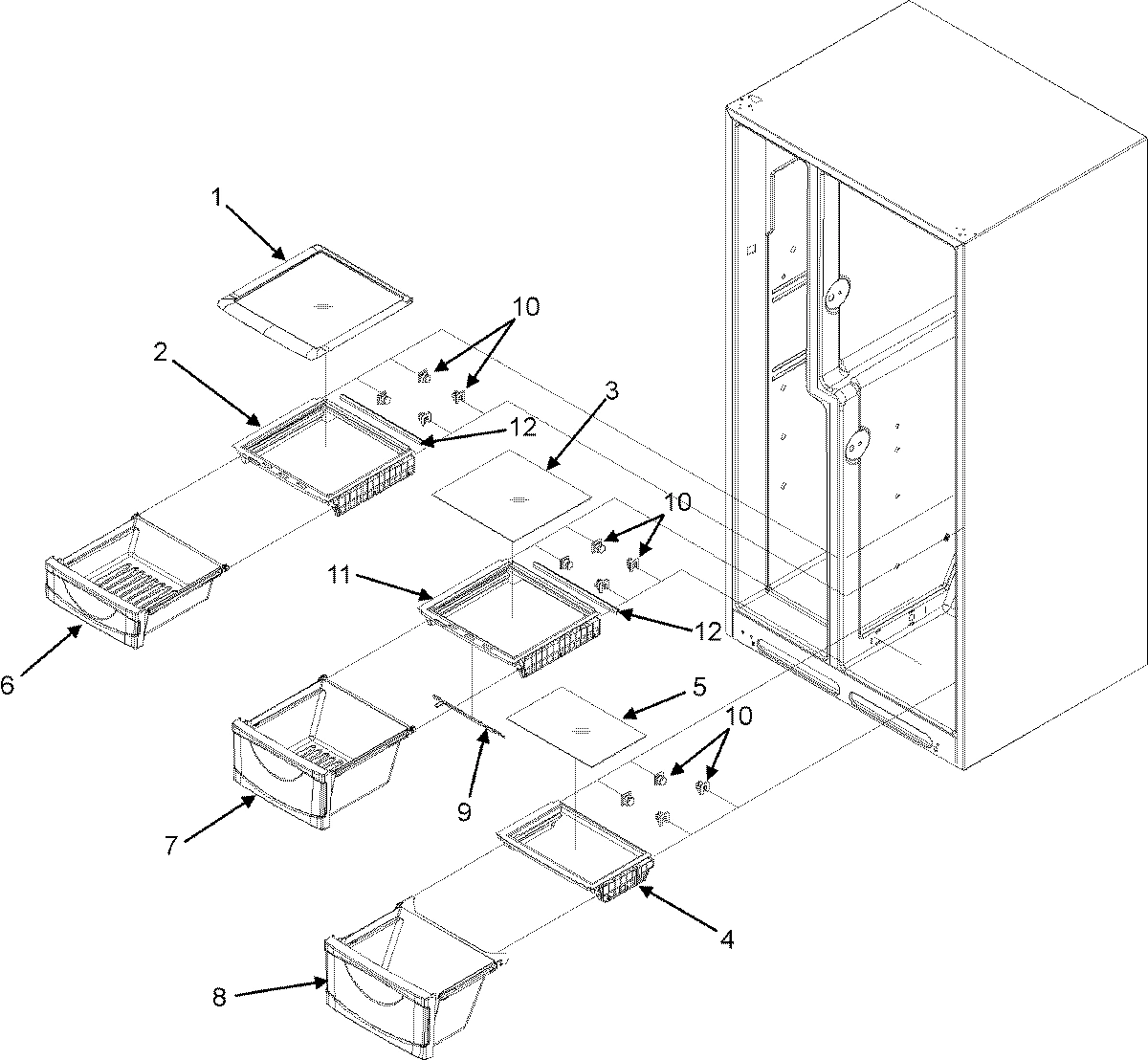

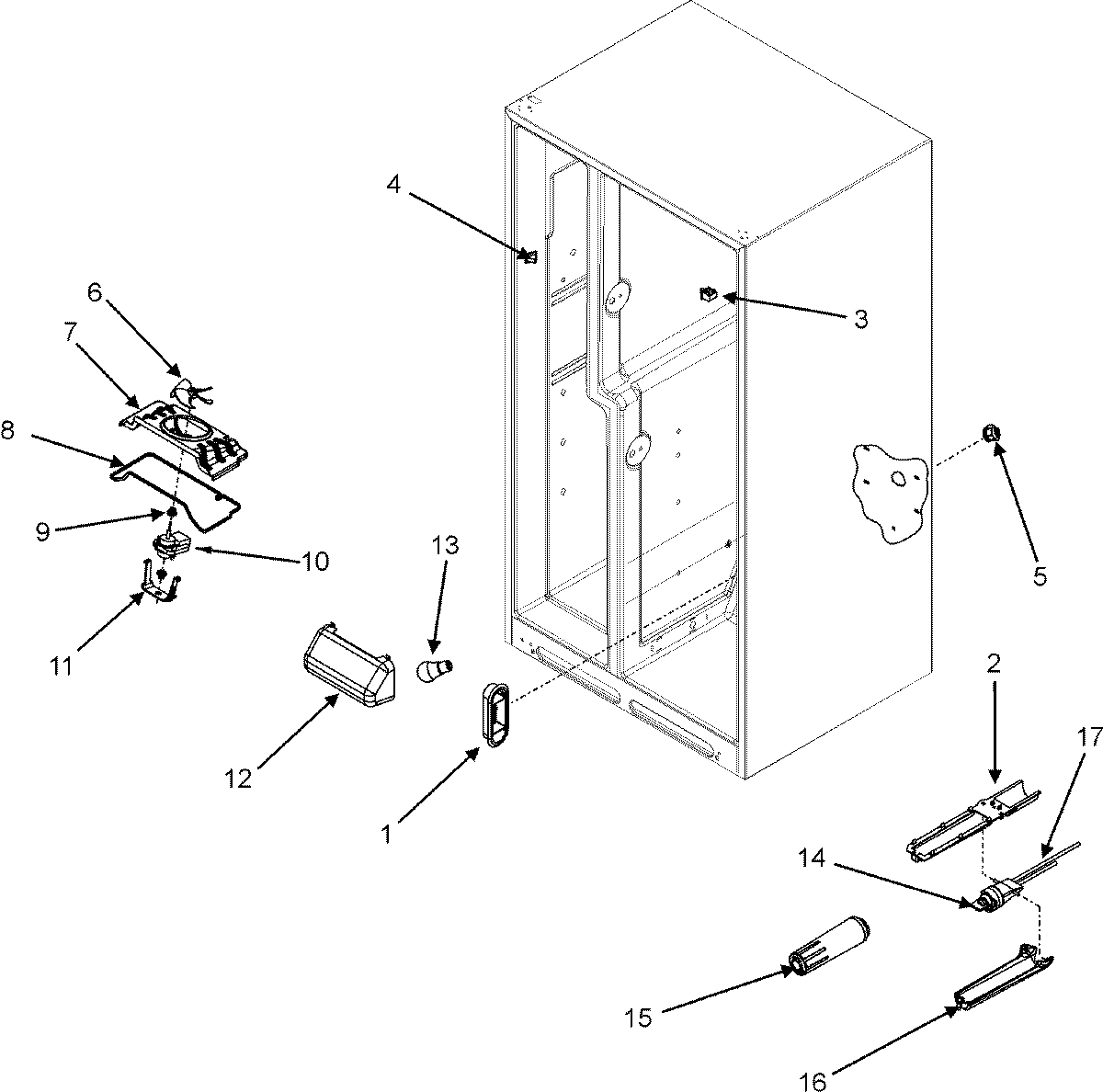

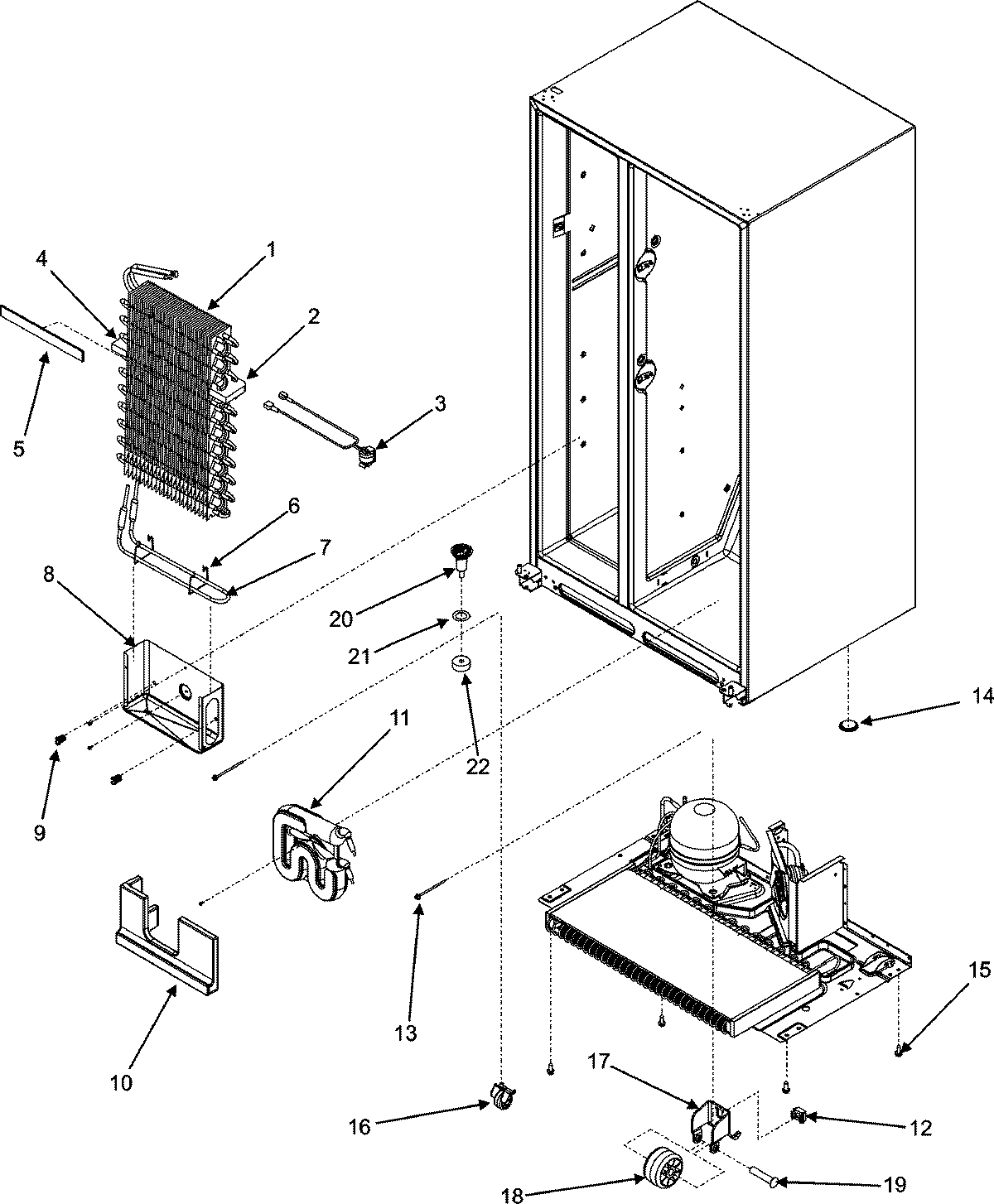

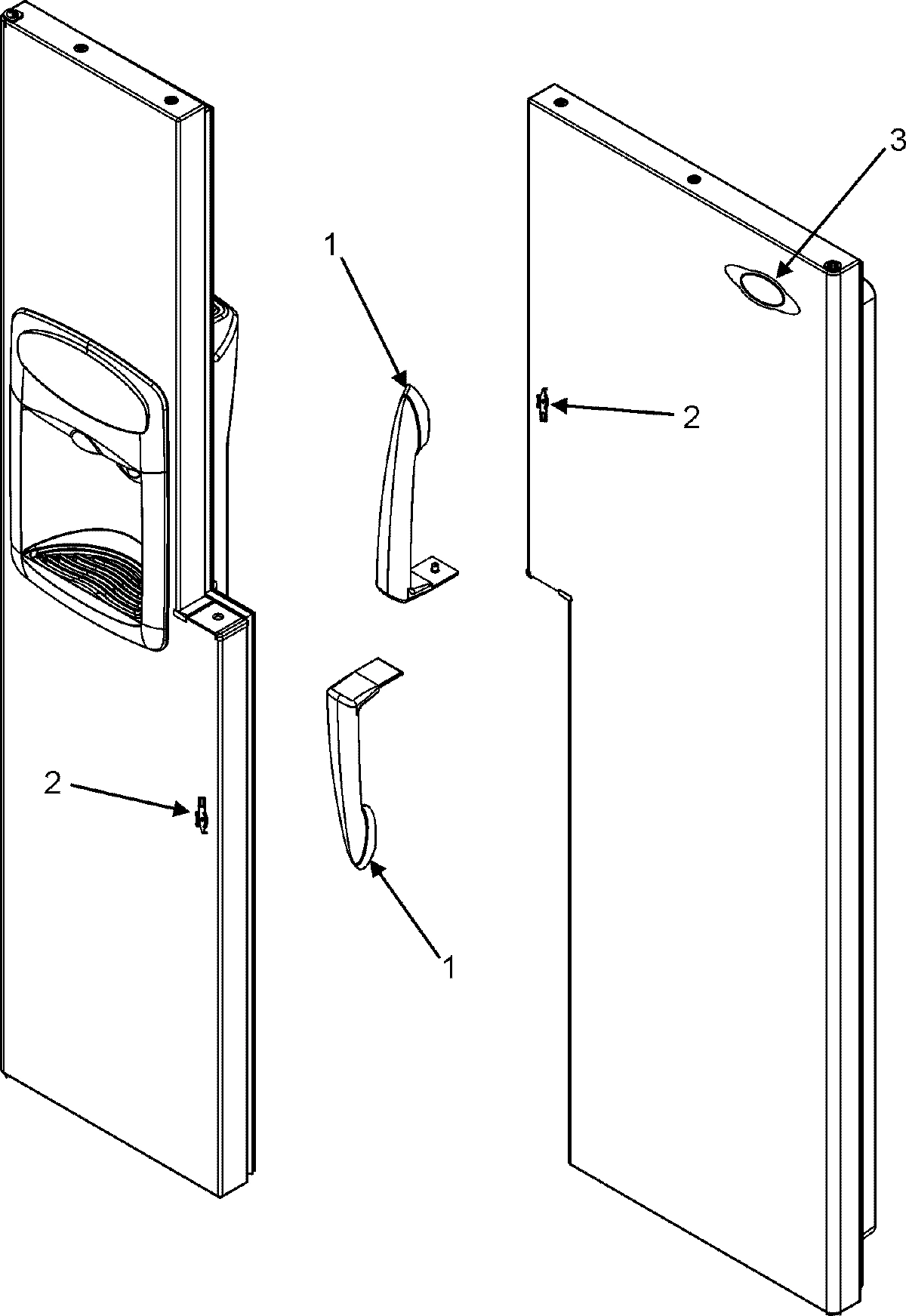

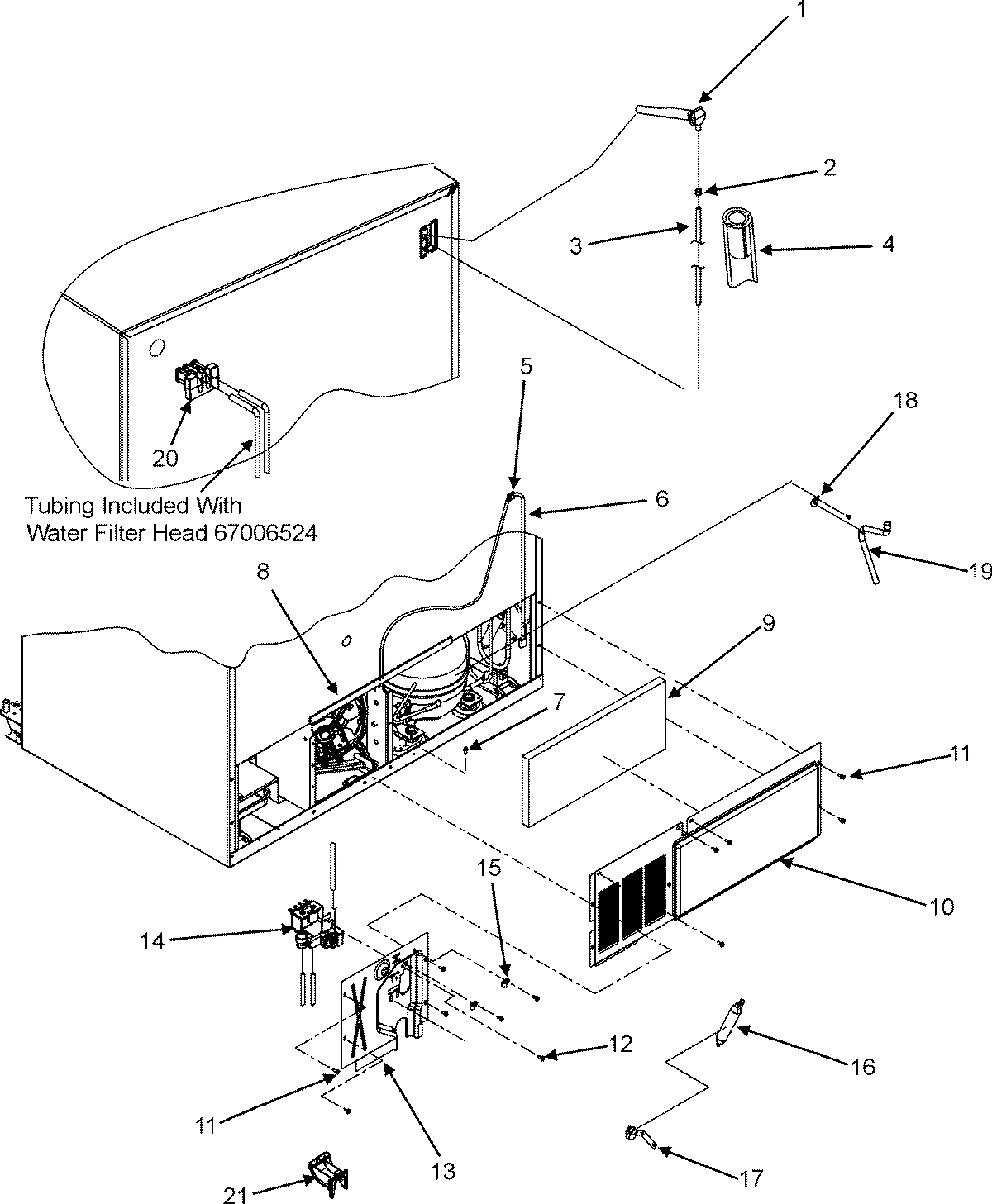

Model Whirlpool MZD2663KEQ REFRIGERATOR – Common Parts &amp; Diagrams

1

67007028 Whirlpool Refrigerator Hand Card Backorder WPL 67007028 $4.94

1

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $64.55

1

WP67006006 Whirlpool Refrigerator Ice Bucket Backorder WPL WP67006006 $105.28

1

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $3.84

1

EVAP KIT (SXS) WPL 12001940 Contact Us For Availability

1

SHELF, CRISPER TOPx WPL 67004162 Contact Us For Availability

1

HANDLE ASSY., DOOR (BSQ) WPL 67007027 Contact Us For Availability

1

DOOR ASSY., REF. FOAM (BSQ) WPL 67006844 Contact Us For Availability

1

GASKET, DAMPER WPL 67004031 Contact Us For Availability

1

SHELF, GLIDE OUT WPL 67003887 Contact Us For Availability

1

MANUAL, USE & CARE WPL 12842123 Contact Us For Availability

1

SHELF, UPR FZ WPL 67004178 Contact Us For Availability

1

DOOR ASSY., FRZ. FOAM (BSQ) WPL 67007012 Contact Us For Availability

2

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

2

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $33.29

2

WP67006852 Whirlpool Clip Backorder WPL WP67006852 $14.21

2

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $2.60

2

WPD7749401 Whirlpool Drive Gear In Stock WPL WPD7749401 $13.30

2

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.77

2

ACTR PAD FRAME ASSY. (STNLS) WPL 12598902S Contact Us For Availability

2

FRAME, CRISPER SHELF WPL 67004077 Contact Us For Availability

2

CLOSURE, DOOR (BLK) WPL 67006134 Contact Us For Availability

2

GROMMET, SCREW WPL M0580205 Contact Us For Availability

2

BLOCK, AIR COIL (RT) WPL 12590102 Contact Us For Availability

2

ASSY, IM ARM/WIRE WPL 12671401 Contact Us For Availability

2

SHELF, LEDGE GLIDE WPL 67004161 Contact Us For Availability

2

SVC MAN, SXS WPL 16025628 Contact Us For Availability

2

SUPPORT, FRZ SHELF WPL C8973801 Contact Us For Availability

2

COVER, TOP HINGE (LT-BSQ) WPL 67003976 Contact Us For Availability

2

CLOSURE, DOOR (BLK) WPL 67006677 Contact Us For Availability

3

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $14.42

3

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $35.51

3

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.60

3

WP67004757 Whirlpool Refrigerator Thermostat In Stock WPL WP67004757 $43.99

3

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.60

3

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $7.68

3

AGITATOR, ICE WPL 10114401 Contact Us For Availability

3

CLIP, CORD WPL M0104102 Contact Us For Availability

3

GLASS, CRISPER SHELF WPL 67004076 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

BUSHING, DOOR (BLK) WPL 67004976 Contact Us For Availability

3

EXTENSION, KNOB WPL 12571801 Contact Us For Availability

3

LADDER, SIDE WPL 67005600 Contact Us For Availability

3

TECH SHT, SXS WPL 16026981 Contact Us For Availability

3

RAIL, BASKET (RT) WPL 67004179 Contact Us For Availability

3

BUSHING, DOOR (BLK) WPL 12395501B Contact Us For Availability

4

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.60

4

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

4

W11214483 Whirlpool Refrigerator Screw Backorder WPL W11214483 $9.96

4

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.84

4

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.74

4

SEAL, ICE CHUTE WPL 12665101 Contact Us For Availability

4

FRAME, MEAT SHELF WPL 67004163 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

SCREW WPL 67006672 Contact Us For Availability

4

STOP, DOOR (BSQ) WPL 67006926 Contact Us For Availability

4

BRACKET, CONTROL WPL 67002981 Contact Us For Availability

4

BLOCK, AIR COIL (LT) WPL 12590101 Contact Us For Availability

4

BAR, CRSH ICE BUCKET WPL 10113801 Contact Us For Availability

4

TAG, ENERGY WPL 67007037 Contact Us For Availability

4

SUPPORT, SHELF (LT) WPL 12015002 Contact Us For Availability

4

STOP, DOOR (BSQ) WPL 67006928 Contact Us For Availability

5

67005375 Whirlpool Refrigerator Glide, Freeze Backorder WPL 67005375 $183.88

5

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $176.42

5

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.60

5

INSUL, CHUTE DOORxx WPL 12563401 Contact Us For Availability

5

GLASS, MEAT SHELF WPL 67004164 Contact Us For Availability

5

INLET, WATER WPL 951001 Contact Us For Availability

5

PLUG, BUTTON (BSQ) WPL M0311606 Contact Us For Availability

5

SCREW WPL M0216539 Contact Us For Availability

5

GASKET, FOAM WPL 67002226 Contact Us For Availability

5

SCREW, HEX HEAD WPL 67006508 Contact Us For Availability

5

SHELF, LWR FZ WPL 67004688 Contact Us For Availability

5

HINGE, TOP (LT-BLK) WPL 67005831 Contact Us For Availability

6

67006529 Whirlpool Refrigerator Screw Backorder WPL 67006529 $9.96

6

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.09

6

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $18.24

6

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.84

6

PAN ASSY., SM CRISPER WPL 67004997 Contact Us For Availability

6

IM ARM/WIRE ASSY WPL 12671401Q Contact Us For Availability

6

TRAY, EGG WPL 600661 Contact Us For Availability

6

BOX, DEFROST CONTROL WPL 12624801 Contact Us For Availability

6

SUPPORT, SHELF (RT) WPL 10941102 Contact Us For Availability

6

COVER, CORNER (BSQ) WPL 67003486 Contact Us For Availability

6

GASKET, FRZ. DOOR (WHT) WPL 67003972 Contact Us For Availability

7

WP67004188 Whirlpool Heater Defrost Assembly In Stock WPL WP67004188 $84.64

7

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.93

7

WPW10146386 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10146386 $48.20

7

HINGE, ICE CHUTE WPL 67004119 Contact Us For Availability

7

PAN ASSY., LG CRISPER WPL 67004998 Contact Us For Availability

7

GASKET, REF. DOOR (WHT) WPL 67003970 Contact Us For Availability

7

GASKET, DAMPER WPL 12582801 Contact Us For Availability

7

GLIDE, FRZ. (RT) WPL 67004323 Contact Us For Availability

7

COVER, BLADE WPL 67002271 Contact Us For Availability

7

TRIM, FRZ SHELF WPL 67004181 Contact Us For Availability

7

COVER, TOP HINGE (RT-BSQ) WPL 67004026 Contact Us For Availability

7

BUCKET, UPR FZ DR WPL 67004773 Contact Us For Availability

8

WP12565502 Whirlpool Refrigerator Spring Backorder WPL WP12565502 $3.84

8

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $10.89

8

WP67003576 Whirlpool Refrigerator Fill Tube E Backorder WPL WP67003576 $38.99

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

8

PAN ASSY., MEAT WPL 67007036 Contact Us For Availability

8

DOOR, DAIRY WPL 67003973 Contact Us For Availability

8

GASKET, MC BACK WPL B5759649 Contact Us For Availability

8

CONTROL, DAMPER WPL 12571701 Contact Us For Availability

8

TRAY, EVAP DRIP WPL 12558101WD Contact Us For Availability

8

BACK, INNER FZ WPL 67004190 Contact Us For Availability

8

FRONT, ICE CRUSHER WPL 10115001 Contact Us For Availability

8

RAIL, BASKET (LT) WPL 67004182 Contact Us For Availability

8

MOTOR, CONDENSER FAN WPL 67004432 Contact Us For Availability

8

BUCKET, LWR FZ DR WPL 67004114 Contact Us For Availability

9

WP67006534 Whirlpool Refrigerator Ice Cube Ch Backorder WPL WP67006534 $59.93

9

FIBER, ACOUSTIC WPL 67003796 Contact Us For Availability

9

SLIDE, CONTROL (WHT) WPL 67004885 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

TRAY, DAIRY WPL 67003974 Contact Us For Availability

9

INSULATION, DAMPER WPL 12604201 Contact Us For Availability

9

CLIP, EVAPORATOR WPL 10623003 Contact Us For Availability

9

COVER, SUPPLY AIR WPL 12583101 Contact Us For Availability

9

GROMMET, SCREW WPL M0580007 Contact Us For Availability

9

PIN, ROLL WPL M1200108 Contact Us For Availability

9

BASKET, LWR FZ WPL 67006232 Contact Us For Availability

WP12603701 Whirlpool Refrigerator Support In Stock WPL WP12603701 $4.48

WP12866903 Whirlpool Refrigerator Discharge T Backorder WPL WP12866903 $83.02

COVER, MC BACK WPL 67006101 Contact Us For Availability

SOLENOID WPL 67006000 Contact Us For Availability

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

BUCKET, REF. DOOR (GAL) WPL 67007031 Contact Us For Availability

GASKET, CONTROL COVER WPL 12582901 Contact Us For Availability

DUCT, QUICK ICE 26 WPL 67003578 Contact Us For Availability

ANCHOR, BLADE WPL 10114101 Contact Us For Availability

TRIM, FZ BASKET WPL 67003874 Contact Us For Availability

HINGE, BOTTOM (LT-BLK) WPL 67006685 Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $11.17

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $6.56

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $42.29

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $3.84

WPM0223101 Whirlpool Refrigerator Nut Backorder WPL WPM0223101 $2.60

SCREW WPL 67006491 Contact Us For Availability

FRAME, LG CRISPER SHELF WPL 67005000 Contact Us For Availability

BUCKET, REF. DOOR (GAL) WPL 67004965 Contact Us For Availability

COVER, DEFROST CONTROL WPL 12624901 Contact Us For Availability

BLOCK, WATER TANK WPL 67004309 Contact Us For Availability

TANK, WATER WPL 67003504 Contact Us For Availability

TRIM, UPR SHELF WPL 67004184 Contact Us For Availability

12757702 Whirlpool Dispenser Harness Backorder WPL 12757702 $30.29

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $30.91

W11227239-includeCORE Whirlpool W11227239 Ref Backorder WPL W11227239-includeCORE $242.08

WP489483 Whirlpool Screw Backorder WPL WP489483 $4.75

WP67003226 Whirlpool Motor Auger Backorder WPL WP67003226 $174.05

SOCKET, LIGHT WPL 12617501 Contact Us For Availability

SEAL, CRISPER FRAME (REAR) WPL 67004173 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

TRAY, BUTTER WPL 299362 Contact Us For Availability

SCREW WPL 67006841 Contact Us For Availability

SPACER, COVER WPL 10113901 Contact Us For Availability

PAN, BASE WPL 67005889 Contact Us For Availability

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $5.04

WP67005335 Whirlpool Refrigerator Temperature In Stock WPL WP67005335 $84.28

FACADE, 5 BUTTON (BSQ) WPL 67006929 Contact Us For Availability

COVER, WATER VALVE WPL 67004098 Contact Us For Availability

COVER, AUGER MOTOR WPL 67004191 Contact Us For Availability

DAMPER, ICE WPL 10275201 Contact Us For Availability

CLOSURE, DOOR (BLK) WPL 67006493 Contact Us For Availability

STRAP, BALE WPL 12576801 Contact Us For Availability

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $23.96

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.74

WP67004151 Whirlpool Overlay In Stock WPL WP67004151 $30.56

WP67005716 Whirlpool Refrigerator Shim Backorder WPL WP67005716 $3.84

WP67006531 Whirlpool Water Inlet Valve In Stock WPL WP67006531 $131.39

BLADE, STATIC WPL 10114601 Contact Us For Availability

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.62

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $169.07

SCREW WPL 67006682 Contact Us For Availability

COVER, CONTROL WPL 67004158 Contact Us For Availability

SCREW WPL 67006573 Contact Us For Availability

BLADE, ROTATING WPL 10114501 Contact Us For Availability

HINGE, BOTTOM (RT-BLK) WPL 67006686 Contact Us For Availability

BLOCK-EPS COND WPL 67002235 Contact Us For Availability

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $74.65

TRAY, SUMP (BSQ) WPL 67004153 Contact Us For Availability

SCREW WPL M0231426 Contact Us For Availability

ROLLER BRACKET ASSY WPL 67002227 Contact Us For Availability

WASHER, WAVED WPL 10275101 Contact Us For Availability

CLIP, TOE GRILLE WPL 12627302 Contact Us For Availability

GRILLE, TOE (BSQ) WPL 67006930 Contact Us For Availability

SHROUD, CONDENSER FAN WPL 67001090 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $34.54

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $29.92

CLIP, DRIER WPL 10547002 Contact Us For Availability

KNOB, CONTROL WPL 12581101 Contact Us For Availability

SHIELD, FZ LIGHT WPL 67004433 Contact Us For Availability

WASHER STEPPED WPL 10114301 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.40

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $4.03

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $5.00

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $33.99

SCREW WPL M0220621 Contact Us For Availability

KNOB, CONTROL WPL 12581102 Contact Us For Availability

WP12740302 Whirlpool Refrigerator Crusher Mec In Stock WPL WP12740302 $339.04

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.60

WP67006415 Whirlpool Refrigerator Screw In Stock WPL WP67006415 $3.84

LABEL, DISPENSER WPL 67006684 Contact Us For Availability

TUBE, DRAIN WPL 12580401 Contact Us For Availability

HOUSING, LIGHT WPL 67004155 Contact Us For Availability

RIVET WPL M1205302 Contact Us For Availability

COVER, EVAP WPL 67004192 Contact Us For Availability

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.75

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $32.15

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $11.17

OVERLAY WPL 67004156 Contact Us For Availability

FUNNEL, DRAIN WPL 12456901 Contact Us For Availability

COVER, ICE BUCKET WPL 67004194 Contact Us For Availability

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.98

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.84

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.00

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.90

DOOR, ICE BUCKET WPL 67005298 Contact Us For Availability

67004955 Whirlpool Refrigerator MC Harness Backorder WPL 67004955 $68.30

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.84

TRACK, WATERLINE WPL 67004102 Contact Us For Availability

SHIELD, FZ LIGHT WPL 67004135 Contact Us For Availability

23

REFLECTOR, LIGHT WPL 67005038 Contact Us For Availability

23

HEATER/HARNESS, FRZ WPL 67006839 Contact Us For Availability

24

INSULATION, TUBING WPL 67004185 Contact Us For Availability

25

TUBE, FZ CONTROL WPL 67005936 Contact Us For Availability

26

HARNESS, CONTROL WPL 67004154 Contact Us For Availability

NI

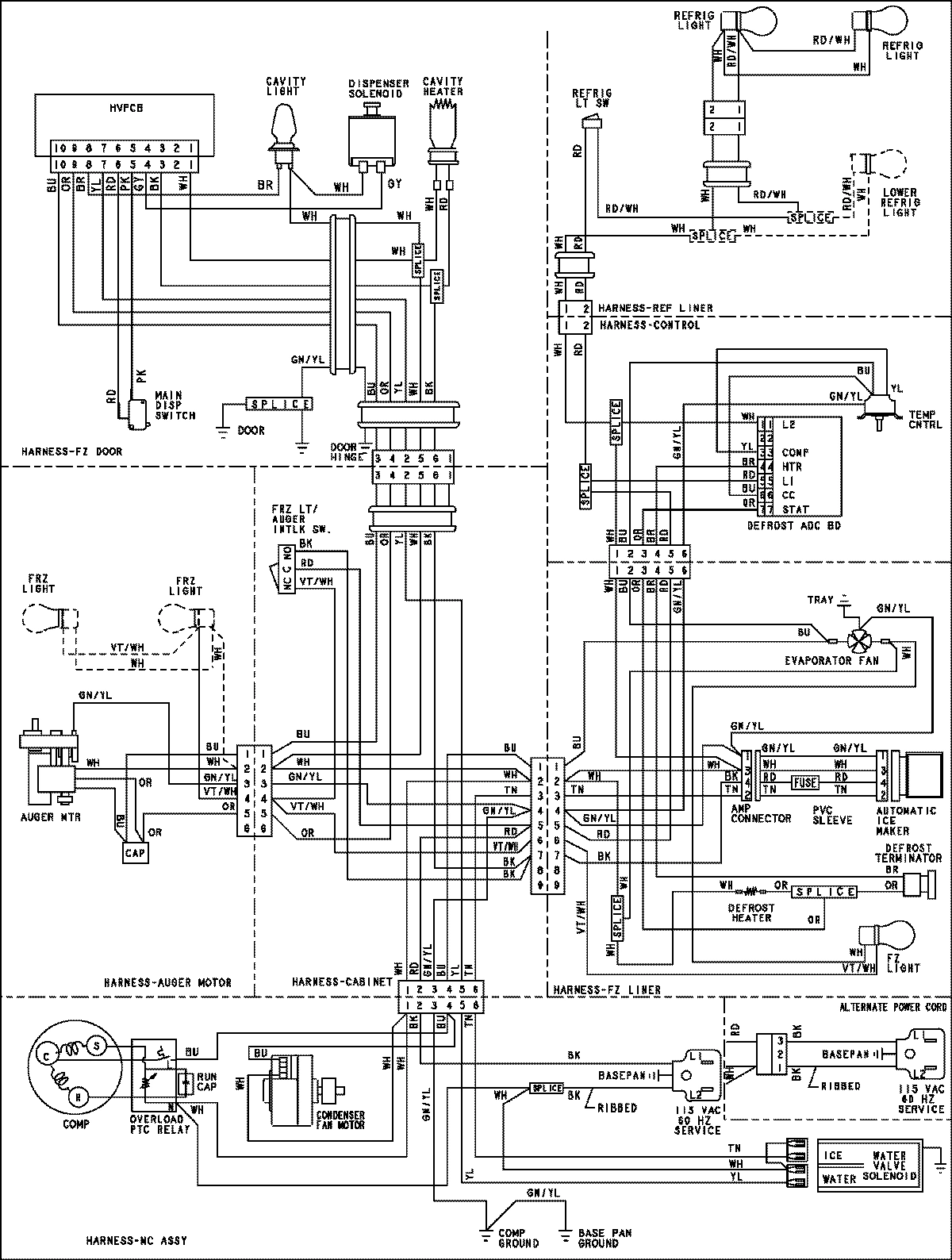

WIRING INFORMATION WPL 15003928 Contact Us For Availability
