Model Whirlpool MSD2574VEB10 REFRIGERATOR – Common Parts &amp; Diagrams

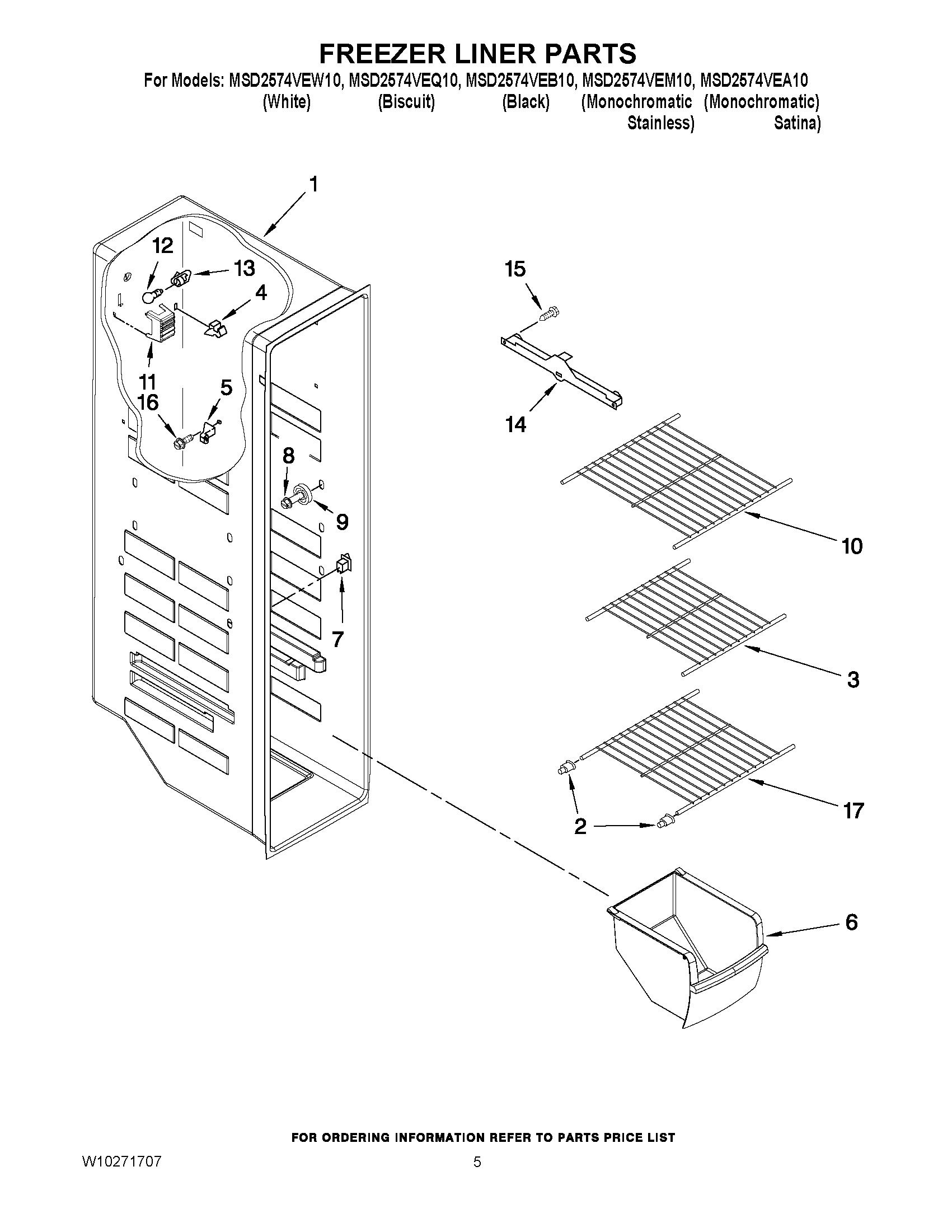

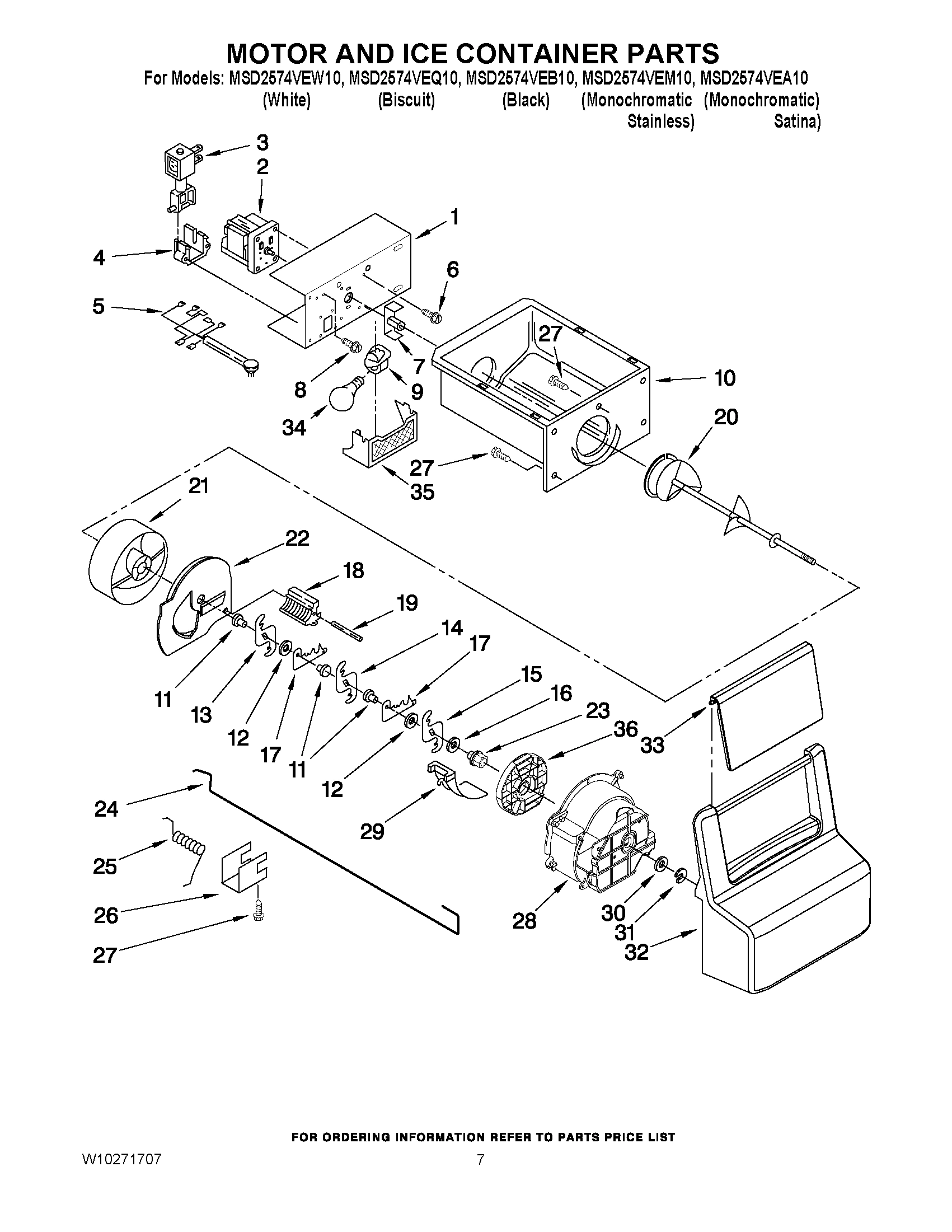

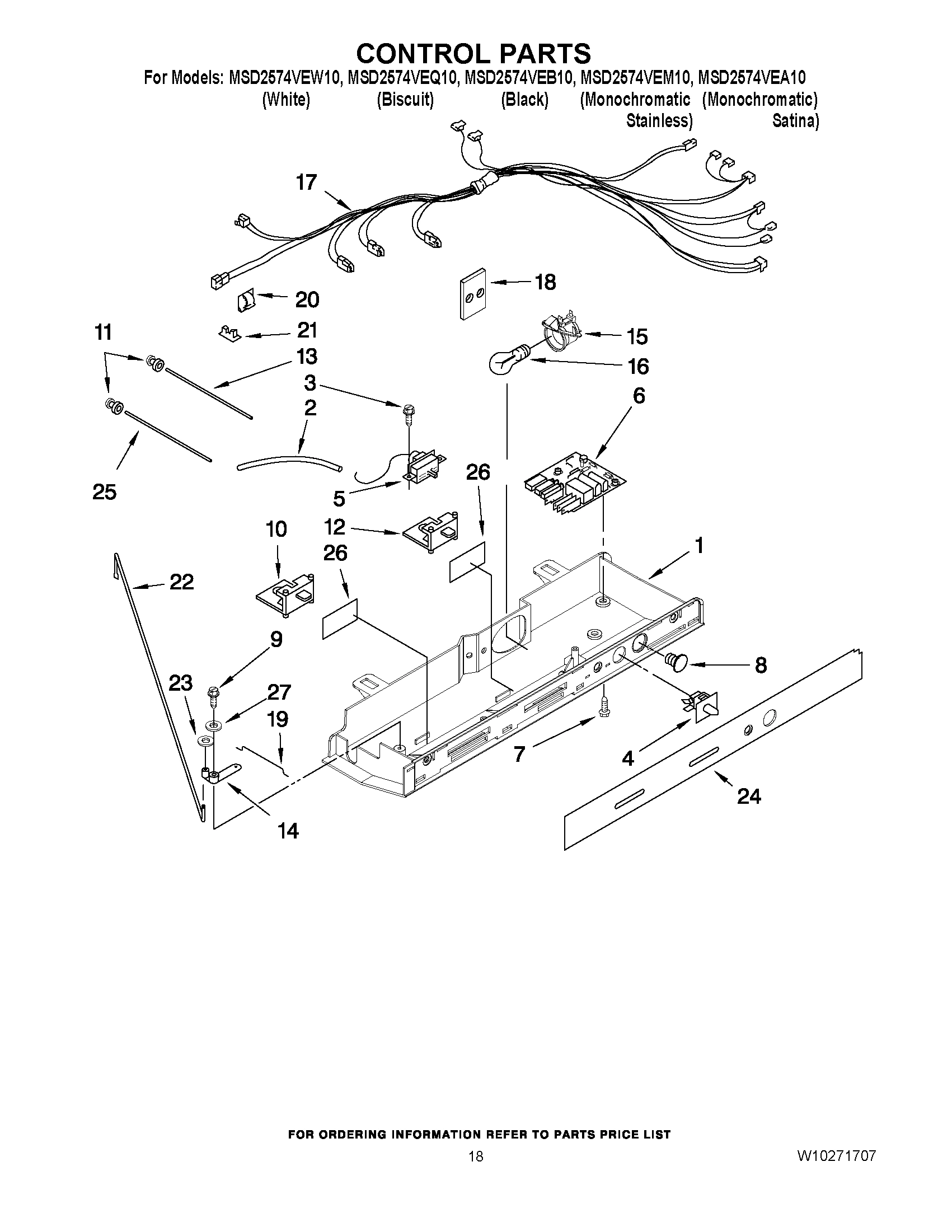

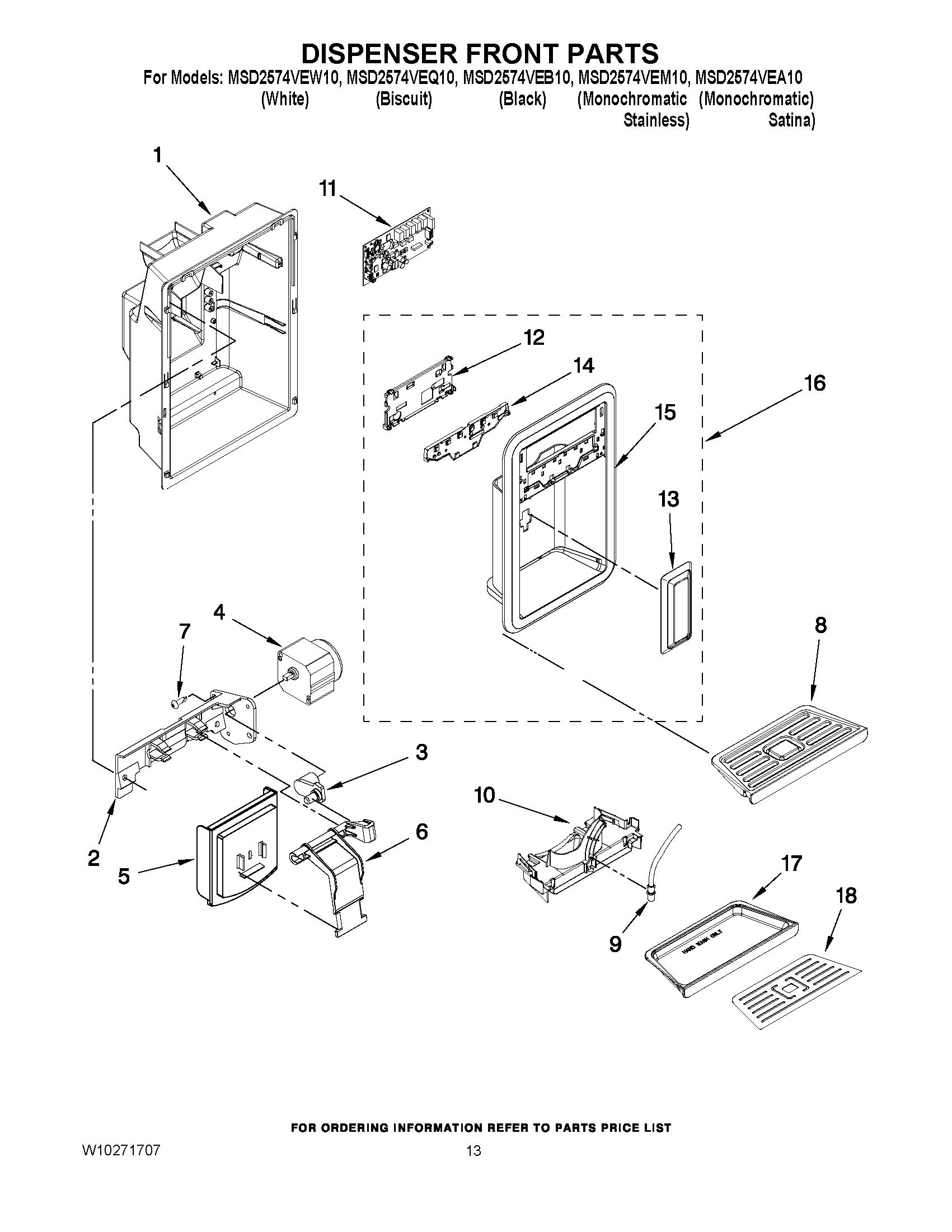

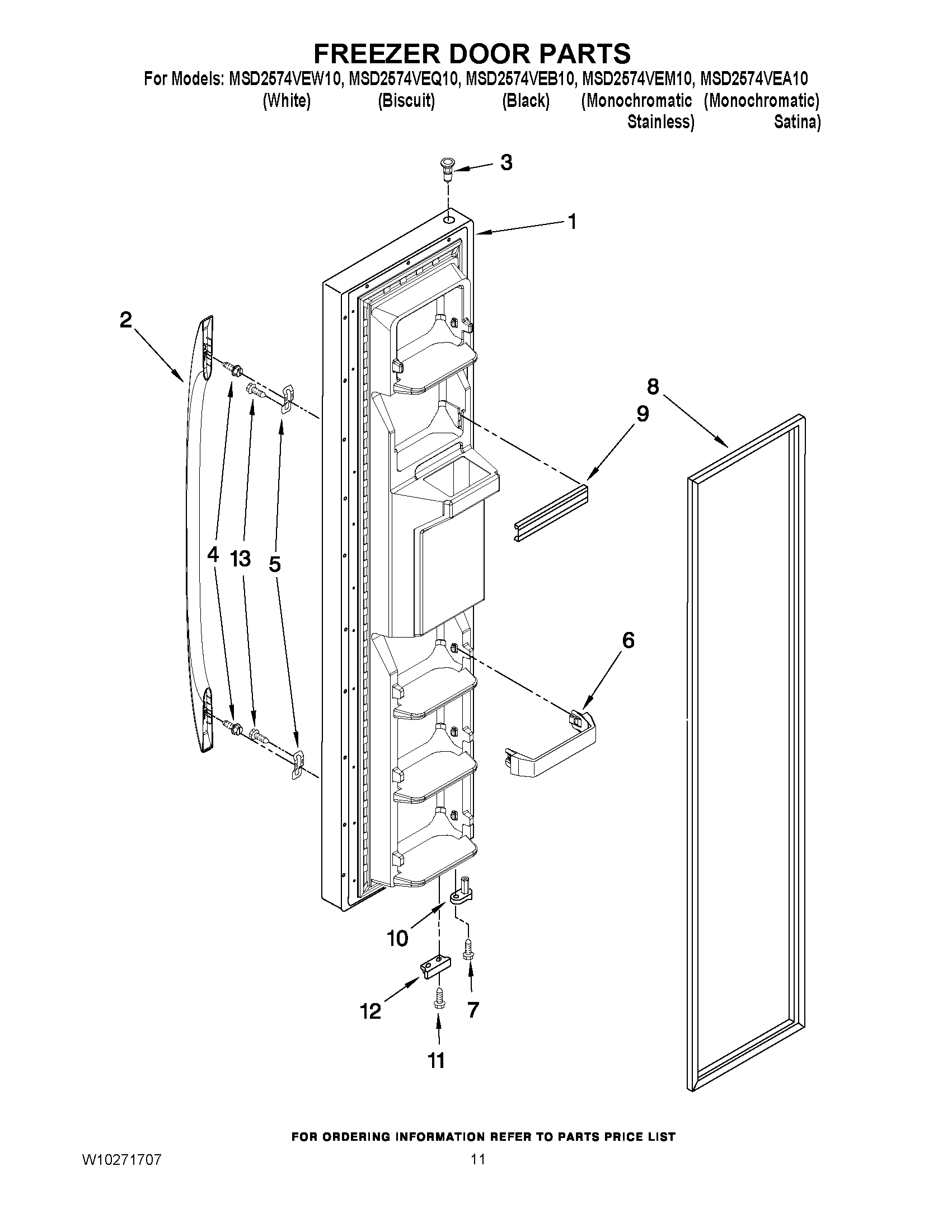

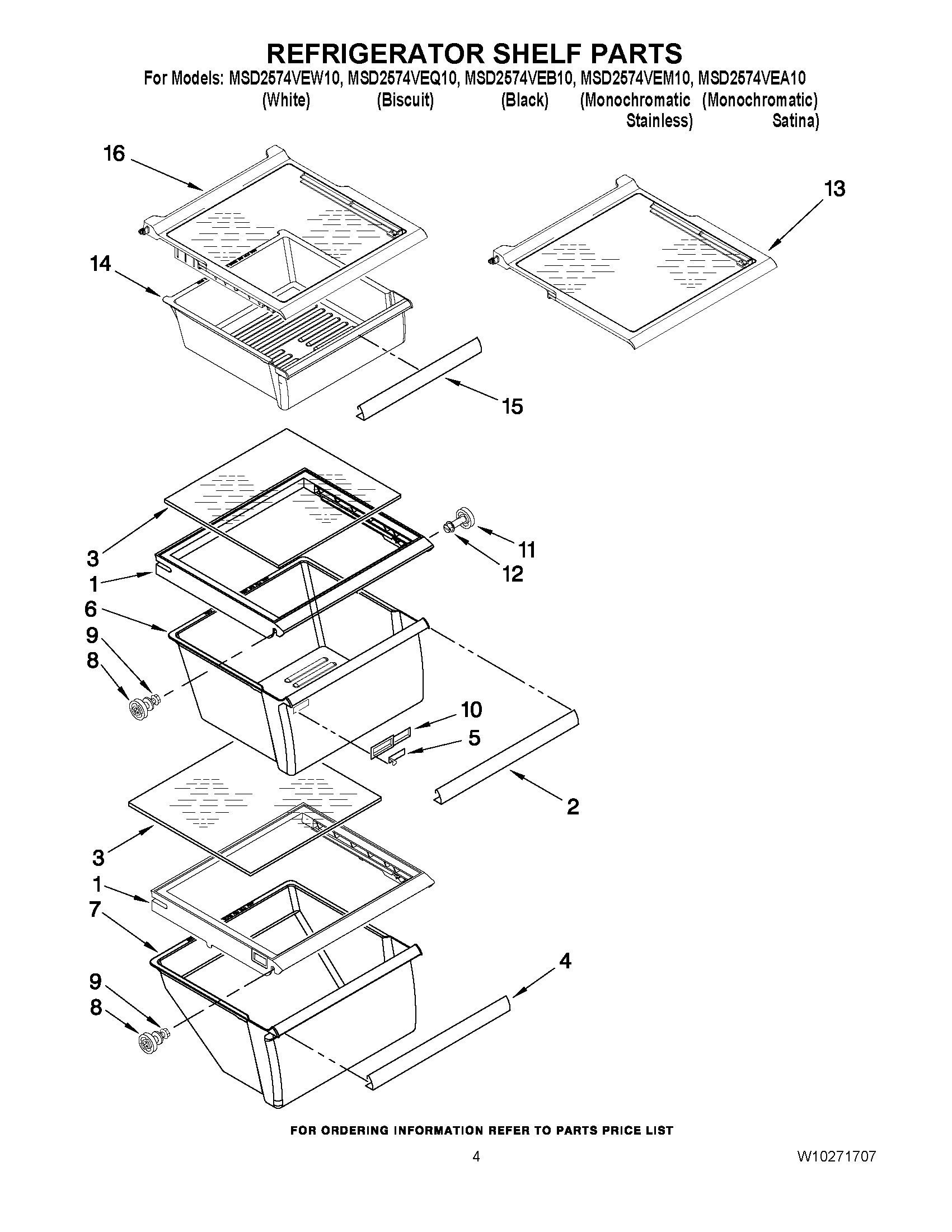

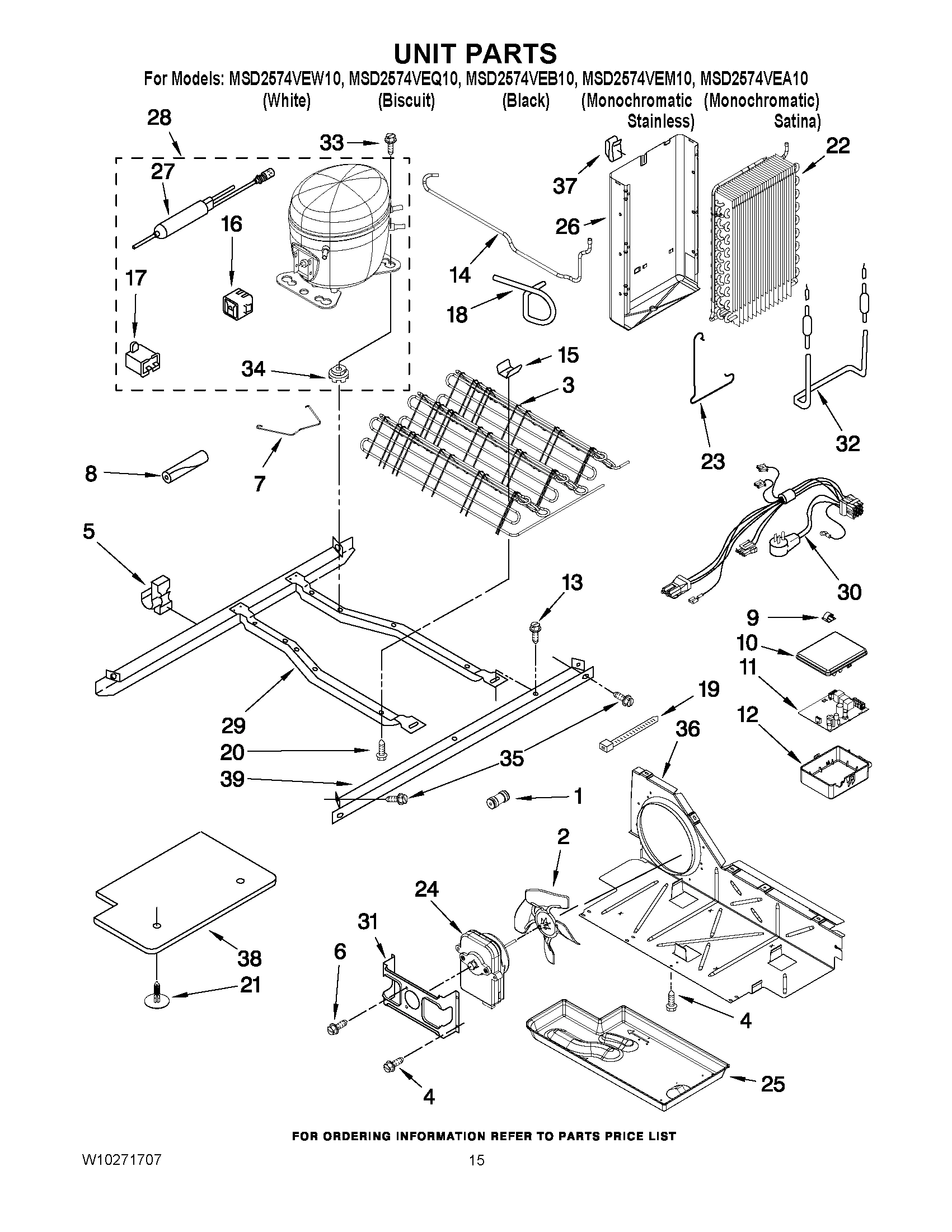

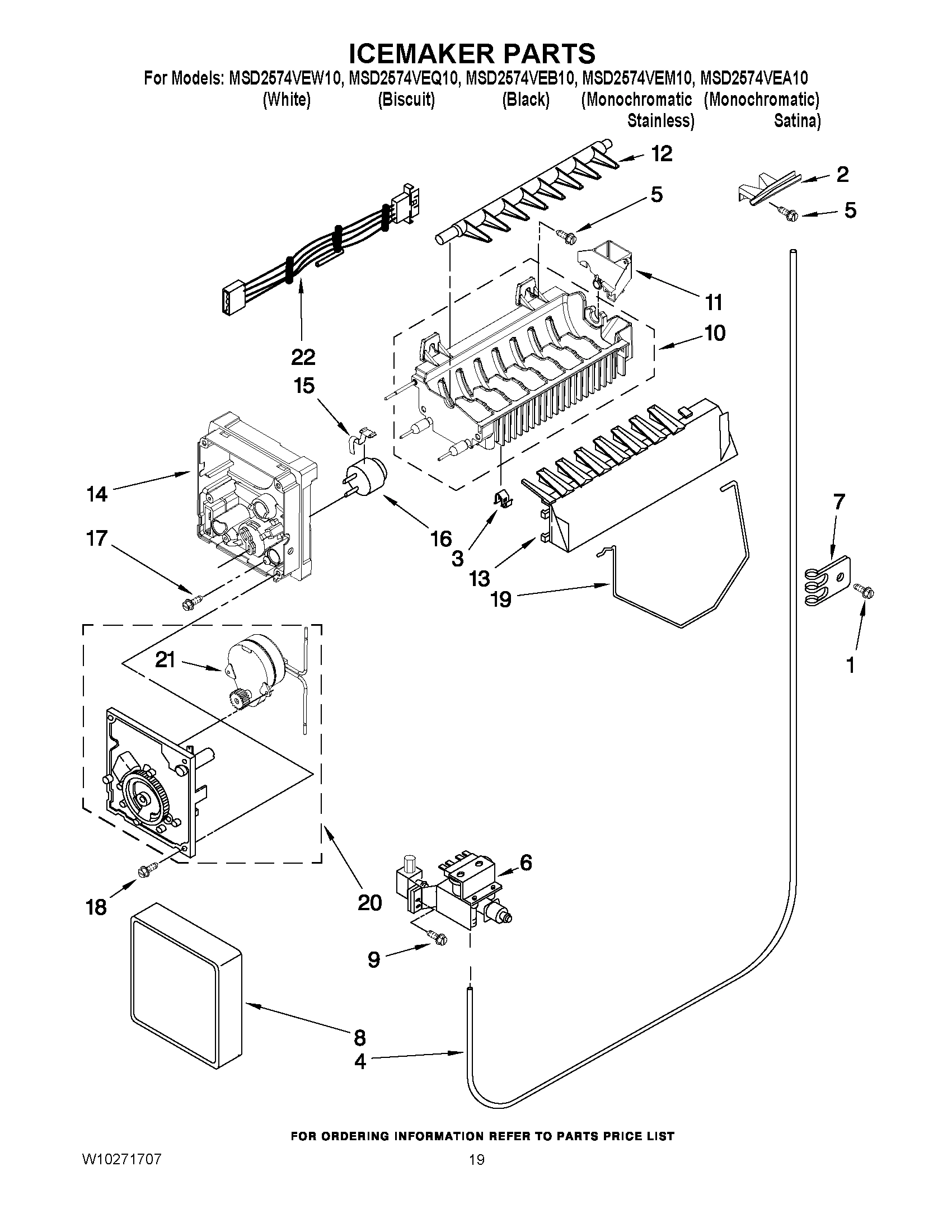

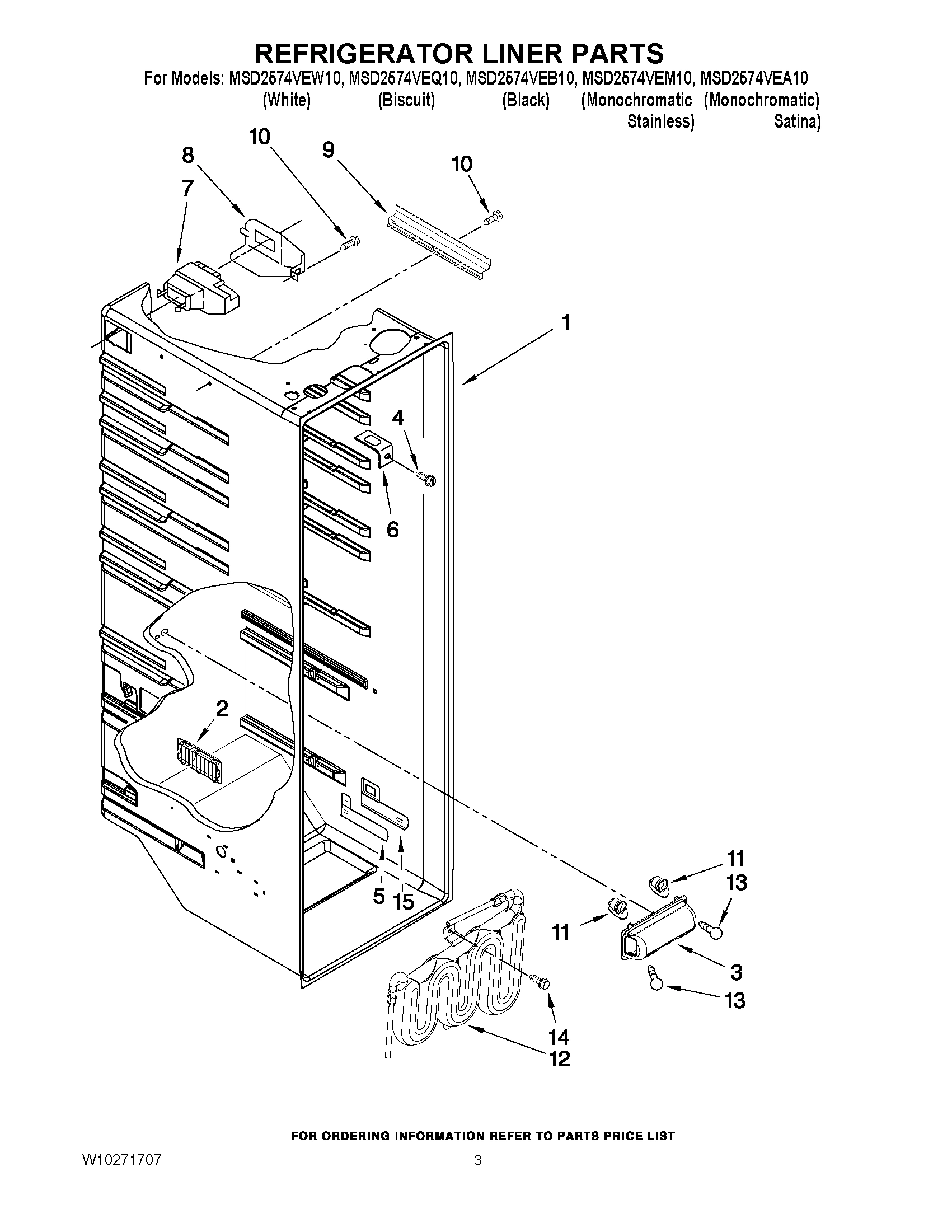

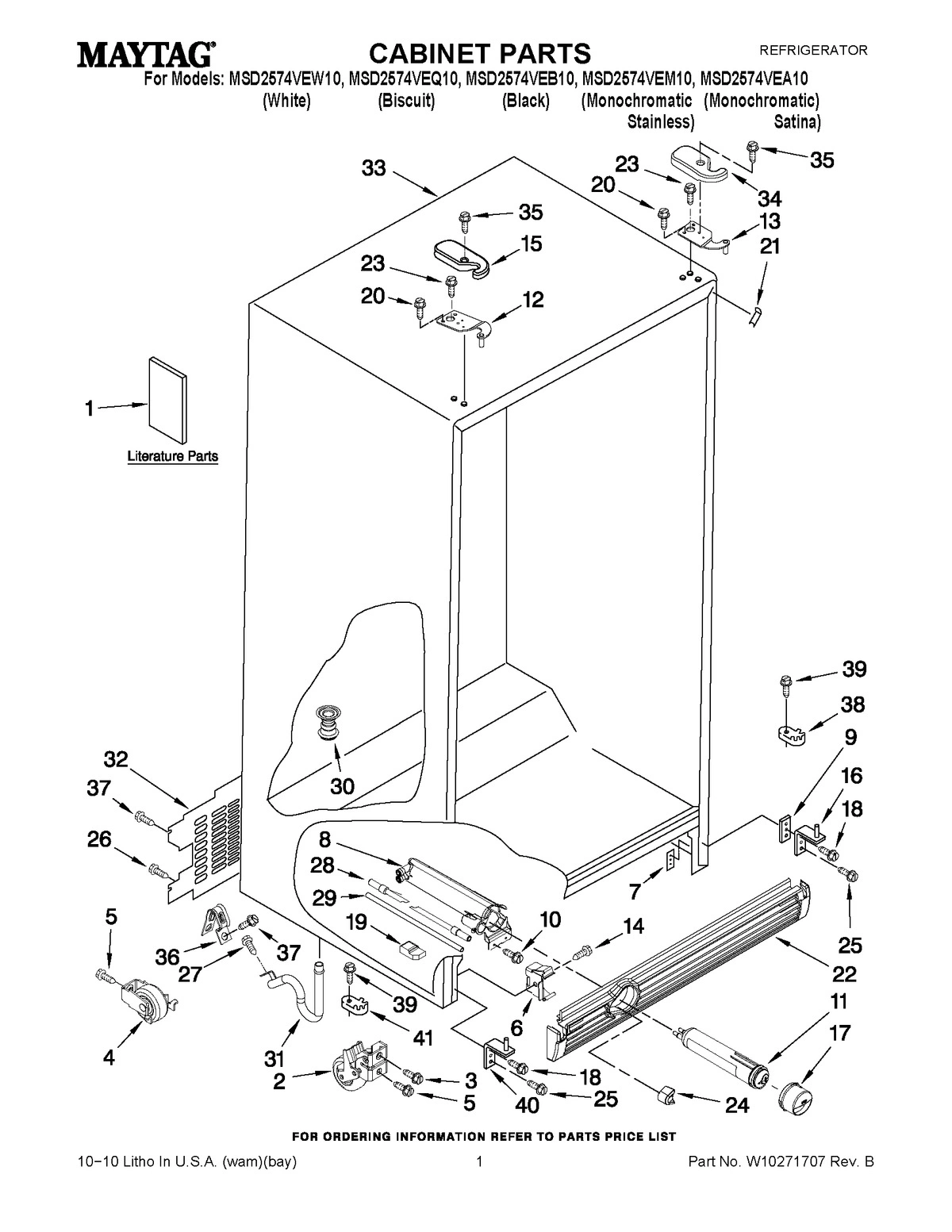

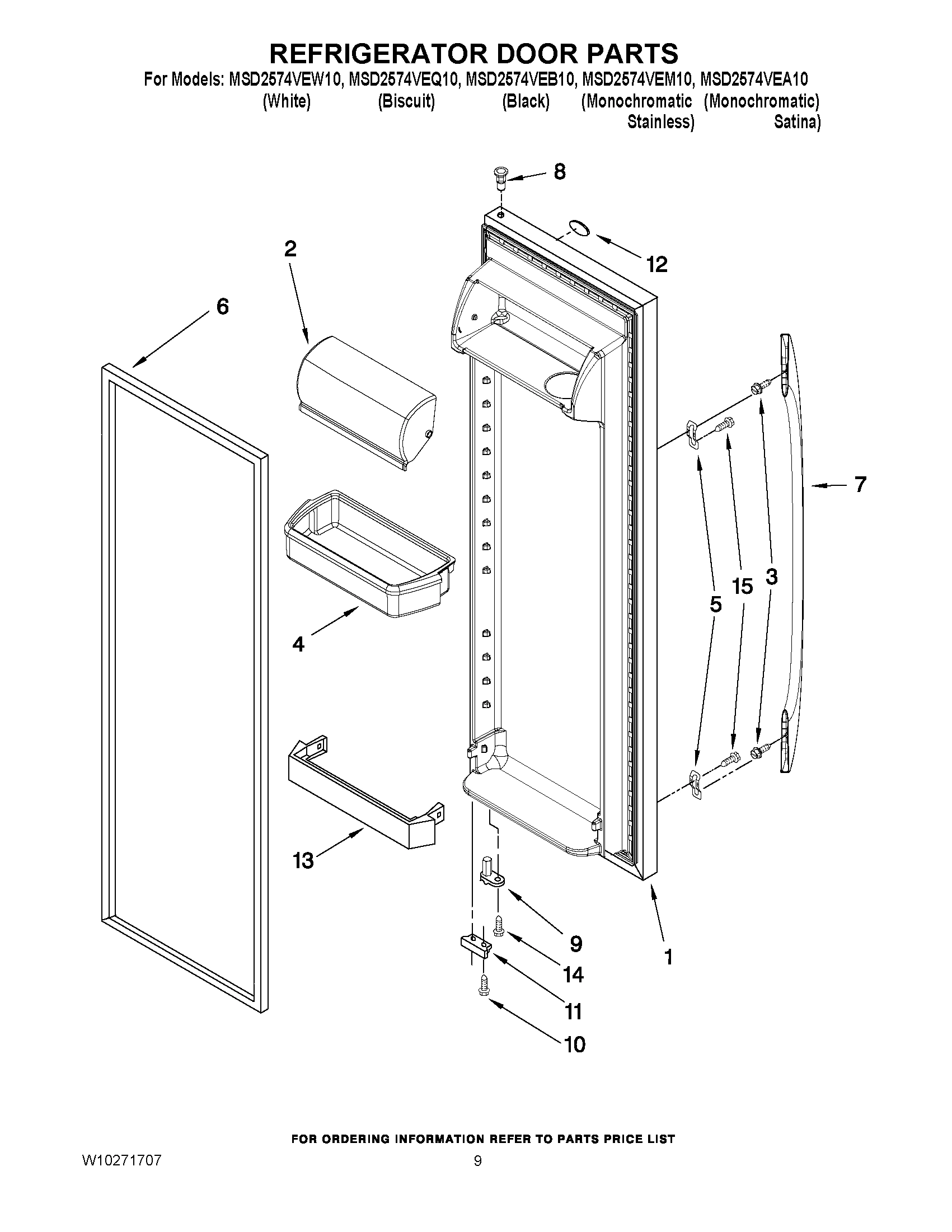

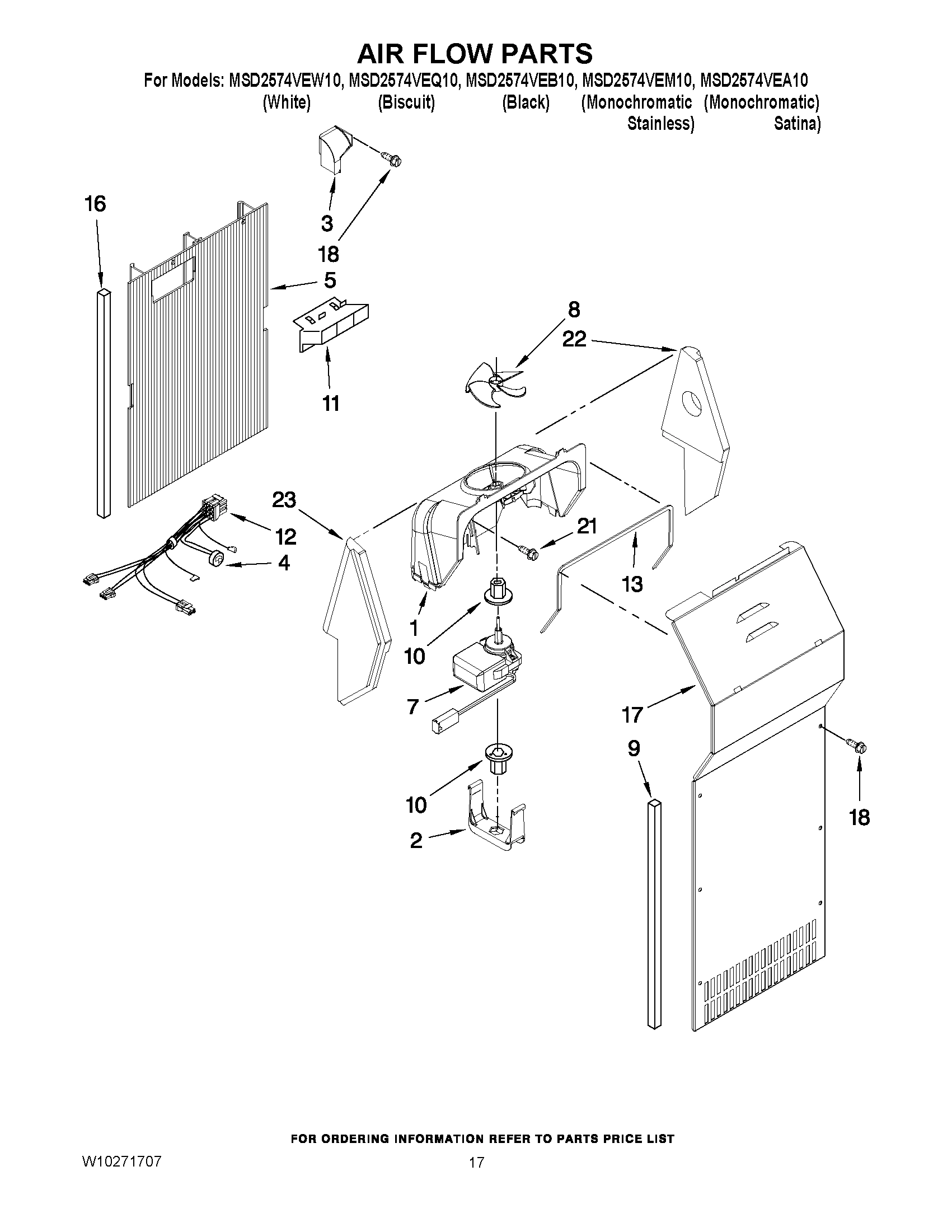

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $38.08

1

WPW10141645 Whirlpool Screw Backorder WPL WPW10141645 $3.84

1

Refrigerator Door (Includes Item 6) (White) WPL W10158669 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Black) WPL W10201110 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Biscuit) WPL W10201111 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Satina) WPL W10201112 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL W10201113 Contact Us For Availability

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $12.27

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $44.17

2

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $43.87

2

WPW10130299 Whirlpool Refrigerator Cup Backorder WPL WPW10130299 $9.86

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $37.98

3

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $110.56

3

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $35.13

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.79

3

WPW10318948 Whirlpool Wire Shelf Backorder WPL WPW10318948 $129.43

3

Screw WPL W10184500 Contact Us For Availability

4

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $13.87

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $20.89

4

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $31.33

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.25

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $15.05

4

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $27.51

4

Motor, Ice Door WPL W10144517 Contact Us For Availability

5

W10138219 Whirlpool HVAC Air Duct Backorder WPL W10138219 $68.07

5

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.47

5

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.69

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $58.20

5

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.84

5

Slide Meat Pan Control WPL 2182757 Contact Us For Availability

5

Door, Ice WPL 2328020 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $129.84

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $113.75

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.84

6

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $60.28

6

WP2309718 Whirlpool Refrigerator Door Trim In Stock WPL WP2309718 $43.49

6

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $2.60

6

WPW10136734 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10136734 $133.66

6

WPW10179146 Whirlpool Refrigerator Water Inle In Stock WPL WPW10179146 $58.19

6

Support, Ice Door WPL 2328018 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.95

7

W10170752 Whirlpool Handle Backorder WPL W10170752 $112.57

7

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.56

7

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $38.32

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.42

7

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.60

7

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $5.00

7

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $38.61

7

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $10.07

7

WPW10170739 Whirlpool Refrigerator Handle Backorder WPL WPW10170739 $238.38

7

WPW10170749 Whirlpool Refrigerator Handle Backorder WPL WPW10170749 $169.61

7

WPW10170750 Whirlpool Refrigerator Handle Backorder WPL WPW10170750 $166.83

8

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $38.11

8

W10192689 Whirlpool Refrigerator Drip Tray Backorder WPL W10192689 $59.05

8

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.96

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $14.17

8

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.03

8

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $59.18

8

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.74

8

Tray Assembly (Black) WPL W10192687 Contact Us For Availability

8

Tray Assembly (White) WPL W10192669 Contact Us For Availability

8

Screw WPL W10191952 Contact Us For Availability

8

Tray Assembly (Biscuit) WPL W10192686 Contact Us For Availability

9

W10252495 Whirlpool Refrigerator Wire Cover Backorder WPL W10252495 $31.73

9

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.72

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $30.29

9

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.60

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.96

9

Shim (2) WPL 2209697 Contact Us For Availability

9

Water Tube WPL 2328033 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $43.70

2328015 Whirlpool Refrigerator Separator Backorder WPL 2328015 $33.29

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.84

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $14.52

WP489483 Whirlpool Screw Backorder WPL WP489483 $4.75

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.60

WPW10300025 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10300025 $105.04

WPW10318947 Whirlpool Wire Shelf In Stock WPL WPW10318947 $56.66

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $57.82

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.60

W11527119 Whirlpool Refrigerator Shelf Stud Backorder WPL W11527119 $4.28

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $14.33

Duct, Icemaker WPL 2182146 Contact Us For Availability

Elec. Control WPL 2322547 Contact Us For Availability

Electronic Control (Core) WPL W10144584 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $11.17

W10144040 Whirlpool Cover Backorder WPL W10144040 $40.79

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $14.42

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $66.57

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $34.85

WPW10170766 Whirlpool Nameplate Backorder WPL WPW10170766 $33.23

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.84

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $37.15

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $49.74

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.84

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $37.77

WPW10276348 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276348 $127.89

Pad (White) WPL W10176456 Contact Us For Availability

Pad (Biscuit) WPL W10178766 Contact Us For Availability

Pad (Black) WPL W10176455 Contact Us For Availability

Light Bar (RC) WPL 2179920 Contact Us For Availability

Pad (Stainless) WPL W10144511 Contact Us For Availability

Pad (Satina) WPL W10176454 Contact Us For Availability

W10182888 Whirlpool Refrigerator Insulator Backorder WPL W10182888 $10.34

W10210786 Whirlpool Refrigerator Tube Backorder WPL W10210786 $36.65

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $35.02

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $53.56

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $58.30

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $42.88

WP2309517 Whirlpool Crisper Snack Pan In Stock WPL WP2309517 $70.33

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.60

Pivot Arm WPL 2161306 Contact Us For Availability

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $37.62

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.77

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $3.14

FRONT COVER HOUSING (NOT AVAILABLE ORDER No.1 WPL NP Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $30.91

628532 Whirlpool Refrigerator Thermostat Backorder WPL 628532 $46.85

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $74.50

WPW10276341 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10276341 $143.17

Washer, Plain WPL W10189660 Contact Us For Availability

Front Cover Assembly (Includes Items 12, 13, WPL W10144041 Contact Us For Availability

Front Cover Assembly (Includes Items 12, 13, WPL W10179004 Contact Us For Availability

Front Cover Assembly (Includes Items 12, 13, WPL W10179005 Contact Us For Availability

Front Cover Assembly (Includes Items 12, 13, WPL W10179006 Contact Us For Availability

Front Cover Assembly (Includes Items 12, 13, WPL W10179007 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.96

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $31.45

SHELF, WIRE WPL W10318946 Contact Us For Availability

Drip Tray, Stainless WPL W10177382 Contact Us For Availability

Cover, Evaporator WPL W10194476 Contact Us For Availability

18

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $35.64

18

4389654 Whirlpool Screw Backorder WPL 4389654 $9.96

18

Grill, Stainless WPL W10144018 Contact Us For Availability

19

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.33

19

ARM-SHUT In Stock WPL W11807379 $26.98

19

CONNECTING ROD, SHORT WPL 2161307 Contact Us For Availability

20

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $90.00

20

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.96

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.90

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.60

21

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.84

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $13.13

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.66

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $53.37

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $256.71

Grille (Black) WPL W10168144 Contact Us For Availability

Grille (Midnight Grey) WPL W10201138 Contact Us For Availability

23

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.84

23

Clamp WPL 2161324 Contact Us For Availability

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.58

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.81

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.58

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

25

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.33

25

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.60

26

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.81

26

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $61.42

27

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.84

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.24

28

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $59.56

29

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.84

30

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.96

30

W11566763 Whirlpool Fitting In Stock WPL W11566763 $21.81

31

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.53

31

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.89

31

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.28

32

W11427433 Whirlpool Cover Backorder WPL W11427433 $46.68

33

W11661892 Whirlpool Refrigerator Ice Door Backorder WPL W11661892 $35.09

35

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $34.92

35

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.75

36

Air Baffle WPL W10163483 Contact Us For Availability

38

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.72

39

W10196313 Whirlpool Refrigerator Rail Unit Backorder WPL W10196313 $56.64

40

WPL 2323833 WPL 2323833 Contact Us For Availability

41

WPL 2223751 WPL 2223751 Contact Us For Availability

100

WPW10300022 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10300022 $155.18

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.41

350930 Whirlpool White Spray Paint In Stock WPL 350930 $22.23

350942 Whirlpool Spray Paint Backorder WPL 350942 $52.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.93

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.93

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $47.98

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.84

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $37.34

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $39.24

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $41.04

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $45.28

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $66.85

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $25.50

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $29.93

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 qt.) (White) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
