Model Maytag MSD2573VES04 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS

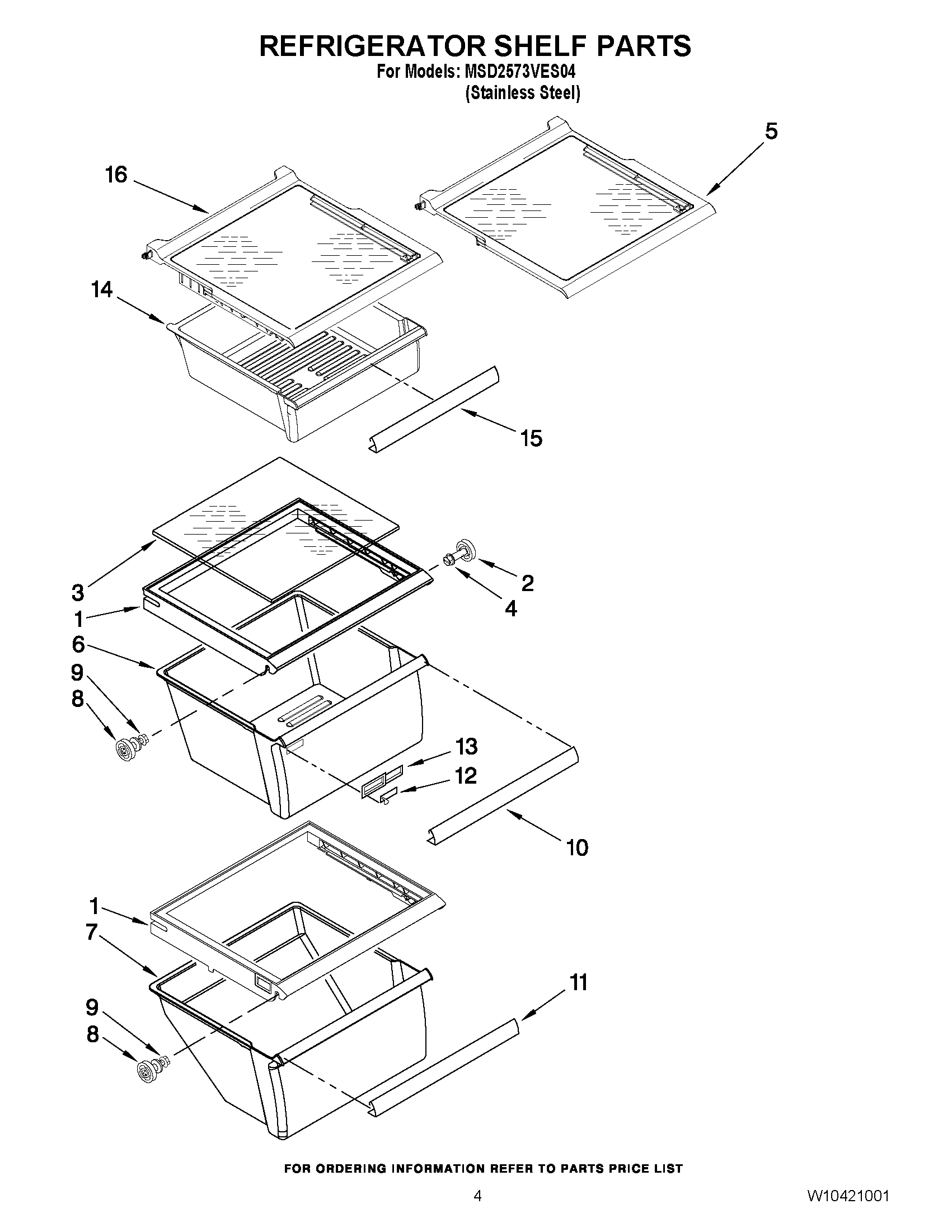

03 - REFRIGERATOR SHELF PARTS

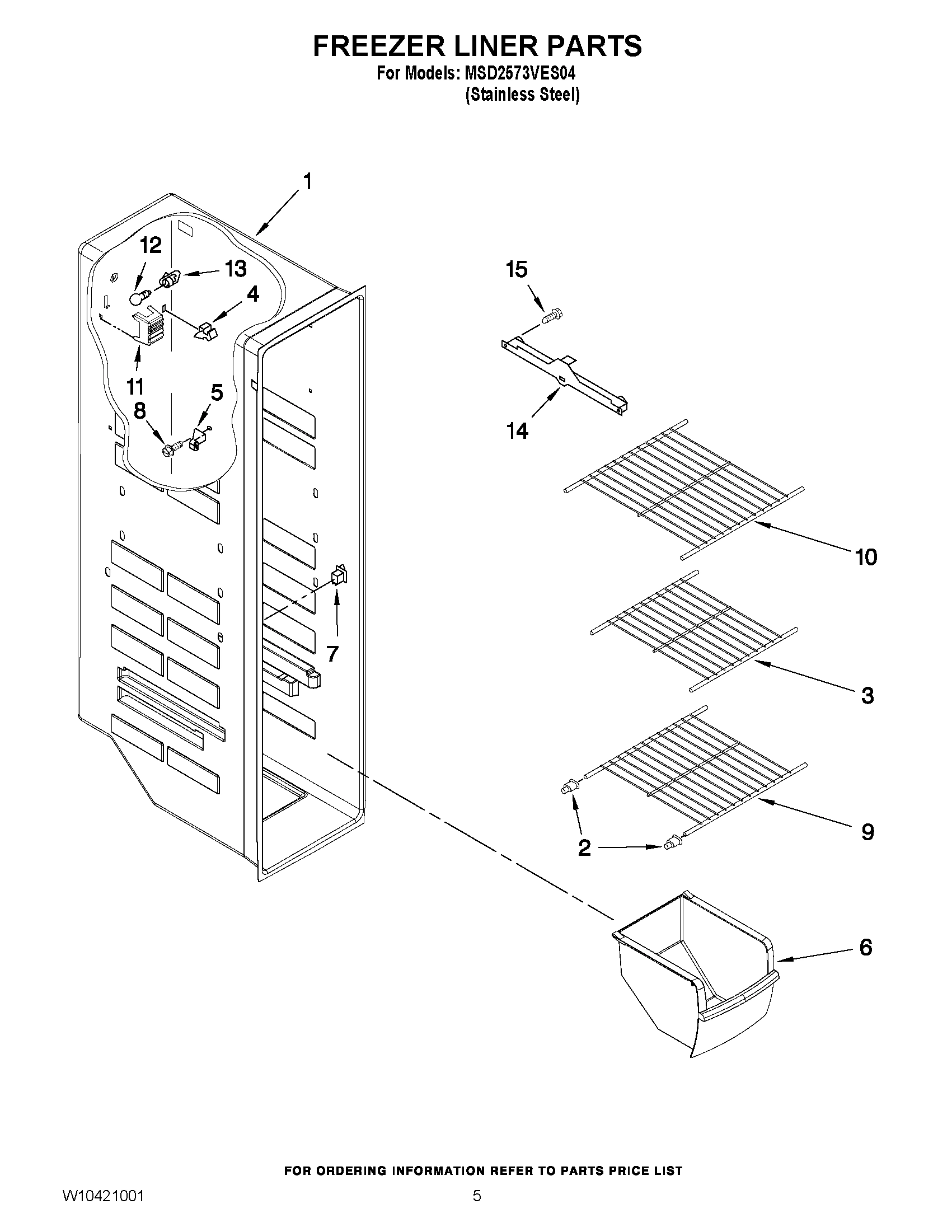

04 - FREEZER LINER PARTS

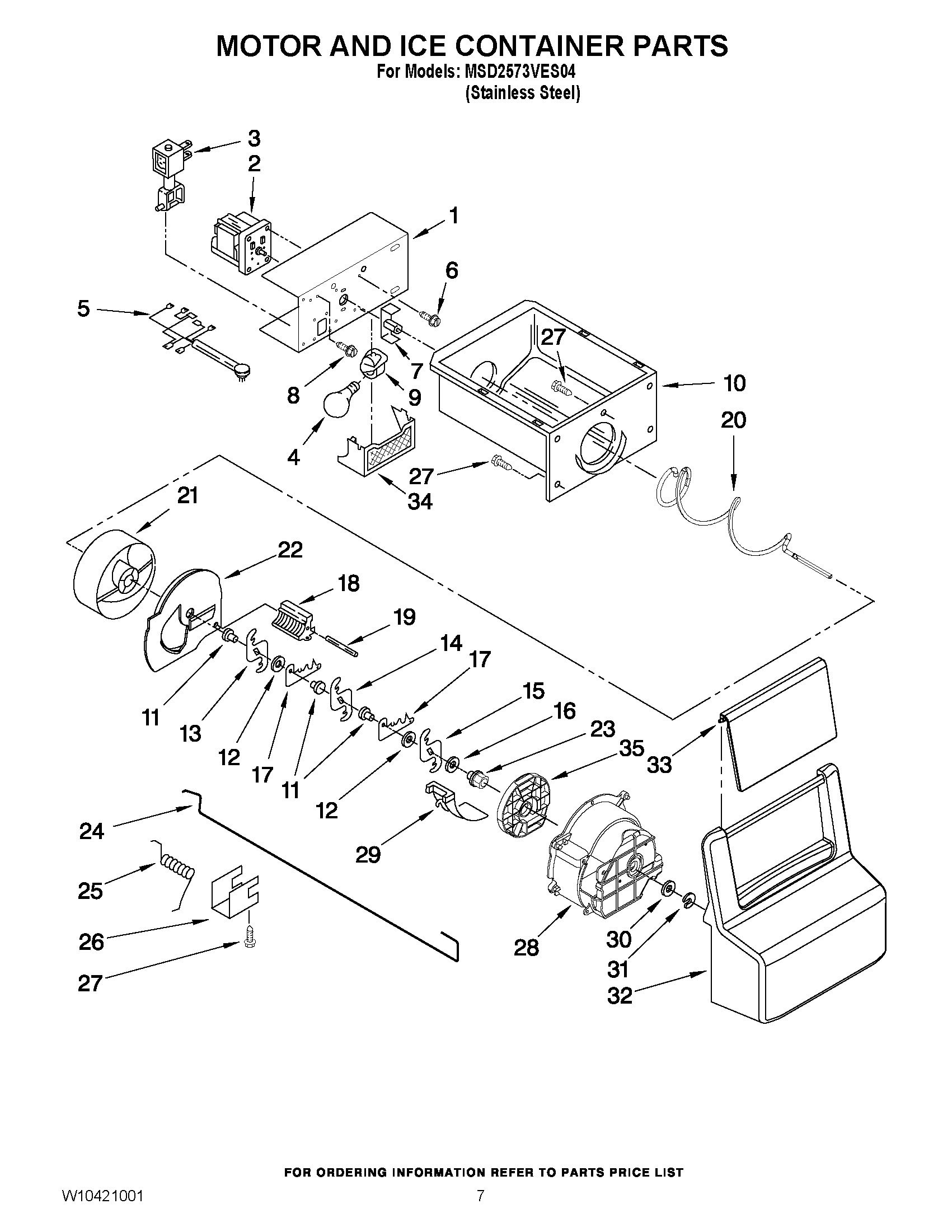

05 - MOTOR AND ICE CONTAINER PARTS

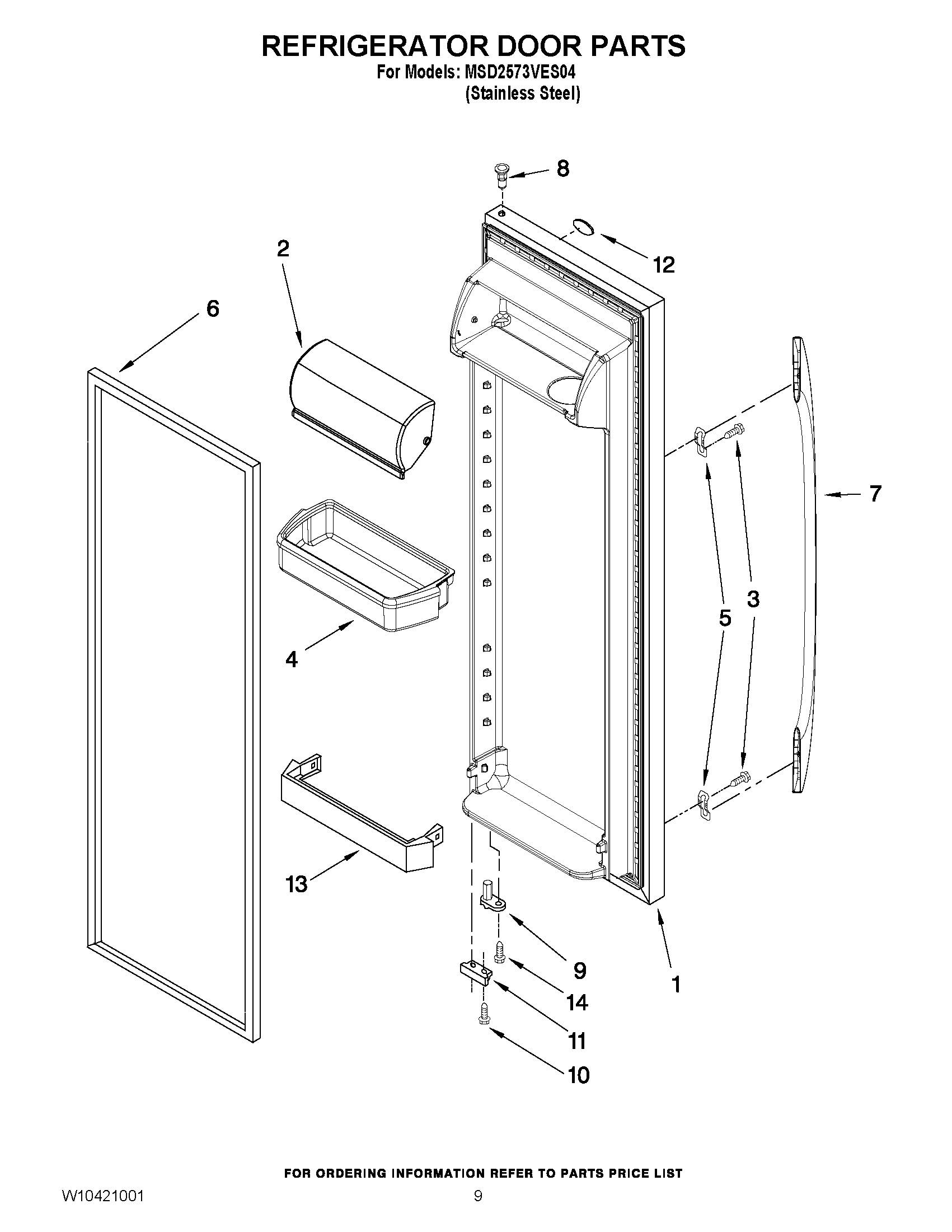

06 - REFRIGERATOR DOOR PARTS

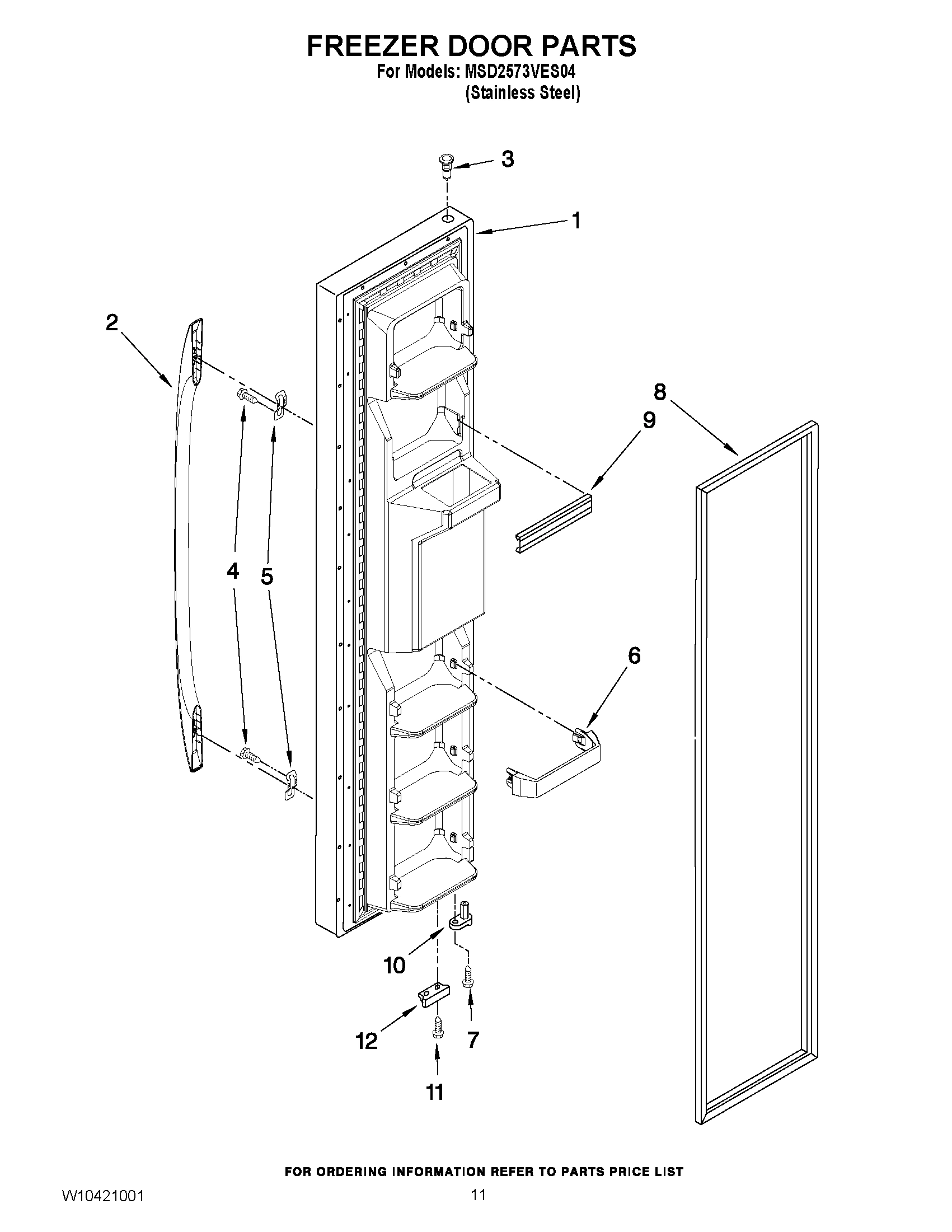

07 - FREEZER DOOR PARTS

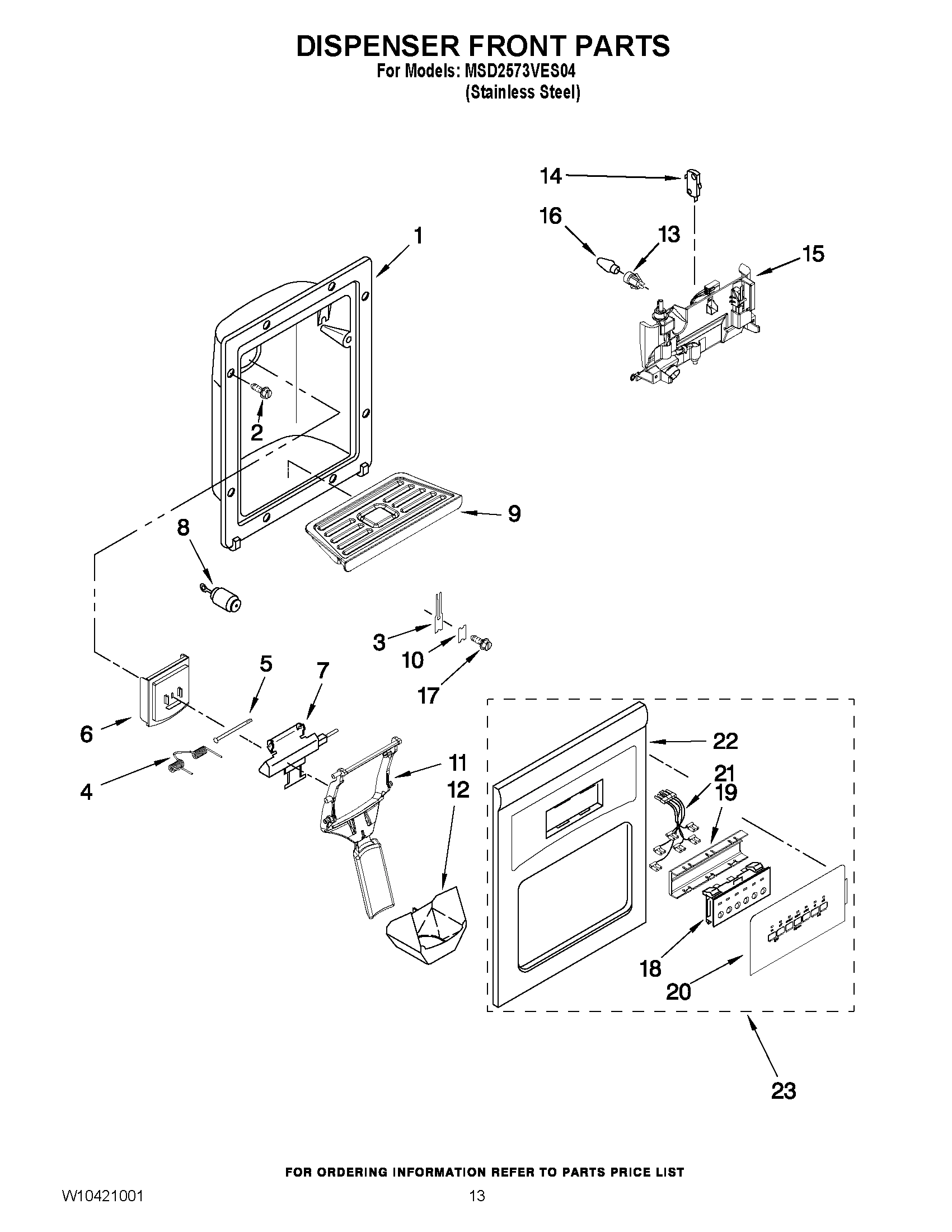

08 - DISPENSER FRONT PARTS

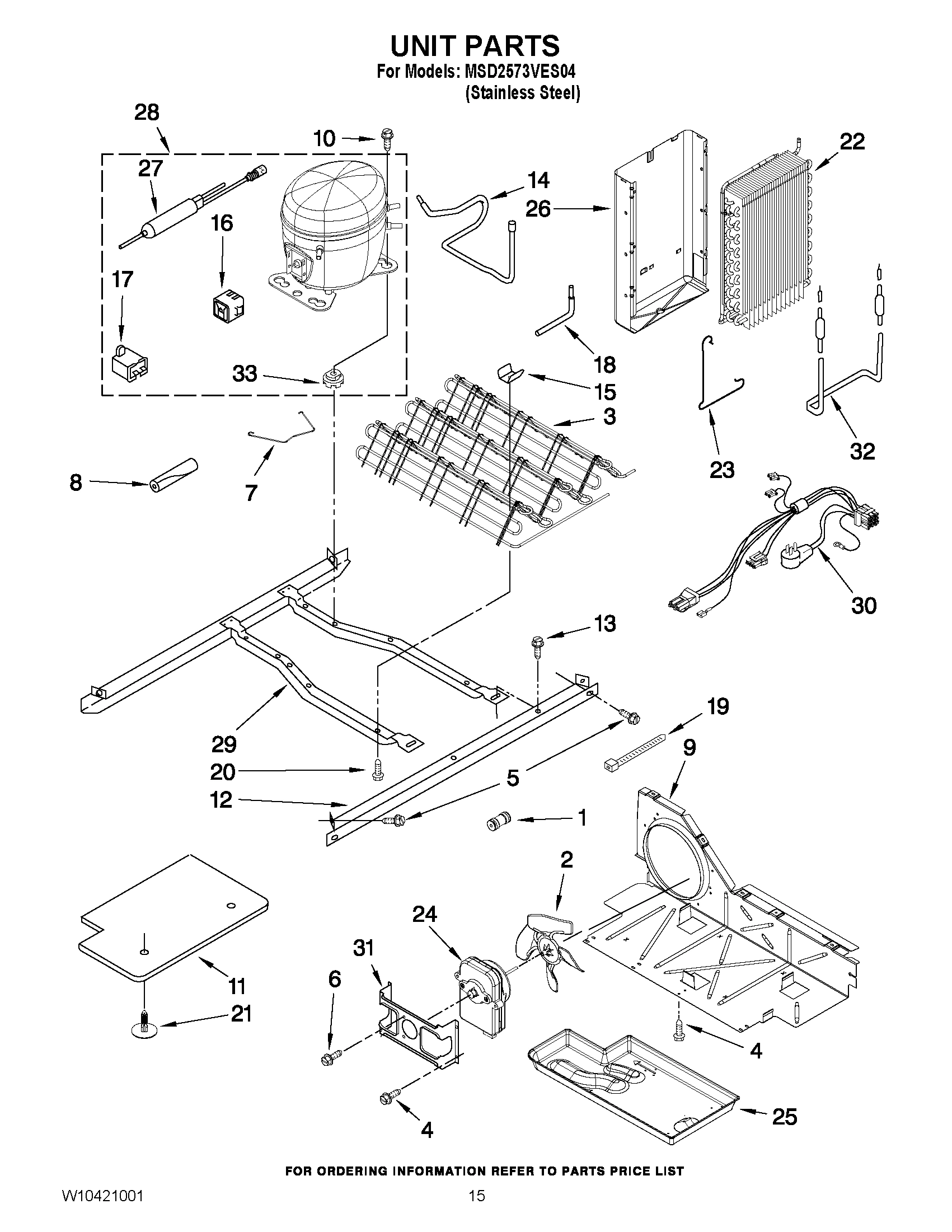

09 - UNIT PARTS

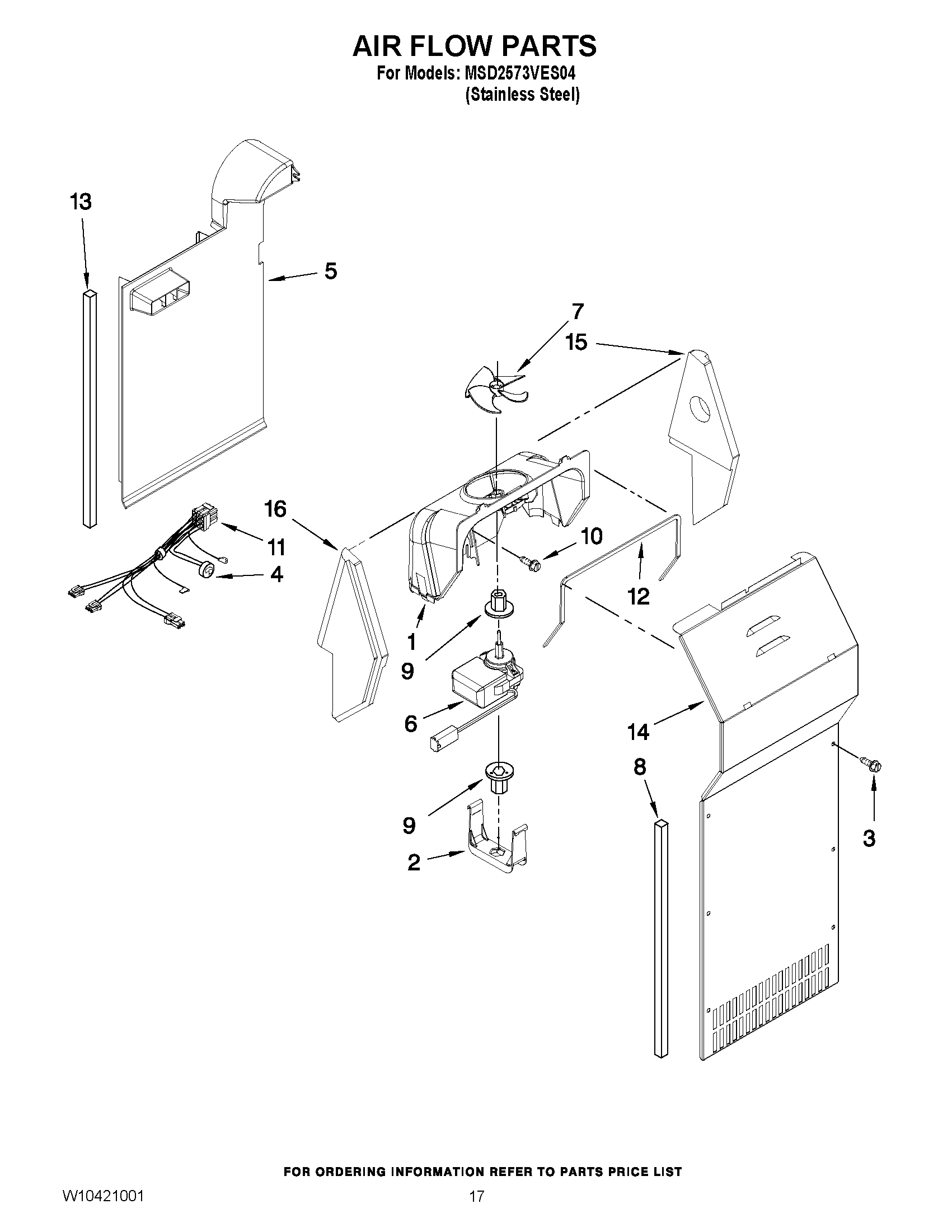

10 - AIR FLOW PARTS

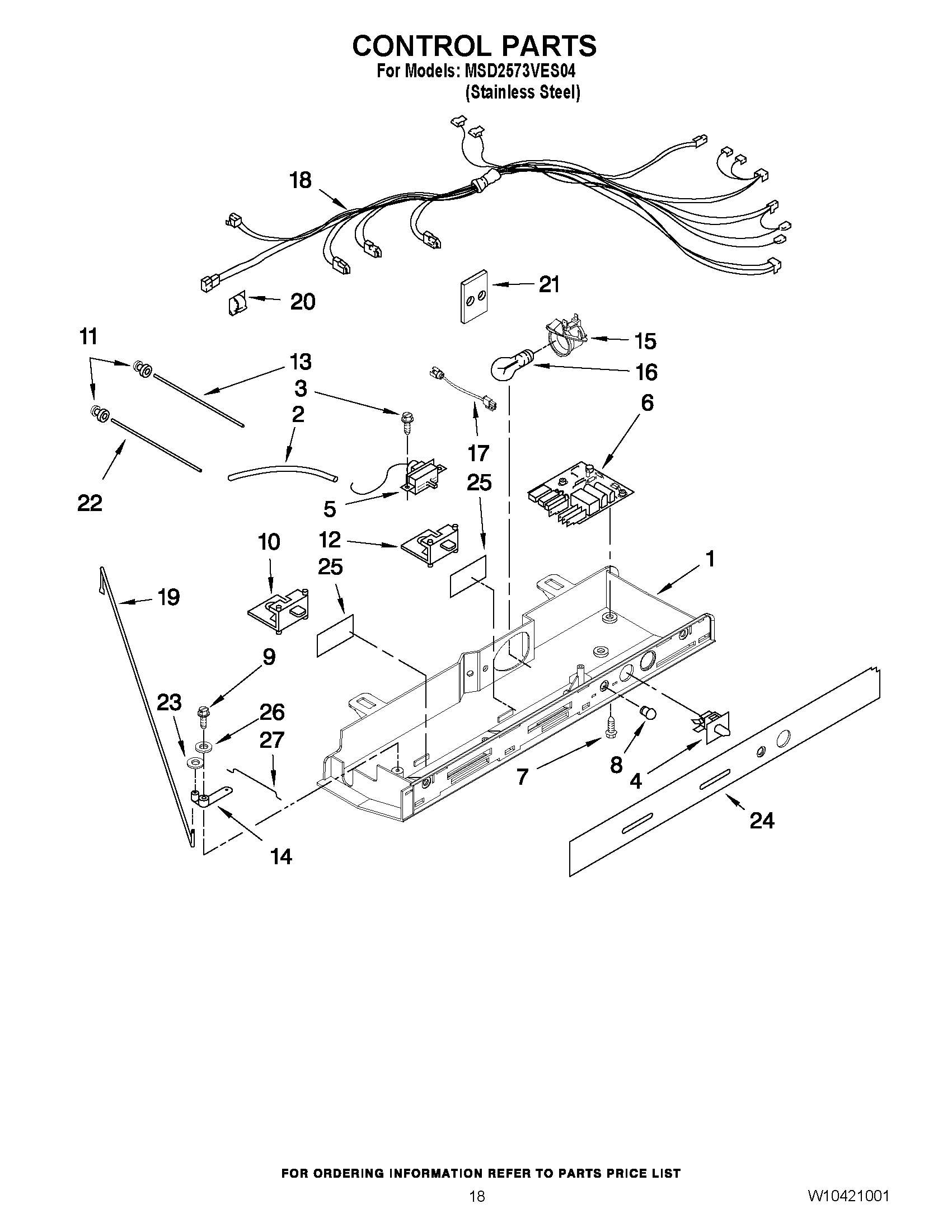

11 - CONTROL PARTS

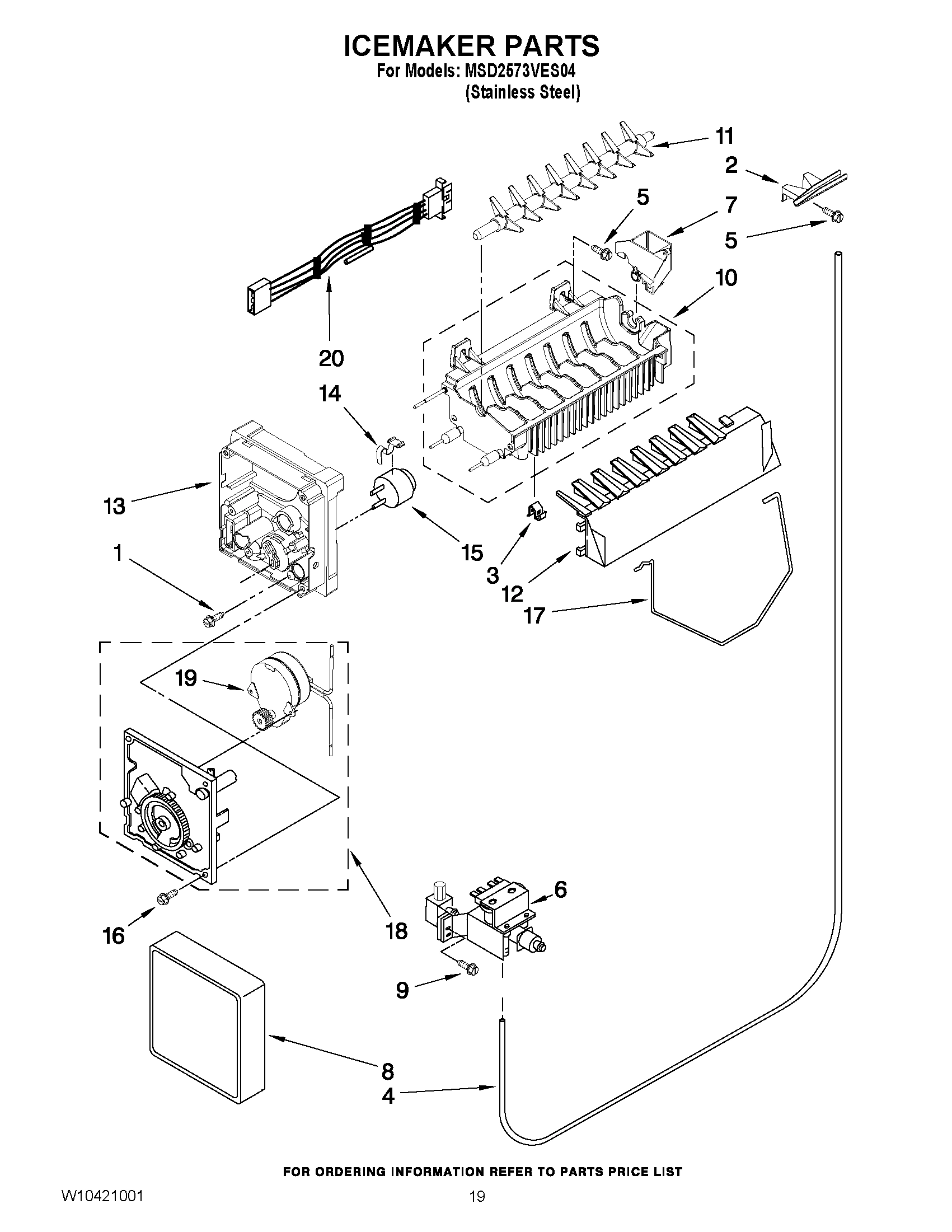

12 - ICEMAKER PARTS
13 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSD2573VES04 REFRIGERATOR
1
MAY 628370 MAY 628370 Contact Us For Availability
1
MAY W10275777 MAY W10275777 Contact Us For Availability
1
MAY W10280080 MAY W10280080 Contact Us For Availability
1
MAY W10321478 MAY W10321478 Contact Us For Availability
1
Cover, Crisper MAY 2209698 Contact Us For Availability
1
MAY W10304376 MAY W10304376 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ITEM 6) (STAINLES MAY W10365656 Contact Us For Availability
1
FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER F MAY W10365709 Contact Us For Availability
1
CONNECTOR MAY W10334458 Contact Us For Availability
1
Fan Scroll MAY 2182120 Contact Us For Availability
1
MAY 2311721 MAY 2311721 Contact Us For Availability
1
MAY 8533917 MAY 8533917 Contact Us For Availability
2
FRONT ROLLER, LEFT MAY W10304660 Contact Us For Availability
2
MAY 2257741 MAY 2257741 Contact Us For Availability
2
MAY W10173127 MAY W10173127 Contact Us For Availability
2
Cup, Shelf Mounting (12) MAY W10130299 Contact Us For Availability
2
MAY W10317991 MAY W10317991 Contact Us For Availability
2
Door, Compartment MAY 2256101 Contact Us For Availability
2
HANDLE MAY W10170743 Contact Us For Availability
2
SCREW MAY 8534081 Contact Us For Availability
2
Fan, Blade MAY 12825802 Contact Us For Availability
2
MAY 2155590 MAY 2155590 Contact Us For Availability
2
TUBE-BARRIER, THERMOSTAT MAY 2196001 Contact Us For Availability
2
MAY 2209774 MAY 2209774 Contact Us For Availability
3
MAY W10166019 MAY W10166019 Contact Us For Availability
3
GLASS COVER MAY 2179259 Contact Us For Availability
3
MAY W10318948 MAY W10318948 Contact Us For Availability
3
Soleniod Assembly MAY 2152713 Contact Us For Availability
3
MAY 2308091 MAY 2308091 Contact Us For Availability
3
MAY 2194719 MAY 2194719 Contact Us For Availability
3
MAY W10222348 MAY W10222348 Contact Us For Availability
3
MAY 8281159 MAY 8281159 Contact Us For Availability
3
Screw MAY 489214 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
4
ROLLER, REAR MAY 2150304 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
MAY 489084 MAY 489084 Contact Us For Availability
4
MAY W10191952 MAY W10191952 Contact Us For Availability
4
MAY 2315163 MAY 2315163 Contact Us For Availability
4
Screw MAY W10129563 Contact Us For Availability
4
DOOR BIN (3) MAY W10321304 Contact Us For Availability
4
MAY 2304772 MAY 2304772 Contact Us For Availability
4
MAY W10225581 MAY W10225581 Contact Us For Availability
4
MAY 2149705 MAY 2149705 Contact Us For Availability
4
Tube, Water MAY W10175644 Contact Us For Availability
5
AXLE, ROLLER MAY 2262072 Contact Us For Availability
5
SCREWS MAY 488280 Contact Us For Availability
5
SHELF ASSEMBLY, SPILLGUARD MAY W10276348 Contact Us For Availability
5
Support, Stud (4) MAY 2196206 Contact Us For Availability
5
MAY W10281336 MAY W10281336 Contact Us For Availability
5
Trim, Handle MAY 2255411 Contact Us For Availability
5
MAY 2196195 MAY 2196195 Contact Us For Availability
5
MAY 489340 MAY 489340 Contact Us For Availability
5
AIR DUCT FREEZER MAY W10177781 Contact Us For Availability
5
Thermostat MAY 2315562 Contact Us For Availability
5
Screw MAY 488208 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
Clip, Control Box (2) MAY 2256085 Contact Us For Availability
6
MAY 2188652 MAY 2188652 Contact Us For Availability
6
Freezer Bin MAY 2309757 Contact Us For Availability
6
Screw (6) MAY 489399 Contact Us For Availability
6
DOOR GASKET, MAGNETIC MAY 2309529 Contact Us For Availability
6
Trivet (4) MAY 2309718 Contact Us For Availability
6
MAY 2328019 MAY 2328019 Contact Us For Availability
6
MAY 8533993 MAY 8533993 Contact Us For Availability
6
MAY W10131845 MAY W10131845 Contact Us For Availability
6
MAY W10351622 MAY W10351622 Contact Us For Availability
6
FILTER VALVE MAY W10179146 Contact Us For Availability
7
Screw Plate (2) MAY 2304249 Contact Us For Availability
7
MAY W10151374 MAY W10151374 Contact Us For Availability
7
MAY 2188654 MAY 2188654 Contact Us For Availability
7
Switch, Rocker Arm MAY 1115373 Contact Us For Availability
7
MAY W10169511 MAY W10169511 Contact Us For Availability
7
MAY 3400012 MAY 3400012 Contact Us For Availability
7
MAY W10144021 MAY W10144021 Contact Us For Availability
7
Clip, Retaining MAY W10204187 Contact Us For Availability
7
Fan Blade MAY 2169142 Contact Us For Availability
7
MAY 489398 MAY 489398 Contact Us For Availability
7
MAY W10122561 MAY W10122561 Contact Us For Availability
8
Housing, Water Filter MAY W10121138 Contact Us For Availability
8
Air Diffuser Cover MAY 2152019 Contact Us For Availability
8
MAY W10173126 MAY W10173126 Contact Us For Availability
8
MAY 3400893 MAY 3400893 Contact Us For Availability
8
DOOR GASKET, MAGNETIC MAY 2309533 Contact Us For Availability
8
MAY 2205686 MAY 2205686 Contact Us For Availability
8
MAY 2161302 MAY 2161302 Contact Us For Availability
8
MAY 2304241 MAY 2304241 Contact Us For Availability
8
Cover, Light Lens MAY 2200096 Contact Us For Availability
8
COVER MAY W10289690 Contact Us For Availability
9
CLIP, AXLE MAY 2174706 Contact Us For Availability
9
MAY W10252495 MAY W10252495 Contact Us For Availability
9
MAY W10191954 MAY W10191954 Contact Us For Availability
9
MAY W10318946 MAY W10318946 Contact Us For Availability
9
DOOR CLOSER UPPER CAM MAY 2182178 Contact Us For Availability
9
MAY W10307490 MAY W10307490 Contact Us For Availability
9
GRILLE, OVERFLOW MAY W10192687 Contact Us For Availability
9
AIR BAFFLE MAY W10332806 Contact Us For Availability
9
Fan Grommet (2) MAY 2176759 Contact Us For Availability
9
MAY 627068 MAY 627068 Contact Us For Availability
9
MAY 488649 MAY 488649 Contact Us For Availability
10
Screw (2) MAY 489500 Contact Us For Availability
10
MAY 486298 MAY 486298 Contact Us For Availability
10
Trim, Pan MAY 2255593 Contact Us For Availability
10
MAY W10318947 MAY W10318947 Contact Us For Availability
10
MAY 2196091 MAY 2196091 Contact Us For Availability
10
MAY W10312303 MAY W10312303 Contact Us For Availability
10
MAY 2323535 MAY 2323535 Contact Us For Availability
10
MAY 2195051 MAY 2195051 Contact Us For Availability
10
MAY 489473 MAY 489473 Contact Us For Availability
10
MAY 2181741 MAY 2181741 Contact Us For Availability
10
MAY W10300022 MAY W10300022 Contact Us For Availability
10
MOLD & HEATER ASSEMBLY (ALSO ORDER 542638) MAY W10300025 Contact Us For Availability
11
MAY 4396841 MAY 4396841 Contact Us For Availability
11
Trim, Meat Pan MAY 2179234 Contact Us For Availability
11
MAY 2212340 MAY 2212340 Contact Us For Availability
11
Spacer, Step (3) MAY W10189661 Contact Us For Availability
11
MAY 489420 MAY 489420 Contact Us For Availability
11
BRACKET, DOOR STOP MAY W10185571 Contact Us For Availability
11
LEVER, ICE & WATER MAY W10184800 Contact Us For Availability
11
MAY 2304891 MAY 2304891 Contact Us For Availability
11
HARNESS, FAN EVAPORATOR (INCLUDES No.4) MAY W10297482 Contact Us For Availability
11
MAY 2172906 MAY 2172906 Contact Us For Availability
11
MAY W10318914 MAY W10318914 Contact Us For Availability
12
HINGE TOP FC MAY W10287685 Contact Us For Availability
12
MAY W10204356 MAY W10204356 Contact Us For Availability
12
MAY 2179342 MAY 2179342 Contact Us For Availability
12
Spacer, Flat (2) MAY W10189658 Contact Us For Availability
12
Nameplate MAY W10170766 Contact Us For Availability
12
MAY 2323534B MAY 2323534B Contact Us For Availability
12
MAY W10144020 MAY W10144020 Contact Us For Availability
12
Unit Mounting Rail MAY W10196313 Contact Us For Availability
12
Gasket, Fan Scroll MAY 2155789 Contact Us For Availability
12
MAY 2161466 MAY 2161466 Contact Us For Availability
12
MAY W10122563 MAY W10122563 Contact Us For Availability
13
MAY 489427 MAY 489427 Contact Us For Availability
13
HINGE, TOP RC MAY W10287684 Contact Us For Availability
13
HOUSING, HUMIDITY CONTROL MAY 2179343 Contact Us For Availability
13
MAY W10278731 MAY W10278731 Contact Us For Availability
13
MAY 2309941 MAY 2309941 Contact Us For Availability
13
Socket, Light MAY 2180200 Contact Us For Availability
13
GASKET MAY W10252477 Contact Us For Availability
13
MAY 2179920 MAY 2179920 Contact Us For Availability
13
MAY 2195914 MAY 2195914 Contact Us For Availability
14
MAY 488500 MAY 488500 Contact Us For Availability
14
MAY 2309518 MAY 2309518 Contact Us For Availability
14
Slide, Container (Left Side) MAY 1119237 Contact Us For Availability
14
Slide, Container (Right Side) MAY 1119293 Contact Us For Availability
14
MAY W10278732 MAY W10278732 Contact Us For Availability
14
MAY W10144092 MAY W10144092 Contact Us For Availability
14
MAY 2205765 MAY 2205765 Contact Us For Availability
14
MAY W10196307 MAY W10196307 Contact Us For Availability
14
Pivot Arm MAY 2161306 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
15
HINGE COVER MAY W10138582 Contact Us For Availability
15
Light Socket MAY 2162085 Contact Us For Availability
15
MAY 2309519 MAY 2309519 Contact Us For Availability
15
Screw (4) MAY 489100 Contact Us For Availability
15
MAY W10278733 MAY W10278733 Contact Us For Availability
15
MAY W10144016 MAY W10144016 Contact Us For Availability
15
MAY 2311725 MAY 2311725 Contact Us For Availability
15
MAY 2203595 MAY 2203595 Contact Us For Availability
15
MAY 628532 MAY 628532 Contact Us For Availability
16
MAY W10289528 MAY W10289528 Contact Us For Availability
16
MAY 527949 MAY 527949 Contact Us For Availability
16
MAY W10276341 MAY W10276341 Contact Us For Availability
16
MAY 489478 MAY 489478 Contact Us For Availability
16
MAY W10189660 MAY W10189660 Contact Us For Availability
16
MAY 3406124 MAY 3406124 Contact Us For Availability
16
Start-Device, Combination (Start Relay and Ov MAY 2304884 Contact Us For Availability
16
Start-Device, Combination (Start Relay and Ov MAY W10197427 Contact Us For Availability
16
MAY 2203596 MAY 2203596 Contact Us For Availability
17
CAP, WATER FILTER MAY 2260502B Contact Us For Availability
17
Blade, Fixed (2) MAY W10181990 Contact Us For Availability
17
MAY 489000 MAY 489000 Contact Us For Availability
17
Capacitor (Production) MAY 2264017 Contact Us For Availability
17
MAY 2213462 MAY 2213462 Contact Us For Availability
17
MAY 2304354 MAY 2304354 Contact Us For Availability
18
Screw (4) MAY 3400113 Contact Us For Availability
18
MAY W10189708 MAY W10189708 Contact Us For Availability
18
MAY W10181070 MAY W10181070 Contact Us For Availability
18
TUBE, PROCESS MAY 2325479 Contact Us For Availability
18
MAY 2311632 MAY 2311632 Contact Us For Availability
18
MODULE ASSEMBLY (INCLUDES No.19) MAY 626691 Contact Us For Availability
19
DOOR CLOSER LOWER CAM (FC) MAY 2223751 Contact Us For Availability
19
MOTOR (NOT SERVICED, ORDER No.18) MAY N/P Contact Us For Availability
19
MAY 489229 MAY 489229 Contact Us For Availability
19
MAY W10180310 MAY W10180310 Contact Us For Availability
19
MAY 2263990 MAY 2263990 Contact Us For Availability
19
Connecting Rod MAY 2161308 Contact Us For Availability
20
FRONT ROLLER, RIGHT MAY W10304659 Contact Us For Availability
20
MAY W10295082 MAY W10295082 Contact Us For Availability
20
MAY 8281232 MAY 8281232 Contact Us For Availability
20
MAY 1115374 MAY 1115374 Contact Us For Availability
20
MAY W10309400 MAY W10309400 Contact Us For Availability
21
FILLER, WRAPPER MAY W10283960 Contact Us For Availability
21
MAY 2305377 MAY 2305377 Contact Us For Availability
21
MAY 489396 MAY 489396 Contact Us For Availability
21
MAY 2172931 MAY 2172931 Contact Us For Availability
22
GRILLE MAY W10168144 Contact Us For Availability
22
MAY 2171682 MAY 2171682 Contact Us For Availability
22
Evaporator MAY 2188823 Contact Us For Availability
22
LIGHT BAR FC MAY 2179921 Contact Us For Availability
23
MAY 489497 MAY 489497 Contact Us For Availability
23
MAY 1119018 MAY 1119018 Contact Us For Availability
23
FRONT COVER ASSEMBLY (INCLUDES ITEMS 18, 19, MAY W10190585 Contact Us For Availability
23
Clamp MAY 2161324 Contact Us For Availability
23
MAY 489391 MAY 489391 Contact Us For Availability
24
BUTTON, WATER FILTER MAY 2260503B Contact Us For Availability
24
MAY 2155231 MAY 2155231 Contact Us For Availability
24
Fan, Motor MAY 2188874 Contact Us For Availability
24
MAY W10242640 MAY W10242640 Contact Us For Availability
25
Screw (2) MAY 3400103 Contact Us For Availability
25
MAY 1119020 MAY 1119020 Contact Us For Availability
25
MAY 1105523 MAY 1105523 Contact Us For Availability
25
MAY 2175513 MAY 2175513 Contact Us For Availability
26
Screw MAY 489290 Contact Us For Availability
26
MAY 1119021 MAY 1119021 Contact Us For Availability
26
Heat Shield MAY W10194475 Contact Us For Availability
26
Spring Washer MAY 489203 Contact Us For Availability
27
SCREW MAY 488886 Contact Us For Availability
27
MAY 2317845 MAY 2317845 Contact Us For Availability
27
MAY W10177049 MAY W10177049 Contact Us For Availability
27
CONNECTING ROD, SHORT MAY 2161307 Contact Us For Availability
28
MAY W10281289 MAY W10281289 Contact Us For Availability
28
MAY W10185018 MAY W10185018 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 16, 17, 27, & 33) MAY W10120459 Contact Us For Availability
29
Tube, Filter Outlet MAY 2255012 Contact Us For Availability
29
MAY 1119017 MAY 1119017 Contact Us For Availability
29
Unit Mounting Frame MAY W10196321 Contact Us For Availability
30
MAY 2304888 MAY 2304888 Contact Us For Availability
30
MAY 489234 MAY 489234 Contact Us For Availability
30
UNIT, HARNESS (INCLUDES POWER CORD) MAY W10309395 Contact Us For Availability
31
MAY W10153550 MAY W10153550 Contact Us For Availability
31
MAY 489236 MAY 489236 Contact Us For Availability
31
MAY 2181929 MAY 2181929 Contact Us For Availability
32
MAY 2188735 MAY 2188735 Contact Us For Availability
32
Front Cover, Ice Container MAY W10189191 Contact Us For Availability
32
MAY 2188175 MAY 2188175 Contact Us For Availability
33
MAY W10189202 MAY W10189202 Contact Us For Availability
33
Grommet (Production) MAY 1100826 Contact Us For Availability
33
Grommet (Service) MAY 4387558 Contact Us For Availability
34
HINGE COVER MAY W10138577 Contact Us For Availability
34
MAY 2171706 MAY 2171706 Contact Us For Availability
35
MAY 8281227 MAY 8281227 Contact Us For Availability
35
MAY W10138206 MAY W10138206 Contact Us For Availability
36
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
38
DOOR CLOSER, LOWER CAM RC MAY 2155311 Contact Us For Availability
39
MAY W10029680 MAY W10029680 Contact Us For Availability
40
MAY W10289530 MAY W10289530 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY 80051 MAY 80051 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
