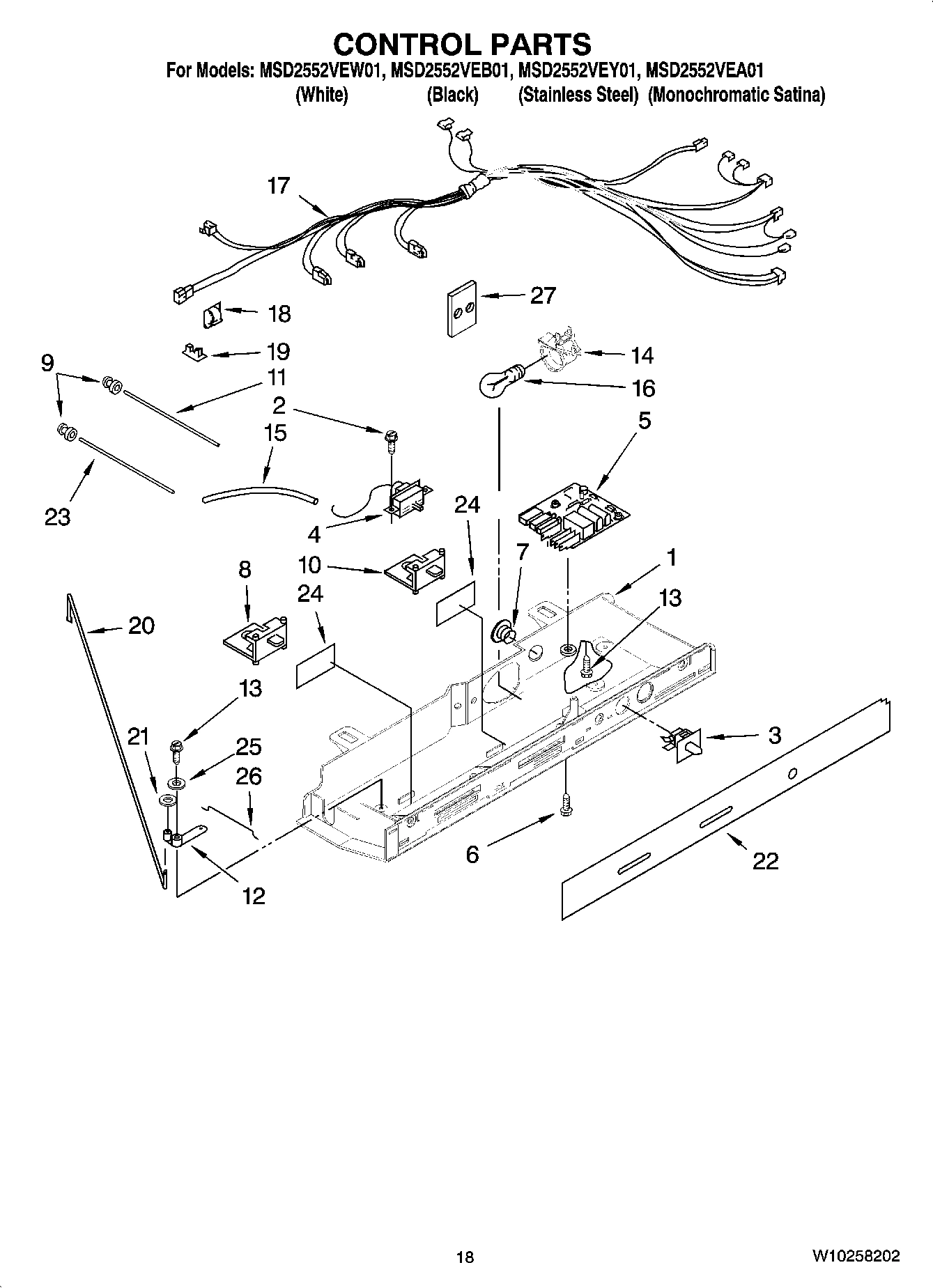

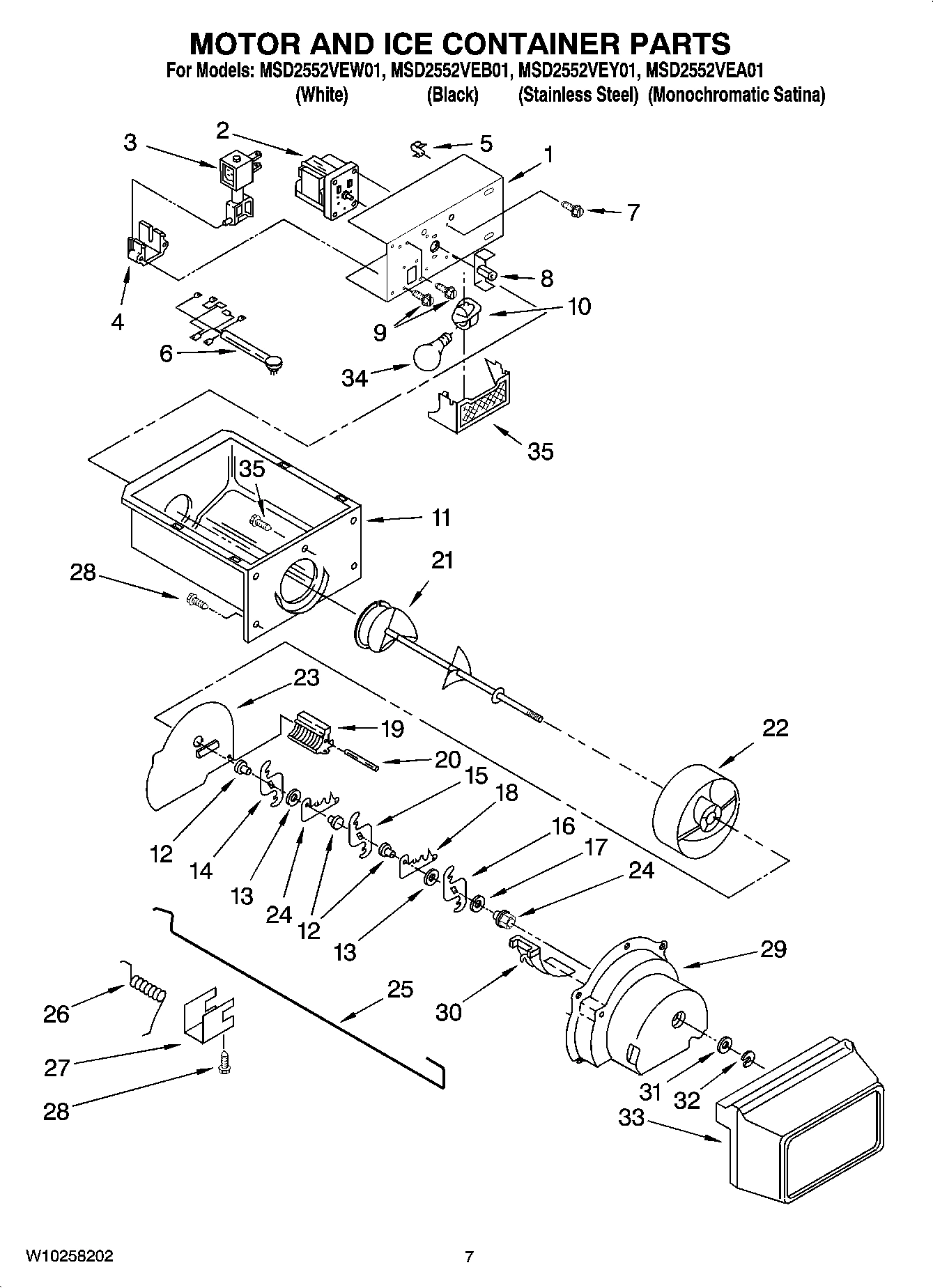

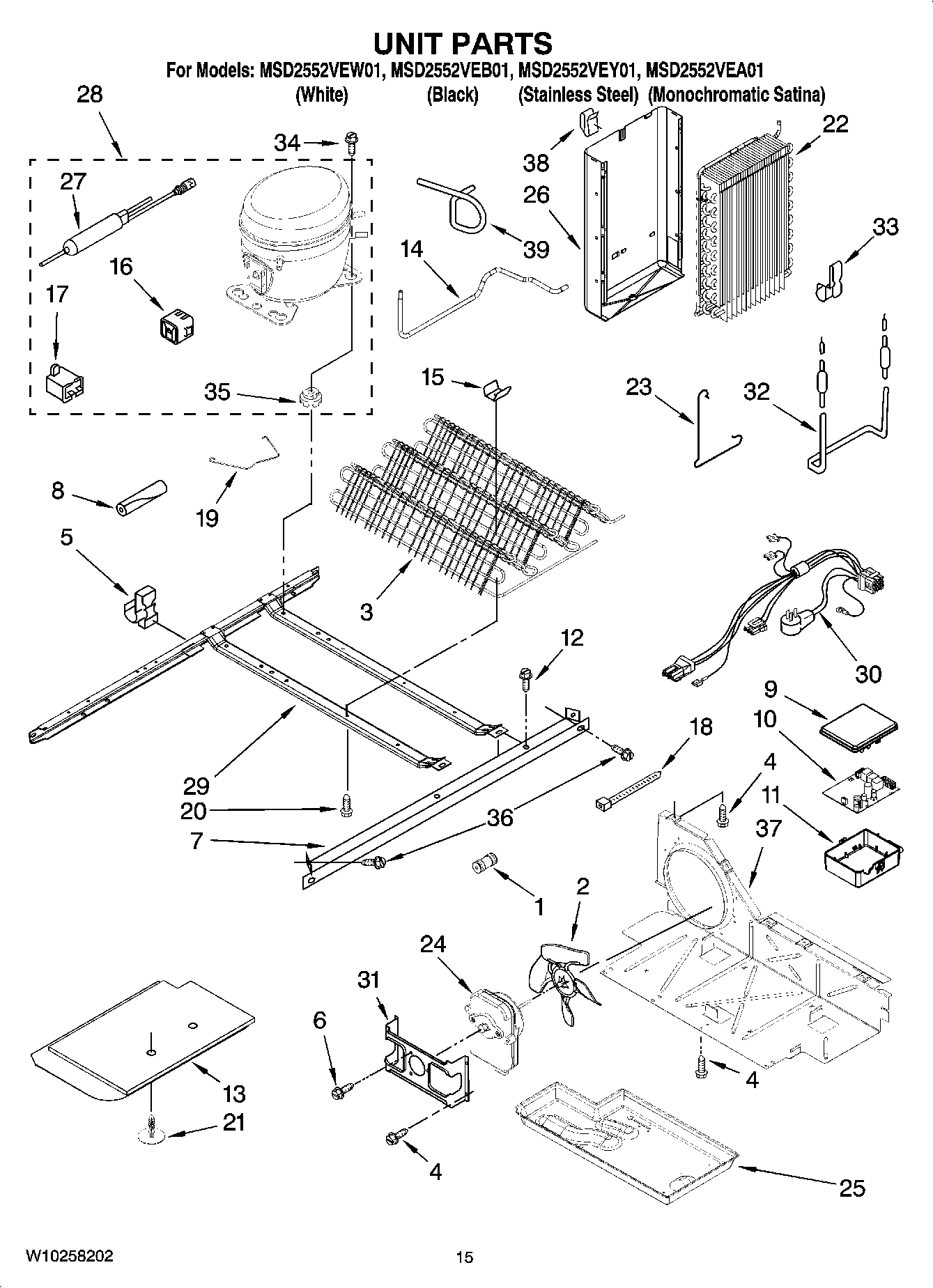

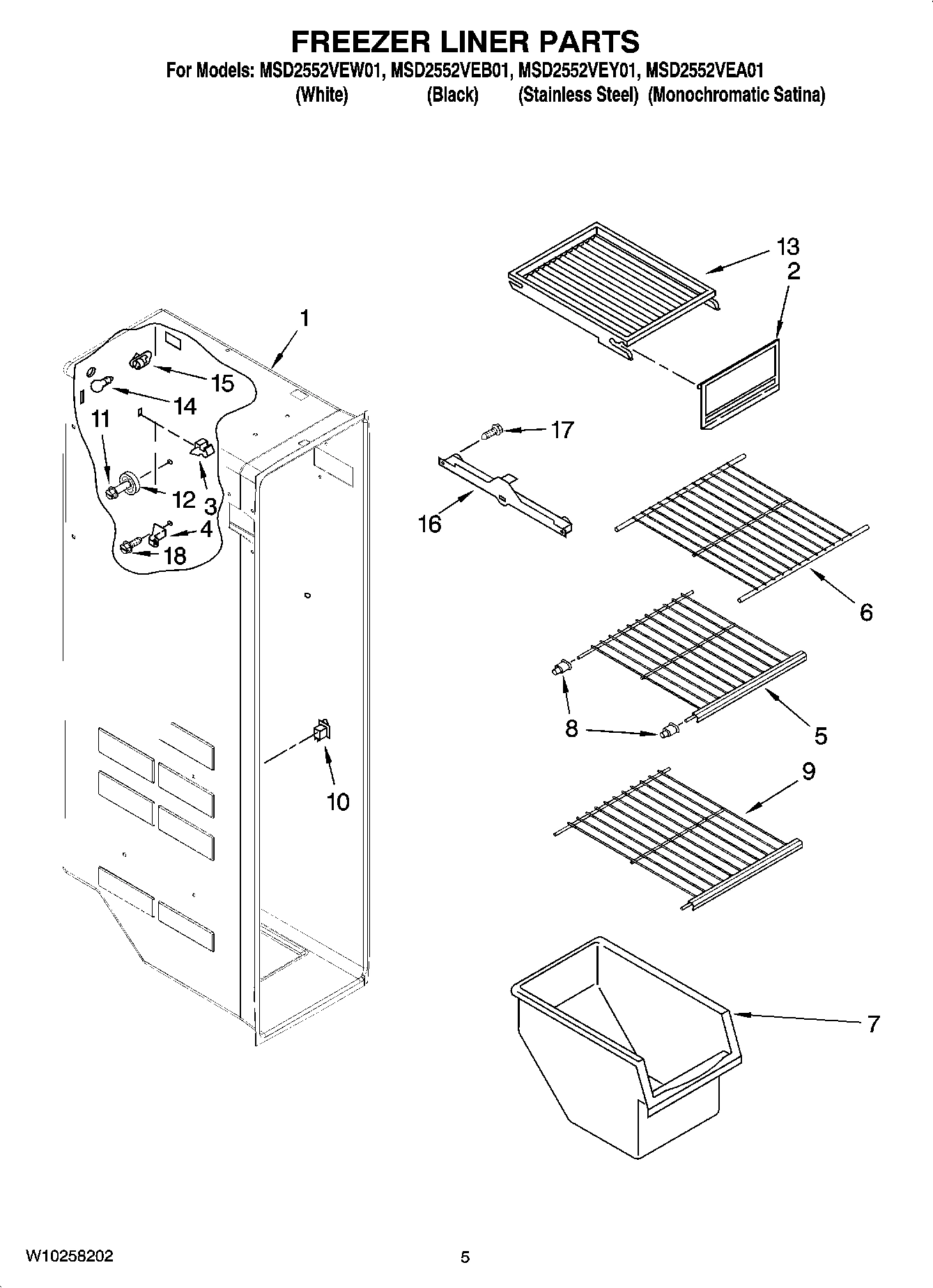

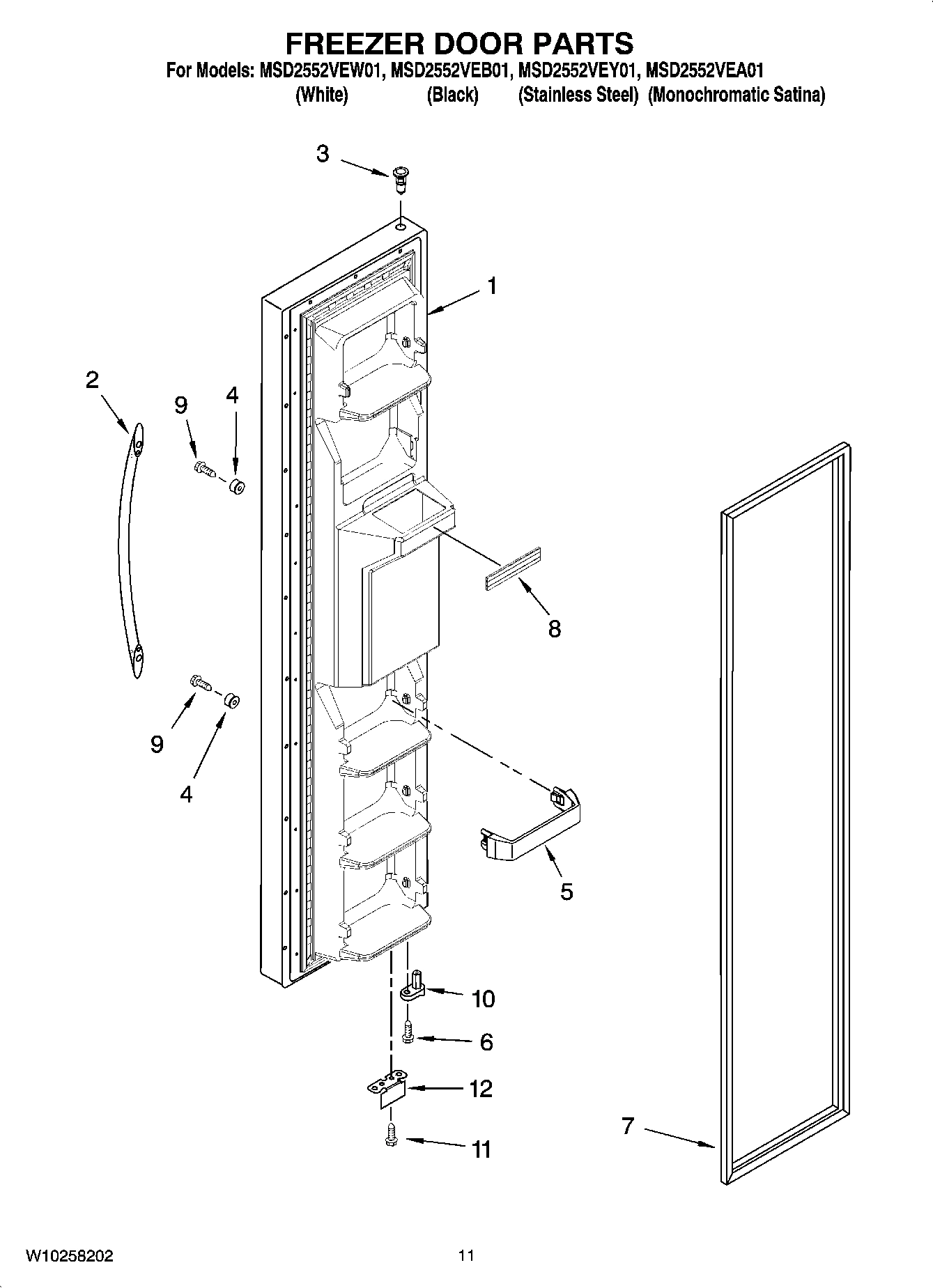

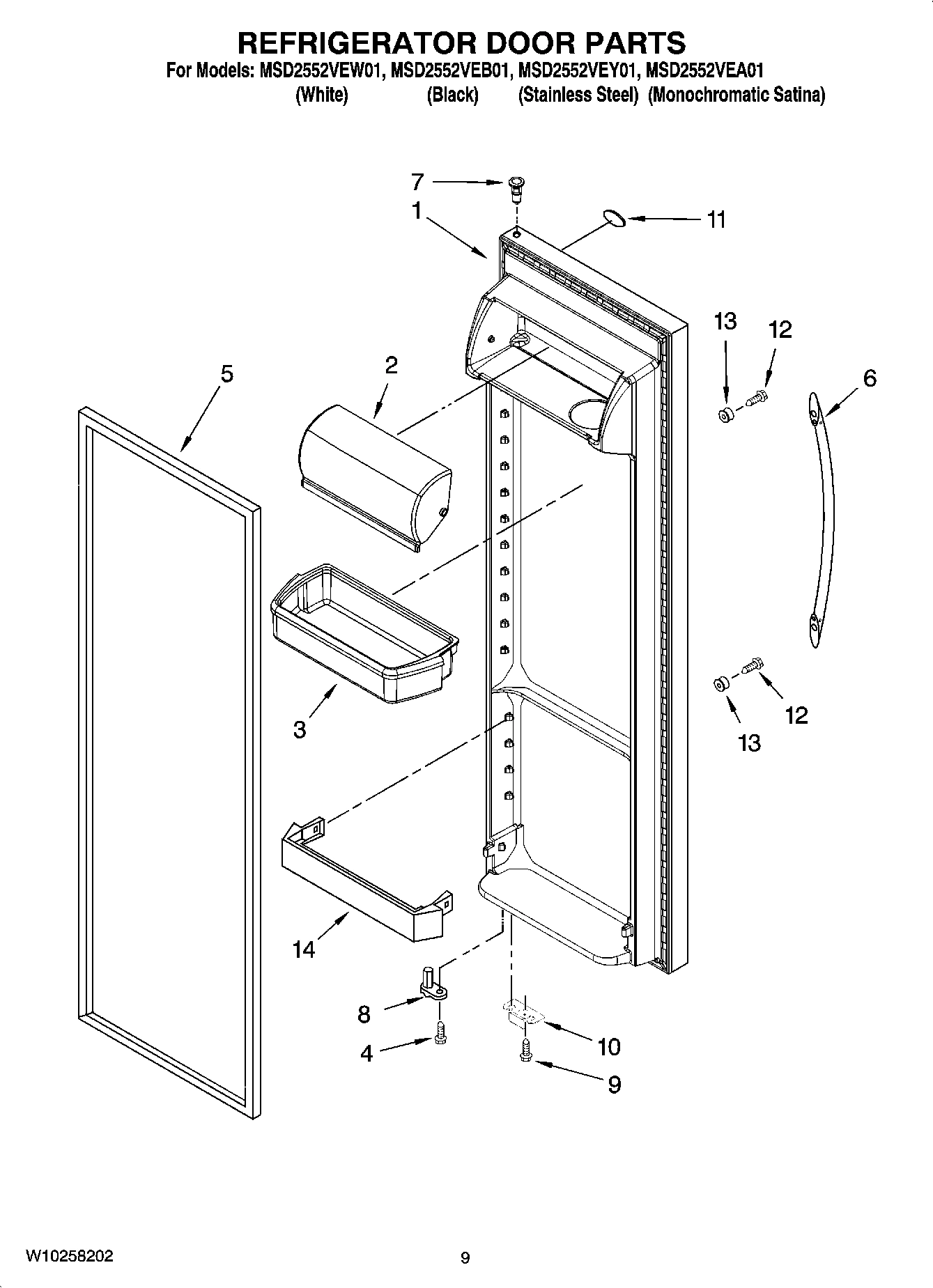

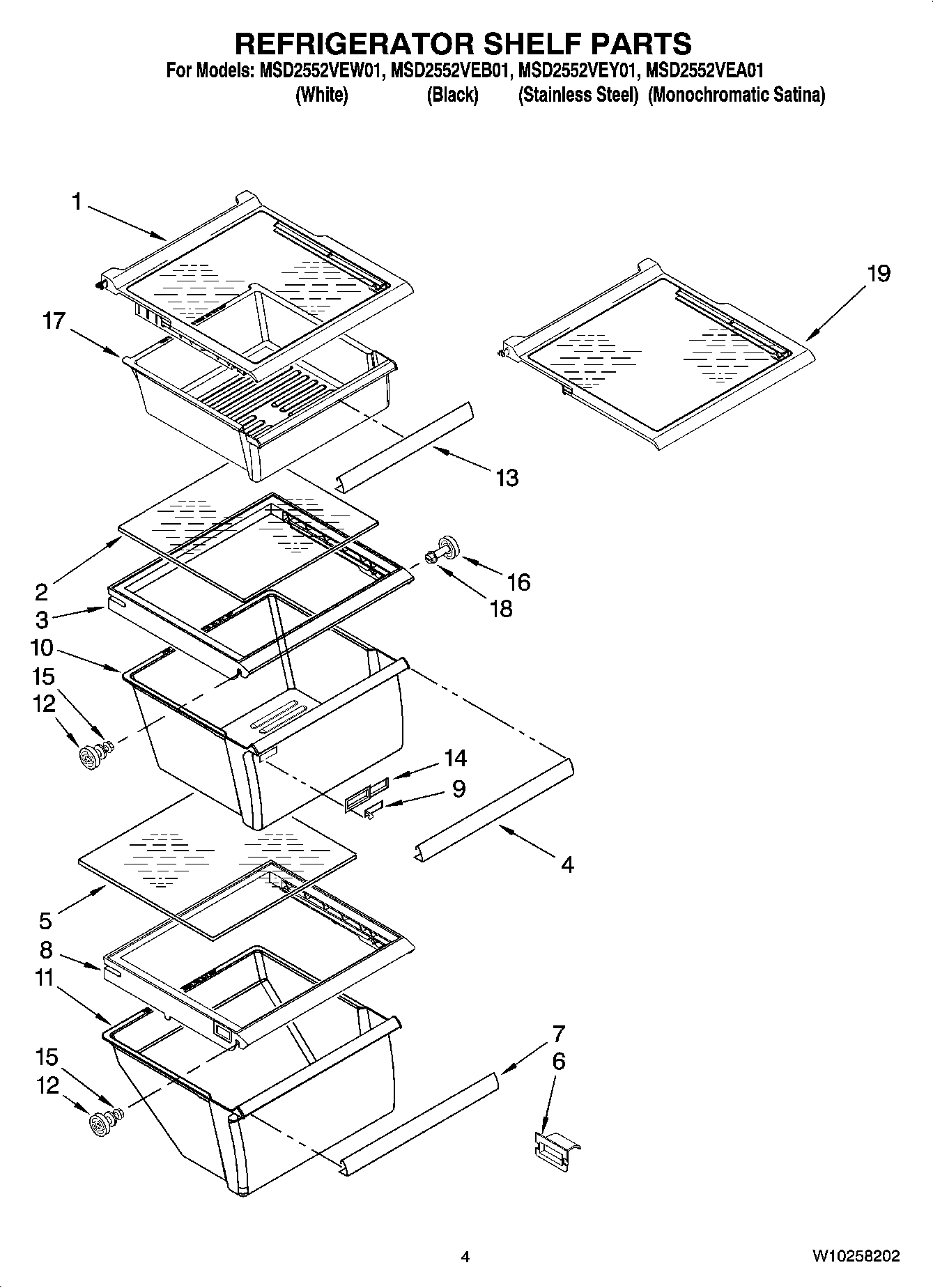

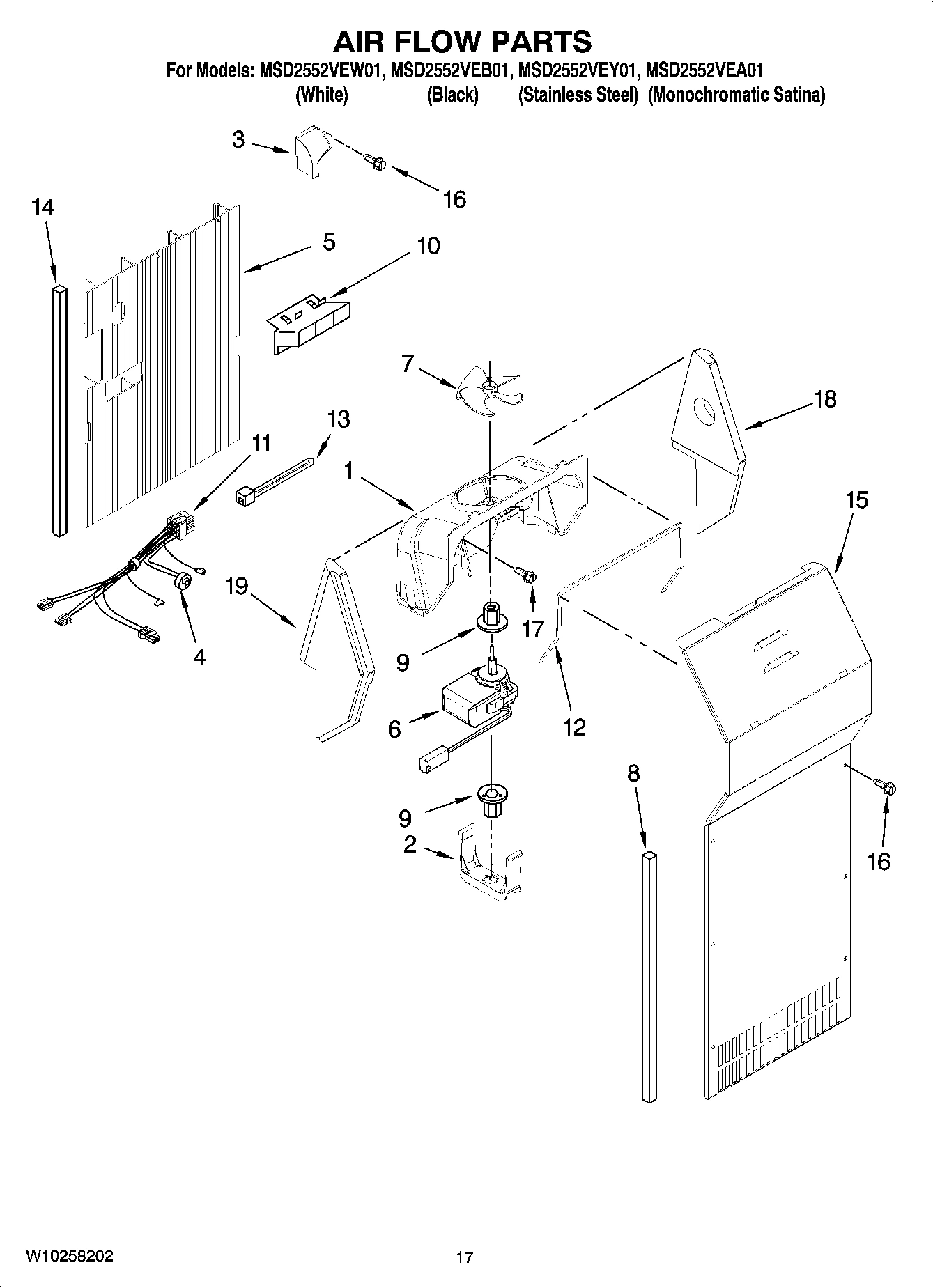

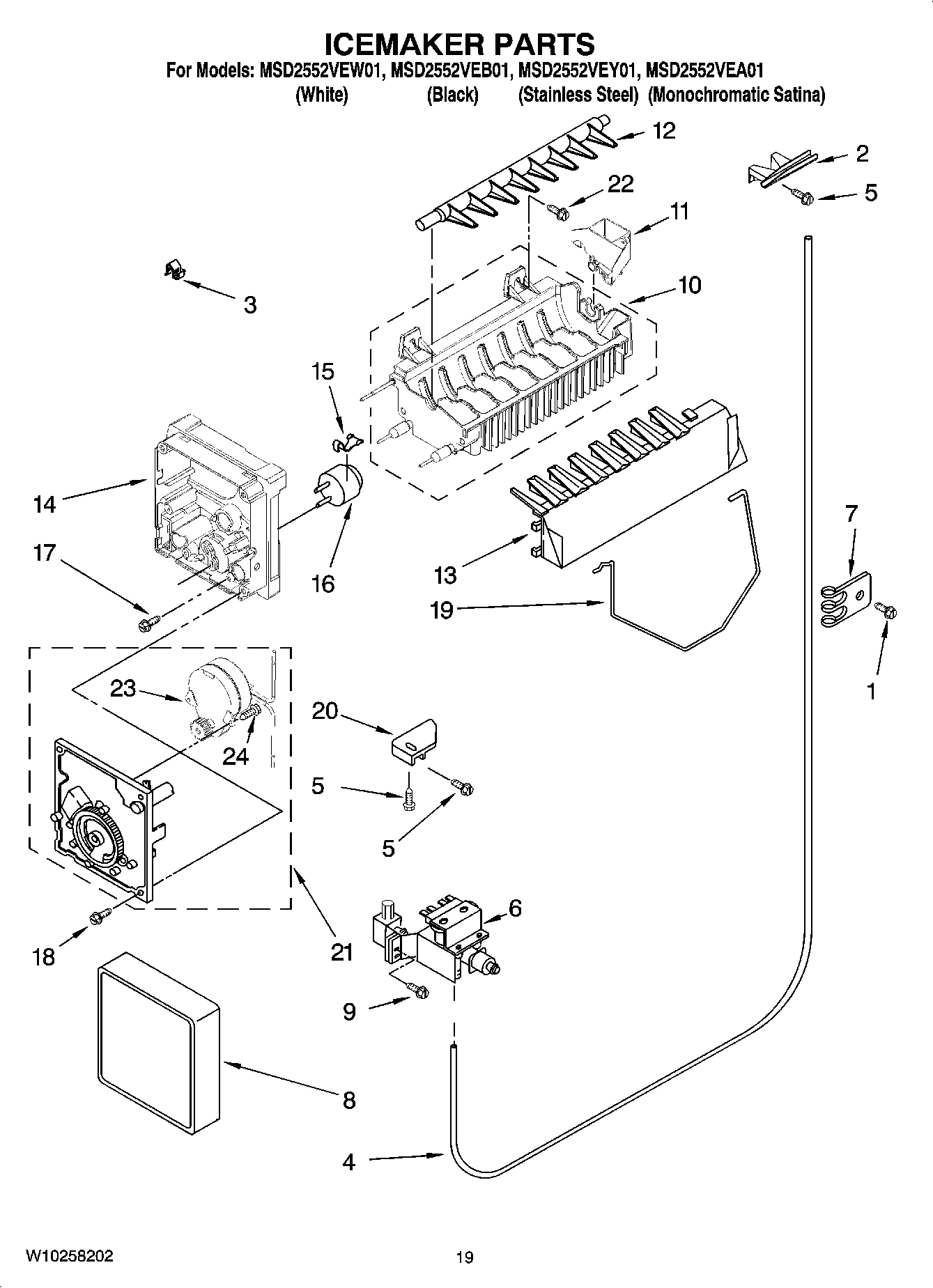

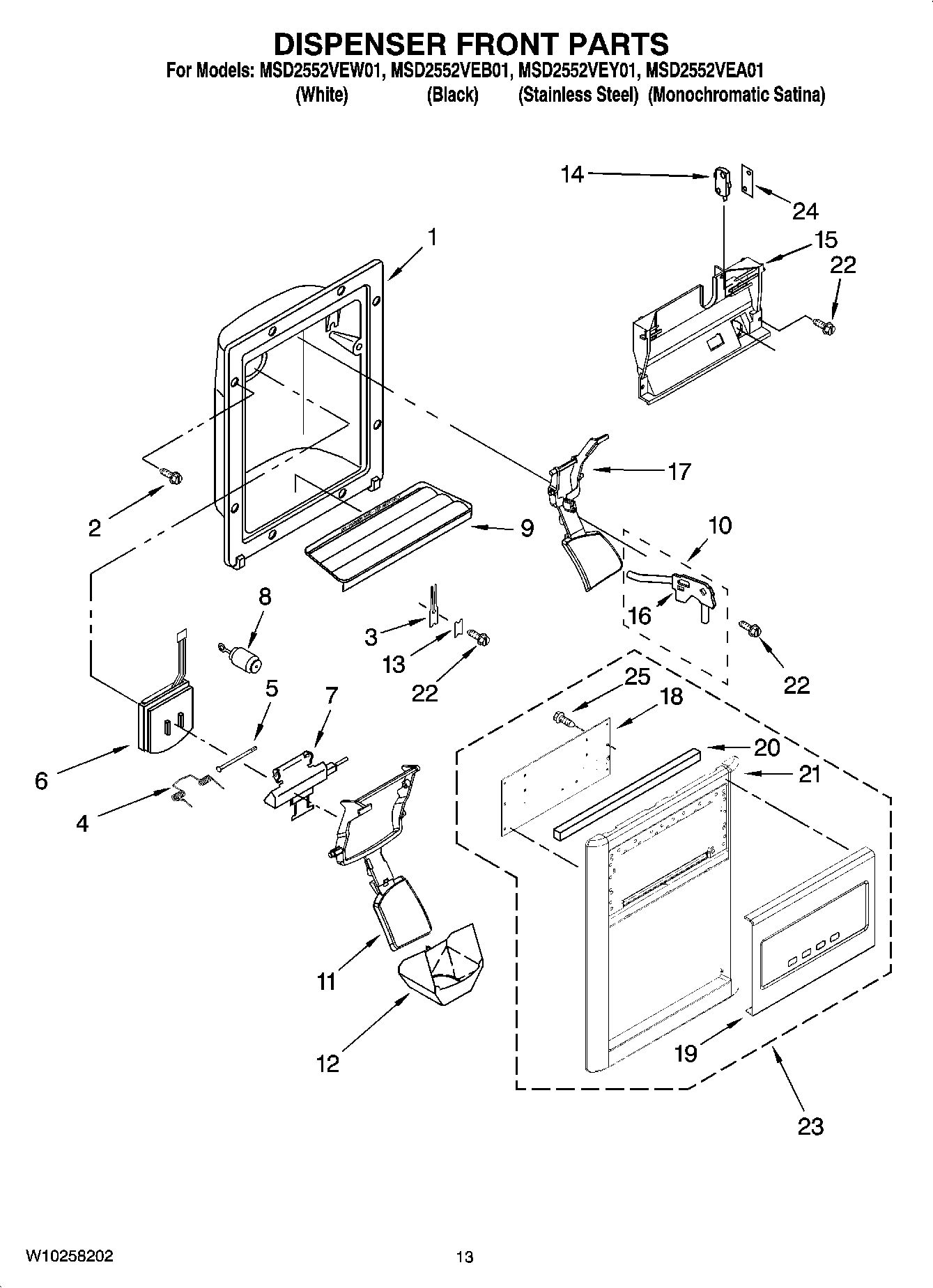

Model Whirlpool MSD2552VEW01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10334458 Whirlpool Refrigerator Connector In Stock WPL WPW10334458 $8.95

1

Liner (Not A Seviceable Part) WPL ARI6103A55 Contact Us For Availability

1

Control Box WPL 2181738 Contact Us For Availability

2

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.40

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $29.92

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $12.27

2

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $47.46

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $44.17

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.79

3

W10211163 Whirlpool Condenser Assembly Backorder WPL W10211163 $180.34

3

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $37.98

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $20.89

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $110.56

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $5.24

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.79

3

Slide Meat Pan Control WPL 2182757 Contact Us For Availability

4

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $58.20

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.25

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $15.05

4

Louver WPL 2257741 Contact Us For Availability

5

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $177.93

5

W10812039 Whirlpool Clip Backorder WPL W10812039 $4.45

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

5

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $41.95

5

WP2196195 Whirlpool Refrigerator Door Pin Backorder WPL WP2196195 $7.98

5

WPW10318948 Whirlpool Wire Shelf Backorder WPL WPW10318948 $129.43

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $31.35

6

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.96

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.84

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.94

6

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.60

6

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.84

6

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.73

6

WPW10318947 Whirlpool Wire Shelf In Stock WPL WPW10318947 $56.66

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $14.17

7

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $2.60

7

WPW10144409 Whirlpool Refrigerator Freezer Bi In Stock WPL WPW10144409 $98.42

7

WPW10196323 Whirlpool Refrigerator Rail Assem Backorder WPL WPW10196323 $59.26

7

Screw WPL 488280 Contact Us For Availability

7

Hole Plug WPL 940014 Contact Us For Availability

8

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $43.70

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.64

8

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $14.25

8

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $59.18

8

WPW10130299 Whirlpool Refrigerator Cup Backorder WPL WPW10130299 $9.86

8

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $10.07

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.84

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.47

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $22.21

9

WP2206670W Whirlpool Dispenser Tray Backorder WPL WP2206670W $41.74

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.96

9

WPW10151375 Whirlpool Refrigerator Diffuser Backorder WPL WPW10151375 $64.11

9

Shim WPL 2209697 Contact Us For Availability

9

Box Cover WPL 2255624 Contact Us For Availability

9

SHELF WIRE WPL 2309522 Contact Us For Availability

9

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $38.11

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $11.17

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $16.36

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $14.33

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.60

Duct, Icemaker WPL 2182146 Contact Us For Availability

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

Elec. Control WPL 2322547 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.53

2326982 Whirlpool Refrigerator Control Box Backorder WPL 2326982 $33.99

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $57.82

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.60

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $66.57

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.60

WPW10170766 Whirlpool Nameplate Backorder WPL WPW10170766 $33.23

Lever, Ice Dispenser (Black) WPL 2203562B Contact Us For Availability

Light Bar (RC) Control WPL 2179920 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.60

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.96

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.85

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.66

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $34.85

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.84

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $33.29

Pivot Arm WPL 2161306 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.81

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $5.05

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $5.00

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $37.15

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $37.77

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

Shelf, Top Compartment WPL 2171714 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $35.59

W10210786 Whirlpool Refrigerator Tube Backorder WPL W10210786 $36.65

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.14

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $14.52

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $49.74

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $69.11

15

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $35.02

15

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.32

15

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.84

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.55

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $53.56

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $58.30

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.50

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.59

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $74.50

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $39.43

2310533 Whirlpool Refrigerator Wire Harness Backorder WPL 2310533 $134.27

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.96

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.96

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $31.45

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.60

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $25.41

Washer, Plain WPL 489235 Contact Us For Availability

Lever, Water Dispenser (Black) WPL 2203561B Contact Us For Availability

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.36

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.60

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.60

Control Board, LCD WPL 2321748 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $11.17

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.58

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.81

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.56

ARM-SHUT In Stock WPL W11807379 $26.98

Clip-Wiring WPL 1115375 Contact Us For Availability

2161308 Whirlpool Refrigerator Rod Backorder WPL 2161308 $52.35

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.79

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.96

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.90

W10136850 Whirlpool Refrigerator Front Cover Backorder WPL W10136850 $83.62

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.84

Bezel, Display (Stainless) WPL W10139842 Contact Us For Availability

Fastener, Push-On WPL 489391 Contact Us For Availability

22

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $256.71

22

Escutcheon, Control Box WPL W10176424 Contact Us For Availability

23

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.66

23

Clamp WPL 2161324 Contact Us For Availability

23

LIGHT BAR FC WPL 2179921 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.73

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.84

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP489483 Whirlpool Screw Backorder WPL WP489483 $4.75

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Window Light Lens WPL 2175513 Contact Us For Availability

25

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.52

25

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.58

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $45.89

26

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.33

26

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $61.42

26

CONNECTING ROD, SHORT WPL 2161307 Contact Us For Availability

27

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.81

27

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $35.64

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.24

28

W10233961 Whirlpool Refrigerator Compressor In Stock WPL W10233961 $376.28

29

W10196321 Whirlpool Refrigerator Frame Backorder WPL W10196321 $190.34

29

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.75

30

2310425 Whirlpool Refrigerator Wire Harness Backorder WPL 2310425 $177.90

30

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.84

31

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.96

31

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.89

32

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

32

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.28

33

W11566763 Whirlpool Fitting In Stock WPL W11566763 $21.81

33

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.56

34

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.53

35

876811 Whirlpool Grommet Backorder WPL 876811 $3.84

35

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $34.92

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.84

36

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.73

37

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $41.72

38

Clip, Heat Shield WPL 2155547 Contact Us For Availability

39

W10274306 Whirlpool Refrigerator Tube Backorder WPL W10274306 $9.22

40

DOOR CLOSER, FC WPL 2223751 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.41

350930 Whirlpool White Spray Paint In Stock WPL 350930 $22.23

350942 Whirlpool Spray Paint Backorder WPL 350942 $52.25

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $10.93

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $45.60

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.95

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.93

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.93

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $47.98

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.84

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $37.34

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $39.24

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $41.04

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $45.28

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $66.85

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $25.50

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $29.93

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 qt.) (White) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Valve, Access (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI6106A46 Contact Us For Availability

REFRIGERANT CHARGE 5.0 oz. (R-134A) WPL ARI6107A69 Contact Us For Availability
