Model Maytag MSD2542VES01 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS

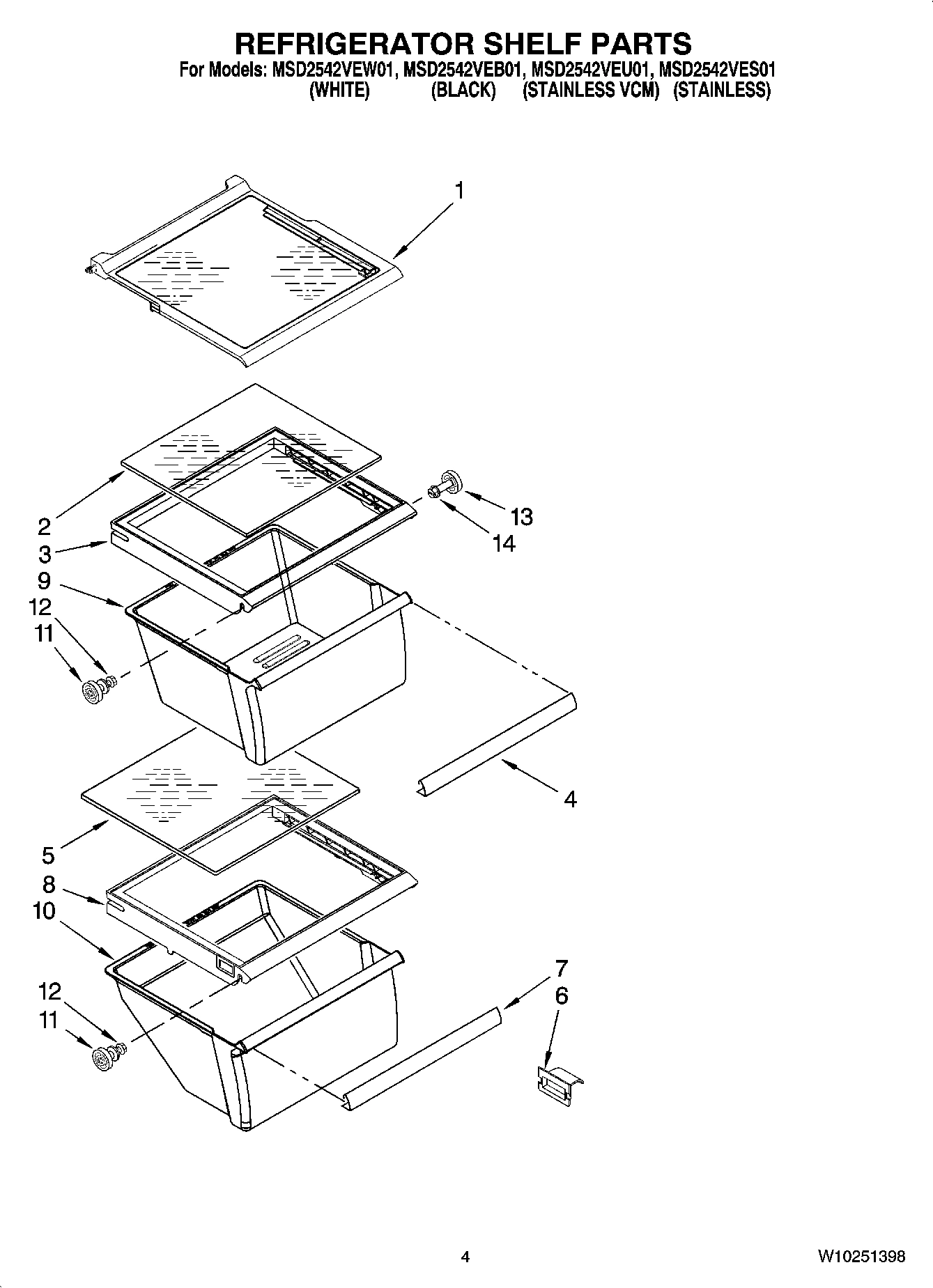

03 - REFRIGERATOR SHELF PARTS

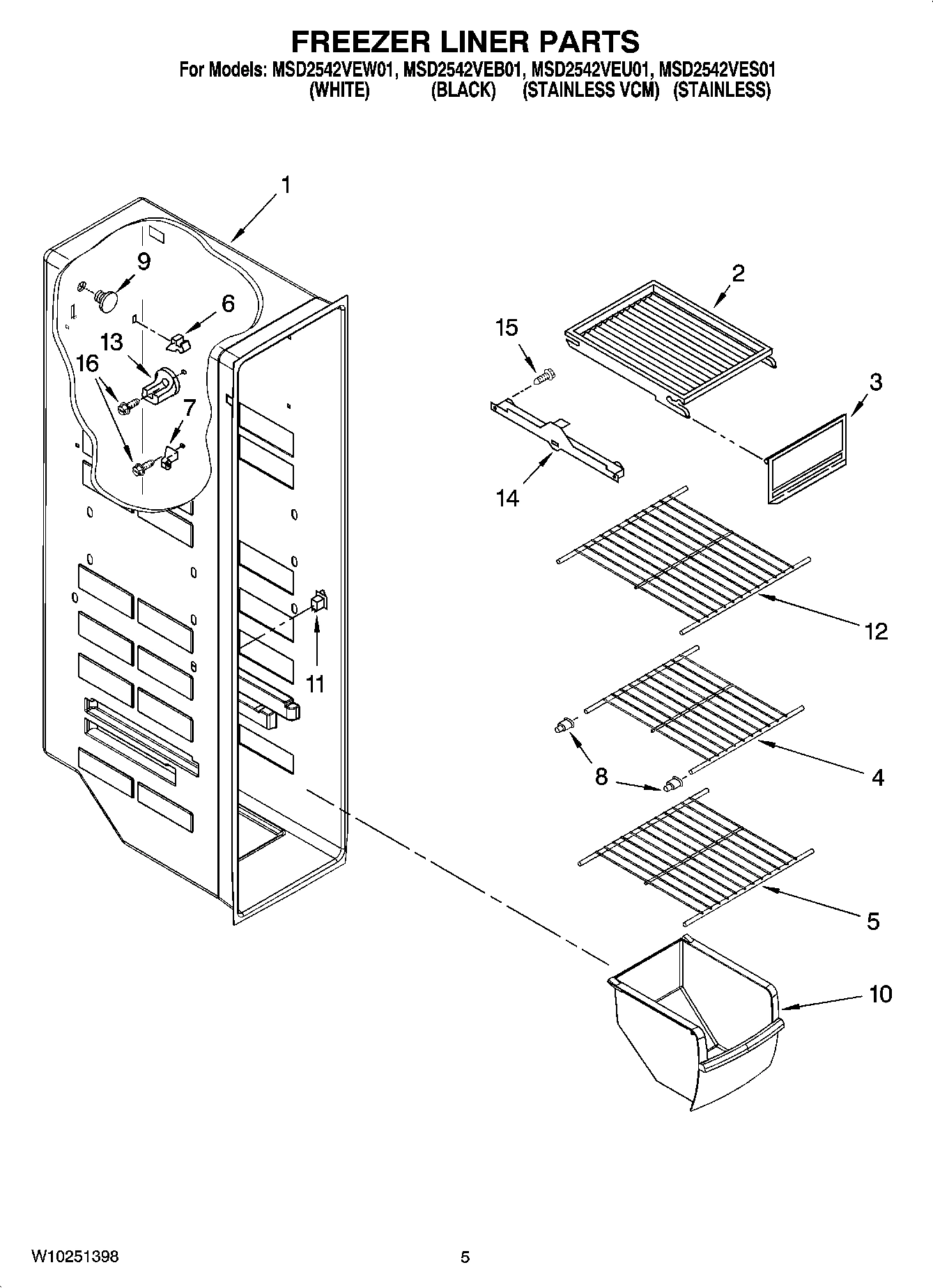

04 - FREEZER LINER PARTS

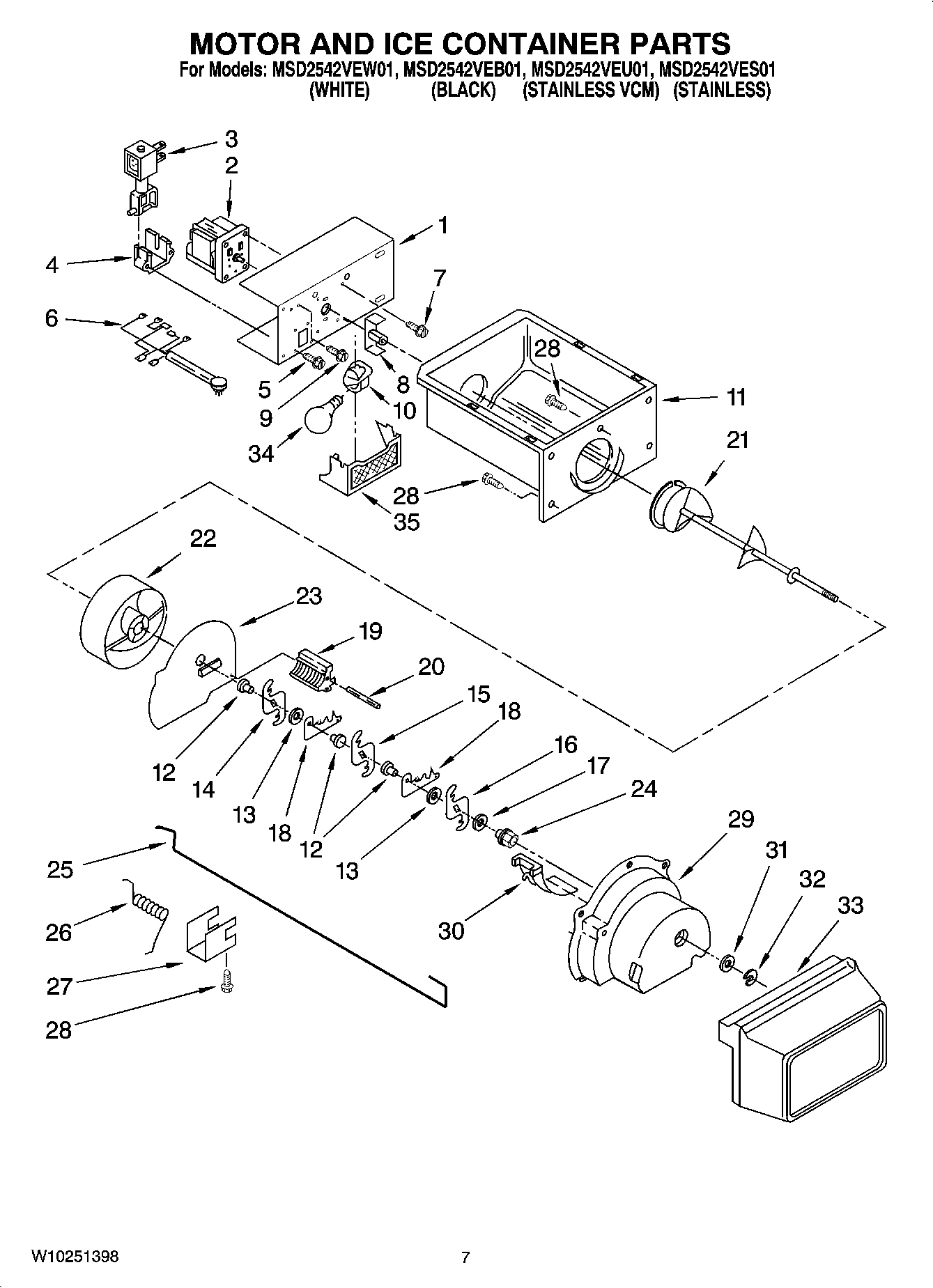

05 - MOTOR AND ICE CONTAINER PARTS

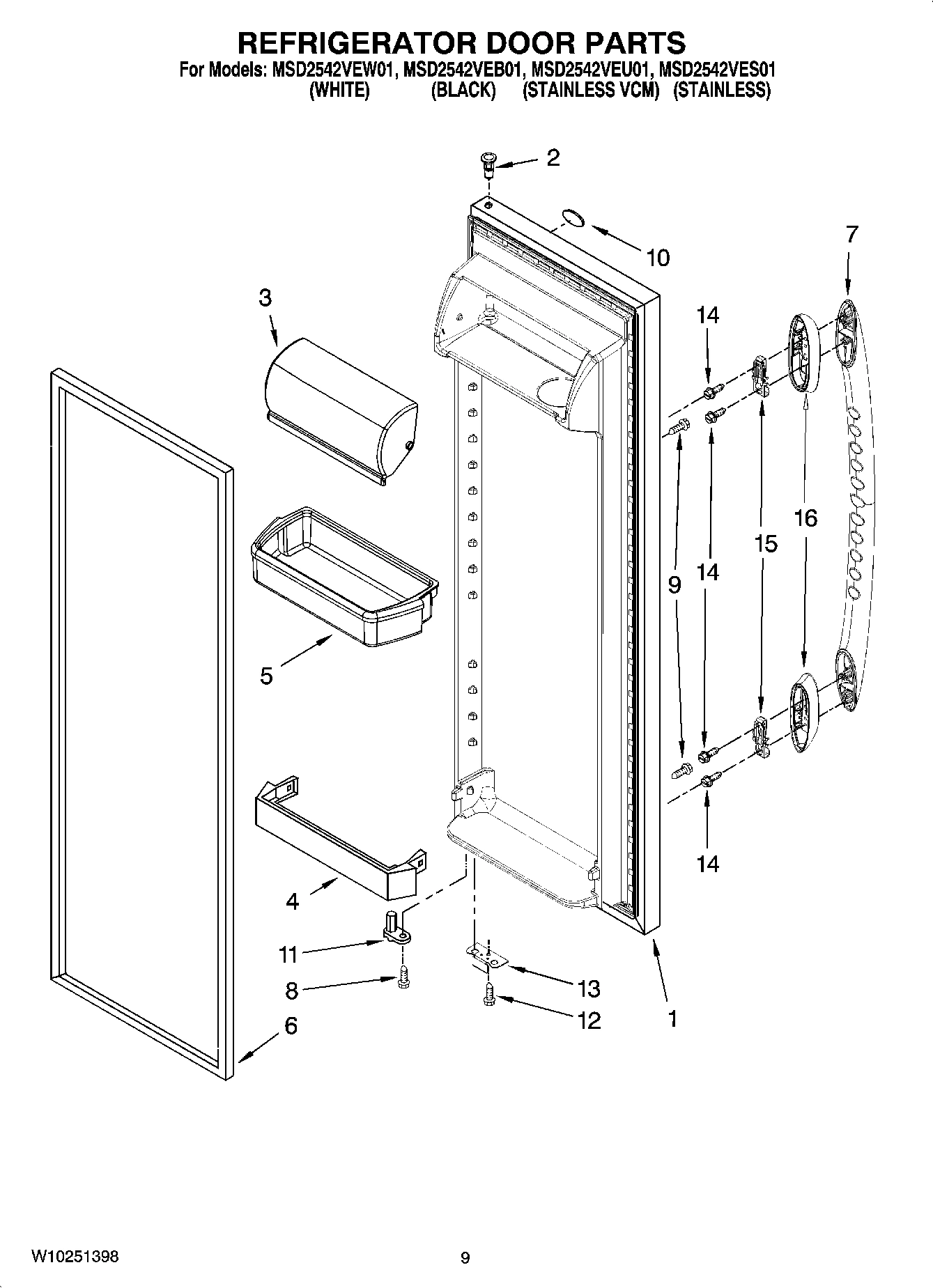

06 - REFRIGERATOR DOOR PARTS

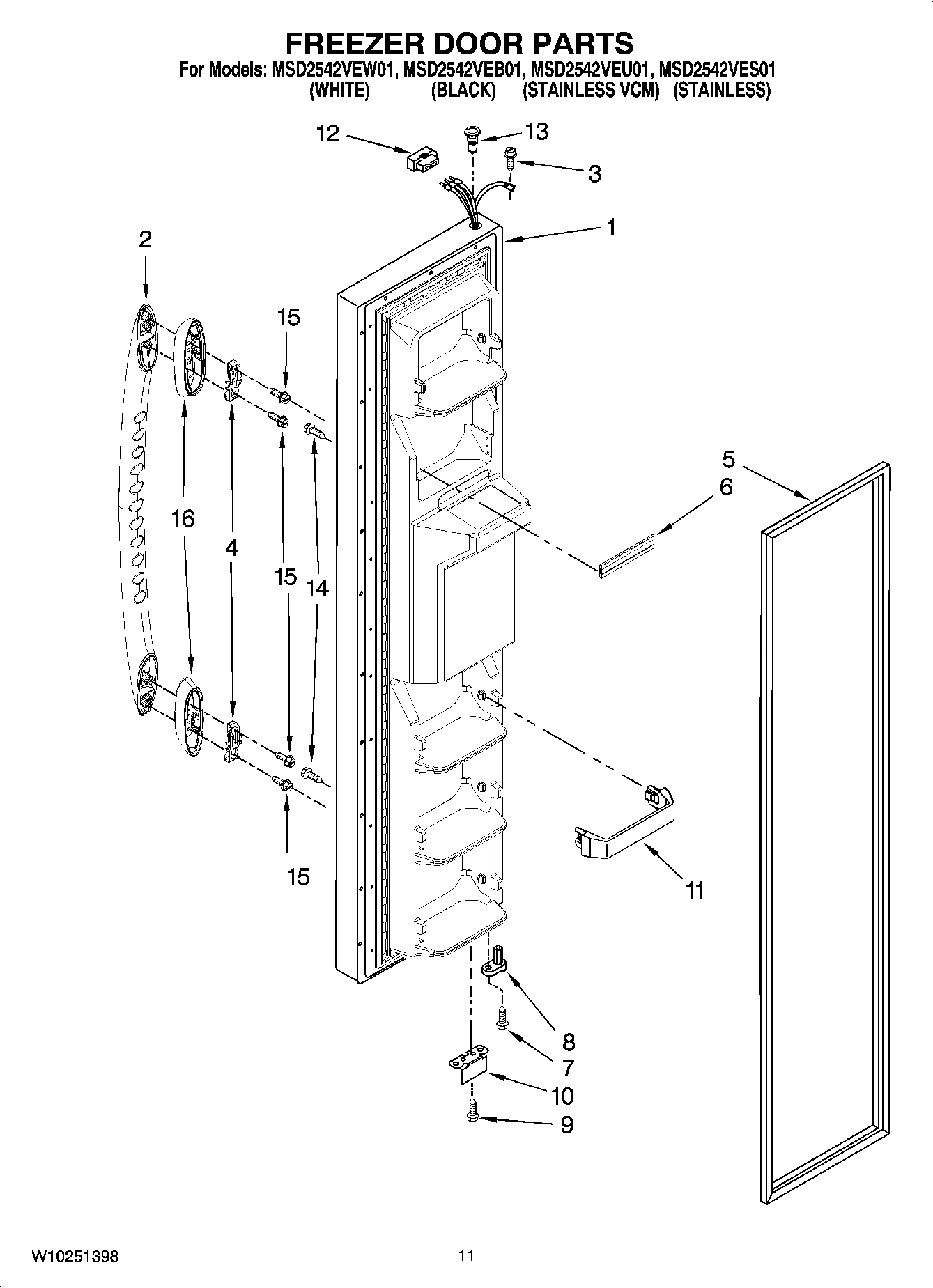

07 - FREEZER DOOR PARTS

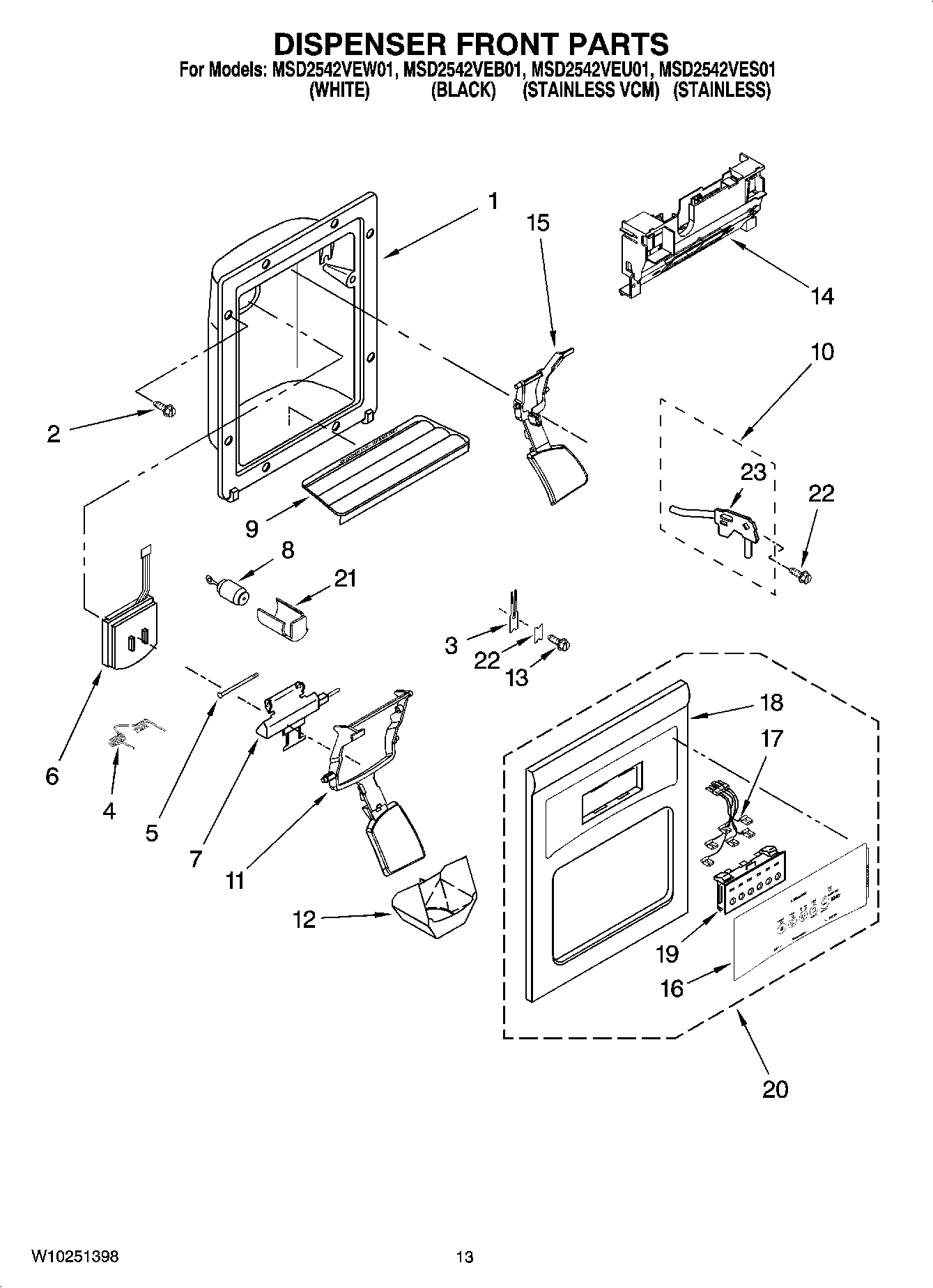

08 - DISPENSER FRONT PARTS

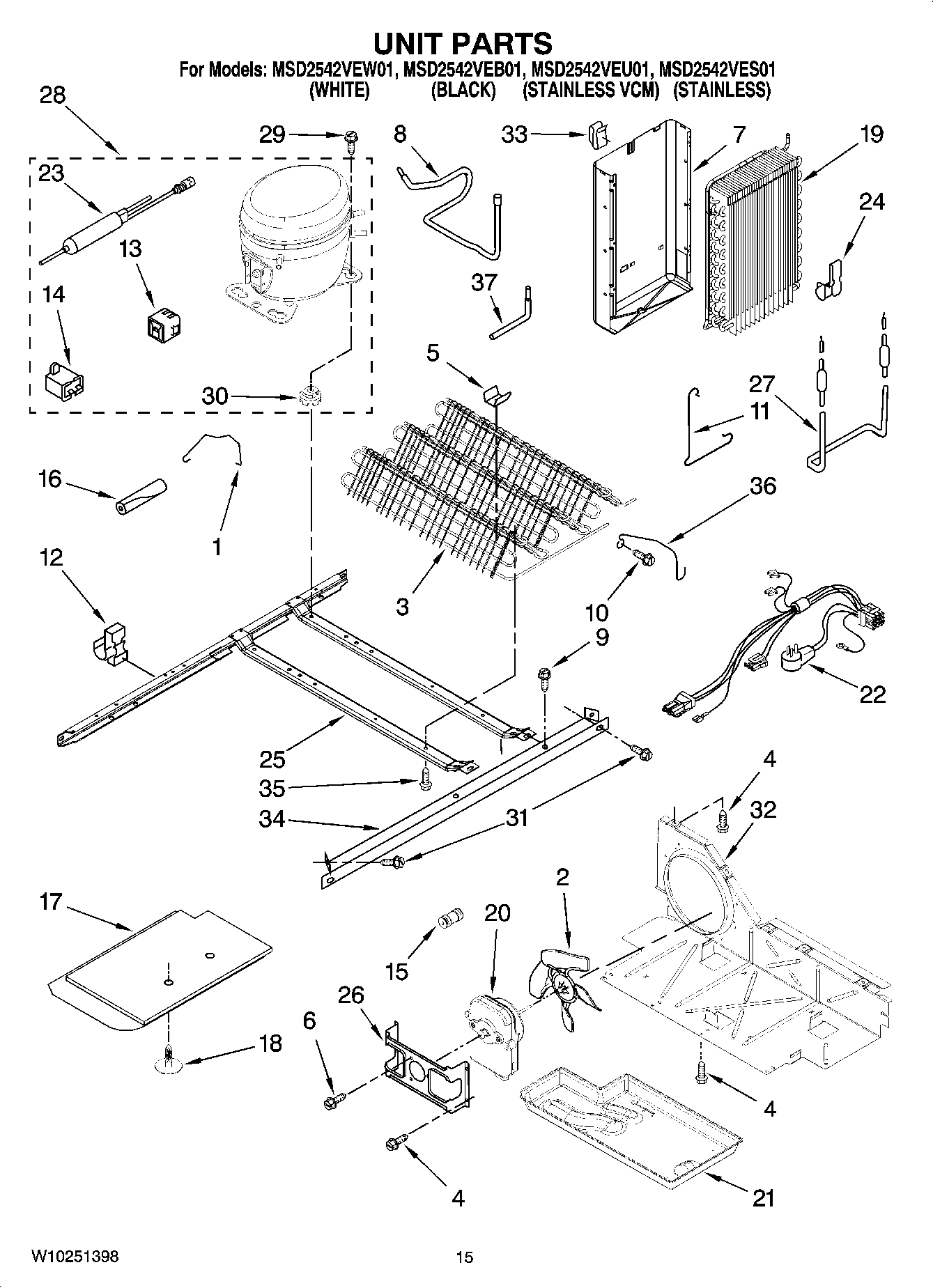

09 - UNIT PARTS

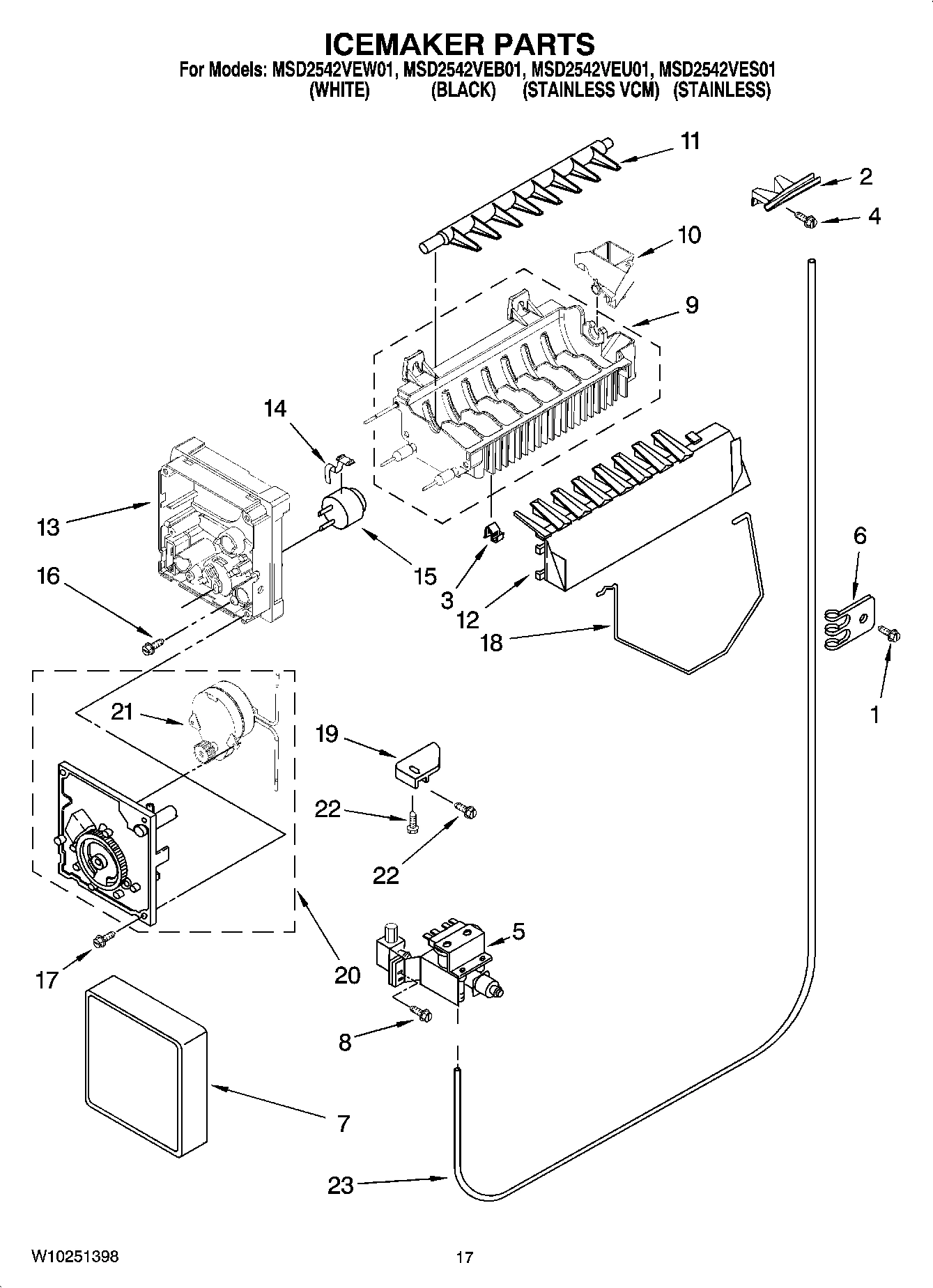

10 - ICEMAKER PARTS

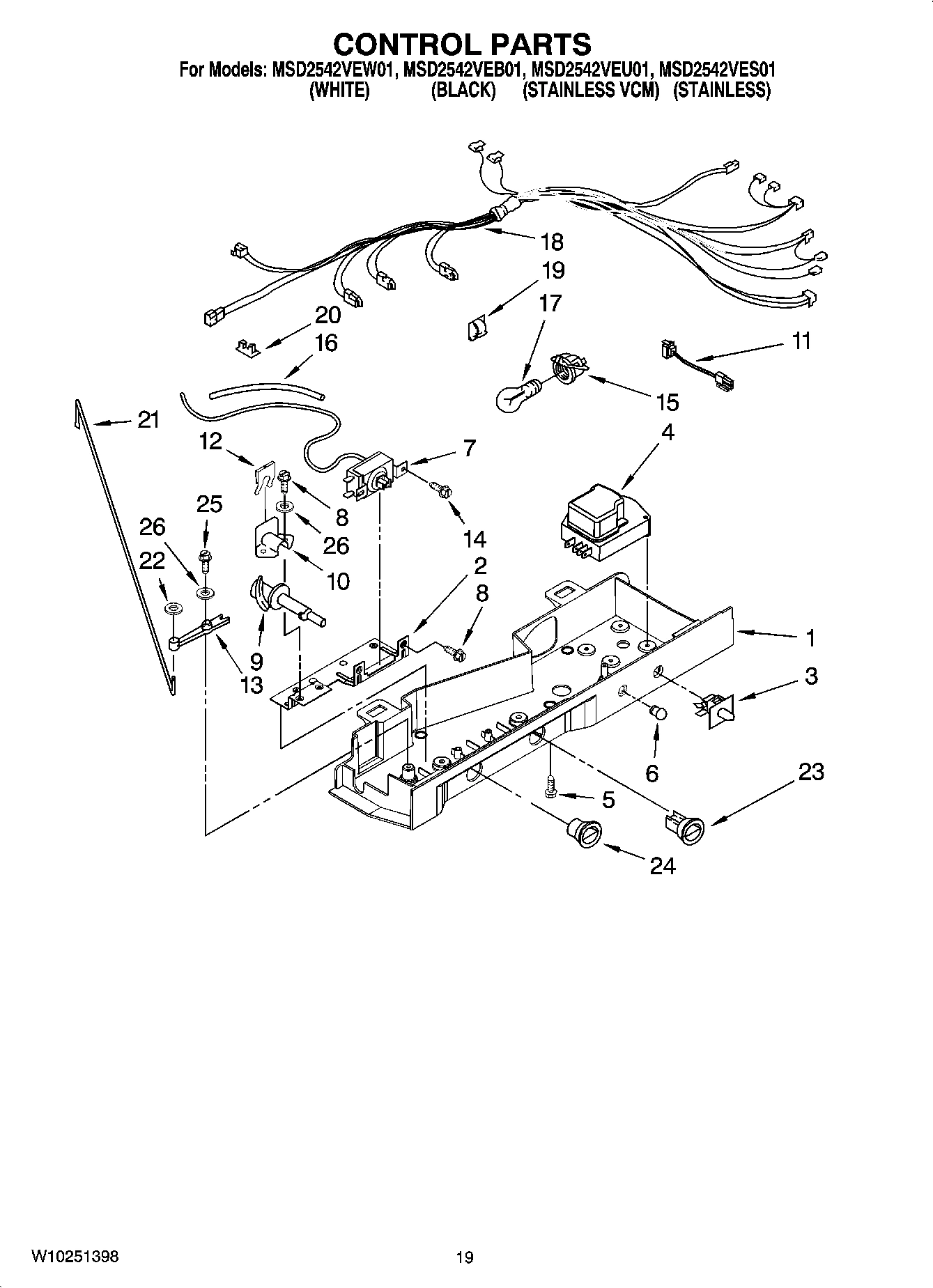

11 - CONTROL PARTS

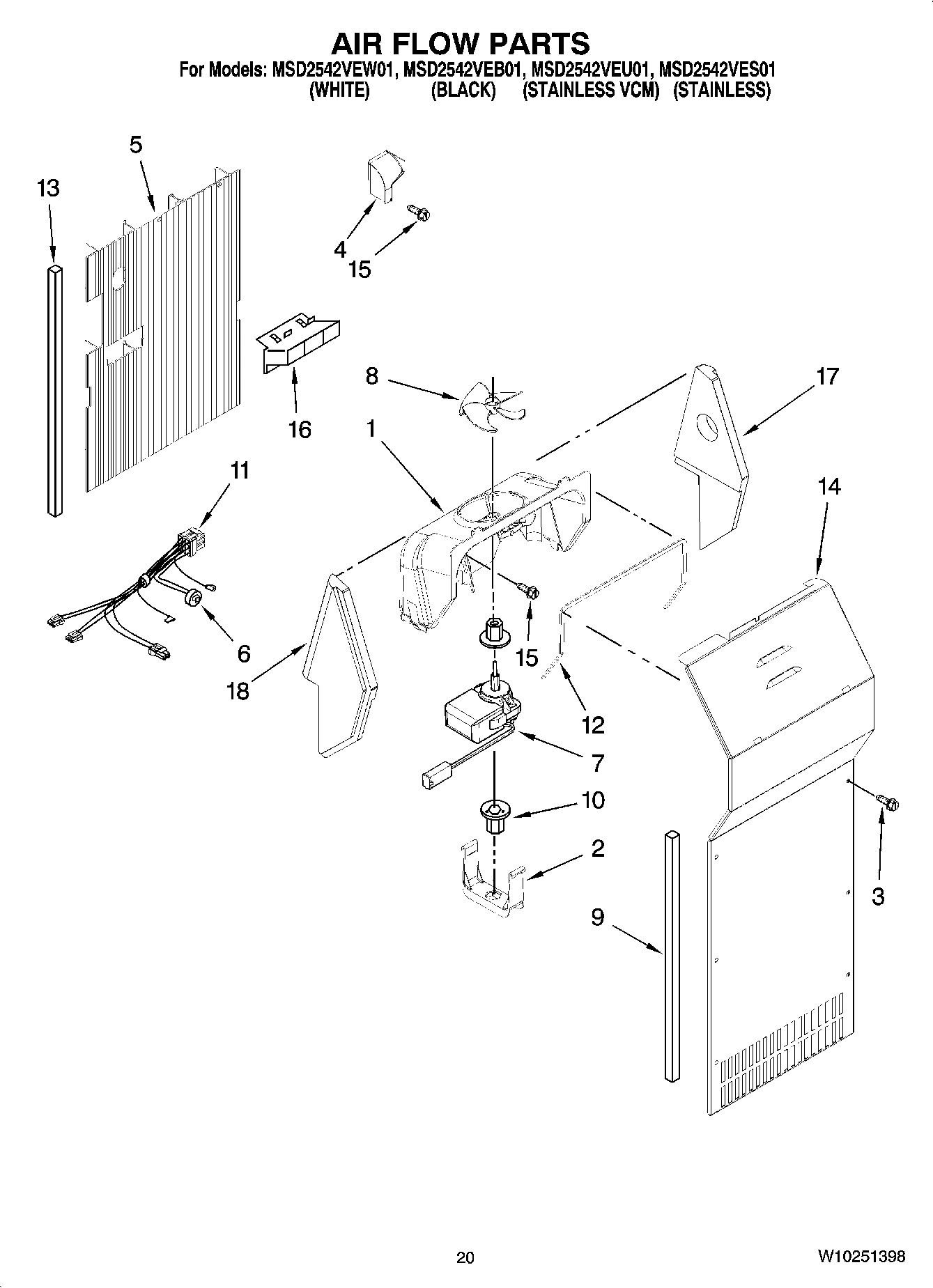

12 - AIR FLOW PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSD2542VES01 REFRIGERATOR
1
MAY 628370 MAY 628370 Contact Us For Availability
1
MAY W10153840 MAY W10153840 Contact Us For Availability
1
MAY W10153841 MAY W10153841 Contact Us For Availability
1
MAY W10154390 MAY W10154390 Contact Us For Availability
1
MAY W10158909 MAY W10158909 Contact Us For Availability
1
MAY 489084 MAY 489084 Contact Us For Availability
1
Shelf Assembly, Spillguard MAY 2309524 Contact Us For Availability
1
MAY 2254587 MAY 2254587 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Stainles MAY W10150583 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) MAY W10153847 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Black) MAY W10159873 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Stainles MAY W10170585 Contact Us For Availability
1
Freezer Door (Includes Item 5 and dispenser f MAY W10153844 Contact Us For Availability
1
Freezer Door (Includes Item 5 and dispenser f MAY W10159876 Contact Us For Availability
1
Freezer Door (Includes Item 5 and dispenser f MAY W10170562 Contact Us For Availability
1
Freezer Door (Includes Item 5 and dispenser f MAY W10170570 Contact Us For Availability
1
MAY 2263990 MAY 2263990 Contact Us For Availability
1
MAY W10159858 MAY W10159858 Contact Us For Availability
1
Fan Scroll MAY 2182120 Contact Us For Availability
2
MAY 2174748 MAY 2174748 Contact Us For Availability
2
MAY W10175967 MAY W10175967 Contact Us For Availability
2
MAY 2171714 MAY 2171714 Contact Us For Availability
2
MAY W10181208 MAY W10181208 Contact Us For Availability
2
MAY 2308091 MAY 2308091 Contact Us For Availability
2
MAY 12743701B MAY 12743701B Contact Us For Availability
2
MAY 12743701W MAY 12743701W Contact Us For Availability
2
Fan, Blade MAY 12825802 Contact Us For Availability
2
MAY 2209774 MAY 2209774 Contact Us For Availability
2
MAY 2311611 MAY 2311611 Contact Us For Availability
2
MAY 2155590 MAY 2155590 Contact Us For Availability
3
MAY 3400517 MAY 3400517 Contact Us For Availability
3
MAY 2182757 MAY 2182757 Contact Us For Availability
3
Cover, Crisper MAY 2209698 Contact Us For Availability
3
MAY 2171713 MAY 2171713 Contact Us For Availability
3
MAY 2152713 MAY 2152713 Contact Us For Availability
3
Door, Compartment MAY 2256101 Contact Us For Availability
3
MAY 488500 MAY 488500 Contact Us For Availability
3
MAY 2194719 MAY 2194719 Contact Us For Availability
3
MAY W10121484 MAY W10121484 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
3
MAY 2219875 MAY 2219875 Contact Us For Availability
3
Screw (6) MAY 8281159 Contact Us For Availability
4
Rear Roller (2) MAY 2196236 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
MAY 2257741 MAY 2257741 Contact Us For Availability
4
Trim, Pan MAY 2179234 Contact Us For Availability
4
Shelf, Wire MAY 2309596 Contact Us For Availability
4
MAY 2149100 MAY 2149100 Contact Us For Availability
4
MAY 2309941 MAY 2309941 Contact Us For Availability
4
MAY 13067101 MAY 13067101 Contact Us For Availability
4
MAY 2304772 MAY 2304772 Contact Us For Availability
4
MAY W10135899 MAY W10135899 Contact Us For Availability
5
MAY W10166019 MAY W10166019 Contact Us For Availability
5
GLASS COVER MAY 2179259 Contact Us For Availability
5
MAY 2309597 MAY 2309597 Contact Us For Availability
5
Screw (2) MAY 489355 Contact Us For Availability
5
Door Bin (3) MAY 2187172 Contact Us For Availability
5
Door Gasket, Magnetic (Mist Beige) MAY 2309532 Contact Us For Availability
5
MAY 2309533 MAY 2309533 Contact Us For Availability
5
MAY 2196195 MAY 2196195 Contact Us For Availability
5
MAY 2311725 MAY 2311725 Contact Us For Availability
5
MAY 2315534 MAY 2315534 Contact Us For Availability
5
Screw MAY 489398 Contact Us For Availability
5
MAY 2203593 MAY 2203593 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
MAY 2179350 MAY 2179350 Contact Us For Availability
6
Clip, Air Duct (2) MAY 842534 Contact Us For Availability
6
MAY 2325303 MAY 2325303 Contact Us For Availability
6
Door Gasket, Magnetic (Mist Beige) MAY 2309528 Contact Us For Availability
6
MAY 2309529 MAY 2309529 Contact Us For Availability
6
MAY 2209681 MAY 2209681 Contact Us For Availability
6
MAY 2180353 MAY 2180353 Contact Us For Availability
6
MAY 8533993 MAY 8533993 Contact Us For Availability
6
Clip, Tube MAY 2208136 Contact Us For Availability
6
Cover, Light Lens MAY 2200096 Contact Us For Availability
6
MAY 2321799 MAY 2321799 Contact Us For Availability
7
Screw MAY 488280 Contact Us For Availability
7
MAY 2255592 MAY 2255592 Contact Us For Availability
7
Screw (6) MAY 489399 Contact Us For Availability
7
MAY 3400012 MAY 3400012 Contact Us For Availability
7
MAY 2304355 MAY 2304355 Contact Us For Availability
7
Heat Shield And Drain Pan MAY W10194475 Contact Us For Availability
7
MAY 2174155 MAY 2174155 Contact Us For Availability
7
Thermostat MAY 2198202 Contact Us For Availability
7
MAY 2315549 MAY 2315549 Contact Us For Availability
8
Housing, Water Filter MAY W10121138 Contact Us For Availability
8
Clip, Control Box (2) MAY 2311612 Contact Us For Availability
8
MAY 2311726 MAY 2311726 Contact Us For Availability
8
Cup, Shelf Mounting MAY W10130299 Contact Us For Availability
8
MAY W10169511 MAY W10169511 Contact Us For Availability
8
MAY 2182179 MAY 2182179 Contact Us For Availability
8
Screw MAY 3196537 Contact Us For Availability
8
MAY 2205686 MAY 2205686 Contact Us For Availability
8
MAY 2205765 MAY 2205765 Contact Us For Availability
8
MAY 488649 MAY 488649 Contact Us For Availability
8
Fan Blade MAY 2169142 Contact Us For Availability
9
MAY 489427 MAY 489427 Contact Us For Availability
9
Shim (2) MAY 2209697 Contact Us For Availability
9
MAY W10151374 MAY W10151374 Contact Us For Availability
9
MAY 2188653 MAY 2188653 Contact Us For Availability
9
MAY 940014 MAY 940014 Contact Us For Availability
9
MAY 489420 MAY 489420 Contact Us For Availability
9
Grille, Overflow (Black) MAY 2206670B Contact Us For Availability
9
Grille, Overflow (White) MAY 2206670W Contact Us For Availability
9
MAY W10122527 MAY W10122527 Contact Us For Availability
9
MAY 2182195 MAY 2182195 Contact Us For Availability
9
MAY 2304241 MAY 2304241 Contact Us For Availability
10
HINGE TOP, FC MAY 2203770 Contact Us For Availability
10
Air Diffuser Cover MAY 2152019 Contact Us For Availability
10
MAY 2188654 MAY 2188654 Contact Us For Availability
10
Freezer Bin MAY 2309757 Contact Us For Availability
10
Nameplate MAY W10170766 Contact Us For Availability
10
MAY 2206629 MAY 2206629 Contact Us For Availability
10
MAY 2206629B MAY 2206629B Contact Us For Availability
10
MAY 2304317 MAY 2304317 Contact Us For Availability
10
CUP, WATER FILL MAY 628515 Contact Us For Availability
10
MAY 1110560 MAY 1110560 Contact Us For Availability
10
Fan Grommet (2) MAY 2176759 Contact Us For Availability
11
HINGE TOP RC MAY 2203771 Contact Us For Availability
11
Cover, Conduit MAY 2150331 Contact Us For Availability
11
MAY 2196485 MAY 2196485 Contact Us For Availability
11
Switch, Rocker Arm MAY 1115373 Contact Us For Availability
11
MAY 2196091 MAY 2196091 Contact Us For Availability
11
DOOR CLOSER UPPER CAM MAY 2182178 Contact Us For Availability
11
Trim, Door Shelf (4) MAY 2309718 Contact Us For Availability
11
Lever, Ice Dispenser (Black) MAY 2203562B Contact Us For Availability
11
Lever, Ice Dispenser (White) MAY 2203562W Contact Us For Availability
11
MAY 2161324 MAY 2161324 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
11
Led and Connector Assembly MAY 2213462 Contact Us For Availability
11
Harness, Fan Tube Evaporator (Includes 6) MAY W10129815 Contact Us For Availability
12
MAY 2260503B MAY 2260503B Contact Us For Availability
12
Button, Water Filter (White) MAY 2260503W Contact Us For Availability
12
MAY 486298 MAY 486298 Contact Us For Availability
12
MAY 3400894 MAY 3400894 Contact Us For Availability
12
SHELF WIRE MAY 2309522 Contact Us For Availability
12
MAY 1119005 MAY 1119005 Contact Us For Availability
12
Connector MAY 2154473 Contact Us For Availability
12
MAY 2180224 MAY 2180224 Contact Us For Availability
12
MAY 2208280 MAY 2208280 Contact Us For Availability
12
Ice Striper MAY 2182124 Contact Us For Availability
12
Damper Control MAY 2196062 Contact Us For Availability
12
Gasket, Fan Scroll MAY 2155789 Contact Us For Availability
13
HINGE COVER FC (BLACK) MAY 2203407B Contact Us For Availability
13
HINGE COVER FC (WHITE) MAY 2203407W Contact Us For Availability
13
MAY 2196483 MAY 2196483 Contact Us For Availability
13
Stud, Rear MAY 2196206 Contact Us For Availability
13
MAY 1119007 MAY 1119007 Contact Us For Availability
13
MAY 2182181 MAY 2182181 Contact Us For Availability
13
MAY 489000 MAY 489000 Contact Us For Availability
13
Start-Device, Combination (Start Relay and Ov MAY 2304884 Contact Us For Availability
13
Start-Device, Combination (Start Relay and Ov MAY W10197427 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
13
MAY 1110559 MAY 1110559 Contact Us For Availability
13
MAY 2203876 MAY 2203876 Contact Us For Availability
14
MAY 2217075 MAY 2217075 Contact Us For Availability
14
MAY W10204356 MAY W10204356 Contact Us For Availability
14
MAY 8281158 MAY 8281158 Contact Us For Availability
14
Slide, Container (Left Side) MAY 1119237 Contact Us For Availability
14
Slide, Container (Right Side) MAY 1119293 Contact Us For Availability
14
MAY 2257022 MAY 2257022 Contact Us For Availability
14
Stud, Handle MAY 2326016 Contact Us For Availability
14
MAY 2183771 MAY 2183771 Contact Us For Availability
14
Capacitor (Production) MAY 2264017 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
14
Screw MAY 487869 Contact Us For Availability
14
Cover, Evaporator (Includes 9) MAY W10194476 Contact Us For Availability
15
MAY 489478 MAY 489478 Contact Us For Availability
15
Filler, Wrapper (White) MAY 2201014 Contact Us For Availability
15
Filler, Wrapper (Black) MAY 2201017 Contact Us For Availability
15
Light Socket MAY 2162085 Contact Us For Availability
15
Screw (4) MAY 489100 Contact Us For Availability
15
MAY 2257023 MAY 2257023 Contact Us For Availability
15
MAY 12990203 MAY 12990203 Contact Us For Availability
15
Lever, Water Dispenser (Black) MAY 2203561B Contact Us For Availability
15
Lever, Water Dispenser (White) MAY 2203561W Contact Us For Availability
15
MAY 2320322 MAY 2320322 Contact Us For Availability
15
Thermostat (Also Order 542369 Cement Alumilas MAY 628397 Contact Us For Availability
16
MAY 2260500B MAY 2260500B Contact Us For Availability
16
MAY 2260500W MAY 2260500W Contact Us For Availability
16
MAY 3400893 MAY 3400893 Contact Us For Availability
16
MAY 2257024 MAY 2257024 Contact Us For Availability
16
MAY 12834803B MAY 12834803B Contact Us For Availability
16
MAY 12834803W MAY 12834803W Contact Us For Availability
16
MAY 2161302 MAY 2161302 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
16
TUBE-BARRIER, THERMOSTAT MAY 2196001 Contact Us For Availability
16
MAY 2182146 MAY 2182146 Contact Us For Availability
17
MAY 489497 MAY 489497 Contact Us For Availability
17
MAY 527949 MAY 527949 Contact Us For Availability
17
MAY 489235 MAY 489235 Contact Us For Availability
17
MAY 2325305 MAY 2325305 Contact Us For Availability
17
Unit Cover, Bottom MAY 2304899 Contact Us For Availability
17
MAY 489276 MAY 489276 Contact Us For Availability
17
MAY 2203595 MAY 2203595 Contact Us For Availability
18
MAY 1119009 MAY 1119009 Contact Us For Availability
18
MAY 489396 MAY 489396 Contact Us For Availability
18
MAY 2304354 MAY 2304354 Contact Us For Availability
18
MAY 2311632 MAY 2311632 Contact Us For Availability
18
MAY 2203596 MAY 2203596 Contact Us For Availability
19
MAY 2304888 MAY 2304888 Contact Us For Availability
19
Block, Blade MAY 2157405 Contact Us For Availability
19
Switch Assembly MAY 2180236 Contact Us For Availability
19
Evaporator MAY 2188823 Contact Us For Availability
19
Bracket, Ice Maker Mounting MAY 628320 Contact Us For Availability
19
MAY 1115374 MAY 1115374 Contact Us For Availability
20
MAY W10153550 MAY W10153550 Contact Us For Availability
20
MAY 489229 MAY 489229 Contact Us For Availability
20
MAY W10153855 MAY W10153855 Contact Us For Availability
20
MAY W10159864 MAY W10159864 Contact Us For Availability
20
Motor, Fan MAY 2188874 Contact Us For Availability
20
Module Assembly (Includes Item 21) MAY 626691 Contact Us For Availability
20
Clip-Wiring MAY 1115375 Contact Us For Availability
21
MAY 4396841 MAY 4396841 Contact Us For Availability
21
MAY 2196295 MAY 2196295 Contact Us For Availability
21
Sleeve, Delay Mechanism MAY 2252127 Contact Us For Availability
21
MAY 1105523 MAY 1105523 Contact Us For Availability
21
MAY 2311631 MAY 2311631 Contact Us For Availability
22
MAY 2188735 MAY 2188735 Contact Us For Availability
22
MAY 2305377 MAY 2305377 Contact Us For Availability
22
MAY 2195051 MAY 2195051 Contact Us For Availability
22
Harness, Unit MAY 2187783 Contact Us For Availability
22
MAY 489285 MAY 489285 Contact Us For Availability
23
HINGE COVER RC (BLACK) MAY 2203408B Contact Us For Availability
23
HINGE COVER RC (WHITE) MAY 2203408W Contact Us For Availability
23
MAY 2171682 MAY 2171682 Contact Us For Availability
23
MAY 2304673 MAY 2304673 Contact Us For Availability
23
MAY 2317845 MAY 2317845 Contact Us For Availability
23
MAY W10177049 MAY W10177049 Contact Us For Availability
23
MAY 2223137 MAY 2223137 Contact Us For Availability
23
Thremostat Knob MAY 2311614 Contact Us For Availability
24
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
24
MAY 1119018 MAY 1119018 Contact Us For Availability
24
MAY 2304287 MAY 2304287 Contact Us For Availability
24
Control Knob MAY 2311615 Contact Us For Availability
25
MAY 2155231 MAY 2155231 Contact Us For Availability
25
MAY W10196321 MAY W10196321 Contact Us For Availability
25
MAY 627068 MAY 627068 Contact Us For Availability
26
MAY 2155311 MAY 2155311 Contact Us For Availability
26
MAY 1119020 MAY 1119020 Contact Us For Availability
26
Bracket, Fan Motor MAY 2181929 Contact Us For Availability
26
Spring Washer MAY 489203 Contact Us For Availability
27
MAY 489483 MAY 489483 Contact Us For Availability
27
MAY 1119021 MAY 1119021 Contact Us For Availability
27
MAY 2188175 MAY 2188175 Contact Us For Availability
28
MAY 489500 MAY 489500 Contact Us For Availability
28
SCREW MAY 488886 Contact Us For Availability
28
Compressor (Includes Items 13, 14, 23, & 30) MAY W10120459 Contact Us For Availability
29
MAY 2260502B MAY 2260502B Contact Us For Availability
29
MAY 2260502W MAY 2260502W Contact Us For Availability
29
MAY 2180348 MAY 2180348 Contact Us For Availability
29
MAY 489373 MAY 489373 Contact Us For Availability
30
MAY 1119017 MAY 1119017 Contact Us For Availability
30
MAY 1100826 MAY 1100826 Contact Us For Availability
30
MAY 4387558 MAY 4387558 Contact Us For Availability
31
MAY 8281227 MAY 8281227 Contact Us For Availability
31
MAY 489234 MAY 489234 Contact Us For Availability
31
MAY 489340 MAY 489340 Contact Us For Availability
32
Screw (4) MAY 3400113 Contact Us For Availability
32
MAY 489236 MAY 489236 Contact Us For Availability
32
MAY W10163483 MAY W10163483 Contact Us For Availability
33
Block, Housing Support MAY 2260519 Contact Us For Availability
33
MAY 2204321 MAY 2204321 Contact Us For Availability
33
Clip, Heat MAY 2155547 Contact Us For Availability
34
Tube, Filter Outlet MAY 2255012 Contact Us For Availability
34
MAY W10196323 MAY W10196323 Contact Us For Availability
35
MAY 2319867 MAY 2319867 Contact Us For Availability
35
MAY 2171706 MAY 2171706 Contact Us For Availability
35
MAY 8281232 MAY 8281232 Contact Us For Availability
36
MAY 2260517 MAY 2260517 Contact Us For Availability
37
MAY 2325479 MAY 2325479 Contact Us For Availability
100
MAY W10192856 MAY W10192856 Contact Us For Availability
100
MAY W10190966 MAY W10190966 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Black) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 80051 MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY W10134625 MAY W10134625 Contact Us For Availability
× ![]()
