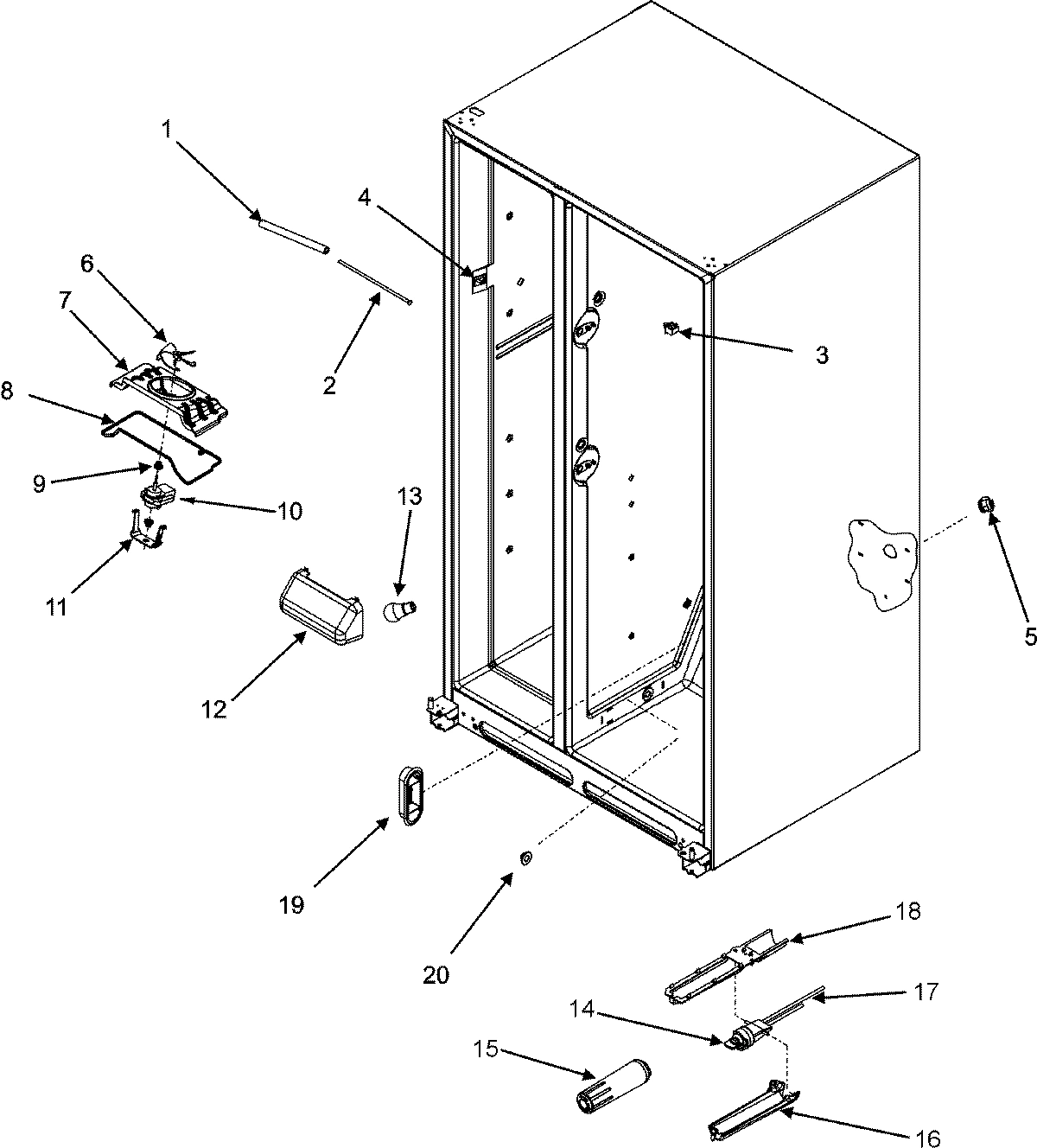

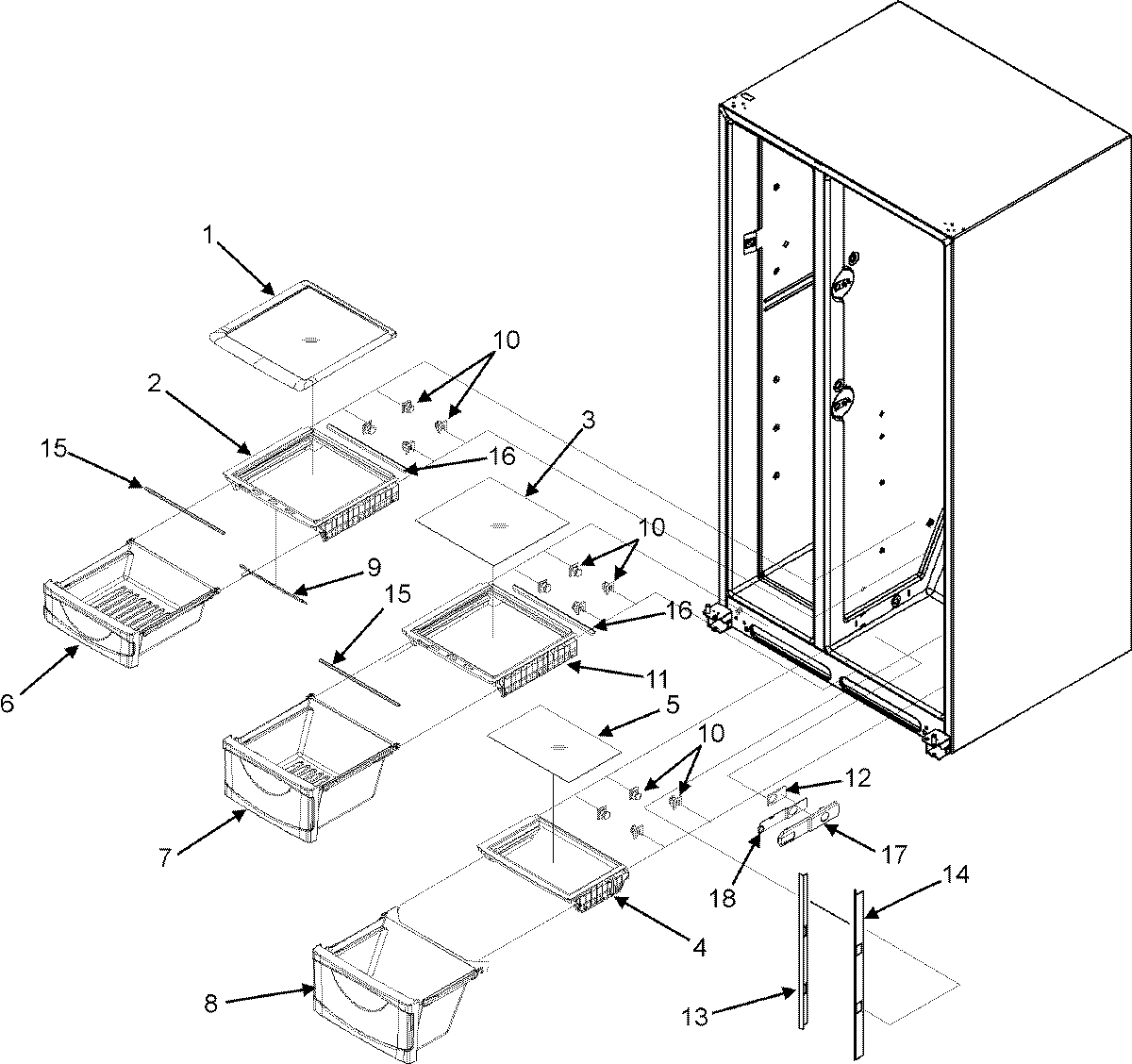

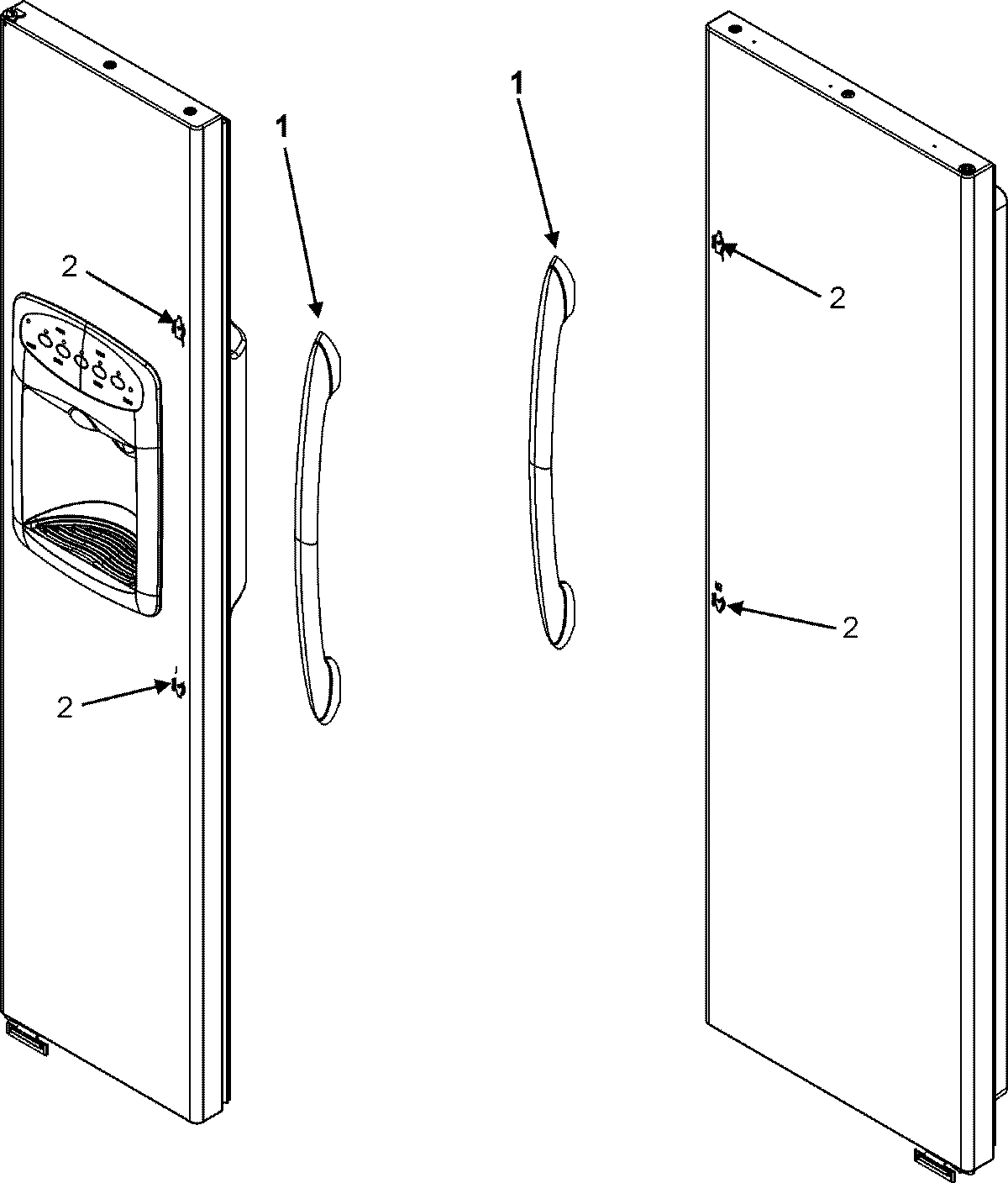

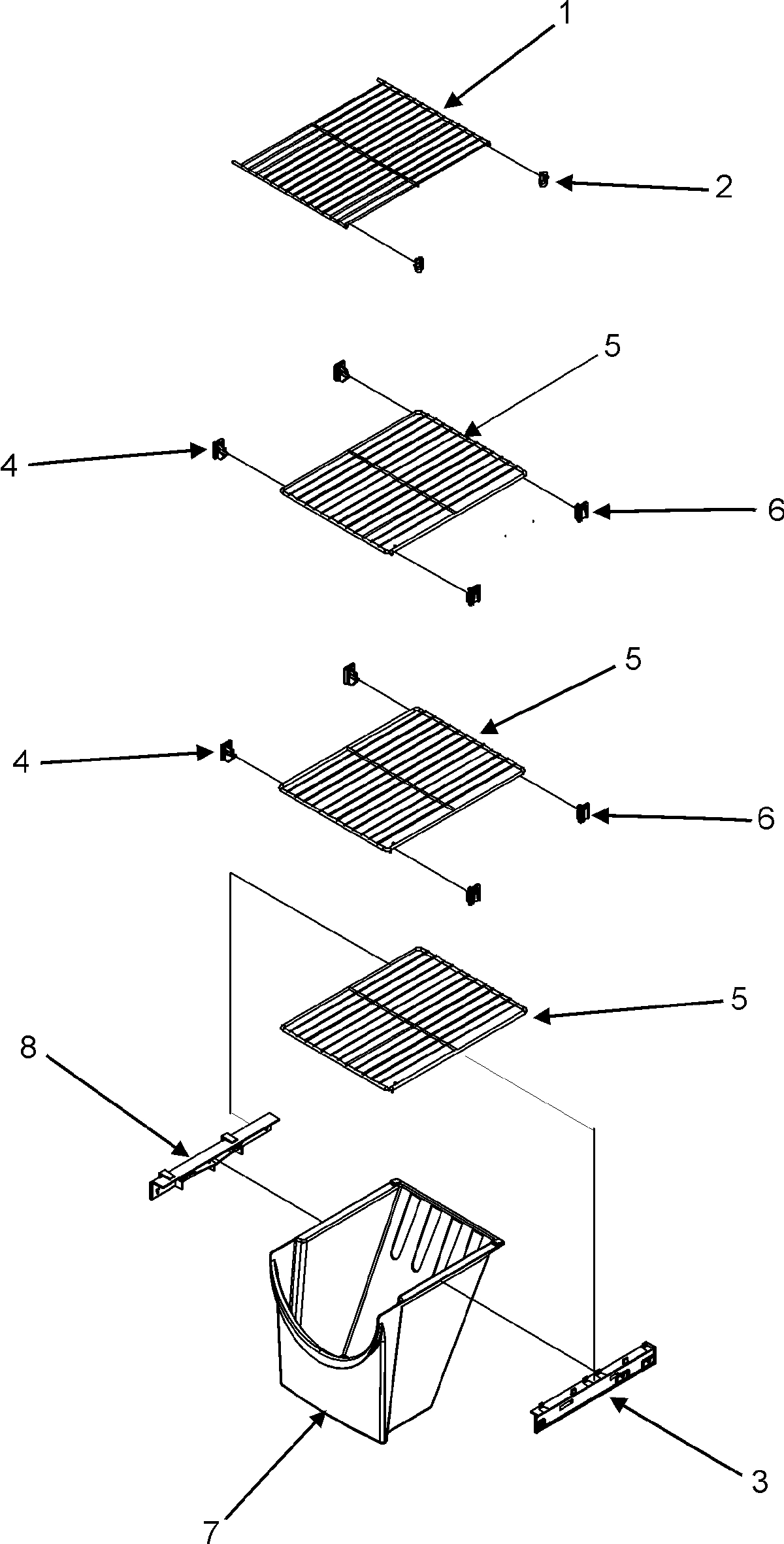

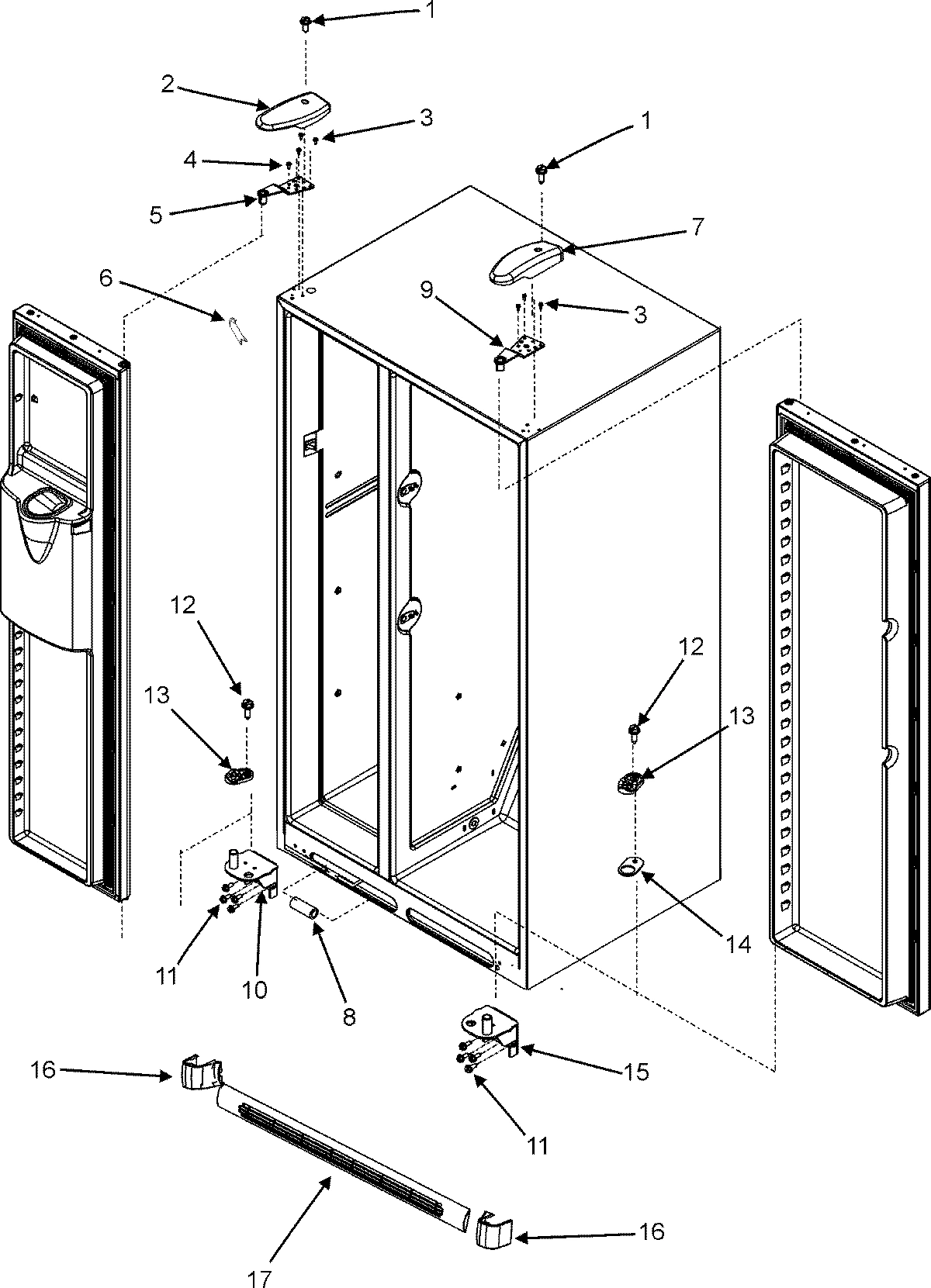

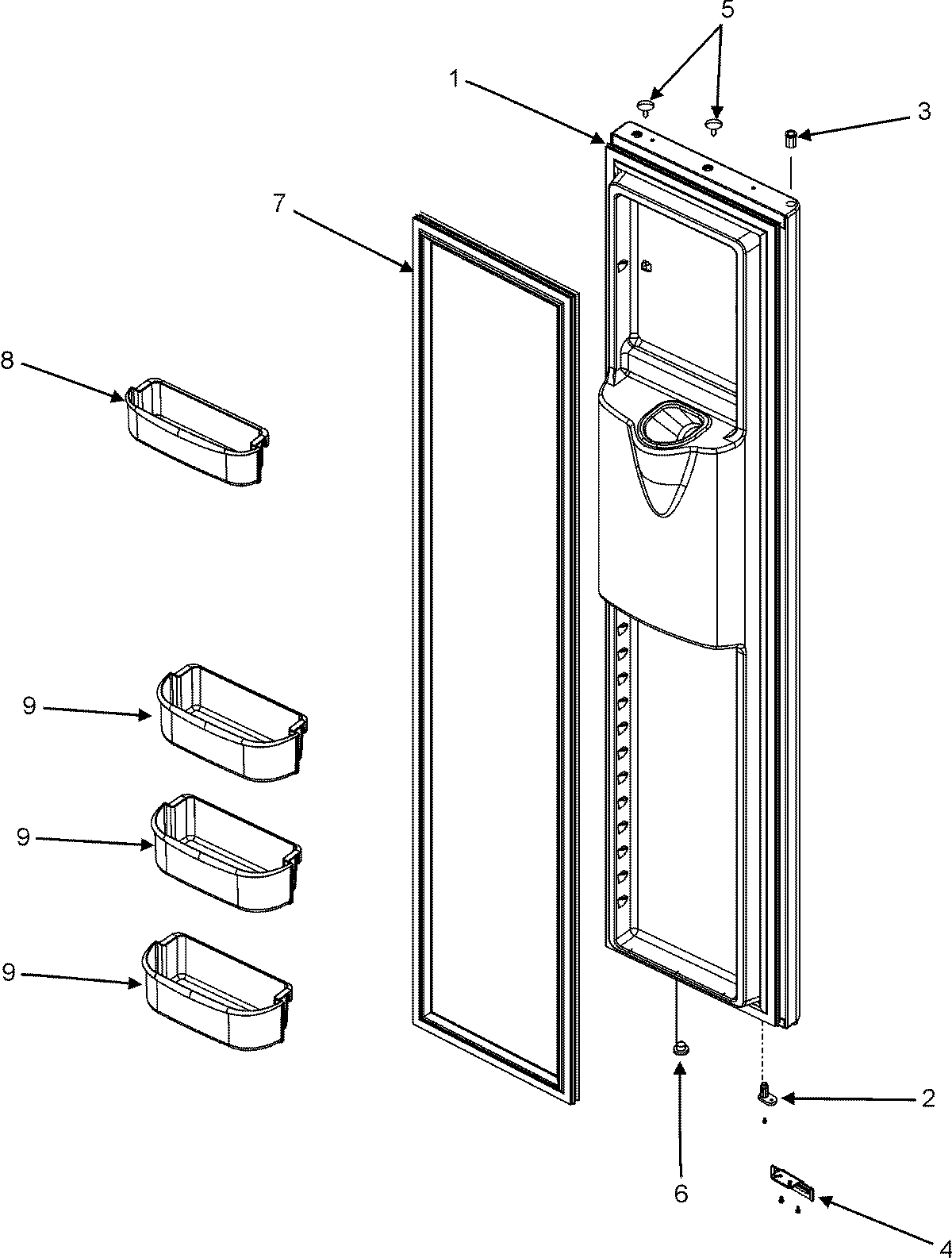

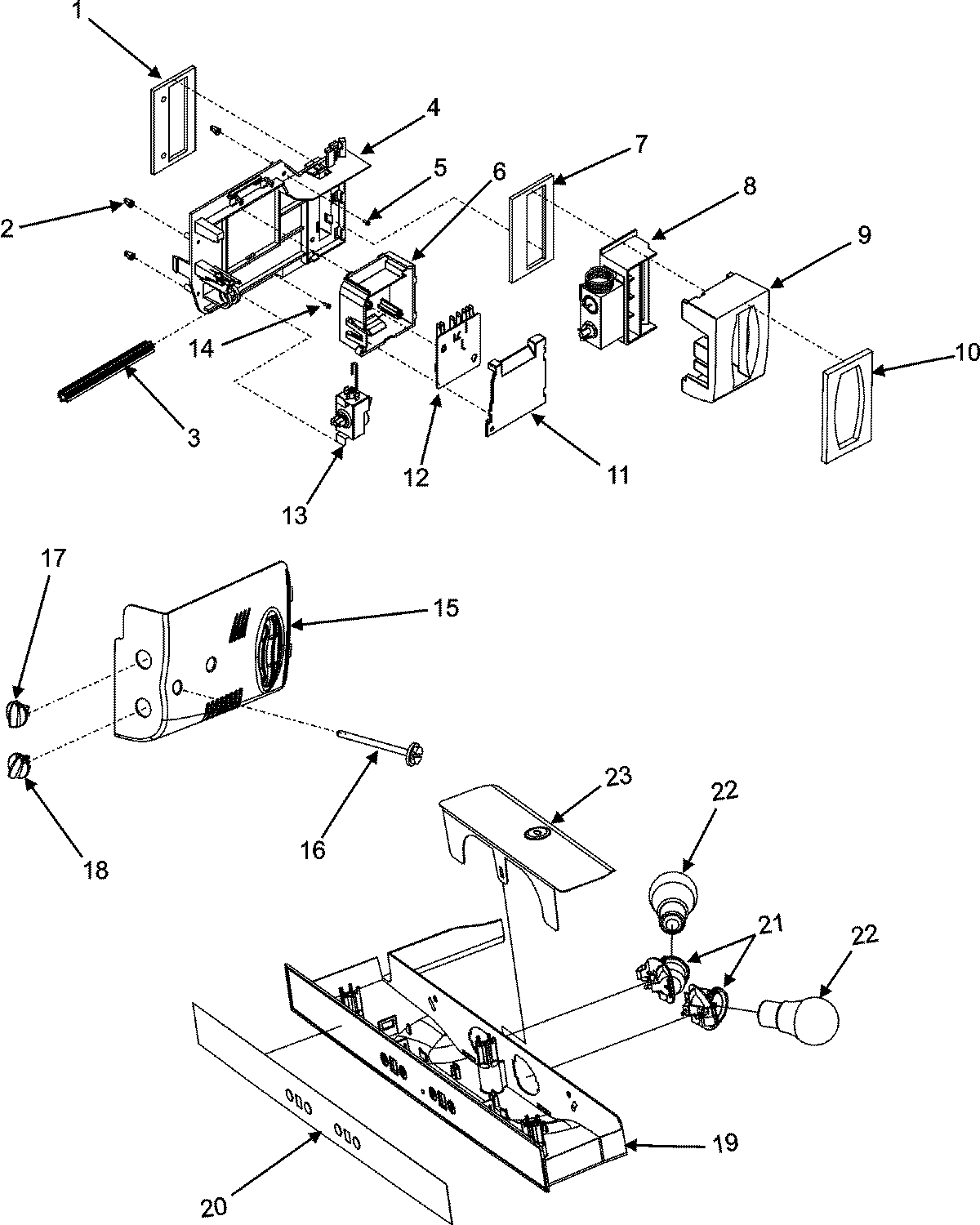

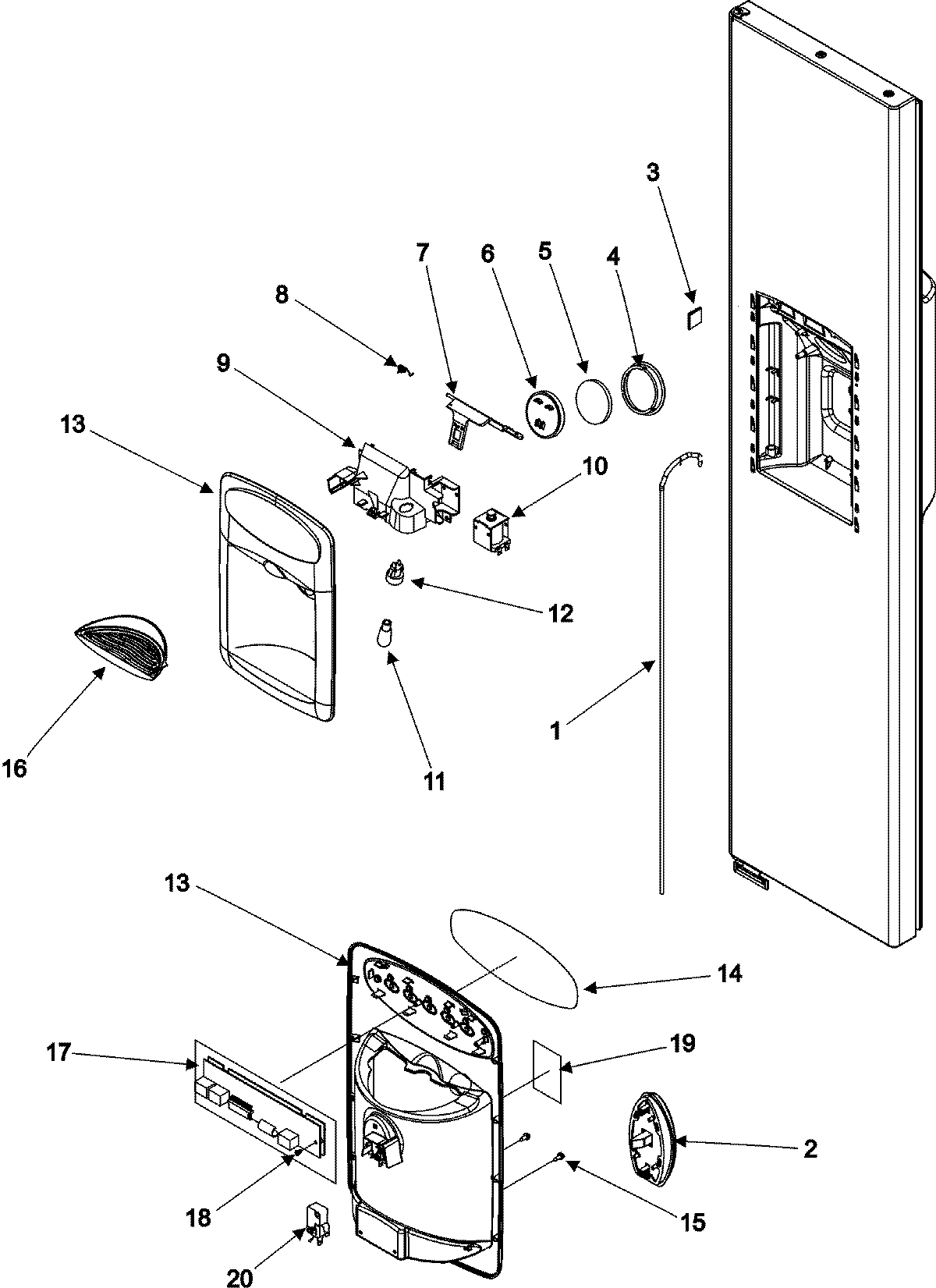

Model Whirlpool MSD2351HEB REFRIGERATOR – Common Parts &amp; Diagrams

1

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $64.55

1

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $33.29

1

WP67006006 Whirlpool Refrigerator Ice Bucket Backorder WPL WP67006006 $105.28

1

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $3.84

1

SCREW, SHLDR WPL M0221523 Contact Us For Availability

1

MANUAL, USE & CARE WPL 12842103 Contact Us For Availability

1

SCREW SHOULDER WPL M0238833 Contact Us For Availability

1

DOOR ASSY., FRZ. FOAM (BLK) WPL 67004995 Contact Us For Availability

1

SHELF, CRISPER TOPx WPL 67004162 Contact Us For Availability

1

EVAPORATOR KIT WPL 12002515 Contact Us For Availability

1

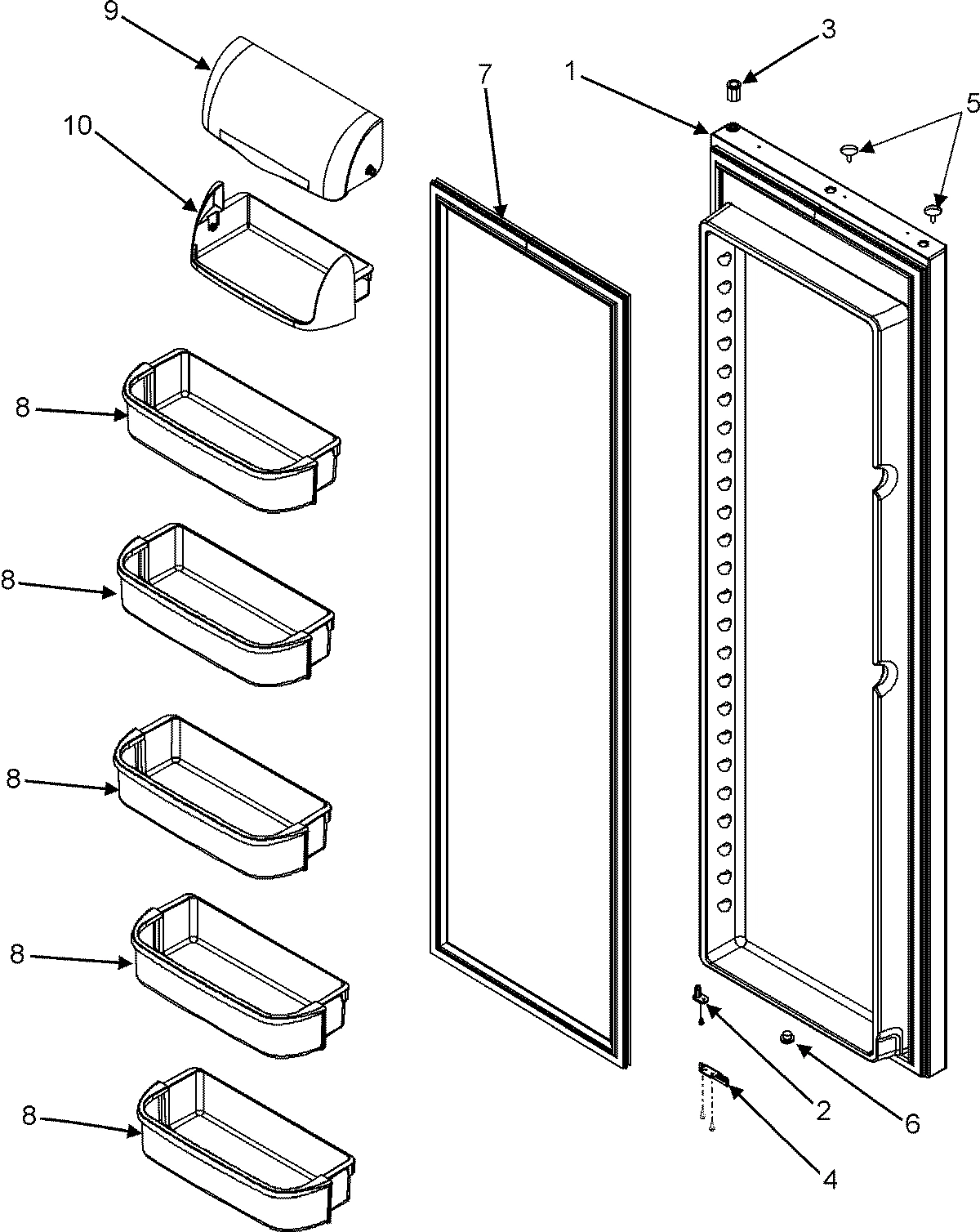

DOOR ASSY., REF. FOAM (BLK) WPL 67004990 Contact Us For Availability

1

GASKET, DAMPER WPL 67004031 Contact Us For Availability

1

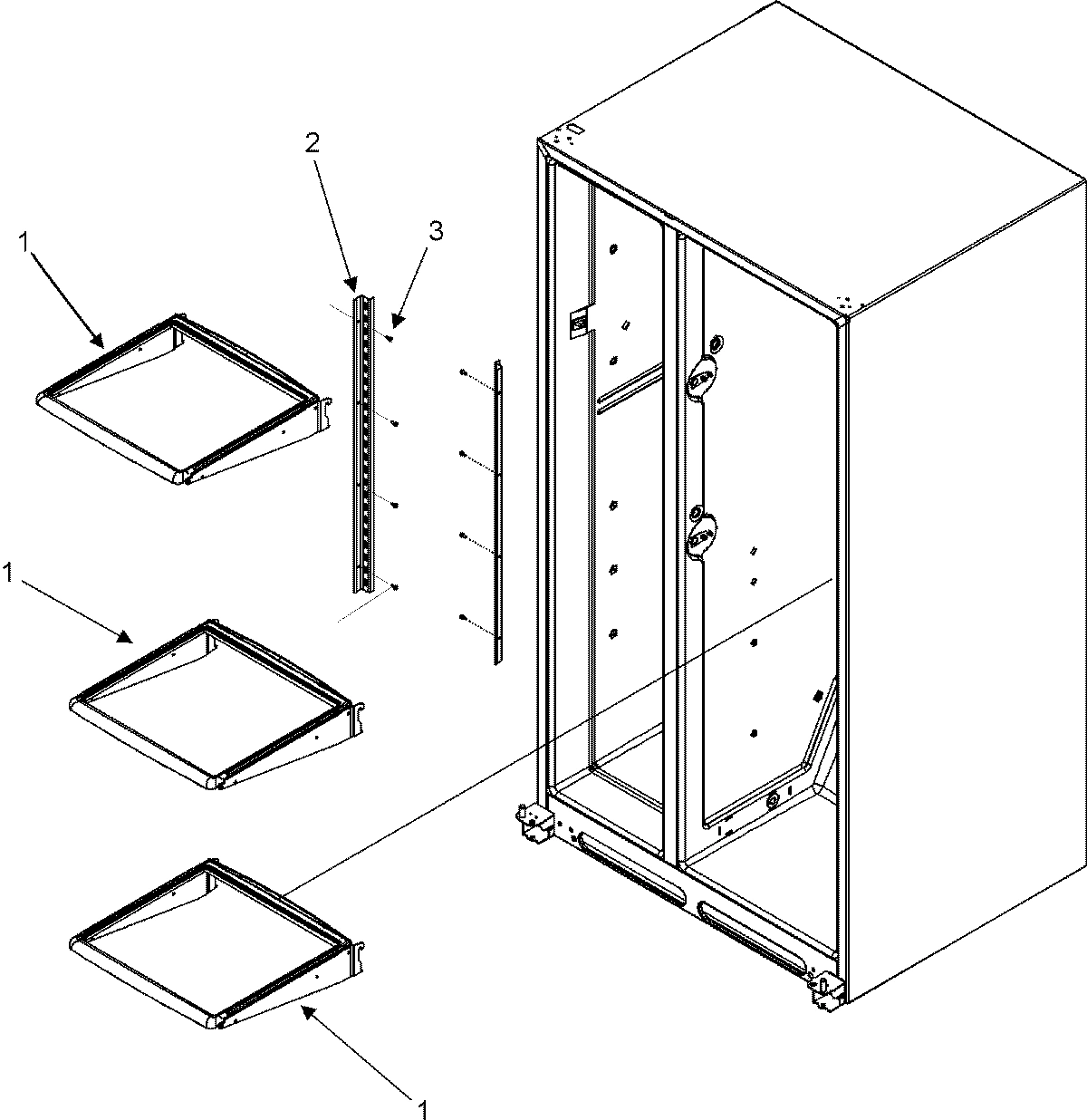

SHELF, STATIONARY WPL 67004996 Contact Us For Availability

1

INSULATION, TUBING WPL 67004185 Contact Us For Availability

2

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

2

WP67006852 Whirlpool Clip Backorder WPL WP67006852 $14.21

2

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $2.60

2

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.75

2

WPD7749401 Whirlpool Drive Gear In Stock WPL WPD7749401 $13.30

2

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.77

2

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.74

2

SHEET, TECH DATA WPL 67004956 Contact Us For Availability

2

ASSY, IM ARM/WIRE WPL 12671401 Contact Us For Availability

2

GROMMET, SCREW WPL M0580205 Contact Us For Availability

2

CLOSURE, DOOR (BLK) WPL 12571301B Contact Us For Availability

2

FRAME, CRISPER SHELF WPL 67004077 Contact Us For Availability

2

BLOCK, AIR COIL (RT) WPL 12590102 Contact Us For Availability

2

CLOSURE, DOOR (BLK) WPL 12113204 Contact Us For Availability

2

ACTR PAD FRAME ASSY. (BLK) WPL 12598902B Contact Us For Availability

2

RAIL, L/R SM SXS WPL 67003839 Contact Us For Availability

2

TUBE, PLASTIC WPL 67004186 Contact Us For Availability

2

COVER, TOP HINGE (LT-BLK) WPL 67003912 Contact Us For Availability

3

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $14.42

3

W11291138 Whirlpool Refrigerator Door Switch In Stock WPL W11291138 $14.69

3

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.60

3

WP67004757 Whirlpool Refrigerator Thermostat In Stock WPL WP67004757 $43.99

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

3

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $7.68

3

AGITATOR, ICE WPL 10114401 Contact Us For Availability

3

TAG, ENERGY WPL 67005002 Contact Us For Availability

3

BUSHING, DOOR (BLK) WPL 12395501B Contact Us For Availability

3

GLASS, CRISPER SHELF WPL 67004076 Contact Us For Availability

3

BUSHING, DOOR (BLK) WPL 10961002 Contact Us For Availability

3

CLIP, CORD WPL M0104102 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

EXTENSION, KNOB WPL 12571801 Contact Us For Availability

4

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

4

W11214483 Whirlpool Refrigerator Screw Backorder WPL W11214483 $9.96

4

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $16.36

4

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.84

4

STOP, DOOR (BLK) WPL 12636401B Contact Us For Availability

4

SVC MAN, SXS WPL 16022689 Contact Us For Availability

4

FRAME, MEAT SHELF WPL 67004163 Contact Us For Availability

4

BLOCK, AIR COIL (LT) WPL 12590101 Contact Us For Availability

4

BAR, CRSH ICE BUCKET WPL 10113801 Contact Us For Availability

4

SEAL, ICE CHUTE WPL 12665101 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

BRACKET, CONTROL WPL 67002981 Contact Us For Availability

5

67005375 Whirlpool Refrigerator Glide, Freeze Backorder WPL 67005375 $183.88

5

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.75

5

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.60

5

PAN, DRAIN WPL 67004713 Contact Us For Availability

5

PLUG, BUTTON (BLK) WPL M0311604 Contact Us For Availability

5

GLASS, MEAT SHELF WPL 67004164 Contact Us For Availability

5

GASKET, FOAM WPL 67004947 Contact Us For Availability

5

SCREW, HEX HEAD WPL 59001208 Contact Us For Availability

5

INSUL, CHUTE DOORxx WPL 12563401 Contact Us For Availability

5

INLET, WATER WPL 951001 Contact Us For Availability

5

SCREW WPL M0216539 Contact Us For Availability

5

HINGE, TOP (LT-BLK) WPL 67004126 Contact Us For Availability

6

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $11.17

6

67006529 Whirlpool Refrigerator Screw Backorder WPL 67006529 $9.96

6

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.09

6

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $14.17

6

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $18.24

6

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.84

6

PLUG, BUTTON (BLK) WPL A3080001 Contact Us For Availability

6

PAN ASSY., SM CRISPER WPL 67004997 Contact Us For Availability

6

IM ARM/WIRE ASSY WPL 12671401Q Contact Us For Availability

6

BOX, DEFROST CONTROL WPL 12624801 Contact Us For Availability

7

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $2.60

7

WP67004948 Whirlpool Refrigerator Evaporator Backorder WPL WP67004948 $81.93

7

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.93

7

WPW10146386 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10146386 $48.20

7

GLIDE, FRZ. (RT) WPL 67004323 Contact Us For Availability

7

GASKET, FRZ. DOOR (BLK) WPL 67004932 Contact Us For Availability

7

PAN ASSY., LG CRISPER WPL 67004998 Contact Us For Availability

7

COVER, BLADE WPL 67002271 Contact Us For Availability

7

GASKET, REF. DOOR (BLK) WPL 67004924 Contact Us For Availability

7

HINGE, ICE CHUTE WPL 67004119 Contact Us For Availability

7

GASKET, DAMPER WPL 12582801 Contact Us For Availability

7

SHROUD, EVAP WPL 67004187 Contact Us For Availability

7

COVER, TOP HINGE (RT-BLK) WPL 67003913 Contact Us For Availability

8

W11244117 Whirlpool Gasket Backorder WPL W11244117 $9.99

8

WP12565502 Whirlpool Refrigerator Spring Backorder WPL WP12565502 $3.84

8

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $10.89

8

WP67003576 Whirlpool Refrigerator Fill Tube E Backorder WPL WP67003576 $38.99

8

BACK, INNER FZ WPL 67004950 Contact Us For Availability

8

BUCKET, UPR FZ DR WPL 67004113 Contact Us For Availability

8

PAN, MEAT WPL 67004999 Contact Us For Availability

8

TRAY, EVAP DRIP WPL 67004949 Contact Us For Availability

8

FRONT, ICE CRUSHER WPL 10115001 Contact Us For Availability

8

BUCKET, REF. DOOR (GAL) WPL 67004965 Contact Us For Availability

8

GASKET, MC BACK WPL B5759649 Contact Us For Availability

8

CONTROL, DAMPER WPL 12571701 Contact Us For Availability

9

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.84

9

WP67006534 Whirlpool Refrigerator Ice Cube Ch Backorder WPL WP67006534 $59.93

9

FIBER, ACOUSTIC WPL 67003796 Contact Us For Availability

9

COVER, SUPPLY AIR WPL 12583101 Contact Us For Availability

9

BUCKET, LWR FZ DR WPL 67004934 Contact Us For Availability

9

SLIDE, CONTROL WPL 67004168 Contact Us For Availability

9

CLIP, EVAPORATOR WPL 10623003 Contact Us For Availability

9

PIN, ROLL WPL M1200108 Contact Us For Availability

9

DOOR, DAIRY WPL 67004926 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

INSULATION, DAMPER WPL 12604201 Contact Us For Availability

9

HINGE, TOP (RT-BLK) WPL 67004083 Contact Us For Availability

WP12603701 Whirlpool Refrigerator Support In Stock WPL WP12603701 $4.48

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.21

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $37.53

TUBE, DISCHARGE WPL 67004262 Contact Us For Availability

DUCT, QUICK ICE 26 WPL 67003578 Contact Us For Availability

SCREW, ADJUSTING WPL 10093313 Contact Us For Availability

ANCHOR, BLADE WPL 10114101 Contact Us For Availability

TRAY, DAIRY WPL 67004927 Contact Us For Availability

SOLENOID WPL 12575401 Contact Us For Availability

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

BACK, MACH COMP WPL 12575101ED Contact Us For Availability

GASKET, CONTROL COVER WPL 12582901 Contact Us For Availability

HINGE, BOTTOM (LT-BLK) WPL 12636901ED Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $11.17

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.60

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $6.56

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $42.29

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $3.84

WPM0223101 Whirlpool Refrigerator Nut Backorder WPL WPM0223101 $2.60

FRAME, LG CRISPER SHELF WPL 67005000 Contact Us For Availability

TANK, WATER WPL 67003504 Contact Us For Availability

COVER, DEFROST CONTROL WPL 12624901 Contact Us For Availability

SCREW, BOTTOM HINGE WPL 67003858 Contact Us For Availability

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $30.91

W11227239-includeCORE Whirlpool W11227239 Ref Backorder WPL W11227239-includeCORE $242.08

WP67003226 Whirlpool Motor Auger Backorder WPL WP67003226 $174.05

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.60

BASEPAN, MACHINE COMPARTMENT WPL 67001089 Contact Us For Availability

GASKET, TEMP. CONTROL WPL 67004177 Contact Us For Availability

SPACER, COVER WPL 10113901 Contact Us For Availability

SOCKET, LIGHT WPL 12617501 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

SHIELD, CRISPER LIGHT WPL 67001507 Contact Us For Availability

SCREW, TC WPL M0220431 Contact Us For Availability

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $5.04

R0181181 Whirlpool Refrigerator Door Closer C In Stock WPL R0181181 $4.03

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.00

WP67005335 Whirlpool Refrigerator Temperature In Stock WPL WP67005335 $84.28

STRAP, BALE WPL 12576801 Contact Us For Availability

COVER, AUGER MOTOR WPL 67004191 Contact Us For Availability

PILLAR (LT) WPL 67004170 Contact Us For Availability

DAMPER, ICE WPL 10275201 Contact Us For Availability

FACADE, 5 BUTTON (BLK) WPL 67004284 Contact Us For Availability

COVER, WATER VALVE WPL 67004611 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.48

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $23.96

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.74

WP67004151 Whirlpool Overlay In Stock WPL WP67004151 $30.56

WP67005154 Whirlpool Water Valve In Stock WPL WP67005154 $60.50

WP67005716 Whirlpool Refrigerator Shim Backorder WPL WP67005716 $3.84

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.60

BLOCK-EPS COND WPL 67002235 Contact Us For Availability

PILLAR (RT) WPL 67004171 Contact Us For Availability

BLADE, STATIC WPL 10114601 Contact Us For Availability

PLUG, BYPASS WPL 67003146 Contact Us For Availability

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $57.82

R9800670 Whirlpool Refrigerator Screw Kit In Stock WPL R9800670 $2.89

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.62

WP67006132 Whirlpool Refrigerator Condenser Backorder WPL WP67006132 $152.63

SEAL, CRISPER FRAME (FRT) WPL 67004890 Contact Us For Availability

SCREW WPL 67001510 Contact Us For Availability

BLADE, ROTATING WPL 10114501 Contact Us For Availability

COVER, CONTROL WPL 67004158 Contact Us For Availability

HINGE, BOTTOM (RT-BLK) WPL 12636902ED Contact Us For Availability

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $40.18

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $74.65

SHROUD, CONDENSER FAN WPL 67001090 Contact Us For Availability

SEAL, CRISPER FRAME (REAR) WPL 67004173 Contact Us For Availability

ROLLER BRACKET ASSY WPL 67002227 Contact Us For Availability

WASHER, WAVED WPL 10275101 Contact Us For Availability

SCREW WPL M0231426 Contact Us For Availability

COVER, LWR HINGE (BLK) WPL 12630301B Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $34.54

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $29.92

WP67004106 Whirlpool Water Filter Housing In Stock WPL WP67004106 $75.78

SHIELD, FZ LIGHT WPL 67004433 Contact Us For Availability

HOUSING, TEMP. CONTROL WPL 67004175 Contact Us For Availability

WASHER STEPPED WPL 10114301 Contact Us For Availability

BOARD, CONTROL WPL 67003817 Contact Us For Availability

CLIP, DRIER WPL 10547002 Contact Us For Availability

KNOB, CONTROL WPL 12581101 Contact Us For Availability

CLIP, TOE GRILLE WPL 12627302 Contact Us For Availability

TOE GRILLE ASSY (BLK) WPL 67003843 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.40

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $4.03

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.60

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $33.99

SLIDE, TEMP. CONTROL WPL 67004176 Contact Us For Availability

CLAMP WPL M0102303 Contact Us For Availability

KNOB, CONTROL WPL 12581102 Contact Us For Availability

PLATE, FILTER BACKING WPL 12688503 Contact Us For Availability

WP12740302 Whirlpool Refrigerator Crusher Mec In Stock WPL WP12740302 $339.04

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.60

COVER, EVAP WPL 67004951 Contact Us For Availability

RIVET WPL M1205302 Contact Us For Availability

LABEL, DISPENSER WPL 67003351 Contact Us For Availability

TUBE, DRAIN WPL 12580401 Contact Us For Availability

HOUSING, LIGHT WPL 67004939 Contact Us For Availability

SCREW-SM WPL M0238636 Contact Us For Availability

GRILLE, RETURN AIR WPL 12634801 Contact Us For Availability

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $32.15

MOTOR, CONDENSER FAN WPL 67004432 Contact Us For Availability

FUNNEL, DRAIN WPL 12456901 Contact Us For Availability

COVER, ICE BUCKET WPL 67004194 Contact Us For Availability

OVERLAY WPL 67004940 Contact Us For Availability

PLUG, AIR TUNNEL WPL 67003018 Contact Us For Availability

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.90

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

DOOR, ICE BUCKET WPL 67004195 Contact Us For Availability

CLIP, WATERLINE WPL 67004100 Contact Us For Availability

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.98

67004955 Whirlpool Refrigerator MC Harness Backorder WPL 67004955 $68.30

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.84

SHIELD, FZ LIGHT WPL 67004135 Contact Us For Availability

23

BLOCK, WATER TANK WPL 67004309 Contact Us For Availability

23

TRACK, WATERLINE WPL 67004102 Contact Us For Availability

23

REFLECTOR, LIGHT WPL 67004157 Contact Us For Availability

24

HEATER/HARNESS, FRZ WPL 67004189 Contact Us For Availability

24

HARNESS, CONTROL WPL 67004154 Contact Us For Availability

NI

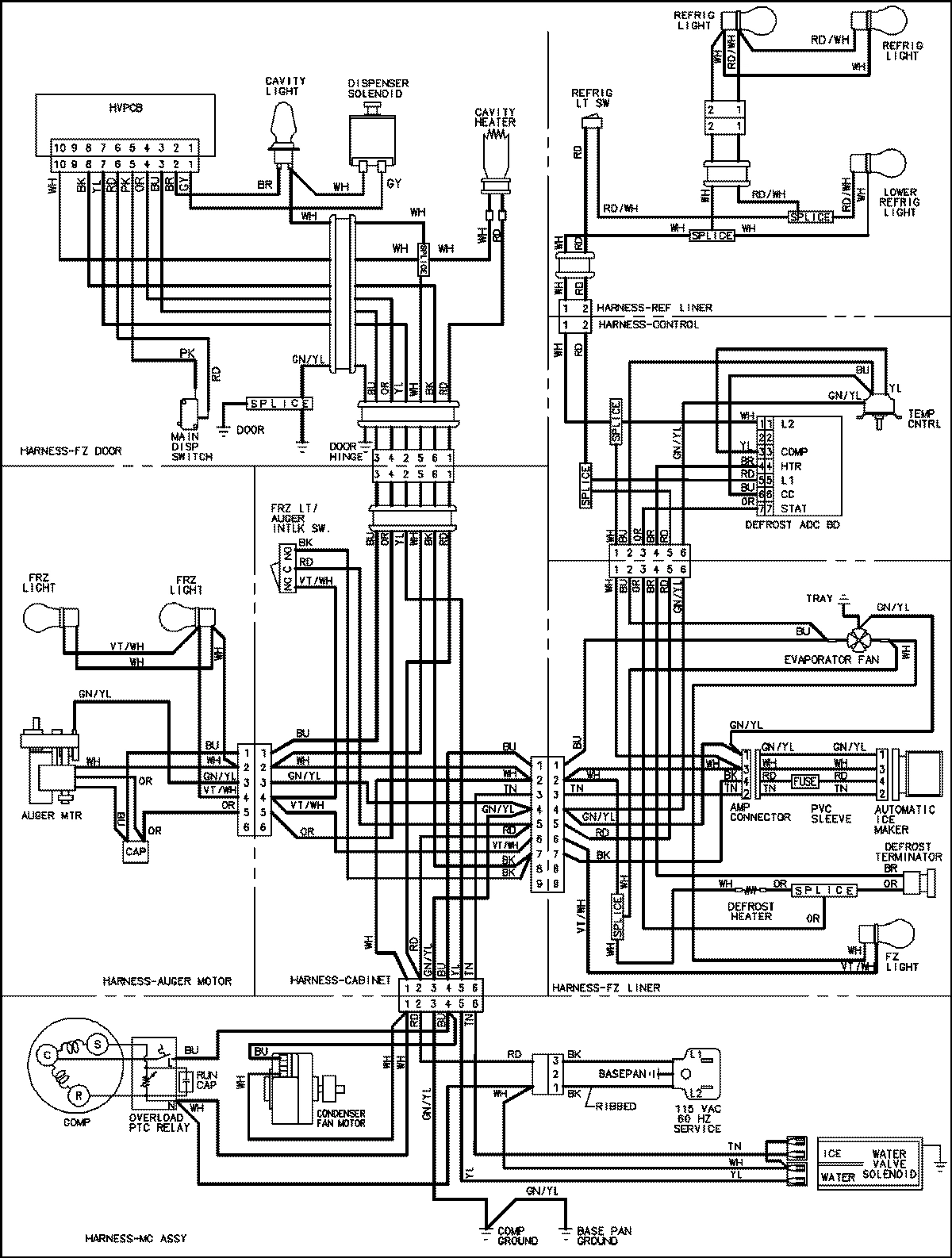

WIRING INFORMATION WPL 15003523 Contact Us For Availability
