Model Maytag MSD2242VEU00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS

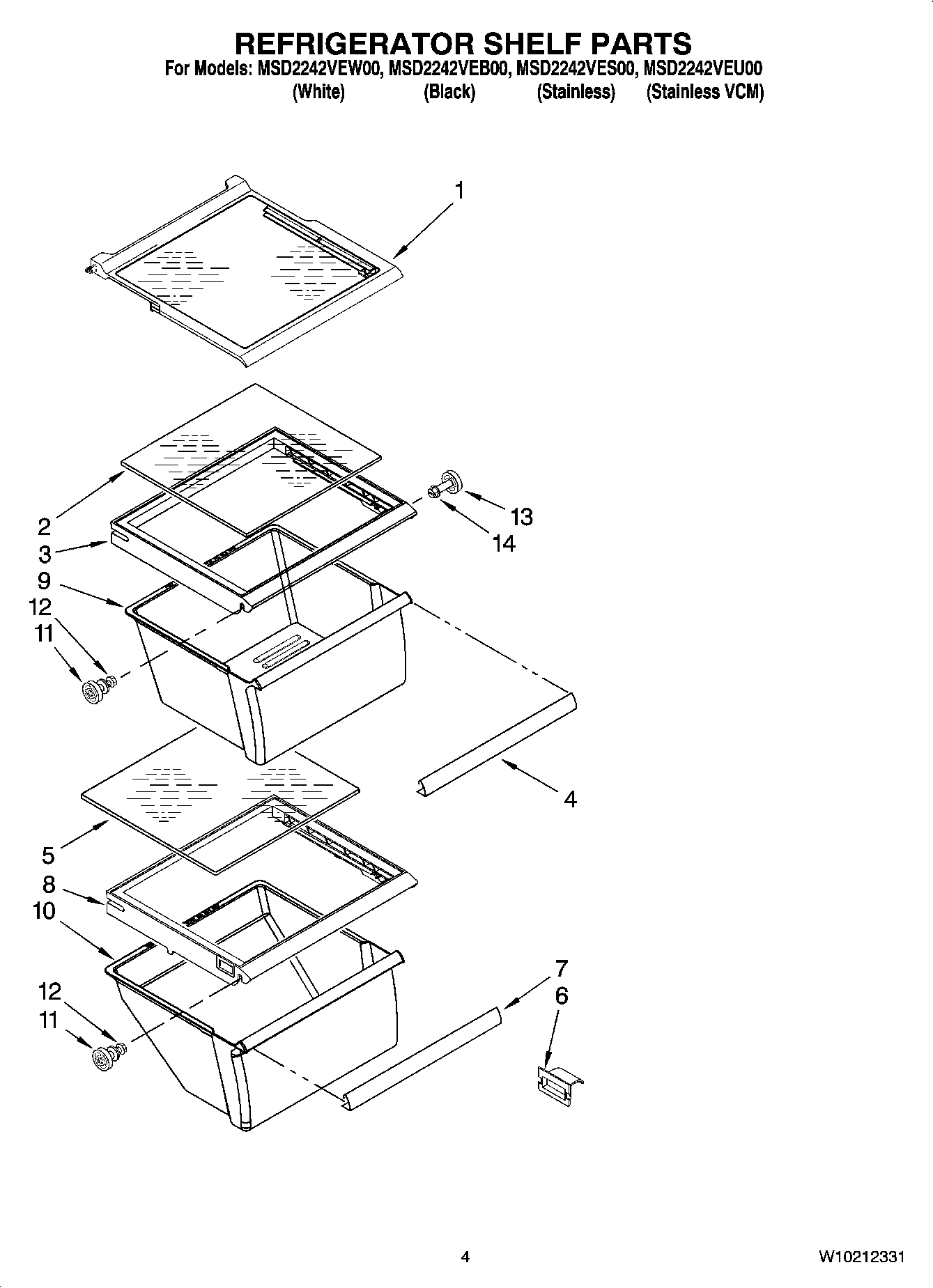

03 - REFRIGERATOR SHELF PARTS

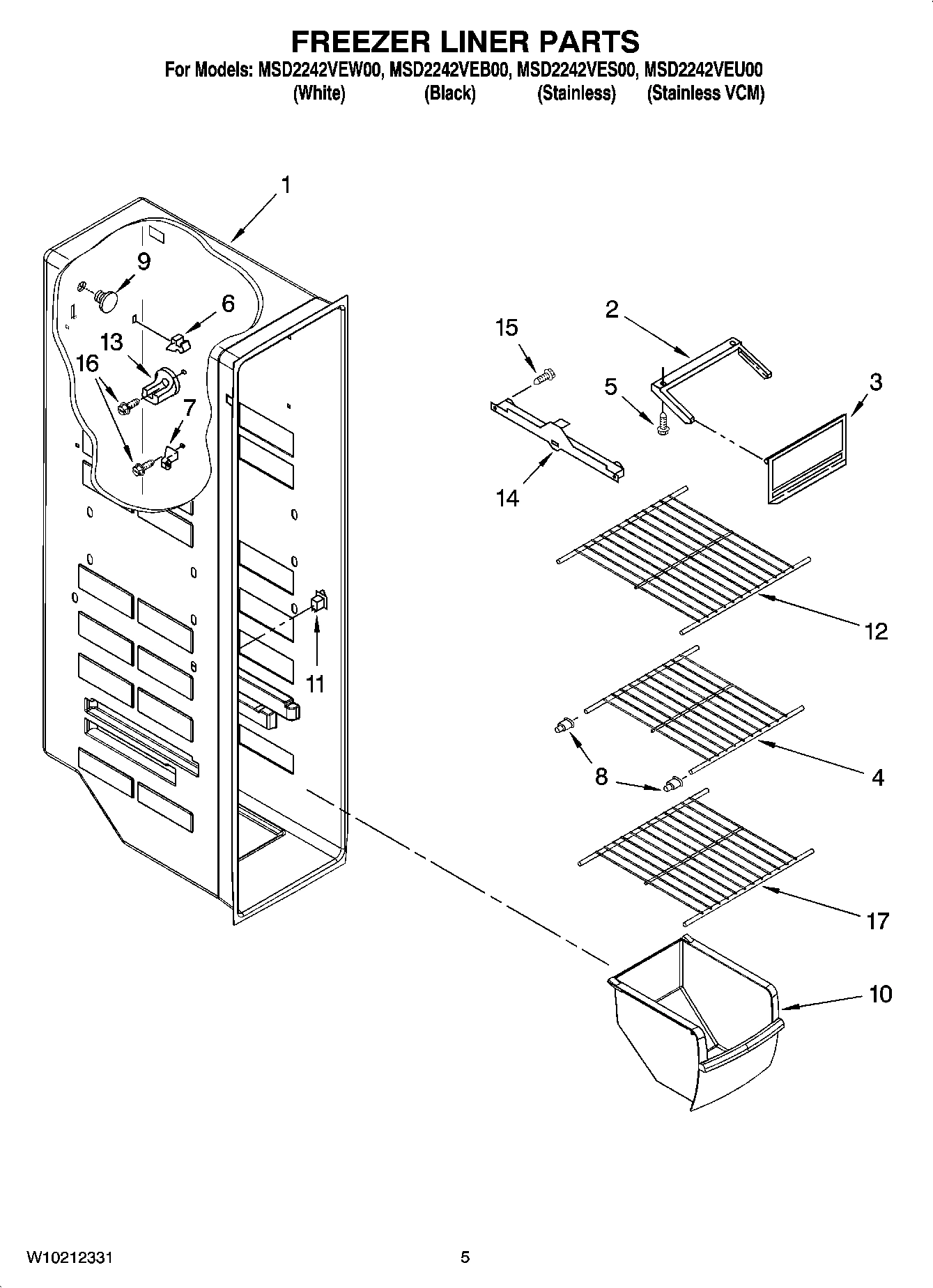

04 - FREEZER LINER PARTS

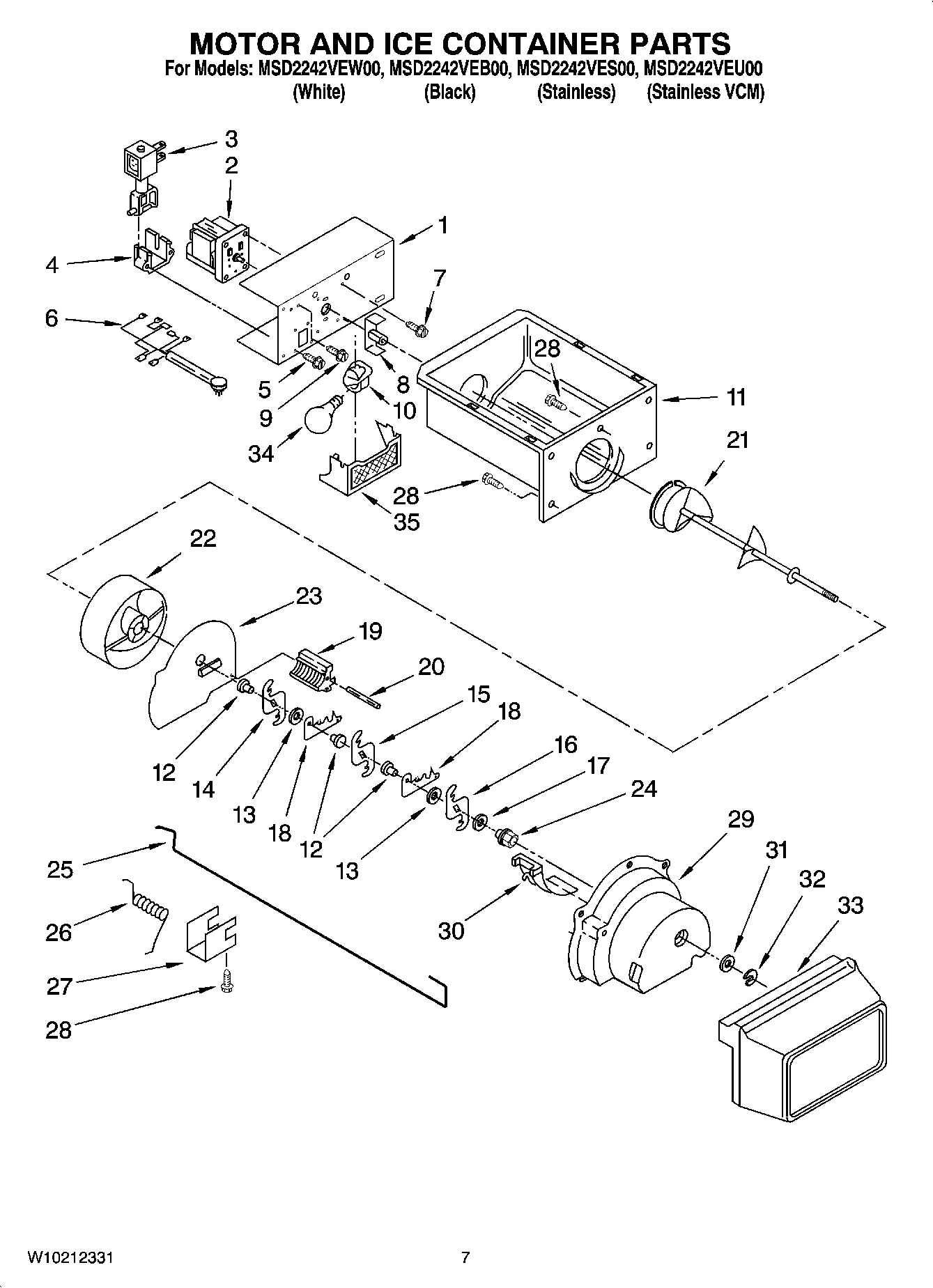

05 - MOTOR AND ICE CONTAINER PARTS

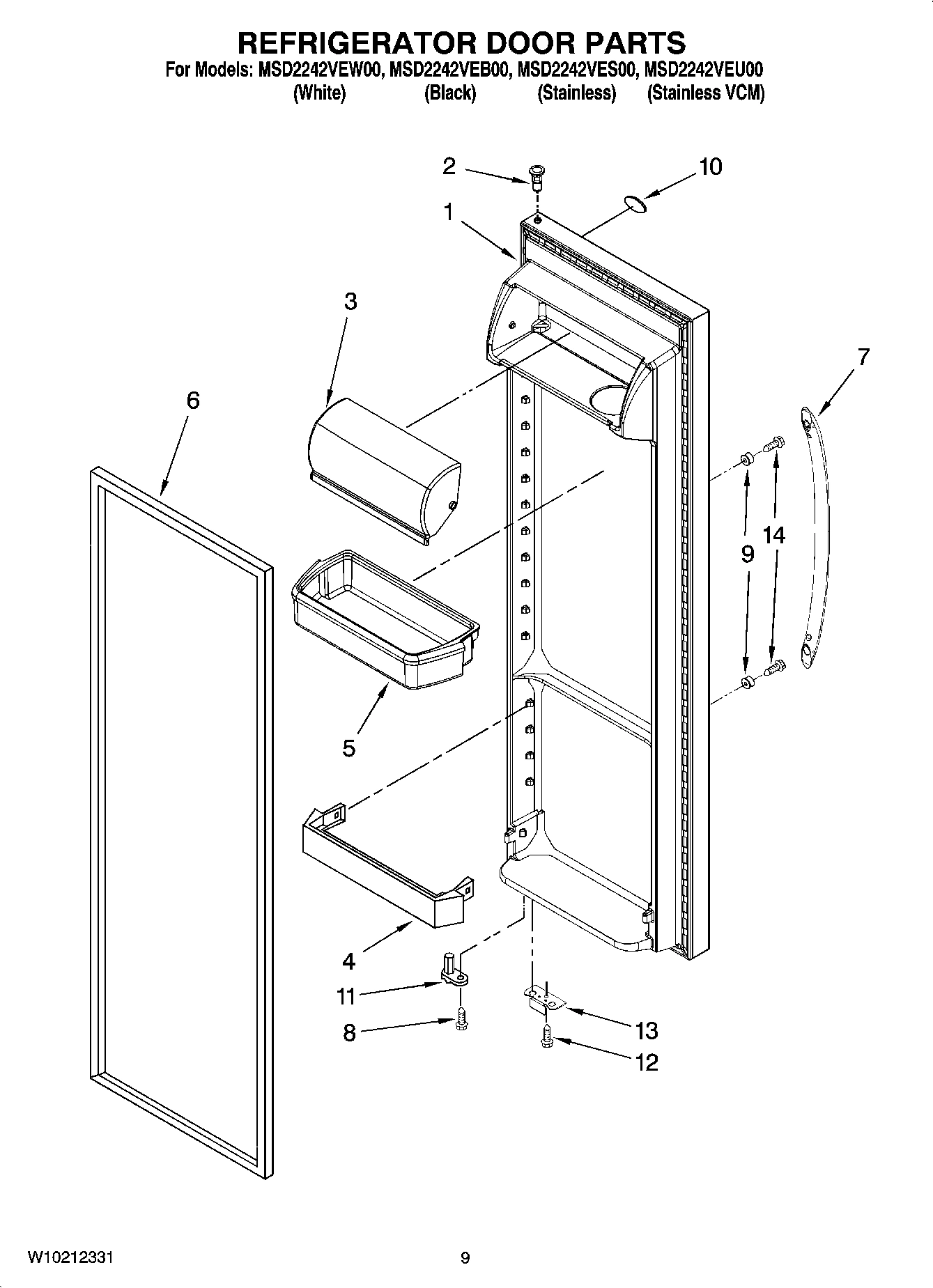

06 - REFRIGERATOR DOOR PARTS

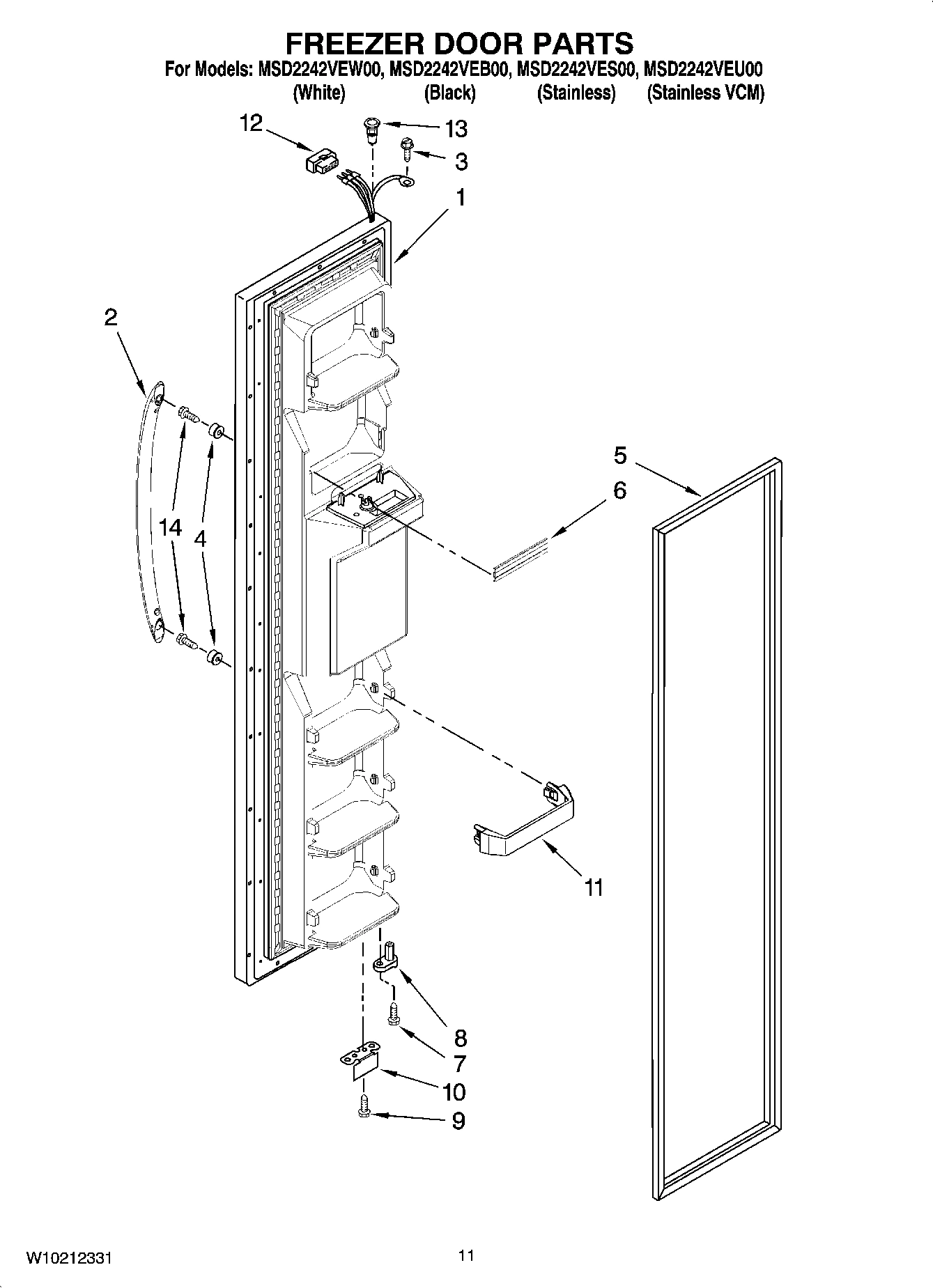

07 - FREEZER DOOR PARTS

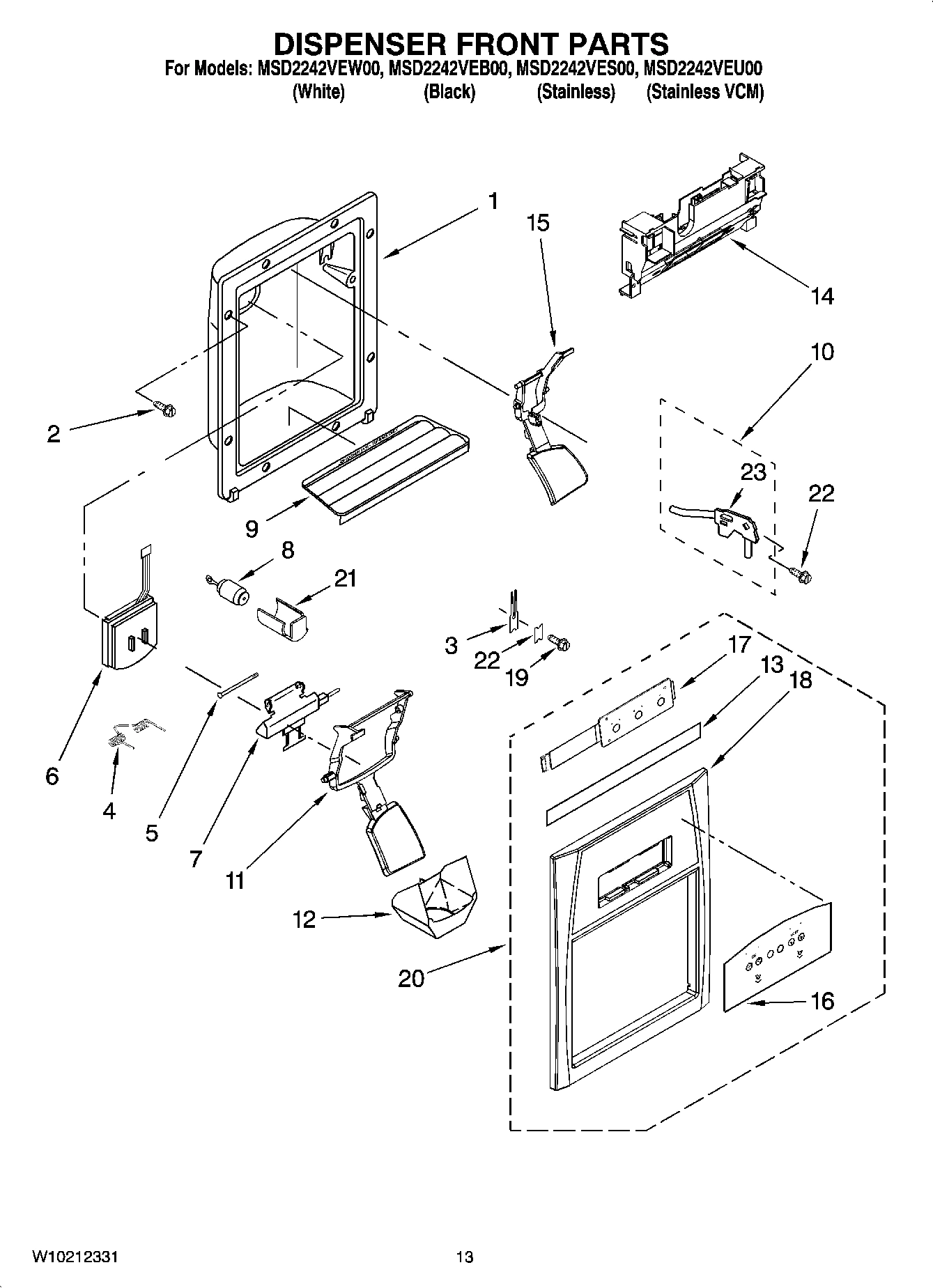

08 - DISPENSER FRONT PARTS

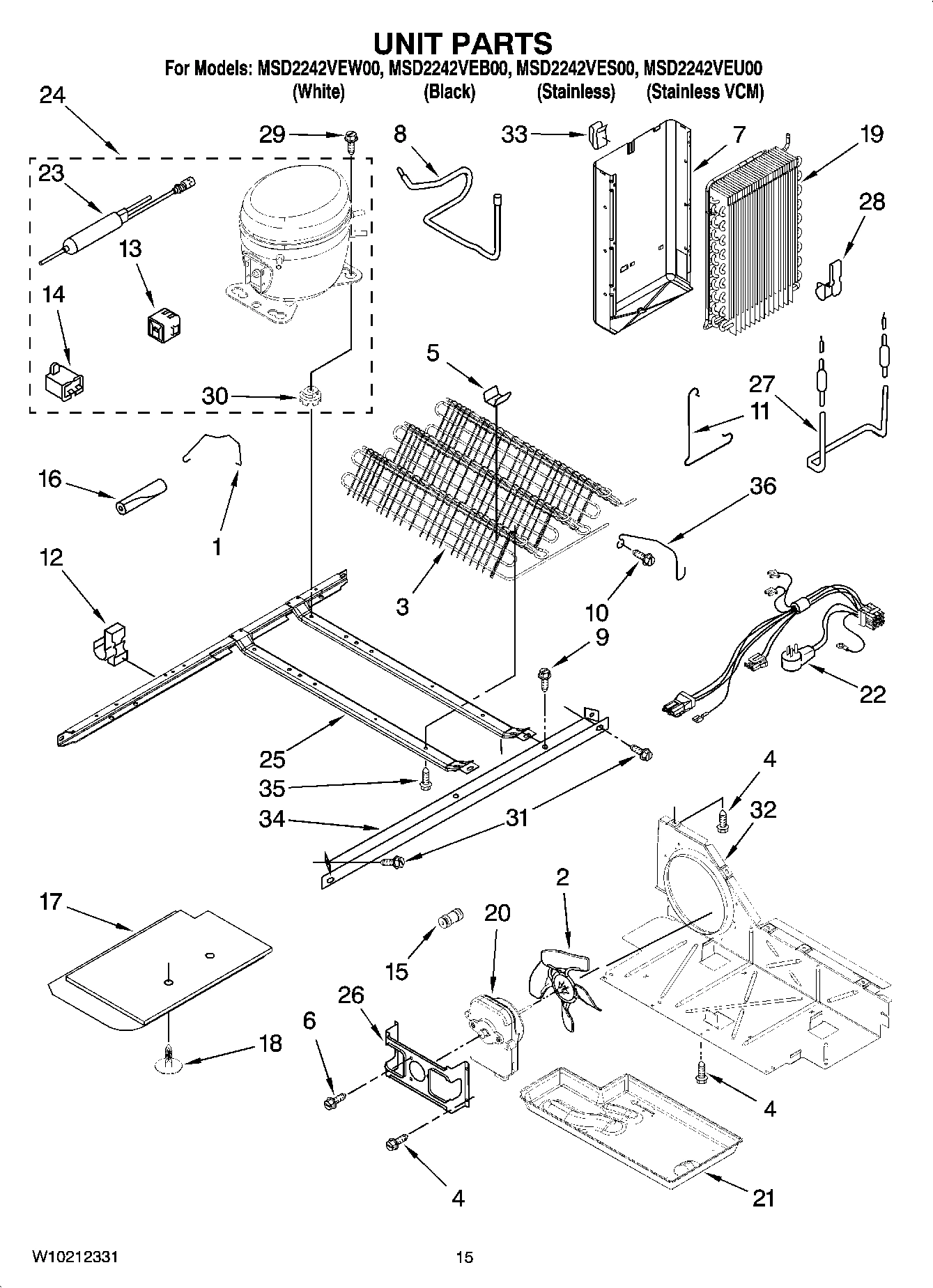

09 - UNIT PARTS

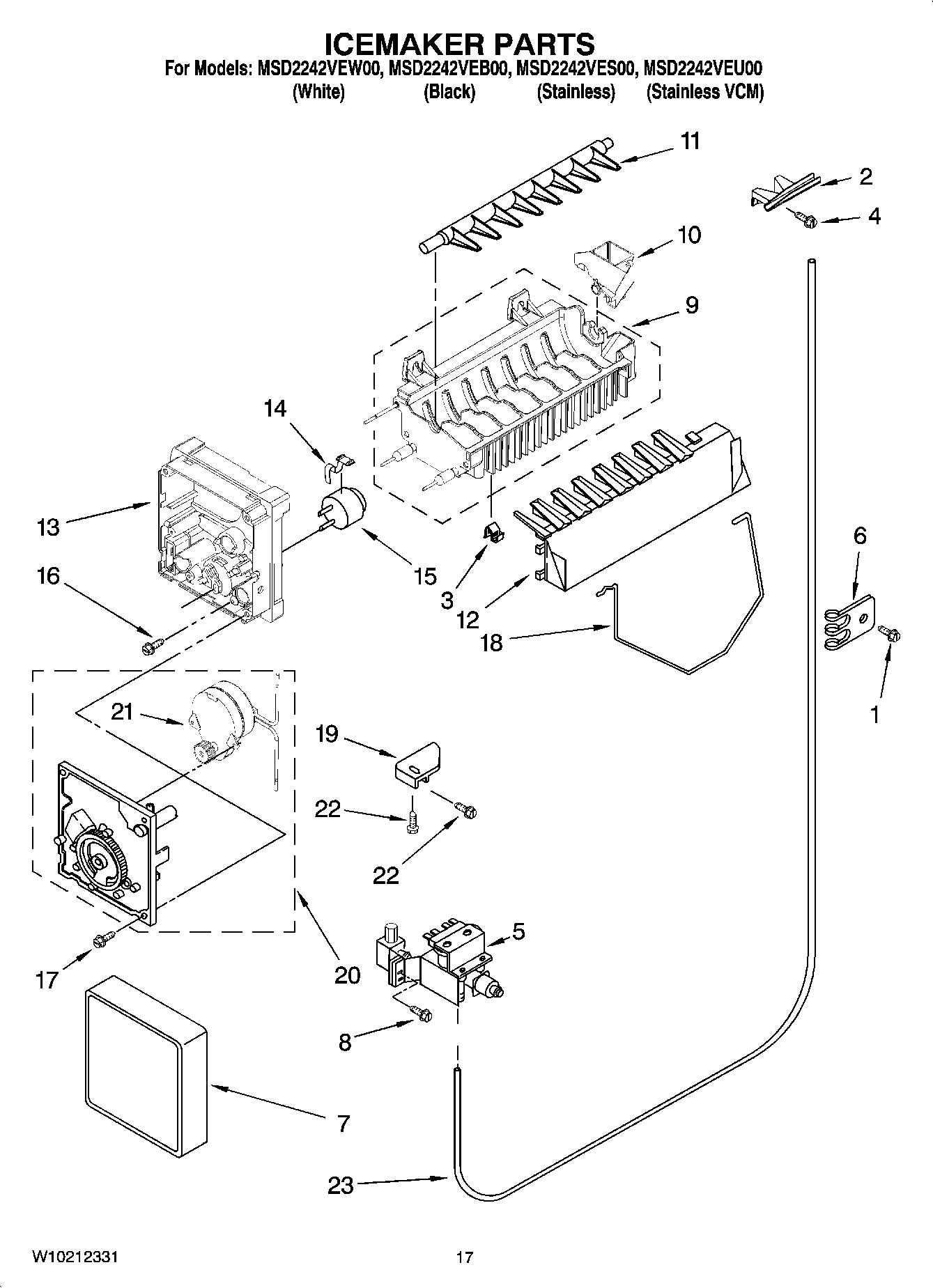

10 - ICEMAKER PARTS

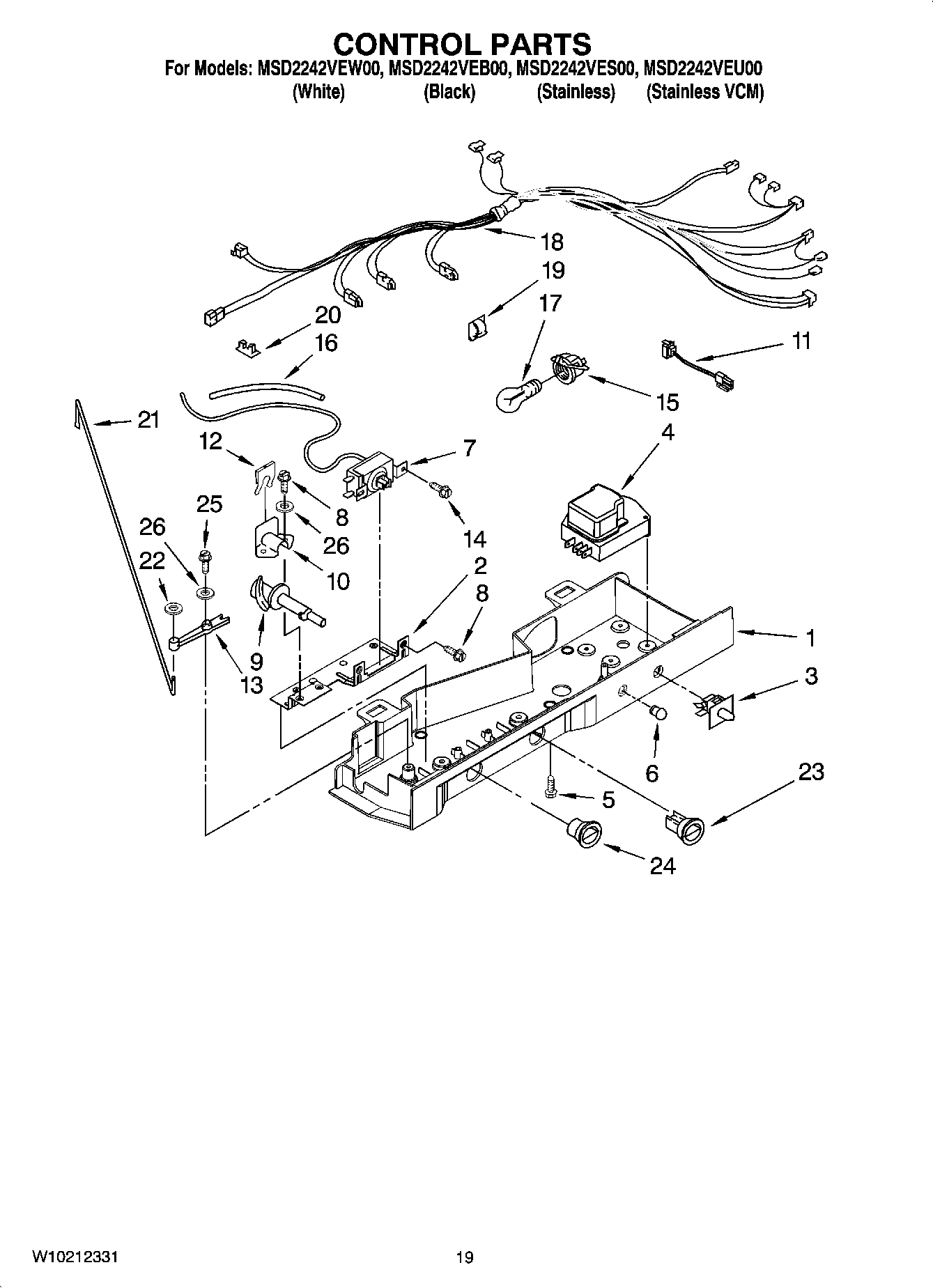

11 - CONTROL PARTS

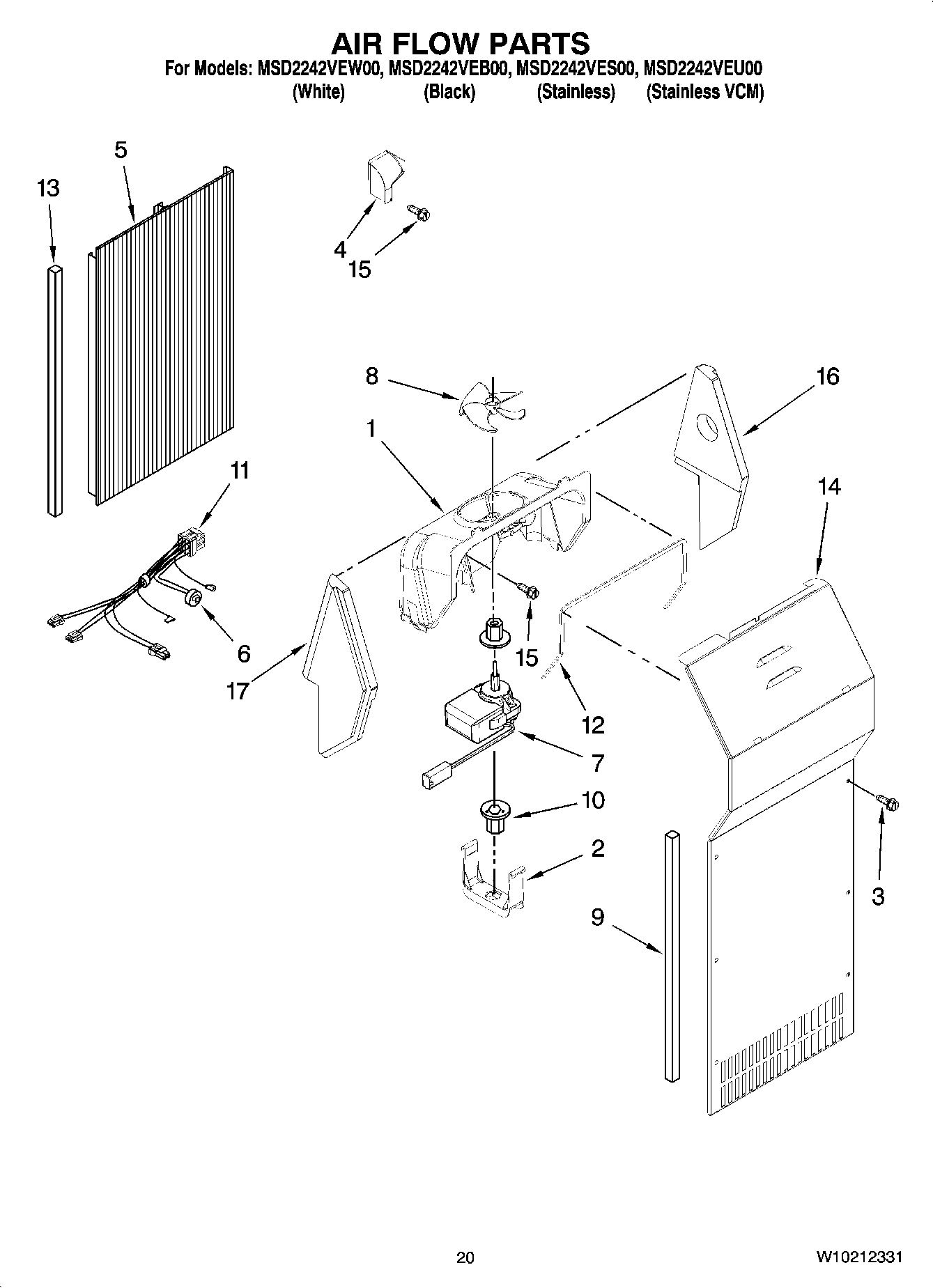

12 - AIR FLOW PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSD2242VEU00 REFRIGERATOR
1
MAY 628370 MAY 628370 Contact Us For Availability
1
MAY W10153840 MAY W10153840 Contact Us For Availability
1
MAY W10154390 MAY W10154390 Contact Us For Availability
1
MAY W10158908 MAY W10158908 Contact Us For Availability
1
MAY W10181963 MAY W10181963 Contact Us For Availability
1
MAY 489084 MAY 489084 Contact Us For Availability
1
Shelf Assembly, Spillguard MAY W10167067 Contact Us For Availability
1
MAY 2254588 MAY 2254588 Contact Us For Availability
1
MAY W10180334 MAY W10180334 Contact Us For Availability
1
MAY W10180350 MAY W10180350 Contact Us For Availability
1
MAY W10180351 MAY W10180351 Contact Us For Availability
1
MAY W10180352 MAY W10180352 Contact Us For Availability
1
MAY W10180338 MAY W10180338 Contact Us For Availability
1
MAY W10180363 MAY W10180363 Contact Us For Availability
1
MAY W10180364 MAY W10180364 Contact Us For Availability
1
MAY W10180365 MAY W10180365 Contact Us For Availability
1
Strap MAY 2255113 Contact Us For Availability
1
MAY W10159858 MAY W10159858 Contact Us For Availability
1
MAY 2182119 MAY 2182119 Contact Us For Availability
2
MAY 2174748 MAY 2174748 Contact Us For Availability
2
MAY 2194744 MAY 2194744 Contact Us For Availability
2
MAY 2174150 MAY 2174150 Contact Us For Availability
2
MAY 1115380 MAY 1115380 Contact Us For Availability
2
MAY W10181208 MAY W10181208 Contact Us For Availability
2
MAY 2308091 MAY 2308091 Contact Us For Availability
2
MAY 12743701B MAY 12743701B Contact Us For Availability
2
MAY 12743701W MAY 12743701W Contact Us For Availability
2
Fan, Blade MAY 12825802 Contact Us For Availability
2
MAY 2209774 MAY 2209774 Contact Us For Availability
2
MAY 2311611 MAY 2311611 Contact Us For Availability
2
MAY 2155590 MAY 2155590 Contact Us For Availability
3
MAY 3400517 MAY 3400517 Contact Us For Availability
3
MAY 2182757 MAY 2182757 Contact Us For Availability
3
Cover, Crisper MAY 2209698 Contact Us For Availability
3
MAY 2171712 MAY 2171712 Contact Us For Availability
3
MAY 2152713 MAY 2152713 Contact Us For Availability
3
Door, Compartment MAY 2256101 Contact Us For Availability
3
MAY 488500 MAY 488500 Contact Us For Availability
3
MAY 2194719 MAY 2194719 Contact Us For Availability
3
MAY W10121487 MAY W10121487 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
3
MAY 2219875 MAY 2219875 Contact Us For Availability
3
Screw (6) MAY 8281159 Contact Us For Availability
4
Rear Roller (2) MAY 2196236 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
MAY 2257741 MAY 2257741 Contact Us For Availability
4
Trim, Pan MAY 2179234 Contact Us For Availability
4
Shelf, Wire MAY 2309634 Contact Us For Availability
4
MAY 2149100 MAY 2149100 Contact Us For Availability
4
Trivet, Shelf MAY 2177962 Contact Us For Availability
4
MAY 2326259 MAY 2326259 Contact Us For Availability
4
MAY 2304772 MAY 2304772 Contact Us For Availability
4
MAY 2303837 MAY 2303837 Contact Us For Availability
4
Air Duct, Upper MAY 2182146 Contact Us For Availability
5
MAY 2256035 MAY 2256035 Contact Us For Availability
5
GLASS COVER MAY 2179259 Contact Us For Availability
5
Screw (2) MAY 489355 Contact Us For Availability
5
Door Bin (3) MAY 2187172 Contact Us For Availability
5
Door Gasket, Magnetic (Mist Beige) MAY 2309604 Contact Us For Availability
5
MAY 2309654 MAY 2309654 Contact Us For Availability
5
MAY 2196195 MAY 2196195 Contact Us For Availability
5
MAY 2216914 MAY 2216914 Contact Us For Availability
5
MAY 2188708 MAY 2188708 Contact Us For Availability
5
Screw MAY 489398 Contact Us For Availability
5
MAY 2203591 MAY 2203591 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
MAY 2179350 MAY 2179350 Contact Us For Availability
6
Clip, Air Duct (2) MAY 842534 Contact Us For Availability
6
MAY 2325303 MAY 2325303 Contact Us For Availability
6
Door Gasket, Magnetic (Mist Beige) MAY 2309600 Contact Us For Availability
6
MAY 2309653 MAY 2309653 Contact Us For Availability
6
MAY 2209680 MAY 2209680 Contact Us For Availability
6
MAY 2180353 MAY 2180353 Contact Us For Availability
6
MAY 8533993 MAY 8533993 Contact Us For Availability
6
Clip, Tube MAY 2208136 Contact Us For Availability
6
Cover, Light Lens MAY 2200096 Contact Us For Availability
6
MAY 2319914 MAY 2319914 Contact Us For Availability
7
MAY 2311637 MAY 2311637 Contact Us For Availability
7
MAY 2255592 MAY 2255592 Contact Us For Availability
7
Screw (6) MAY 489399 Contact Us For Availability
7
MAY 3400012 MAY 3400012 Contact Us For Availability
7
MAY 2304355 MAY 2304355 Contact Us For Availability
7
MAY 2217195 MAY 2217195 Contact Us For Availability
7
MAY 2174155 MAY 2174155 Contact Us For Availability
7
Thermostat MAY 2198202 Contact Us For Availability
7
MAY 2315549 MAY 2315549 Contact Us For Availability
8
MAY 2260507 MAY 2260507 Contact Us For Availability
8
Clip, Control Box (2) MAY 2311612 Contact Us For Availability
8
MAY 2311726 MAY 2311726 Contact Us For Availability
8
Cup, Shelf Mounting MAY W10130299 Contact Us For Availability
8
MAY W10140958 MAY W10140958 Contact Us For Availability
8
MAY 2182179 MAY 2182179 Contact Us For Availability
8
Screw MAY 3196537 Contact Us For Availability
8
MAY 2205686 MAY 2205686 Contact Us For Availability
8
MAY 2220642 MAY 2220642 Contact Us For Availability
8
MAY 488649 MAY 488649 Contact Us For Availability
8
Fan Blade MAY 2169142 Contact Us For Availability
9
MAY 489427 MAY 489427 Contact Us For Availability
9
Shim (2) MAY 2209697 Contact Us For Availability
9
MAY 2209753 MAY 2209753 Contact Us For Availability
9
MAY 2188653 MAY 2188653 Contact Us For Availability
9
MAY 940014 MAY 940014 Contact Us For Availability
9
MAY 489420 MAY 489420 Contact Us For Availability
9
MAY 2206671B MAY 2206671B Contact Us For Availability
9
MAY 2206671W MAY 2206671W Contact Us For Availability
9
MAY W10122527 MAY W10122527 Contact Us For Availability
9
MAY 2182195 MAY 2182195 Contact Us For Availability
9
MAY 2304241 MAY 2304241 Contact Us For Availability
10
HINGE TOP, FC MAY 2203770 Contact Us For Availability
10
Air Diffuser Cover MAY 2152019 Contact Us For Availability
10
MAY 2188654 MAY 2188654 Contact Us For Availability
10
MAY 2309758 MAY 2309758 Contact Us For Availability
10
MAY 2324038 MAY 2324038 Contact Us For Availability
10
MAY 2206629 MAY 2206629 Contact Us For Availability
10
MAY 2206629B MAY 2206629B Contact Us For Availability
10
MAY 2304317 MAY 2304317 Contact Us For Availability
10
Cup-Water Fill MAY 2304969 Contact Us For Availability
10
MAY 1110560 MAY 1110560 Contact Us For Availability
10
Fan Grommet (2) MAY 2176759 Contact Us For Availability
11
HINGE TOP RC MAY 2203771 Contact Us For Availability
11
Cover, Conduit MAY 2150331 Contact Us For Availability
11
MAY 2196485 MAY 2196485 Contact Us For Availability
11
Switch, Rocker Arm MAY 1115373 Contact Us For Availability
11
MAY 2196089 MAY 2196089 Contact Us For Availability
11
DOOR CLOSER UPPER CAM MAY 2182178 Contact Us For Availability
11
Trim, Door Shelf (4) MAY 2309717 Contact Us For Availability
11
Lever, Ice Dispenser (Black) MAY 2203562B Contact Us For Availability
11
Lever, Ice Dispenser (White) MAY 2203562W Contact Us For Availability
11
MAY 2161324 MAY 2161324 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
11
Led and Connector Assembly MAY 2213462 Contact Us For Availability
11
Harness, Fan Tube Evaporator (Includes 6) MAY 2310237 Contact Us For Availability
12
MAY 2260503B MAY 2260503B Contact Us For Availability
12
Button, Water Filter (White) MAY 2260503W Contact Us For Availability
12
MAY 486298 MAY 486298 Contact Us For Availability
12
MAY 3400894 MAY 3400894 Contact Us For Availability
12
Shelf, Wire MAY 2309633 Contact Us For Availability
12
MAY 1119005 MAY 1119005 Contact Us For Availability
12
Connector MAY 2154473 Contact Us For Availability
12
MAY 2180224 MAY 2180224 Contact Us For Availability
12
MAY 2208280 MAY 2208280 Contact Us For Availability
12
Ice Striper MAY 2198598 Contact Us For Availability
12
Damper Control MAY 2196062 Contact Us For Availability
12
MAY 2155788 MAY 2155788 Contact Us For Availability
13
HINGE COVER FC (BLACK) MAY 2203407B Contact Us For Availability
13
HINGE COVER FC (WHITE) MAY 2203407W Contact Us For Availability
13
MAY 2196483 MAY 2196483 Contact Us For Availability
13
Stud, Rear MAY 2196206 Contact Us For Availability
13
MAY 1119007 MAY 1119007 Contact Us For Availability
13
MAY 2182181 MAY 2182181 Contact Us For Availability
13
MAY 2305571 MAY 2305571 Contact Us For Availability
13
Start-Device, Combination (Start Relay and Ov MAY 2188831 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
13
MAY 1110559 MAY 1110559 Contact Us For Availability
13
MAY 2203875 MAY 2203875 Contact Us For Availability
14
MAY 2217075 MAY 2217075 Contact Us For Availability
14
MAY 2256126 MAY 2256126 Contact Us For Availability
14
MAY 8281158 MAY 8281158 Contact Us For Availability
14
Slide, Container (Left Side) MAY 1119237 Contact Us For Availability
14
Slide, Container (Right Side) MAY 1119293 Contact Us For Availability
14
MAY 2257022 MAY 2257022 Contact Us For Availability
14
Screw MAY 488208 Contact Us For Availability
14
MAY 2183771 MAY 2183771 Contact Us For Availability
14
MAY 2252799 MAY 2252799 Contact Us For Availability
14
Capacitor (Service) MAY 2255130 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
14
Screw MAY 487869 Contact Us For Availability
14
Cover, Evaporator (Includes 9) MAY 2203840 Contact Us For Availability
15
MAY 489478 MAY 489478 Contact Us For Availability
15
Filler, Wrapper (White) MAY 2201014 Contact Us For Availability
15
Filler, Wrapper (Black) MAY 2201017 Contact Us For Availability
15
Light Socket MAY 2162085 Contact Us For Availability
15
Screw (4) MAY 489100 Contact Us For Availability
15
MAY 2257023 MAY 2257023 Contact Us For Availability
15
Lever, Water Dispenser (Black) MAY 2203561B Contact Us For Availability
15
Lever, Water Dispenser (White) MAY 2203561W Contact Us For Availability
15
MAY 2320322 MAY 2320322 Contact Us For Availability
15
Thermostat (Also Order 542369 Cement Alumilas MAY 627985 Contact Us For Availability
16
MAY 2260501B MAY 2260501B Contact Us For Availability
16
MAY 2260501W MAY 2260501W Contact Us For Availability
16
MAY 2209769 MAY 2209769 Contact Us For Availability
16
MAY 3400893 MAY 3400893 Contact Us For Availability
16
MAY 2257024 MAY 2257024 Contact Us For Availability
16
MAY 2161302 MAY 2161302 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
16
TUBE-BARRIER, THERMOSTAT MAY 2196001 Contact Us For Availability
16
MAY 2203595 MAY 2203595 Contact Us For Availability
17
MAY 489497 MAY 489497 Contact Us For Availability
17
MAY 527949 MAY 527949 Contact Us For Availability
17
Screw MAY 488280 Contact Us For Availability
17
MAY 2309632 MAY 2309632 Contact Us For Availability
17
MAY 489235 MAY 489235 Contact Us For Availability
17
UNIT COVER BOTTOM MAY 2304898 Contact Us For Availability
17
MAY 489276 MAY 489276 Contact Us For Availability
17
MAY 2203596 MAY 2203596 Contact Us For Availability
18
MAY 1119009 MAY 1119009 Contact Us For Availability
18
MAY 489396 MAY 489396 Contact Us For Availability
18
MAY 2304354 MAY 2304354 Contact Us For Availability
18
MAY 2311632 MAY 2311632 Contact Us For Availability
19
MAY 2304888 MAY 2304888 Contact Us For Availability
19
Block, Blade MAY 2157405 Contact Us For Availability
19
MAY 489000 MAY 489000 Contact Us For Availability
19
MAY 2188822 MAY 2188822 Contact Us For Availability
19
Bracket, Ice Maker Mounting MAY 628320 Contact Us For Availability
19
MAY 1115374 MAY 1115374 Contact Us For Availability
20
MAY 2304937 MAY 2304937 Contact Us For Availability
20
MAY 489229 MAY 489229 Contact Us For Availability
20
MAY W10181543 MAY W10181543 Contact Us For Availability
20
MAY W10181544 MAY W10181544 Contact Us For Availability
20
Motor, Fan MAY 2188874 Contact Us For Availability
20
MAY 626691 MAY 626691 Contact Us For Availability
20
Clip-Wiring MAY 1115375 Contact Us For Availability
21
MAY 4396841 MAY 4396841 Contact Us For Availability
21
MAY 2196295 MAY 2196295 Contact Us For Availability
21
Sleeve, Delay Mechanism MAY 2252127 Contact Us For Availability
21
MAY 1105523 MAY 1105523 Contact Us For Availability
21
MAY 2311631 MAY 2311631 Contact Us For Availability
22
MAY 2188734 MAY 2188734 Contact Us For Availability
22
MAY 2305377 MAY 2305377 Contact Us For Availability
22
MAY 2195051 MAY 2195051 Contact Us For Availability
22
Harness, Unit MAY 2187783 Contact Us For Availability
22
MAY 489285 MAY 489285 Contact Us For Availability
23
HINGE COVER RC (BLACK) MAY 2203408B Contact Us For Availability
23
HINGE COVER RC (WHITE) MAY 2203408W Contact Us For Availability
23
MAY 2171682 MAY 2171682 Contact Us For Availability
23
MAY 2304673 MAY 2304673 Contact Us For Availability
23
MAY 2319825 MAY 2319825 Contact Us For Availability
23
MAY W10143759 MAY W10143759 Contact Us For Availability
23
MAY 2304859 MAY 2304859 Contact Us For Availability
23
Thremostat Knob MAY 2311614 Contact Us For Availability
24
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
24
MAY 1119018 MAY 1119018 Contact Us For Availability
24
Compressor (Includes Items 13, 14, 23, & 30) MAY W10144769 Contact Us For Availability
24
Control Knob MAY 2311615 Contact Us For Availability
25
MAY 2155231 MAY 2155231 Contact Us For Availability
25
Frame, Unit Mounting MAY 2304903 Contact Us For Availability
25
MAY 627068 MAY 627068 Contact Us For Availability
26
MAY 2155311 MAY 2155311 Contact Us For Availability
26
MAY 1119020 MAY 1119020 Contact Us For Availability
26
Bracket, Fan Motor MAY 2181929 Contact Us For Availability
26
Spring Washer MAY 489203 Contact Us For Availability
27
MAY 489483 MAY 489483 Contact Us For Availability
27
MAY 1119021 MAY 1119021 Contact Us For Availability
27
MAY 2188174 MAY 2188174 Contact Us For Availability
28
MAY 489500 MAY 489500 Contact Us For Availability
28
SCREW MAY 488886 Contact Us For Availability
28
MAY 2304287 MAY 2304287 Contact Us For Availability
29
MAY 2260502B MAY 2260502B Contact Us For Availability
29
MAY 2260502W MAY 2260502W Contact Us For Availability
29
MAY 2180348 MAY 2180348 Contact Us For Availability
29
MAY 489373 MAY 489373 Contact Us For Availability
30
MAY 1119017 MAY 1119017 Contact Us For Availability
30
MAY 1100826 MAY 1100826 Contact Us For Availability
30
Grommet (4) (Service) MAY 2183042 Contact Us For Availability
31
MAY 8281227 MAY 8281227 Contact Us For Availability
31
MAY 489234 MAY 489234 Contact Us For Availability
31
MAY 489340 MAY 489340 Contact Us For Availability
32
Screw (4) MAY 3400113 Contact Us For Availability
32
MAY 489236 MAY 489236 Contact Us For Availability
32
MAY 2196202 MAY 2196202 Contact Us For Availability
33
Block, Housing Support MAY 2260519 Contact Us For Availability
33
Front Cover Ice Container MAY 2171709 Contact Us For Availability
33
Clip, Heat MAY 2155547 Contact Us For Availability
34
Tube, Filter Outlet MAY 2255012 Contact Us For Availability
34
MAY 2305374 MAY 2305374 Contact Us For Availability
35
MAY 2319867 MAY 2319867 Contact Us For Availability
35
MAY 2171706 MAY 2171706 Contact Us For Availability
35
MAY 8281232 MAY 8281232 Contact Us For Availability
36
MAY 2260516 MAY 2260516 Contact Us For Availability
100
MAY W10192854 MAY W10192854 Contact Us For Availability
100
MAY W10190966 MAY W10190966 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Black) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 80051 MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY W10134625 MAY W10134625 Contact Us For Availability
× ![]()
