Model Maytag MSB26C4XYW00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS

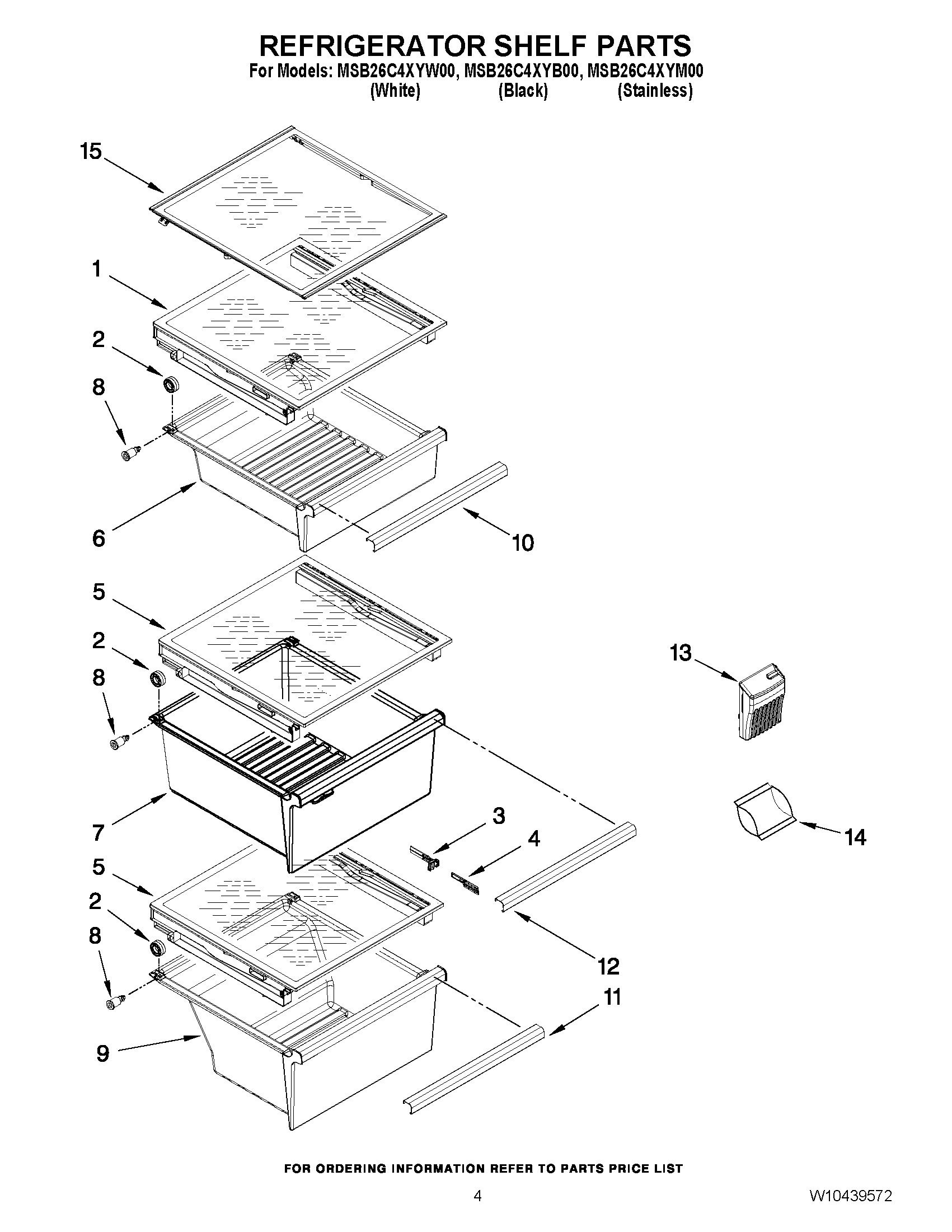

03 - REFRIGERATOR SHELF PARTS

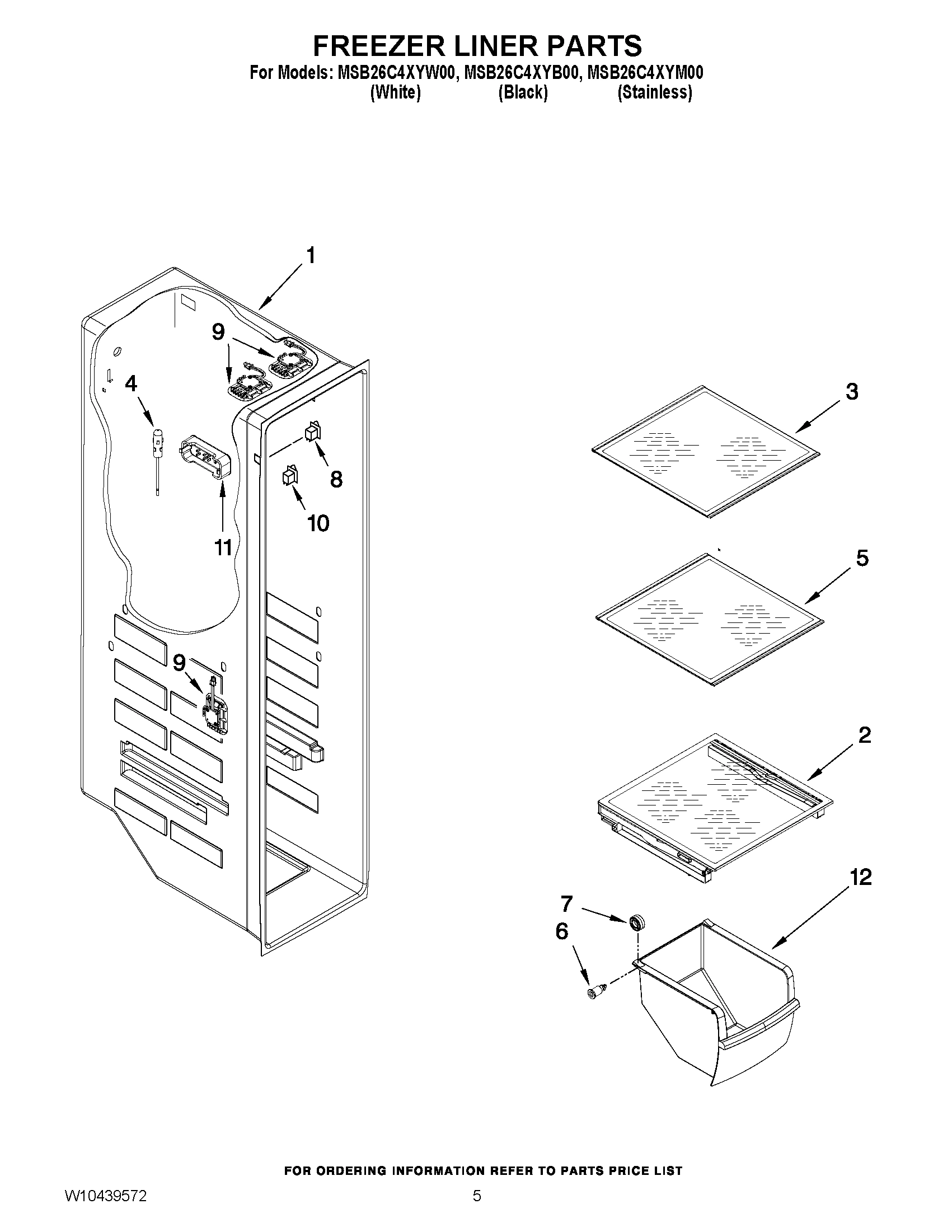

04 - FREEZER LINER PARTS

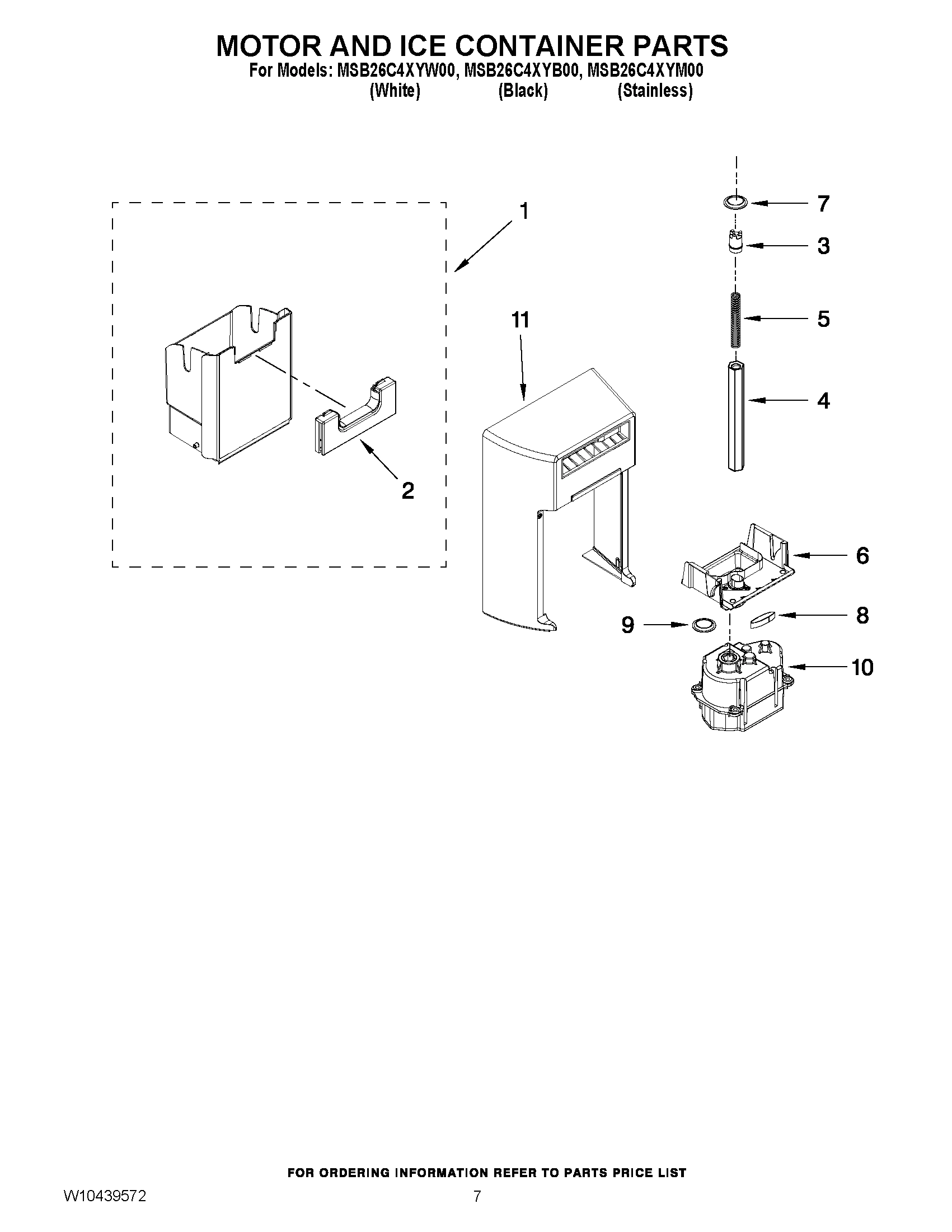

05 - MOTOR AND ICE CONTAINER PARTS

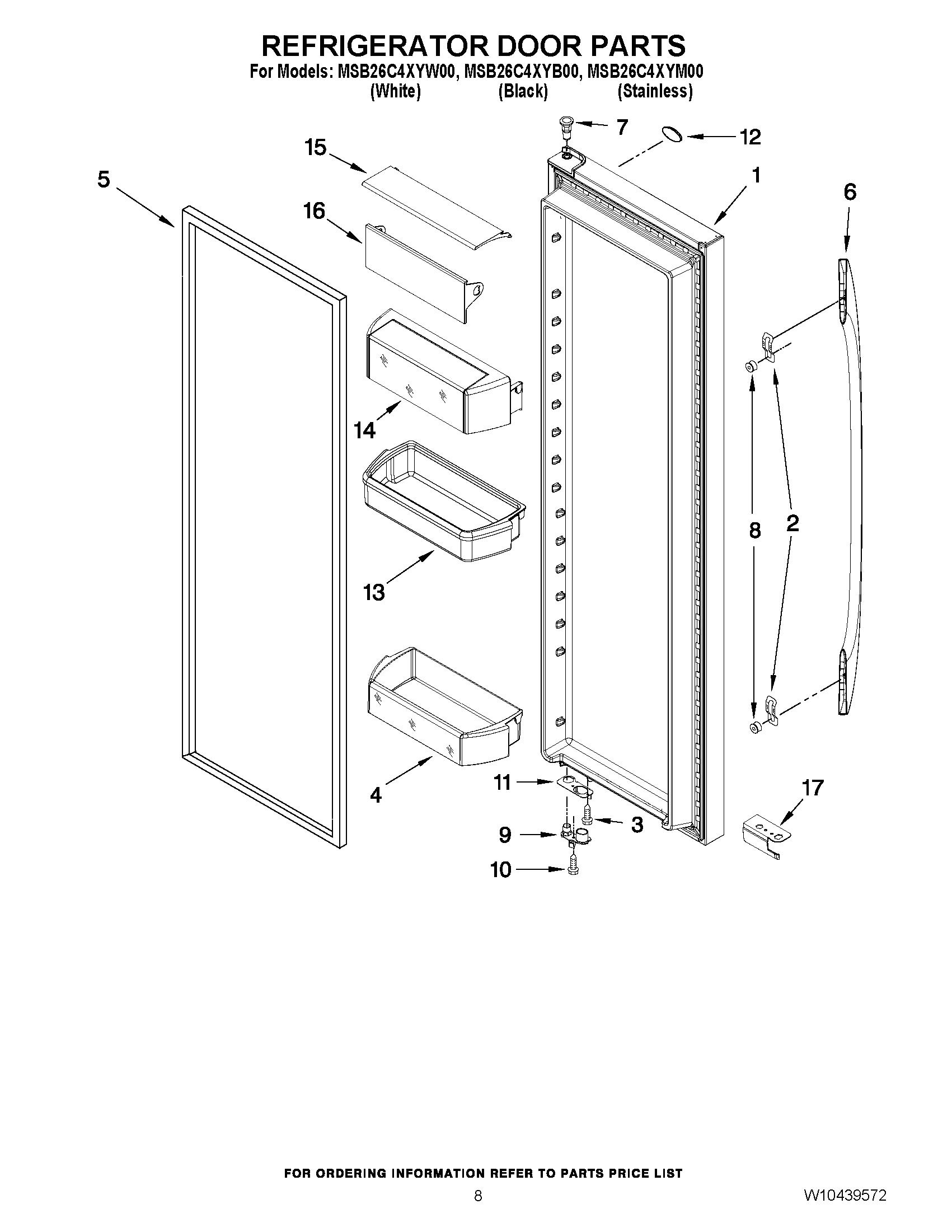

06 - REFRIGERATOR DOOR PARTS
07 - FREEZER DOOR PARTS

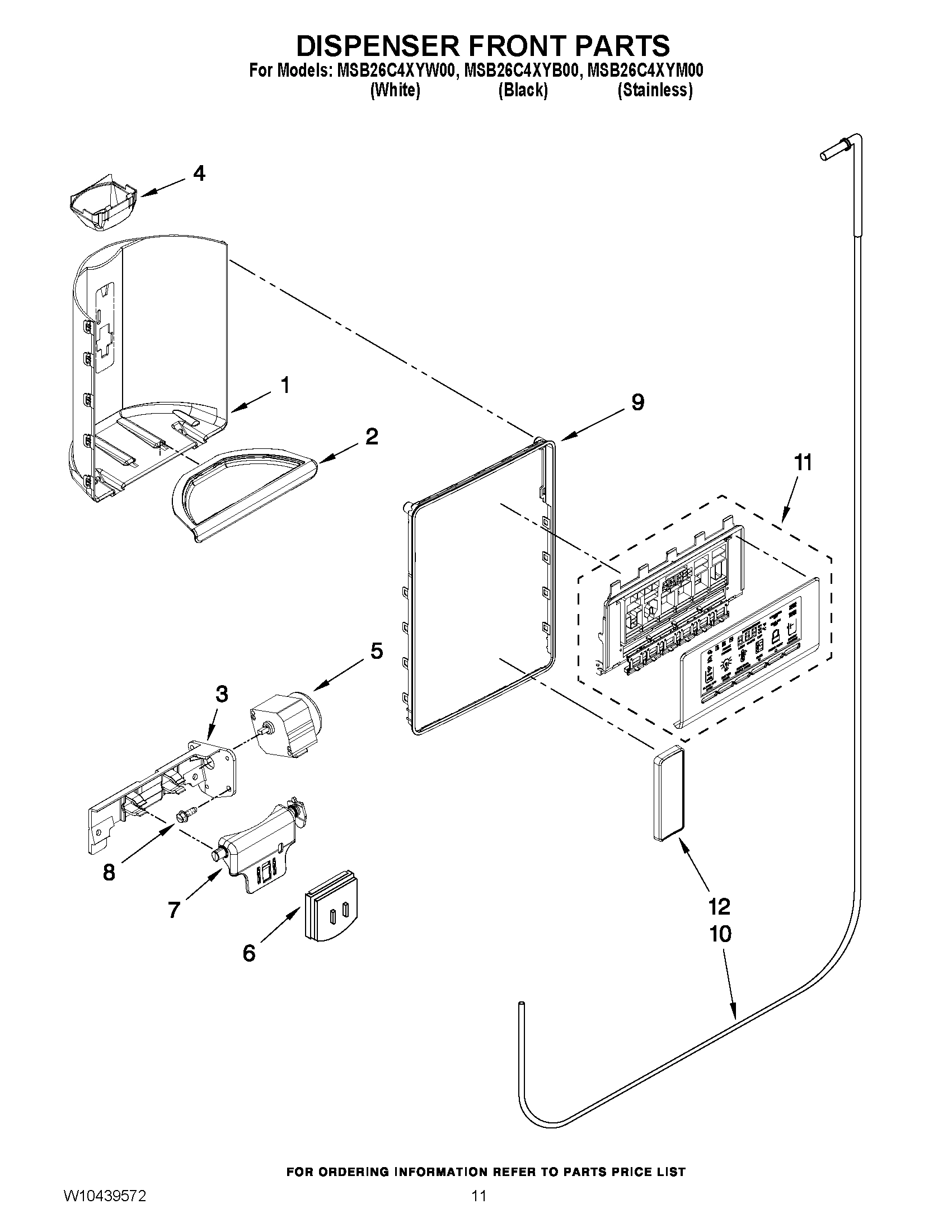

08 - DISPENSER FRONT PARTS
09 - UNIT PARTS

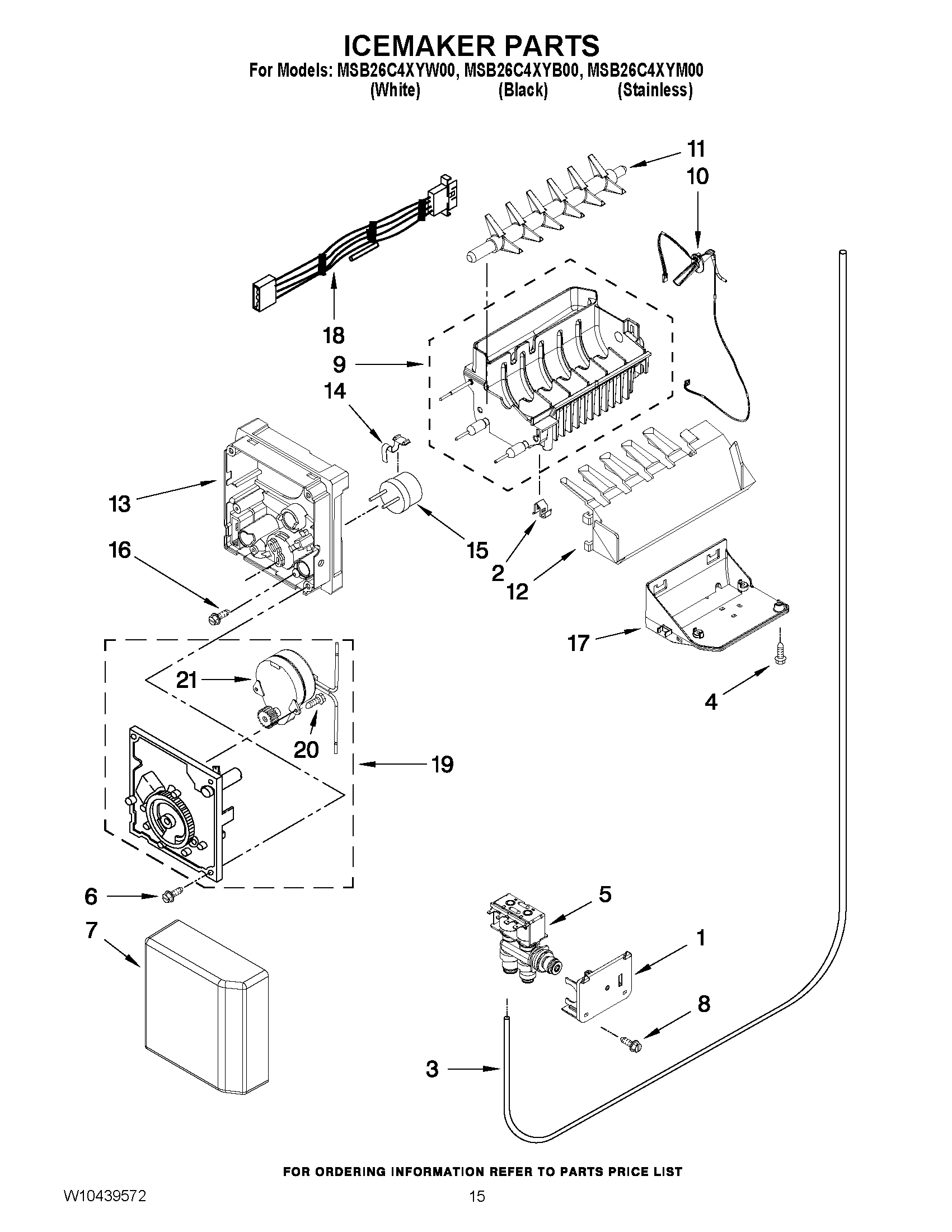

10 - ICEMAKER PARTS

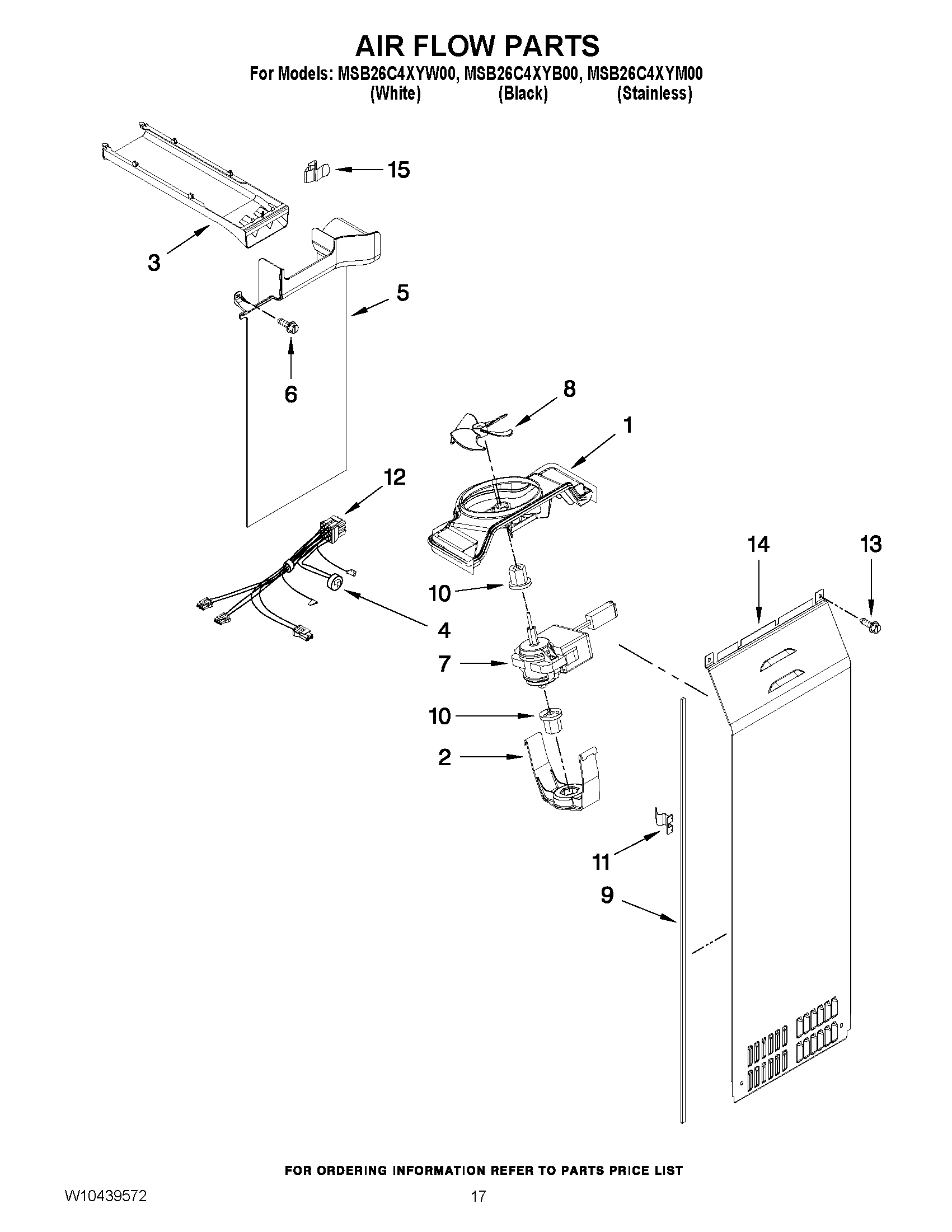

11 - AIR FLOW PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSB26C4XYW00 REFRIGERATOR
1
MAY W10336419 MAY W10336419 Contact Us For Availability
1
MAY W10346851 MAY W10346851 Contact Us For Availability
1
MAY W10350647 MAY W10350647 Contact Us For Availability
1
MAY W10362171 MAY W10362171 Contact Us For Availability
1
MAY W10373134 MAY W10373134 Contact Us For Availability
1
MAY W10373135 MAY W10373135 Contact Us For Availability
1
MAY W10373136 MAY W10373136 Contact Us For Availability
1
MAY W10369963 MAY W10369963 Contact Us For Availability
1
MAY W10369964 MAY W10369964 Contact Us For Availability
1
MAY W10369965 MAY W10369965 Contact Us For Availability
1
MAY W10237915 MAY W10237915 Contact Us For Availability
1
MAY W10251462 MAY W10251462 Contact Us For Availability
2
FRONT ROLLER MAY 2150304 Contact Us For Availability
2
MAY W10260988 MAY W10260988 Contact Us For Availability
2
COVER ASSY MAY W10362175 Contact Us For Availability
2
MAY W10258552 MAY W10258552 Contact Us For Availability
2
HANDLE (STAINLESS) MAY W10170743 Contact Us For Availability
2
MAY W10296254 MAY W10296254 Contact Us For Availability
2
MAY W10296255 MAY W10296255 Contact Us For Availability
2
GRATE, DRIP TRAY (WHITE) MAY W10322872 Contact Us For Availability
2
GRATE, DRIP TRAY (BLACK) MAY W10322873 Contact Us For Availability
2
GRATE, DRIP TRAY (SPARKLE) MAY W10410105 Contact Us For Availability
2
Fan, Blade MAY 12825802 Contact Us For Availability
2
CLIP,FUSE MAY 628379 Contact Us For Availability
2
MAY W10260421 MAY W10260421 Contact Us For Availability
3
MAY W10297485 MAY W10297485 Contact Us For Availability
3
SLIDE, MEAT PAN CONTRO MAY W10260989 Contact Us For Availability
3
MAY W10282883 MAY W10282883 Contact Us For Availability
3
MAY W10354579 MAY W10354579 Contact Us For Availability
3
MAY 2220458 MAY 2220458 Contact Us For Availability
3
MAY 2200087 MAY 2200087 Contact Us For Availability
3
MAY W10174827 MAY W10174827 Contact Us For Availability
3
CONDENSER ASSEMBLY MAY W10276899 Contact Us For Availability
3
MAY W10238092 MAY W10238092 Contact Us For Availability
3
MAY W10223286 MAY W10223286 Contact Us For Availability
4
MAY 12477102 MAY 12477102 Contact Us For Availability
4
MAY W10251495 MAY W10251495 Contact Us For Availability
4
MAY W10282880 MAY W10282880 Contact Us For Availability
4
MAY W10280386 MAY W10280386 Contact Us For Availability
4
MAY W10258544 MAY W10258544 Contact Us For Availability
4
MAY W10347767 MAY W10347767 Contact Us For Availability
4
MAY W10296804 MAY W10296804 Contact Us For Availability
4
MAY W10339578 MAY W10339578 Contact Us For Availability
4
MAY W10142255 MAY W10142255 Contact Us For Availability
4
MAY W10260437 MAY W10260437 Contact Us For Availability
5
MAY 12477202 MAY 12477202 Contact Us For Availability
5
MAY W10260409 MAY W10260409 Contact Us For Availability
5
MAY W10362172 MAY W10362172 Contact Us For Availability
5
MAY W10354580 MAY W10354580 Contact Us For Availability
5
MAY 2198607 MAY 2198607 Contact Us For Availability
5
MAY W10247884 MAY W10247884 Contact Us For Availability
5
MAY W10249912 MAY W10249912 Contact Us For Availability
5
DOOR GASKET, MAGNETIC (APOLLO GREY) MAY W10249916 Contact Us For Availability
5
STUD, HANDLE MAY W10129563 Contact Us For Availability
5
MAY W10205978 MAY W10205978 Contact Us For Availability
5
CLIP MAY W10204187 Contact Us For Availability
5
MAY W10258562 MAY W10258562 Contact Us For Availability
5
MAY W10260378 MAY W10260378 Contact Us For Availability
6
MAY W10285005 MAY W10285005 Contact Us For Availability
6
SWITCH, ROCKER ARM MAY C3680314 Contact Us For Availability
6
SNACK PAN ALSO ORDER 2 & 8 MAY W10256770 Contact Us For Availability
6
MAY W10257246 MAY W10257246 Contact Us For Availability
6
MAY W10293212 MAY W10293212 Contact Us For Availability
6
MAY W10325080 MAY W10325080 Contact Us For Availability
6
ICE DOOR ASSEMBLY (INCLUDES ITEMS 3, 5, 7, & MAY W10291704 Contact Us For Availability
6
MAY W10171469 MAY W10171469 Contact Us For Availability
6
MAY 489478 MAY 489478 Contact Us For Availability
6
MAY W10001260 MAY W10001260 Contact Us For Availability
7
MAY W10240361 MAY W10240361 Contact Us For Availability
7
MAY W10366790 MAY W10366790 Contact Us For Availability
7
MAY W10278139 MAY W10278139 Contact Us For Availability
7
CRISPER PAN ALSO ORDER 2, 3, 4, & 8) MAY W10278653 Contact Us For Availability
7
MAY 2198628 MAY 2198628 Contact Us For Availability
7
MAY W10296816 MAY W10296816 Contact Us For Availability
7
MAY W10346124 MAY W10346124 Contact Us For Availability
7
CONNECTOR, 1/4 MAY W10277958 Contact Us For Availability
7
MAY W10251088 MAY W10251088 Contact Us For Availability
7
MAY 2315549 MAY 2315549 Contact Us For Availability
8
MAY W10257186 MAY W10257186 Contact Us For Availability
8
SWITCH, ROCKER ARM UPPER MAY 2149954 Contact Us For Availability
8
MAY W10291905 MAY W10291905 Contact Us For Availability
8
MAY W10247885 MAY W10247885 Contact Us For Availability
8
MAY W10249913 MAY W10249913 Contact Us For Availability
8
DOOR GASKET, MAGNETIC (APOLLO GREY) MAY W10249917 Contact Us For Availability
8
MAY 4449745 MAY 4449745 Contact Us For Availability
8
MAY W10303521 MAY W10303521 Contact Us For Availability
8
SCREW (2) MAY W10141625 Contact Us For Availability
8
Fan Blade MAY 2169142 Contact Us For Availability
9
FOOT, BRAKE MAY W10141622 Contact Us For Availability
9
MAY W10279030 MAY W10279030 Contact Us For Availability
9
MAY W10280385 MAY W10280385 Contact Us For Availability
9
MEAT PAN ALSO ORDER 2 & 8 MAY W10256774 Contact Us For Availability
9
MAY 2212370 MAY 2212370 Contact Us For Availability
9
MAY W10248011 MAY W10248011 Contact Us For Availability
9
MAY W10257201 MAY W10257201 Contact Us For Availability
9
DOOR CLOSER, UPPER CAM (APOLLO GREY) MAY W10257203 Contact Us For Availability
9
MAY W10248015 MAY W10248015 Contact Us For Availability
9
MAY W10257204 MAY W10257204 Contact Us For Availability
9
DOOR CLOSER, UPPER CAM (APOLLO GREY) MAY W10257206 Contact Us For Availability
9
TRIM RING (WHITE) MAY W10322863 Contact Us For Availability
9
TRIM RING (BLACK) MAY W10322864 Contact Us For Availability
9
TRIM RING (SPARKLE) MAY W10410107 Contact Us For Availability
9
MAY W10142294 MAY W10142294 Contact Us For Availability
9
MOLD & HEATER ASSEMBLY, ALSO ORDER 542638 MAY W10251081 Contact Us For Availability
9
MAY W10240370 MAY W10240370 Contact Us For Availability
10
SCREW MAY W10308750 Contact Us For Availability
10
MAY W10342986 MAY W10342986 Contact Us For Availability
10
TRIM, SNACK PAN MAY W10281628 Contact Us For Availability
10
SWITCH, ROCKER ARM LOWER MAY 1115373 Contact Us For Availability
10
DISPENSER, MOTOR MAY 2323603 Contact Us For Availability
10
MAY W10247907 MAY W10247907 Contact Us For Availability
10
WATER TUBE WITH SPIGOT MAY W10294737 Contact Us For Availability
10
START DEVICE COMBINATION RELAY & OVERLOAD (SE MAY W10128791 Contact Us For Availability
10
START DEVICE COMBINATION RELAY & OVERLOAD (PR MAY W10197428 Contact Us For Availability
10
MAY W10347034 MAY W10347034 Contact Us For Availability
10
Fan Grommet (2) MAY 2176759 Contact Us For Availability
11
MAY W10238100 MAY W10238100 Contact Us For Availability
11
MAY W10315189 MAY W10315189 Contact Us For Availability
11
MAY W10356631 MAY W10356631 Contact Us For Availability
11
TRIM, MEAT PAN MAY W10309635 Contact Us For Availability
11
MAY W10287594 MAY W10287594 Contact Us For Availability
11
CLIP, HANDLE MAY 2255411 Contact Us For Availability
11
MAY W10247909 MAY W10247909 Contact Us For Availability
11
MAY W10410112 MAY W10410112 Contact Us For Availability
11
MAY W10410113 MAY W10410113 Contact Us For Availability
11
MAY W10410114 MAY W10410114 Contact Us For Availability
11
MAY W10219381 MAY W10219381 Contact Us For Availability
11
MAY W10318644 MAY W10318644 Contact Us For Availability
11
MAY W10274578 MAY W10274578 Contact Us For Availability
12
MAY W10247899 MAY W10247899 Contact Us For Availability
12
MAY W10249920 MAY W10249920 Contact Us For Availability
12
HINGE, TOP (FC) (APOLLO GREY) MAY W10249922 Contact Us For Availability
12
MAY W10370599 MAY W10370599 Contact Us For Availability
12
MAY W10309636 MAY W10309636 Contact Us For Availability
12
PAN, FREEZER ALSO ORDER 7 & 14 MAY W10260985 Contact Us For Availability
12
Nameplate MAY W10170766 Contact Us For Availability
12
MAY W10257220 MAY W10257220 Contact Us For Availability
12
MAY W10257221 MAY W10257221 Contact Us For Availability
12
COVER, DOOR STOP (MIDNIGHT GREY) MAY W10257223 Contact Us For Availability
12
MAY W10348739 MAY W10348739 Contact Us For Availability
12
MAY W10348786 MAY W10348786 Contact Us For Availability
12
MAY W10410098 MAY W10410098 Contact Us For Availability
12
MAY W10248621 MAY W10248621 Contact Us For Availability
12
MAY W10251078 MAY W10251078 Contact Us For Availability
12
HARNESS, FAN EVAPORATOR (INCLUDES No.4) MAY W10242409 Contact Us For Availability
13
MAY W10247901 MAY W10247901 Contact Us For Availability
13
MAY W10249923 MAY W10249923 Contact Us For Availability
13
HINGE, TOP (RC) (APOLLO GREY) MAY W10249925 Contact Us For Availability
13
MAY W10238123 MAY W10238123 Contact Us For Availability
13
HOLDER, SACHET MAY W10408747 Contact Us For Availability
13
MAY W10347766 MAY W10347766 Contact Us For Availability
13
MAY 2198634 MAY 2198634 Contact Us For Availability
13
Capacitor (Production) MAY 2264017 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
13
MAY W10142292 MAY W10142292 Contact Us For Availability
14
SCREW MAY W10142283 Contact Us For Availability
14
SACHET BAG MAY W10346771 Contact Us For Availability
14
DOOR COMPARTMENT MAY W10316889 Contact Us For Availability
14
MAY 2198635 MAY 2198635 Contact Us For Availability
14
MAY 2325479 MAY 2325479 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
14
MAY W10239739 MAY W10239739 Contact Us For Availability
15
MAY W10249940 MAY W10249940 Contact Us For Availability
15
MAY W10249941 MAY W10249941 Contact Us For Availability
15
BOTTOM HINGE (FC) (APOLLO GREY) MAY W10249943 Contact Us For Availability
15
CONNECTOR, 5/16 X 5/16 MAY W10271543 Contact Us For Availability
15
MAY W10257483 MAY W10257483 Contact Us For Availability
15
LID, COMPARTMENT MAY W10316883 Contact Us For Availability
15
MAY W10258502 MAY W10258502 Contact Us For Availability
15
MAY 2205813 MAY 2205813 Contact Us For Availability
15
MAY 2321258 MAY 2321258 Contact Us For Availability
15
MAY W10331728 MAY W10331728 Contact Us For Availability
16
MAY W10257188 MAY W10257188 Contact Us For Availability
16
MAY W10257207 MAY W10257207 Contact Us For Availability
16
MAY W10257209 MAY W10257209 Contact Us For Availability
16
MAY W10260405 MAY W10260405 Contact Us For Availability
16
MAY W10316885 MAY W10316885 Contact Us For Availability
16
P.C. BOARD, EMITTER MAY W10180607 Contact Us For Availability
16
EVAPORATOR, FC MAY 2188822 Contact Us For Availability
16
MAY W10001240 MAY W10001240 Contact Us For Availability
17
MAY W10247905 MAY W10247905 Contact Us For Availability
17
MAY W10257195 MAY W10257195 Contact Us For Availability
17
DOOR CLOSER (RC) (APOLLO GREY) MAY W10257197 Contact Us For Availability
17
MAY W10295370 MAY W10295370 Contact Us For Availability
17
MAY W10248013 MAY W10248013 Contact Us For Availability
17
MAY W10257216 MAY W10257216 Contact Us For Availability
17
COVER, DOOR STOP (MIDNIGHT GREY) MAY W10257218 Contact Us For Availability
17
MAY W10258510 MAY W10258510 Contact Us For Availability
17
Clamp MAY 2161324 Contact Us For Availability
17
MAY W10251080 MAY W10251080 Contact Us For Availability
18
MAY W10141645 MAY W10141645 Contact Us For Availability
18
P.C. BOARD, RECEIVER MAY W10296530 Contact Us For Availability
18
Fan, Motor MAY 2188874 Contact Us For Availability
18
MAY W10242365 MAY W10242365 Contact Us For Availability
19
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
19
MAY W10258520 MAY W10258520 Contact Us For Availability
19
MAY W10238584 MAY W10238584 Contact Us For Availability
19
Module Assembly MAY 626691 Contact Us For Availability
20
MAY W10333887 MAY W10333887 Contact Us For Availability
20
SLIDE, ICE MAKE SHUT OFF MAY W10258540 Contact Us For Availability
20
MAY W10274575 MAY W10274575 Contact Us For Availability
20
Screw MAY 489136 Contact Us For Availability
21
FILLER, WRAPPER (APOLLO GREY) MAY 12587703AP Contact Us For Availability
21
MAY 12587703B MAY 12587703B Contact Us For Availability
21
MAY 12587703W MAY 12587703W Contact Us For Availability
21
MOTOR (NOT SERVICED, ORDER No.19) MAY N/P Contact Us For Availability
21
MAY 2317845 MAY 2317845 Contact Us For Availability
21
MAY W10177049 MAY W10177049 Contact Us For Availability
22
MAY W10257231 MAY W10257231 Contact Us For Availability
22
MAY W10257232 MAY W10257232 Contact Us For Availability
22
GRILLE (MIDNIGHT GREY) MAY W10257234 Contact Us For Availability
22
LED POWER SUPPLY MAY W10356137 Contact Us For Availability
23
MAY W10142234 MAY W10142234 Contact Us For Availability
23
MAY W10277704 MAY W10277704 Contact Us For Availability
24
MAY W10247903 MAY W10247903 Contact Us For Availability
24
MAY W10257198 MAY W10257198 Contact Us For Availability
24
DOOR CLOSER (FC) (MIDNIGHT GREY) MAY W10257200 Contact Us For Availability
24
MAY W10242407 MAY W10242407 Contact Us For Availability
25
MAY W10001250 MAY W10001250 Contact Us For Availability
25
UNIT COVER, BOTTOM MAY W10278140 Contact Us For Availability
26
MAY W10277956 MAY W10277956 Contact Us For Availability
26
MAY W10251470 MAY W10251470 Contact Us For Availability
27
MAY W10277957 MAY W10277957 Contact Us For Availability
27
MAY W10251467 MAY W10251467 Contact Us For Availability
28
MAY W10247979 MAY W10247979 Contact Us For Availability
28
MAY W10200250 MAY W10200250 Contact Us For Availability
29
MAY 12957702 MAY 12957702 Contact Us For Availability
29
MAY 10835901 MAY 10835901 Contact Us For Availability
29
MAY 10835903 MAY 10835903 Contact Us For Availability
30
ELEC. CONTROL-15W POWER SUPPLY MAY W10120821 Contact Us For Availability
30
MAY W10296661 MAY W10296661 Contact Us For Availability
31
MAY W10235499 MAY W10235499 Contact Us For Availability
31
MAY W10209479 MAY W10209479 Contact Us For Availability
100
ICE CONTAINER (COMPLETE) MAY W10353205 Contact Us For Availability
100
COMPLETE ICEMAKER ASSEMBLY MAY W10251076 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY 80051 MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY W10300794 MAY W10300794 Contact Us For Availability
× ![]()
