Model Maytag MLG23PRAWW WASHER – Common Parts & Diagrams
01 - CONTROL PANEL (UPPER)
02 - CABINET-FRONT (UPPER)

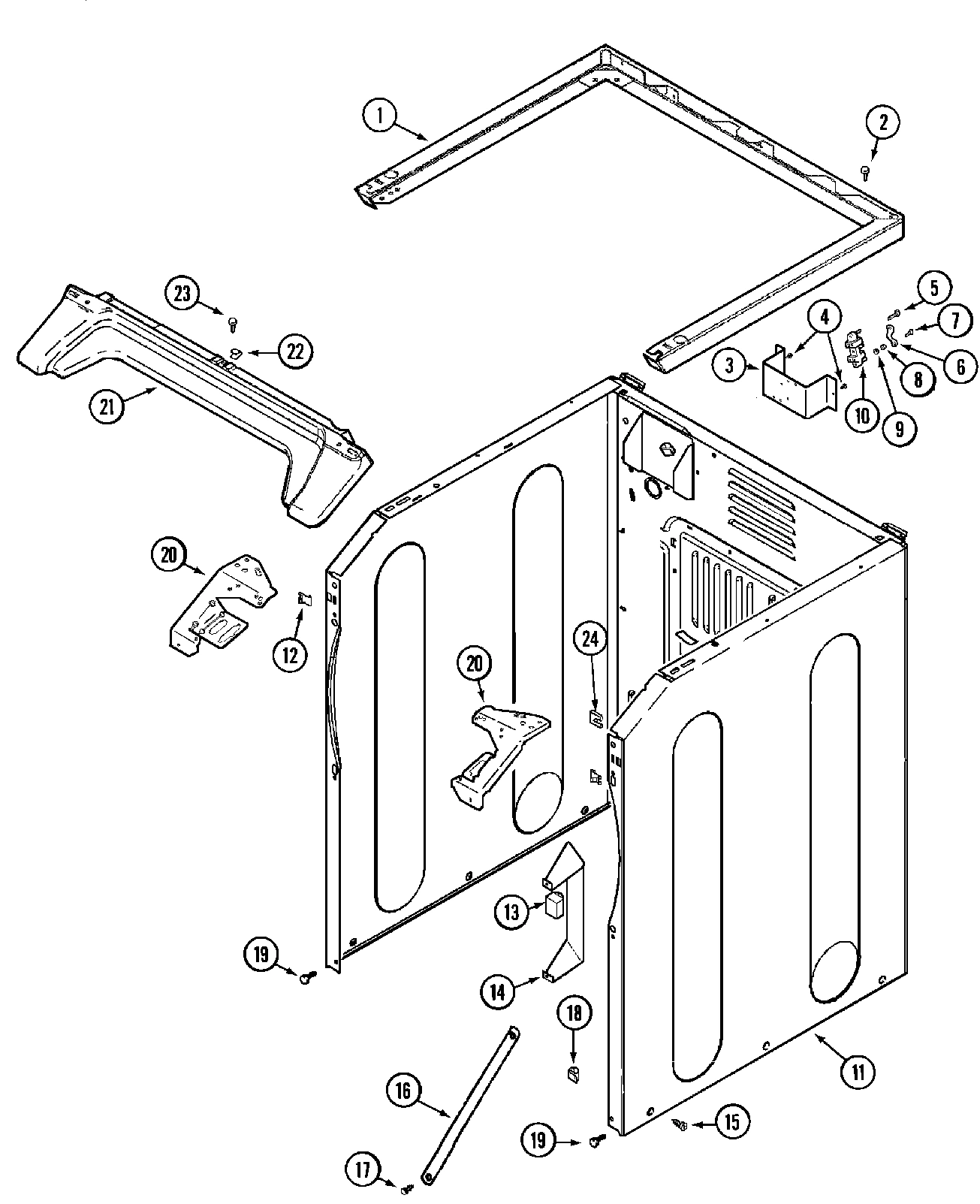

03 - CABINET-FRONT (LOWER)

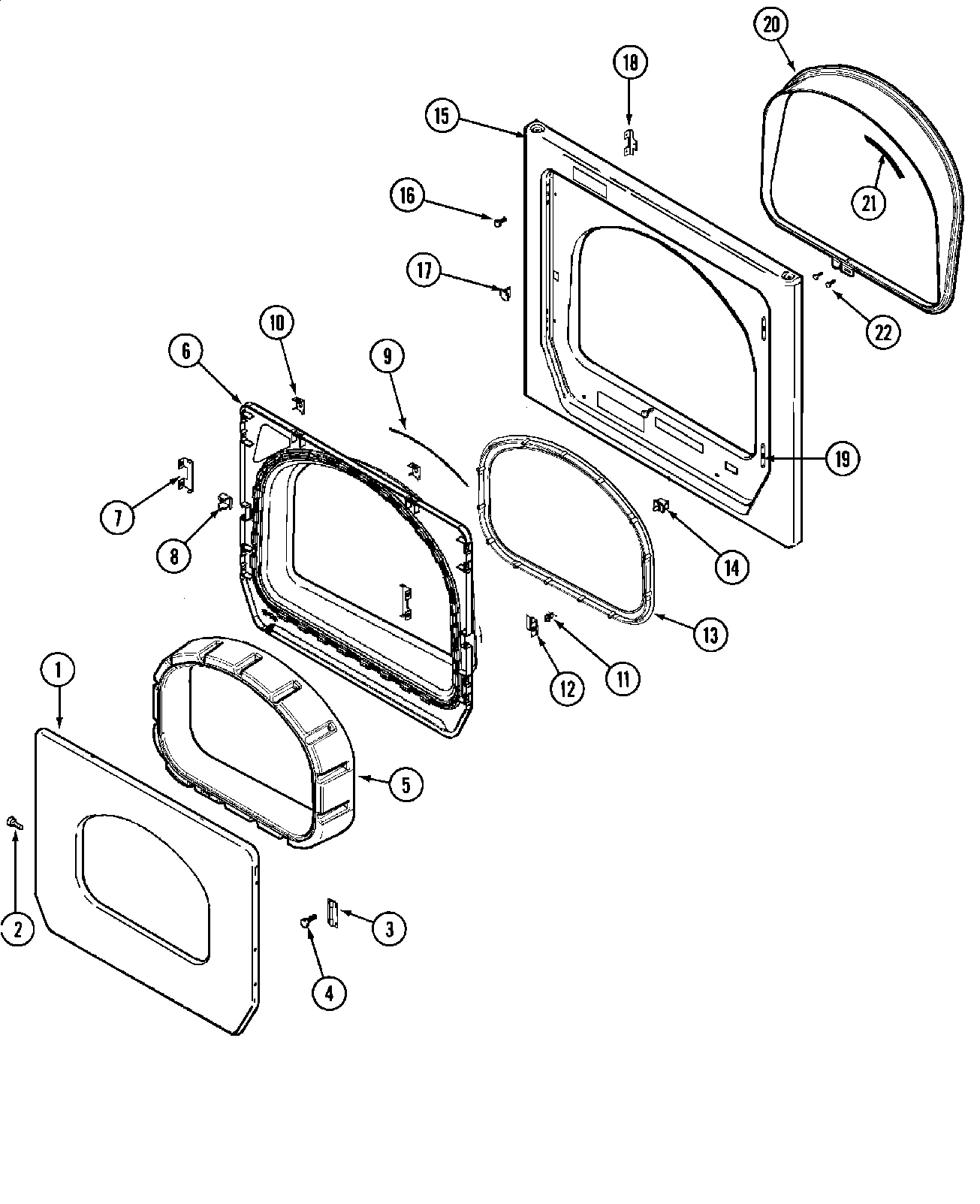

04 - DOOR (UPPER)

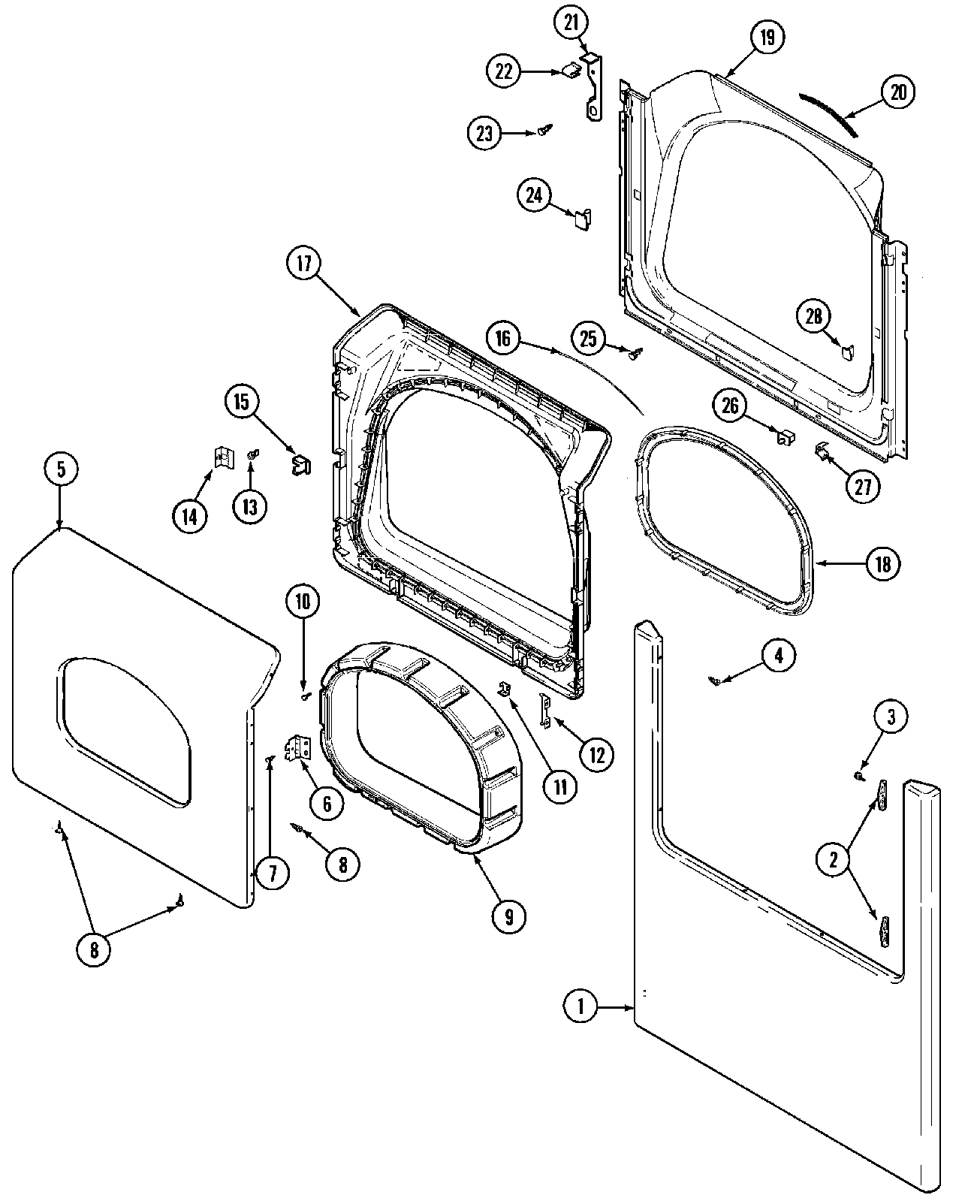

05 - DOOR (LOWER)

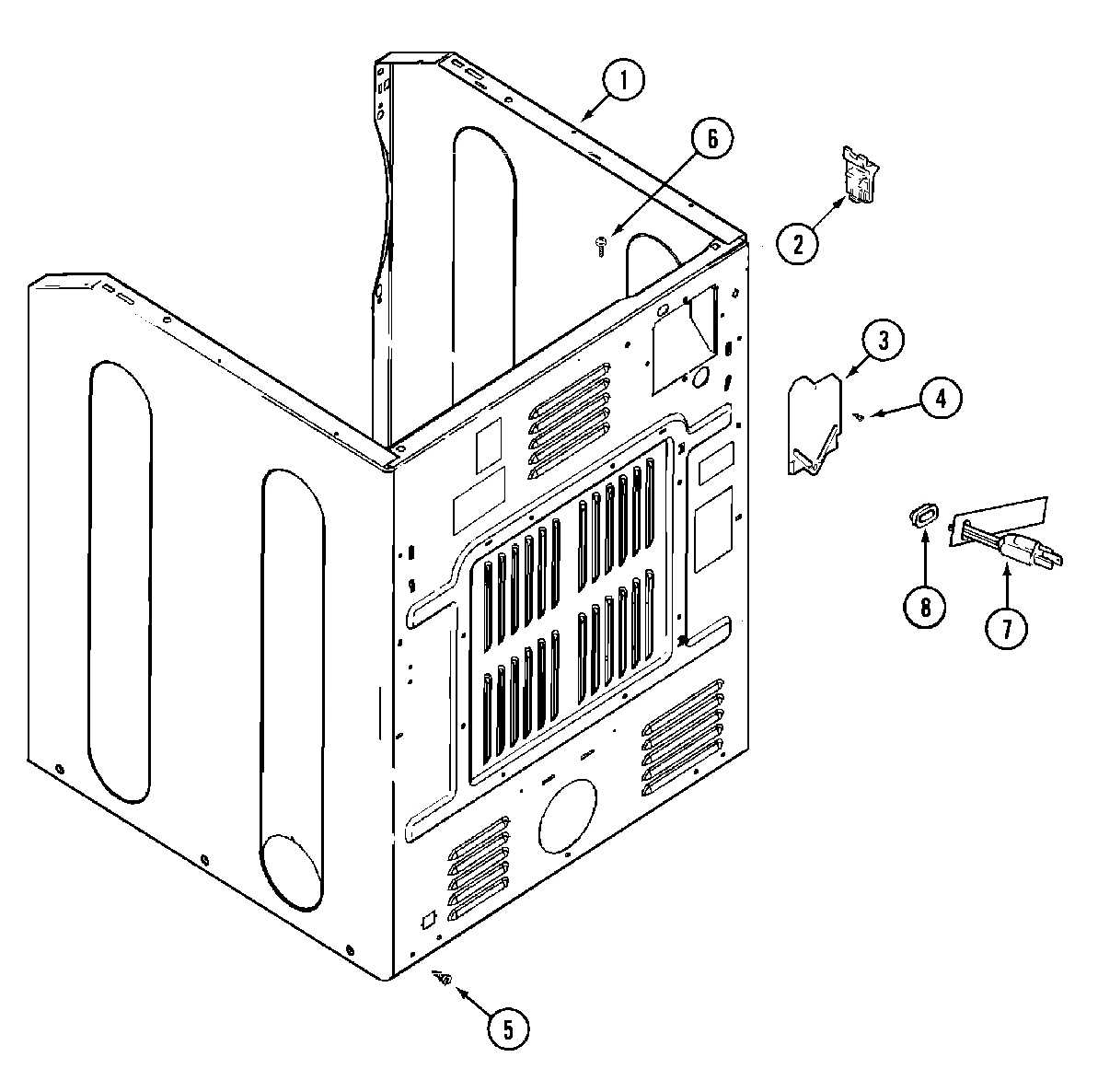

06 - CABINET-REAR

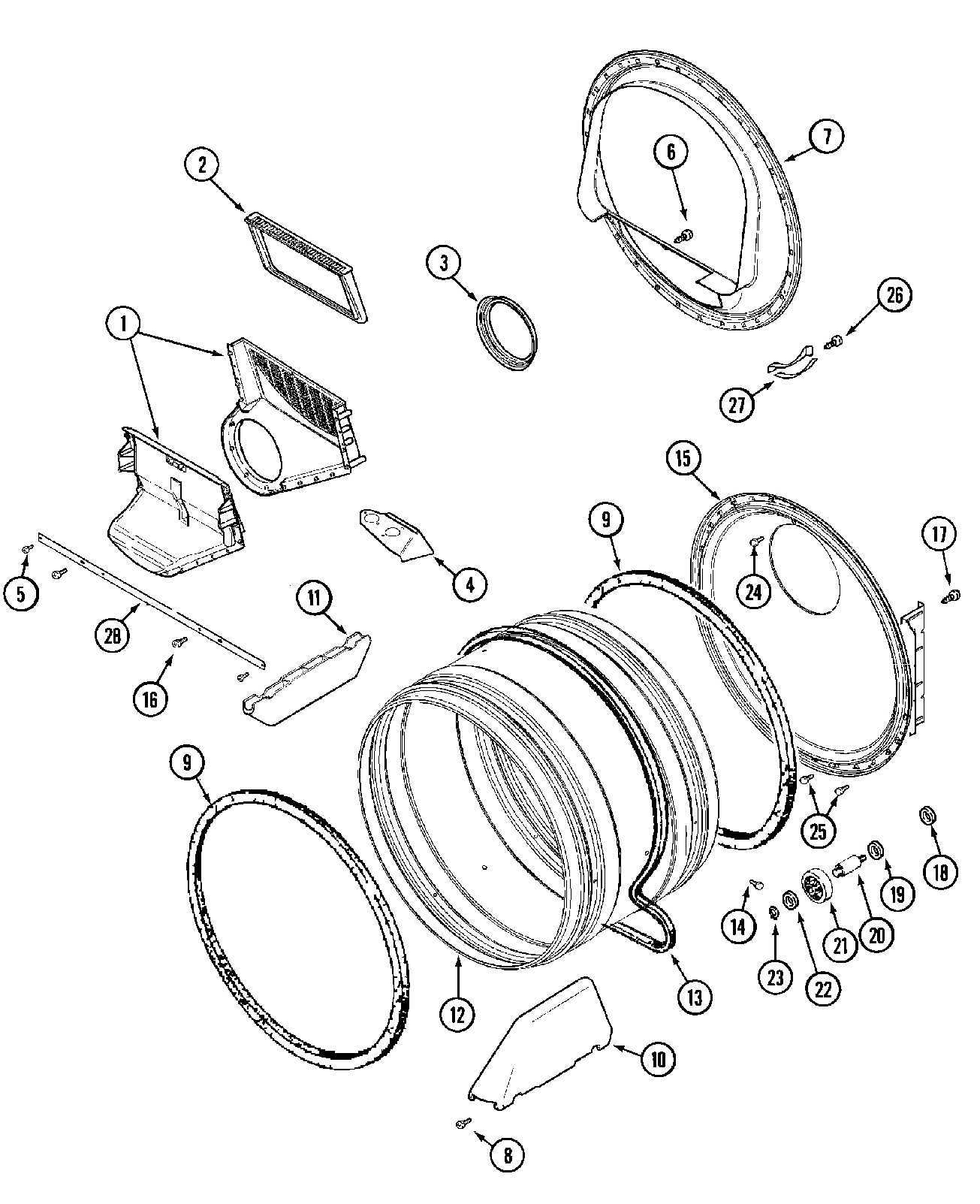

07 - TUMBLER
08 - HEATER
09 - GAS VALVE

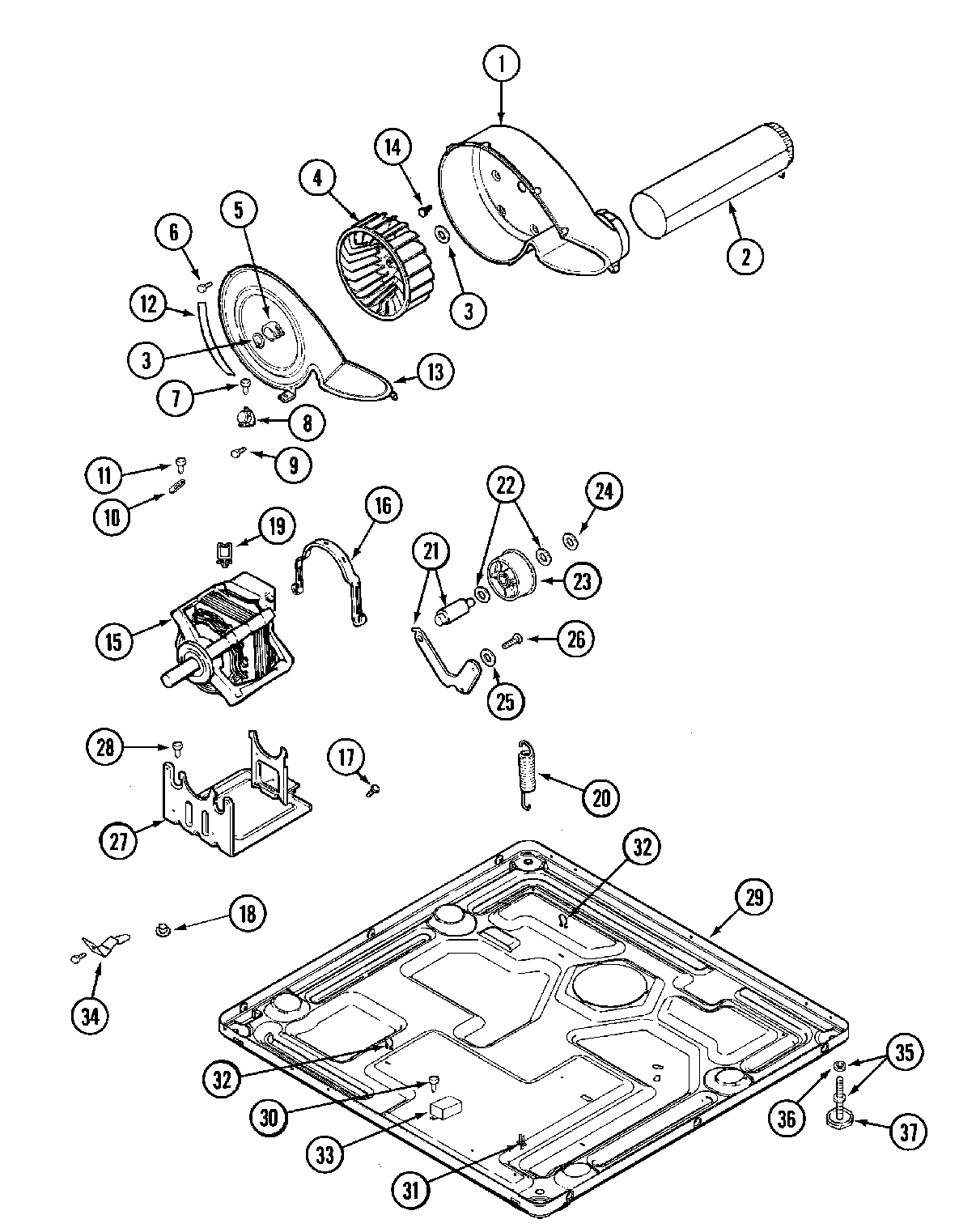

10 - MOTOR DRIVE
11 - WIRING INFORMATION
Common parts from model Maytag MLG23PRAWW WASHER
001
MAY 33001799 MAY 33001799 Contact Us For Availability
001
CLIP, WIRE HARNESS (LWR) MAY Y310376 Contact Us For Availability
001
MAY 33002015 MAY 33002015 Contact Us For Availability
001
MAY 22002241 MAY 22002241 Contact Us For Availability
001
(UPPER CABINET) MAY 215950 Contact Us For Availability
001
MAY 22002381 MAY 22002381 Contact Us For Availability
001
MAY 22002382 MAY 22002382 Contact Us For Availability
001
CABINET, ASSY.(LWR. WHT-AS PK) MAY 33002626 Contact Us For Availability
001
WIRING INFORMATION MAY NLA Contact Us For Availability
001
MAY Y308378 MAY Y308378 Contact Us For Availability
002
MAY 33001764 MAY 33001764 Contact Us For Availability
002
MAY 22003367 MAY 22003367 Contact Us For Availability
002
MAY 33001803 MAY 33001803 Contact Us For Availability
002
MAY Y308377 MAY Y308377 Contact Us For Availability
002
MAY 33001800 MAY 33001800 Contact Us For Availability
003
MAY 314995 MAY 314995 Contact Us For Availability
003
MAY 33002017 MAY 33002017 Contact Us For Availability
003
MAY 33001795 MAY 33001795 Contact Us For Availability
003
MAY 33001758 MAY 33001758 Contact Us For Availability
003
SCREW, IGNITER MAY 304971 Contact Us For Availability
004
SCREW, HINGE MAY 22002243 Contact Us For Availability
004
MAY 33001837 MAY 33001837 Contact Us For Availability
004
MAY 314998 MAY 314998 Contact Us For Availability
005
MAY 33002028 MAY 33002028 Contact Us For Availability
005
MAY 307185 MAY 307185 Contact Us For Availability
006
MAY 33002020 MAY 33002020 Contact Us For Availability
006
SCREW, POWER CORD GROUND MAY 210186 Contact Us For Availability
006
MAY 314999 MAY 314999 Contact Us For Availability
006
PLUG, HOLE (UPR) MAY 33002056 Contact Us For Availability
007
MAY 33001802 MAY 33001802 Contact Us For Availability
007
MAY 208784 MAY 208784 Contact Us For Availability
008
MAY 33001977 MAY 33001977 Contact Us For Availability
008
MAY 22002063 MAY 22002063 Contact Us For Availability
008
MAY 211881 MAY 211881 Contact Us For Availability
011
CLIP, INNER DOOR MAY 22002039 Contact Us For Availability
011
SCREW, GAS VALVE MAY 314082 Contact Us For Availability
012
MAY 22002038 MAY 22002038 Contact Us For Availability
012
MAY 33001794 MAY 33001794 Contact Us For Availability
012
MAY 33002560 MAY 33002560 Contact Us For Availability
013
MAY 33001761 MAY 33001761 Contact Us For Availability
013
MAY 33002607 MAY 33002607 Contact Us For Availability
013
MAY Y304578 MAY Y304578 Contact Us For Availability
013
MAY 315346 MAY 315346 Contact Us For Availability
013
VALVE, ANGLE GAS MAY 306086 Contact Us For Availability
013
MAY 33001796 MAY 33001796 Contact Us For Availability
014
MAY 33001788 MAY 33001788 Contact Us For Availability
014
MAY 33001735 MAY 33001735 Contact Us For Availability
014
SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability
015
MAY 33001801 MAY 33001801 Contact Us For Availability
015
MAY 33001763 MAY 33001763 Contact Us For Availability
015
SCREW, CABINET (TRUSS) MAY 22003409 Contact Us For Availability
015
MAY 33001711 MAY 33001711 Contact Us For Availability
015
SCREW, FRONT PANEL MAY 33002051 Contact Us For Availability
015
MAY 33002081 MAY 33002081 Contact Us For Availability
015
MAY Y308590 MAY Y308590 Contact Us For Availability
016
BRACE, CROSS MAY 22002259 Contact Us For Availability
016
SCREW, TUMBLER BRACE (UPR) MAY 33001768 Contact Us For Availability
016
MAY 33001810 MAY 33001810 Contact Us For Availability
017
MAY 33002949 MAY 33002949 Contact Us For Availability
017
MAY 910343 MAY 910343 Contact Us For Availability
018
MAY 33002025 MAY 33002025 Contact Us For Availability
018
MAY 33002022 MAY 33002022 Contact Us For Availability
018
GUIDE (UPR) MAY 33002044 Contact Us For Availability
019
MAY 33001778 MAY 33001778 Contact Us For Availability
019
MAY 33001175 MAY 33001175 Contact Us For Availability
019
MAY 33001812 MAY 33001812 Contact Us For Availability
019
MAY 33002040 MAY 33002040 Contact Us For Availability
020
MAY 33001767 MAY 33001767 Contact Us For Availability
020
MAY 33002157 MAY 33002157 Contact Us For Availability
020
MAY 33002095 MAY 33002095 Contact Us For Availability
020
MAY 33002473 MAY 33002473 Contact Us For Availability
020
MAY 33002026 MAY 33002026 Contact Us For Availability
020
MAY Y303841 MAY Y303841 Contact Us For Availability
020
MAY 33002461 MAY 33002461 Contact Us For Availability
021
MAY 33002011 MAY 33002011 Contact Us For Availability
021
MAY 22002991 MAY 22002991 Contact Us For Availability
021
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
021
MAY Y312890 MAY Y312890 Contact Us For Availability
022
FASTENER, ACCESS COVER MAY 33002013 Contact Us For Availability
022
MAY 33002037 MAY 33002037 Contact Us For Availability
022
MAY 33001693 MAY 33001693 Contact Us For Availability
022
MAY Y312527 MAY Y312527 Contact Us For Availability
024
FASTENER, FRONT PANEL MAY 213280 Contact Us For Availability
024
SCREW, INLET DUCT MAY 210932 Contact Us For Availability
025
MAY 33002265 MAY 33002265 Contact Us For Availability
025
MAY 33002268 MAY 33002268 Contact Us For Availability
025
MAY 33002434 MAY 33002434 Contact Us For Availability
026
RETAINER, WIRE HARNESS MAY 33001989 Contact Us For Availability
027
MAY 33001760 MAY 33001760 Contact Us For Availability
027
MAY 33002466 MAY 33002466 Contact Us For Availability
028
BRACE, TUMBLER FRONT (UPR) MAY 33002039 Contact Us For Availability
028
SCREW, MOTOR SUPPORT MAY Y313561 Contact Us For Availability
029
SCREW, HARNESS PROTECTOR (UPR) MAY 314568 Contact Us For Availability
029
FASTENER, PUSH (UPR) MAY 33002048 Contact Us For Availability
029
STRIP, GROMMET (UPR) MAY 33002049 Contact Us For Availability
029
PROTECTOR, HARNESS (UPR) MAY 33002050 Contact Us For Availability
029
MAY 33002467 MAY 33002467 Contact Us For Availability
031
MAY 315471 MAY 315471 Contact Us For Availability
032
MAY 410490 MAY 410490 Contact Us For Availability
033
SHIELD, TRANSFORMER (LWR) MAY 315218 Contact Us For Availability
033
SCREW, TRANSFORMER SHIELD (LWR MAY Y313559 Contact Us For Availability
034
CLIP, FRONT PANEL (LWR) MAY 22002239 Contact Us For Availability
034
SCREW, FRONT PANEL CLIP (LWR) MAY Y310632 Contact Us For Availability
034
CLIP, GROUNDING (LWR) MAY 22002244 Contact Us For Availability
034
BRACKET (LT-UPR) MAY 33002042 Contact Us For Availability
034
BRACKET (RT-UPR) MAY 33002043 Contact Us For Availability
× ![]()
