Model Maytag MLG15PDAXA GAS DRYER – Common Parts & Diagrams
01 - CONTROL PANEL (UPPER)
02 - CONTROL CENTER (UPPER)

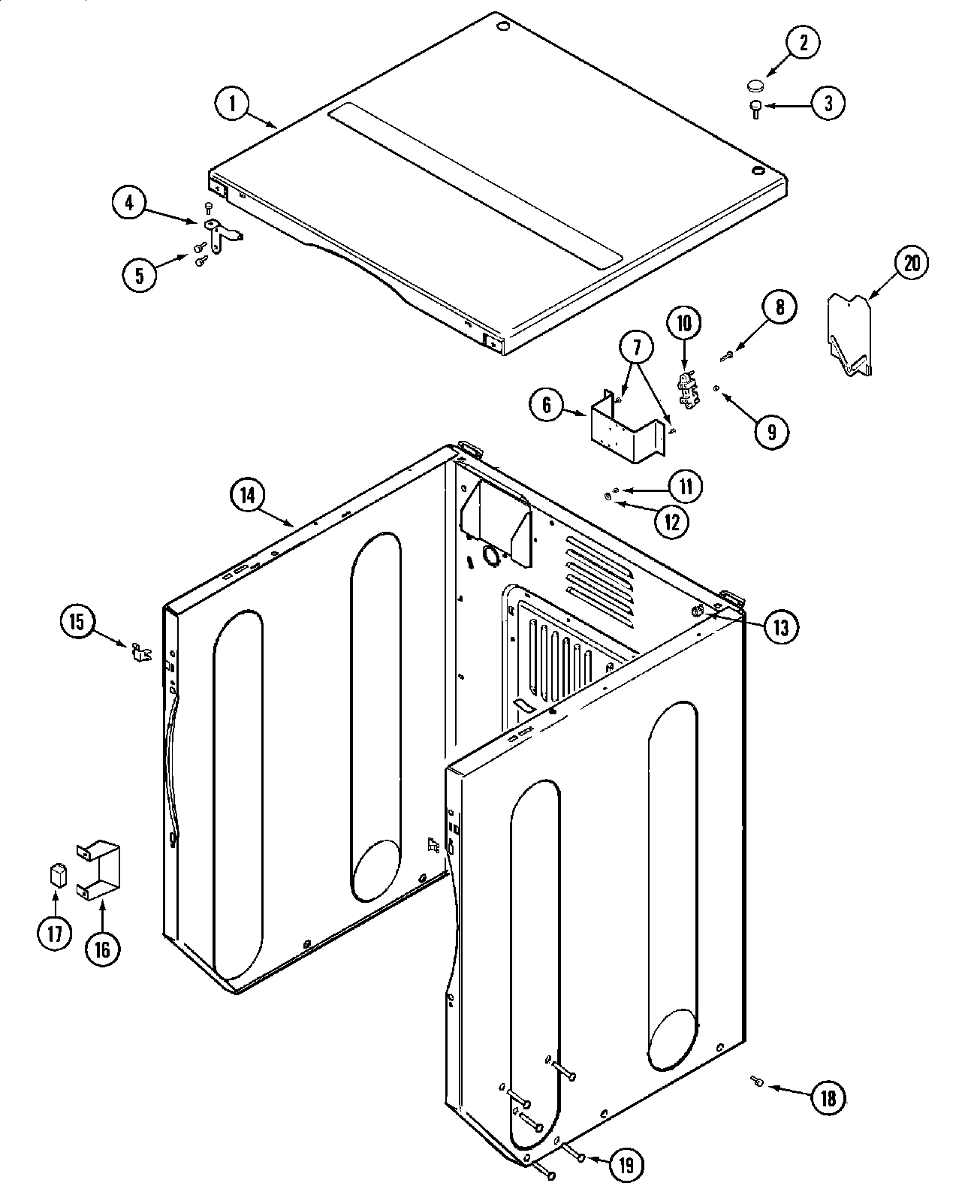

03 - CABINET-FRONT (UPPER)

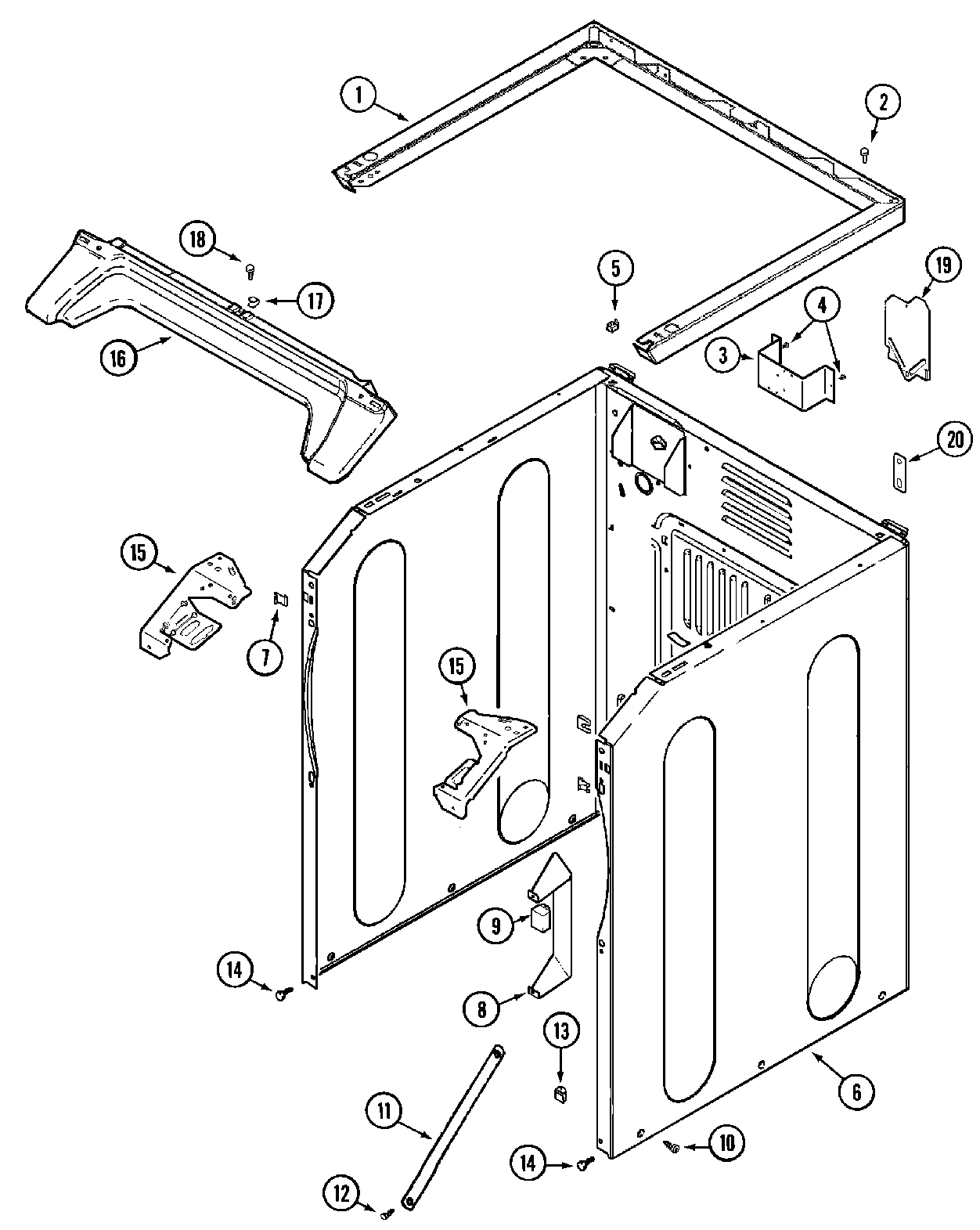

04 - CABINET-FRONT (LOWER)

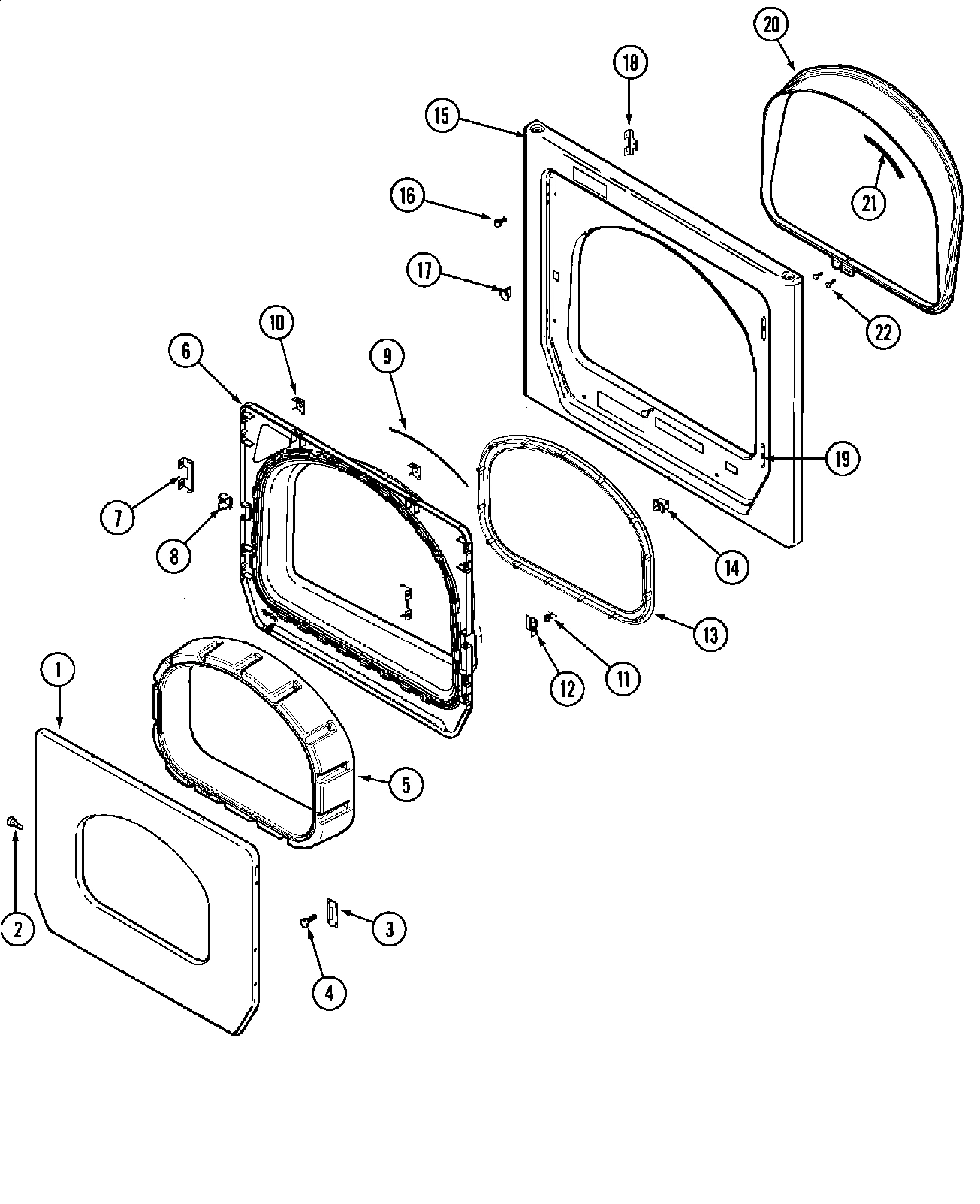

05 - DOOR (UPPER)

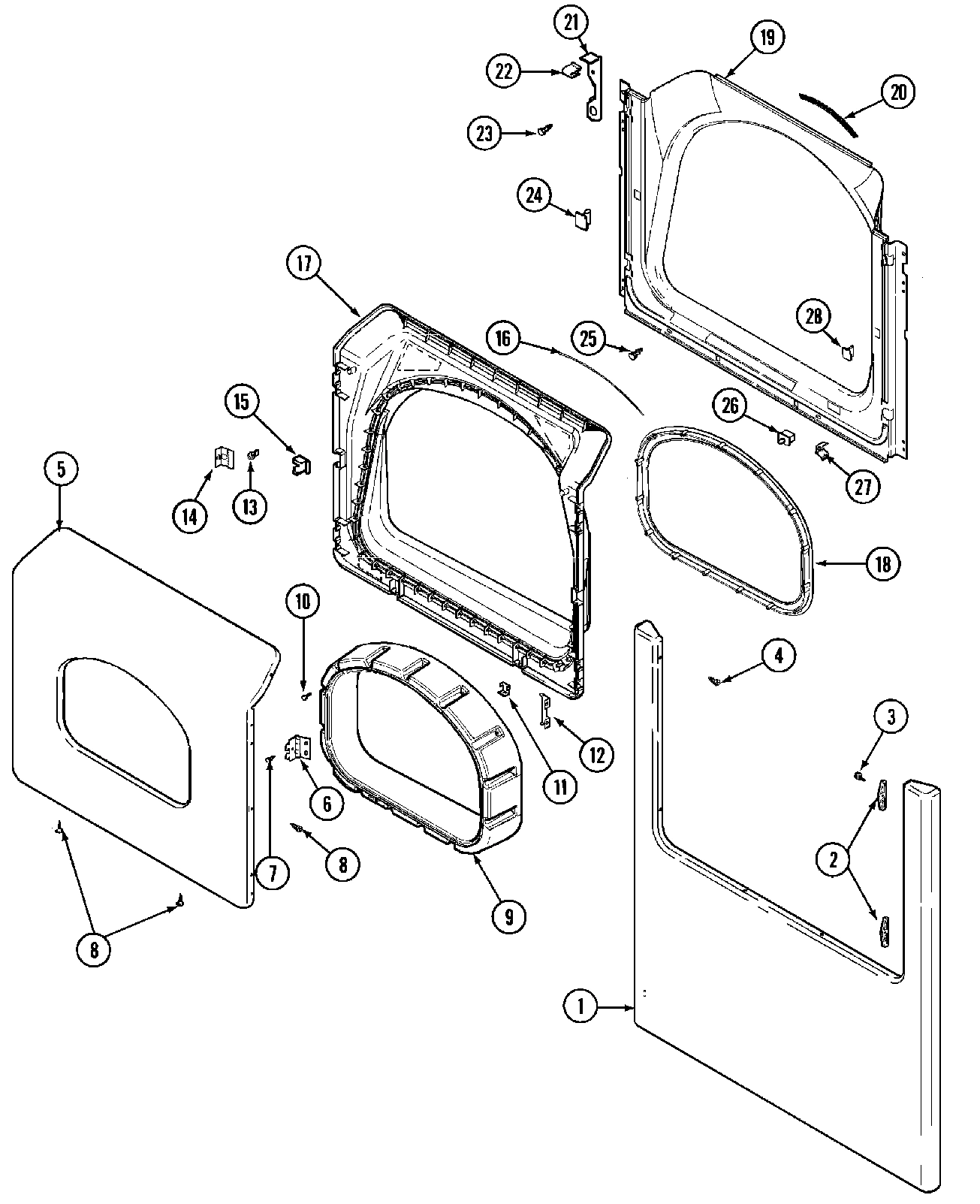

06 - DOOR (LOWER)
07 - GAS VALVE

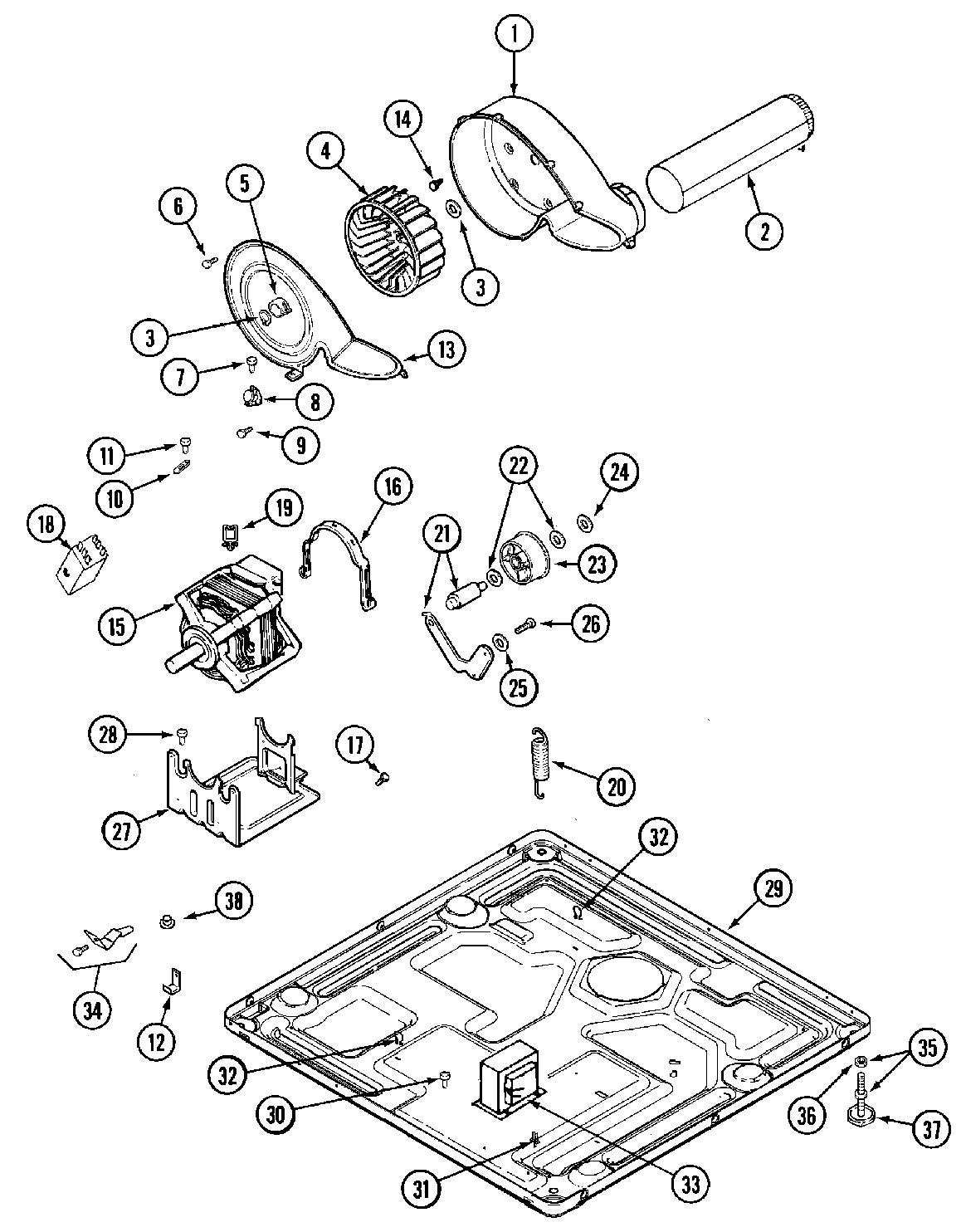

08 - MOTOR DRIVE

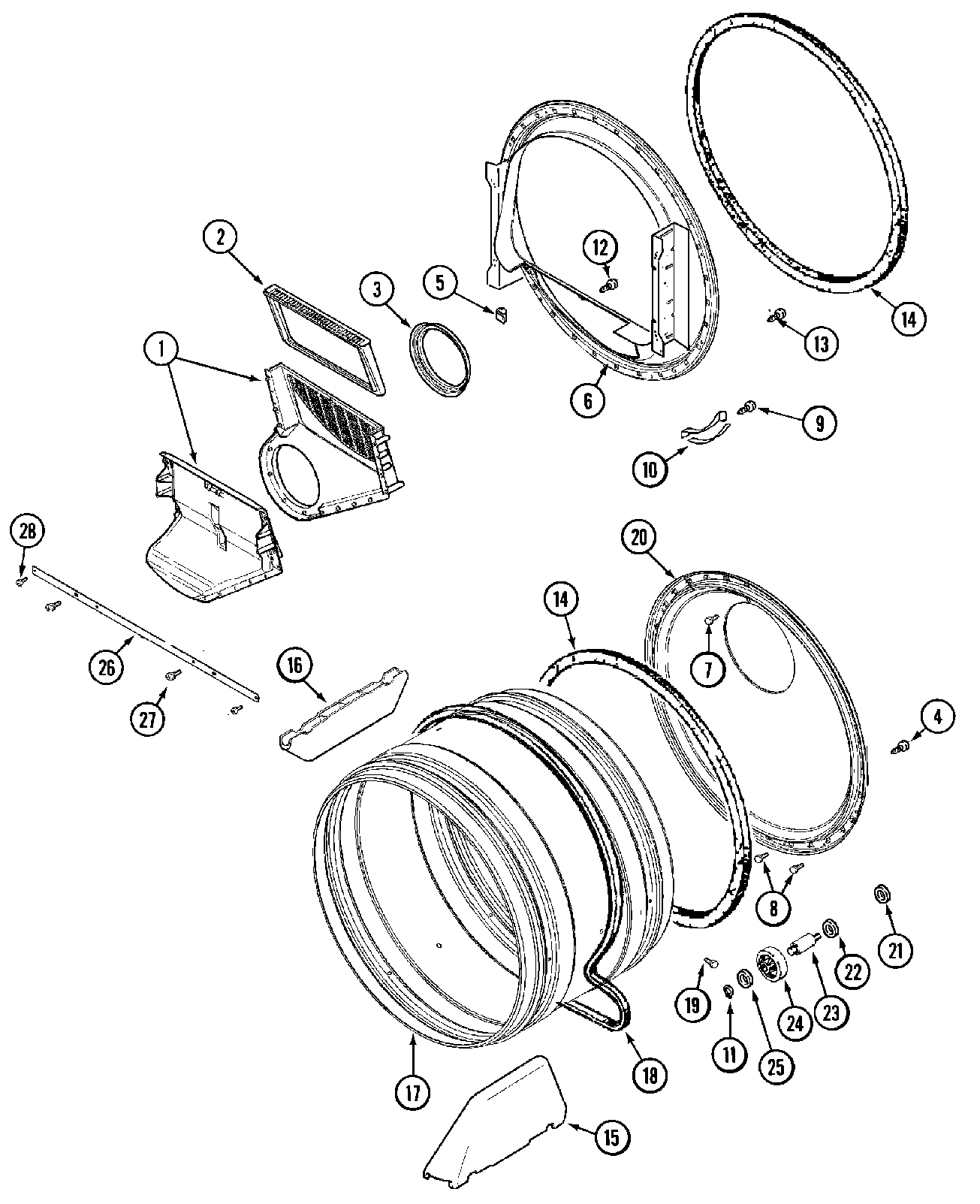

09 - TUMBLER
Common parts from model Maytag MLG15PDAXA GAS DRYER
001
MAY 33001799 MAY 33001799 Contact Us For Availability
001
MAY 33002005 MAY 33002005 Contact Us For Availability
001
(BSQ) MAY 33002446 Contact Us For Availability
001
MAY 33002015 MAY 33002015 Contact Us For Availability
001
MAY 22002241 MAY 22002241 Contact Us For Availability
001
(BSQ) MAY 22002663 Contact Us For Availability
001
MAY Y308378 MAY Y308378 Contact Us For Availability
002
MAY 33001765 MAY 33001765 Contact Us For Availability
002
(BSQ) MAY 33002349 Contact Us For Availability
002
SCREW, SUPPORT MAY 22001883 Contact Us For Availability
002
MAY Y308377 MAY Y308377 Contact Us For Availability
002
MAY 33001800 MAY 33001800 Contact Us For Availability
003
MAY 33002017 MAY 33002017 Contact Us For Availability
003
SCREW, IGNITER MAY 304971 Contact Us For Availability
003
MAY 33001758 MAY 33001758 Contact Us For Availability
004
MAY 33002190 MAY 33002190 Contact Us For Availability
005
MAY Y310376 MAY Y310376 Contact Us For Availability
005
MAY 33002028 MAY 33002028 Contact Us For Availability
006
FRONT, TUMBLER (W/SEAL) (INCL. SENSOR/ LIGHT MAY 33001802 Contact Us For Availability
006
MAY 22003639 MAY 22003639 Contact Us For Availability
006
MAY 33002020 MAY 33002020 Contact Us For Availability
006
PLUG, HOLE (UPR) MAY 33002056 Contact Us For Availability
007
SCREW, INLET DUCT MAY 210932 Contact Us For Availability
008
MAY 307208 MAY 307208 Contact Us For Availability
008
MAY 33001977 MAY 33001977 Contact Us For Availability
008
SCREW, RELAY BRACKET MAY Y310632 Contact Us For Availability
008
BRACKET, RELAY MAY 314627 Contact Us For Availability
008
MAY 22002063 MAY 22002063 Contact Us For Availability
009
MAY 206824 MAY 206824 Contact Us For Availability
009
MAY 33002019 MAY 33002019 Contact Us For Availability
011
CLIP, INNER DOOR MAY 22002039 Contact Us For Availability
011
BRACE, CROSS MAY 22002259 Contact Us For Availability
011
SCREW, GAS VALVE MAY 314082 Contact Us For Availability
012
MAY 22002038 MAY 22002038 Contact Us For Availability
012
CLIP, FRONT PANEL (LWR-BASE) MAY 22002239 Contact Us For Availability
012
FASTENER, GROUND LUG MAY 310933 Contact Us For Availability
012
SCREW, OUTLET DUCT (PHILLIPS) MAY NLA Contact Us For Availability
013
MAY 33001761 MAY 33001761 Contact Us For Availability
013
MAY 33002607 MAY 33002607 Contact Us For Availability
013
VALVE, ANGLE GAS MAY 306086 Contact Us For Availability
013
MAY 33001796 MAY 33001796 Contact Us For Availability
014
MAY 22003646 MAY 22003646 Contact Us For Availability
014
MAY 33001735 MAY 33001735 Contact Us For Availability
014
SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability
015
MAY 33001985 MAY 33001985 Contact Us For Availability
015
MAY 33001763 MAY 33001763 Contact Us For Availability
015
CLIP, ACCESS PANEL MAY 33001980 Contact Us For Availability
015
MAY 33002009 MAY 33002009 Contact Us For Availability
015
(RT) MAY 33002010 Contact Us For Availability
015
MAY 33001711 MAY 33001711 Contact Us For Availability
015
SCREW, FRONT PANEL MAY 33002051 Contact Us For Availability
015
MAY 33002130 MAY 33002130 Contact Us For Availability
015
MAY 33002131 MAY 33002131 Contact Us For Availability
015
MAY 33002381 MAY 33002381 Contact Us For Availability
015
MAY 33002237 MAY 33002237 Contact Us For Availability
015
MAY 33002462 MAY 33002462 Contact Us For Availability
015
MAY 33001756 MAY 33001756 Contact Us For Availability
016
MAY 33002002 MAY 33002002 Contact Us For Availability
016
MAY 22002664 MAY 22002664 Contact Us For Availability
016
(WHT) MAY 33002011 Contact Us For Availability
016
(ALM) MAY 33002012 Contact Us For Availability
016
MAY 33001810 MAY 33001810 Contact Us For Availability
017
MAY 33001889 MAY 33001889 Contact Us For Availability
017
MAY 33002030 MAY 33002030 Contact Us For Availability
017
FASTENER, ACCESS COVER MAY 33002013 Contact Us For Availability
017
MAY 33002031 MAY 33002031 Contact Us For Availability
017
MAY 910343 MAY 910343 Contact Us For Availability
018
MAY 33002022 MAY 33002022 Contact Us For Availability
018
MAY 33002025 MAY 33002025 Contact Us For Availability
018
MAY 33001854 MAY 33001854 Contact Us For Availability
019
MAY 33001991 MAY 33001991 Contact Us For Availability
019
MAY 33001795 MAY 33001795 Contact Us For Availability
019
MAY 33001175 MAY 33001175 Contact Us For Availability
019
(ALM) MAY 33001176 Contact Us For Availability
019
MAY 33002343 MAY 33002343 Contact Us For Availability
019
MAY 33002033 MAY 33002033 Contact Us For Availability
019
MAY 33001835 MAY 33001835 Contact Us For Availability
019
MAY 33002040 MAY 33002040 Contact Us For Availability
019
MAY 33001788 MAY 33001788 Contact Us For Availability
020
MAY 33001767 MAY 33001767 Contact Us For Availability
020
MAY 33001801 MAY 33001801 Contact Us For Availability
020
MAY 33002157 MAY 33002157 Contact Us For Availability
020
MAY 33002060 MAY 33002060 Contact Us For Availability
020
MAY 33002026 MAY 33002026 Contact Us For Availability
020
MAY Y303841 MAY Y303841 Contact Us For Availability
020
MAY 33002461 MAY 33002461 Contact Us For Availability
021
RETAINER, WIRE HARNESS MAY 33001989 Contact Us For Availability
021
MAY 33002064 MAY 33002064 Contact Us For Availability
021
MAY 22002991 MAY 22002991 Contact Us For Availability
021
MAY Y312890 MAY Y312890 Contact Us For Availability
022
MAY 33002037 MAY 33002037 Contact Us For Availability
022
MAY 33001693 MAY 33001693 Contact Us For Availability
022
MAY Y312527 MAY Y312527 Contact Us For Availability
024
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
026
MAY 33002038 MAY 33002038 Contact Us For Availability
026
MAY 33002039 MAY 33002039 Contact Us For Availability
027
SCREW, BRACE (No.8) MAY 33001768 Contact Us For Availability
027
MAY 33001760 MAY 33001760 Contact Us For Availability
027
MAY 33001752 MAY 33001752 Contact Us For Availability
027
MAY 33002466 MAY 33002466 Contact Us For Availability
028
SCREW, MOTOR SUPPORT MAY Y313561 Contact Us For Availability
028
MAY Y304578 MAY Y304578 Contact Us For Availability
029
SCREW, HARNESS PROTECTOR (UPR) MAY 314568 Contact Us For Availability
029
MAY 33002041 MAY 33002041 Contact Us For Availability
029
FASTENER, PUSH (UPR) MAY 33002048 Contact Us For Availability
029
STRIP, GROMMET (UPR) MAY 33002049 Contact Us For Availability
029
PROTECTOR, HARNESS (UPR) MAY 33002050 Contact Us For Availability
029
MAY 33002467 MAY 33002467 Contact Us For Availability
031
MAY 315471 MAY 315471 Contact Us For Availability
032
MAY 410490 MAY 410490 Contact Us For Availability
033
TRANSFORMER (LWR) MAY 33001205 Contact Us For Availability
033
SHIELD, TRANSFORMER (LWR) MAY 315218 Contact Us For Availability
033
SCREW, TRANSFORMER SHIELD (LWR MAY Y313559 Contact Us For Availability
034
CLIP, GROUNDING (LWR) MAY 22002244 Contact Us For Availability
034
BRACKET (LT-UPR BASE) MAY 33002042 Contact Us For Availability
034
(RT-UPR BASE) MAY 33002043 Contact Us For Availability
038
GUIDE (UPR-BASE) MAY 33002044 Contact Us For Availability
× ![]()
