Model Maytag MLE23PDAUW ELECTRIC DRYER – Common Parts & Diagrams
01 - CONTROL PANEL (UPPER)
02 - CONTROL CENTER (UPPER)

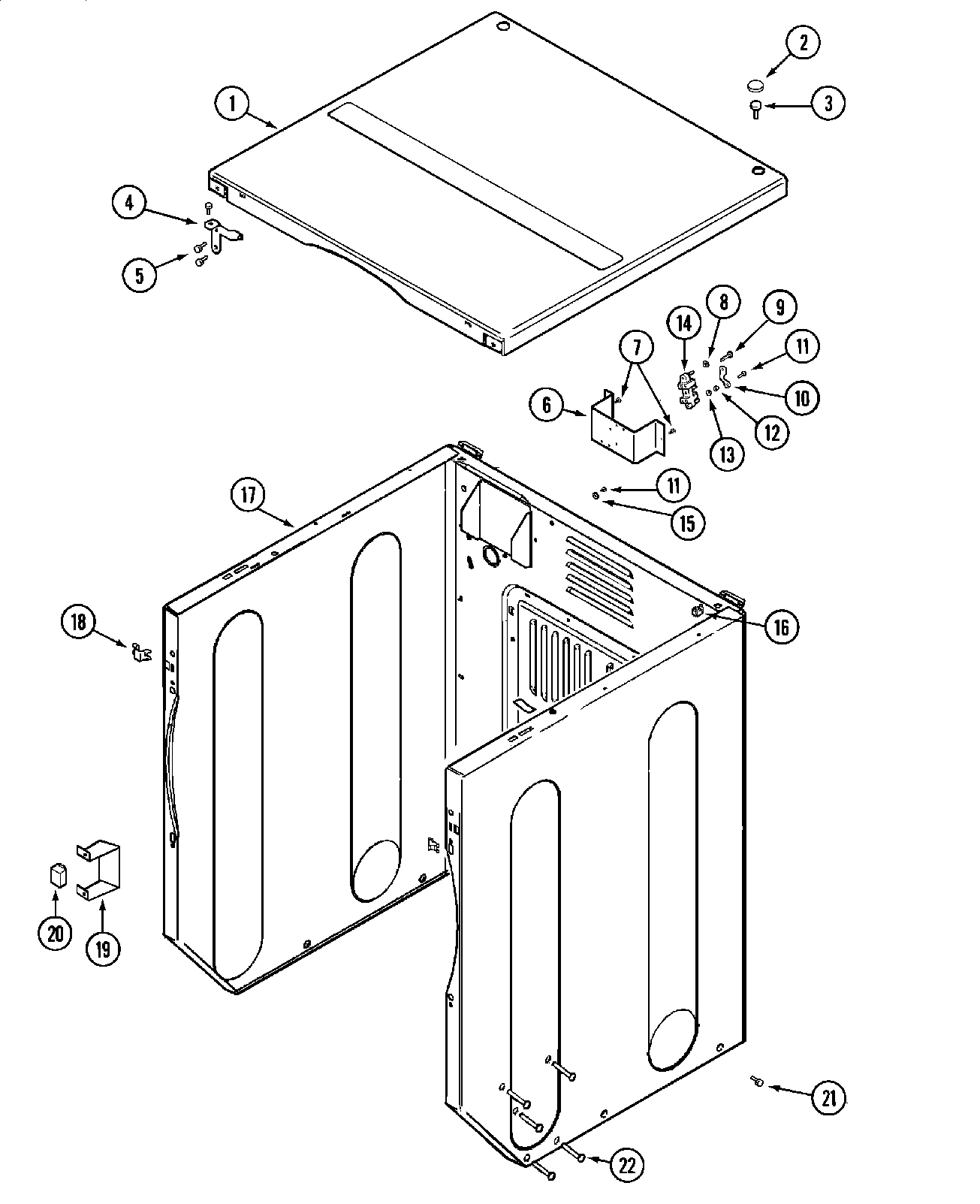

03 - CABINET-FRONT (UPPER)

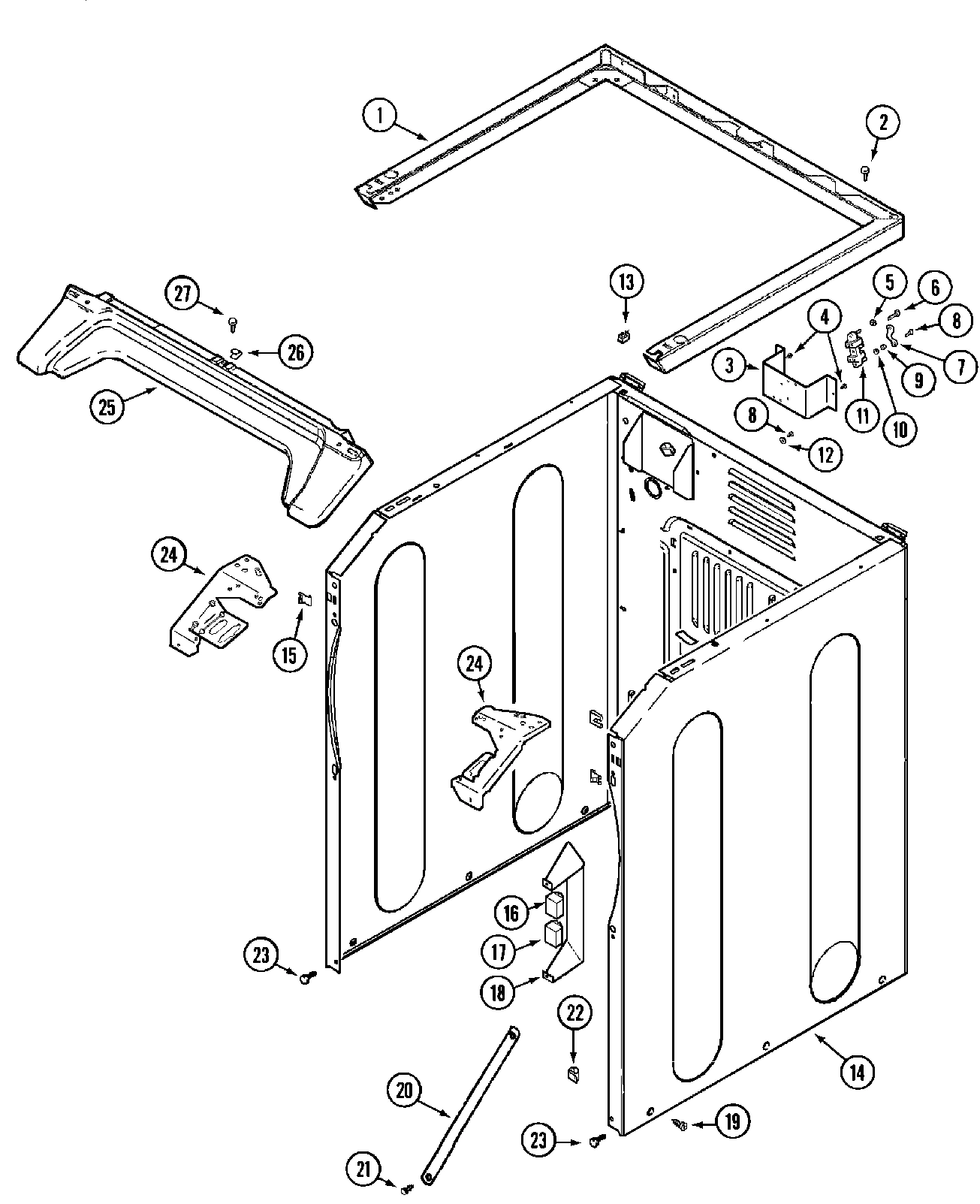

04 - CABINET-FRONT (LOWER)

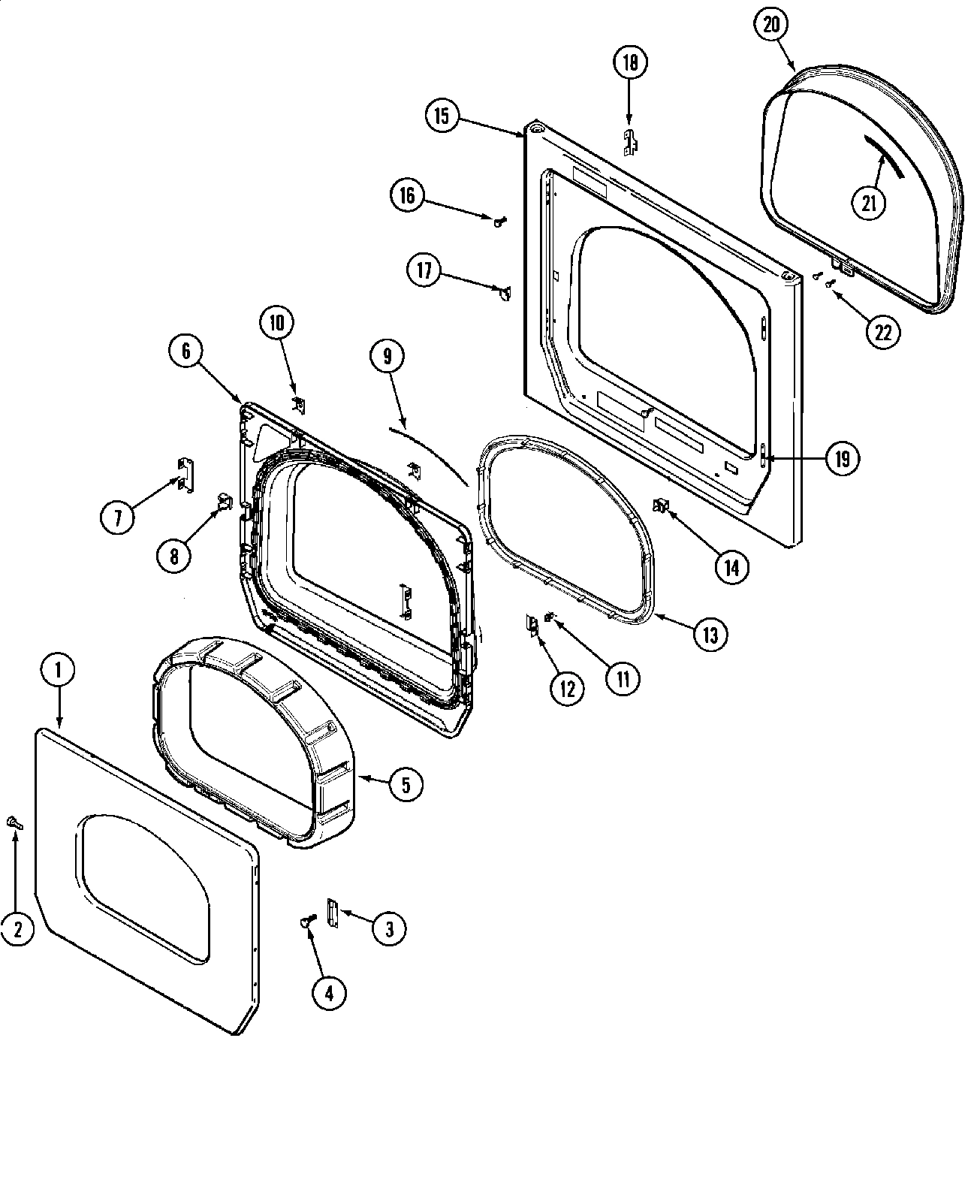

05 - DOOR (UPPER)

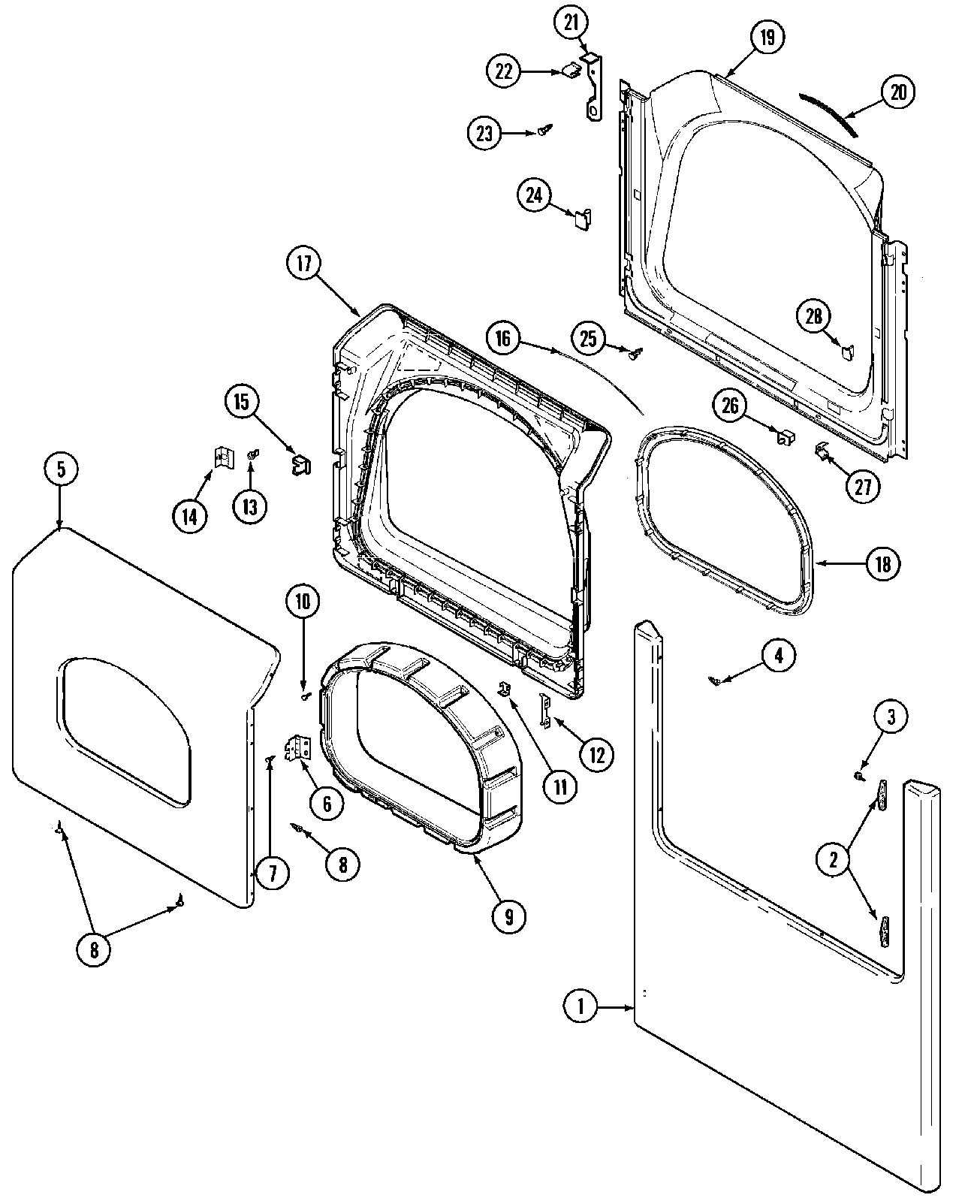

06 - DOOR (LOWER)

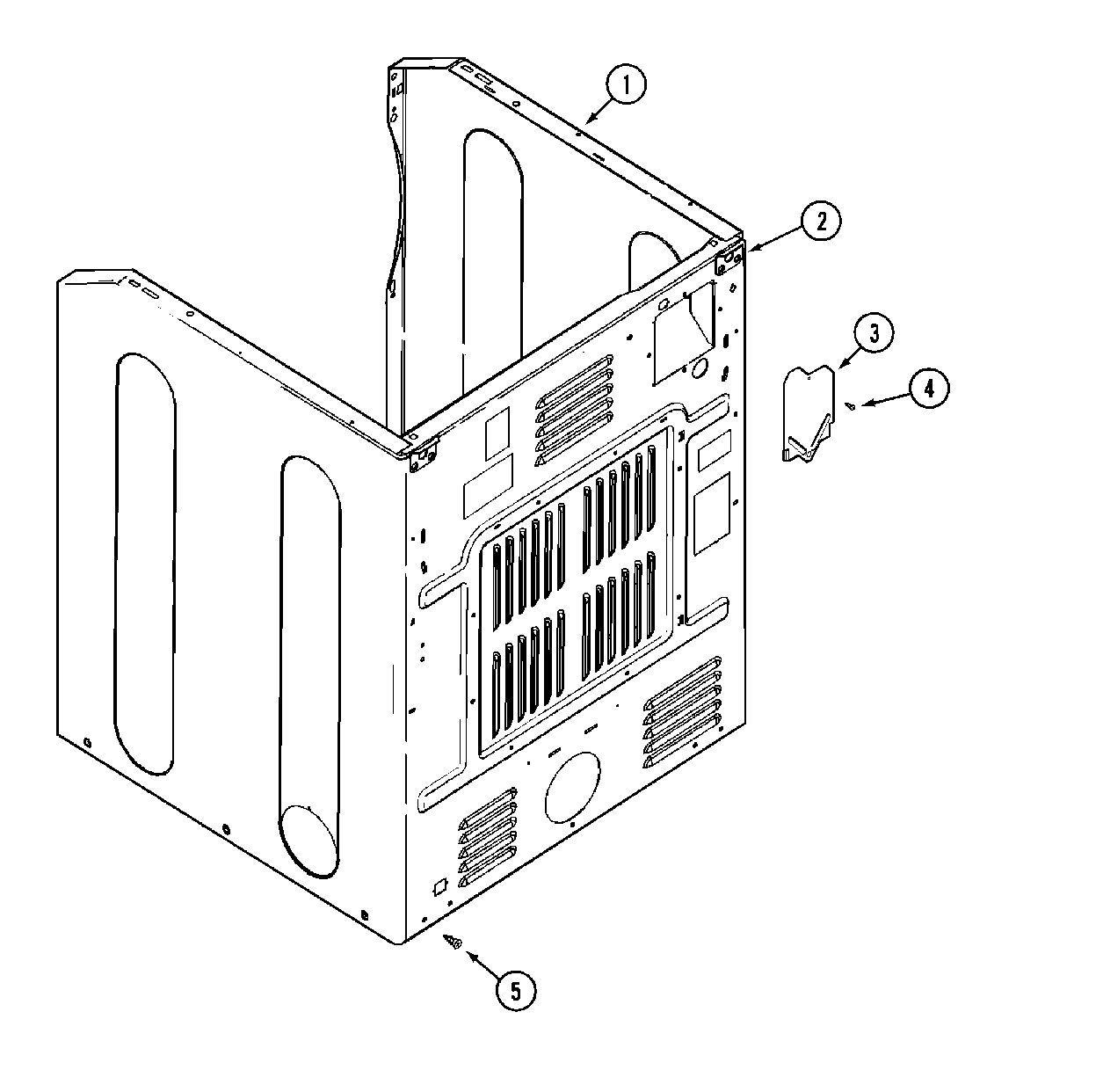

07 - CABINET-REAR

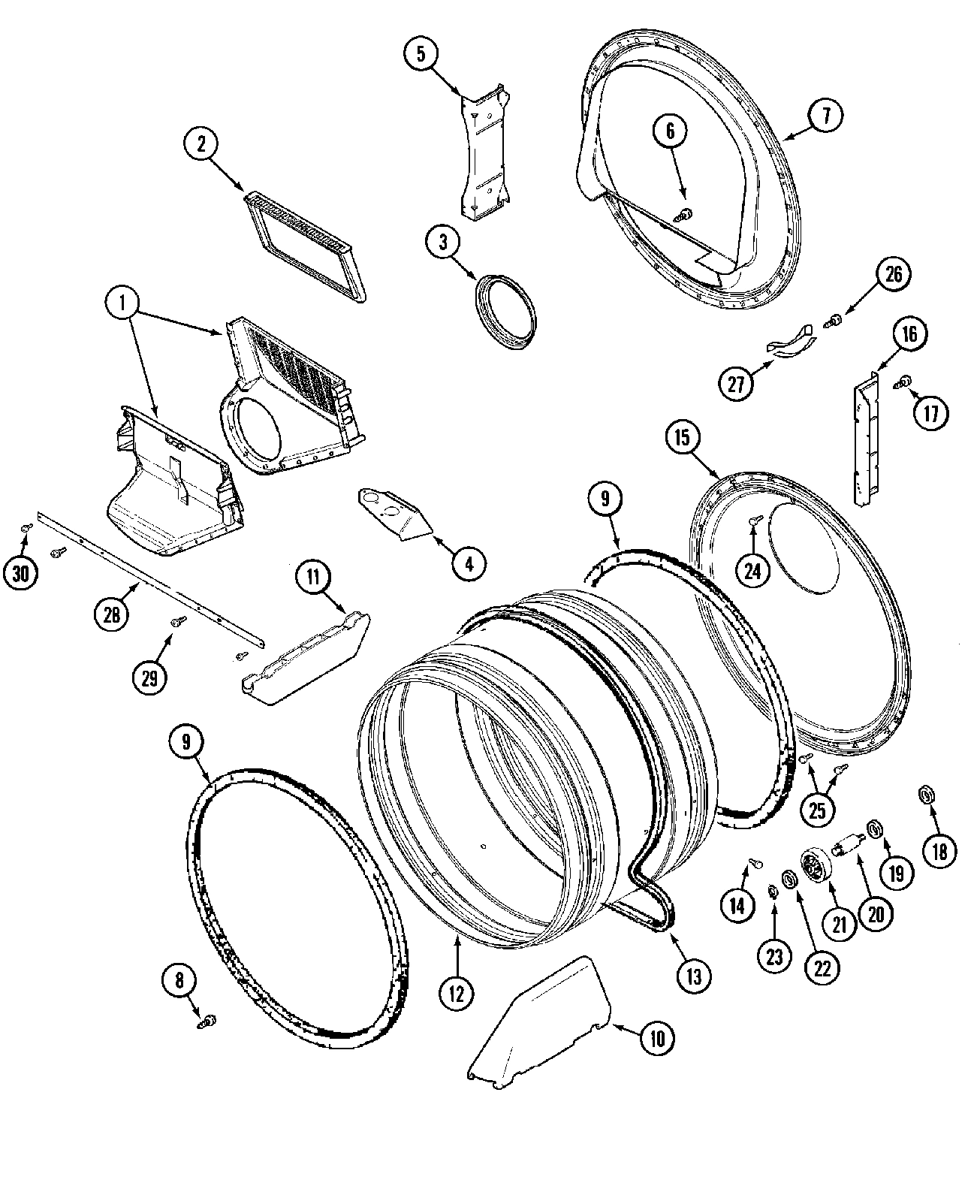

08 - TUMBLER
09 - HEATER

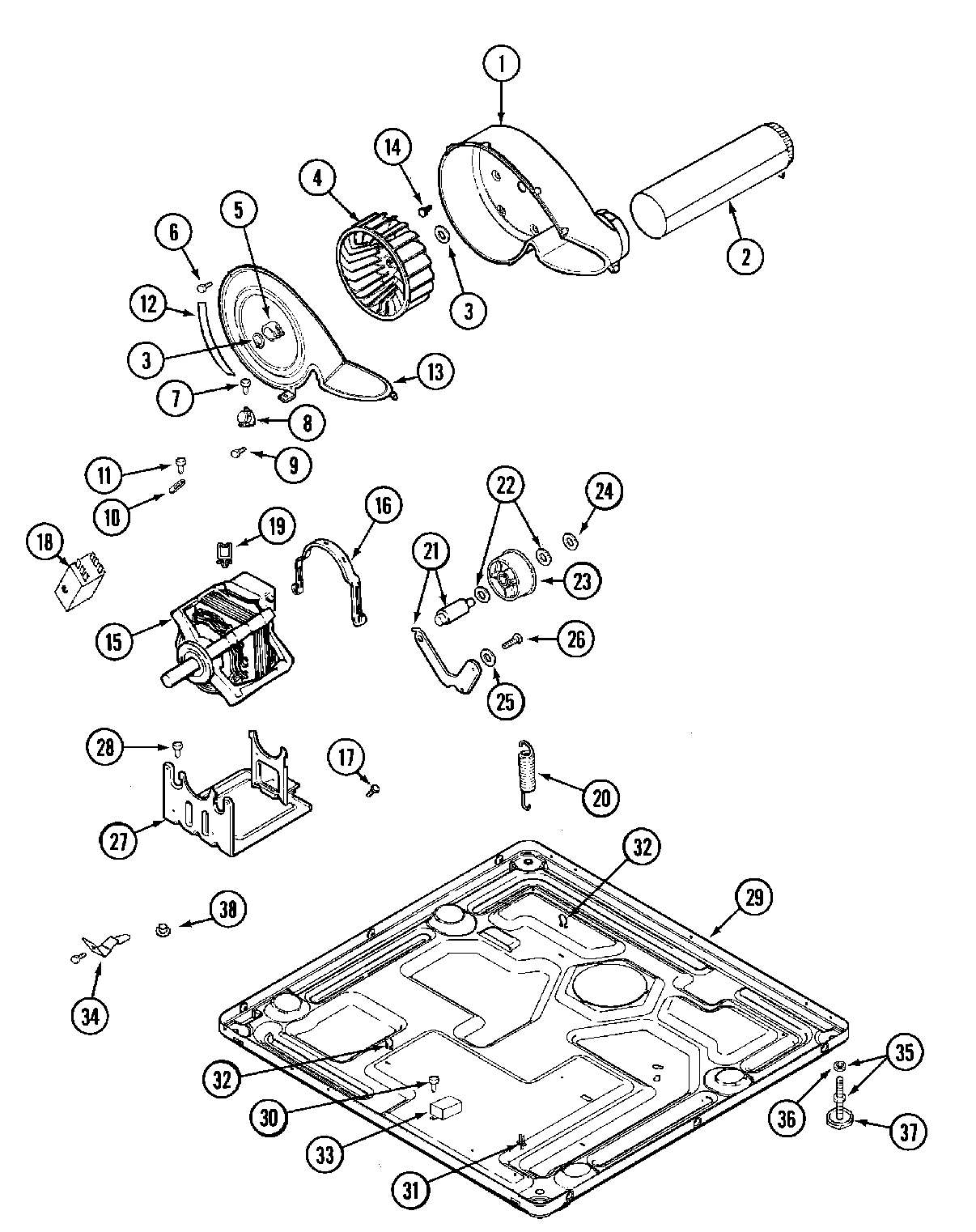

10 - MOTOR DRIVE

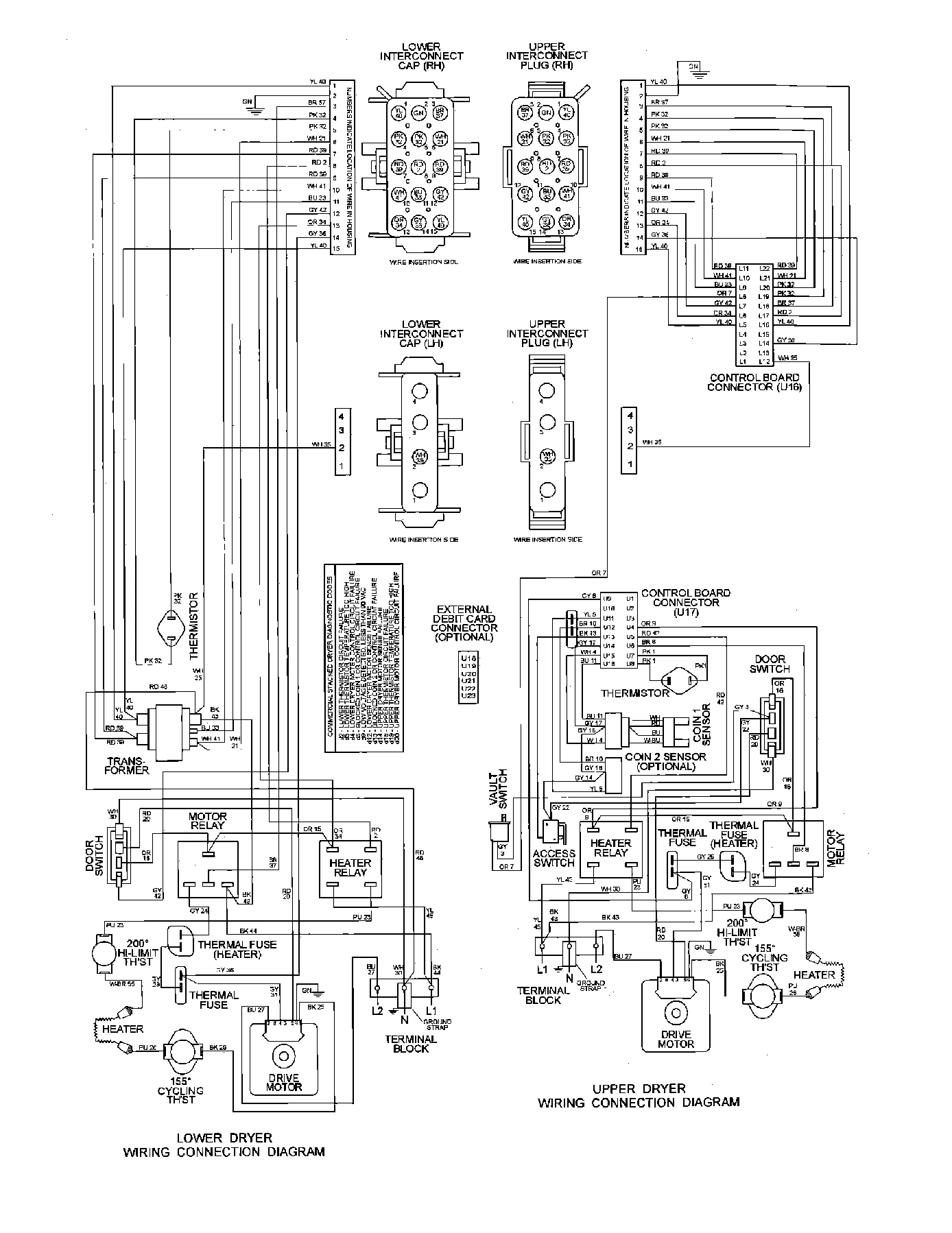

11 - WIRING INFORMATION
12 - SUPPLEMENT INFORMATION
Common parts from model Maytag MLE23PDAUW ELECTRIC DRYER
001
WIRING INFORMATION MAY NLA Contact Us For Availability
001
MAY 33002015 MAY 33002015 Contact Us For Availability
001
MAY 22002241 MAY 22002241 Contact Us For Availability
001
MAY 33001994 MAY 33001994 Contact Us For Availability
002
MAY 33001799 MAY 33001799 Contact Us For Availability
002
MAY 33001764 MAY 33001764 Contact Us For Availability
002
MAY 22003367 MAY 22003367 Contact Us For Availability
002
MAY 33002767 MAY 33002767 Contact Us For Availability
002
MAY 33002047 MAY 33002047 Contact Us For Availability
003
MAY 314995 MAY 314995 Contact Us For Availability
003
MAY 33002017 MAY 33002017 Contact Us For Availability
003
MAY 33001795 MAY 33001795 Contact Us For Availability
003
MAY 33001758 MAY 33001758 Contact Us For Availability
003
MAY Y308590 MAY Y308590 Contact Us For Availability
004
SCREW, HINGE MAY 22002243 Contact Us For Availability
004
MAY 33001837 MAY 33001837 Contact Us For Availability
004
MAY 314998 MAY 314998 Contact Us For Availability
005
MAY 33002673 MAY 33002673 Contact Us For Availability
005
MAY 307187 MAY 307187 Contact Us For Availability
006
MAY 33002020 MAY 33002020 Contact Us For Availability
006
MAY 314999 MAY 314999 Contact Us For Availability
007
MAY 33001802 MAY 33001802 Contact Us For Availability
008
MAY 307208 MAY 307208 Contact Us For Availability
008
MAY 33001977 MAY 33001977 Contact Us For Availability
008
MAY 22002063 MAY 22002063 Contact Us For Availability
009
MAY 307181 MAY 307181 Contact Us For Availability
011
CLIP, INNER DOOR MAY 22002039 Contact Us For Availability
012
MAY 22002038 MAY 22002038 Contact Us For Availability
012
MAY 33002605 MAY 33002605 Contact Us For Availability
012
MAY 33001794 MAY 33001794 Contact Us For Availability
013
MAY 33001761 MAY 33001761 Contact Us For Availability
013
MAY 33002607 MAY 33002607 Contact Us For Availability
013
MAY 315346 MAY 315346 Contact Us For Availability
013
MAY 33001796 MAY 33001796 Contact Us For Availability
014
MAY 33001788 MAY 33001788 Contact Us For Availability
014
SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability
015
MAY 33001985 MAY 33001985 Contact Us For Availability
015
MAY 33001801 MAY 33001801 Contact Us For Availability
015
MAY 33001763 MAY 33001763 Contact Us For Availability
015
MAY 33001711 MAY 33001711 Contact Us For Availability
015
MAY 33002023 MAY 33002023 Contact Us For Availability
015
SCREW, FRONT PANEL MAY 33002051 Contact Us For Availability
016
MAY 206824 MAY 206824 Contact Us For Availability
017
MAY 33002949 MAY 33002949 Contact Us For Availability
017
MAY 910343 MAY 910343 Contact Us For Availability
018
BRACKET, RELAY MAY 314627 Contact Us For Availability
018
MAY 33002025 MAY 33002025 Contact Us For Availability
018
MAY 33002022 MAY 33002022 Contact Us For Availability
018
MAY 33001854 MAY 33001854 Contact Us For Availability
019
SCREW, CABINET (TRUSS) MAY 22003409 Contact Us For Availability
019
MAY 33001175 MAY 33001175 Contact Us For Availability
019
MAY 33002033 MAY 33002033 Contact Us For Availability
019
MAY 33002040 MAY 33002040 Contact Us For Availability
020
MAY 33001767 MAY 33001767 Contact Us For Availability
020
BRACE, CROSS MAY 22002259 Contact Us For Availability
020
MAY 33002026 MAY 33002026 Contact Us For Availability
020
MAY 33002461 MAY 33002461 Contact Us For Availability
021
MAY 22002991 MAY 22002991 Contact Us For Availability
021
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
022
MAY Y310376 MAY Y310376 Contact Us For Availability
022
MAY 33002037 MAY 33002037 Contact Us For Availability
022
MAY Y312527 MAY Y312527 Contact Us For Availability
024
MAY 33002009 MAY 33002009 Contact Us For Availability
024
MAY 33002010 MAY 33002010 Contact Us For Availability
024
SCREW, INLET DUCT MAY 210932 Contact Us For Availability
025
MAY 33002011 MAY 33002011 Contact Us For Availability
026
MAY 33002038 MAY 33002038 Contact Us For Availability
026
FASTENER, ACCESS COVER MAY 33002013 Contact Us For Availability
027
MAY 33001760 MAY 33001760 Contact Us For Availability
027
MAY 33002466 MAY 33002466 Contact Us For Availability
028
SCREW, MOTOR SUPPORT MAY Y313561 Contact Us For Availability
028
MAY Y304578 MAY Y304578 Contact Us For Availability
028
BRACE, TUMBLER FRONT (UPR) MAY 33002039 Contact Us For Availability
029
SCREW, TUMBLER BRACE (UPR) MAY 33001768 Contact Us For Availability
029
SCREW, HARNESS PROTECTOR (UPR) MAY 314568 Contact Us For Availability
029
FASTENER, PUSH (UPR) MAY 33002048 Contact Us For Availability
029
STRIP, GROMMET (UPR) MAY 33002049 Contact Us For Availability
029
PROTECTOR, HARNESS (UPR) MAY 33002050 Contact Us For Availability
029
MAY 33002467 MAY 33002467 Contact Us For Availability
030
RETAINER, WIRE HARNESS MAY 33001989 Contact Us For Availability
031
MAY 315471 MAY 315471 Contact Us For Availability
032
MAY 410490 MAY 410490 Contact Us For Availability
033
TRANSFORMER (LWR) MAY 33001205 Contact Us For Availability
033
RELAY, HEATER (UPR) MAY 306398 Contact Us For Availability
033
SHIELD, TRANSFORMER (LWR) MAY 315218 Contact Us For Availability
033
SCREW, TRANSFORMER SHIELD (LWR MAY Y313559 Contact Us For Availability
034
CLIP, FRONT PANEL (LWR) MAY 22002239 Contact Us For Availability
034
SCREW, FRONT PANEL CLIP (LWR) MAY Y310632 Contact Us For Availability
034
CLIP, GROUNDING (LWR) MAY 22002244 Contact Us For Availability
034
BRACKET (LT-UPR) MAY 33002042 Contact Us For Availability
034
(RT-UPR) MAY 33002043 Contact Us For Availability
038
GUIDE (UPR) MAY 33002044 Contact Us For Availability
× ![]()
