Model Maytag MGDX700XW1 GAS DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS
02 - CABINET PARTS

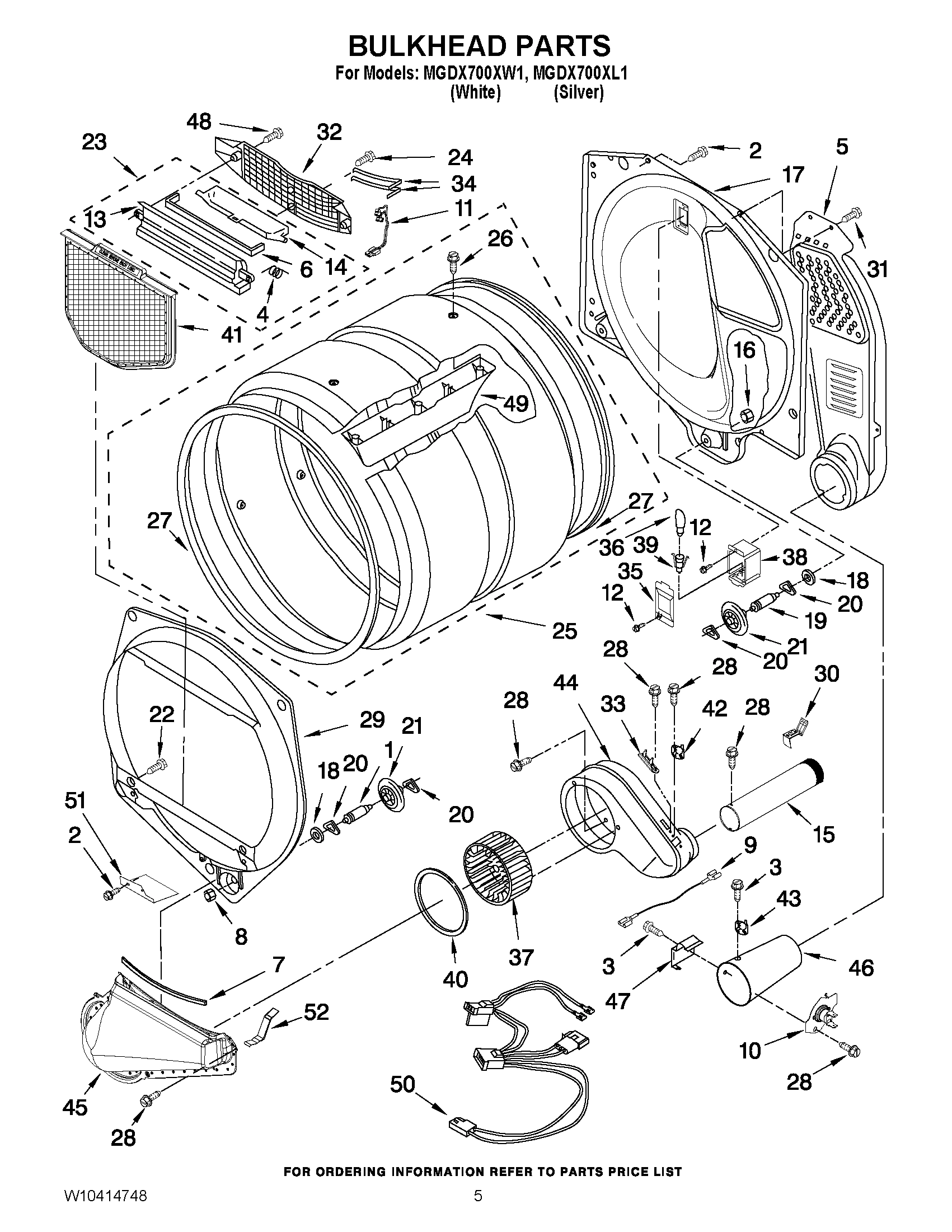

03 - BULKHEAD PARTS

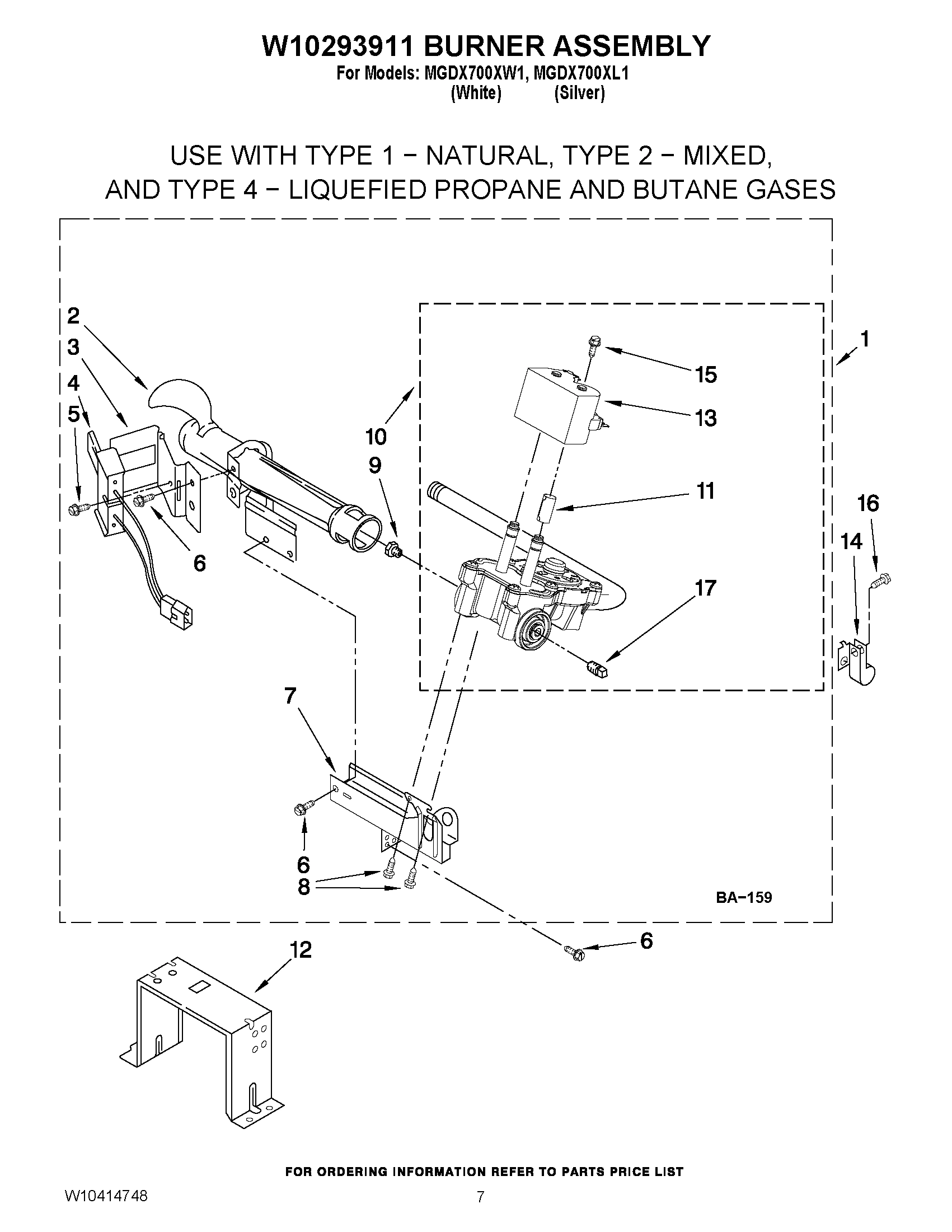

04 - W10293911 BURNER ASSEMBLY

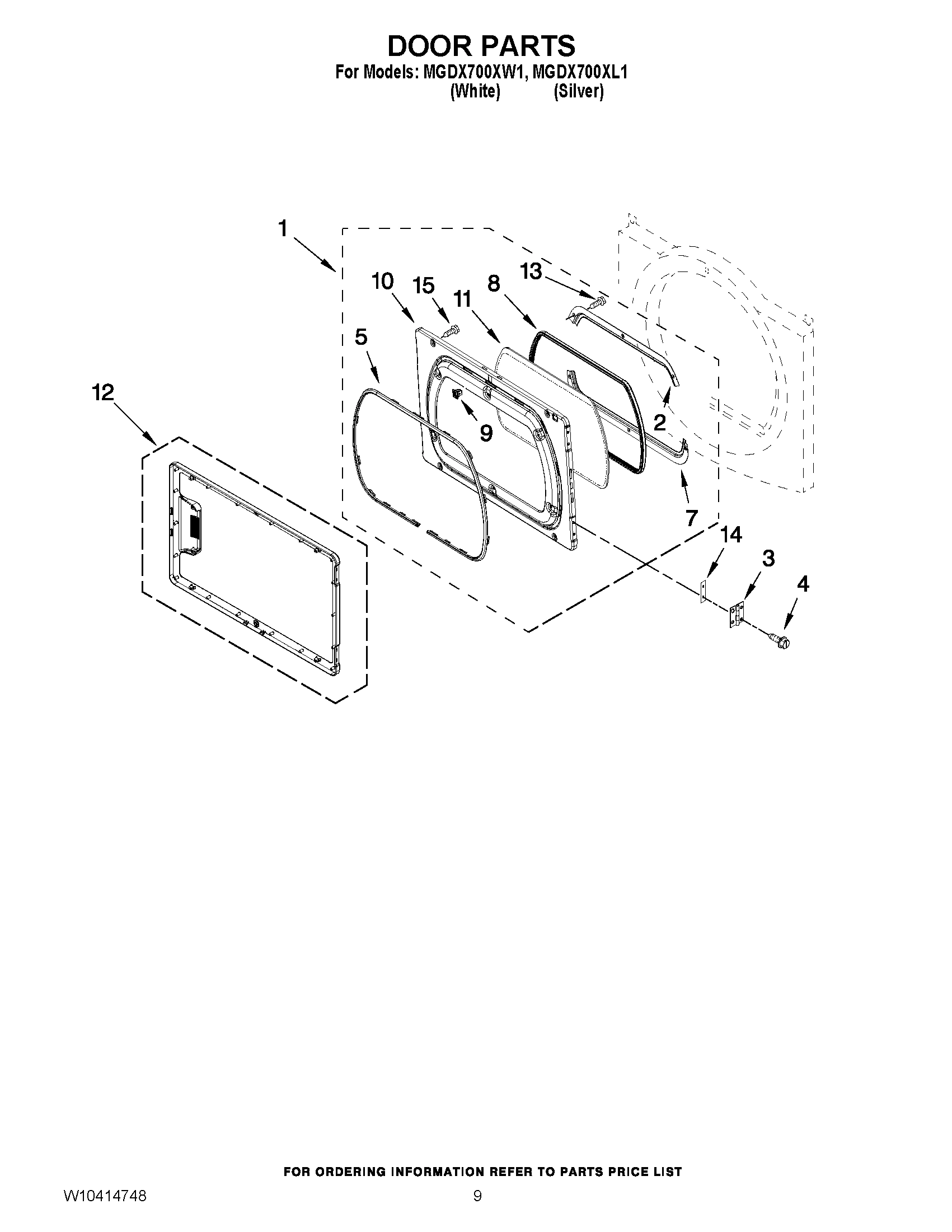

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGDX700XW1 GAS DRYER
1
MAY W10096989 MAY W10096989 Contact Us For Availability
1
MAY W10097036 MAY W10097036 Contact Us For Availability
1
INSTALLATION, INSTRUCTION MAY W10115228 Contact Us For Availability
1
MAY 697773 MAY 697773 Contact Us For Availability
1
MAY W10359271 MAY W10359271 Contact Us For Availability
1
MAY W10293911 MAY W10293911 Contact Us For Availability
1
MAY W10284131 MAY W10284131 Contact Us For Availability
2
MAY W10280079 MAY W10280079 Contact Us For Availability
2
MAY 8529757 MAY 8529757 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
2
RETAINER, UPPER MAY W10284119 Contact Us For Availability
3
Spring-Clip Knob MAY 8536939 Contact Us For Availability
3
MAY 488729 MAY 488729 Contact Us For Availability
3
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
3
MAY W10330875 MAY W10330875 Contact Us For Availability
3
MAY W10330876 MAY W10330876 Contact Us For Availability
4
MAY W10326923 MAY W10326923 Contact Us For Availability
4
Screw, 8-18 x 1/2 MAY 342055 Contact Us For Availability
4
MAY 3394331 MAY 3394331 Contact Us For Availability
4
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
5
MAIN HARNESS MAY W10287253 Contact Us For Availability
5
MAY W10246525 MAY W10246525 Contact Us For Availability
5
MAY W10293765 MAY W10293765 Contact Us For Availability
5
MAY 3393909 MAY 3393909 Contact Us For Availability
5
MAY W10354795 MAY W10354795 Contact Us For Availability
6
MAY W10268730 MAY W10268730 Contact Us For Availability
6
TOP (SILVER) MAY W10268731 Contact Us For Availability
6
MAY 344020 MAY 344020 Contact Us For Availability
6
MAY 343641 MAY 343641 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
MAY W10293248 MAY W10293248 Contact Us For Availability
7
MAY W10293249 MAY W10293249 Contact Us For Availability
7
MAY 8310656 MAY 8310656 Contact Us For Availability
7
MAY W10292891 MAY W10292891 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
7
RETAINER, LOWER MAY W10284120 Contact Us For Availability
8
KNOB ASSEMBLY (WHITE) MAY W10251381 Contact Us For Availability
8
KNOB ASSEMBLY (SILVER) MAY W10251384 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
8
SCREW, 8-18 X 3/8 (3) MAY 3387057 Contact Us For Availability
8
SEAL, GLASS MAY W10284122 Contact Us For Availability
9
MAY W10305134 MAY W10305134 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
JUMPER, TCO HI-LIMIT MAY 3401707 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1) MAY 15418 Contact Us For Availability
9
Catch, Door MAY 690081 Contact Us For Availability
10
SCREW, 6-19 X 3/8 MAY 3196172 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
MAY 8573713 MAY 8573713 Contact Us For Availability
10
MAY W10175144 MAY W10175144 Contact Us For Availability
10
INNER DOOR MAY W10284132 Contact Us For Availability
11
MAY 8312709 MAY 8312709 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
11
MAY W10298258 MAY W10298258 Contact Us For Availability
11
SLEEVE-MAGNETIC MAY W10295524 Contact Us For Availability
11
MAY W10284121 MAY W10284121 Contact Us For Availability
12
CABLE-UI MAY W10285494 Contact Us For Availability
12
Plug, Multivent MAY 697750 Contact Us For Availability
12
MAY 487909 MAY 487909 Contact Us For Availability
12
MAY 3389889 MAY 3389889 Contact Us For Availability
12
DOOR, OUTER ASSEMBLY (WHITE) MAY W10284127 Contact Us For Availability
12
DOOR, OUTER ASSEMBLY (SILVER) MAY W10284144 Contact Us For Availability
13
USER INTERFACE ASSEMBLY MAY W10272644 Contact Us For Availability
13
MAY 3388672 MAY 3388672 Contact Us For Availability
13
MAY W10153414 MAY W10153414 Contact Us For Availability
13
MAY W10273784 MAY W10273784 Contact Us For Availability
13
Screw, 10-16 x 1/2 MAY 3393258 Contact Us For Availability
14
MAY W10153413 MAY W10153413 Contact Us For Availability
14
MAY 3978776 MAY 3978776 Contact Us For Availability
14
Clip, Door Hinge MAY 3390902 Contact Us For Availability
15
FASCIA, TENSIONER MAY W10274524 Contact Us For Availability
15
MAY 8066224 MAY 8066224 Contact Us For Availability
15
SCREW, COIL MAY 326049536 Contact Us For Availability
15
SCREW, 6-19 X 1/2 MAY W10192860 Contact Us For Availability
16
MAYTAG BADGE MAY W10323735 Contact Us For Availability
16
SOUND PANEL MAY W10123956 Contact Us For Availability
16
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
16
NUT,3/8 X 16(L.H.) MAY W10001120 Contact Us For Availability
17
PANEL, REAR CONSOLE MAY W10096969 Contact Us For Availability
17
MAY 8563747 MAY 8563747 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
17
PLUG, PIPE MAY W10295523 Contact Us For Availability
18
PLUG, UPPER REAR PANEL MAY W10279552 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
19
MAY W10323092 MAY W10323092 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
MAY W10359272 MAY W10359272 Contact Us For Availability
20
MAY W10338363 MAY W10338363 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
20
MAY W10121334 MAY W10121334 Contact Us For Availability
21
Screw, 8-18 x 3/8 MAY 3390814 Contact Us For Availability
21
MAY W10312811 MAY W10312811 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY W10271580 MAY W10271580 Contact Us For Availability
22
SEAL, CABINET MAY W10336128 Contact Us For Availability
23
CCU-CONTROL MAY W10214009 Contact Us For Availability
23
PLUG, HINGE SCREW (WHITE) MAY W10191265 Contact Us For Availability
23
MAY W10304147 MAY W10304147 Contact Us For Availability
23
MAY W10153423 MAY W10153423 Contact Us For Availability
24
MAY 3393657 MAY 3393657 Contact Us For Availability
24
Screw, 8-18 x 1/2 MAY 359625 Contact Us For Availability
25
NUT, U-TYPE MAY W10298336 Contact Us For Availability
25
MAY 49026 MAY 49026 Contact Us For Availability
25
Complete Drum Assembly MAY 8318215 Contact Us For Availability
26
Screw, 8-16 X 3/4 MAY W10219342 Contact Us For Availability
26
Strike, Door MAY 3403431 Contact Us For Availability
27
MAY W10281085 MAY W10281085 Contact Us For Availability
27
MAY W10166807 MAY W10166807 Contact Us For Availability
28
Screw MAY 8533971 Contact Us For Availability
28
MAY 8563750 MAY 8563750 Contact Us For Availability
29
MAY 3389729 MAY 3389729 Contact Us For Availability
29
MAY 697557 MAY 697557 Contact Us For Availability
30
MAY W10112954 MAY W10112954 Contact Us For Availability
30
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
31
SCREW,8-18 X 3/8 MAY 693995 Contact Us For Availability
31
Screw MAY 489463 Contact Us For Availability
32
BRACKET, MOTOR MAY W10242878 Contact Us For Availability
32
MAY W10153412 MAY W10153412 Contact Us For Availability
33
MAY 8563749 MAY 8563749 Contact Us For Availability
33
Thermal Fuse MAY 3392519 Contact Us For Availability
34
PLUG-STRIKE MAY 3403630 Contact Us For Availability
34
MAY 3387223 MAY 3387223 Contact Us For Availability
35
MAY W10236068 MAY W10236068 Contact Us For Availability
35
MAY 3402841 MAY 3402841 Contact Us For Availability
36
MAY 693152 MAY 693152 Contact Us For Availability
36
MAY 3406124 MAY 3406124 Contact Us For Availability
37
FRONT PANEL (WHITE) MAY W10362983 Contact Us For Availability
37
FRONT PANEL (SILVER) MAY W10362984 Contact Us For Availability
37
MAY 697772 MAY 697772 Contact Us For Availability
38
Retainer MAY 3388229 Contact Us For Availability
38
BRACKET, LIGHT MAY 8578825 Contact Us For Availability
39
Idler Bracket MAY 3388674 Contact Us For Availability
39
SOCKET, ASSEMBLY MAY W10214261 Contact Us For Availability
40
MAY 3357011 MAY 3357011 Contact Us For Availability
40
MAY 697770 MAY 697770 Contact Us For Availability
41
MAY 3406107 MAY 3406107 Contact Us For Availability
41
Screen, Lint MAY W10049370 Contact Us For Availability
42
TOE PANEL (WHITE) MAY 697215 Contact Us For Availability
42
TOE PANEL (SILVER) MAY W10292896 Contact Us For Availability
42
Thermister MAY 8577274 Contact Us For Availability
43
MAY 3387242 MAY 3387242 Contact Us For Availability
43
THERMOSTAT, HIGH-LIMIT 255°F MAY 3391912 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
Lint Duct Assembly MAY 8066168 Contact Us For Availability
46
MAY 8573824 MAY 8573824 Contact Us For Availability
47
MAY 338906 MAY 338906 Contact Us For Availability
48
Screw, 10-16 x 13/16 MAY 3387230 Contact Us For Availability
49
Baffle, Drum MAY 697693 Contact Us For Availability
50
MAY W10305870 MAY W10305870 Contact Us For Availability
51
Shield, Blower Housing MAY W10128629 Contact Us For Availability
52
MAY W10345456 MAY W10345456 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
MAY 279818 MAY 279818 Contact Us For Availability
NI
MAY W10293913 MAY W10293913 Contact Us For Availability
NI
Kit, Hold-Down (Gas Dryer Mobile Home Install MAY 346764 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 80047 MAY 80047 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
MAY W10071550A MAY W10071550A Contact Us For Availability
× ![]()
