Whirlpool MGDE900VW1 GAS DRYER Parts List

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

View on Model

350938 Whirlpool Spray Gun Backorder WPL 350938 $51.15

View on Model

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $22.00

View on Model

49586 Whirlpool Mixer In Stock WPL 49586 $5.03

View on Model

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.52

View on Model

8579666ARP Whirlpool Door Kit Backorder WPL 8579666ARP $24.37

View on Model

W10044609A Whirlpool Steam Dryer Hose Install In Stock WPL W10044609A $20.97

View on Model

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $5.03

View on Model

W11581317 Whirlpool LP Gas Connector In Stock WPL W11581317 $44.19

View on Model

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.55

View on Model

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $17.71

View on Model

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability

View on Model

(Hose Inlet) 1`Hose WPL W10044603 Contact Us For Availability

View on Model

Hold Down Kit WPL 8529894 Contact Us For Availability

View on Model

ACCESSORY PARTS WPL ARI5434A41 Contact Us For Availability

View on Model

Miscellaneous Parts Bag WPL ARI5435A44 Contact Us For Availability

View on Model

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI5433A69 Contact Us For Availability

View on Model

1

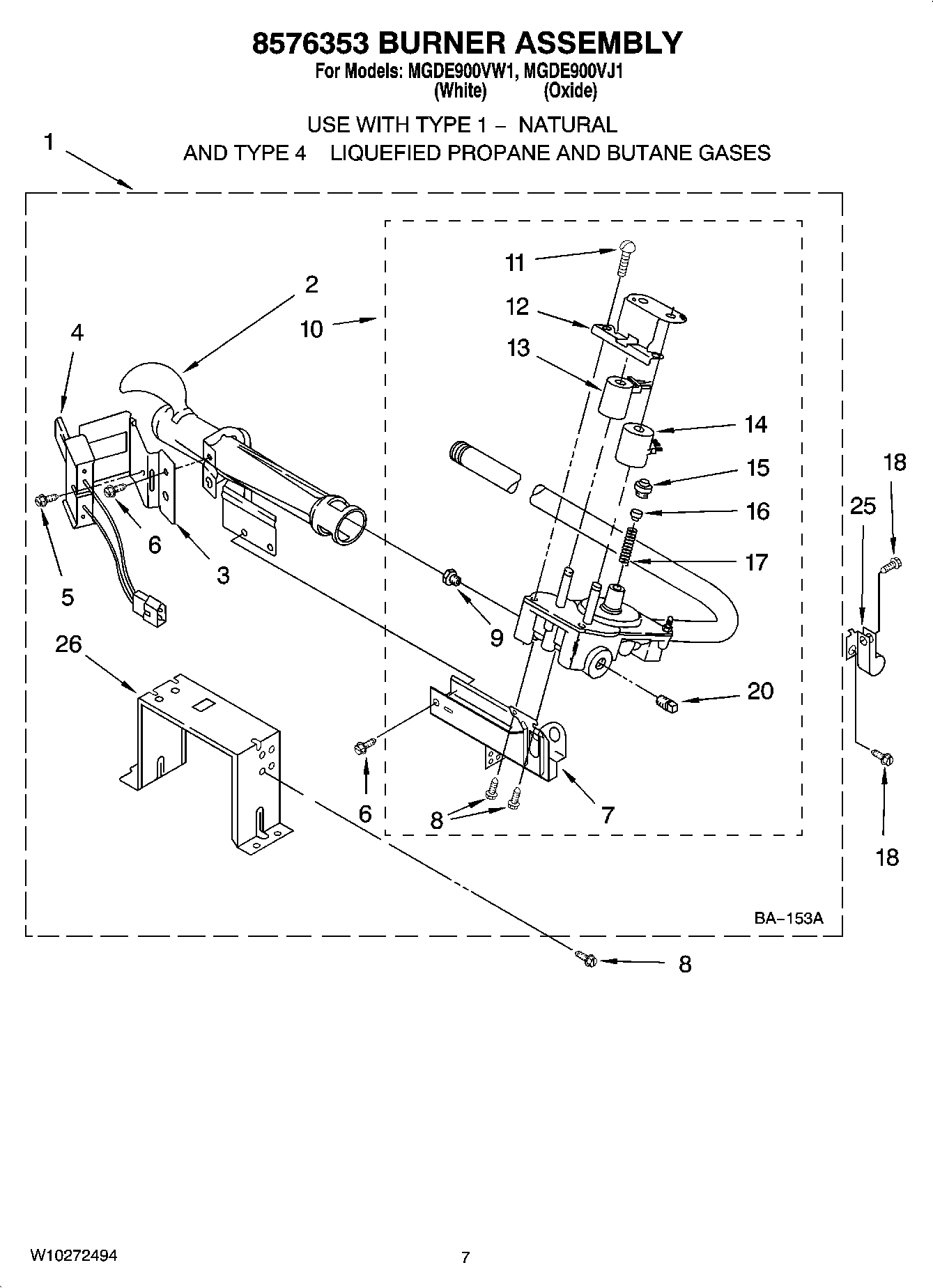

280119 Whirlpool Gas Burner In Stock WPL 280119 $183.79

View on Model

1

W10085210 Whirlpool Label Backorder WPL W10085210 $32.87

View on Model

1

Sheet, Tip Steam WPL W10165147 Contact Us For Availability

View on Model

1

USE & CARE GUIDE WPL W10239302 Contact Us For Availability

View on Model

1

INSTALLATION INSTRUCTIONS WPL W10255469 Contact Us For Availability

View on Model

1

TECH SHEET WPL W10258377 Contact Us For Availability

View on Model

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $77.91

View on Model

2

Top (White) WPL 3980634 Contact Us For Availability

View on Model

2

Top (Oxide) WPL W10164743 Contact Us For Availability

View on Model

3

W10111069 Whirlpool Wire Harness Backorder WPL W10111069 $170.14

View on Model

3

W11222846 Whirlpool Door Backorder WPL W11222846 $84.07

View on Model

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.62

View on Model

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

View on Model

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $62.97

View on Model

4

Console Assembly Includes Illus. (12,13,20,21 WPL W10246752 Contact Us For Availability

View on Model

4

Console Assembly Includes Illus. (12,13,20,21 WPL W10246753 Contact Us For Availability

View on Model

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $62.95

View on Model

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.76

View on Model

5

WPW10366705 Whirlpool Screw Backorder WPL WPW10366705 $2.51

View on Model

6

WP681414 Whirlpool Screw Backorder WPL WP681414 $2.51

View on Model

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

View on Model

6

Bracket, Console (Includes No. 16) WPL W10215656 Contact Us For Availability

View on Model

7

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

View on Model

7

Connector Sensor WPL 353424 Contact Us For Availability

View on Model

7

Base, Burner WPL 3389871 Contact Us For Availability

View on Model

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $2.51

View on Model

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.55

View on Model

8

WPW10121316 Whirlpool Clamp In Stock WPL WPW10121316 $10.89

View on Model

8

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $2.55

View on Model

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.94

View on Model

9

WP15418 Whirlpool Gas Orifice Backorder WPL WP15418 $12.08

View on Model

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.28

View on Model

9

Screw-Plug WPL W10048910 Contact Us For Availability

View on Model

9

Orifice, Burner (Type 4 (Butane)) WPL 15422 Contact Us For Availability

View on Model

10

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

View on Model

10

WPW10118347 Whirlpool Gas Valve In Stock WPL WPW10118347 $212.48

View on Model

10

Inner Door Assembly Includes Illus. (2,4,5,6, WPL 8577819 Contact Us For Availability

View on Model

11

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.72

View on Model

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.70

View on Model

11

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $42.37

View on Model

12

Seal, User Interface WPL 8572039 Contact Us For Availability

View on Model

12

Bracket, Coil WPL 694538 Contact Us For Availability

View on Model

13

W10732500 Whirlpool Medallion Trim Backorder WPL W10732500 $18.40

View on Model

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

View on Model

14

Connector, 7-Circuit WPL 3936150 Contact Us For Availability

View on Model

15

3395683 Whirlpool Connector Backorder WPL 3395683 $36.27

View on Model

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

View on Model

15

Window WPL 8566254 Contact Us For Availability

View on Model

16

W10112267 Whirlpool Seal Assembly Backorder WPL W10112267 $36.29

View on Model

16

W10123956 Whirlpool Sound Absorber Backorder WPL W10123956 $14.49

View on Model

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.76

View on Model

16

Seal-Window WPL 8579662 Contact Us For Availability

View on Model

17

2203186 Whirlpool Connector Backorder WPL 2203186 $7.74

View on Model

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.58

View on Model

17

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.55

View on Model

18

WP3403498 Whirlpool Connector Backorder WPL WP3403498 $3.76

View on Model

18

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

View on Model

18

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $41.63

View on Model

19

WP3403499 Whirlpool Connector Backorder WPL WP3403499 $3.57

View on Model

19

Door-Intermediate WPL W10180118 Contact Us For Availability

View on Model

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.94

View on Model

20

Knob WPL W10164576 Contact Us For Availability

View on Model

20

Shield, Door WPL W10180120 Contact Us For Availability

View on Model

21

WPW10269027 Whirlpool Electronic Control Boar Backorder WPL WPW10269027 $127.84

View on Model

21

Ramp, Door WPL 8529053 Contact Us For Availability

View on Model

22

Outlet Housing Assebmly Includes Illus. (3,9, WPL W10253353 Contact Us For Availability

View on Model

22

Foil-Display WPL W10171504 Contact Us For Availability

View on Model

23

W10242907 Whirlpool Wire Harness Backorder WPL W10242907 $68.26

View on Model

23

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

View on Model

24

WP8540282 Whirlpool Screw In Stock WPL WP8540282 $4.07

View on Model

24

Inner Door WPL 8578229 Contact Us For Availability

View on Model

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $10.42

View on Model

25

W10853898 Whirlpool Screw Backorder WPL W10853898 $2.55

View on Model

25

W11230114 Whirlpool Screw Assembly In Stock WPL W11230114 $9.75

View on Model

26

Screw,8-18 x 0.625 WPL 9742177 Contact Us For Availability

View on Model

26

Frame-Light Guide WPL W10170295 Contact Us For Availability

View on Model

26

Bracket, Support WPL 3389889 Contact Us For Availability

View on Model

27

W10170293 Whirlpool Ring Backorder WPL W10170293 $39.93

View on Model

27

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.76

View on Model

27

WPW10112954 Whirlpool Belt In Stock WPL WPW10112954 $18.21

View on Model

28

Cycle, Light Guide WPL W10164567 Contact Us For Availability

View on Model

29

W11481730 Whirlpool Bracket In Stock WPL W11481730 $34.59

View on Model

29

WP8573713 Whirlpool Thermal Fuse In Stock WPL WP8573713 $34.40

View on Model

29

Bushing, Knob WPL W10172298 Contact Us For Availability

View on Model

31

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.59

View on Model

31

Guide, Light (3-Way Digital) WPL W10164578 Contact Us For Availability

View on Model

32

8578825 Whirlpool Bracket Backorder WPL 8578825 $8.11

View on Model

32

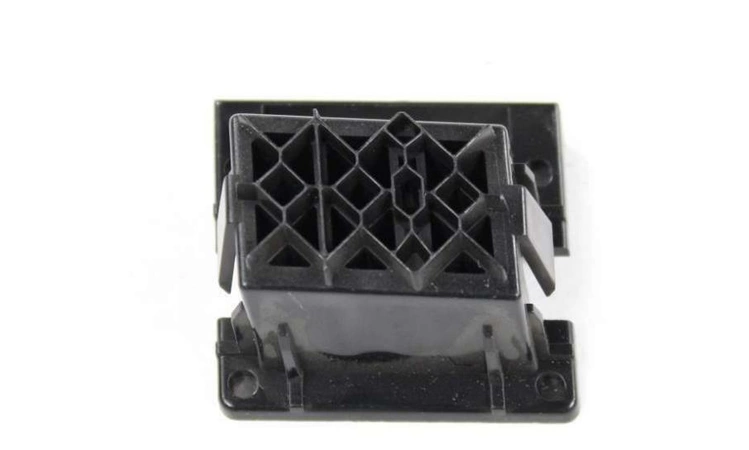

W10171502 Whirlpool Bracket Backorder WPL W10171502 $6.77

View on Model

33

W11222979 Whirlpool Socket Backorder WPL W11222979 $47.13

View on Model

33

Shield, Console Bracket WPL W10215674 Contact Us For Availability

View on Model

34

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

View on Model

34

Plug-Hole,1/4``(2) WPL W10216201 Contact Us For Availability

View on Model

35

Plug-Hole,5/16``(1) WPL W10216202 Contact Us For Availability

View on Model

36

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $32.87

View on Model

36

PLUG, CONNECTOR WPL W10214555 Contact Us For Availability

View on Model

37

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

View on Model

37

Clip, S-Type (3) WPL 62825 Contact Us For Availability

View on Model

38

Trim-Ring Assembly (Includes: Item 44) (White WPL W10221445 Contact Us For Availability

View on Model

39

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $15.29

View on Model

41

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

View on Model

43

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $78.24

View on Model

44

WP3391912 Whirlpool High Limit Thermostat In Stock WPL WP3391912 $46.19

View on Model

44

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $4.85

View on Model

45

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

View on Model

46

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

View on Model

47

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

View on Model

50

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.24

View on Model

50

WPL W10242903 WPL W10242903 Contact Us For Availability

View on Model

51

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $76.75

View on Model

52

WPL W10174746 WPL W10174746 Contact Us For Availability

View on Model

55

WPL W10044629 WPL W10044629 Contact Us For Availability

View on Model

56

WPL ARI5432A59 WPL ARI5432A59 Contact Us For Availability

View on Model

57

W10044579 Whirlpool Dryer Backorder WPL W10044579 $5.75

View on Model

57

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $55.11

View on Model

59

W10044628 Whirlpool Nut Backorder WPL W10044628 $32.59

View on Model

61

W11257251 Whirlpool Shield Backorder WPL W11257251 $28.94

View on Model

63

W10859554 Whirlpool Coupler Backorder WPL W10859554 $30.26

View on Model

64

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $23.71

View on Model

Model Whirlpool MGDE900VW1 GAS DRYER – Common Parts & Diagrams

Common parts from model Whirlpool MGDE900VW1 GAS DRYER
