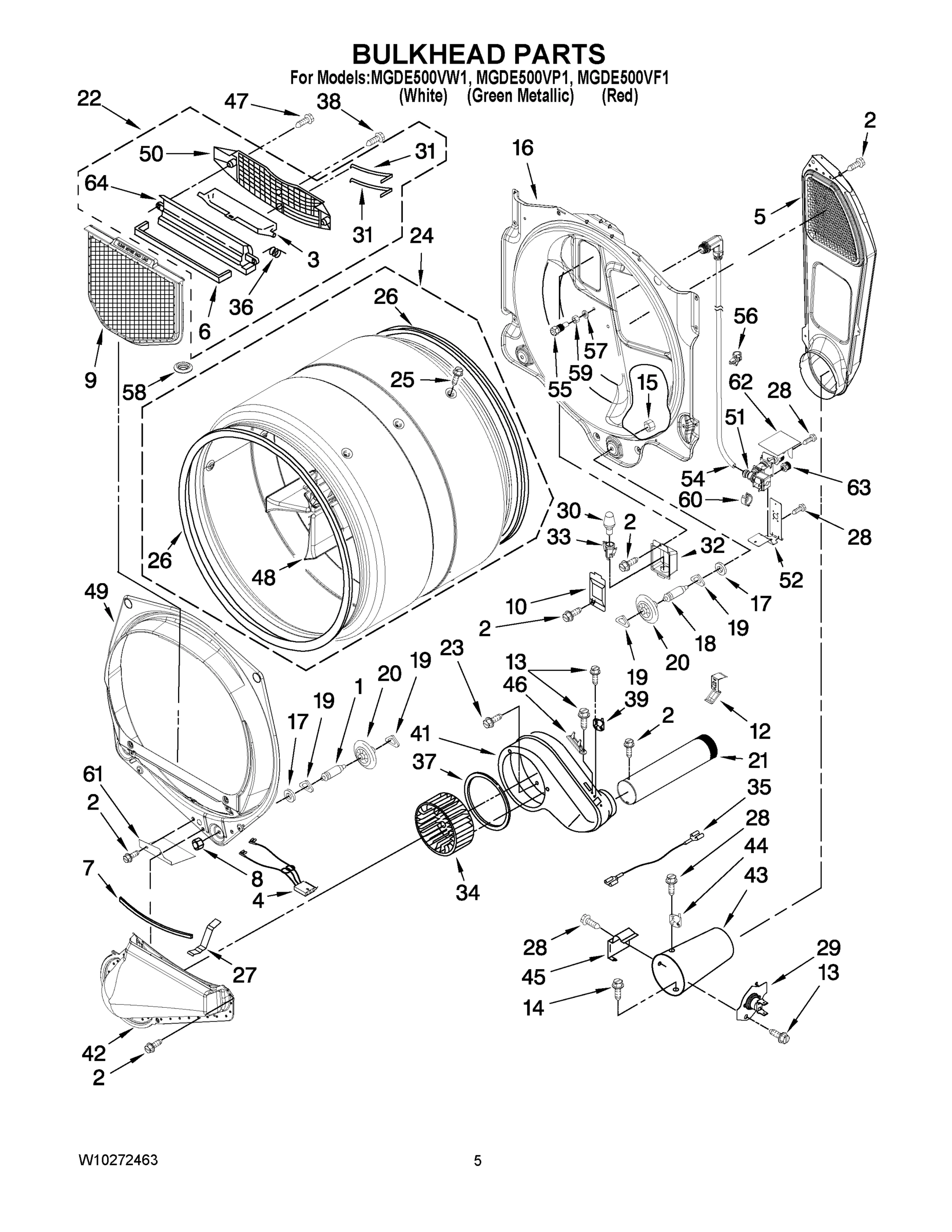

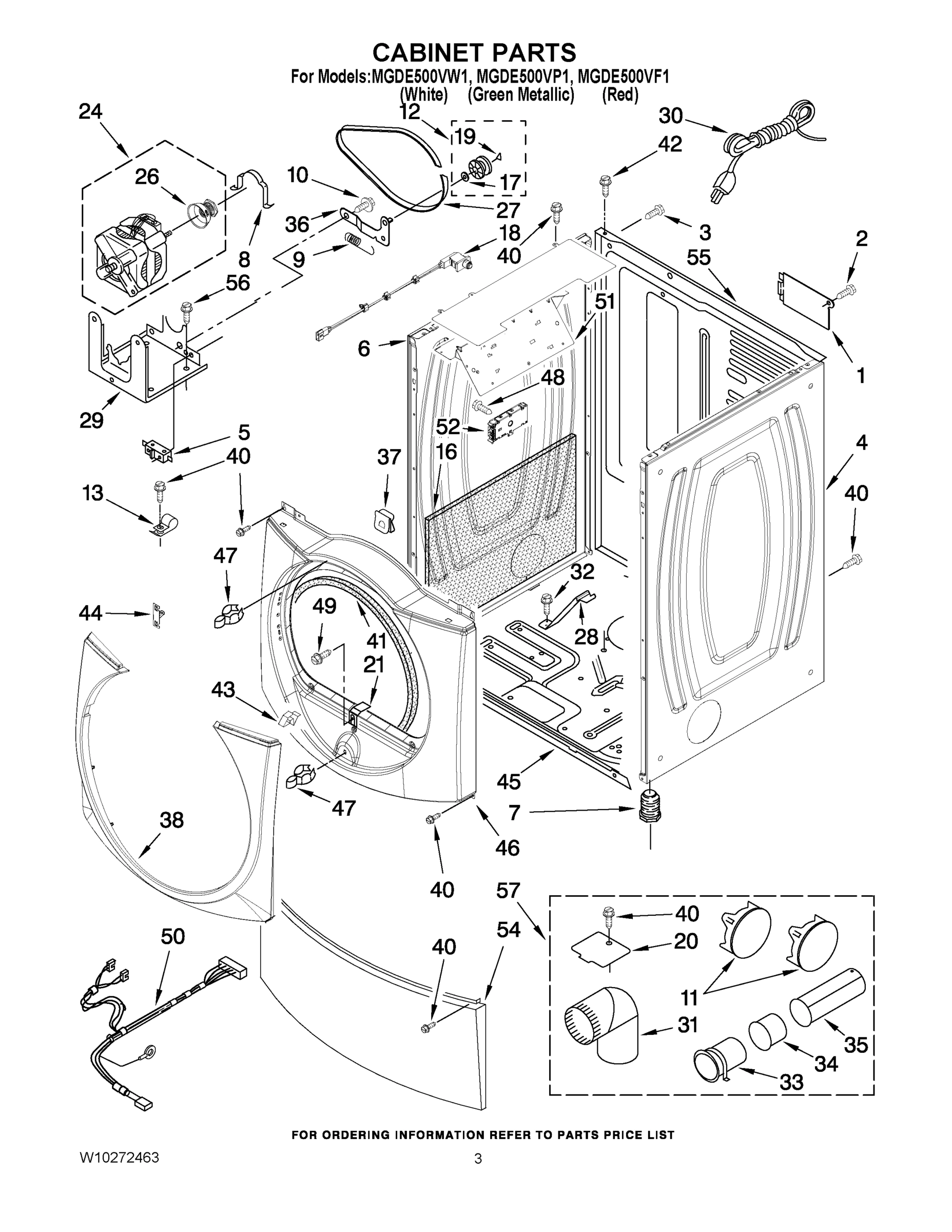

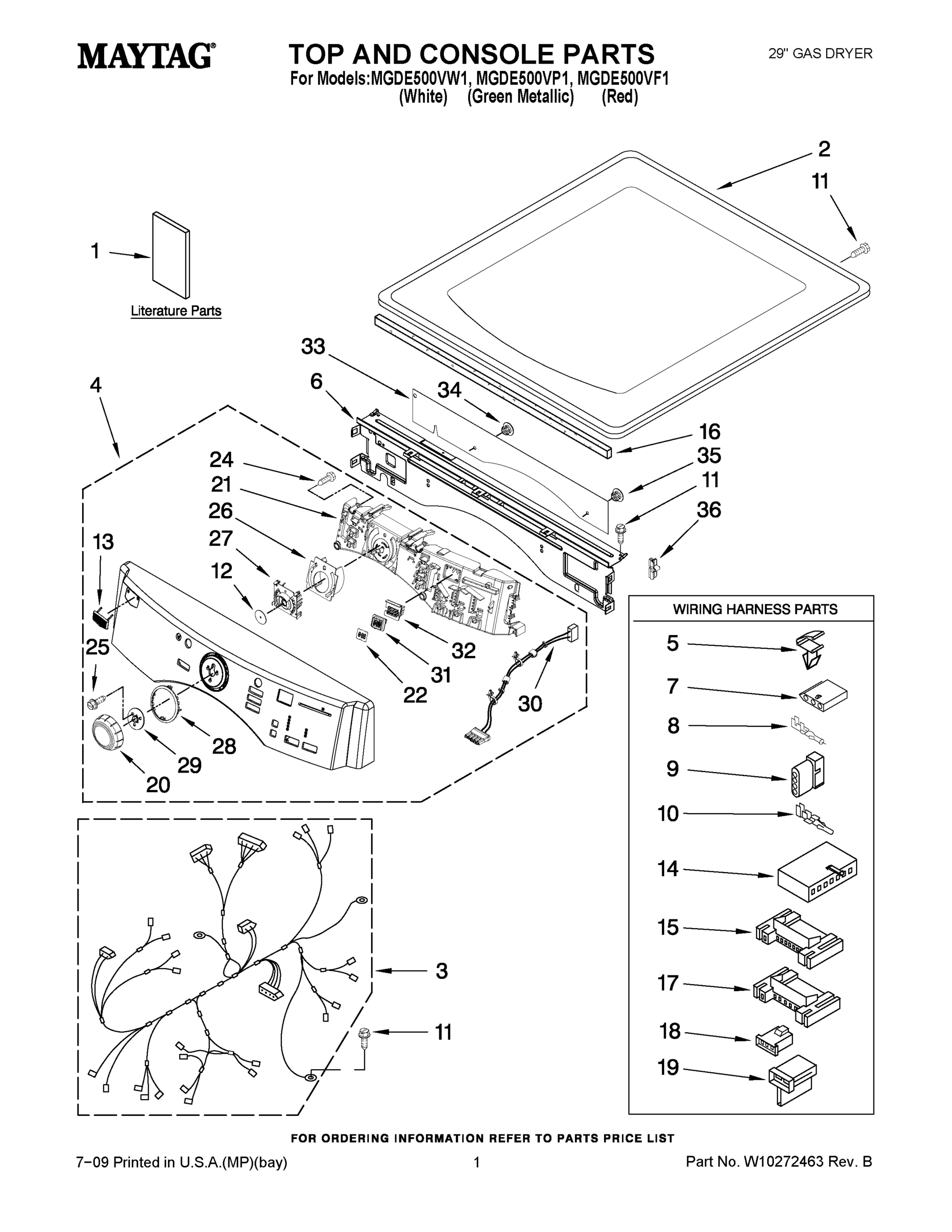

Model Whirlpool MGDE500VW1 GAS DRYER – Common Parts &amp; Diagrams

1

W10085210 Whirlpool Label Backorder WPL W10085210 $32.87

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $77.91

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

3

W10111069 Whirlpool Wire Harness Backorder WPL W10111069 $170.14

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.55

3

W11222846 Whirlpool Door Backorder WPL W11222846 $84.07

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.62

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $62.97

4

Panel, Side (R.H.) (Red) WPL W10193957 Contact Us For Availability

4

PANEL, SIDE (R.H.) (GREEN METALLIC) WPL W10244551 Contact Us For Availability

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $62.95

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.76

5

WPW10366705 Whirlpool Screw Backorder WPL WPW10366705 $2.51

5

WPW10411937 Whirlpool Switch In Stock WPL WPW10411937 $13.87

6

W11233548 Whirlpool Panel In Stock WPL W11233548 $101.43

6

WP681414 Whirlpool Screw Backorder WPL WP681414 $2.51

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

6

Panel, Side (L.H.) (Red) WPL W10193954 Contact Us For Availability

6

PANEL, SIDE (L.H.) (GREEN METALLIC) WPL W10244550 Contact Us For Availability

7

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

7

Connector Sensor WPL 353424 Contact Us For Availability

7

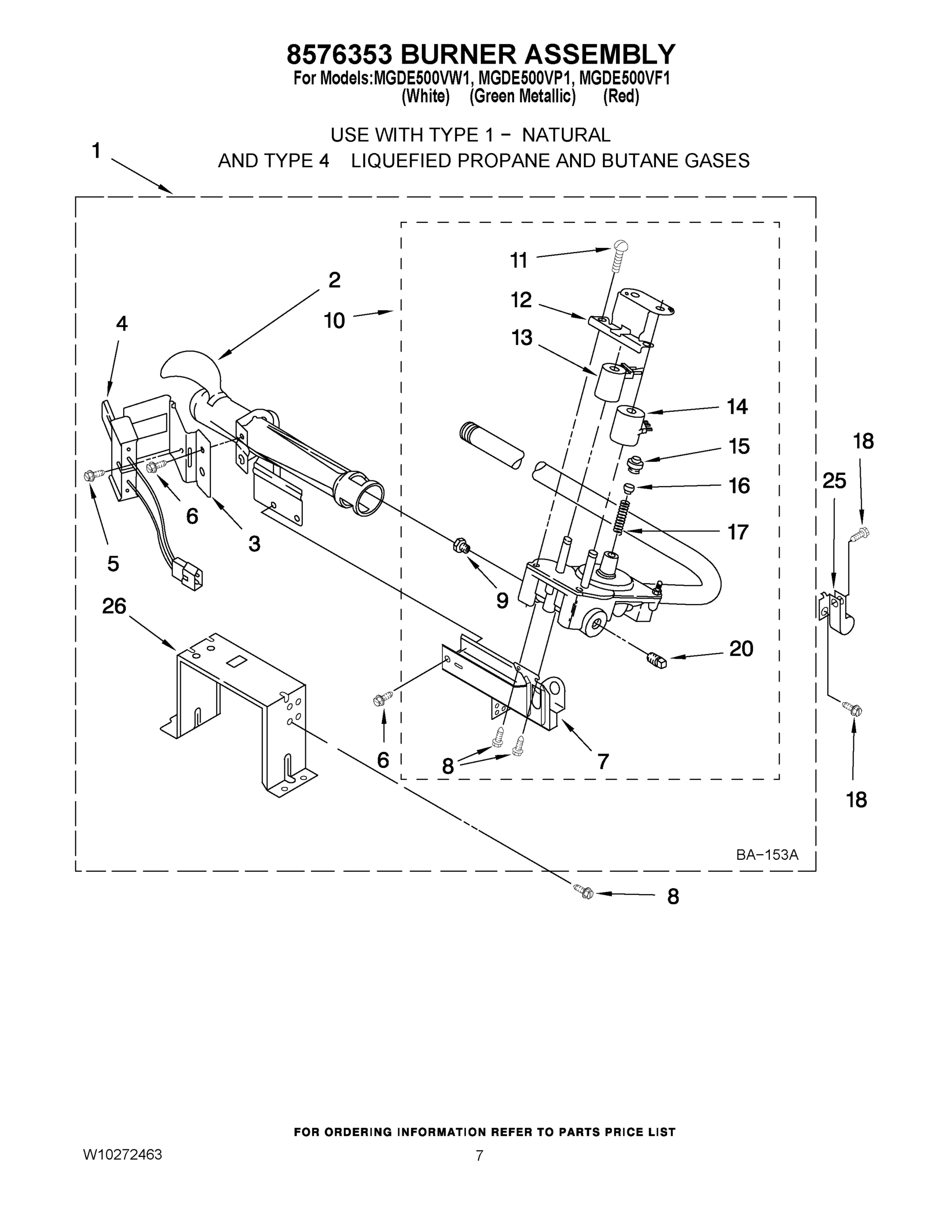

Base, Burner WPL 3389871 Contact Us For Availability

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $2.51

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.55

8

WPW10121316 Whirlpool Clamp In Stock WPL WPW10121316 $10.89

8

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $2.55

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.94

9

WP15418 Whirlpool Gas Orifice Backorder WPL WP15418 $12.08

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.28

9

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $9.99

9

Screw-Plug WPL W10048910 Contact Us For Availability

9

Orifice, Burner (Type 4 (Butane)) WPL 15422 Contact Us For Availability

10

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

10

WPW10118347 Whirlpool Gas Valve In Stock WPL WPW10118347 $212.48

10

Inner Door WPL 8578229 Contact Us For Availability

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.70

11

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $42.37

12

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $12.04

12

Bracket, Coil WPL 694538 Contact Us For Availability

13

3978776 Whirlpool Bracket Backorder WPL 3978776 $32.59

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

14

DOOR ASSEMBLY INNER (INCLUDES 2,4,5,6,8,9,10, WPL 8577819 Contact Us For Availability

15

3395683 Whirlpool Connector Backorder WPL 3395683 $36.27

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

15

Window WPL 8566254 Contact Us For Availability

W10123956 Whirlpool Sound Absorber Backorder WPL W10123956 $14.49

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.76

Seal-Window WPL 8579662 Contact Us For Availability

Bulkhead, Rear WPL W10133857 Contact Us For Availability

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.58

17

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.55

18

W10128087 Whirlpool Door Switch Backorder WPL W10128087 $30.28

18

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

18

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $41.63

19

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.79

19

Door-Intermediate WPL W10180118 Contact Us For Availability

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.94

WPW10354249 Whirlpool Cover Backorder WPL WPW10354249 $3.76

Knob WPL W10164576 Contact Us For Availability

Shield, Door WPL W10180120 Contact Us For Availability

21

Ramp, Door WPL 8529053 Contact Us For Availability

22

OUTLET GRILL HOUSING ASSEMBLY (INCLUDES 3,6,9 WPL W10253353 Contact Us For Availability

23

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

24

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $127.12

24

WP8540282 Whirlpool Screw In Stock WPL WP8540282 $4.07

24

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $10.42

25

W10853898 Whirlpool Screw Backorder WPL W10853898 $2.55

25

W11230114 Whirlpool Screw Assembly In Stock WPL W11230114 $9.75

26

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $7.41

26

Bracket, Support WPL 3389889 Contact Us For Availability

27

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.76

27

WPW10112954 Whirlpool Belt In Stock WPL WPW10112954 $18.21

28

W10181903 Whirlpool Bracket Backorder WPL W10181903 $9.99

29

W11481730 Whirlpool Bracket In Stock WPL W11481730 $34.59

29

WP8573713 Whirlpool Thermal Fuse In Stock WPL WP8573713 $34.40

30

W11628810 Whirlpool Power Cord Backorder WPL W11628810 $41.81

31

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.59

31

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $11.63

32

8578825 Whirlpool Bracket Backorder WPL 8578825 $8.11

33

W11222979 Whirlpool Socket Backorder WPL W11222979 $47.13

33

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $33.28

34

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

34

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $32.59

35

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $35.04

36

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $12.68

36

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $32.87

37

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

37

Clip, S-Type (3) WPL 62825 Contact Us For Availability

38

TRIM-RING ASSEMBLY (INCLUDES:ITEM 48) (WHITE) WPL W10221445 Contact Us For Availability

38

TRIM-RING ASSEMBLY (INCLUDES: ITEM 48) (GREEN WPL W10221450 Contact Us For Availability

38

Trim-Ring Assembly (Includes Item. 48 ) (Red) WPL W10221448 Contact Us For Availability

39

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $15.29

41

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

42

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.72

43

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.94

43

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $78.24

44

WP3391912 Whirlpool High Limit Thermostat In Stock WPL WP3391912 $46.19

44

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $4.85

45

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

45

Base, Cabi WPL W10239098 Contact Us For Availability

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

WPL W10153275 WPL W10153275 Contact Us For Availability

WPL W10193967 WPL W10193967 Contact Us For Availability

WPL W10244555 WPL W10244555 Contact Us For Availability

47

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.17

47

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

49

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

50

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.24

50

WPL W10242903 WPL W10242903 Contact Us For Availability

51

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $76.75

52

WPL W10174746 WPL W10174746 Contact Us For Availability

54

WPL W10246269 WPL W10246269 Contact Us For Availability

54

WPL W10246286 WPL W10246286 Contact Us For Availability

54

WPL W10246288 WPL W10246288 Contact Us For Availability

55

Nozzle & Screen Assembly WPL W10044629 Contact Us For Availability

55

WPL W10244141 WPL W10244141 Contact Us For Availability

57

W10044579 Whirlpool Dryer Backorder WPL W10044579 $5.75

57

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $55.11

59

W10044628 Whirlpool Nut Backorder WPL W10044628 $32.59

61

W11257251 Whirlpool Shield Backorder WPL W11257251 $28.94

63

W10859554 Whirlpool Coupler Backorder WPL W10859554 $30.26

64

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $23.71

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $51.15

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.52

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $5.03

W11581317 Whirlpool LP Gas Connector In Stock WPL W11581317 $44.19

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $17.71

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ.) (MAGNA RED) WPL W10218245 Contact Us For Availability
