Model Maytag MGDE300VF0 GAS DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS
02 - CABINET PARTS

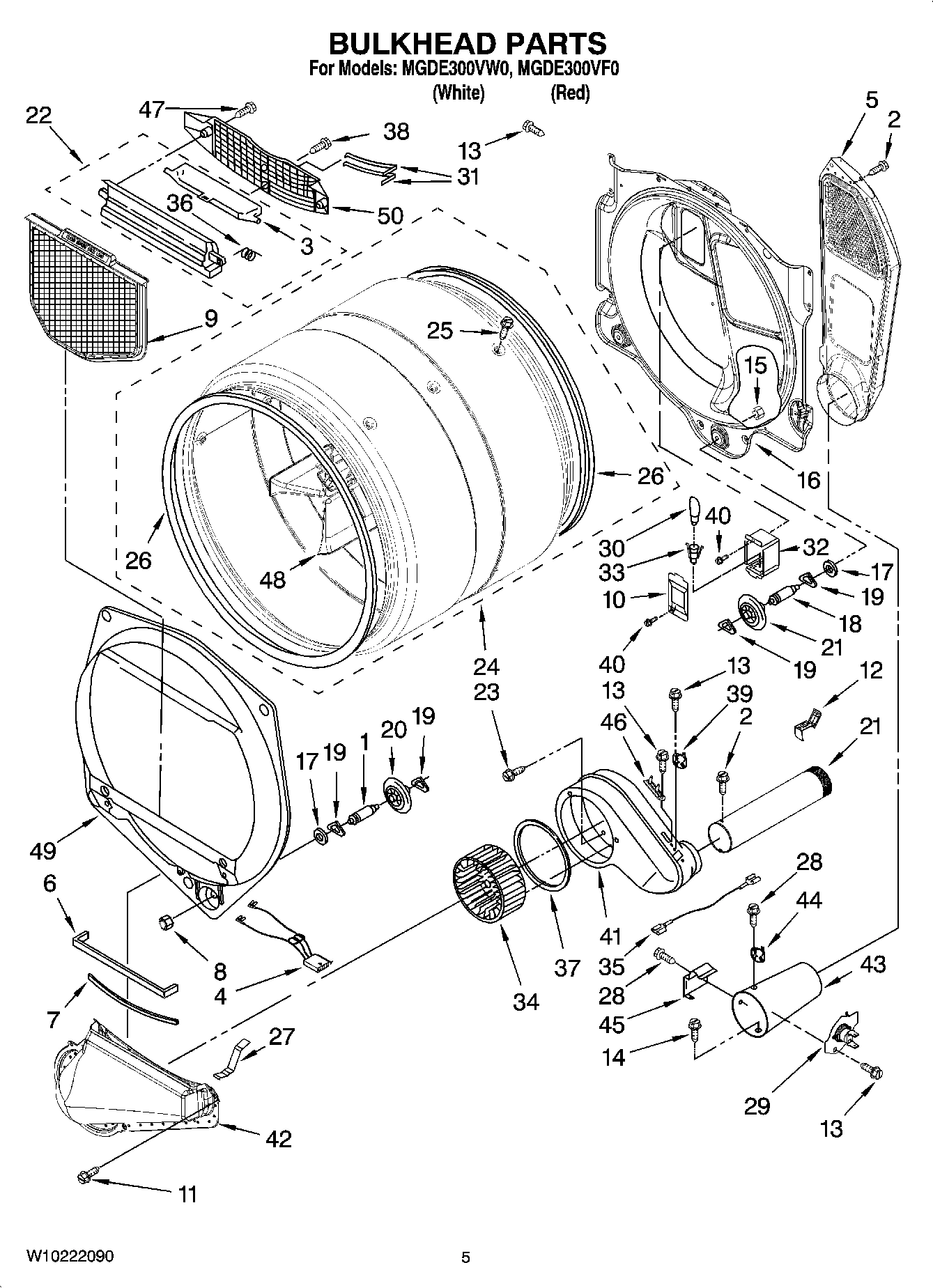

03 - BULKHEAD PARTS

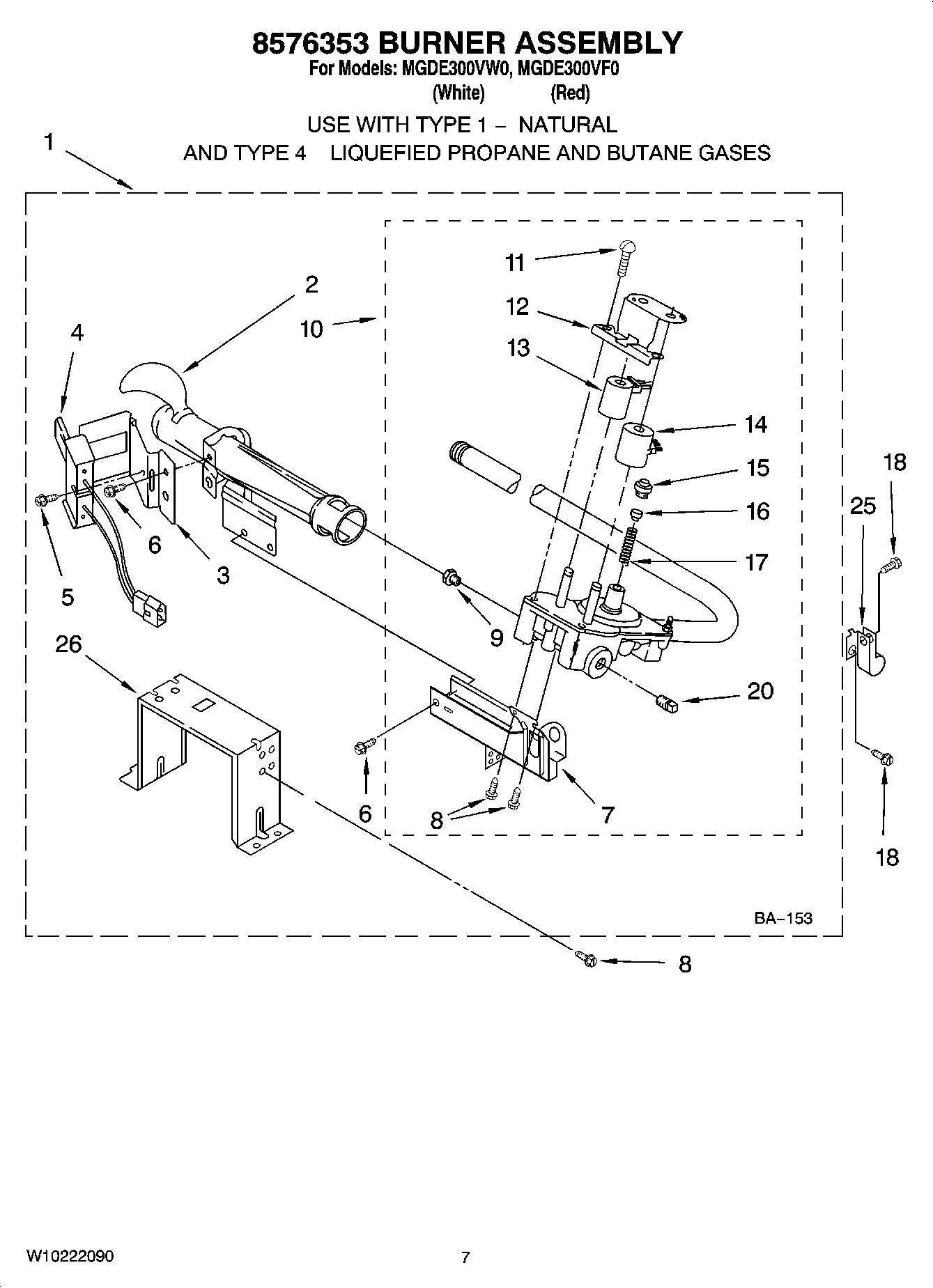

04 - 8576353 BURNER ASSEMBLY

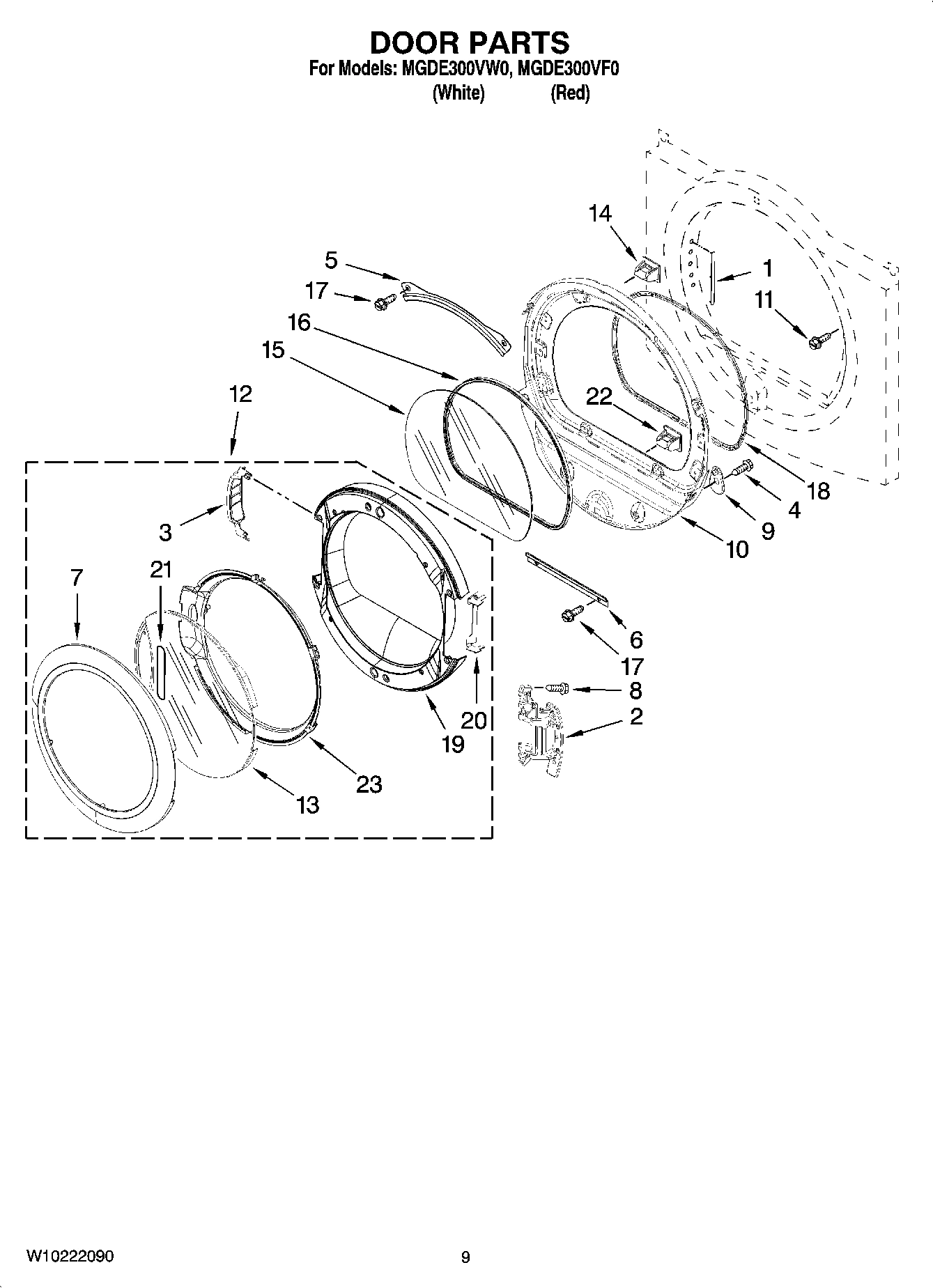

05 - DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGDE300VF0 GAS DRYER
1
MAY W10057350 MAY W10057350 Contact Us For Availability
1
MAY W10057355 MAY W10057355 Contact Us For Availability
1
MAY W10057359 MAY W10057359 Contact Us For Availability
1
MAY 8317340 MAY 8317340 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
1
BURNER ASSEMBLY 60 HZ. (TYPE 1)(WHITE RODGERS MAY 8576353 Contact Us For Availability
1
Label, Hinge Hole MAY W10085210 Contact Us For Availability
2
MAY 3980634 MAY 3980634 Contact Us For Availability
2
Screw, 8-18 x 3/8 MAY 3390814 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
2
MAY W10139920 MAY W10139920 Contact Us For Availability
3
MAY W10111011 MAY W10111011 Contact Us For Availability
3
Screw, 10-32 x 5/8 (Ground) MAY 8533974 Contact Us For Availability
3
MAY W10153413 MAY W10153413 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
3
Cover, Door Hinge MAY W10180119 Contact Us For Availability
4
Console Assembly (White) MAY W10164450 Contact Us For Availability
4
Console Assembly (Red Metalic) MAY W10164451 Contact Us For Availability
4
Panel, Side (R.H.) (White) MAY W10192446 Contact Us For Availability
4
Panel, Side (R.H.) (Magna Red Gloss) MAY W10193957 Contact Us For Availability
4
MAY 3406653 MAY 3406653 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
4
Screw, 8-18 x 5/8 MAY 9742177 Contact Us For Availability
5
CLIP, HARNESS MAY 3394427 Contact Us For Availability
5
MAY 3394881 MAY 3394881 Contact Us For Availability
5
MAY 3394346 MAY 3394346 Contact Us For Availability
5
Screw & Washer (8-32 x 7/8) MAY 3393909 Contact Us For Availability
5
Retainer-Window Upper MAY 8519356 Contact Us For Availability
6
Bracket, Console (Includes No. 16) MAY W10215656 Contact Us For Availability
6
Panel, Side (L.H.) (White) MAY W10192435 Contact Us For Availability
6
Panel, Side (L.H.) (Magna Red Gloss) MAY W10193954 Contact Us For Availability
6
MAY 343641 MAY 343641 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
Retainer-Window Lower MAY 8519354 Contact Us For Availability
7
Connector Sensor MAY 353424 Contact Us For Availability
7
MAY 279810 MAY 279810 Contact Us For Availability
7
MAY 3392100 MAY 3392100 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
7
Handle Ring MAY W10193522 Contact Us For Availability
8
Terminal MAY 94614 Contact Us For Availability
8
Clamp, Motor (2) MAY 660658 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
8
MAY 3387057 MAY 3387057 Contact Us For Availability
8
Screw, 10-24 x 5/16 MAY W10159996 Contact Us For Availability
9
Plug, Terminal MAY 3936144 Contact Us For Availability
9
MAY 3387374 MAY 3387374 Contact Us For Availability
9
MAY W10049370 MAY W10049370 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1) MAY 15418 Contact Us For Availability
9
Orifice, Burner (Type 4 (Butane)) MAY 15422 Contact Us For Availability
9
Orifice, Burner (Type 4 (Propane)) MAY 234867 Contact Us For Availability
9
MAY W10048910 MAY W10048910 Contact Us For Availability
10
Terminal MAY 94613 Contact Us For Availability
10
MAY 3389420 MAY 3389420 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
MAY 8281914 MAY 8281914 Contact Us For Availability
10
Door Assembly (Inner) (Includes Illus. 14) MAY 8578229 Contact Us For Availability
11
MAY 697750 MAY 697750 Contact Us For Availability
11
MAY W10151499 MAY W10151499 Contact Us For Availability
11
Screw, 8-18 x 1/2 MAY 359625 Contact Us For Availability
11
MAY 694421 MAY 694421 Contact Us For Availability
11
MAY 355515 MAY 355515 Contact Us For Availability
12
MAY 8572039 MAY 8572039 Contact Us For Availability
12
MAY 3388672 MAY 3388672 Contact Us For Availability
12
MAY 8572105 MAY 8572105 Contact Us For Availability
12
MAY 694538 MAY 694538 Contact Us For Availability
12
Door, Outer MAY W10193530 Contact Us For Availability
13
MAY W10177245 MAY W10177245 Contact Us For Availability
13
Bracket, Gas Pipe MAY 3978776 Contact Us For Availability
13
MAY 8533971 MAY 8533971 Contact Us For Availability
13
MAY 694540 MAY 694540 Contact Us For Availability
13
Door Mask Assembly MAY W10180117 Contact Us For Availability
14
MAY 3936150 MAY 3936150 Contact Us For Availability
14
MAY 8066120 MAY 8066120 Contact Us For Availability
14
SCREW,8-18 X 3/8 MAY 693995 Contact Us For Availability
14
COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITI MAY 694539 Contact Us For Availability
14
Door Catch Assembly (Upper) MAY 3398175 Contact Us For Availability
15
CONNECTOR (MOTOR) MAY 3395683 Contact Us For Availability
15
MAY W10167612 MAY W10167612 Contact Us For Availability
15
MAY W10001120 MAY W10001120 Contact Us For Availability
15
MAY 694424 MAY 694424 Contact Us For Availability
15
MAY 8566254 MAY 8566254 Contact Us For Availability
16
MAY W10112267 MAY W10112267 Contact Us For Availability
16
MAY W10128772 MAY W10128772 Contact Us For Availability
16
MAY W10080170 MAY W10080170 Contact Us For Availability
16
MAY 694423 MAY 694423 Contact Us For Availability
16
MAY 8579662 MAY 8579662 Contact Us For Availability
17
MAY 2203186 MAY 2203186 Contact Us For Availability
17
Washer, Flat Plastic MAY W10121334 Contact Us For Availability
17
MAY 3387459 MAY 3387459 Contact Us For Availability
17
MAY 694422 MAY 694422 Contact Us For Availability
17
Screw, 10-16 x 3/64 MAY 3393258 Contact Us For Availability
18
MAY 3403498 MAY 3403498 Contact Us For Availability
18
MAY W10128087 MAY W10128087 Contact Us For Availability
18
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
18
MAY 8575325 MAY 8575325 Contact Us For Availability
18
MAY W10139457 MAY W10139457 Contact Us For Availability
19
CONNECTOR, 2-POSITION (GAS VALVE) MAY 3403499 Contact Us For Availability
19
MAY 690997 MAY 690997 Contact Us For Availability
19
Door-Intermediate MAY W10180118 Contact Us For Availability
20
Knob MAY W10164576 Contact Us For Availability
20
MAY 8066115 MAY 8066115 Contact Us For Availability
20
MAY 8536973 MAY 8536973 Contact Us For Availability
20
MAY 239822 MAY 239822 Contact Us For Availability
20
Shield, Door MAY W10180120 Contact Us For Availability
21
MAY W10164609 MAY W10164609 Contact Us For Availability
21
MAY 8529053 MAY 8529053 Contact Us For Availability
21
MAY 8563745 MAY 8563745 Contact Us For Availability
21
Pad,Foam-Frame MAY W10153281 Contact Us For Availability
22
MAY W10171504 MAY W10171504 Contact Us For Availability
22
Housing, Outlet MAY W10153423 Contact Us For Availability
22
Door Catch Assembly (Lower) MAY 690081 Contact Us For Availability
23
MAY W10185548 MAY W10185548 Contact Us For Availability
23
MAY 8541503 MAY 8541503 Contact Us For Availability
23
MAY 489463 MAY 489463 Contact Us For Availability
23
Screen, Door MAY W10171571 Contact Us For Availability
24
MAY 8540282 MAY 8540282 Contact Us For Availability
24
Motor Assembly 60 HZ. MAY 8538263 Contact Us For Availability
24
MAY W10181466 MAY W10181466 Contact Us For Availability
25
MAY 8540513 MAY 8540513 Contact Us For Availability
25
Wire, Jumper (Broken Belt Switch) MAY 3398948 Contact Us For Availability
25
MAY W10109200 MAY W10109200 Contact Us For Availability
25
MAY 3387561 MAY 3387561 Contact Us For Availability
26
MAY W10170295 MAY W10170295 Contact Us For Availability
26
Pulley 60 HZ. MAY 8578220 Contact Us For Availability
26
MAY W10166807 MAY W10166807 Contact Us For Availability
26
MAY 3389889 MAY 3389889 Contact Us For Availability
27
Guide, Light Cylcle Internal MAY W10170293 Contact Us For Availability
27
MAY W10112954 MAY W10112954 Contact Us For Availability
27
CLIP-SPRING MAY 8066208 Contact Us For Availability
28
MAY W10164567 MAY W10164567 Contact Us For Availability
28
MAY 8529757 MAY 8529757 Contact Us For Availability
28
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
29
MAY W10172298 MAY W10172298 Contact Us For Availability
29
MAY 3387118 MAY 3387118 Contact Us For Availability
29
MAY 8573713 MAY 8573713 Contact Us For Availability
30
MAY W10185550 MAY W10185550 Contact Us For Availability
30
MAY 3401401 MAY 3401401 Contact Us For Availability
30
MAY 3406124 MAY 3406124 Contact Us For Availability
31
MAY W10164578 MAY W10164578 Contact Us For Availability
31
MAY 49026 MAY 49026 Contact Us For Availability
31
MAY 3387223 MAY 3387223 Contact Us For Availability
32
Frame-Light (Guide Display) MAY W10171502 Contact Us For Availability
32
MAY 8578825 MAY 8578825 Contact Us For Availability
33
MAY W10215674 MAY W10215674 Contact Us For Availability
33
MAY 8563747 MAY 8563747 Contact Us For Availability
33
MAY W10136369 MAY W10136369 Contact Us For Availability
34
MAY W10216201 MAY W10216201 Contact Us For Availability
34
MAY 8563750 MAY 8563750 Contact Us For Availability
34
MAY 697772 MAY 697772 Contact Us For Availability
35
MAY W10216202 MAY W10216202 Contact Us For Availability
35
MAY 8563749 MAY 8563749 Contact Us For Availability
35
Jumper-Tco Hi-Limit MAY 3401710 Contact Us For Availability
36
Idler Bracket MAY 3388674 Contact Us For Availability
36
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
37
Clip, S-Type (3) MAY 62825 Contact Us For Availability
37
MAY 697770 MAY 697770 Contact Us For Availability
38
MAY W10164746 MAY W10164746 Contact Us For Availability
38
Trim-Ring Assembly (Includes: Item 48) (Metal MAY W10190563 Contact Us For Availability
38
Screw, 8-18 x 1/2 MAY 695240 Contact Us For Availability
39
Screw, 6-20 x 1-1/16 MAY 98129 Contact Us For Availability
39
THERMISTOR MAY 8577274 Contact Us For Availability
40
MAY 487909 MAY 487909 Contact Us For Availability
41
MAY 3387242 MAY 3387242 Contact Us For Availability
41
MAY 8544362 MAY 8544362 Contact Us For Availability
42
Lint Duct Assembly MAY 8066168 Contact Us For Availability
43
MAY 8519459 MAY 8519459 Contact Us For Availability
43
MAY 8573824 MAY 8573824 Contact Us For Availability
44
Trim-Clip Metal MAY W10129065 Contact Us For Availability
44
THERMOSTAT, HI LIMIT MAY 3391912 Contact Us For Availability
45
MAY 8519207 MAY 8519207 Contact Us For Availability
45
MAY 338906 MAY 338906 Contact Us For Availability
46
Front Panel (Includes Illus. 44) (White) MAY W10153275 Contact Us For Availability
46
Front Panel (Includes Illus. 44) (Magna Red) MAY W10193967 Contact Us For Availability
46
THERMAL FUSE (91°C) MAY 3392519 Contact Us For Availability
47
Strike, Door (2) MAY 696144 Contact Us For Availability
47
Screw, 10-16 x 1 MAY 3387230 Contact Us For Availability
48
Baffle, Drum MAY 697693 Contact Us For Availability
49
MAY 3357011 MAY 3357011 Contact Us For Availability
49
MAY 8519245 MAY 8519245 Contact Us For Availability
50
MAY W10181464 MAY W10181464 Contact Us For Availability
50
MAY W10153412 MAY W10153412 Contact Us For Availability
51
Bracket, Control MAY 8563727 Contact Us For Availability
52
MAY W10200473 MAY W10200473 Contact Us For Availability
53
Screw MAY 98139 Contact Us For Availability
54
MAY W10116271 MAY W10116271 Contact Us For Availability
55
MAY W10180481 MAY W10180481 Contact Us For Availability
57
MAY 279818 MAY 279818 Contact Us For Availability
57
DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) MAY W10186596 Contact Us For Availability
NI
Conversion Kit (Type (1) to Type (4) LPG). MAY 8576846 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 80047 MAY 80047 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
MAY 8529894 MAY 8529894 Contact Us For Availability
NI
MAY 8579666A MAY 8579666A Contact Us For Availability
× ![]()
