Model Maytag MDG16CSDWW GAS DRYER – Common Parts & Diagrams
01 - CONTROL PANEL
02 - CONTROL CENTER

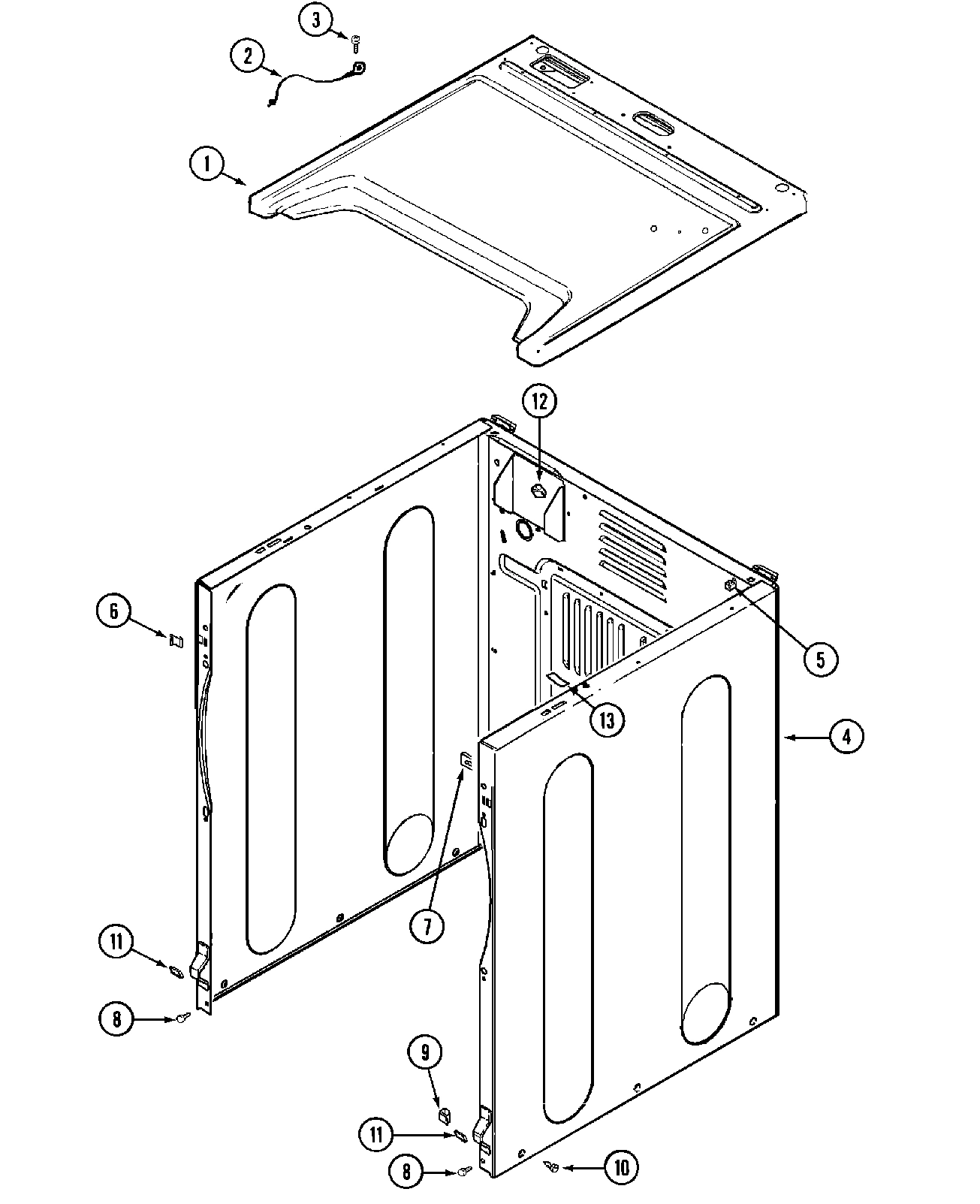

03 - CABINET-FRONT

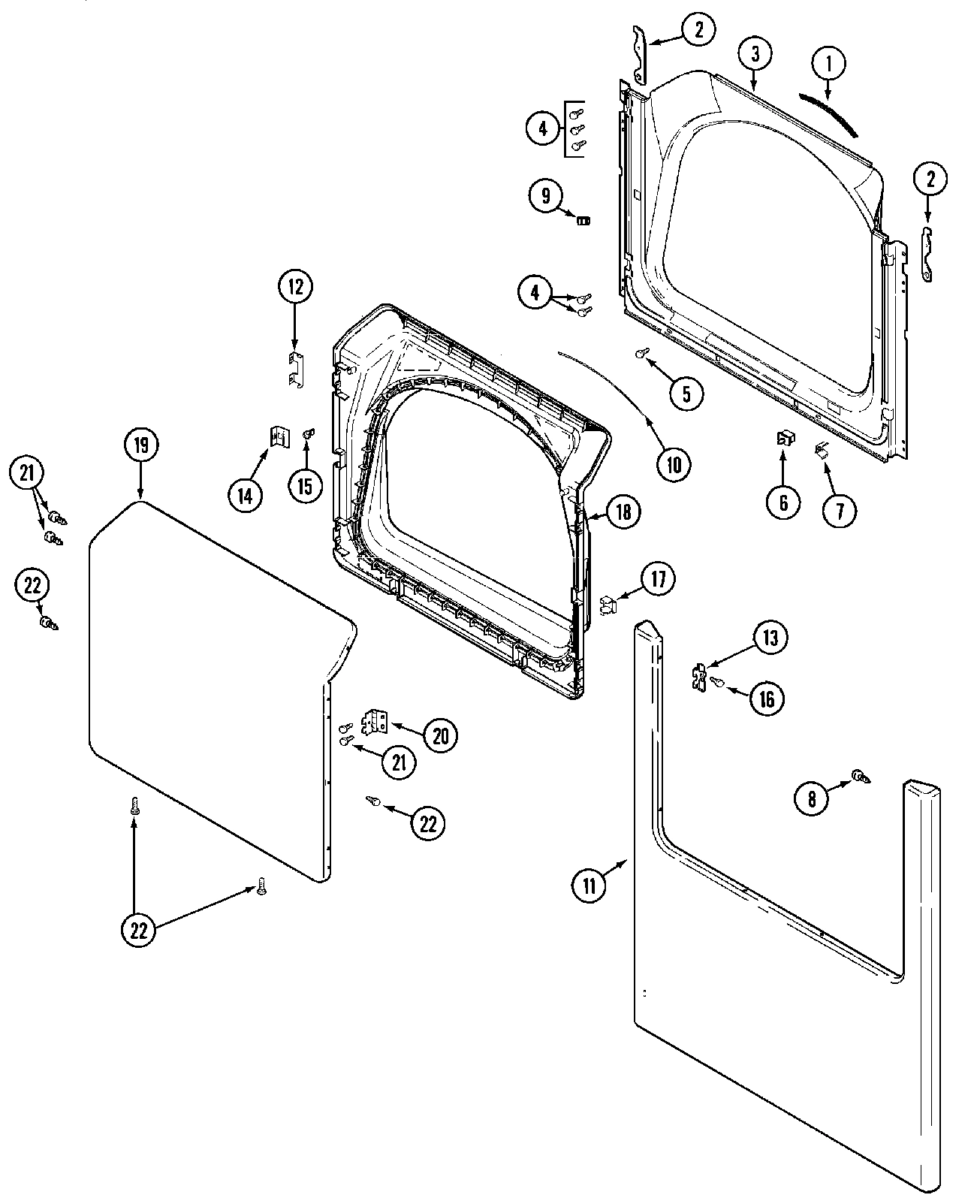

04 - DOOR
05 - CABINET-REAR
06 - GAS VALVE

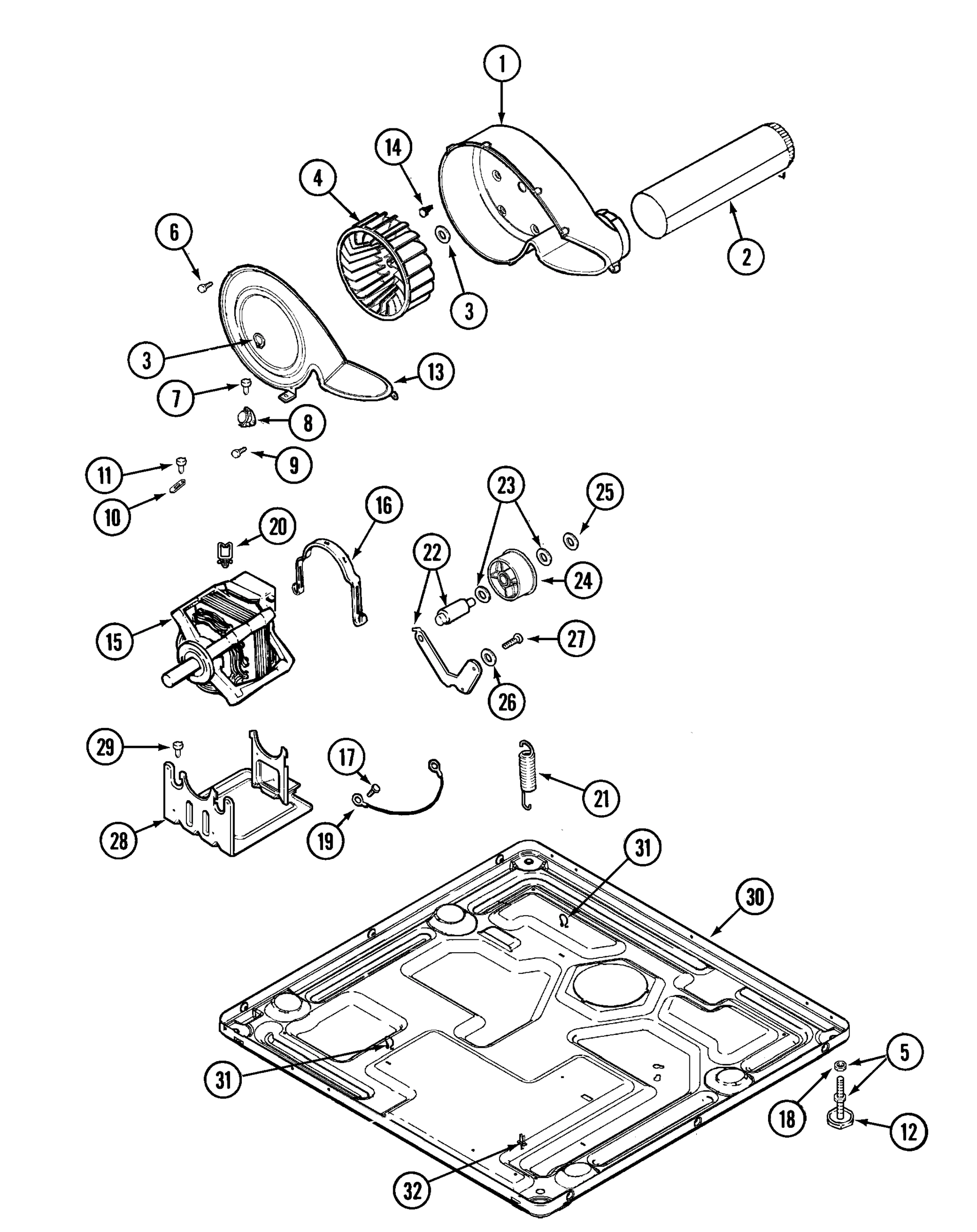

07 - MOTOR DRIVE & BASE

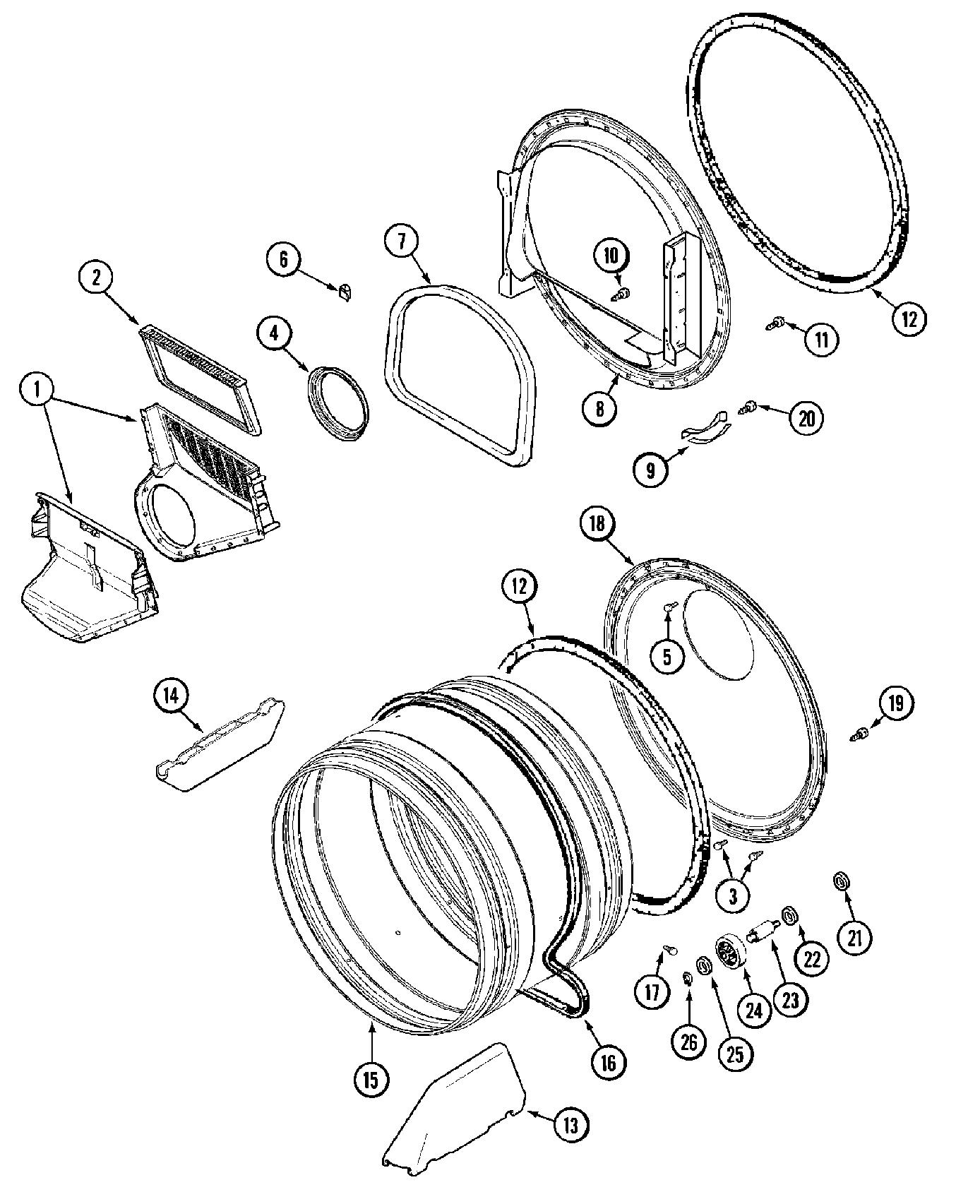

08 - TUMBLER

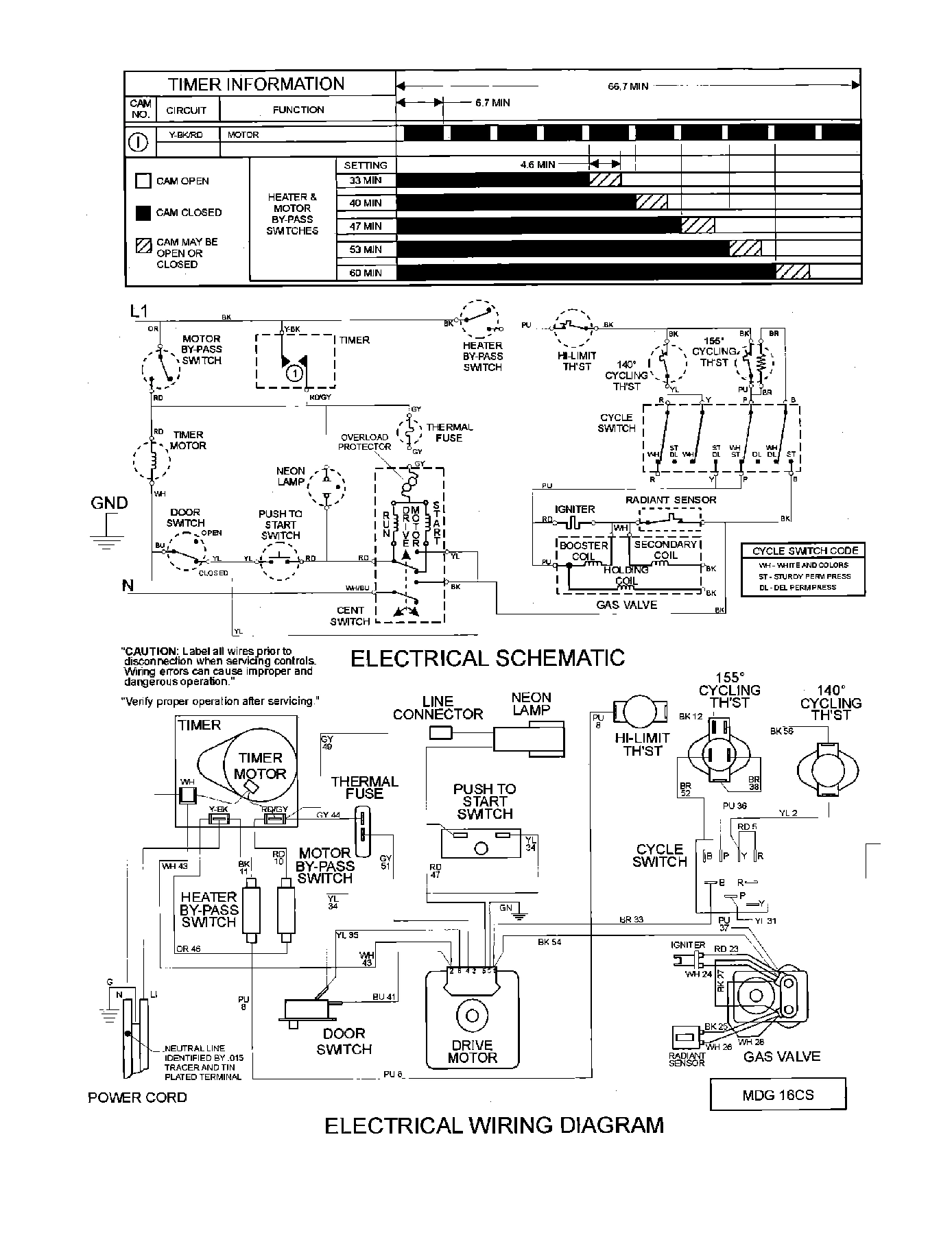

09 - WIRING INFORMATION

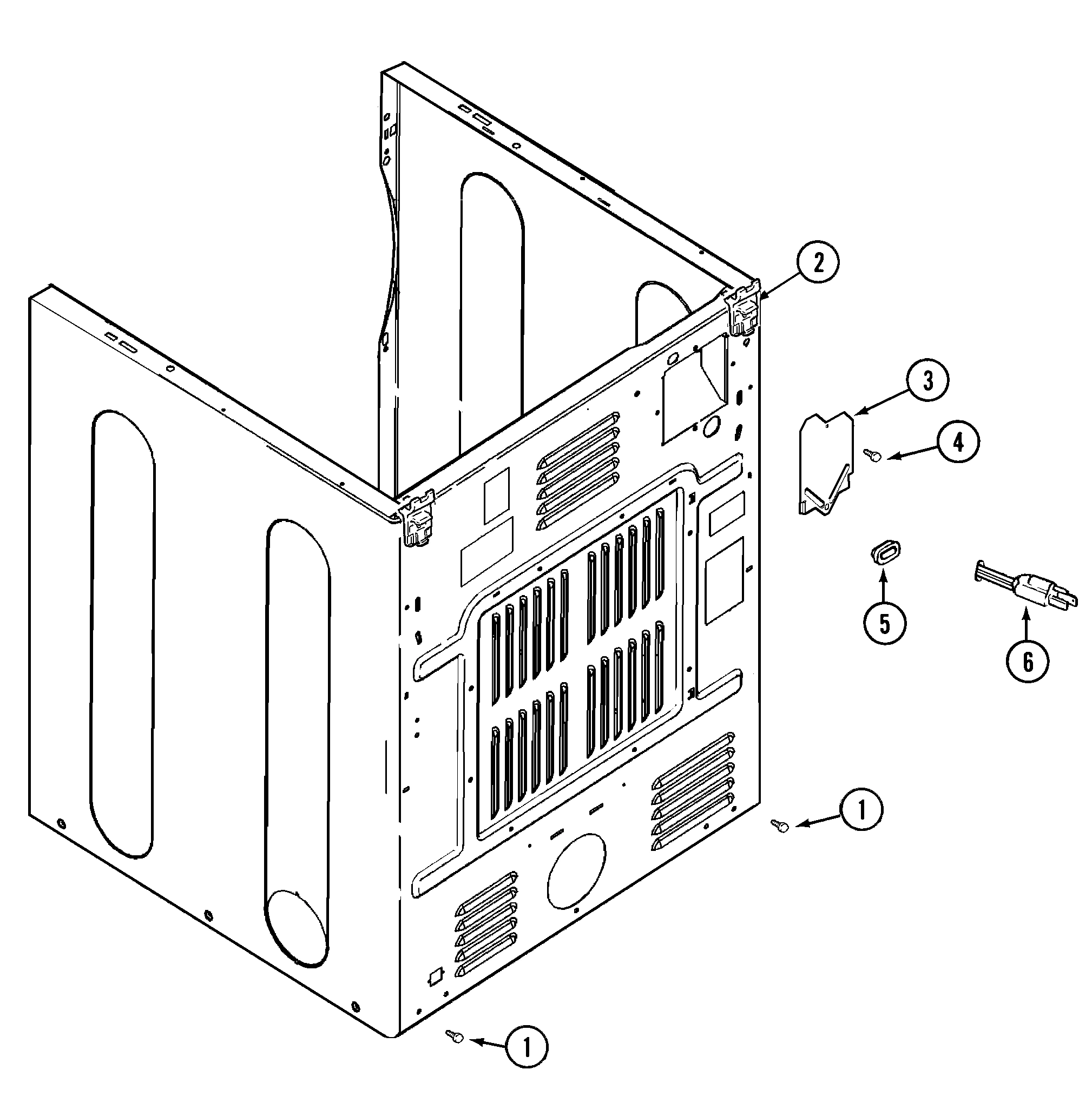

Common parts from model Maytag MDG16CSDWW GAS DRYER
001
MAY 33001799 MAY 33001799 Contact Us For Availability
001
MAY 33002633 MAY 33002633 Contact Us For Availability
001
MAY 33002634 MAY 33002634 Contact Us For Availability
001
WIRING INFORMATION MAY NLA Contact Us For Availability
001
MAY Y308378 MAY Y308378 Contact Us For Availability
002
MAY 22004095 MAY 22004095 Contact Us For Availability
002
MAY 22001959 MAY 22001959 Contact Us For Availability
002
MAY 22002247 MAY 22002247 Contact Us For Availability
002
MAY Y308377 MAY Y308377 Contact Us For Availability
002
MAY 33001800 MAY 33001800 Contact Us For Availability
003
SCREW, GROUND WIRE MAY 210186 Contact Us For Availability
003
MAY 33001900 MAY 33001900 Contact Us For Availability
003
MAY 33001795 MAY 33001795 Contact Us For Availability
003
SCREW, IGNITER MAY 304971 Contact Us For Availability
003
SCREW, INLET DUCT MAY 210932 Contact Us For Availability
004
MAY 22003644 MAY 22003644 Contact Us For Availability
004
MAY 33001758 MAY 33001758 Contact Us For Availability
005
MAY Y305086 MAY Y305086 Contact Us For Availability
005
MAY 310933 MAY 310933 Contact Us For Availability
005
SCREW, SHROUD & OUTLET DUCT MAY 33001768 Contact Us For Availability
005
MAY 211881 MAY 211881 Contact Us For Availability
005
MAY 216183 MAY 216183 Contact Us For Availability
006
MAY Y310376 MAY Y310376 Contact Us For Availability
006
MAY 33002239 MAY 33002239 Contact Us For Availability
006
MAY 22003540 MAY 22003540 Contact Us For Availability
006
MAY 22003705 MAY 22003705 Contact Us For Availability
006
MAY 22004405 MAY 22004405 Contact Us For Availability
006
MAY 33002778 MAY 33002778 Contact Us For Availability
006
VALVE, GAS (240V-50HZ) MAY 307927 Contact Us For Availability
006
MAY 33003030 MAY 33003030 Contact Us For Availability
006
MAY 33003031 MAY 33003031 Contact Us For Availability
007
MAY 33001767 MAY 33001767 Contact Us For Availability
007
MAY 33001760 MAY 33001760 Contact Us For Availability
008
MAY 33001802 MAY 33001802 Contact Us For Availability
008
MAY 306966 MAY 306966 Contact Us For Availability
009
MAY Y304578 MAY Y304578 Contact Us For Availability
010
SCREW, CABINET (TRUSS) MAY 22003409 Contact Us For Availability
010
MAY 33002710 MAY 33002710 Contact Us For Availability
011
MAY 22002239 MAY 22002239 Contact Us For Availability
011
SCREW, GAS VALVE MAY 314082 Contact Us For Availability
011
SCREW, GAS VALVE MAY 314568 Contact Us For Availability
012
MAY Y314137 MAY Y314137 Contact Us For Availability
012
MAY 22002038 MAY 22002038 Contact Us For Availability
013
MAY 22003679 MAY 22003679 Contact Us For Availability
013
MAY 33001836 MAY 33001836 Contact Us For Availability
013
MAY 33001771 MAY 33001771 Contact Us For Availability
013
MAY 33002711 MAY 33002711 Contact Us For Availability
013
MAY 33001756 MAY 33001756 Contact Us For Availability
014
PIPE & BRACKET ASSY. SERIES 18 NOT NEEDED USE MAY 33001735 Contact Us For Availability
014
SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability
015
TORSION TIMER ASSY. MAY 33001275 Contact Us For Availability
015
MAY 33001761 MAY 33001761 Contact Us For Availability
015
MAY 33001794 MAY 33001794 Contact Us For Availability
016
MAY 22002039 MAY 22002039 Contact Us For Availability
016
MAY 33001810 MAY 33001810 Contact Us For Availability
016
MAY 33003039 MAY 33003039 Contact Us For Availability
017
MAY 33001763 MAY 33001763 Contact Us For Availability
017
MAY 910343 MAY 910343 Contact Us For Availability
017
MAY 33001788 MAY 33001788 Contact Us For Availability
018
SWITCH, BY-PASS (HEATER) MAY Y305799 Contact Us For Availability
018
MAY 33002779 MAY 33002779 Contact Us For Availability
018
MAY 33003037 MAY 33003037 Contact Us For Availability
019
MAY 33001904 MAY 33001904 Contact Us For Availability
019
MAY 33001835 MAY 33001835 Contact Us For Availability
019
MAY 901220 MAY 901220 Contact Us For Availability
019
MAY 33002190 MAY 33002190 Contact Us For Availability
020
MAY Y303841 MAY Y303841 Contact Us For Availability
021
DRIVER, INDEX WHEEL MAY 314330 Contact Us For Availability
021
MAY Y312890 MAY Y312890 Contact Us For Availability
021
MAY 33002461 MAY 33002461 Contact Us For Availability
022
PEG, TINE ADJUSTMENT MAY 314335 Contact Us For Availability
022
MAY 22002063 MAY 22002063 Contact Us For Availability
022
MAY 33001693 MAY 33001693 Contact Us For Availability
023
MAY 33001764 MAY 33001764 Contact Us For Availability
023
MAY 33002349 MAY 33002349 Contact Us For Availability
023
MAY Y312527 MAY Y312527 Contact Us For Availability
024
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
025
SPRING, INDEX WHEEL MAY 211065 Contact Us For Availability
025
SCREW, HINGE BRACKET MAY 22002243 Contact Us For Availability
025
MAY 22002244 MAY 22002244 Contact Us For Availability
026
MAY 33002967 MAY 33002967 Contact Us For Availability
026
MAY 33002218 MAY 33002218 Contact Us For Availability
026
FASTENER, FRONT PANEL MAY 213280 Contact Us For Availability
026
MAY 33001901 MAY 33001901 Contact Us For Availability
028
MAY 33002817 MAY 33002817 Contact Us For Availability
029
SCREW, MOTOR & BLOWER MAY Y313561 Contact Us For Availability
031
MAY 410490 MAY 410490 Contact Us For Availability
032
MAY 315471 MAY 315471 Contact Us For Availability
034
SCREW, BY-PASS SWITCHES MAY 315277 Contact Us For Availability
035
NUT, BY-PASS SWITCHES MAY Y052634 Contact Us For Availability
036
SCREW, TIMER MAY 910708 Contact Us For Availability
× ![]()
