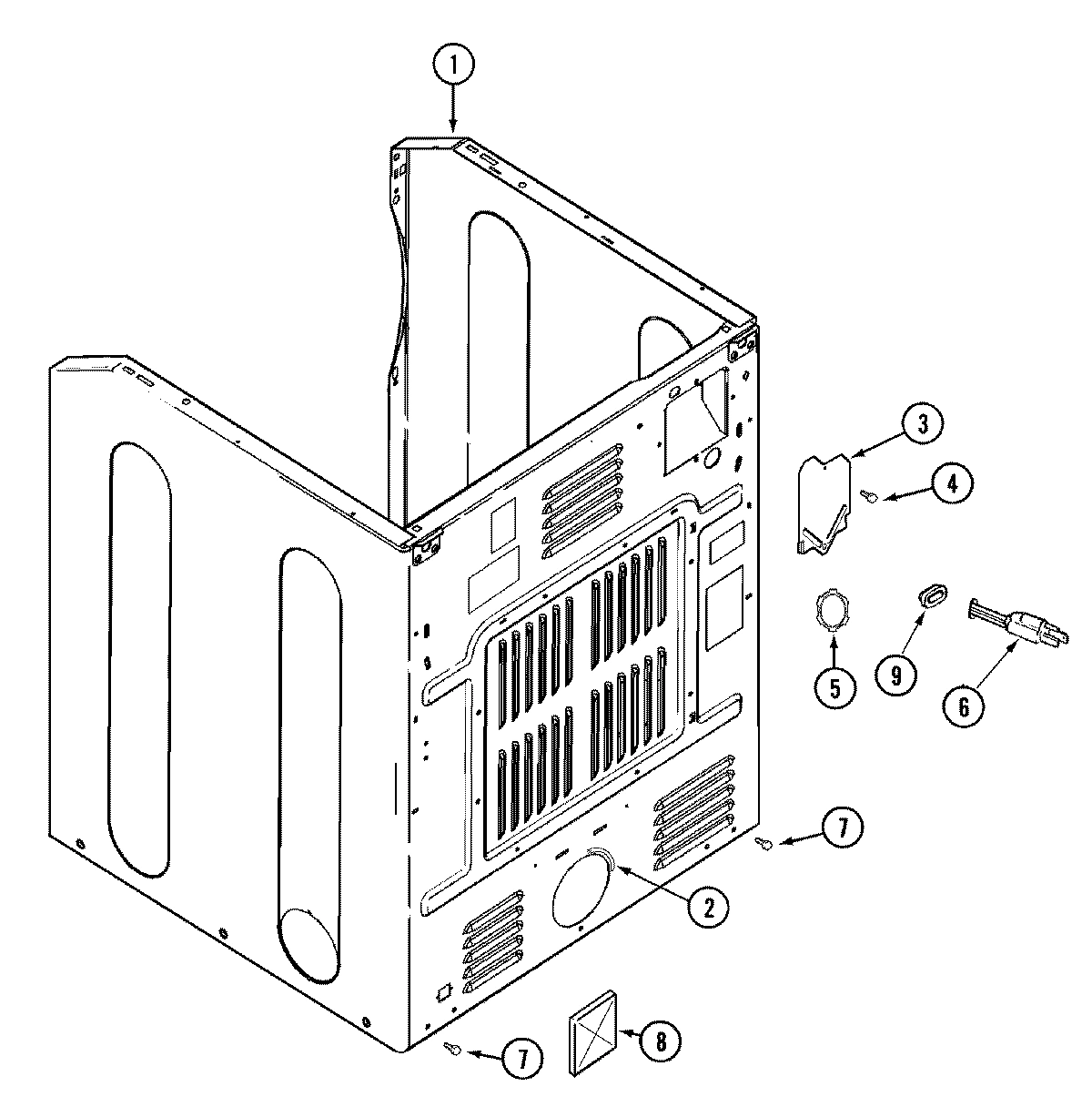

Model Whirlpool MDE8757AYQ ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

1

OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability

1

COVER, TOP (BSQ-AS PK) WPL 33002628 Contact Us For Availability

1

LIGHT, INDICATOR (250V) WPL 22001403 Contact Us For Availability

1

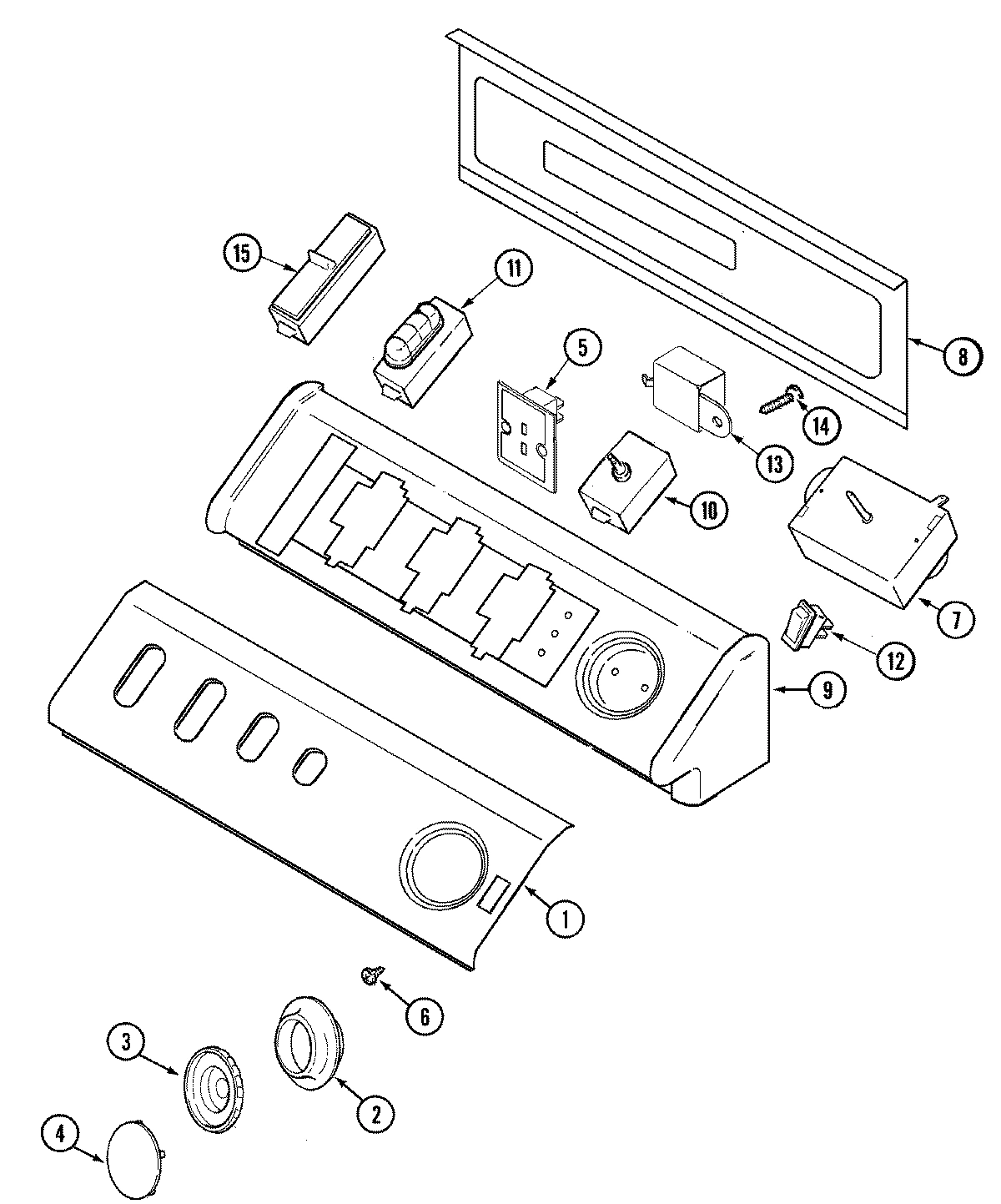

CONTROL PANEL, FACIA / BSQ WPL 33002700 Contact Us For Availability

1

SEAL, SHROUD WPL 33001767 Contact Us For Availability

1

WIRE HARNESS, MAIN WPL 33002419 Contact Us For Availability

2

WP33001808 Whirlpool Lint Filter In Stock WPL WP33001808 $29.62

2

WP33002346 Whirlpool Dial Knob Backorder WPL WP33002346 $28.39

2

PIN, LOCATOR WPL 33001872 Contact Us For Availability

2

FLAP, PIPE WPL 33001702 Contact Us For Availability

2

SECURITY HOOK WPL 33002386 Contact Us For Availability

2

DUCT ASSY., INLET WPL 33001803 Contact Us For Availability

2

INLET DUCT ASSEMBLY (ELECTRIC) WPL 33002767 Contact Us For Availability

3

WP22001659 Whirlpool Timer Knob In Stock WPL WP22001659 $15.03

3

SEAL, BLOWER WPL 33001758 Contact Us For Availability

3

COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability

3

SHROUD (BSQ) WPL 33002379 Contact Us For Availability

3

HEATER ENCLOSURE WPL 314995 Contact Us For Availability

4

33001790 Whirlpool Blower Wheel In Stock WPL 33001790 $21.07

4

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.96

4

WP33002797 Whirlpool Wheel In Stock WPL WP33002797 $57.65

4

SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability

4

BRACKET, TERMINAL BLOCK----NA WPL 33001826 Contact Us For Availability

4

TIMER KNOB INSERT/CAP WPL 33002347 Contact Us For Availability

4

INSULATOR, TERMINAL WPL 314998 Contact Us For Availability

5

WP312967 Whirlpool Clamp In Stock WPL WP312967 $4.96

5

WPY308612 Whirlpool Heating Element In Stock WPL WPY308612 $139.94

5

DRYNESS DISPLAY CONTROL (BSQ) WPL 33002400 Contact Us For Availability

5

HINGE, PLASTIC WPL 22003367 Contact Us For Availability

5

SCREW, SHROUD WPL 33001768 Contact Us For Availability

5

ELECTRICAL TEST CORD WPL 038183 Contact Us For Availability

6

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $11.51

6

W11705611 Whirlpool Block Ter In Stock WPL W11705611 $42.61

6

FRONT, TUMBLER FRONT W/SENSOR WPL 33001868 Contact Us For Availability

6

MOVER, APPLIANCE WPL 20001057 Contact Us For Availability

6

SHIELD, RADIANT WPL 314999 Contact Us For Availability

7

W11164114 Whirlpool Screw Backorder WPL W11164114 $3.02

7

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.63

7

WP33002676 Whirlpool Element Timer Backorder WPL WP33002676 $199.56

7

LENS, DRUM LIGHT WPL 33001869 Contact Us For Availability

7

SCREW WPL 33001871 Contact Us For Availability

7

BRACKET, HINGE WPL 33001760 Contact Us For Availability

7

MULTI-WRENCH, FLAT WPL 20001069 Contact Us For Availability

7

SCREW WPL 314554 Contact Us For Availability

8

WP303396 Whirlpool Thermostat In Stock WPL WP303396 $15.79

8

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.73

8

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $28.14

8

HOLDER, LAMP (W/HOUSING) WPL 33001870 Contact Us For Availability

8

CONSOLE BACK PANEL WPL 22002529 Contact Us For Availability

8

BUSHING, INNER DOOR WPL 33001771 Contact Us For Availability

9

306436 Whirlpool Washer Dryer Door Catch and In Stock WPL 306436 $3.10

9

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $12.27

9

WP307178 Whirlpool Element In Stock WPL WP307178 $154.56

9

PALNUT, END CAP WPL 214872 Contact Us For Availability

9

STRAP, GROUND WPL Y312184 Contact Us For Availability

9

CONSOLE (BSQ) WPL 33002327 Contact Us For Availability

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.60

WP33001762 Whirlpool Dryer Thermal Fuse In Stock WPL WP33001762 $38.06

WP33002094 Whirlpool Door Seal Backorder WPL WP33002094 $66.08

WPY307173 Whirlpool Wire Jumper Backorder WPL WPY307173 $3.84

SENSOR GROUND WIRE WPL Y303711 Contact Us For Availability

SWITCH, PUSH-TO-START (BSQ) WPL 33002356 Contact Us For Availability

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.60

WP307473 Whirlpool Thermal Fuse In Stock WPL WP307473 $35.00

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.60

SENSOR BAR ASSY. WPL 33001809 Contact Us For Availability

SWITCH, OPTION 4 POS (BSQ) WPL 33002415 Contact Us For Availability

CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability

WP311093 Whirlpool Washer 7 Backorder WPL WP311093 $2.60

WP33001793 Whirlpool Bracket Spring Backorder WPL WP33001793 $3.84

CLIP, GROUNDING WPL 22002244 Contact Us For Availability

SCREW----NA WPL 312311 Contact Us For Availability

2 POS. ROCKER SWITCH (BSQ) WPL 33002418 Contact Us For Availability

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $2.60

COVER, BLOWER HOUSING WPL 33001796 Contact Us For Availability

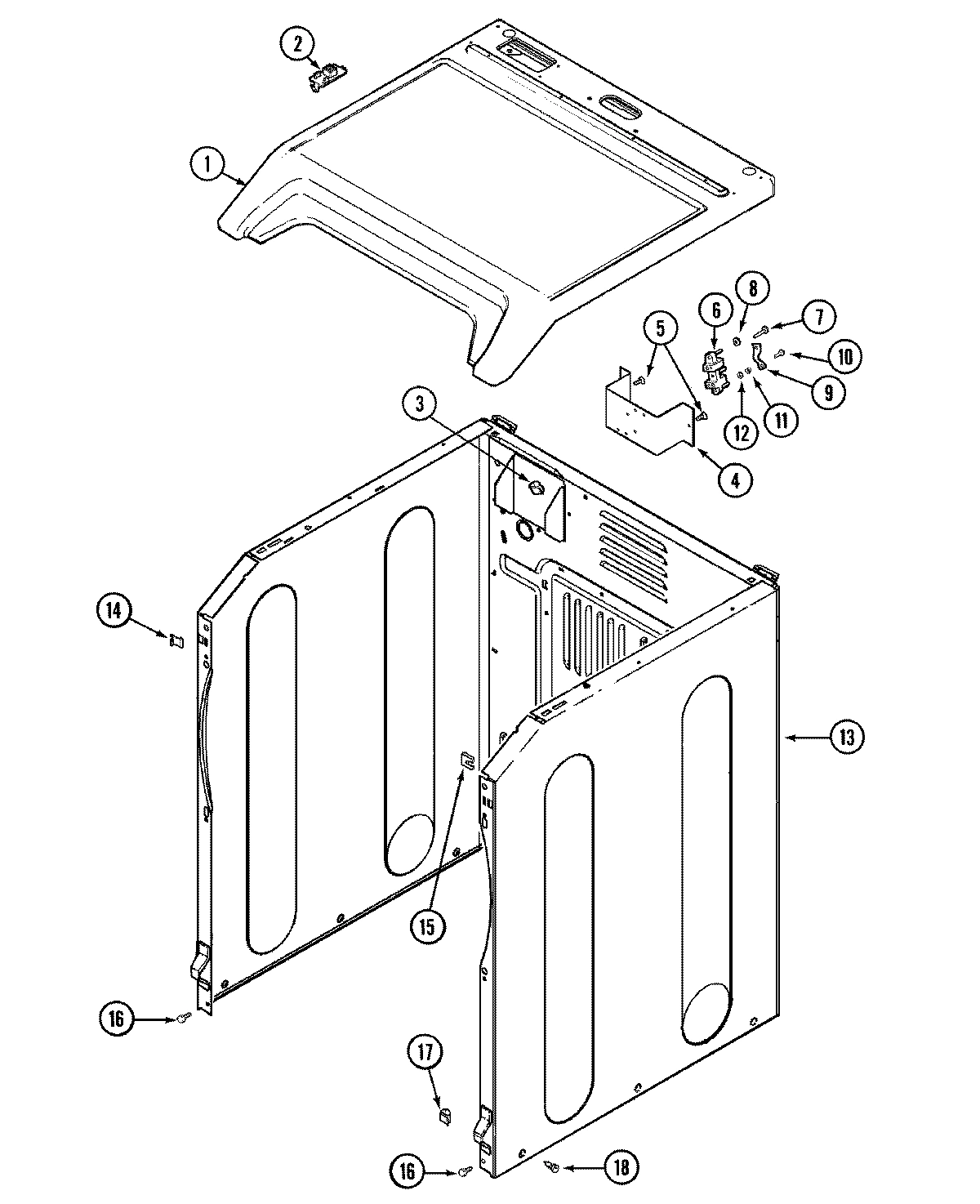

CABINET ASSY. (BISQUE AS PK) WPL 22003640 Contact Us For Availability

SIGNAL, END OF CYCLE (CHIME) WPL 33001848 Contact Us For Availability

STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability

BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability

14

WP33001807 Whirlpool Felt Seal In Stock WPL WP33001807 $8.63

14

SCREW WPL 314818 Contact Us For Availability

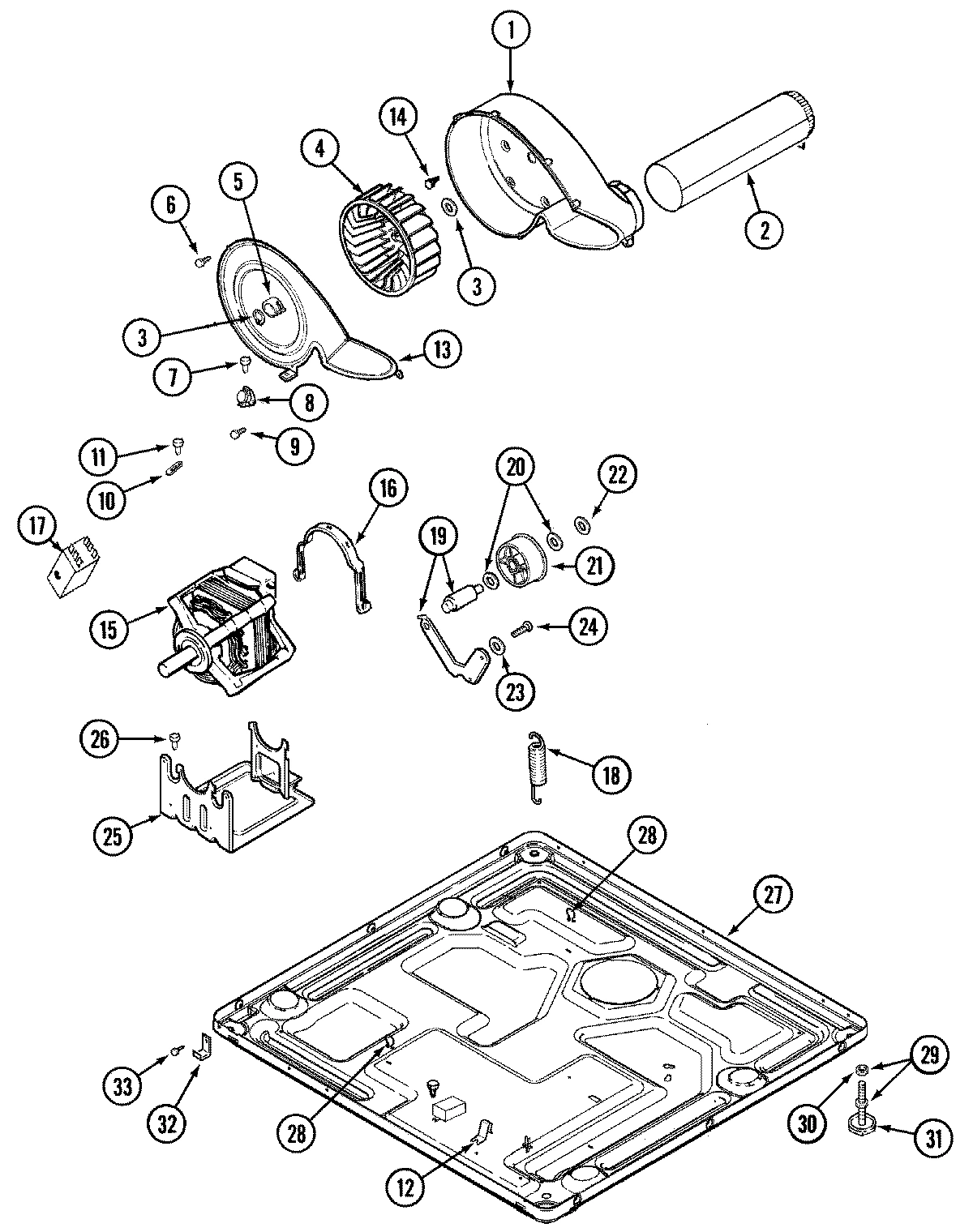

W10410997 Whirlpool Drive Motor In Stock WPL W10410997 $94.92

WP33002032 Whirlpool Drum Baffle In Stock WPL WP33002032 $12.51

WP33002795 Whirlpool Drive Motor In Stock WPL WP33002795 $136.05

FRONT PANEL BRACKET/FASTENER WPL 213280 Contact Us For Availability

PLUG, INNER DOOR WPL 33001763 Contact Us For Availability

CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability

WP33001755 Whirlpool Drum Baffle In Stock WPL WP33001755 $16.99

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $9.56

CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability

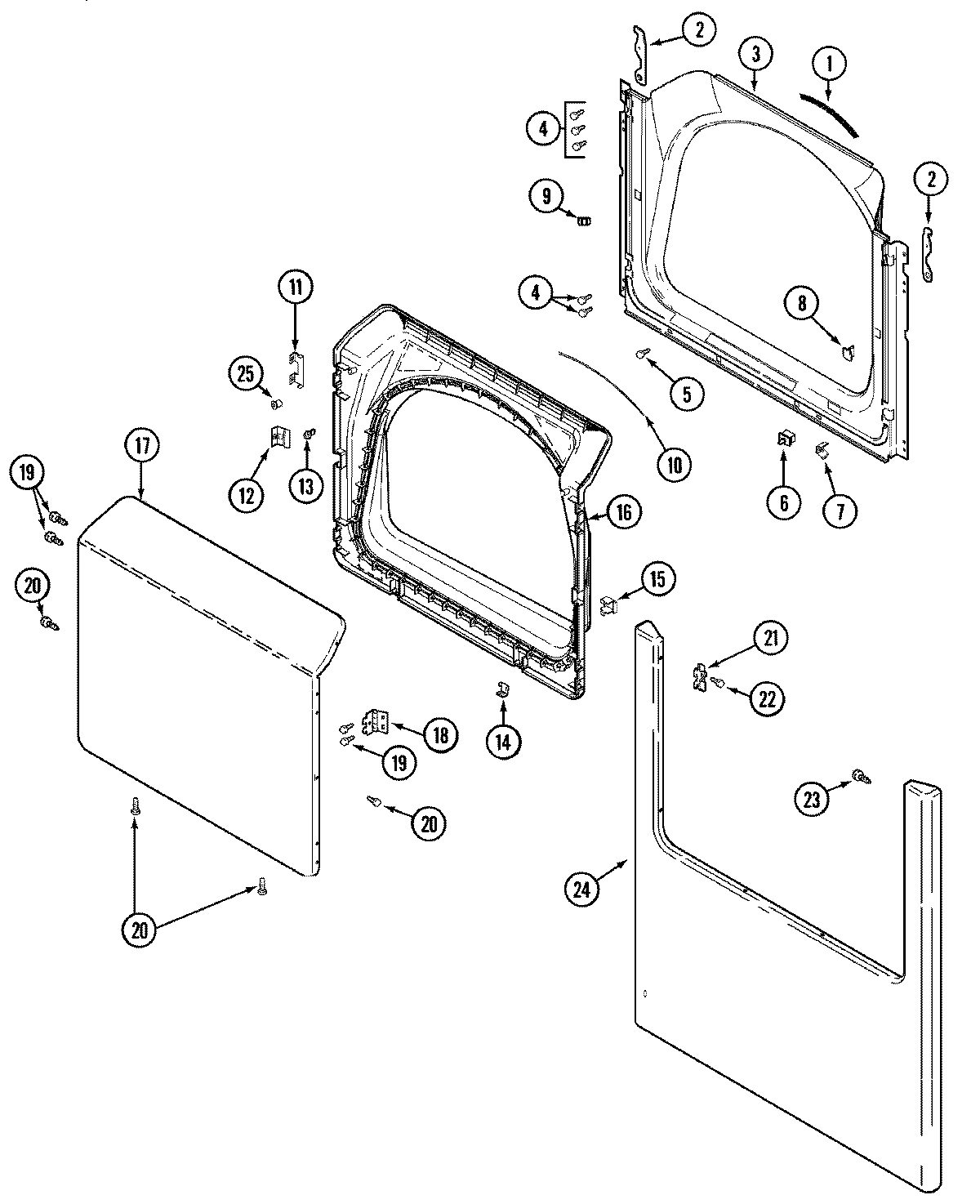

DOOR, INNER/ W SEAL (BSQ) WPL 33002397 Contact Us For Availability

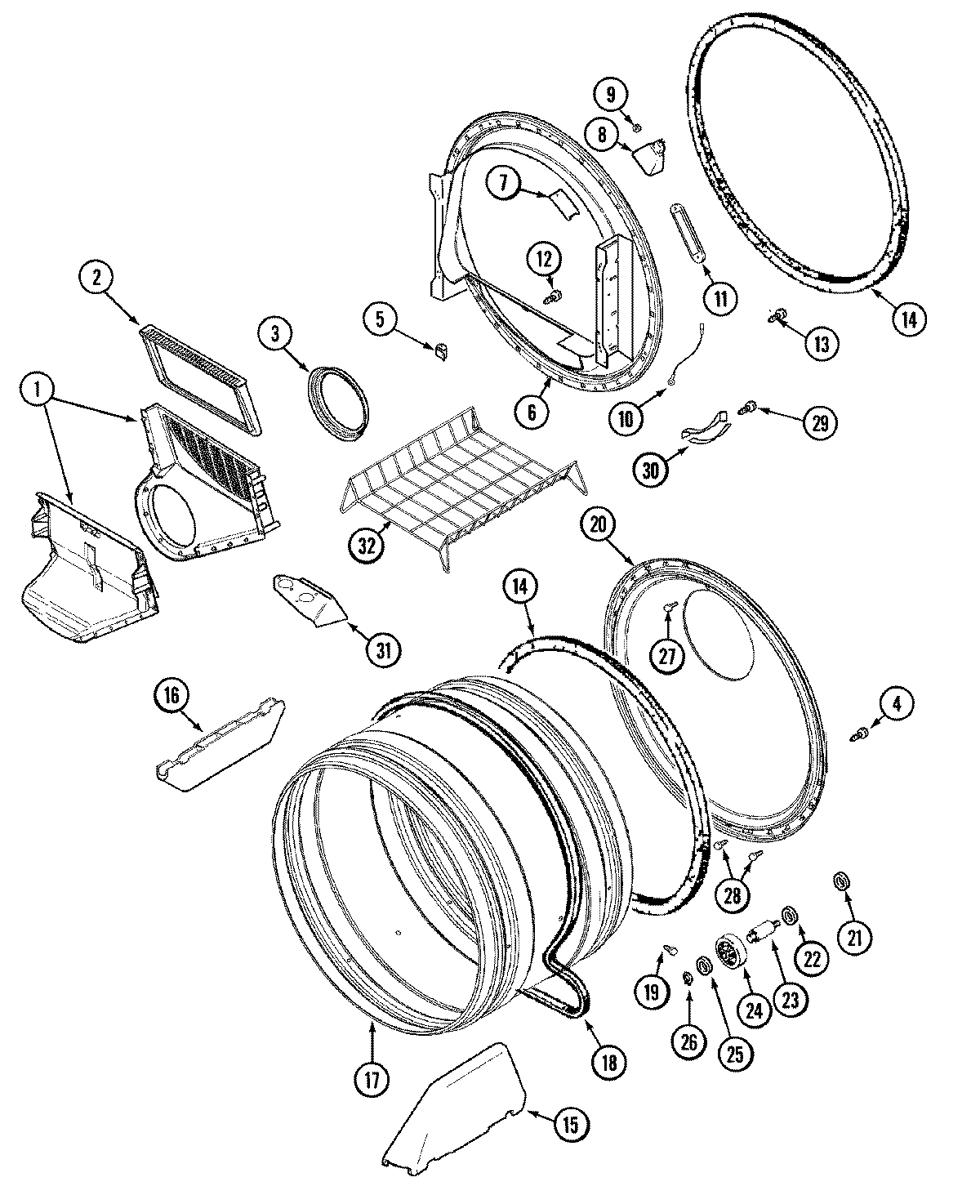

TUMBLER WPL 33001889 Contact Us For Availability

SCREW WPL Y310632 Contact Us For Availability

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

TUMBLER BACK & SEAL AS-PACK WPL 33002779 Contact Us For Availability

PANEL, DOOR (BSQ-W/MEDALLION) WPL 33002431 Contact Us For Availability

213007 Whirlpool Screw #12 Backorder WPL 213007 $7.71

33002459 Whirlpool Idler Spring Backorder WPL 33002459 $2.60

WP33001759 Whirlpool Door Hinge Backorder WPL WP33001759 $43.66

WP33002535 Whirlpool Dryer Drive Belt In Stock WPL WP33002535 $13.00

PLUG FOR SPRING WPL 33002461 Contact Us For Availability

19

WP6-3705180 Whirlpool Idler Pulley Lever In Stock WPL WP6-3705180 $36.61

19

WP98006631 Whirlpool Screw Backorder WPL WP98006631 $2.60

19

SCREW, BAFFLE WPL 33001788 Contact Us For Availability

20

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $4.04

20

BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability

20

SCREW (No.8-18 OUTER DOOR (BSQ) WPL 33002351 Contact Us For Availability

21

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $2.60

21

BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability

21

COVER, HINGE HOLE (BSQ) WPL 33002349 Contact Us For Availability

22

WP33001787 Whirlpool Screw Backorder WPL WP33001787 $5.89

22

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $5.13

23

6-3129480CM Choice Shaft-Tumblr In Stock CMP 6-3129480CM $3.31

23

WP315772 Whirlpool Sleeve In Stock WPL WP315772 $4.96

24

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $8.00

24

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $2.60

24

PANEL, FRONT (BSQ) WPL 33002396 Contact Us For Availability

25

WP312535 Whirlpool Washer Backorder WPL WP312535 $5.13

25

SUPPORT, MOTOR WPL 33002466 Contact Us For Availability

26

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.13

26

SCREW----NA WPL Y313561 Contact Us For Availability

27

BASE, (LWR)----NA WPL 33002465 Contact Us For Availability

27

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

28

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability

29

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

29

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.96

30

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $5.49

30

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.60

32

CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability

32

RACK, DRYING WPL 33001917 Contact Us For Availability

NI

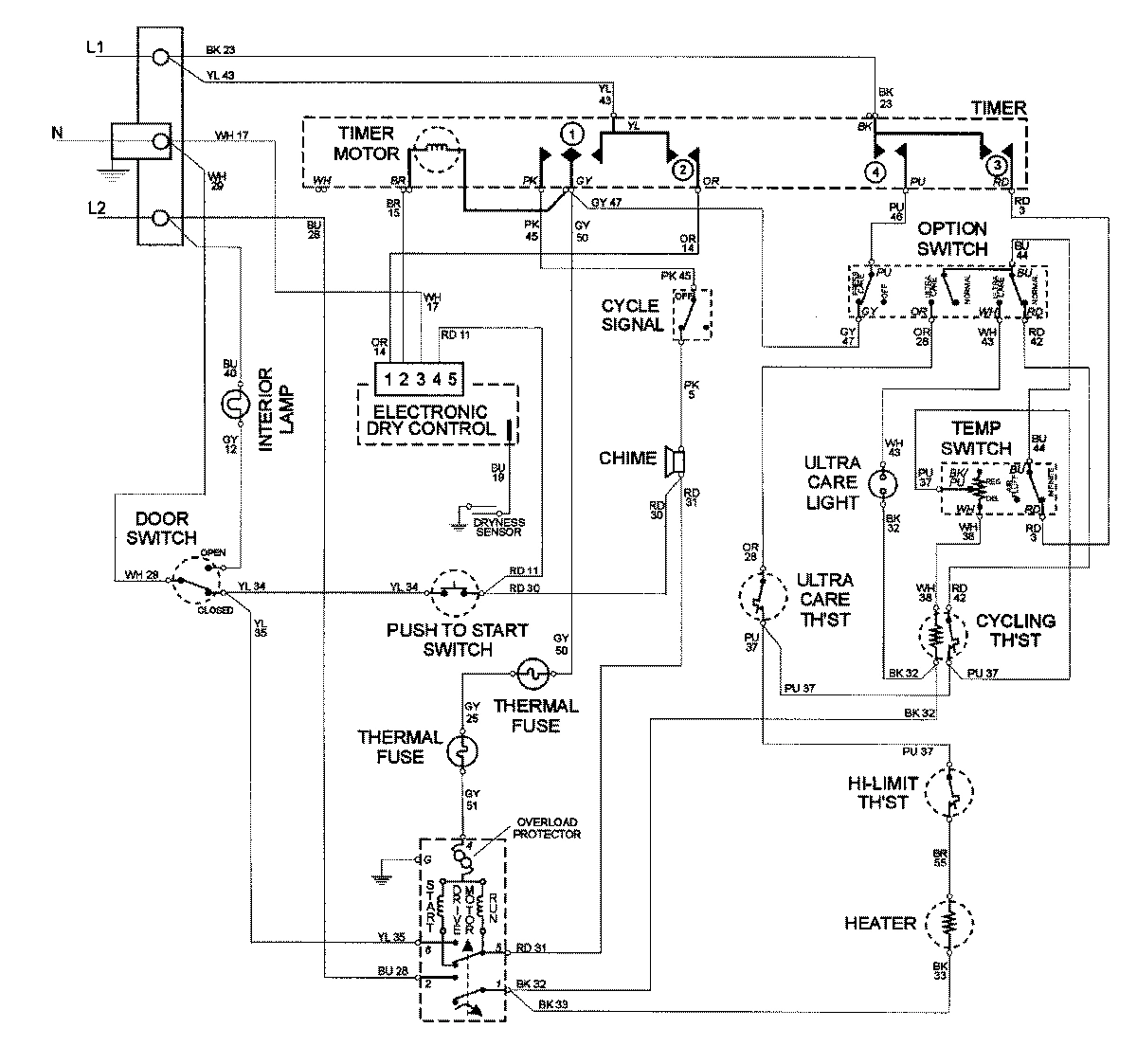

WIRING INFORMATION WPL 15002678 Contact Us For Availability
