Model Whirlpool MDE8400AYW ELECTRIC DRYER – Common Parts & Diagrams

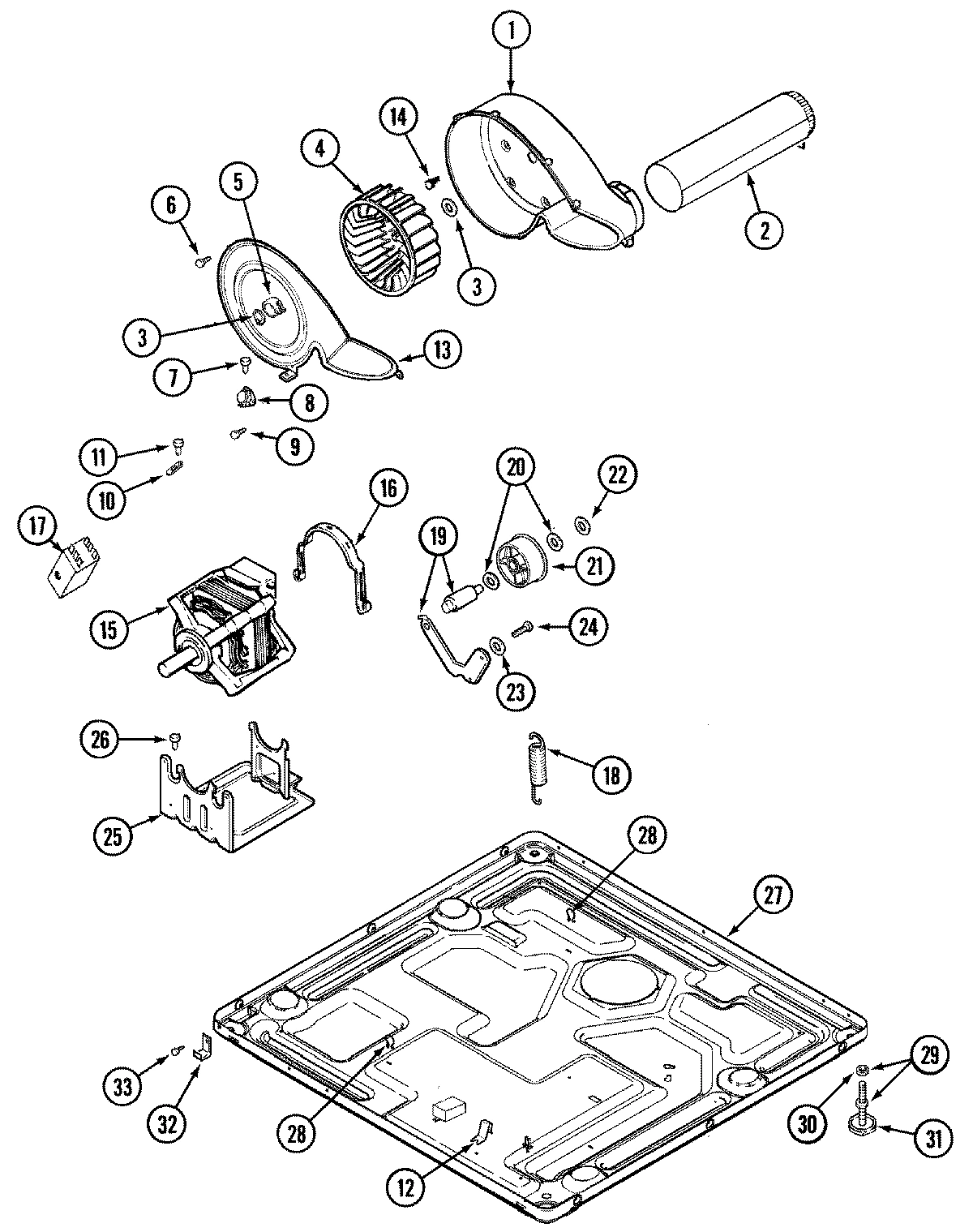

06 - MOTOR DRIVE

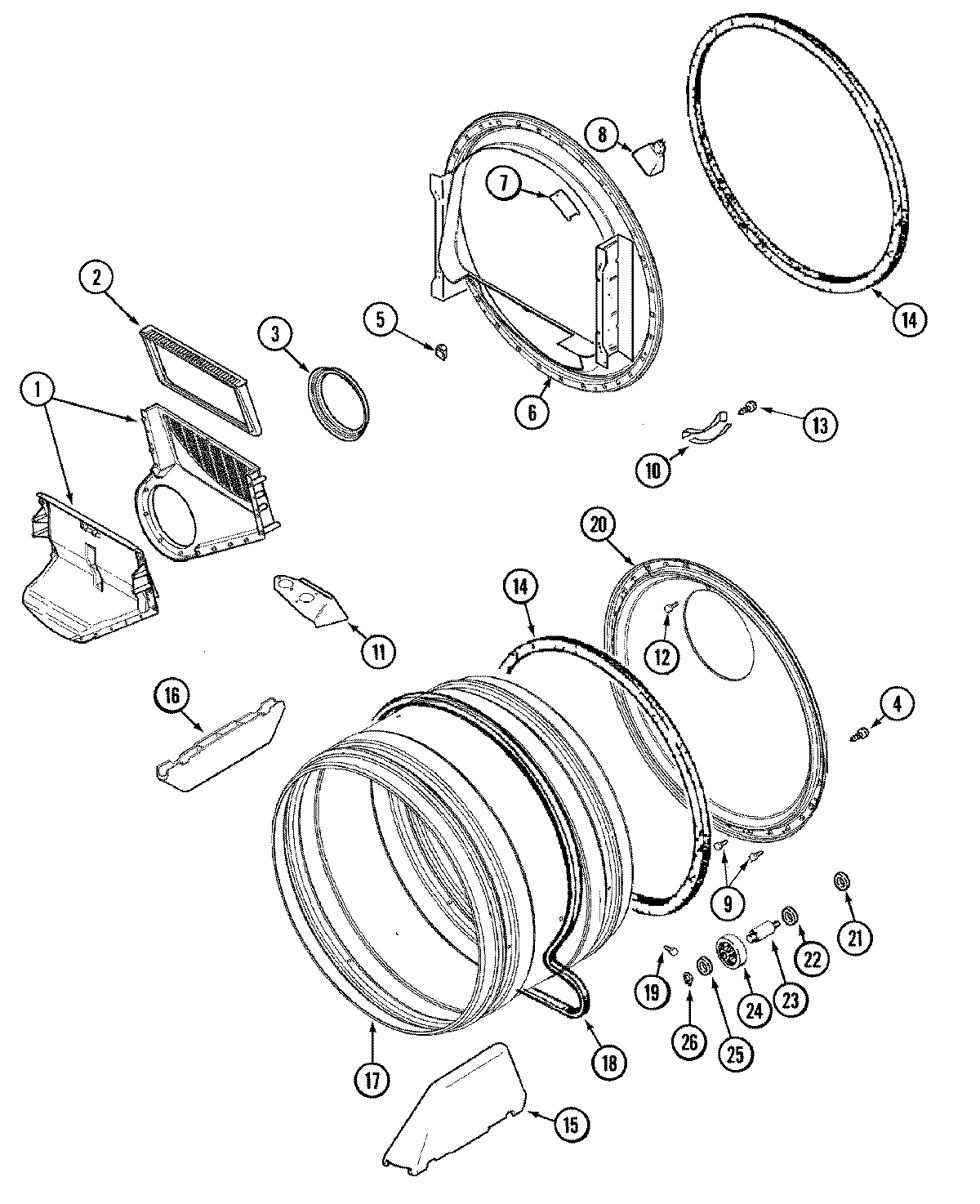

08 - TUMBLER

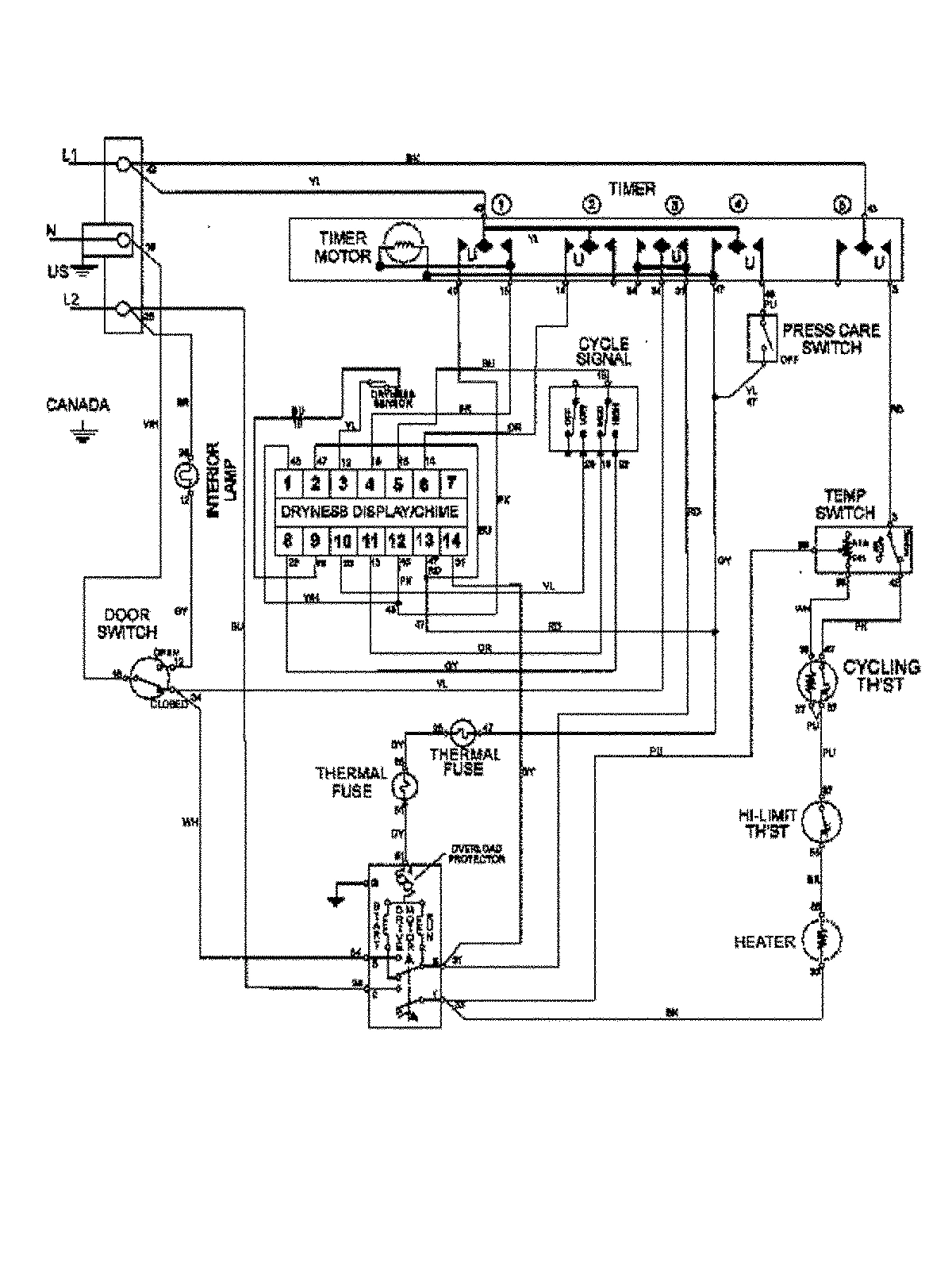

10 - WIRING INFORMATION

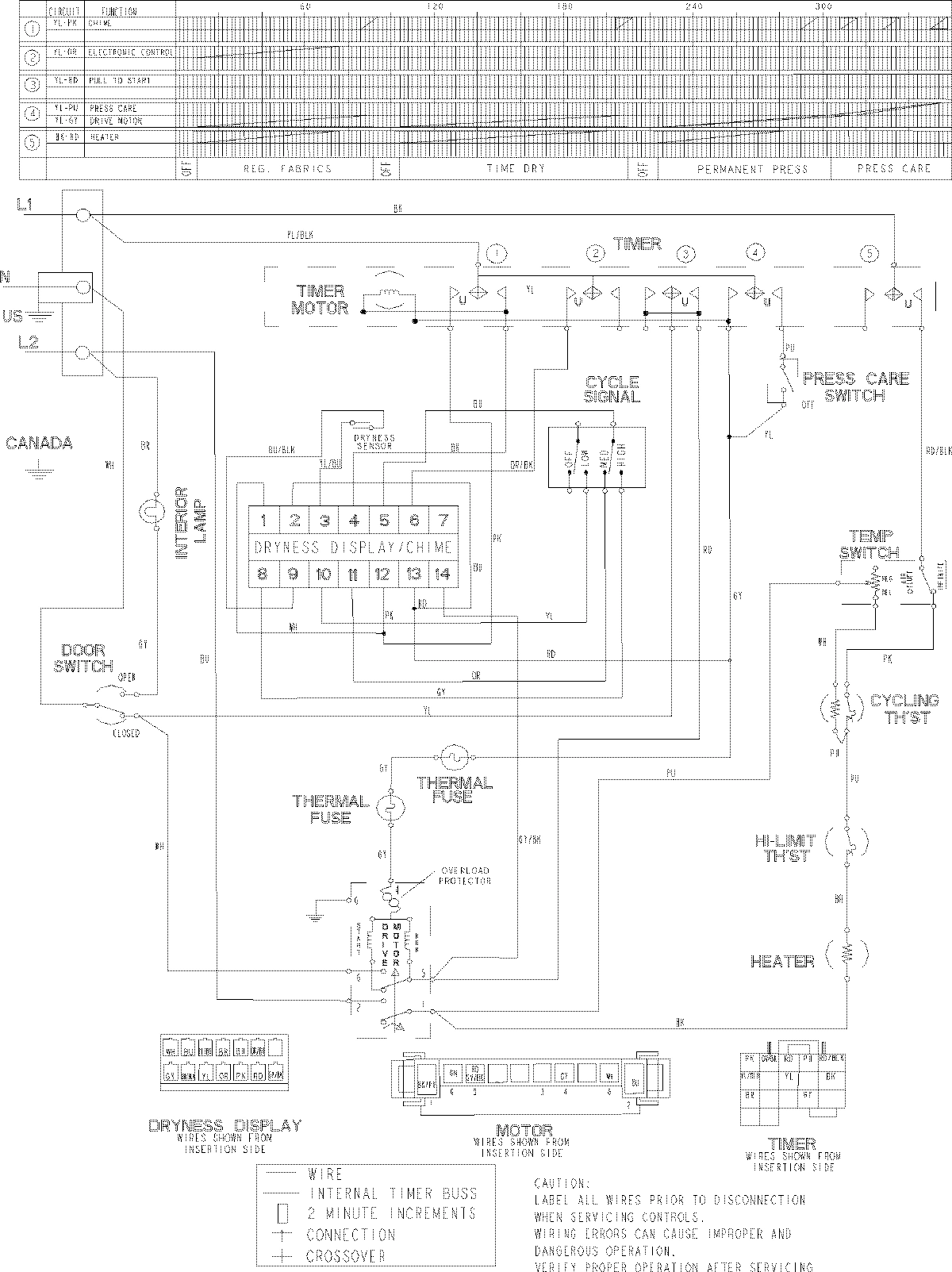

11 - WIRING INFORMATION

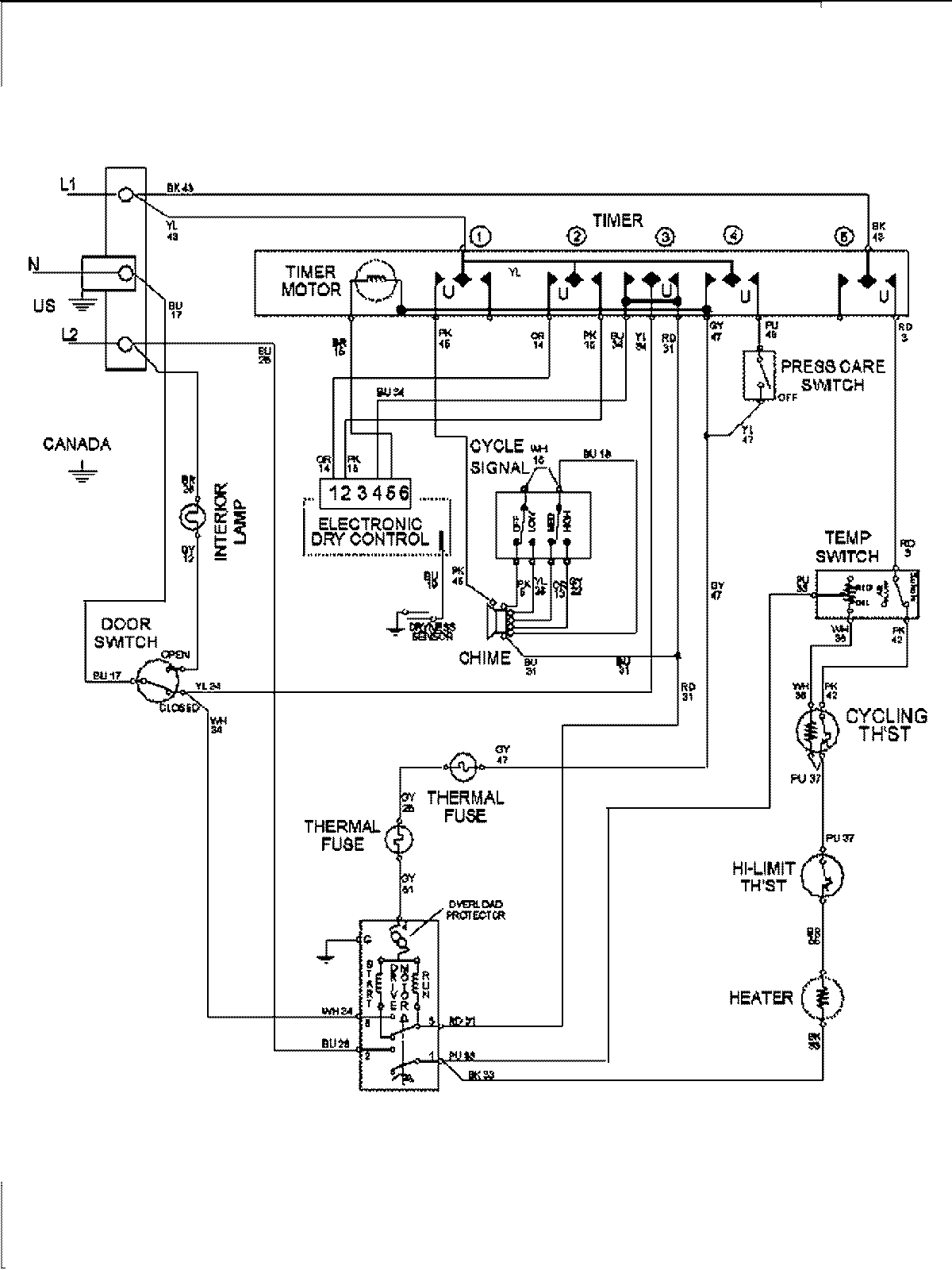

09 - WIRING INFORMATION

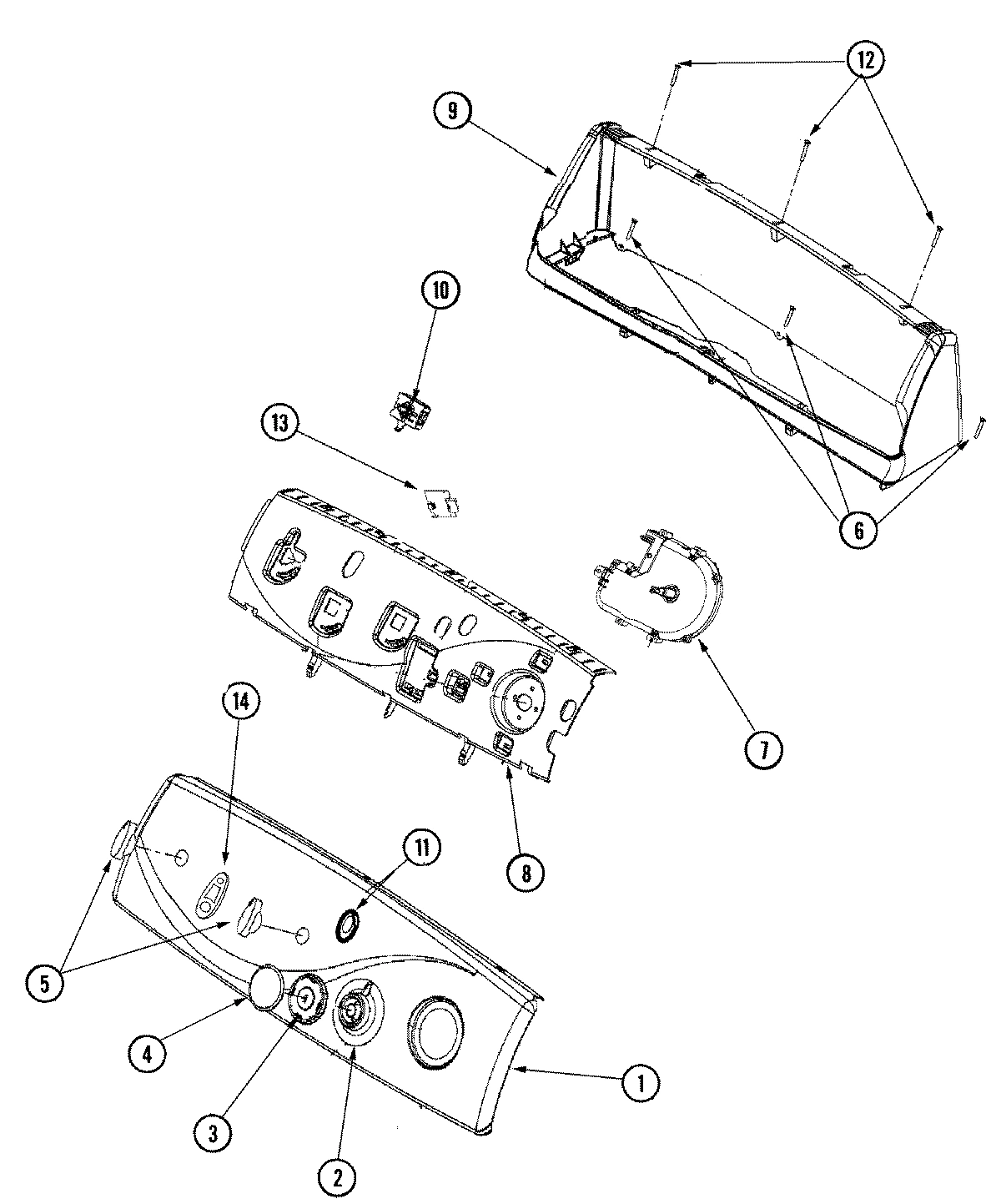

02 - CONTROL PANEL
04 - GAS VALVE

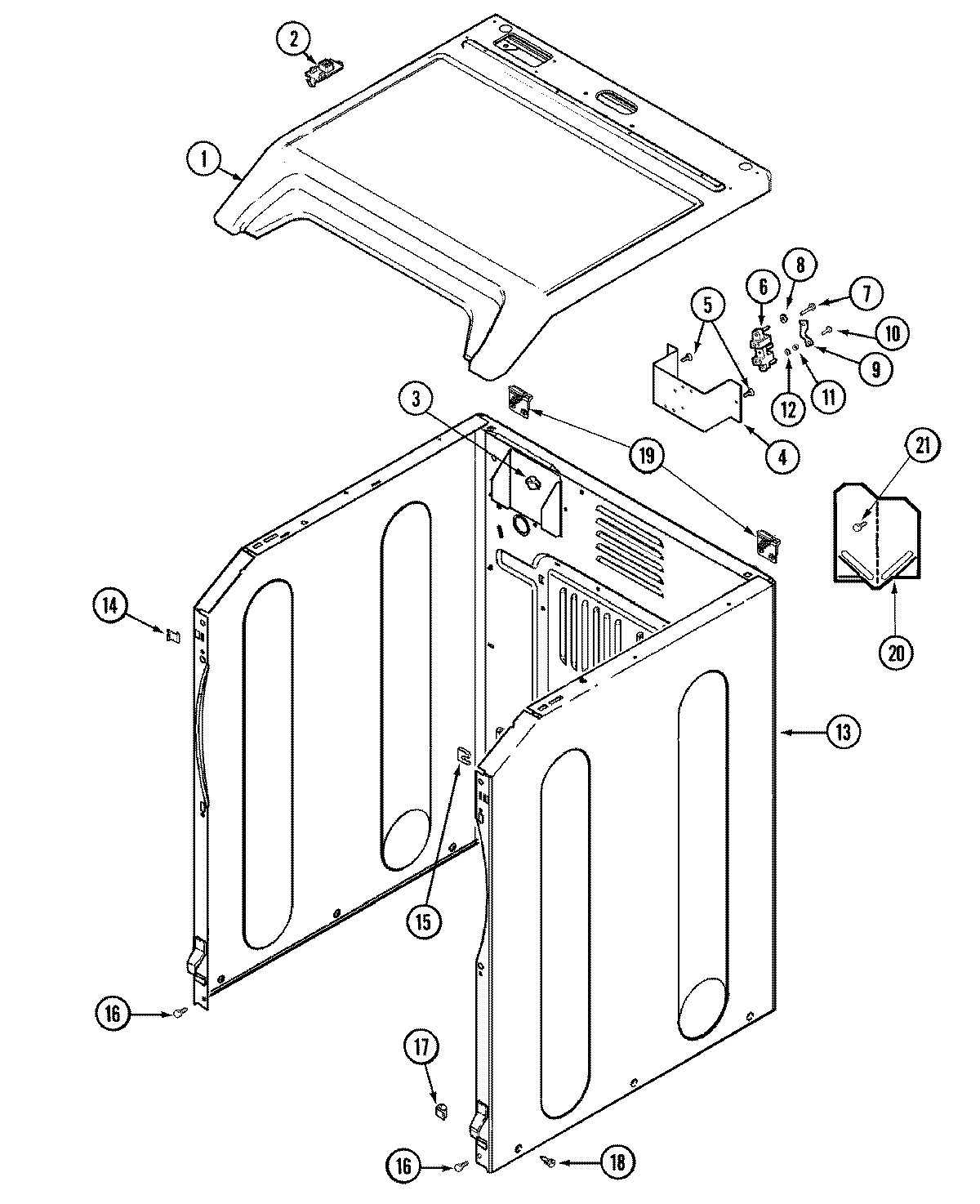

01 - CABINET

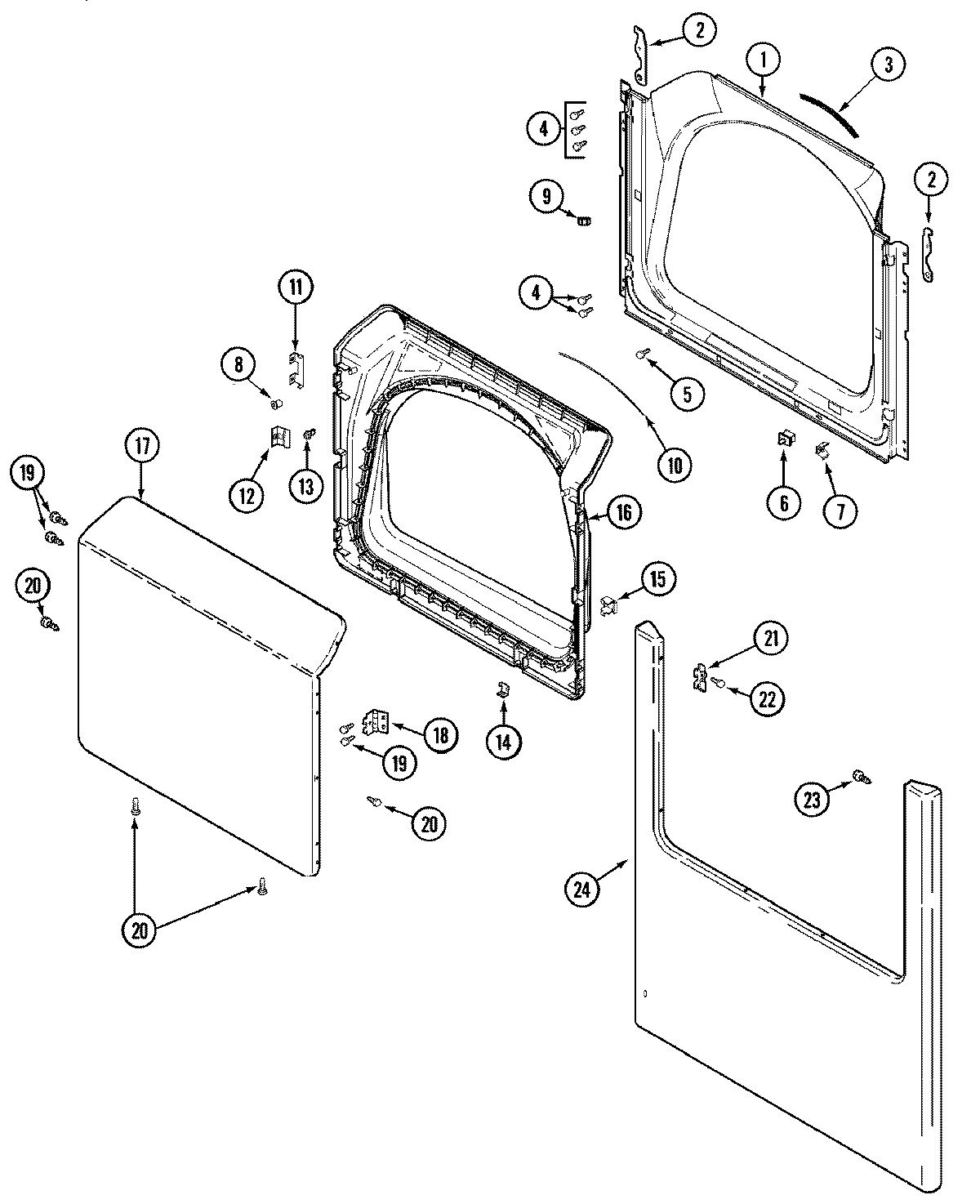

03 - DOOR
05 - HEATER
07 - SUPPLEMENTAL INFORMATION
Common parts from model Whirlpool MDE8400AYW ELECTRIC DRYER
1
WIRE HARNESS, ELECTRIC WPL 33002810 Contact Us For Availability
1
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
1
WIRING INFORMATION ELEC WPL 15003369 Contact Us For Availability
1
WIRING INFORMATION (ELEC) WPL 15003281 Contact Us For Availability
1
FACIA, CONTROL PANEL (WHT) WPL 33002730 Contact Us For Availability
1
COVER, TOP (WHT-AS PK) WPL 33002627 Contact Us For Availability
1
SHROUD (WHT) WPL 33001778 Contact Us For Availability
1
WIRE HARNESS, ELEC WPL 33002756 Contact Us For Availability
1
WIRE HARNESS, GAS WPL 33002809 Contact Us For Availability
1
HARNESS, WIRE ELEC WPL 33002908 Contact Us For Availability
1
HARNESS, WIRE WPL 33002957 Contact Us For Availability
2
HOOK, SECURITY WPL 33002597 Contact Us For Availability
2
TIMER DIAL SKIRT (WHT) WPL 22003953 Contact Us For Availability
2
PIN, LOCATOR WPL 33002599 Contact Us For Availability
2
INLET DUCT ASSEMBLY (ELECTRIC) WPL 33002767 Contact Us For Availability
2
MANUAL, USE & CARE WPL 33002720 Contact Us For Availability
2
MANUAL, USE & CARE WPL 63721670 Contact Us For Availability
3
SEAL, BLOWER WPL 33002560 Contact Us For Availability
3
SCREW WPL 304971 Contact Us For Availability
3
SEAL, SHROUD WPL 33001767 Contact Us For Availability
3
HEATER ENCLOSURE WPL 314995 Contact Us For Availability
4
SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability
4
BRACKET, TERMINAL BLOCK----NA WPL 33001826 Contact Us For Availability
4
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
5
ENG. TOL. COMPENSATOR (SPACER) WPL 22004050 Contact Us For Availability
5
SCREW, SHROUD WPL 33001768 Contact Us For Availability
5
GROMMET, CORD WPL 211881 Contact Us For Availability
6
SENSOR BAR ASSY. WPL 33001809 Contact Us For Availability
6
FRONT, TUMBLER FRONT W/SENSOR WPL 33001868 Contact Us For Availability
6
SHIELD, RADIANT WPL 314999 Contact Us For Availability
7
CORD, POWER (AS WRAPPED) WPL 33001689 Contact Us For Availability
7
CHIME / BUZZER WPL 33002732 Contact Us For Availability
7
4 POSITION CHIME SWITCH WPL 33002743 Contact Us For Availability
7
TIMER WPL 33002808 Contact Us For Availability
7
TIMER WPL 33002854 Contact Us For Availability
7
TIMER WPL 33002855 Contact Us For Availability
7
SWITCH, 4 POSITION WPL 33002871 Contact Us For Availability
7
BRACKET, HINGE WPL 33001760 Contact Us For Availability
7
SCREW WPL 314554 Contact Us For Availability
7
DRYING RACK HANGER WPL 33002745 Contact Us For Availability
8
HOLDER, LAMP (W/HOUSING) WPL 33001870 Contact Us For Availability
8
DRYER SWITCH SUPPORT WPL 33002738 Contact Us For Availability
8
BUSHING, INNER DOOR WPL 33001771 Contact Us For Availability
8
DRYING RACK TOP WPL 33002737 Contact Us For Availability
9
SCREW----NA WPL Y313561 Contact Us For Availability
9
CONSOLE HOUSING (WHT) WPL 22003960 Contact Us For Availability
9
STRAP, GROUND WPL Y312184 Contact Us For Availability
9
ELECTRICAL TEST CORD WPL 038183 Contact Us For Availability
10
ROTARY INFINITE TEMP. SWITCH WPL 33002724 Contact Us For Availability
10
BRACKET, GAS VALVE----NA WPL 33001834 Contact Us For Availability
10
MOVER, APPLIANCE WPL 20001057 Contact Us For Availability
11
COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability
11
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
11
MULTI-WRENCH, FLAT WPL 20001069 Contact Us For Availability
12
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
12
SCREW WPL Y310632 Contact Us For Availability
12
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
13
COVER, BLOWER HOUSING----NA WPL 33001873 Contact Us For Availability
13
3 LIGHT DRYNESS DISPLAY WPL 33002734 Contact Us For Availability
13
SENSOR ASSY (CHIME & DRYNESS) WPL 33002905 Contact Us For Availability
13
SCREW WPL 22003556 Contact Us For Availability
13
CABINET ASSY. (WHT, AS PK) WPL 22003641 Contact Us For Availability
13
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
13
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
14
LENS CARRIER ASSEMBLY (WHT) WPL 33002746 Contact Us For Availability
14
PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability
14
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
15
FRONT PANEL BRACKET/FASTENER WPL 213280 Contact Us For Availability
15
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
15
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
16
INLET DUCT ASSEMBLY (GAS) WPL 33002765 Contact Us For Availability
16
DOOR, INNER/ W SEAL (WHT) WPL 33001750 Contact Us For Availability
17
TUMBLER WPL 33001889 Contact Us For Availability
17
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
17
OUTER DOOR AS-PACK (WHT) WPL 33002786 Contact Us For Availability
18
GROMMET WPL 33002157 Contact Us For Availability
19
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
19
CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability
19
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
19
HINGE, PLASTIC WPL 22003367 Contact Us For Availability
20
TUMBLER BACK & SEAL AS-PACK WPL 33002779 Contact Us For Availability
20
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
20
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
20
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
21
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
22
CAP, GAS PIPE WPL 33001693 Contact Us For Availability
25
SUPPORT, MOTOR WPL 33002466 Contact Us For Availability
27
BASE, (LWR)----NA WPL 33002465 Contact Us For Availability
28
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
29
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
32
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003539 Contact Us For Availability
× ![]()
