Model Maytag MDE16PRDZW ELECTRIC DRYER – Common Parts & Diagrams
01 - CONTROL PANEL
02 - CABINET-FRONT

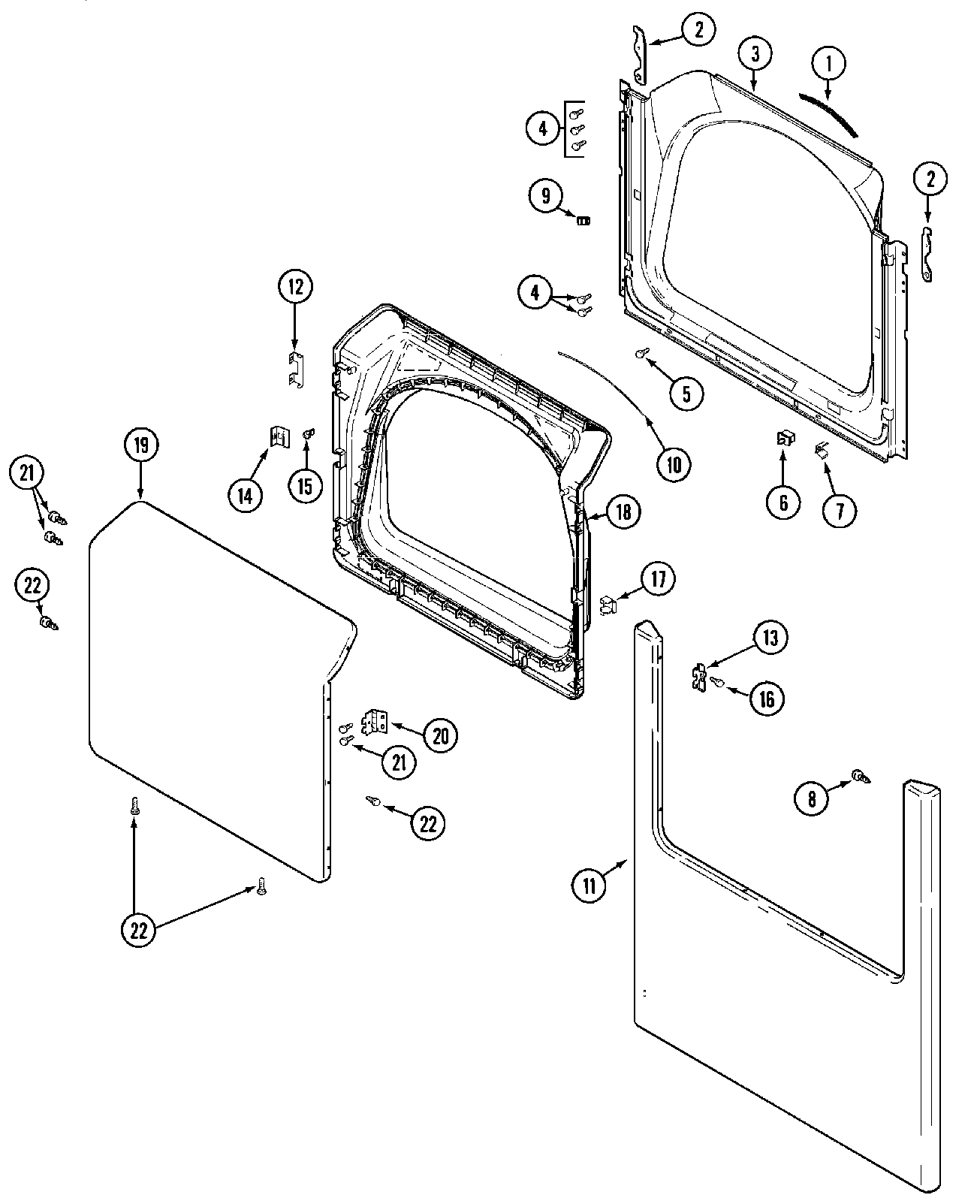

03 - DOOR

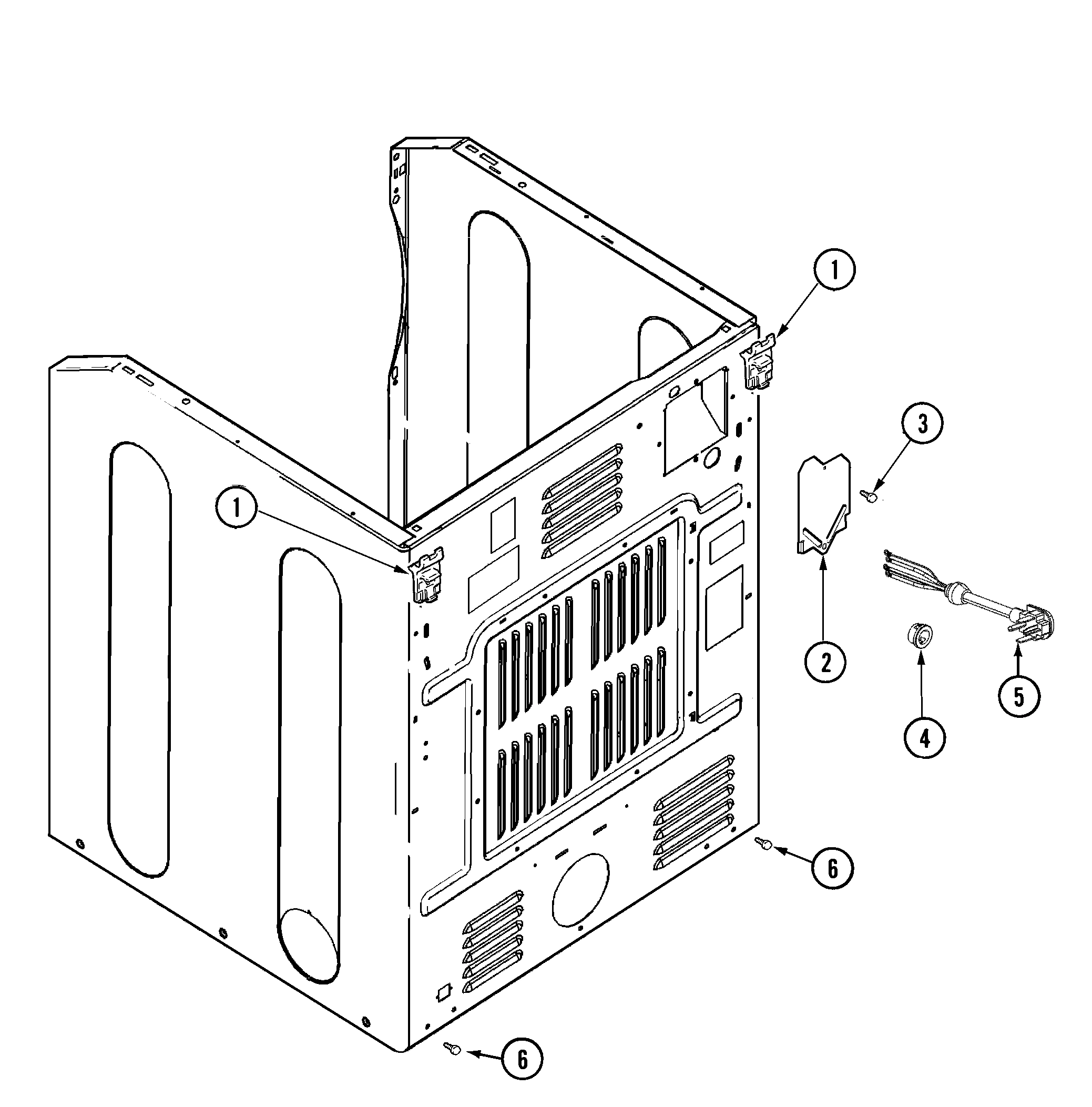

04 - CABINET-REAR

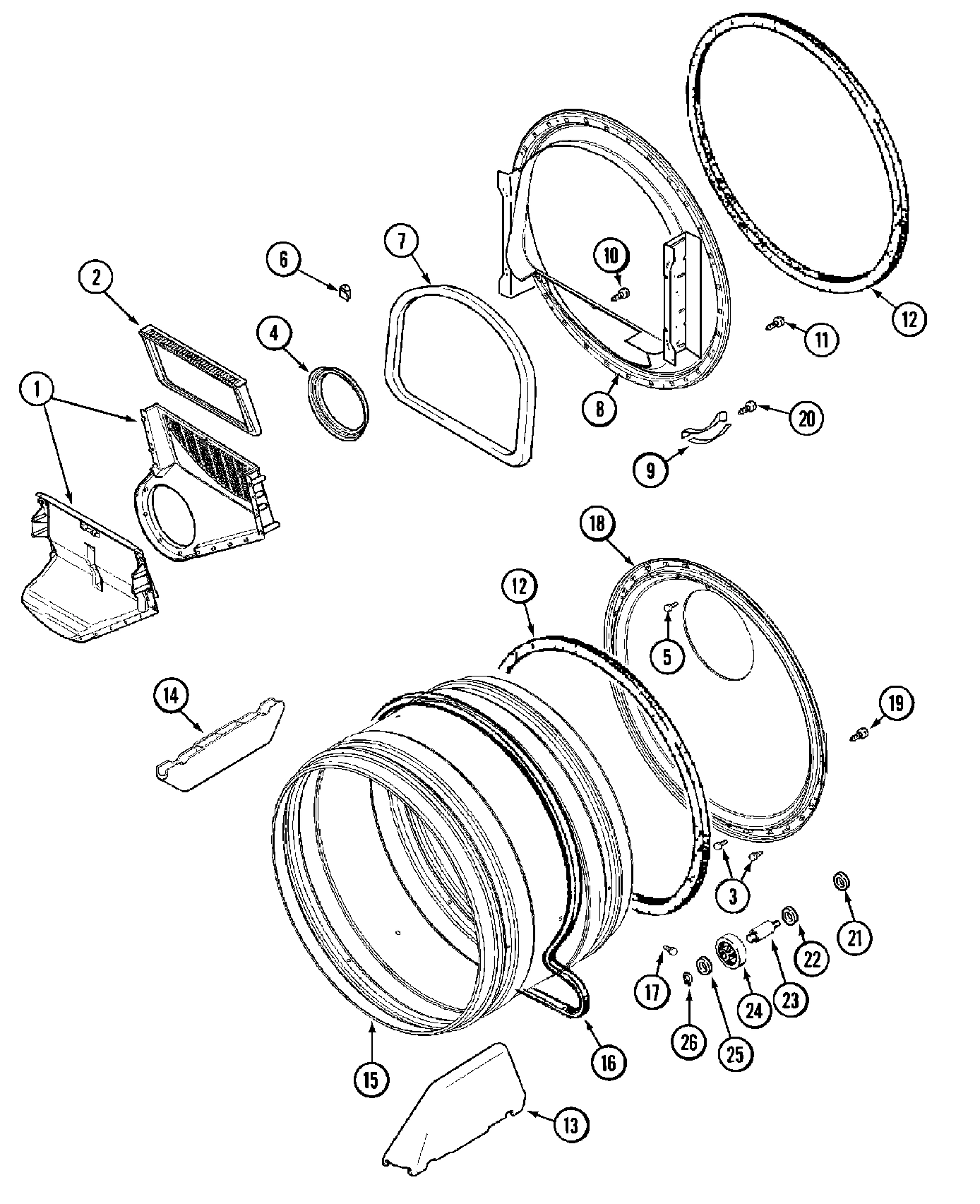

05 - TUMBLER
06 - HEATER

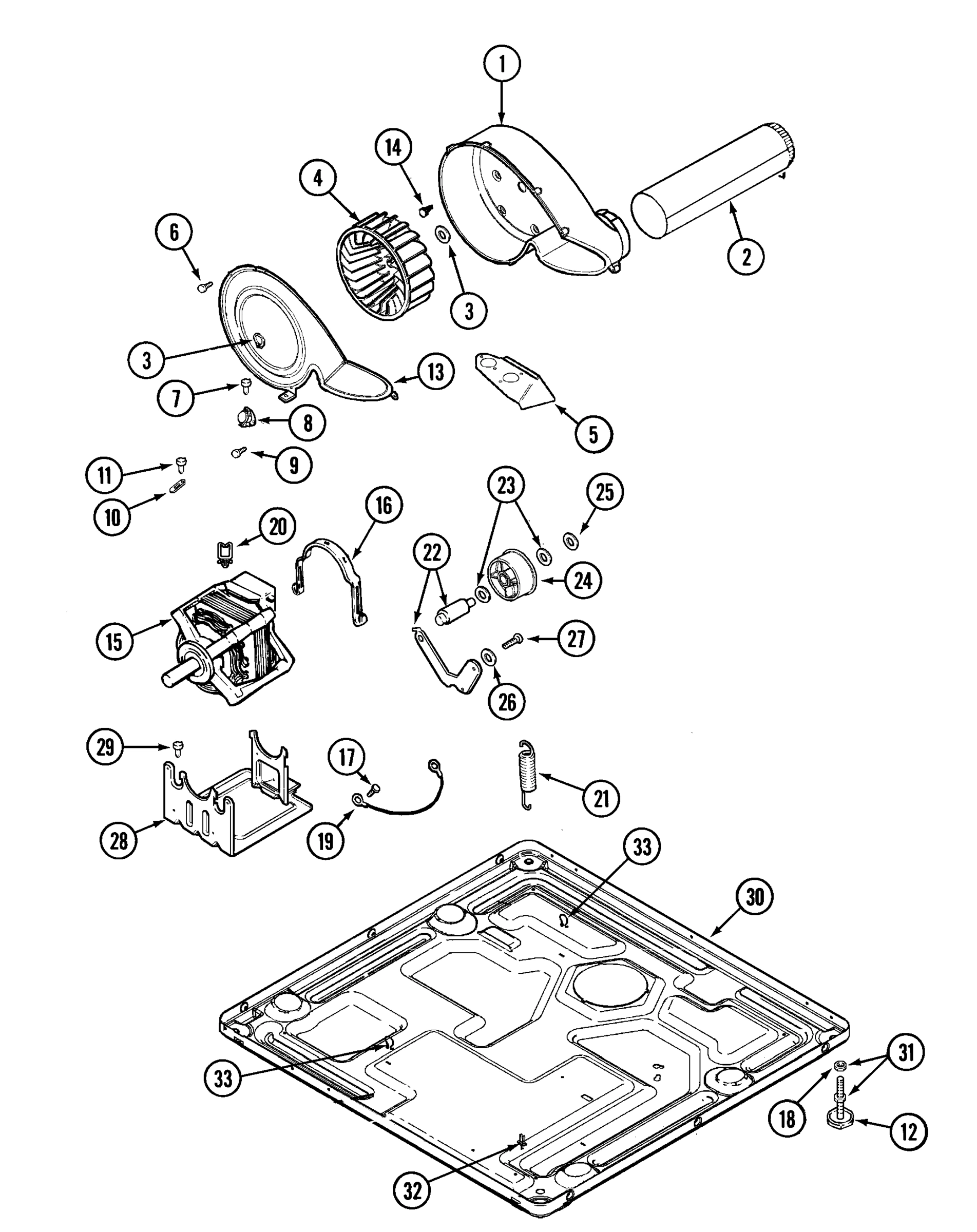

07 - MOTOR DRIVE

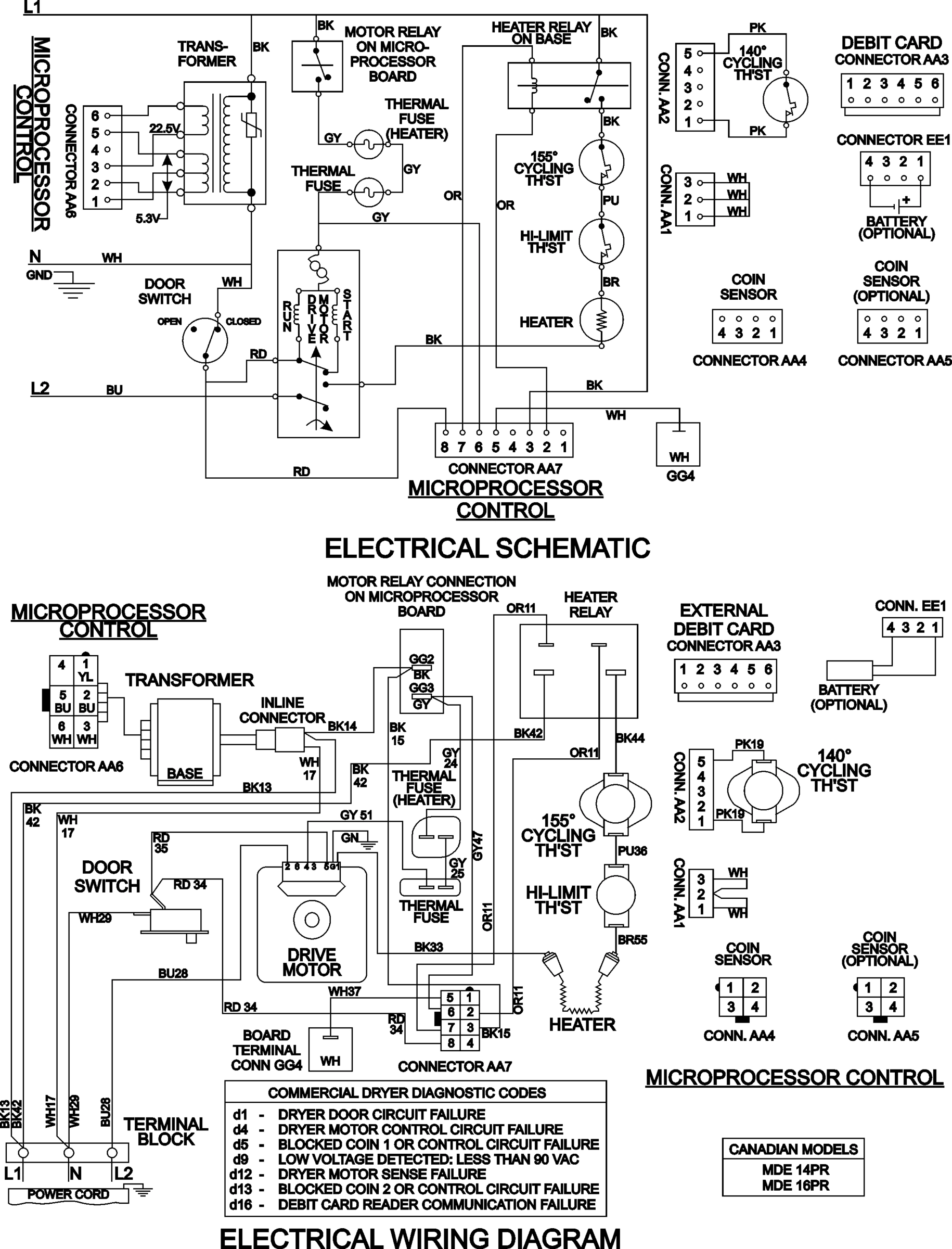

08 - WIRING INFORMATION
Common parts from model Maytag MDE16PRDZW ELECTRIC DRYER
001
MAY 33001799 MAY 33001799 Contact Us For Availability
001
MAY 22004095 MAY 22004095 Contact Us For Availability
001
WIRING INFORMATION MAY NLA Contact Us For Availability
002
MAY 33001795 MAY 33001795 Contact Us For Availability
002
MAY 33001803 MAY 33001803 Contact Us For Availability
002
MAY 33003038 MAY 33003038 Contact Us For Availability
002
MAY 33001800 MAY 33001800 Contact Us For Availability
003
MAY 314995 MAY 314995 Contact Us For Availability
003
SCREW, INLET DUCT MAY 210932 Contact Us For Availability
004
CONTROL SWITCH ASSEMBLY MAY 306694 Contact Us For Availability
004
MAY 33001425 MAY 33001425 Contact Us For Availability
004
MAY 33002631 MAY 33002631 Contact Us For Availability
004
MAY 33002560 MAY 33002560 Contact Us For Availability
004
MAY 314998 MAY 314998 Contact Us For Availability
005
MAY 33002916 MAY 33002916 Contact Us For Availability
005
MAY 307184 MAY 307184 Contact Us For Availability
005
MAY 307185 MAY 307185 Contact Us For Availability
005
MAY 33001837 MAY 33001837 Contact Us For Availability
006
MAY 33002523 MAY 33002523 Contact Us For Availability
006
MAY 314999 MAY 314999 Contact Us For Availability
007
MAY 33001767 MAY 33001767 Contact Us For Availability
008
MAY 33001802 MAY 33001802 Contact Us For Availability
010
MAY 22001960 MAY 22001960 Contact Us For Availability
012
MAY Y314137 MAY Y314137 Contact Us For Availability
012
MAY 22002038 MAY 22002038 Contact Us For Availability
013
MAY 33001764 MAY 33001764 Contact Us For Availability
013
MAY 33001756 MAY 33001756 Contact Us For Availability
013
MAY 315346 MAY 315346 Contact Us For Availability
013
MAY 33002711 MAY 33002711 Contact Us For Availability
014
SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability
015
MAY 33001761 MAY 33001761 Contact Us For Availability
015
MAY 33001794 MAY 33001794 Contact Us For Availability
015
MAY Y308590 MAY Y308590 Contact Us For Availability
017
MAY 33001763 MAY 33001763 Contact Us For Availability
017
MAY 33001788 MAY 33001788 Contact Us For Availability
017
MAY 910343 MAY 910343 Contact Us For Availability
018
MAY 22002039 MAY 22002039 Contact Us For Availability
018
MAY 33002779 MAY 33002779 Contact Us For Availability
018
MAY 33003037 MAY 33003037 Contact Us For Availability
019
MAY 901220 MAY 901220 Contact Us For Availability
020
MAY 22002239 MAY 22002239 Contact Us For Availability
020
MAY Y310376 MAY Y310376 Contact Us For Availability
021
MAY 33002461 MAY 33002461 Contact Us For Availability
023
MAY Y312527 MAY Y312527 Contact Us For Availability
024
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
026
MAY 33002218 MAY 33002218 Contact Us For Availability
028
MAY 33002817 MAY 33002817 Contact Us For Availability
029
SCREW, MOTOR & BLOWER MAY Y313561 Contact Us For Availability
030
MAY 306199 MAY 306199 Contact Us For Availability
030
MAY 22004151 MAY 22004151 Contact Us For Availability
030
MAY 33002969 MAY 33002969 Contact Us For Availability
031
MAY Y305086 MAY Y305086 Contact Us For Availability
032
MAY 315471 MAY 315471 Contact Us For Availability
033
MAY 410490 MAY 410490 Contact Us For Availability
× ![]()
