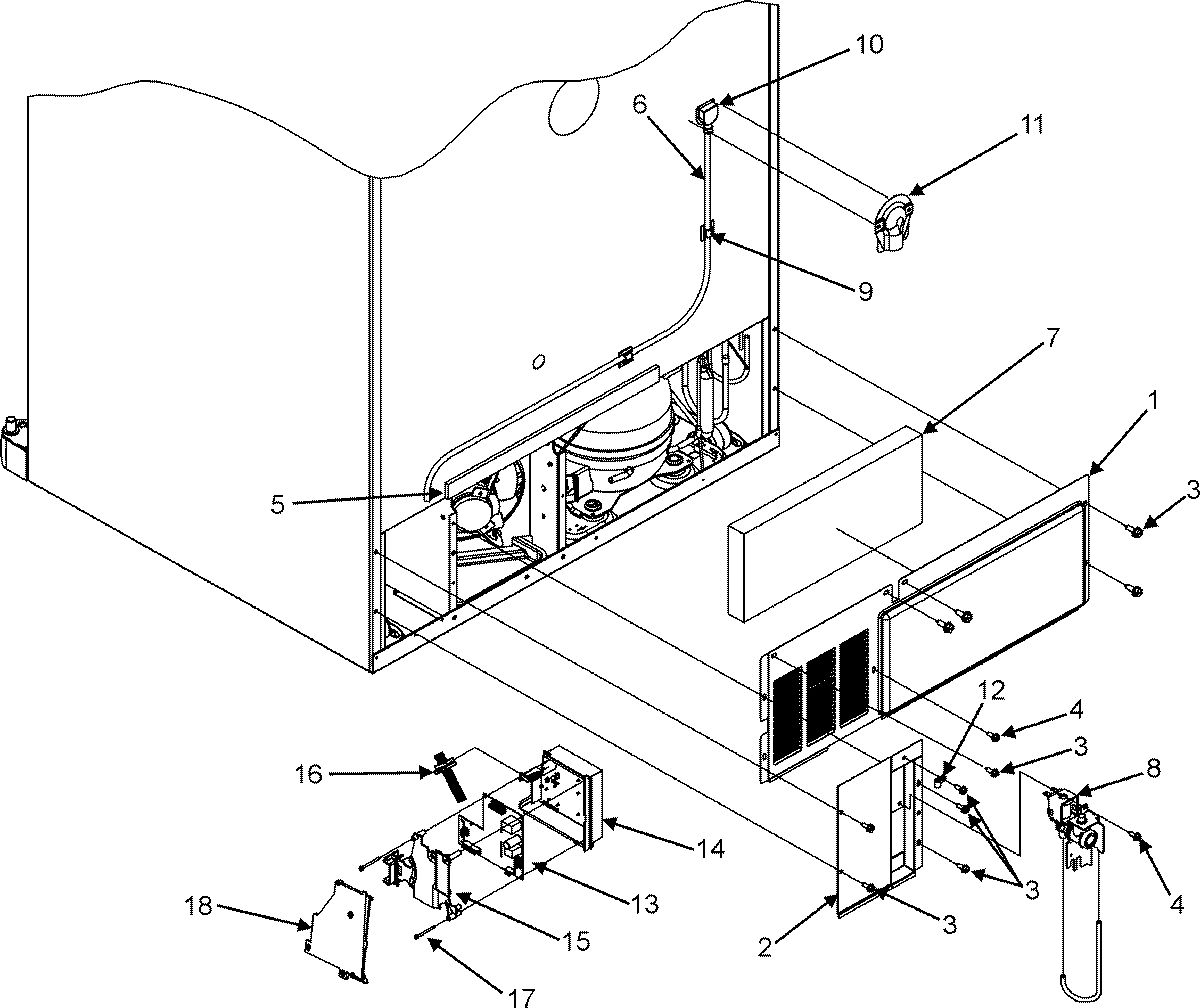

Model Maytag MBR2262KES REFRIGERATOR – Common Parts &amp; Diagrams

1

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $68.02

1

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $28.80

1

WP67006878 Whirlpool Refrigerator Crisper Gla In Stock WPL WP67006878 $115.43

1

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $28.97

1

MAY 67006918 MAY 67006918 Contact Us For Availability

1

GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability

1

MAY 61002572 MAY 61002572 Contact Us For Availability

1

MAY 12828151 MAY 12828151 Contact Us For Availability

2

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

2

WPW10568041 Whirlpool Refrigerator Crisper Sh In Stock WPL WPW10568041 $71.73

2

TRAY, DRIP E-CT MAY 67002490 Contact Us For Availability

2

SEAL, O RING MAY M0500703 Contact Us For Availability

2

MAY 67006742 MAY 67006742 Contact Us For Availability

2

MAY 61005964 MAY 61005964 Contact Us For Availability

2

MAY 16025629 MAY 16025629 Contact Us For Availability

3

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $36.31

3

WP12531601 Whirlpool Refrigerator Tunnel Backorder WPL WP12531601 $4.15

3

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

3

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

3

WPW10436250 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10436250 $127.04

3

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $39.36

3

MAY 10623002 MAY 10623002 Contact Us For Availability

3

MAY D7753903 MAY D7753903 Contact Us For Availability

3

MAY 67005271 MAY 67005271 Contact Us For Availability

3

MAY 16026957 MAY 16026957 Contact Us For Availability

4

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

4

WPW10436248 Whirlpool Door Gasket In Stock WPL WPW10436248 $137.86

4

MAY 67005864 MAY 67005864 Contact Us For Availability

4

COVER, EVAP 33`` MAY 67005872 Contact Us For Availability

4

SCREW, SM/HEX HEAD MAY 67006406 Contact Us For Availability

4

MAY 67002005 MAY 67002005 Contact Us For Availability

4

MAY 61004709 MAY 61004709 Contact Us For Availability

4

MAY 67007169 MAY 67007169 Contact Us For Availability

5

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

5

W10656985 Whirlpool Refrigerator Trim Backorder WPL W10656985 $47.18

5

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

5

WP67002633 Whirlpool Crisper Pan In Stock WPL WP67002633 $86.30

5

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $27.82

5

MAY 61005752 MAY 61005752 Contact Us For Availability

5

GASKET MAY 67001776 Contact Us For Availability

6

67002002 Whirlpool Refrigerator Pantry Slide Backorder WPL 67002002 $9.81

6

67003493 Whirlpool Refrigerator Compressor Gr Backorder WPL 67003493 $10.76

6

67004040 Whirlpool Refrigerator Bucket Door Backorder WPL 67004040 $51.75

6

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.85

6

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $31.46

6

MAY 67002190 MAY 67002190 Contact Us For Availability

6

MAY 67001066 MAY 67001066 Contact Us For Availability

6

FRONT, CRISPER PAN MAY 67005920 Contact Us For Availability

7

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $9.59

7

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.41

7

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

7

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $3.70

7

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.18

7

WP67002191 Whirlpool Refrigerator Crisper Mea Backorder WPL WP67002191 $12.65

7

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

7

ROLLER BRACKET ASSY MAY 67002227 Contact Us For Availability

8

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $27.74

8

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.53

8

WPW10231343 Whirlpool Shelf Trim Backorder WPL WPW10231343 $41.45

8

SCREW, SM MAY 67006425 Contact Us For Availability

8

ELBOW, FILL TUBE MAY 10463201 Contact Us For Availability

8

MAY 67001923 MAY 67001923 Contact Us For Availability

8

MAY 67004436 MAY 67004436 Contact Us For Availability

9

67001656 Whirlpool Refrigerator Bottle Trivet Backorder WPL 67001656 $30.29

9

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

9

MAY 67006573 MAY 67006573 Contact Us For Availability

9

BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability

9

MAY 95108-1 MAY 95108-1 Contact Us For Availability

9

BRACKET, DRAWER SLIDE (LT) MAY 67004012 Contact Us For Availability

9

BRACKET, DRAWER SLIDE (RT) MAY 67004013 Contact Us For Availability

9

MAY 67005921 MAY 67005921 Contact Us For Availability

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP67001721 Whirlpool Refrigerator Support In Stock WPL WP67001721 $3.70

MAY 10547002 MAY 10547002 Contact Us For Availability

GEAR (RT) MAY 67004430 Contact Us For Availability

PLUG, TOP HINGE BUTTON (BLK) MAY M0310731 Contact Us For Availability

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP67001722 Whirlpool Refrigerator Support Backorder WPL WP67001722 $3.70

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.51

DRIER MAY B2150504 Contact Us For Availability

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $194.96

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.08

WP67001255 Whirlpool Ice Bucket In Stock WPL WP67001255 $82.10

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

MAY 67005439 MAY 67005439 Contact Us For Availability

SCREW, SM MAY 67006400 Contact Us For Availability

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.72

W11033771 Whirlpool Refrigerator Coupling Backorder WPL W11033771 $13.21

WPW10534162 Whirlpool Refrigerator Front Gril In Stock WPL WPW10534162 $39.08

MAY 12627302 MAY 12627302 Contact Us For Availability

MAY 12576801 MAY 12576801 Contact Us For Availability

DAM, LEFT RETURN MAY 67001083 Contact Us For Availability

MAY 67004438 MAY 67004438 Contact Us For Availability

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $21.98

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $42.33

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $46.65

GROMMET, BRACKET MAY 61004743 Contact Us For Availability

DAM, RIGHT RETURN MAY 67001084 Contact Us For Availability

MAY 67004439 MAY 67004439 Contact Us For Availability

WP67001794 Whirlpool Refrigerator Defrost Hea Backorder WPL WP67001794 $73.96

WP67003637 Whirlpool Dairy Door In Stock WPL WP67003637 $41.82

WP67006132 Whirlpool Refrigerator Condenser Backorder WPL WP67006132 $138.54

MAY 67004440 MAY 67004440 Contact Us For Availability

MAY 67004441 MAY 67004441 Contact Us For Availability

16

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.81

16

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

16

RETAINER, DOOR MAY 67001748 Contact Us For Availability

17

MAY 67001035 MAY 67001035 Contact Us For Availability

17

MAY 67004405 MAY 67004405 Contact Us For Availability

18

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $30.73

18

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

19

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

19

CLIP, EVAP MOTOR MAY 67005633 Contact Us For Availability

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $47.49

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.70

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $10.76

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $17.57

BASKET, LOWER 33 MAY 67006024 Contact Us For Availability

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.70

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $2.51

SCREW, TC MAY 67006530 Contact Us For Availability

MAY 12217201 MAY 12217201 Contact Us For Availability

HANDLE, BASKET/SHELF MAY 10508506 Contact Us For Availability

22

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

22

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.70

22

DIVIDER, BASKET (UPPER) MAY 67004127 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $29.88

W11690159 Whirlpool Handle Backorder WPL W11690159 $86.16

HARNESS, FF CONTROL MAY 67005644 Contact Us For Availability

MAY 67006094 MAY 67006094 Contact Us For Availability

MAY 67006608 MAY 67006608 Contact Us For Availability

24

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.00

24

MAY M0286708 MAY M0286708 Contact Us For Availability

24

GEAR (LT) MAY 67004429 Contact Us For Availability

25

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $3.04

25

MAY 67006103 MAY 67006103 Contact Us For Availability

25

MAY 67215-2 MAY 67215-2 Contact Us For Availability

26

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $74.88

26

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

26

MAY M1205302 MAY M1205302 Contact Us For Availability

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $35.12

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $35.12

SCREW MAY 67006737 Contact Us For Availability

MAY 67004404 MAY 67004404 Contact Us For Availability

28

ADAPTER, SIDE (LT) MAY 67004864 Contact Us For Availability

28

ADAPTER, SIDE (RT) MAY 67004865 Contact Us For Availability

29

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $22.72

29

12906303WD Whirlpool Refrigerator Bracket Backorder WPL 12906303WD $28.02

29

MAY 67006491 MAY 67006491 Contact Us For Availability

30

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

30

MAY 67003721 MAY 67003721 Contact Us For Availability

31

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $34.02

32

MAY 67005574 MAY 67005574 Contact Us For Availability

NI

MAY 15003912 MAY 15003912 Contact Us For Availability
