Model Maytag MBF1953DEE00 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

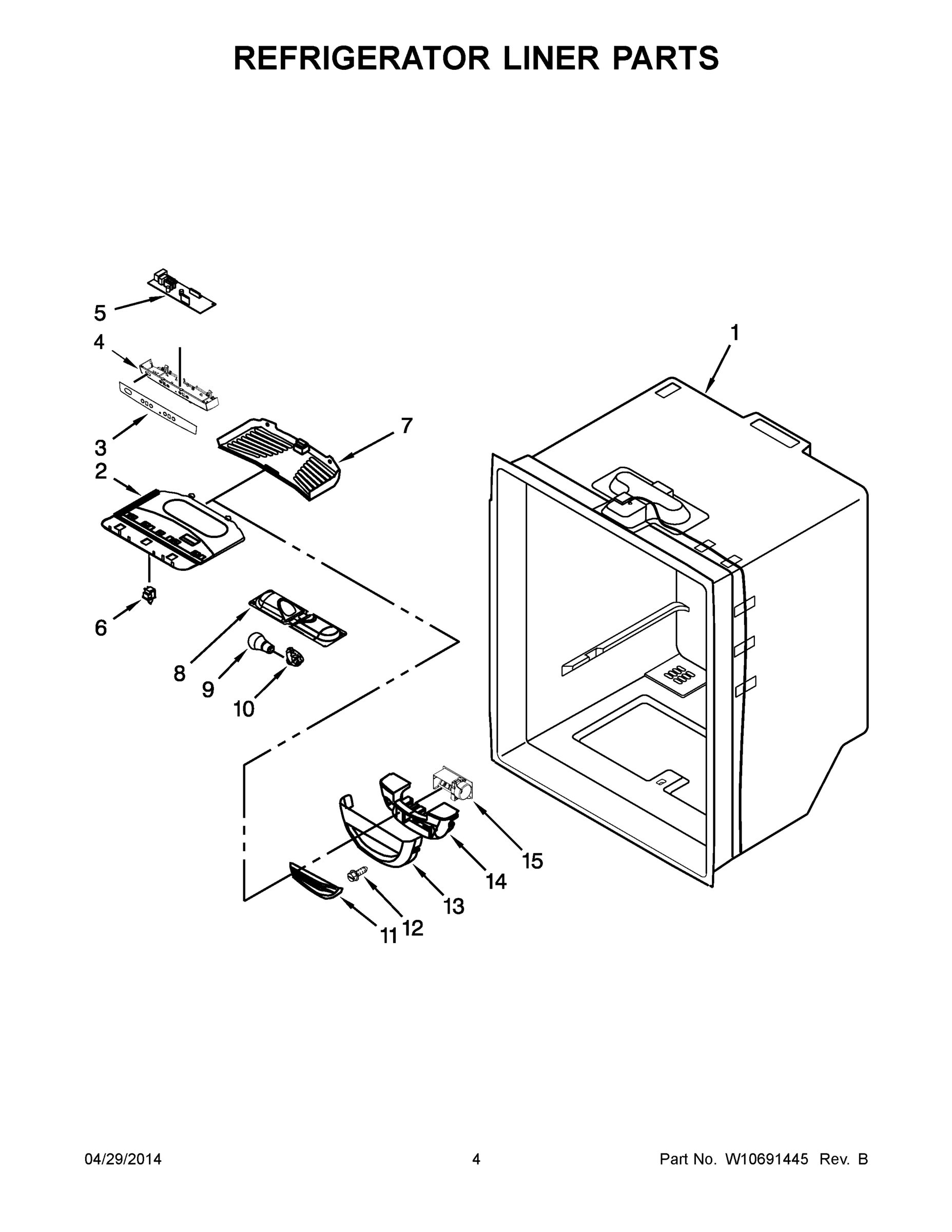

03 - REFRIGERATOR LINER PARTS

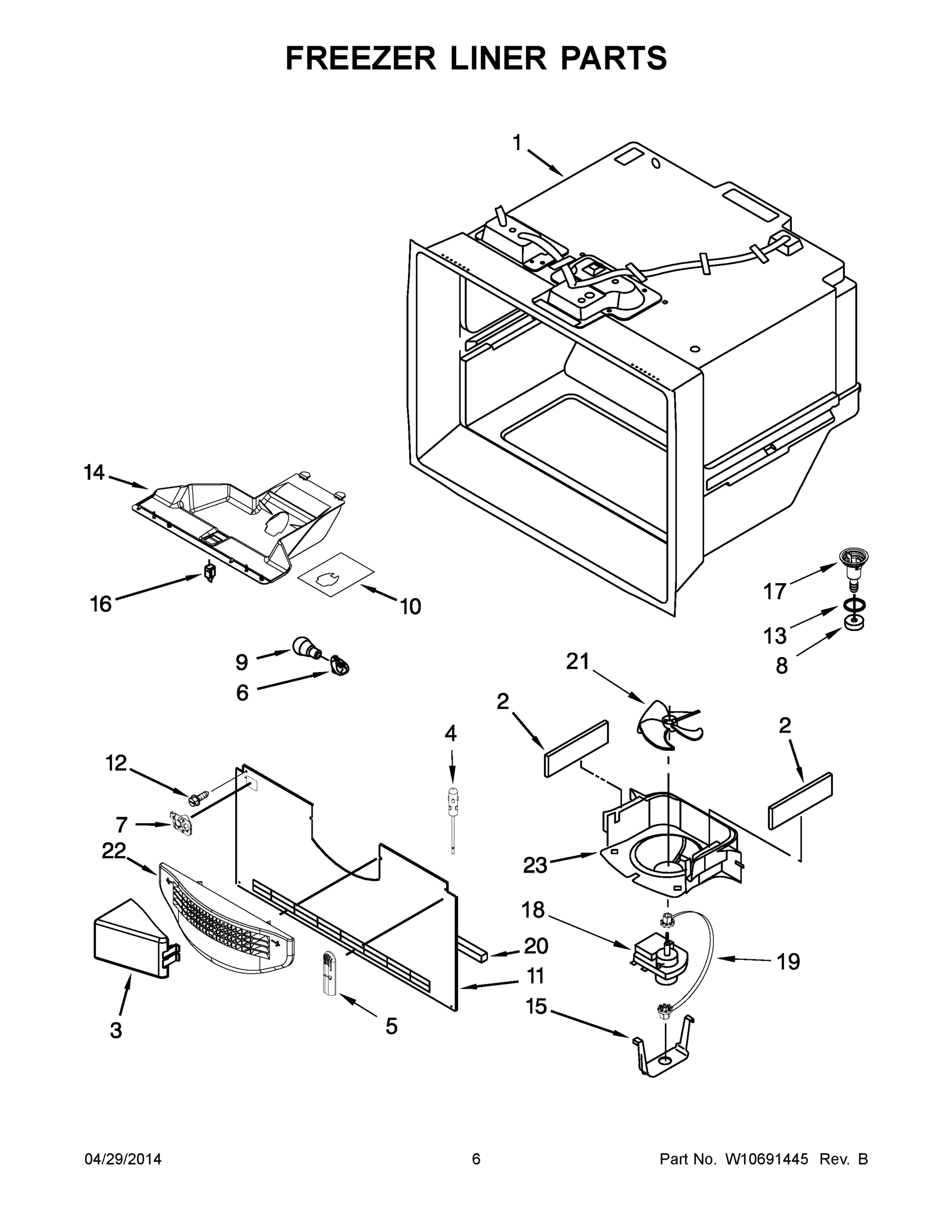

04 - FREEZER LINER PARTS

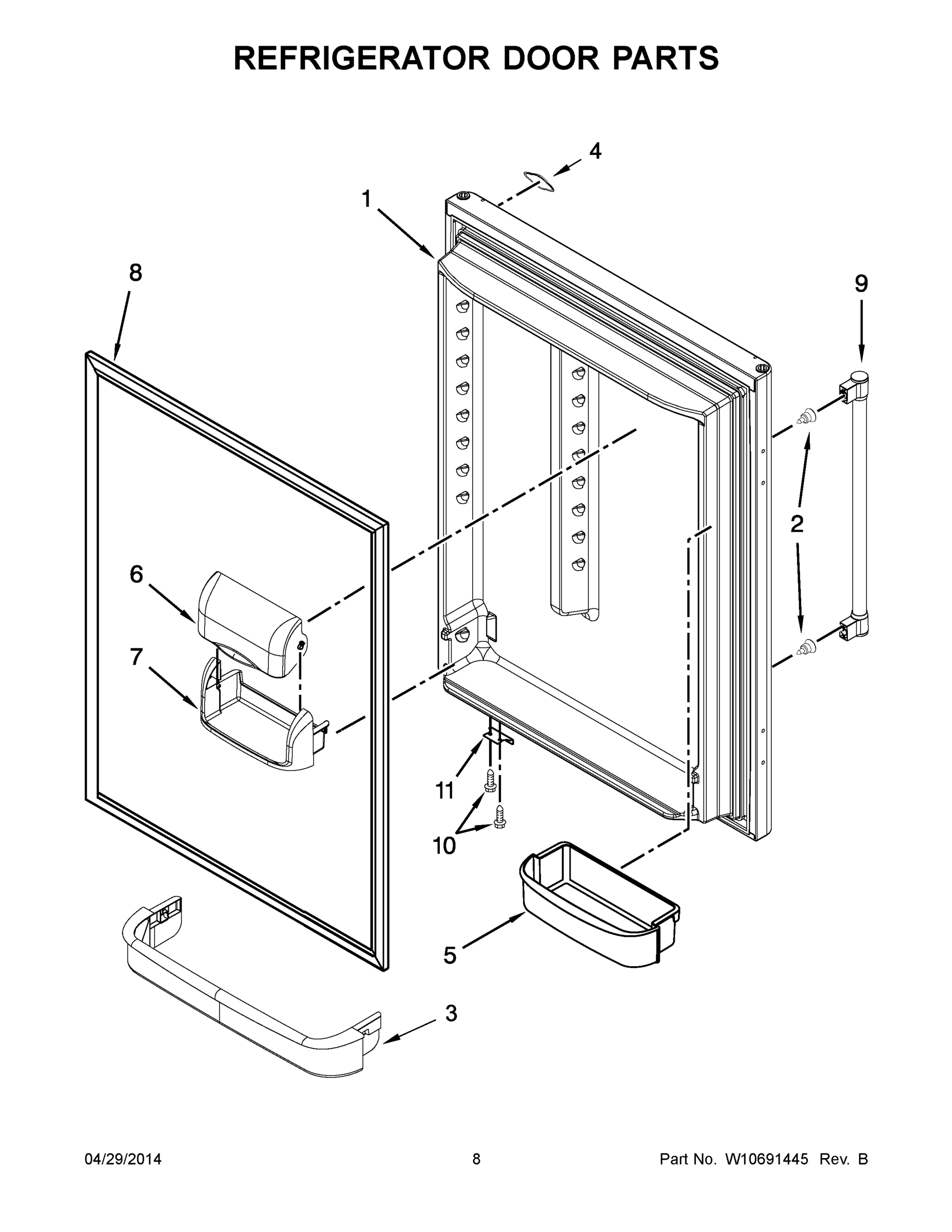

05 - REFRIGERATOR DOOR PARTS

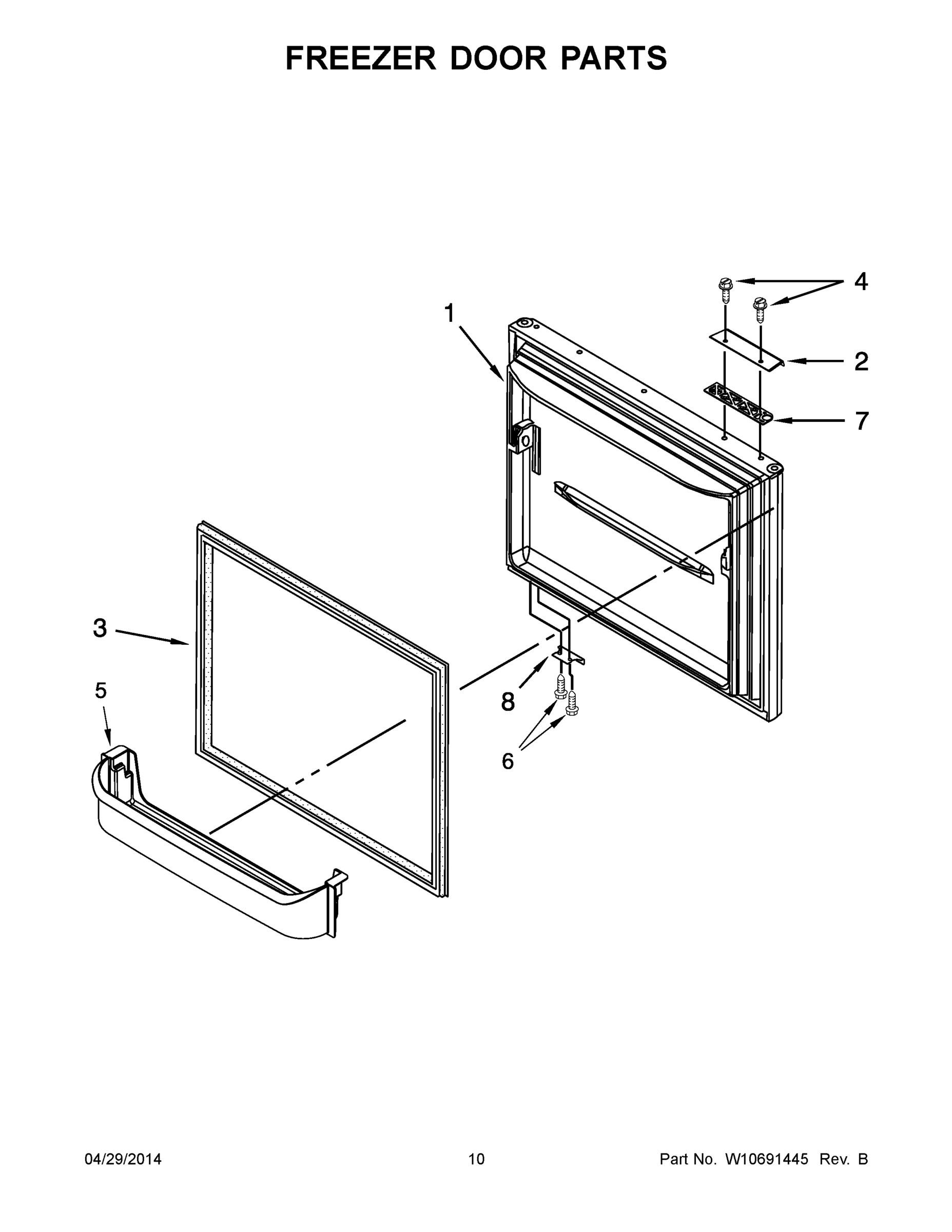

06 - FREEZER DOOR PARTS

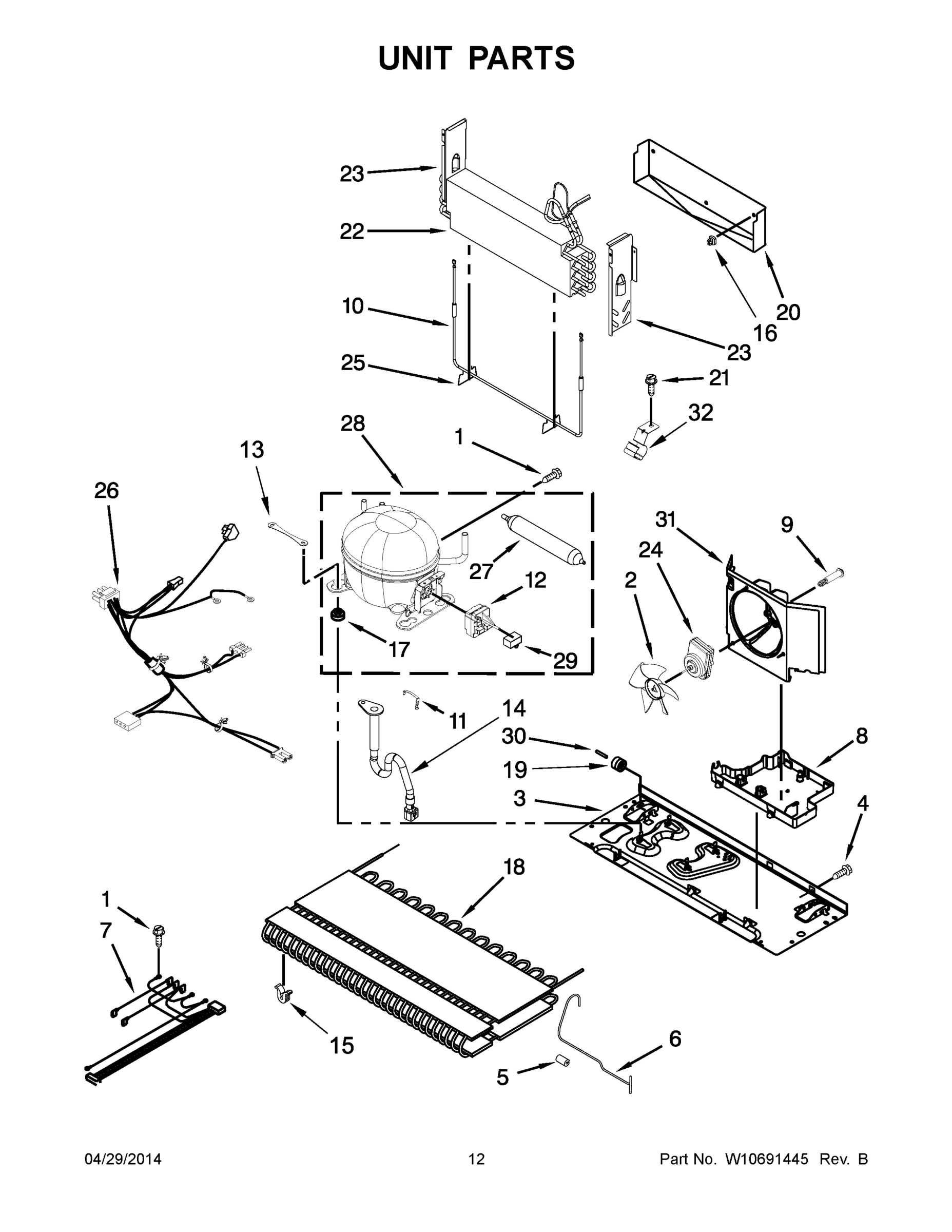

07 - UNIT PARTS

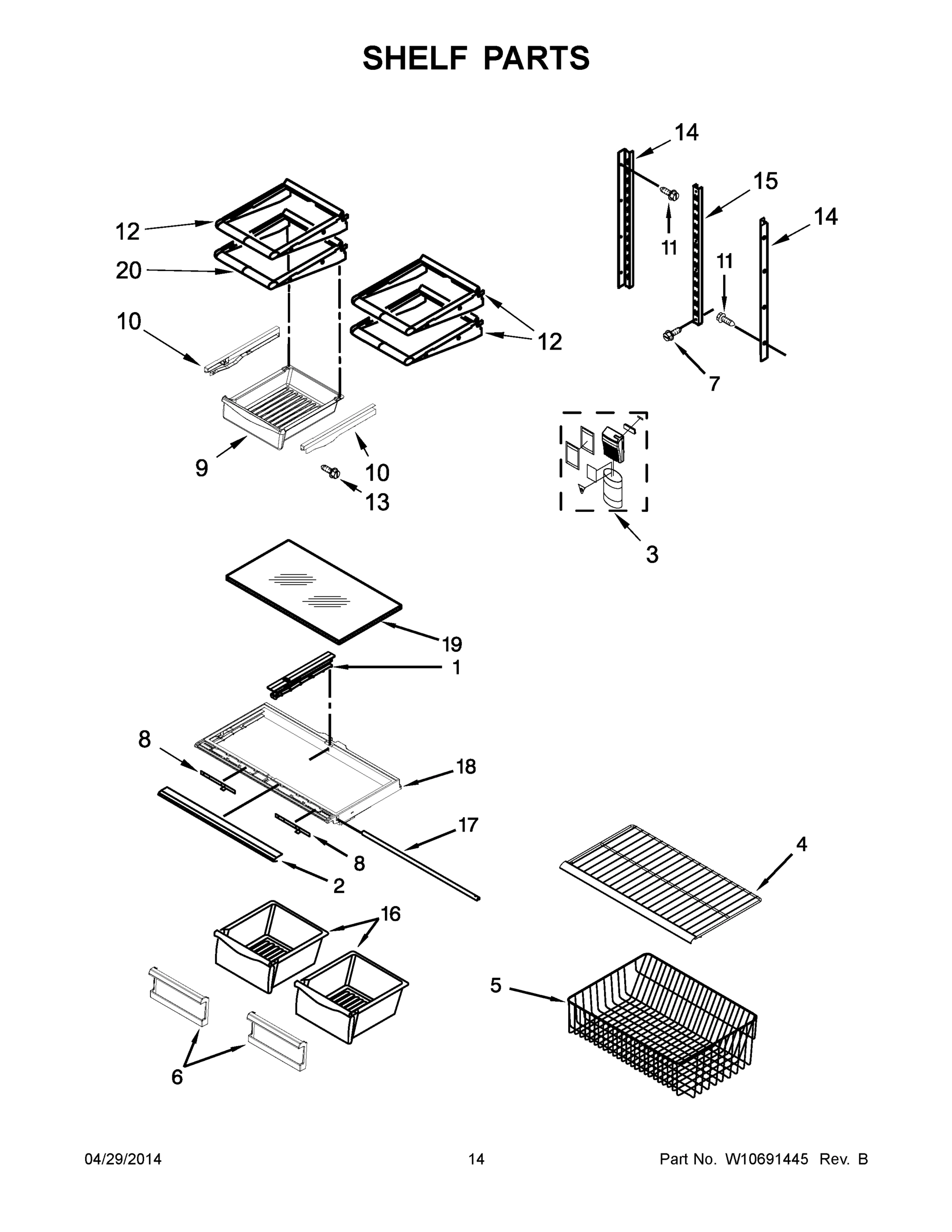

08 - SHELF PARTS

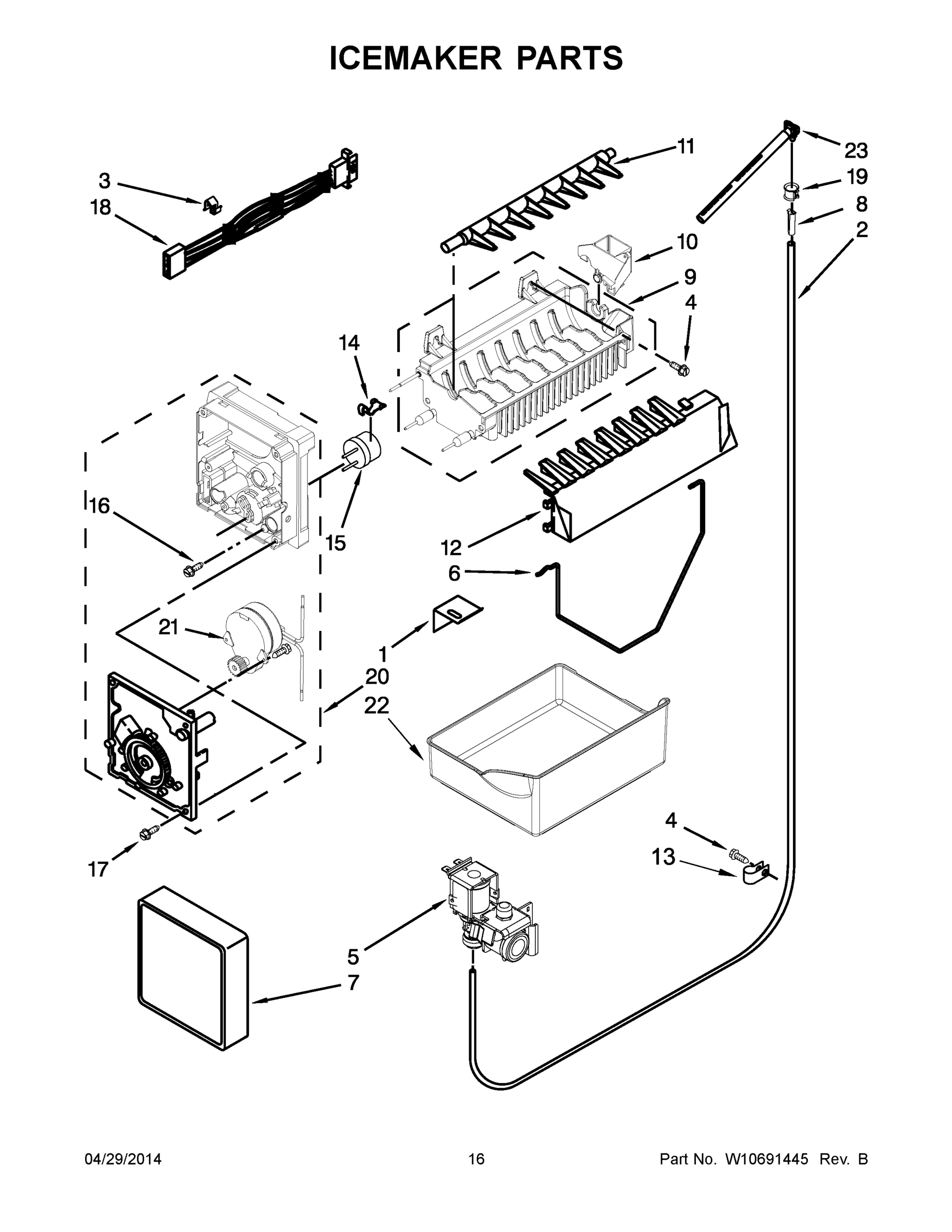

09 - ICEMAKER PARTS
10 - OPTIONAL PARTS
Common parts from model Maytag MBF1953DEE00 REFRIGERATOR
1
MAY W10667461 MAY W10667461 Contact Us For Availability
1
MAY 13107553S MAY 13107553S Contact Us For Availability
1
DOOR, REFRIGERATOR (BLACK) MAY 13109402B Contact Us For Availability
1
MAY 13109402W MAY 13109402W Contact Us For Availability
1
MAY 13024238B MAY 13024238B Contact Us For Availability
1
MAY 13024238W MAY 13024238W Contact Us For Availability
1
MAY 13024245S MAY 13024245S Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY W10671238N MAY W10671238N Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
2
MAY W10464757 MAY W10464757 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY W10460893 MAY W10460893 Contact Us For Availability
2
MAY 12660007S MAY 12660007S Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231481 MAY W10231481 Contact Us For Availability
2
MAY W10449192 MAY W10449192 Contact Us For Availability
3
MAY W10515762 MAY W10515762 Contact Us For Availability
3
MAY W10515763 MAY W10515763 Contact Us For Availability
3
MAY W10593588 MAY W10593588 Contact Us For Availability
3
MAY W10157765 MAY W10157765 Contact Us For Availability
3
MAY 12557904 MAY 12557904 Contact Us For Availability
3
MAY W10436247 MAY W10436247 Contact Us For Availability
3
MAY W10443311 MAY W10443311 Contact Us For Availability
3
MAY W10443312 MAY W10443312 Contact Us For Availability
3
MAY W10480107 MAY W10480107 Contact Us For Availability
3
MAY W10596756 MAY W10596756 Contact Us For Availability
3
CLAMP, WIRE MAY 10526702 Contact Us For Availability
4
MAY 12726003 MAY 12726003 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY W10464769 MAY W10464769 Contact Us For Availability
4
MAY 12791409SP MAY 12791409SP Contact Us For Availability
4
BADGE (GREY) MAY W10612926 Contact Us For Availability
4
SCREW MAY 12991701 Contact Us For Availability
4
SHELF, STATIONARY MAY 12476801 Contact Us For Availability
4
MAY W10001240 MAY W10001240 Contact Us For Availability
5
MAY M0274057 MAY M0274057 Contact Us For Availability
5
MAY M0274062 MAY M0274062 Contact Us For Availability
5
MAY W10503278 MAY W10503278 Contact Us For Availability
5
MAY 12815301 MAY 12815301 Contact Us For Availability
5
BUCKET, DOOR (SMALL) MAY 12557202 Contact Us For Availability
5
BUCKET, DOOR (MEDIUM) MAY 12557204 Contact Us For Availability
5
RETAINER, DOOR MAY 12737501 Contact Us For Availability
5
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
5
MAY W10498976 MAY W10498976 Contact Us For Availability
6
MAY B5759655 MAY B5759655 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
MAY 12804701SP MAY 12804701SP Contact Us For Availability
6
MAY 12990504 MAY 12990504 Contact Us For Availability
6
MAY W10294014 MAY W10294014 Contact Us For Availability
6
MAY 12643602 MAY 12643602 Contact Us For Availability
6
MAY W10512602 MAY W10512602 Contact Us For Availability
7
MAY 10351005 MAY 10351005 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12932103 MAY 12932103 Contact Us For Availability
7
MAY 12369502SP MAY 12369502SP Contact Us For Availability
7
SPACER, HANDLE (STAINLESS) MAY 12647901S Contact Us For Availability
7
HARNESS, EVAPORATOR (INCLUDES HEATER) MAY W10292244 Contact Us For Availability
7
MAY W10215666 MAY W10215666 Contact Us For Availability
7
MAY W10377174 MAY W10377174 Contact Us For Availability
8
MAY W10208592 MAY W10208592 Contact Us For Availability
8
MAY W10443023 MAY W10443023 Contact Us For Availability
8
MAY B8381501 MAY B8381501 Contact Us For Availability
8
MAY W10436245 MAY W10436245 Contact Us For Availability
8
MAY W10443309 MAY W10443309 Contact Us For Availability
8
MAY W10443310 MAY W10443310 Contact Us For Availability
8
MAY 10447111 MAY 10447111 Contact Us For Availability
8
Stop, Door (Black) MAY 10447112 Contact Us For Availability
8
MAY 10447114 MAY 10447114 Contact Us For Availability
8
MAY W10296784 MAY W10296784 Contact Us For Availability
8
MAY 12530805SP MAY 12530805SP Contact Us For Availability
8
MAY A3223101 MAY A3223101 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY W10565137 MAY W10565137 Contact Us For Availability
9
MAY W10645587 MAY W10645587 Contact Us For Availability
9
MAY W10622701 MAY W10622701 Contact Us For Availability
9
MAY 12656504V MAY 12656504V Contact Us For Availability
9
ASSEMBLY, MOLD AND HEATER MAY W10300025 Contact Us For Availability
10
MAY 12820505 MAY 12820505 Contact Us For Availability
10
Socket, Light MAY 12570701V Contact Us For Availability
10
MAY W10277466 MAY W10277466 Contact Us For Availability
10
HEATER, EVAPORATOR MAY 12729127 Contact Us For Availability
10
MAY 12656601V MAY 12656601V Contact Us For Availability
10
MAY 12656602V MAY 12656602V Contact Us For Availability
10
MAY W10410073 MAY W10410073 Contact Us For Availability
11
MAY W10339086 MAY W10339086 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY W10308414 MAY W10308414 Contact Us For Availability
11
MAY W10216075 MAY W10216075 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
11
MAY W10318914 MAY W10318914 Contact Us For Availability
12
MAY 12990101 MAY 12990101 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
MAY W10330834 MAY W10330834 Contact Us For Availability
12
MAY 12463608 MAY 12463608 Contact Us For Availability
12
STRIPPER, ICE MAY W10122563 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
MAY M0500703 MAY M0500703 Contact Us For Availability
13
MAY W10236396 MAY W10236396 Contact Us For Availability
13
MAY 12990302V MAY 12990302V Contact Us For Availability
13
MAY M0108107 MAY M0108107 Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MAY 13012402 MAY 13012402 Contact Us For Availability
14
MAY W10277025 MAY W10277025 Contact Us For Availability
14
MAY W10622098 MAY W10622098 Contact Us For Availability
14
MAY W10251970 MAY W10251970 Contact Us For Availability
14
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
15
MAY 12607103AP MAY 12607103AP Contact Us For Availability
15
MAY 12607103WD MAY 12607103WD Contact Us For Availability
15
MAY 12607104ED MAY 12607104ED Contact Us For Availability
15
MAY W10594330 MAY W10594330 Contact Us For Availability
15
MAY 13058002 MAY 13058002 Contact Us For Availability
15
MAY W10137529 MAY W10137529 Contact Us For Availability
15
MAY W10273463 MAY W10273463 Contact Us For Availability
15
MAY W10290336 MAY W10290336 Contact Us For Availability
16
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 10623002 MAY 10623002 Contact Us For Availability
16
MAY 12531305 MAY 12531305 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
MAY W10651961 MAY W10651961 Contact Us For Availability
17
MAY 10835903SP MAY 10835903SP Contact Us For Availability
17
MAY 12227302WD MAY 12227302WD Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
MAY 12566606ED MAY 12566606ED Contact Us For Availability
18
MAY W10128551 MAY W10128551 Contact Us For Availability
18
MAY W10346423 MAY W10346423 Contact Us For Availability
18
MAY W10671240 MAY W10671240 Contact Us For Availability
18
MAY W10458985 MAY W10458985 Contact Us For Availability
19
MAY W10210978 MAY W10210978 Contact Us For Availability
19
MAY W10121318 MAY W10121318 Contact Us For Availability
19
ROLLER MAY 12477102 Contact Us For Availability
19
MAY 12204823N MAY 12204823N Contact Us For Availability
19
MAY M0114003 MAY M0114003 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
MAY A3189397 MAY A3189397 Contact Us For Availability
20
MAY W10292801 MAY W10292801 Contact Us For Availability
20
MAY 12463608V MAY 12463608V Contact Us For Availability
20
ASSEMBLY, MODULE AND MOTOR MAY W10281342 Contact Us For Availability
21
MOTOR (NOT AVAILABLE, ORDER No.20) MAY N/P Contact Us For Availability
21
MAY 12477601AP MAY 12477601AP Contact Us For Availability
21
COVER, HINGE(BLACK) MAY 12477601B Contact Us For Availability
21
MAY 12477601W MAY 12477601W Contact Us For Availability
21
MAY 2169142 MAY 2169142 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
22
ASSEMBLY, GRILLE (GREY) MAY W10534165 Contact Us For Availability
22
ASSEMBLY, GRILLE (WHITE) MAY W10534166 Contact Us For Availability
22
ASSEMBLY, GRILLE (BLACK) MAY W10534167 Contact Us For Availability
22
MAY 13024803 MAY 13024803 Contact Us For Availability
22
MAY W10317012 MAY W10317012 Contact Us For Availability
22
MAY 12695001 MAY 12695001 Contact Us For Availability
23
MAY 10200802 MAY 10200802 Contact Us For Availability
23
MAY 13057901 MAY 13057901 Contact Us For Availability
23
DAM (LEFT HAND) MAY 12225602 Contact Us For Availability
23
DAM (RIGHT HAND) MAY 12225702 Contact Us For Availability
23
MAY 10463203 MAY 10463203 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
25
MAY W10490811 MAY W10490811 Contact Us For Availability
25
HINGE, BOTTOM (BLACK) MAY W10490812 Contact Us For Availability
25
MAY W10617441 MAY W10617441 Contact Us For Availability
26
MAY W10485986 MAY W10485986 Contact Us For Availability
26
MAY W10630320 MAY W10630320 Contact Us For Availability
27
Drier MAY W10177049 Contact Us For Availability
28
COMPRESSOR MAY W10445422 Contact Us For Availability
29
MAY W10350564 MAY W10350564 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
MAY W10189184 MAY W10189184 Contact Us For Availability
32
MAY W10281329 MAY W10281329 Contact Us For Availability
100
ASSEMBLY, ICEMAKER (COMPLETE) MAY W10469286 Contact Us For Availability
NI
HARNESS, REFRIGERATOR CONTROL (INCLUDES THERM MAY W10422363 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER & POLISH MAY 4396920 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
Miscellaneous (Kit, Evaporator Repair (Alumin MAY 799833 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
× ![]()
