Model Whirlpool MBB1954HEW REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $33.29

1

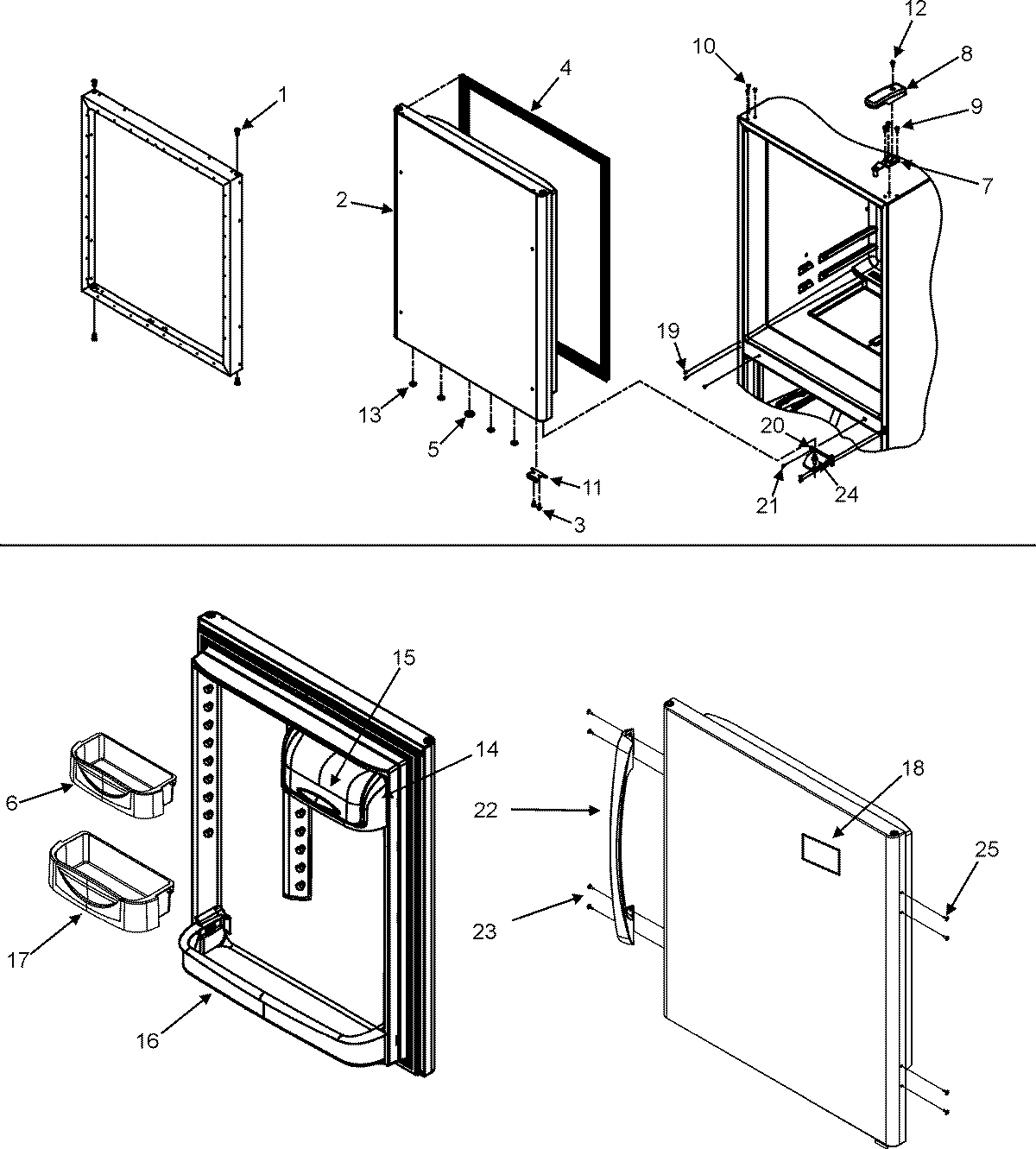

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.84

1

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.84

1

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $31.88

1

MANUAL, USE & CARE WPL 12828102 Contact Us For Availability

1

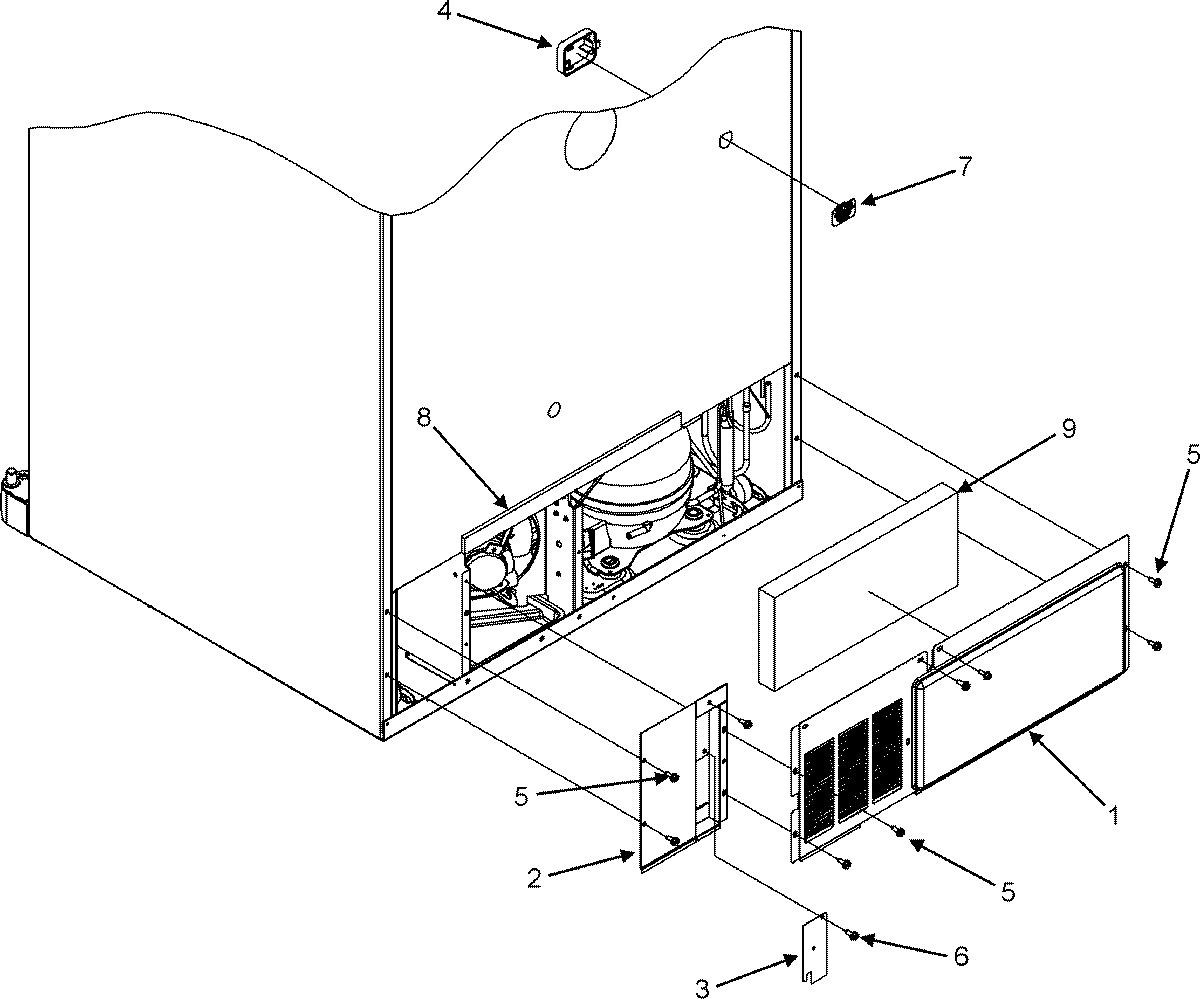

BACK, MACH COMP WPL 12575101ED Contact Us For Availability

1

BASEPAN WPL 67003789 Contact Us For Availability

2

W10833528 Whirlpool Whirlpool Refrigerator Cr In Stock WPL W10833528 $70.87

2

W11337775 Whirlpool Drip Tray Backorder WPL W11337775 $64.01

2

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.90

2

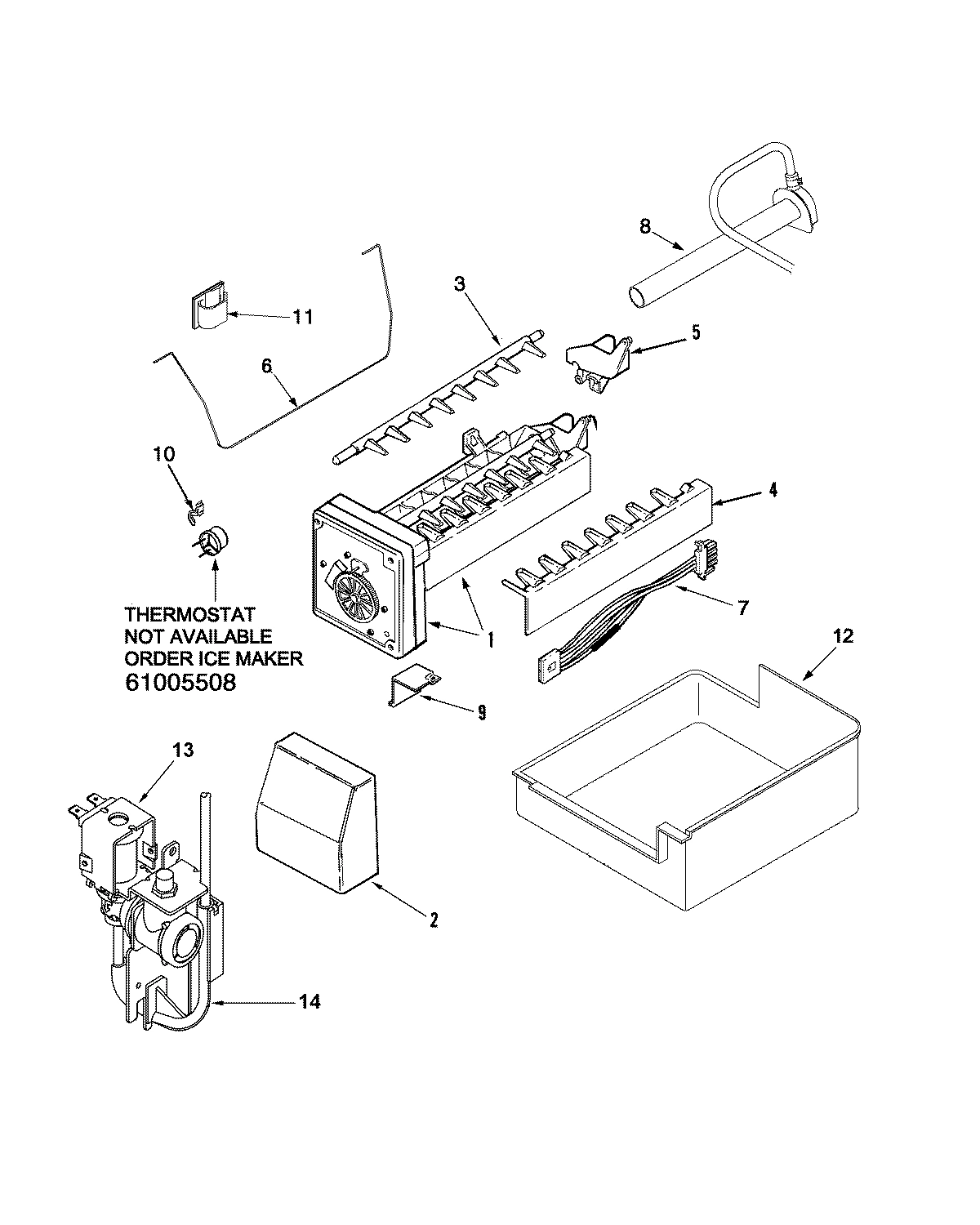

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.74

2

SVC MAN, BTM MT WPL 16022769 Contact Us For Availability

2

COVER, WATER VALVE WPL 67001173 Contact Us For Availability

2

SHROUD, CONDENSER FAN WPL 67001090 Contact Us For Availability

2

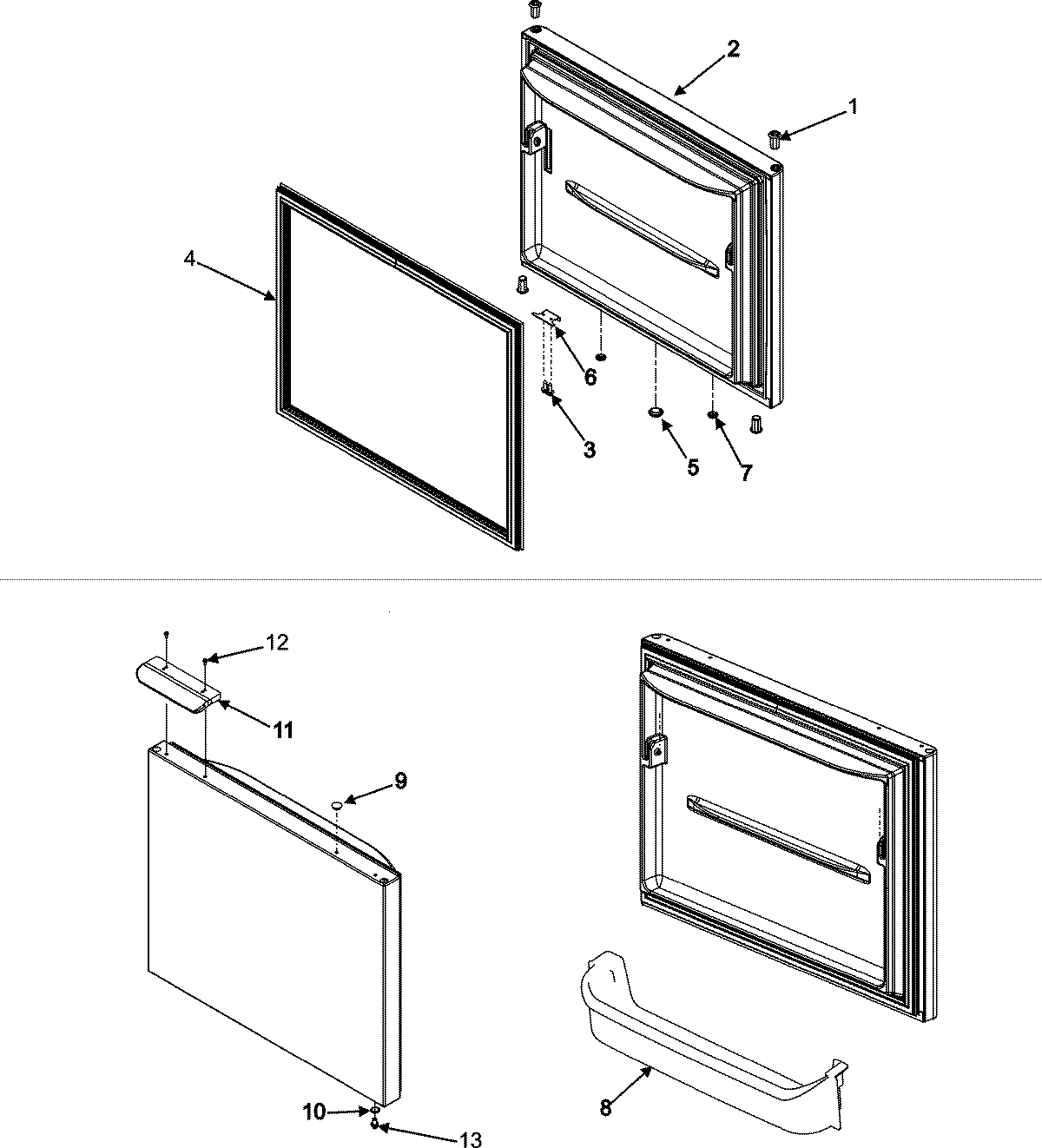

FZ DR FOAM ASSY (WHT) WPL 67001147 Contact Us For Availability

2

DOOR ASSY., REF. FOAM (WHT) WPL 67004039 Contact Us For Availability

3

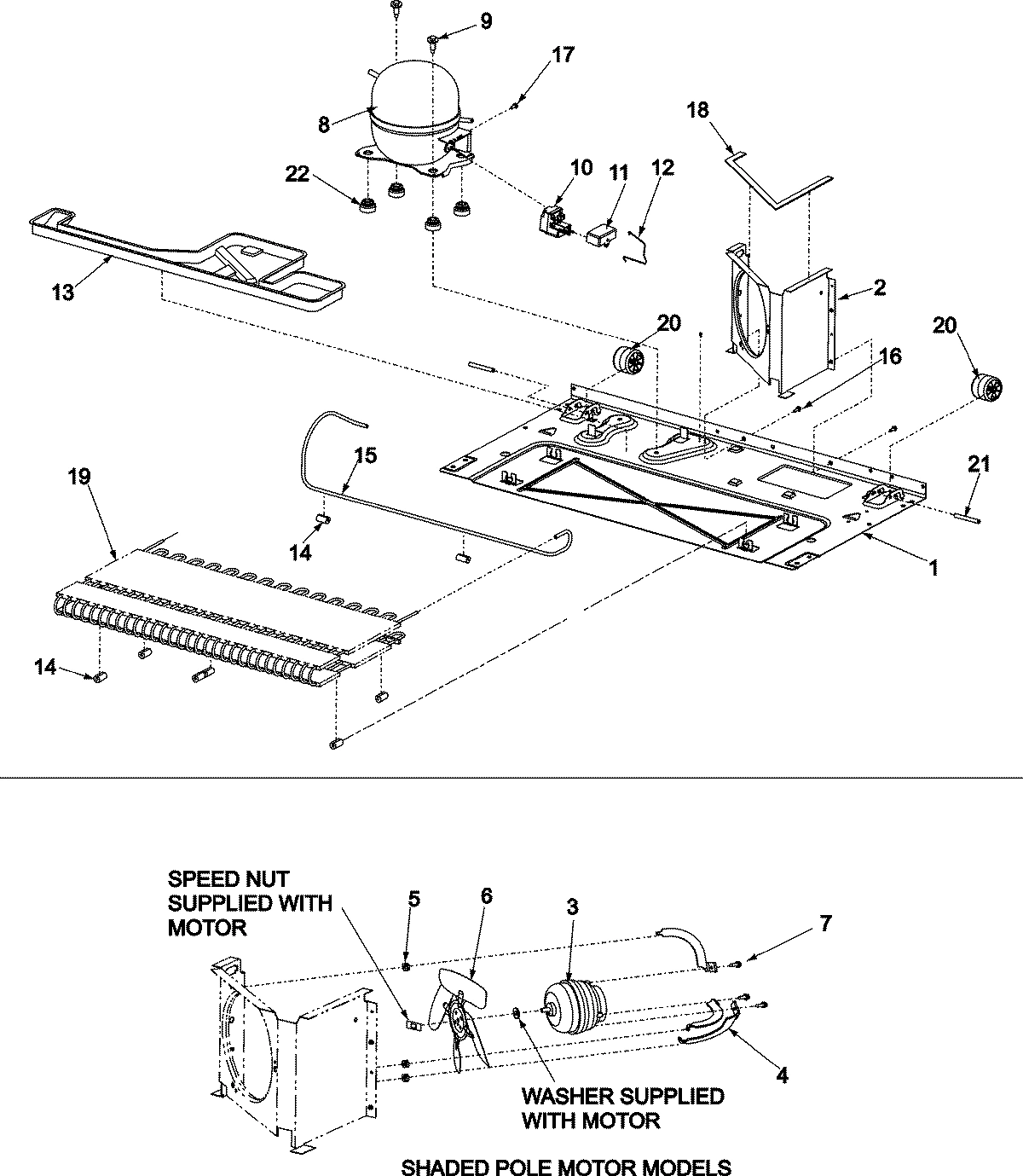

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

3

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $32.00

3

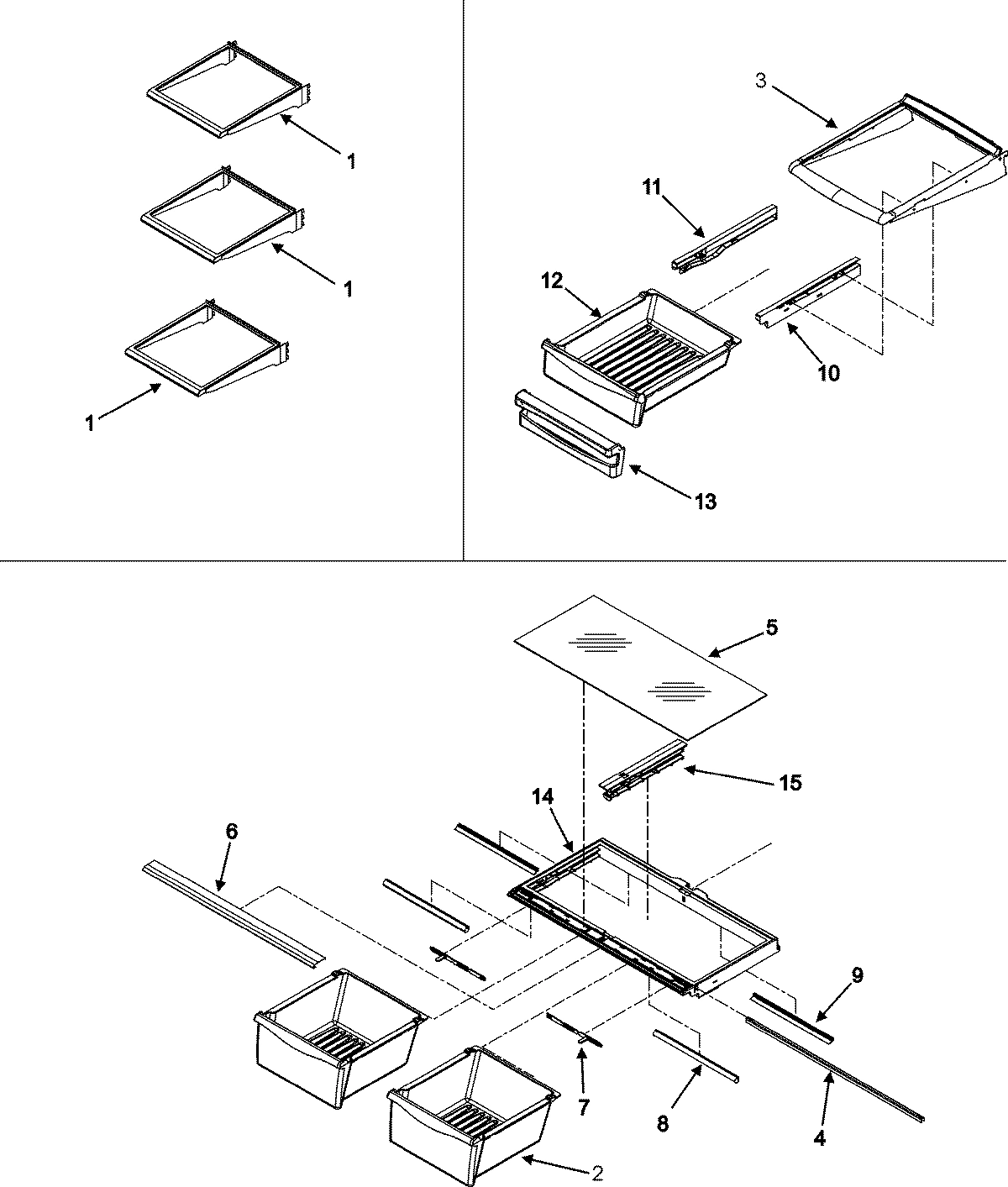

W11402522 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402522 $136.66

3

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.60

3

TECH SHT, BTM MT WPL 16026199 Contact Us For Availability

3

SHEET, TECH DATA WPL 67003881 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

PLATE, COVER WPL 12479901 Contact Us For Availability

3

CLIP, EVAPORATOR WPL 10623002 Contact Us For Availability

4

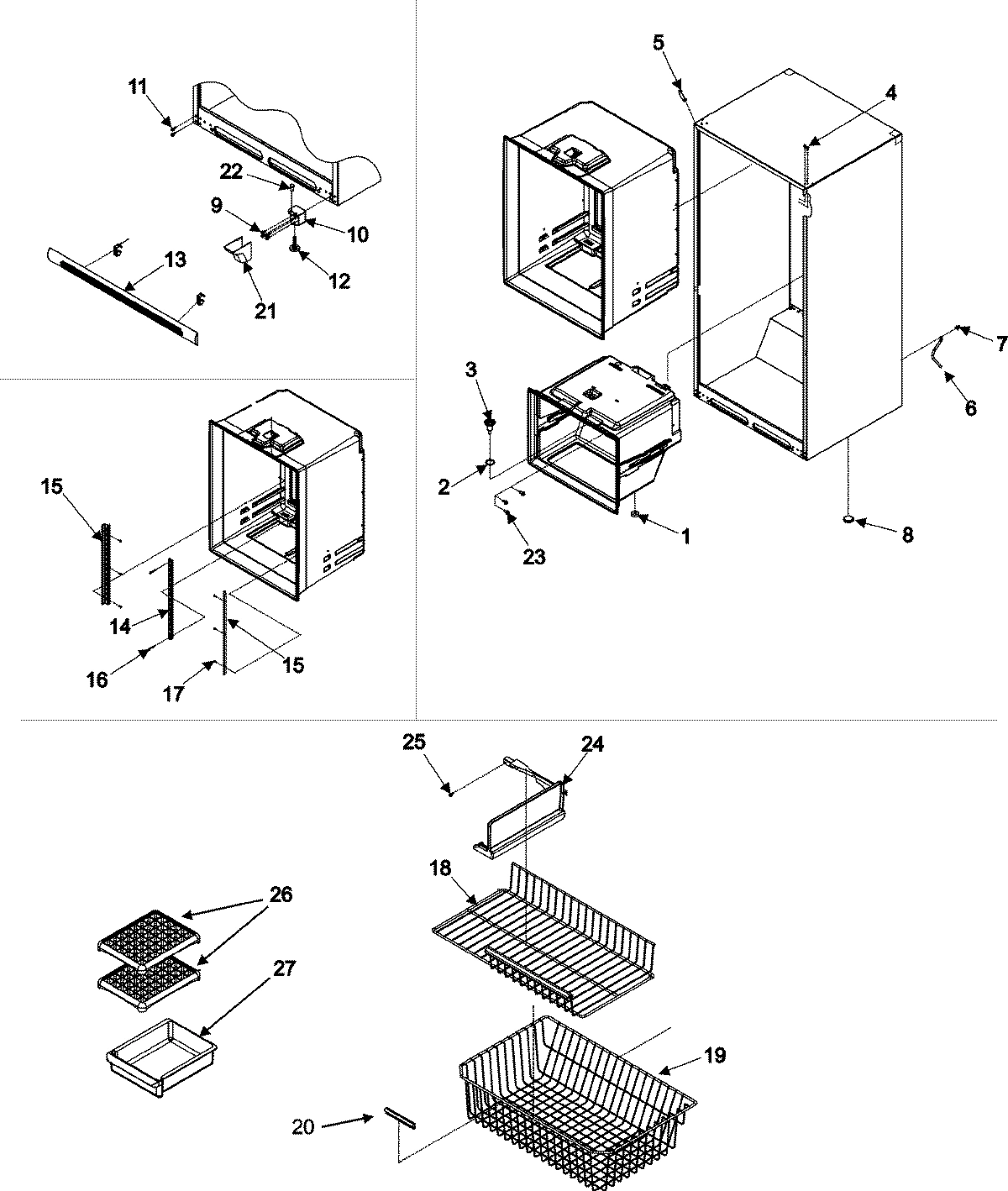

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $39.82

4

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $3.84

4

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $127.15

4

WPW10443311 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443311 $124.04

4

TAG, ENERGY WPL 67004820 Contact Us For Availability

4

POP RIVET WPL A4539607 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

COVER, EVAPORATOR WPL 67001134 Contact Us For Availability

4

BRACKET, CONDENSER MOTOR WPL 67003354 Contact Us For Availability

5

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $10.64

5

A3189394 Whirlpool Refrigerator Gasket Backorder WPL A3189394 $11.17

5

WP67006877 Whirlpool Refrigerator Glass Shelf Backorder WPL WP67006877 $131.09

5

INLET, WATER WPL 951001 Contact Us For Availability

5

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

5

PLUG, BUTTON (WHT) WPL A3080002 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.48

6

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $5.04

6

WP12587601 Whirlpool Refrigerator Condenser B Backorder WPL WP12587601 $60.91

6

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $36.35

6

WP67004041 Whirlpool Refrigerator Bucket In Stock WPL WP67004041 $59.93

6

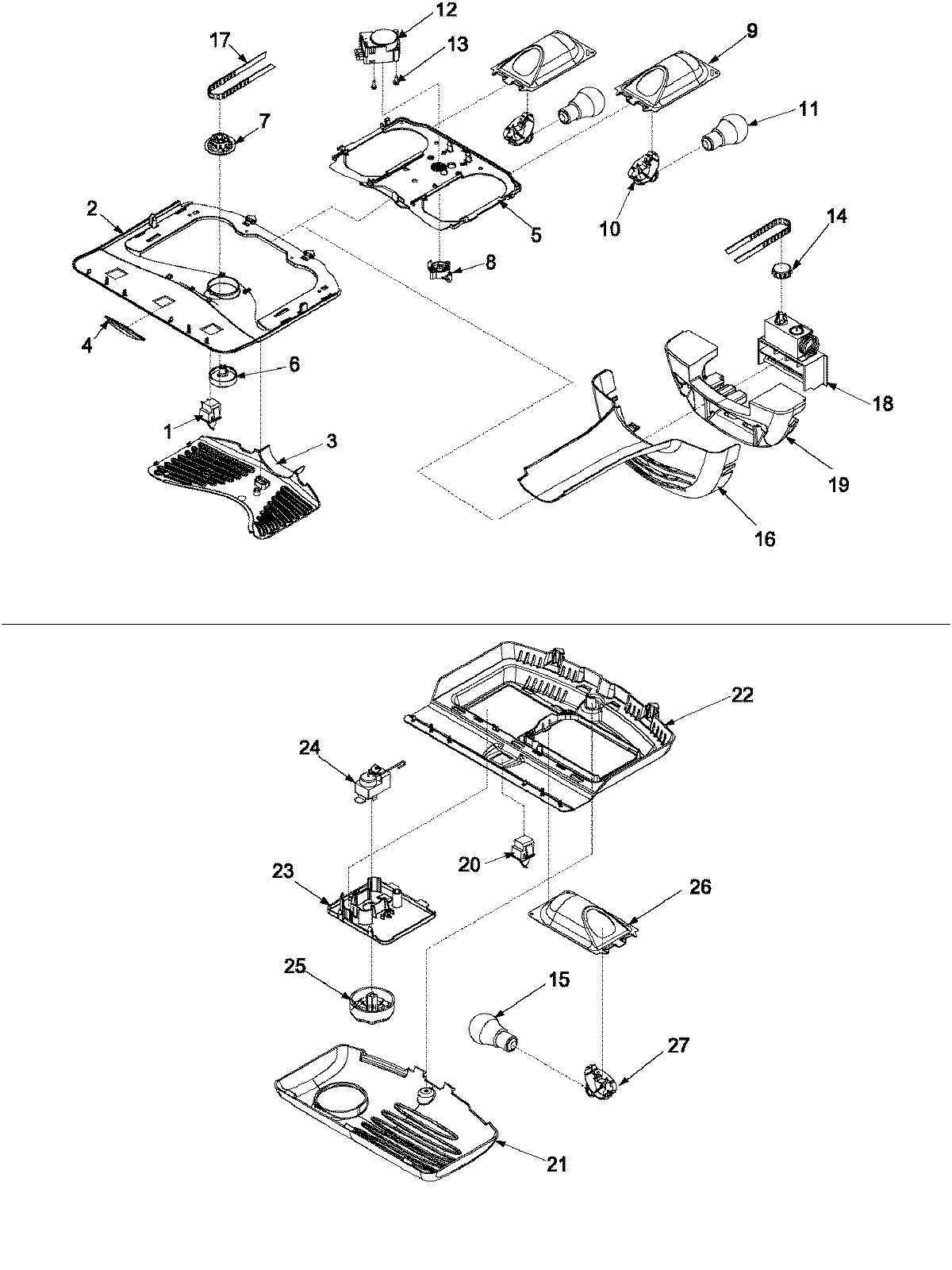

KNOB, FRONT DAMPER WPL 67002512 Contact Us For Availability

6

TUBE, DRAIN WPL 67001066 Contact Us For Availability

6

EXTR, FRONT CRISPER WPL 67003879 Contact Us For Availability

7

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.58

7

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $18.70

7

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.84

7

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $30.76

7

KNOB, GEAR WPL 67001033 Contact Us For Availability

7

SCREW, TR WPL M0223816 Contact Us For Availability

7

LABEL, FILL TUBE WPL 67002306 Contact Us For Availability

7

ROLLER BRACKET ASSY WPL 67002227 Contact Us For Availability

8

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $11.17

8

67003397 Whirlpool Refrigerator Door Retainer Backorder WPL 67003397 $59.07

8

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.74

8

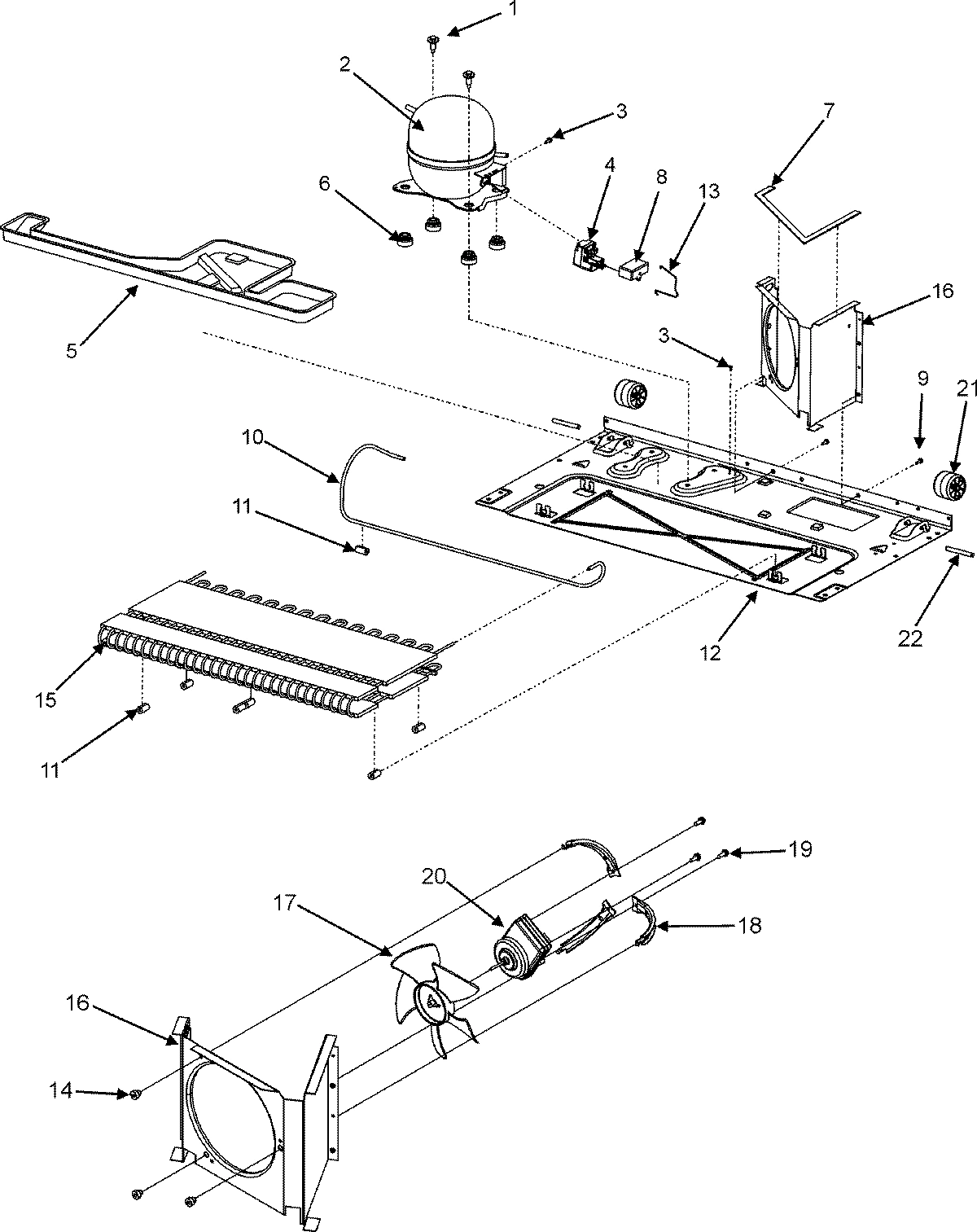

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

8

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $48.36

8

TENSIONER, BELT WPL 67001034 Contact Us For Availability

8

GASKET, MC BACK WPL B5759649 Contact Us For Availability

8

SEAL, FRONT CRISPER WPL 67001158 Contact Us For Availability

9

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.48

9

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.60

9

FIBER, ACOUSTIC WPL 67003796 Contact Us For Availability

9

SCREW, BOTTOM HINGE WPL 67003858 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

SEAL, REAR CRISPER WPL 67002274 Contact Us For Availability

9

SCREW, TF WPL M0260242 Contact Us For Availability

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

WP67001053 Whirlpool Drawer Glide In Stock WPL WP67001053 $4.03

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $18.24

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $32.02

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $42.29

WP67001054 Whirlpool Left Glide In Stock WPL WP67001054 $4.03

WP67005140 Whirlpool Door Handle In Stock WPL WP67005140 $59.46

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $3.84

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $74.65

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.60

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.35

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $94.92

WP67001308 Whirlpool Deli Drawer Backorder WPL WP67001308 $95.11

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $3.84

KIT, EVAPORATOR WPL 12002051 Contact Us For Availability

STRAP, BALE WPL 12576801 Contact Us For Availability

67007018 Whirlpool Refrigerator Bottom Hinge Backorder WPL 67007018 $3.84

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $64.71

CLIP, TOE GRILLE WPL 12627302 Contact Us For Availability

TOE GRILLE ASSY (WHT) WPL 67003849 Contact Us For Availability

PAN, DRAIN WPL 67001091 Contact Us For Availability

FRONT, MEAT PAN WPL 67004060 Contact Us For Availability

DAM, LEFT RETURN WPL 67001083 Contact Us For Availability

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $32.55

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $11.17

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $13.87

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $53.90

WPW10671240 Whirlpool Refrigerator Frame In Stock WPL WPW10671240 $66.37

DAM, RIGHT RETURN WPL 67001084 Contact Us For Availability

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.62

WP67002135 Whirlpool Refrigerator Defrost Hea Backorder WPL WP67002135 $82.33

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $48.32

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $45.51

LADDER, SIDES WPL 67001302 Contact Us For Availability

TUBE, DISCHARGE WPL 67001171 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.60

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $8.11

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.09

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.84

RETAINER, DOOR WPL 67002505 Contact Us For Availability

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $14.42

67004040 Whirlpool Refrigerator Bucket Door Backorder WPL 67004040 $59.16

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $29.92

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.77

SHROUD, EVAP FAN WPL 67002777 Contact Us For Availability

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $35.51

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $33.99

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.93

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $37.53

SHELF, GLIDE 30`` WPL 67003470 Contact Us For Availability

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $23.96

WP12754803 Whirlpool Refrigerator Freezer Bas Backorder WPL WP12754803 $142.10

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.60

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $3.84

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $29.07

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.84

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $11.17

HANDLE, BASKET/SHELF WPL 10508506 Contact Us For Availability

CLAMP, WIRE WPL 10526701 Contact Us For Availability

MOTOR, CONDENSER FAN WPL 67004432 Contact Us For Availability

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.84

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $9.96

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $14.17

COVER, FZ LIGHT WPL 67001285 Contact Us For Availability

COVER, LWR HINGE (WHT) WPL 12561901W Contact Us For Availability

INSTRUCTIONS, INSTALLATION WPL 67001264 Contact Us For Availability

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $4.90

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.84

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.84

HANDLE ASSY., REF DOOR (WHT) WPL 67004671 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $34.54

PANEL, FZ CONTROL MOUNTING WPL 67001045 Contact Us For Availability

HARNESS, MC WPL 67005251 Contact Us For Availability

HARNESS, MC WPL 67003823 Contact Us For Availability

SCREW (WHT) WPL 67004046 Contact Us For Availability

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $30.91

WP67003000 Whirlpool Refrigerator Control In Stock WPL WP67003000 $92.60

WP67006744 Whirlpool Refrigerator Center Pin Backorder WPL WP67006744 $3.84

WPM0274057 Whirlpool Refrigerator Shim In Stock WPL WPM0274057 $2.60

DIVIDER, BASKET (UPPER) WPL 67004127 Contact Us For Availability

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $4.03

WP67001130 Whirlpool Refrigerator White Butto In Stock WPL WP67001130 $3.84

KNOB, FZ CONTROL WPL 67003420 Contact Us For Availability

SCREW WPL 67001310 Contact Us For Availability

26

WP61002140 Whirlpool Ice Cube Tray Backorder WPL WP61002140 $12.48

26

HOUSING, LIGHT WPL 67001035 Contact Us For Availability

26

RIVET WPL M1205302 Contact Us For Availability

27

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.75

27

PAN, ICE WPL 61002267 Contact Us For Availability

27

CLIP, DRIER WPL 10547002 Contact Us For Availability

28

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.60

28

HARNESS, FF MODULE WPL 67001043 Contact Us For Availability

29

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $37.09

29

HARNESS, FZ MODULE WPL 67001049 Contact Us For Availability

30

HARNESS, EVAP HEATER WPL 67003384 Contact Us For Availability

NI

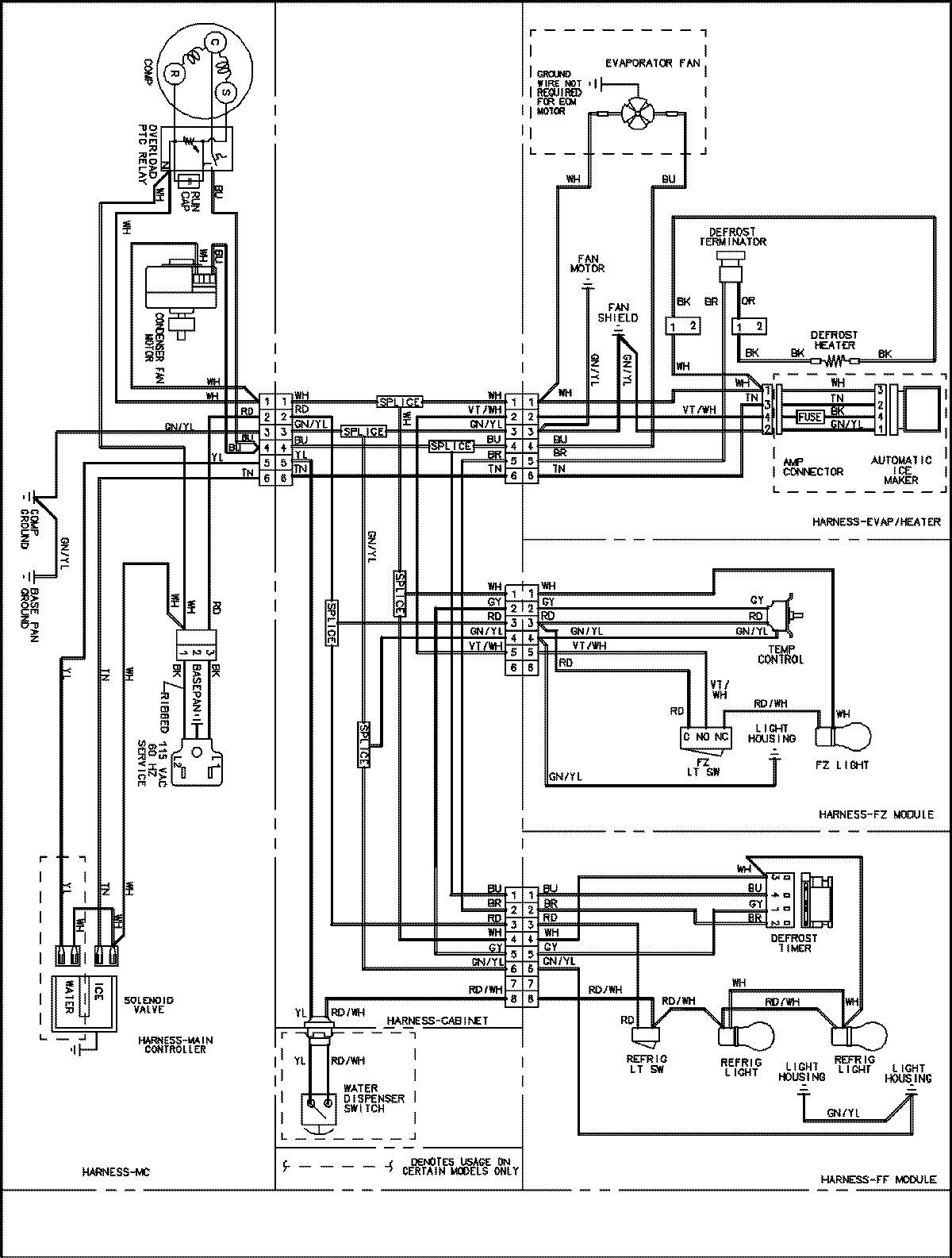

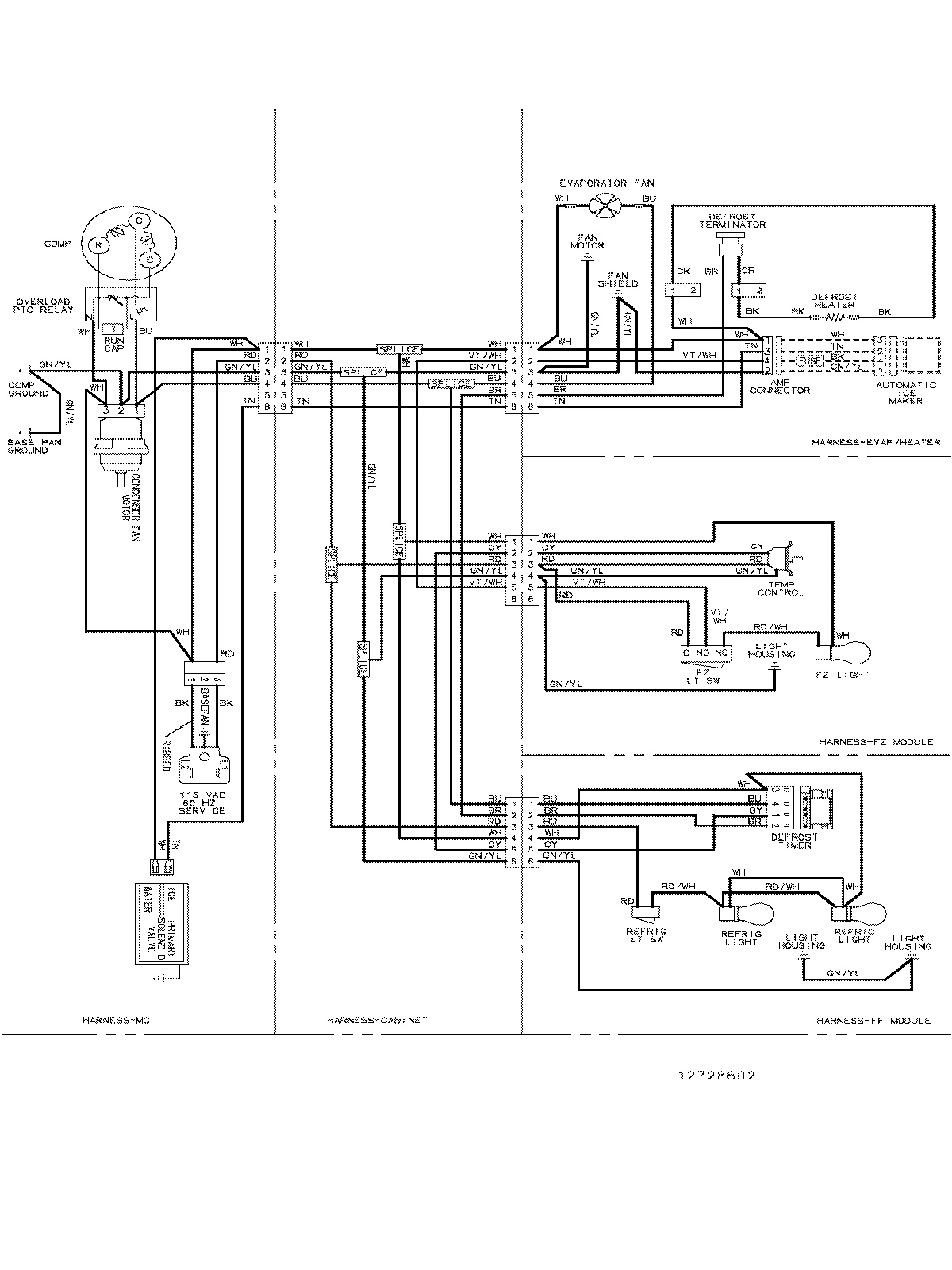

WIRING INFORMATION WPL 15003035 Contact Us For Availability

NI

WIRING INFORMATION WPL 15003701 Contact Us For Availability
