Model Whirlpool LHA7680W0 AUTOMATIC WASHER – Common Parts & Diagrams

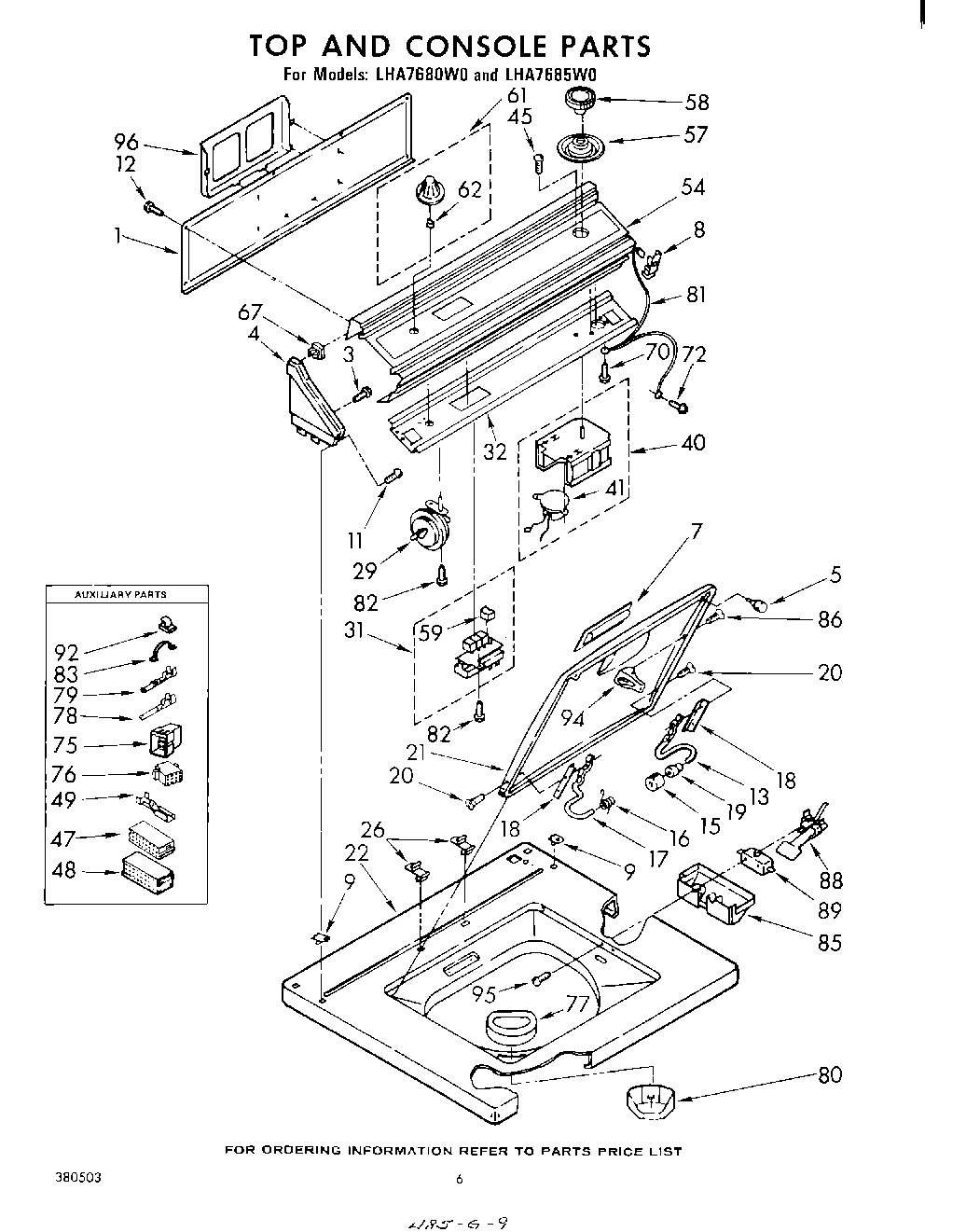

04 - TOP AND CONSOLE

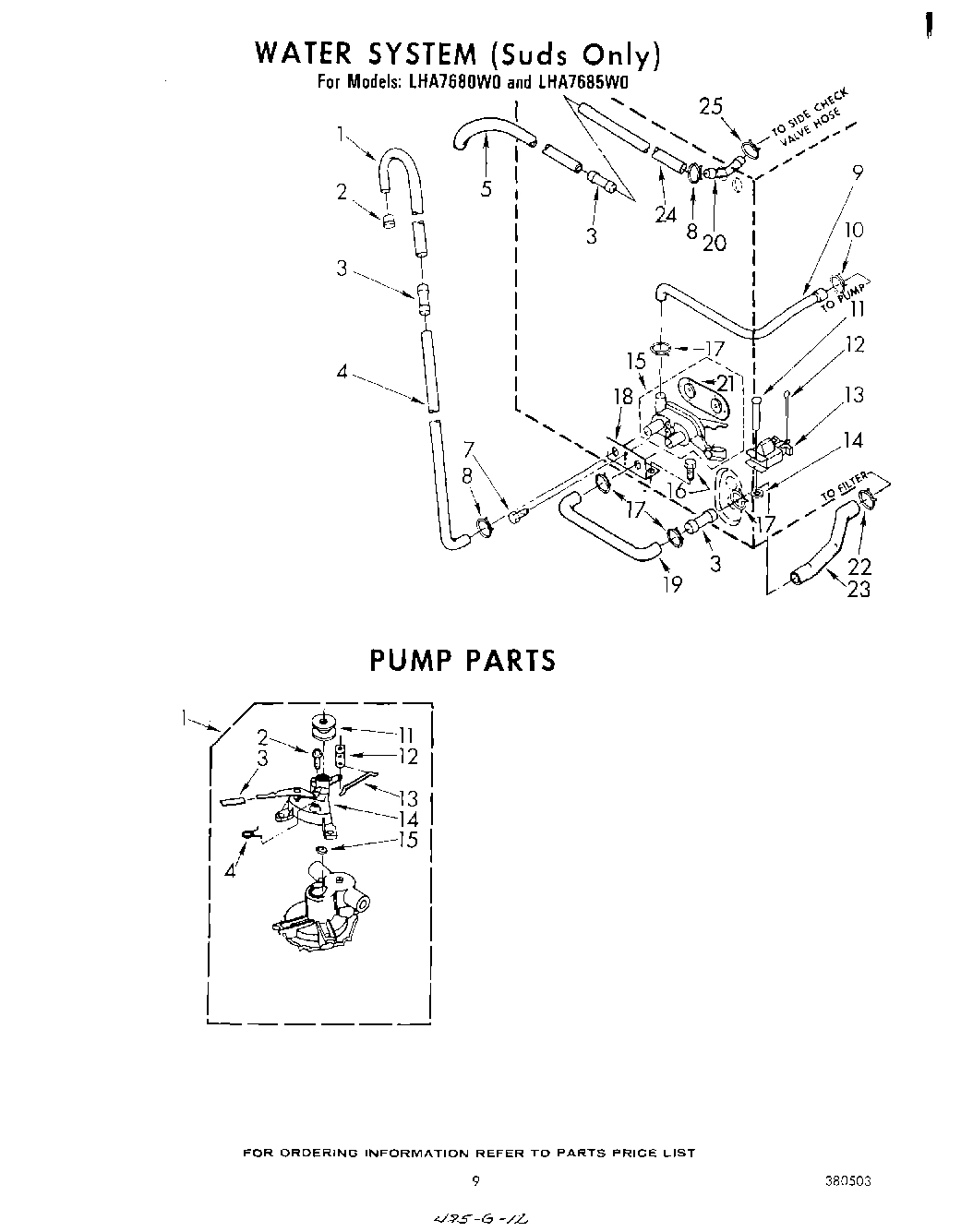

06 - WATER SYSTEM , PUMP
03 - DRIVE , LIT/OPTIONAL
05 - CABINET
07 - GEARCASE
08 - BASKET DRIVE AND BRAKE
02 - TUB AND BASKET
Common parts from model Whirlpool LHA7680W0 AUTOMATIC WASHER
WPL 799344 WPL 799344 Contact Us For Availability
WPL 010875 WPL 010875 Contact Us For Availability
WPL 261887 WPL 261887 Contact Us For Availability
WPL 261889 WPL 261889 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 299885 WPL 299885 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
Hose, Suds Discharge WPL 91273 Contact Us For Availability
1
Basket Drive & Brake WPL 357970 Contact Us For Availability
1
Gearcase (Complete) WPL 362901 Contact Us For Availability
2
Strainer, Hose WPL 352833 Contact Us For Availability
2
Cover, Gusset (L.R. & R.R.) WPL 352143 Contact Us For Availability
2
Cover, Gusset (L.F.) WPL 353230 Contact Us For Availability
2
Cover, Gearcase WPL 367552 Contact Us For Availability
2
Drum, Brake (Upper) WPL 350522 Contact Us For Availability
3
Gasket, Gearcase WPL 95089 Contact Us For Availability
3
Sleeve WPL 96175 Contact Us For Availability
3
Ball, Suspension (6) WPL 91073 Contact Us For Availability
3
Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability
3
Hose, Water Inlet WPL 356349 Contact Us For Availability
4
Spring, Toggle WPL 96266 Contact Us For Availability
4
Rod, Suspension (3) WPL 87270 Contact Us For Availability
4
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
4
Shaft, Agitator WPL 362642 Contact Us For Availability
4
Spring, Basket Drive (Green) (4) WPL 354275 Contact Us For Availability
5
Baseplate & Centerpost WPL 358948 Contact Us For Availability
5
Strap, Ground WPL 22965 Contact Us For Availability
5
Ring, Retainer WPL 352430 Contact Us For Availability
5
Drum, Brake (Lower) WPL 97664 Contact Us For Availability
6
Wire, Ground WPL 364089 Contact Us For Availability
6
Seal, Agitator Shaft WPL 92814 Contact Us For Availability
6
Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability
6
Inlet, Water WPL 366072 Contact Us For Availability
7
Screw & Washer WPL 190575 Contact Us For Availability
7
Brace, Baseplate WPL 353301 Contact Us For Availability
7
Shield, Agitator Spring WPL 94276 Contact Us For Availability
7
Yoke, Brake WPL 92903 Contact Us For Availability
7
Flapper WPL 355584 Contact Us For Availability
8
Nut, 5/16-24 WPL 96101 Contact Us For Availability
8
Spring, Agitator Shaft WPL 92815 Contact Us For Availability
8
Ring, Snap WPL 16049 Contact Us For Availability
9
Nut, Push-In (2) WPL 358473 Contact Us For Availability
9
Hose, Pump To Two-Way Valve WPL 97786 Contact Us For Availability
9
Magnet WPL 365998 Contact Us For Availability
9
Gear, Agitator Shaft WPL 355469 Contact Us For Availability
9
Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability
9
Ring, Tub WPL 356038 Contact Us For Availability
10
Screw, Taper End WPL 16135 Contact Us For Availability
10
Shaft, Agitator WPL 362098 Contact Us For Availability
10
Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability
10
Seal, Tub Ring WPL 356584 Contact Us For Availability
11
Rivet WPL 356990 Contact Us For Availability
11
Guide, Cam Bar WPL 95462 Contact Us For Availability
11
Eyelet (3) WPL 98281 Contact Us For Availability
11
Basket WPL 357968 Contact Us For Availability
12
Lever, Valve WPL 355538 Contact Us For Availability
12
Pin, Cotter (1/8 x 3/4) WPL 90228 Contact Us For Availability
12
Cam, Bar Spin WPL 354838 Contact Us For Availability
12
Panel, Rear (Suds) WPL 357335 Contact Us For Availability
12
Panel, Rear (Non-Suds) WPL 85279 Contact Us For Availability
13
Solenoid, Two-Way Valve WPL 86798 Contact Us For Availability
13
Rod, Connecting WPL 96264 Contact Us For Availability
13
Gear, Sector WPL 75073 Contact Us For Availability
13
Washer, Thrust (2) WPL 353320 Contact Us For Availability
14
Bearing Block Assembly WPL 87290 Contact Us For Availability
14
Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability
14
Ring, Retainer WPL 52083 Contact Us For Availability
14
Pulley, Basket Drive WPL 364032 Contact Us For Availability
14
Tub WPL 361983 Contact Us For Availability
15
Spring, Brake WPL 94726 Contact Us For Availability
15
Wick, Oil WPL 96265 Contact Us For Availability
15
Valve, Two-Way WPL 99830 Contact Us For Availability
15
Pin, Dowel WPL 5018 Contact Us For Availability
15
Bearing, Drive Pulley WPL 16033 Contact Us For Availability
15
Screw, Tub WPL 356973 Contact Us For Availability
16
Cam, Agitator & Pump WPL 18642 Contact Us For Availability
16
Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability
17
Plunger WPL 84866 Contact Us For Availability
17
Bearing, Gear Fork WPL 96853 Contact Us For Availability
17
Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability
18
Bracket WPL 357191 Contact Us For Availability
18
Rivet WPL 354959 Contact Us For Availability
18
Plate, Gusset (2) WPL 356459 Contact Us For Availability
18
Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability
19
Hose, Two-Way Valve To Connector WPL 97784 Contact Us For Availability
19
Spring, Brake Yoke WPL 17261 Contact Us For Availability
19
Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability
19
Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability
19
Nut, Spanner WPL 92229 Contact Us For Availability
20
Connector, Hose WPL 95440 Contact Us For Availability
20
Fork, Agitator Gear WPL 80398 Contact Us For Availability
20
Spacer, Agitator Shaft WPL 356937 Contact Us For Availability
20
Washer, Fiber WPL 92232 Contact Us For Availability
21
Diaphragm WPL 75183 Contact Us For Availability
21
Support, Spin Tube WPL 358586 Contact Us For Availability
21
Pin, Gear Fork Shaft WPL 90532 Contact Us For Availability
21
Washer, Rubber WPL 92235 Contact Us For Availability
22
Roller, Gear Fork Shaft WPL 92119 Contact Us For Availability
22
Insert, Agitator Cap WPL 358773 Contact Us For Availability
23
Hose, Filter To Cabinet WPL 355530 Contact Us For Availability
23
Rod, Connecting WPL 76577 Contact Us For Availability
23
Cap, Agitator WPL 356863 Contact Us For Availability
24
Hose, Outlet WPL 96744 Contact Us For Availability
24
Ring, Retaining WPL 95082 Contact Us For Availability
24
Nut, Lock WPL 357732 Contact Us For Availability
25
Shaft, Basket Clutch WPL 359460 Contact Us For Availability
25
Cabinet (White) WPL 368761 Contact Us For Availability
25
Cabinet (Almond) WPL 374418 Contact Us For Availability
25
Cabinet (Coffee) WPL 374419 Contact Us For Availability
25
Cabinet (New Avocado) WPL 374420 Contact Us For Availability
25
Cabinet (Golden Harvest) WPL 374421 Contact Us For Availability
25
Washer, Retainer WPL 95083 Contact Us For Availability
25
Agitator Assembly WPL 358370 Contact Us For Availability
26
Washer, Friction WPL 98411 Contact Us For Availability
26
Gear, Main Drive WPL 353397 Contact Us For Availability
26
Stud & Washer Assembly WPL 369516 Contact Us For Availability
27
Pad, Gusset Cover (6) WPL 352434 Contact Us For Availability
27
Washer, Thrust WPL 363362 Contact Us For Availability
28
Seal WPL 351830 Contact Us For Availability
28
Leveling Link Assembly WPL 75587 Contact Us For Availability
28
Gearcase WPL 362906 Contact Us For Availability
29
Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability
29
Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability
29
Bolt, Snubber (1) WPL 353770 Contact Us For Availability
29
Foot, Rear (2) WPL 95879 Contact Us For Availability
29
Bolt, 5/16-24 x 1-1/8 (2) WPL 356512 Contact Us For Availability
29
Air Dome Assembly WPL 360804 Contact Us For Availability
30
Bolt, 5/16-24 WPL 98048 Contact Us For Availability
30
Bearing, Drive Pinion WPL 354513 Contact Us For Availability
31
Gasket, Tub (7) WPL 17235 Contact Us For Availability
31
Hinge, R.H. WPL 18775 Contact Us For Availability
31
Hinge, L.H. WPL 92657 Contact Us For Availability
31
Pinion, Drive WPL 84467 Contact Us For Availability
31
Valve, Side Check WPL 88677 Contact Us For Availability
32
Cord, Power (120 Volt) WPL 92667 Contact Us For Availability
32
Washer, Drive Pinion WPL 16024 Contact Us For Availability
32
Clamp, Hose WPL 272857 Contact Us For Availability
33
Valve, Mixing (Alternate) WPL 358277 Contact Us For Availability
33
Valve, Mixing (Alternate) (Serviced Only As C WPL 358971 Contact Us For Availability
33
Ring, Retainer WPL 90094 Contact Us For Availability
33
Hose, Side Check To Filter (Non-Suds & Suds) WPL 355151 Contact Us For Availability
34
Spring, Snubber WPL 357977 Contact Us For Availability
34
Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability
35
Snubber WPL 358336 Contact Us For Availability
35
Retainer, Brake Yoke WPL 356444 Contact Us For Availability
35
Clip, Tub Ring (3) WPL 356701 Contact Us For Availability
36
Ball WPL 358585 Contact Us For Availability
36
Locator, Top (2) WPL 98669 Contact Us For Availability
36
Clip, Tub Ring (1) WPL 356700 Contact Us For Availability
37
Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability
38
Hose, Dispenser WPL 352978 Contact Us For Availability
38
Pulley, Main Drive WPL 360840 Contact Us For Availability
39
Pulley, Pump WPL 16113 Contact Us For Availability
40
Bracket, Motor Mounting WPL 85286 Contact Us For Availability
40
Plug, Cabinet WPL 354179 Contact Us For Availability
41
Hose, Drain WPL 96865 Contact Us For Availability
41
Nut (4) WPL 98023 Contact Us For Availability
42
Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability
43
Pulley, Motor WPL 357514 Contact Us For Availability
43
Hose, Pump To Filter WPL 355152 Contact Us For Availability
44
Shield, Motor (Upper) WPL 356217 Contact Us For Availability
44
Plate, Snubber WPL 355852 Contact Us For Availability
45
Dispenser, Rinse WPL 88932 Contact Us For Availability
46
Motor (Emerson) (Alternate) 60 Hz. WPL 357822 Contact Us For Availability
46
Motor (General Electric) (Alternate) 60 Hz. WPL 370653 Contact Us For Availability
47
Hose, Pump To Filter WPL 356167 Contact Us For Availability
48
WPL 352090 WPL 352090 Contact Us For Availability
48
Manifold & Filter WPL 371743 Contact Us For Availability
49
WPL 352088 WPL 352088 Contact Us For Availability
49
Clamp, Hose WPL 9421321 Contact Us For Availability
50
B WPL 354195 Contact Us For Availability
50
Hose, Tub Outlet WPL 96386 Contact Us For Availability
51
WPL 98537 WPL 98537 Contact Us For Availability
52
WPL 93549 WPL 93549 Contact Us For Availability
52
Hose, Pump To Manifold WPL 96251 Contact Us For Availability
53
WPL 95721 WPL 95721 Contact Us For Availability
54
WPL 380123 WPL 380123 Contact Us For Availability
54
WPL 380124 WPL 380124 Contact Us For Availability
55
WPL 357395 WPL 357395 Contact Us For Availability
55
Hose, Side Check To Drain (Non-Suds & Suds) WPL 96816 Contact Us For Availability
56
WPL 362086 WPL 362086 Contact Us For Availability
56
WPL 362738 WPL 362738 Contact Us For Availability
57
WPL 359254 WPL 359254 Contact Us For Availability
57
WPL 370950 WPL 370950 Contact Us For Availability
58
WPL 359206 WPL 359206 Contact Us For Availability
58
WPL 351499 WPL 351499 Contact Us For Availability
58
WPL 351500 WPL 351500 Contact Us For Availability
59
WPL 301008 WPL 301008 Contact Us For Availability
59
WPL 16062 WPL 16062 Contact Us For Availability
60
WPL 261886 WPL 261886 Contact Us For Availability
60
WPL 261888 WPL 261888 Contact Us For Availability
60
WPL 261890 WPL 261890 Contact Us For Availability
60
WPL 350941 WPL 350941 Contact Us For Availability
60
WPL 358116 WPL 358116 Contact Us For Availability
60
WPL 358770 WPL 358770 Contact Us For Availability
60
WPL 359325 WPL 359325 Contact Us For Availability
60
WPL 359326 WPL 359326 Contact Us For Availability
60
WPL 369743 WPL 369743 Contact Us For Availability
60
WPL 369756 WPL 369756 Contact Us For Availability
60
WPL 372832 WPL 372832 Contact Us For Availability
60
WPL 380472 WPL 380472 Contact Us For Availability
60
WPL 380503 WPL 380503 Contact Us For Availability
60
WPL 72108 WPL 72108 Contact Us For Availability
60
WPL 799351 WPL 799351 Contact Us For Availability
60
WPL 88916 WPL 88916 Contact Us For Availability
60
WPL 90877 WPL 90877 Contact Us For Availability
61
WPL 690301 WPL 690301 Contact Us For Availability
67
WPL 689559 WPL 689559 Contact Us For Availability
75
WPL 94612 WPL 94612 Contact Us For Availability
76
WPL 94611 WPL 94611 Contact Us For Availability
77
WPL 352821 WPL 352821 Contact Us For Availability
80
WPL 352827 WPL 352827 Contact Us For Availability
81
WPL 357535 WPL 357535 Contact Us For Availability
86
WPL 354975 WPL 354975 Contact Us For Availability
88
WPL 370959 WPL 370959 Contact Us For Availability
94
WPL 357633 WPL 357633 Contact Us For Availability
95
WPL 354764 WPL 354764 Contact Us For Availability
96
WPL 357645 WPL 357645 Contact Us For Availability
× ![]()
