Model Whirlpool LHA6400W2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

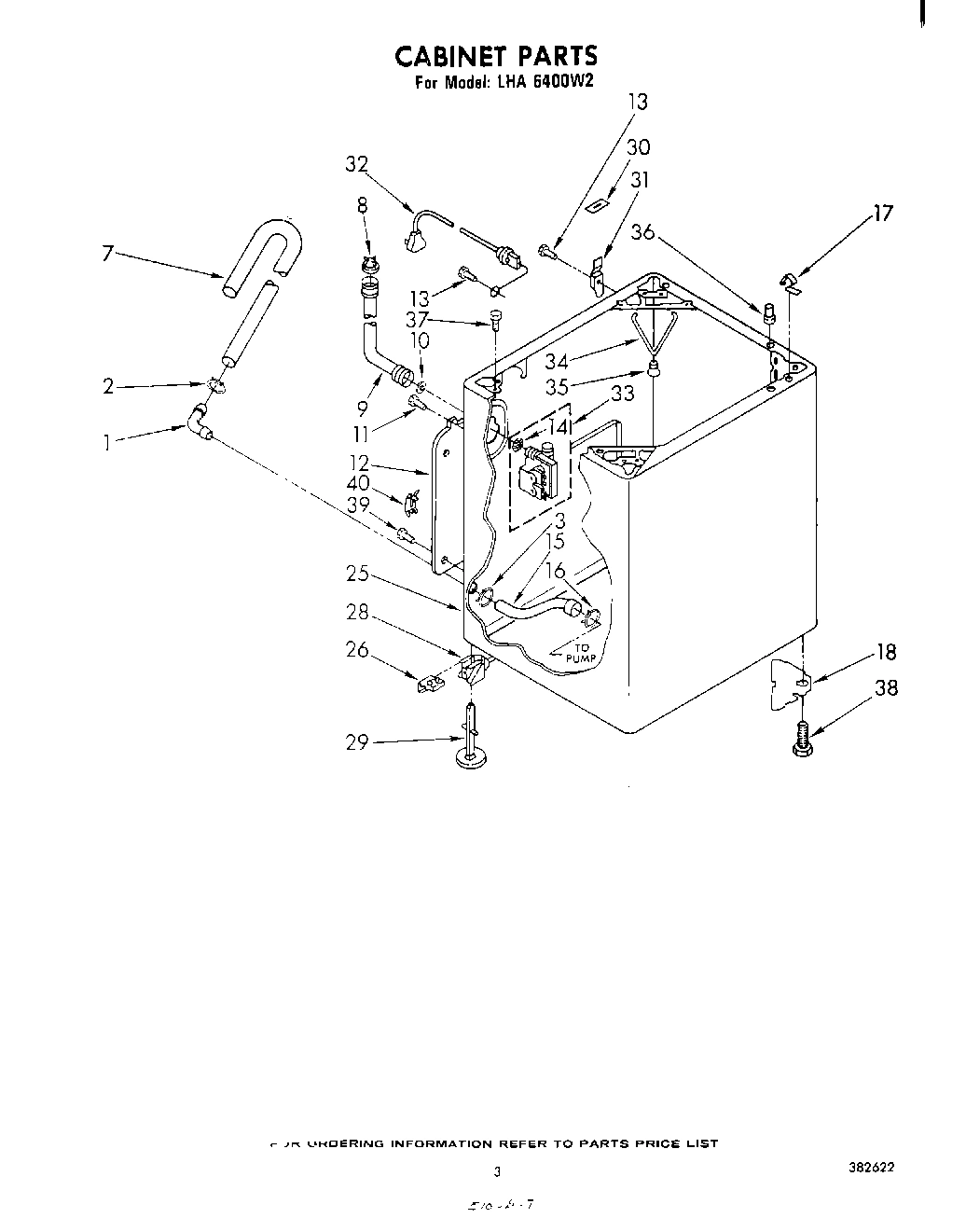

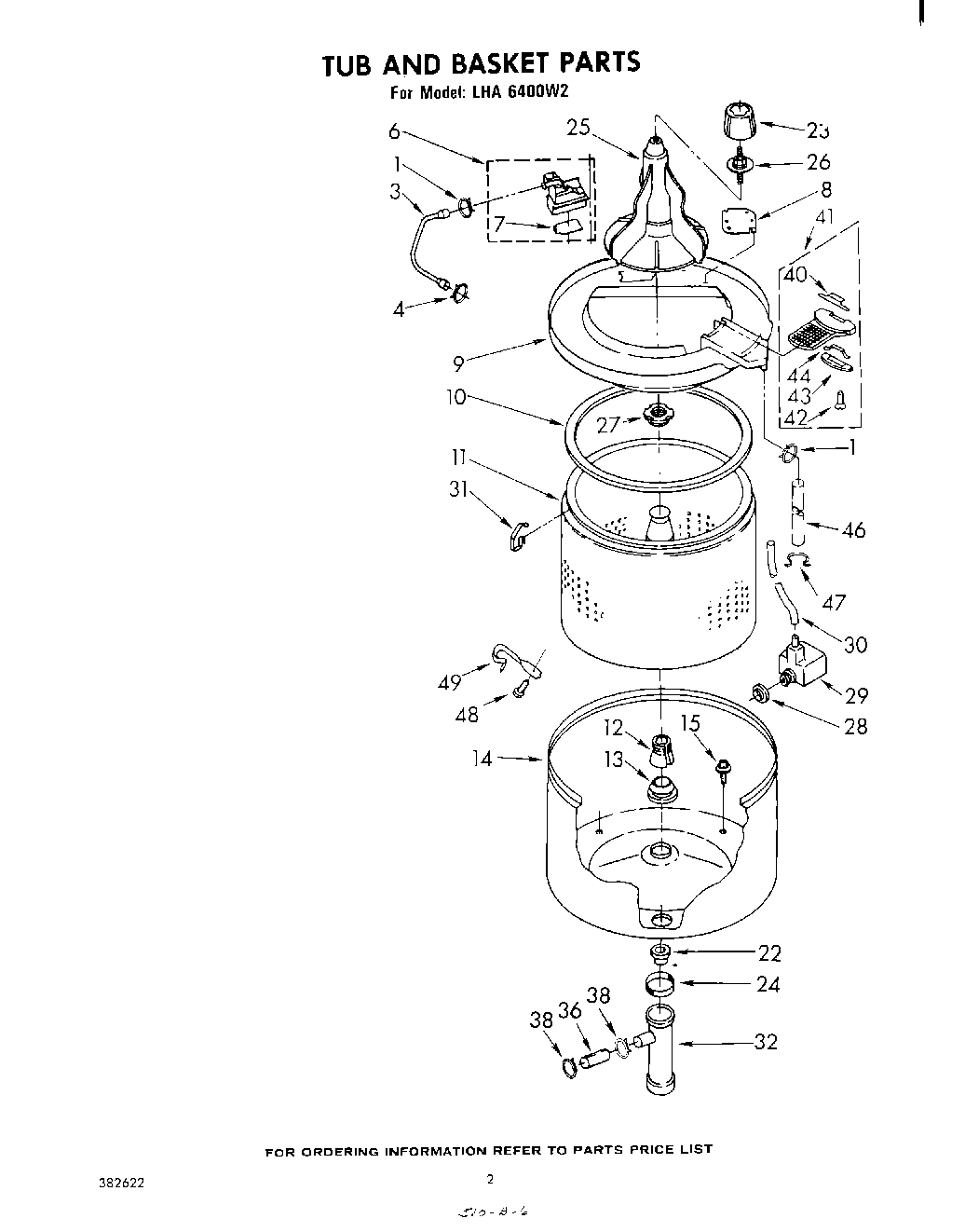

1

Gearcase (Complete) WPL 362901 Contact Us For Availability

1

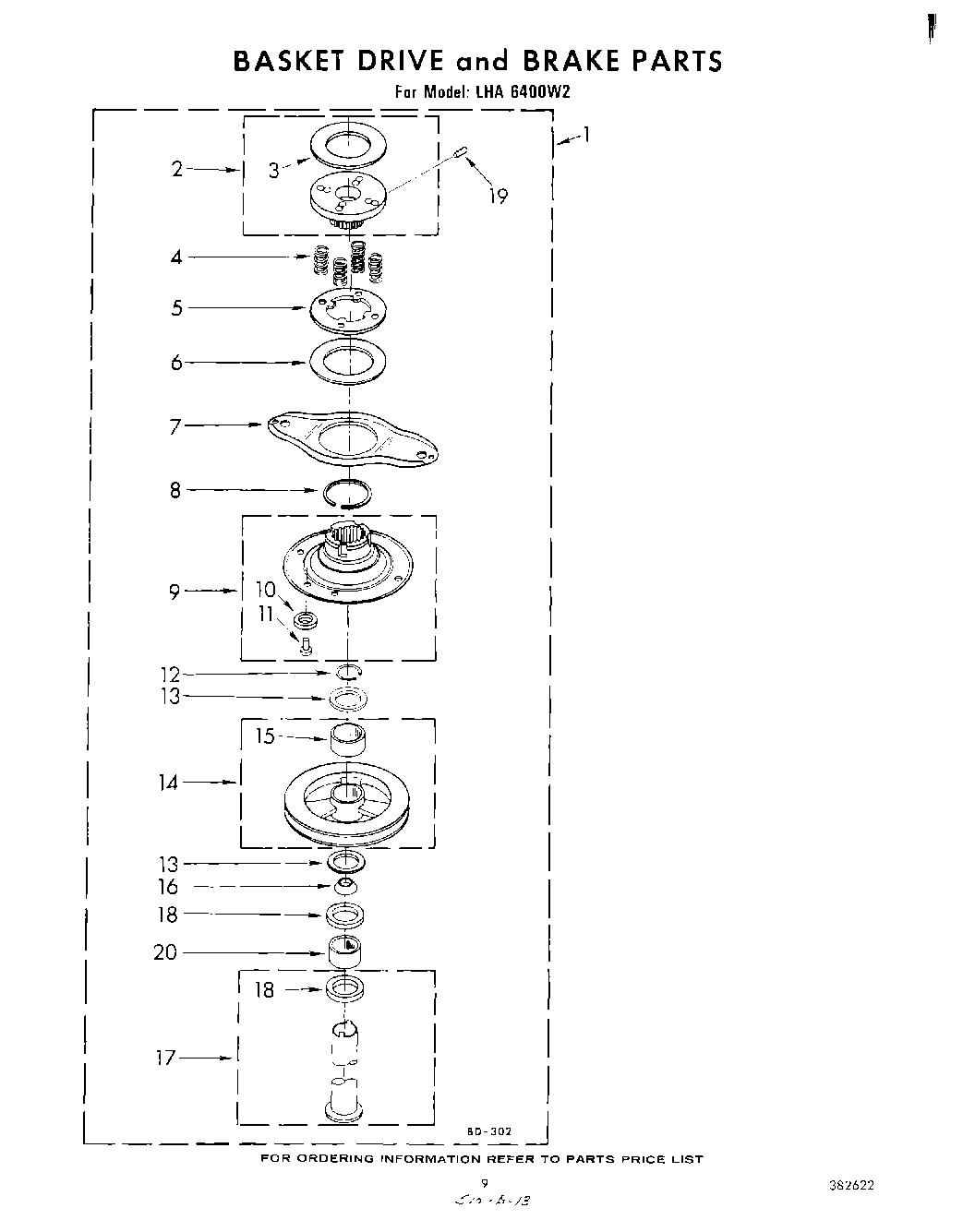

Basket Drive & Brake WPL 358364 Contact Us For Availability

1

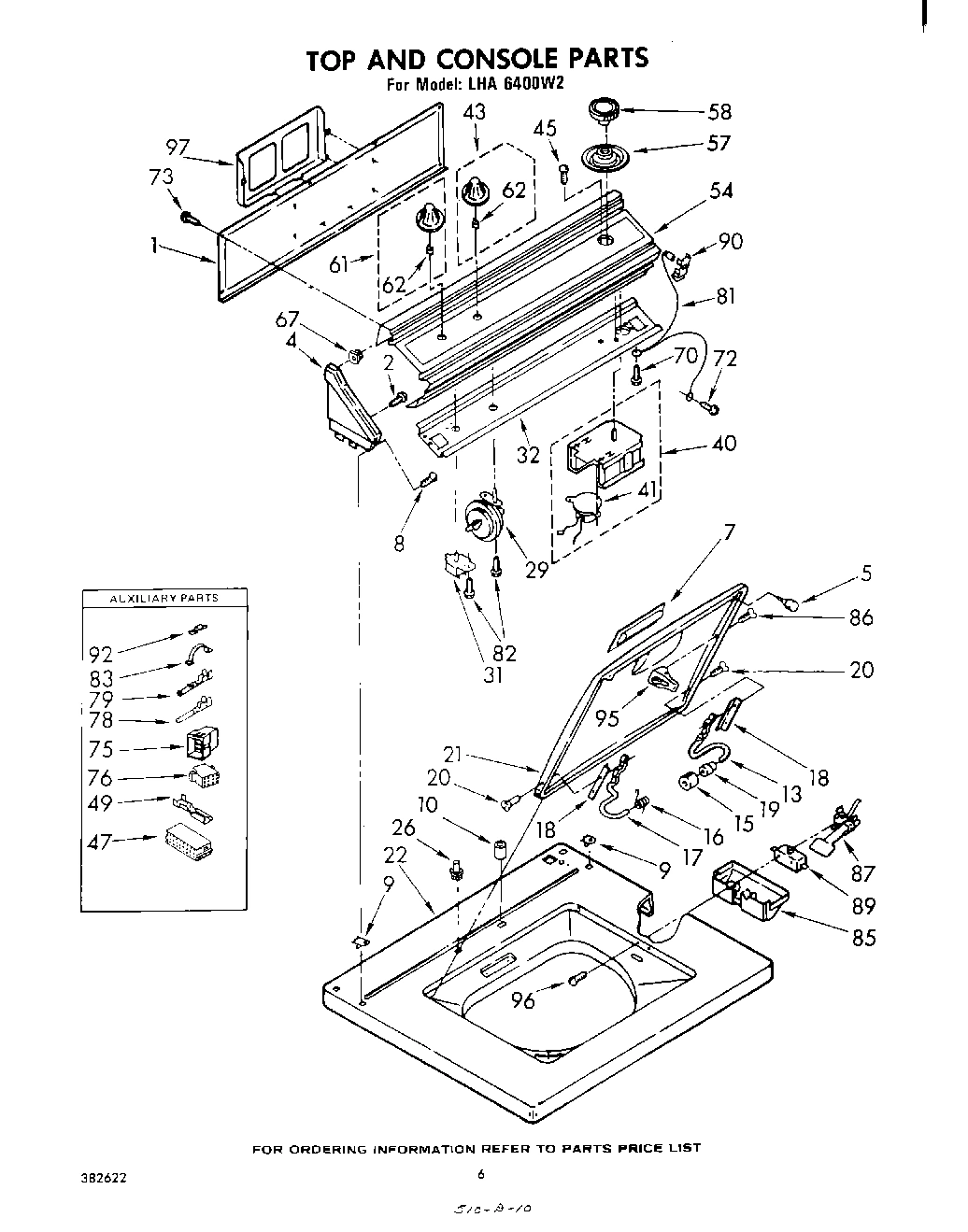

Panel, Rear Console WPL 357708 Contact Us For Availability

1

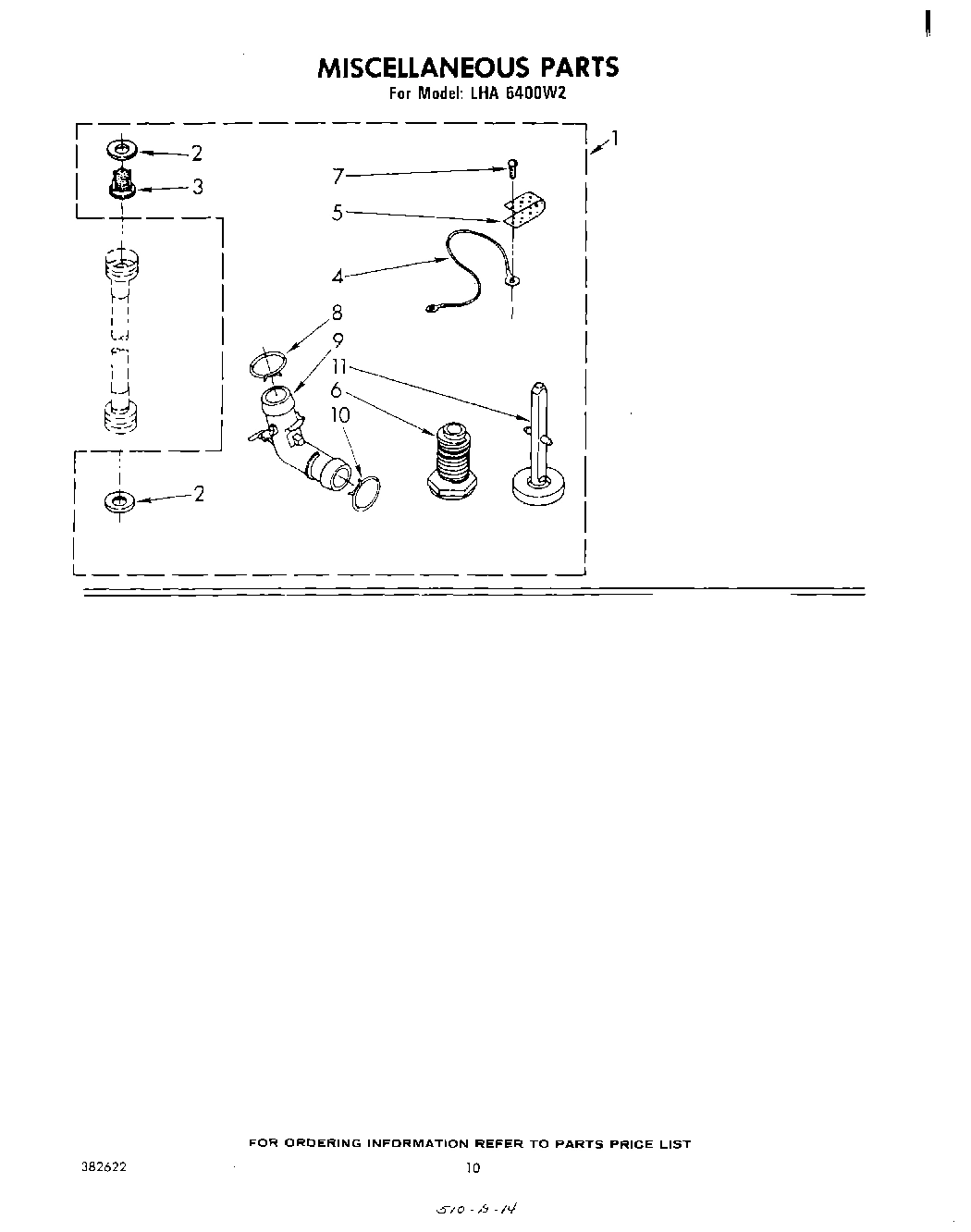

Miscellaneous Parts Bag WPL 375962 Contact Us For Availability

1

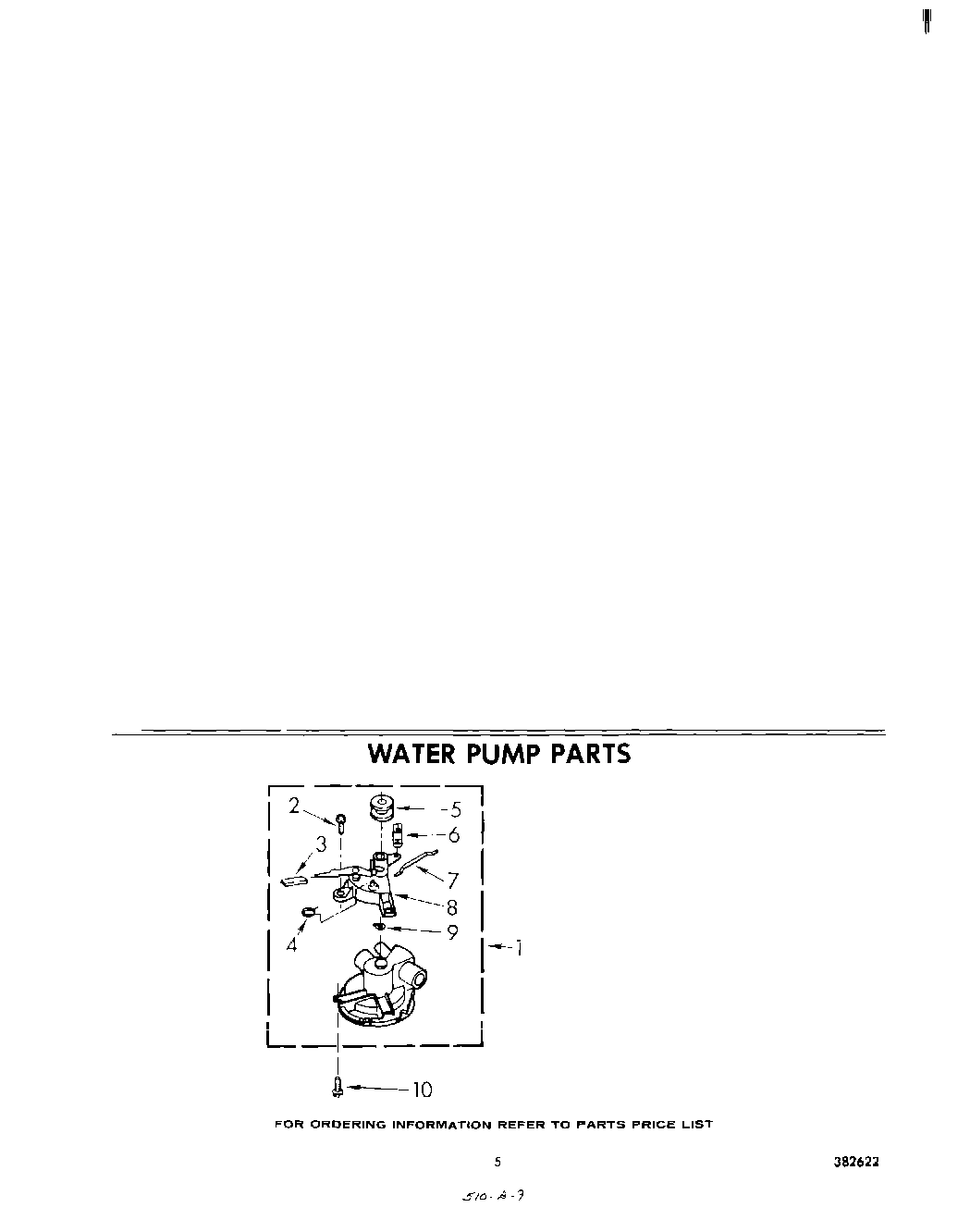

Pump Assembly WPL 357729 Contact Us For Availability

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

2

Cover, Gearcase WPL 367552 Contact Us For Availability

2

Drum, Brake (Upper) WPL 350522 Contact Us For Availability

2

Screw WPL 355326 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability

3

Hose, Water Inlet WPL 356349 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

4

Shaft, Agitator WPL 362642 Contact Us For Availability

4

Spring, Basket Drive (Orange) (4) WPL 381046 Contact Us For Availability

4

White WPL 371918 Contact Us For Availability

4

White WPL 371922 Contact Us For Availability

4

Almond WPL 377041 Contact Us For Availability

4

Coffee WPL 377042 Contact Us For Availability

4

Almond WPL 377043 Contact Us For Availability

4

Coffee WPL 377044 Contact Us For Availability

4

New Avocado WPL 377045 Contact Us For Availability

4

Golden Harvest WPL 377046 Contact Us For Availability

4

New Avocado WPL 377047 Contact Us For Availability

4

Golden Harvest Cap, End. (R.H.) WPL 377048 Contact Us For Availability

4

Cap, End (L.H.) WPL ARI117829A Contact Us For Availability

4

Wire, Ground WPL 364089 Contact Us For Availability

4

Spring, Toggle WPL 96266 Contact Us For Availability

5

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

5

Ring, Retainer WPL 352430 Contact Us For Availability

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

5

Strap, Ground WPL 22965 Contact Us For Availability

5

Pulley, Pump WPL 359630 Contact Us For Availability

6

Seal, Agitator Shaft WPL 92814 Contact Us For Availability

6

Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability

6

Inlet, Water WPL 366072 Contact Us For Availability

6

Lever, Valve WPL 355538 Contact Us For Availability

7

WP96743 Whirlpool Hose In Stock WPL WP96743 $23.59

7

Shield, Agitator Spring WPL 94276 Contact Us For Availability

7

Yoke, Brake WPL 92903 Contact Us For Availability

7

Handle, Lid (White) WPL 379884 Contact Us For Availability

7

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

7

Handle, Lid (Coffee) WPL 379886 Contact Us For Availability

7

Handle, Lid (New Avocado) WPL 379887 Contact Us For Availability

7

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

7

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

Flapper WPL 355584 Contact Us For Availability

7

Rod, Connecting WPL 96264 Contact Us For Availability

8

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $2.51

8

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

8

Spring, Agitator Shaft WPL 92815 Contact Us For Availability

8

Ring, Snap WPL 16049 Contact Us For Availability

8

Screw, 8-18 WPL 358225 Contact Us For Availability

8

Plate, Snubber WPL 355852 Contact Us For Availability

8

Bearing Block Assembly WPL 87290 Contact Us For Availability

9

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

9

Connector, Hose WPL 95440 Contact Us For Availability

9

Gear, Agitator Shaft WPL 355469 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

9

Ring & Filter, Tub (Includes Illus. 8 & 41) WPL 381978 Contact Us For Availability

9

Wick, Oil WPL 96265 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $26.43

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

Shaft, Agitator WPL 362098 Contact Us For Availability

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

Sleeve, Anchor (2) WPL 345059 Contact Us For Availability

Seal, Tub Ring WPL 359757 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Eyelet (3) WPL 98281 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

New Avocado (Uncut) WPL 261889 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Guide, Laundry WPL 358770 Contact Us For Availability

Instructions, Installation WPL 372845 Contact Us For Availability

Instructions, Operating WPL 380459 Contact Us For Availability

Label, Energy Guide WPL 382230 Contact Us For Availability

List, Repair Parts WPL 382622 Contact Us For Availability

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

Thinner (1 Gal.) WPL 799351 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Basket WPL 358404 Contact Us For Availability

12

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

12

Block, Drive WPL 96384 Contact Us For Availability

12

Panel, Rear WPL 85279 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

Gear, Sector WPL 75073 Contact Us For Availability

Washer, Thrust (2) WPL 353320 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Ring, Retainer WPL 52083 Contact Us For Availability

Pulley, Basket Drive WPL 364032 Contact Us For Availability

Tub WPL 359592 Contact Us For Availability

Spring, Brake WPL 94726 Contact Us For Availability

Pin, Dowel WPL 5018 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

Bumper, Lid Hinge WPL 91605 Contact Us For Availability

Screw & Washer, Tub (4) WPL 370571 Contact Us For Availability

Hose, Pump Discharge WPL 21114 Contact Us For Availability

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability

Spring, Lid (L.H.) WPL 92398 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

Bearing, Gear Fork WPL 96853 Contact Us For Availability

Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability

Hinge, Lid (L.H.) WPL 91099 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability

Plate, Gusset (2) WPL 356459 Contact Us For Availability

19

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

19

Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability

19

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

20

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

20

Fork, Agitator Gear WPL 80398 Contact Us For Availability

20

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

Pin, Gear Fork Shaft WPL 90532 Contact Us For Availability

Lid (White) WPL 379964 Contact Us For Availability

Lid (Almond) WPL 379965 Contact Us For Availability

Lid (Coffee) WPL 379966 Contact Us For Availability

Lid (New Avocado) WPL 379967 Contact Us For Availability

Lid (Golden Harvest) WPL 379968 Contact Us For Availability

Roller, Gear Fork Shaft WPL 92119 Contact Us For Availability

Top (White) WPL 373285 Contact Us For Availability

Top (Almond) WPL 376930 Contact Us For Availability

Top (Coffee) WPL 376931 Contact Us For Availability

Top (New Avocado) WPL 376932 Contact Us For Availability

Top (Golden Harvest) WPL 376933 Contact Us For Availability

Hose, Tub Outlet WPL 93553 Contact Us For Availability

23

Rod, Connecting WPL 76577 Contact Us For Availability

23

Cap, Agitator WPL 358431 Contact Us For Availability

24

Ring, Retaining WPL 95082 Contact Us For Availability

24

Clip, Hose WPL 9421321 Contact Us For Availability

Washer, Retainer WPL 95083 Contact Us For Availability

Agitator & Insert Assembly WPL 363633 Contact Us For Availability

Cabinet (White) WPL 379101 Contact Us For Availability

Cabinet (Almond) WPL 379102 Contact Us For Availability

Cabinet (Coffee) WPL 379103 Contact Us For Availability

Cabinet (New Avocado) WPL 379104 Contact Us For Availability

Cabinet (Golden Harvest) WPL 379105 Contact Us For Availability

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.70

Gear, Main Drive WPL 353397 Contact Us For Availability

Nut, Push-In (2) WPL 356552 Contact Us For Availability

Stud, Agitator Shaft WPL 358440 Contact Us For Availability

27

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

27

Washer, Thrust WPL 363362 Contact Us For Availability

28

Seal WPL 351830 Contact Us For Availability

28

Gearcase WPL 362906 Contact Us For Availability

28

Leveling Link Assembly WPL 359059 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Bolt, 5/16-24 x 1-1/8 (2) WPL 356512 Contact Us For Availability

Switch, Water Level (Alternate) WPL 359647 Contact Us For Availability

Switch, Water Level (Alternate) WPL 363301 Contact Us For Availability

Air Dome Assembly WPL 360804 Contact Us For Availability

30

18849 Whirlpool Pad Backorder WPL 18849 $9.13

30

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

30

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

Pinion, Drive WPL 84467 Contact Us For Availability

Switch, Water Temperature (Alternate) WPL 370145 Contact Us For Availability

Switch, Water Temperature (Alternate) WPL 370146 Contact Us For Availability

Clip, Tub Ring (4) WPL 359763 Contact Us For Availability

Hinge, R.H. WPL 18775 Contact Us For Availability

Hinge, L.H. WPL 92657 Contact Us For Availability

Washer, Drive Pinion WPL 16024 Contact Us For Availability

Bracket, Control WPL 357301 Contact Us For Availability

Manifold WPL 84091 Contact Us For Availability

Cord, Power (120 Volt) WPL 92667 Contact Us For Availability

33

Valve, Mixing (Alternate) WPL 358277 Contact Us For Availability

33

Ring, Retainer WPL 90094 Contact Us For Availability

33

Valve, Mixing (Alternate) (Serviced Only As C WPL 358971 Contact Us For Availability

34

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

34

Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability

34

Spring, Snubber WPL 357977 Contact Us For Availability

35

Snubber WPL 358336 Contact Us For Availability

36

Hose WPL 92231 Contact Us For Availability

36

Locator, Top (2) WPL 98669 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

Timer Assembly (60 Hz.) (C.C.A.) WPL 380249 Contact Us For Availability

Timer Assembly (60 Hz.) (Mallory) WPL 380253 Contact Us For Availability

Latch WPL 357249 Contact Us For Availability

Plug, Cabinet WPL 354179 Contact Us For Availability

41

Timer Motor, 60 Hz. (Use W/C.C.A. Timer) WPL 362681 Contact Us For Availability

41

Motor, Timer (60 Hz.) (Use W/Mallory Timer) WPL 365941 Contact Us For Availability

41

Filter WPL 359785 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

42

Screw (2) WPL 176360 Contact Us For Availability

43

Knob Assembly, Water Level WPL 368767 Contact Us For Availability

43

Retainer WPL 357250 Contact Us For Availability

44

Spring WPL 94403 Contact Us For Availability

45

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

46

Hose, Pump To Filter WPL 357346 Contact Us For Availability

47

16515 Whirlpool Clip Backorder WPL 16515 $11.62

47

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

48

Bracket, Hose WPL 358339 Contact Us For Availability

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.59

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

Termi WPL 352088 Contact Us For Availability

Harness, Base WPL 358115 Contact Us For Availability

Harness, Console WPL 359340 Contact Us For Availability

50

WPL 354195 WPL 354195 Contact Us For Availability

51

WPL 98537 WPL 98537 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

54

WPL 380538 WPL 380538 Contact Us For Availability

55

WPL 357571 WPL 357571 Contact Us For Availability

56

WPL 359642 WPL 359642 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

57

WPL 359381 WPL 359381 Contact Us For Availability

58

WPL 351499 WPL 351499 Contact Us For Availability

58

WPL 351500 WPL 351500 Contact Us For Availability

58

WPL 356500 WPL 356500 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

60

WPL 90877 WPL 90877 Contact Us For Availability

61

WPL 285134 WPL 285134 Contact Us For Availability

61

WPL 368769 WPL 368769 Contact Us For Availability

62

WPL 90015 WPL 90015 Contact Us For Availability

67

WPL 98084 WPL 98084 Contact Us For Availability

73

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

75

WPL 94612 WPL 94612 Contact Us For Availability

76

WPL 94611 WPL 94611 Contact Us For Availability

78

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

81

WPL 357535 WPL 357535 Contact Us For Availability

82

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

83

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

85

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

86

WPL 354975 WPL 354975 Contact Us For Availability

87

WPL 370959 WPL 370959 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

90

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

92

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

95

WPL 357633 WPL 357633 Contact Us For Availability

96

WPL 354764 WPL 354764 Contact Us For Availability

97

WPL 357645 WPL 357645 Contact Us For Availability
