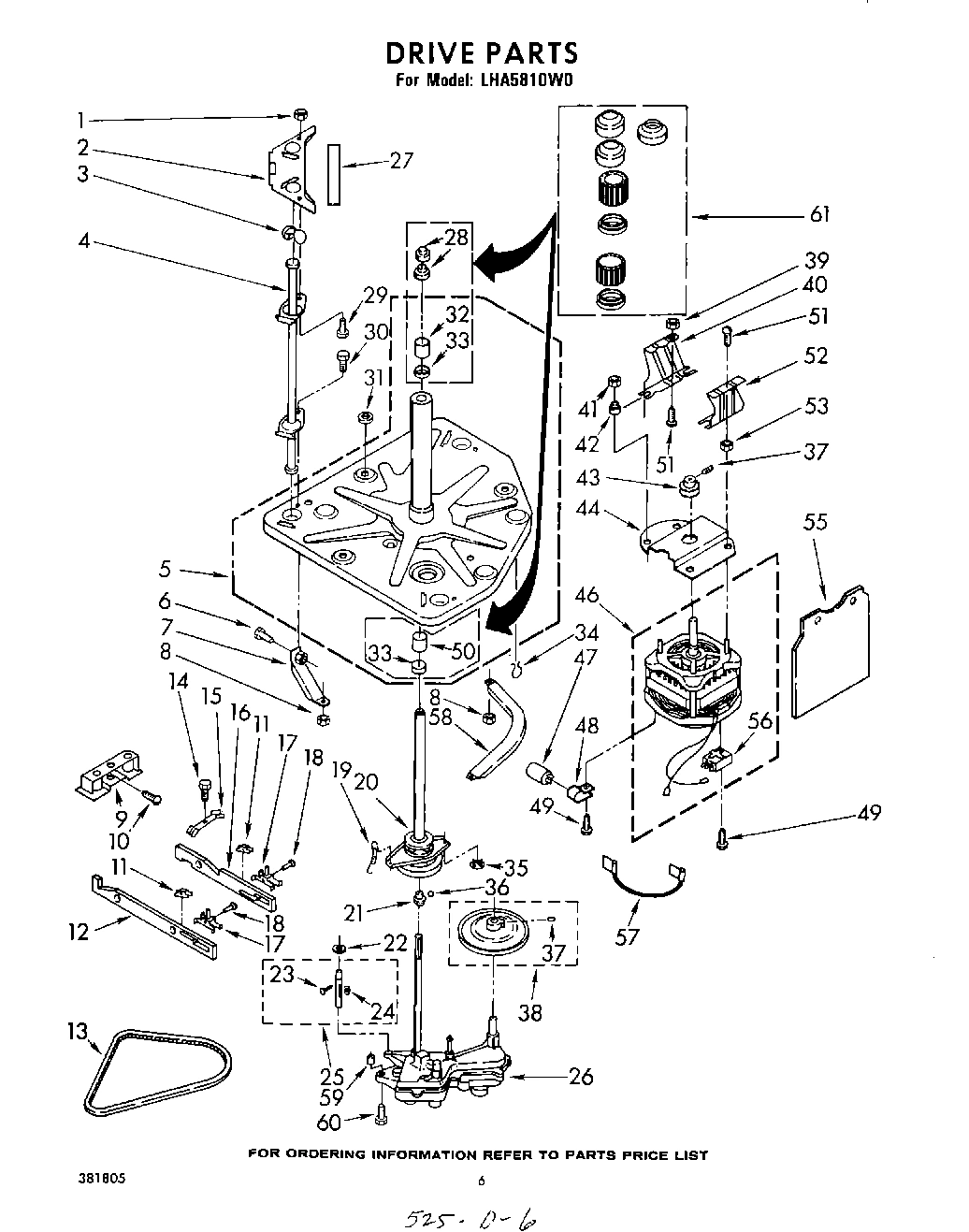

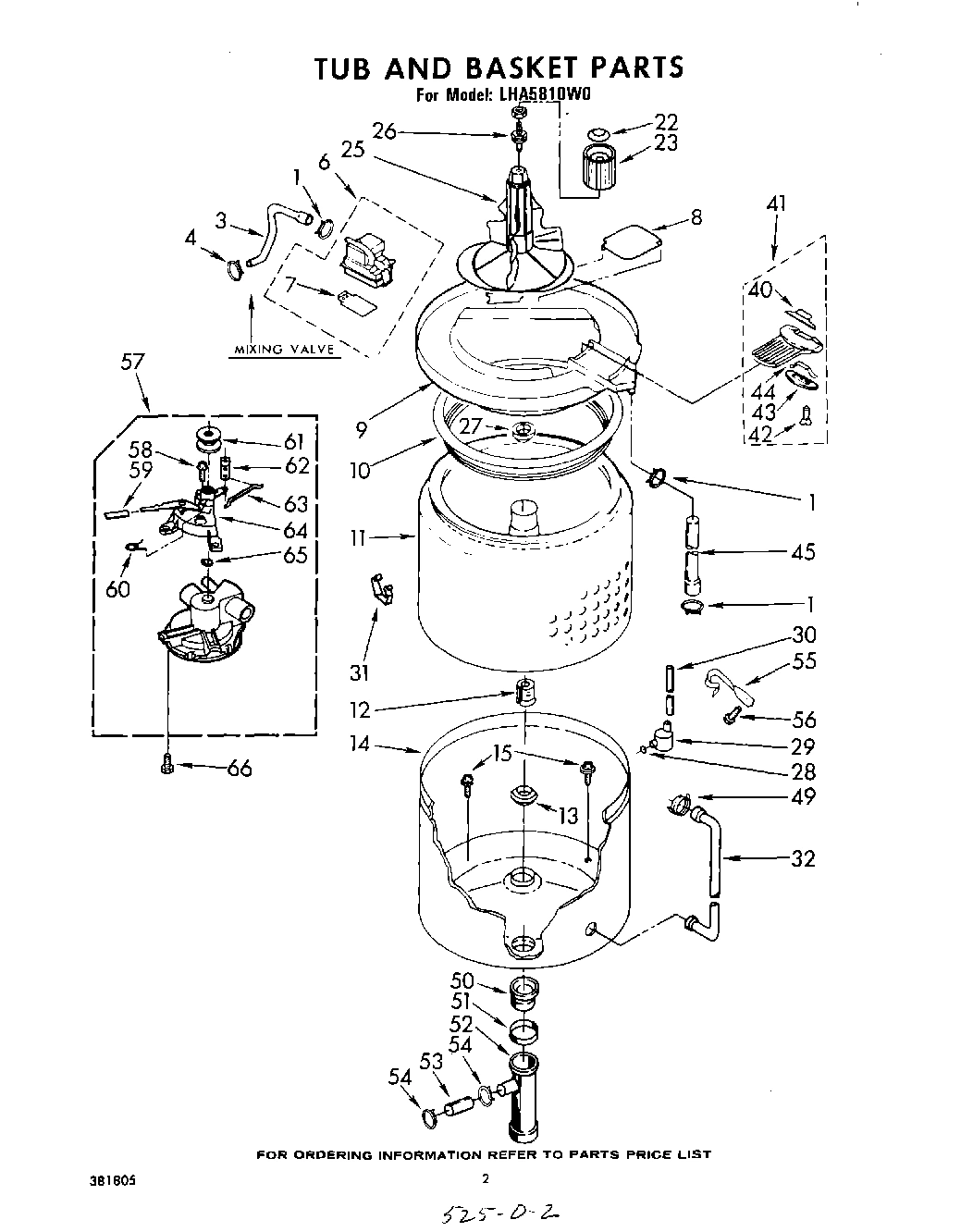

Model Whirlpool LHA5810W0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

90984 Whirlpool Nut Backorder WPL 90984 $9.13

1

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

1

Connector, Hose WPL 95440 Contact Us For Availability

1

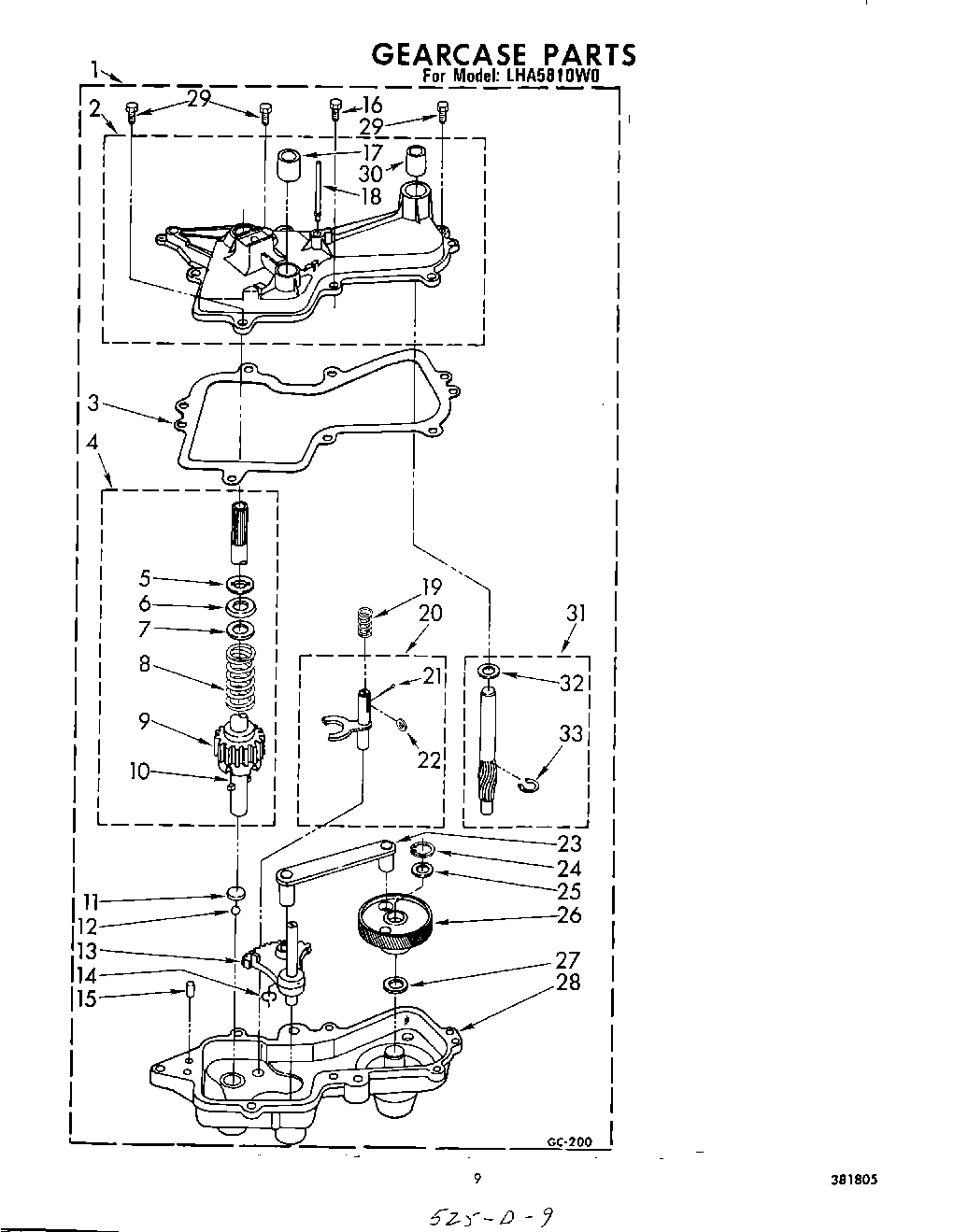

Gearcase (Complete) WPL 358483 Contact Us For Availability

2

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

2

Cover, Rear Gusset (2) WPL 352143 Contact Us For Availability

2

Cover, Front Gusset WPL 353230 Contact Us For Availability

2

Cover, Gearcase WPL 367552 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Ball, Suspension (6) WPL 91073 Contact Us For Availability

3

Hose, Water Inlet WPL 356349 Contact Us For Availability

4

Rod, Suspension (3) WPL 359678 Contact Us For Availability

4

Shaft, Agitator WPL 362642 Contact Us For Availability

5

Baseplate & Centerpost WPL 359722 Contact Us For Availability

5

Ring, Retainer WPL 352430 Contact Us For Availability

6

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

6

Seal, Agitator Shaft WPL 92814 Contact Us For Availability

6

Inlet, Water WPL 366072 Contact Us For Availability

7

Brace, Baseplate WPL 353301 Contact Us For Availability

7

Shield, Agitator Spring WPL 94276 Contact Us For Availability

7

Flapper WPL 355584 Contact Us For Availability

8

Screw, No. 10-24 x1 WPL 132848 Contact Us For Availability

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

8

Spring, Agitator Shaft WPL 92815 Contact Us For Availability

8

Plate, Snubber WPL 355852 Contact Us For Availability

9

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

Strap, Ground WPL 22965 Contact Us For Availability

9

Magnet WPL 365998 Contact Us For Availability

9

Gear, Agitator Shaft WPL 355469 Contact Us For Availability

9

Ring & Filter, Tub (Includes Illus. 8 & 41) WPL 381977 Contact Us For Availability

10

Screw, Taper End WPL 16135 Contact Us For Availability

10

Shaft, Agitator WPL 362098 Contact Us For Availability

10

Seal, Tub Ring WPL 355850 Contact Us For Availability

11

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

11

Guide, Cam Bar WPL 95462 Contact Us For Availability

11

Basket WPL 359705 Contact Us For Availability

12

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

12

Wire, Ground WPL 364089 Contact Us For Availability

12

Cam, Bar Spin WPL 354838 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

Gear, Sector WPL 75073 Contact Us For Availability

WP96743 Whirlpool Hose In Stock WPL WP96743 $23.59

Spring, Hinge (L.H.) WPL 92398 Contact Us For Availability

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Ring, Retainer WPL 52083 Contact Us For Availability

Tub WPL 359694 Contact Us For Availability

Spring, Brake WPL 94726 Contact Us For Availability

Bumper, Lid Hinge WPL 91605 Contact Us For Availability

Pin, Dowel WPL 5018 Contact Us For Availability

Screw & Washer, Tub (4) WPL 370571 Contact Us For Availability

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $2.51

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

Hinge, L.H. WPL 91099 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

Bearing, Gear Fork WPL 96853 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

Rivet WPL 354959 Contact Us For Availability

Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

Spring, Brake Yoke WPL 17261 Contact Us For Availability

Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

Panel, Rear WPL 85279 Contact Us For Availability

Basket Drive & Brake (For Further Breakdown R WPL 359699 Contact Us For Availability

Fork, Agitator Gear WPL 80398 Contact Us For Availability

Lid (White) WPL 379959 Contact Us For Availability

Lid (Almond) WPL 379960 Contact Us For Availability

Lid (Coffee) WPL 379961 Contact Us For Availability

Lid (New Avocado) WPL 379962 Contact Us For Availability

Lid (Golden Harvest) WPL 379963 Contact Us For Availability

Support, Spin Tube WPL 358586 Contact Us For Availability

Pin, Gear Fork Shaft WPL 90532 Contact Us For Availability

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $2.38

Top (White) WPL 380283 Contact Us For Availability

Top (Almond) WPL 380284 Contact Us For Availability

Top (Coffee) WPL 380285 Contact Us For Availability

Top (New Avocado) WPL 380286 Contact Us For Availability

Top (Golden Harvest) WPL 380287 Contact Us For Availability

Roller, Gear Fork Shaft WPL 92119 Contact Us For Availability

Insert, Agitator Cap WPL 358773 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

Rod, Connecting WPL 76577 Contact Us For Availability

Cap, Agitator WPL 356863 Contact Us For Availability

24

Ring, Retaining WPL 95082 Contact Us For Availability

24

Nut, 5/16-24 WPL 357732 Contact Us For Availability

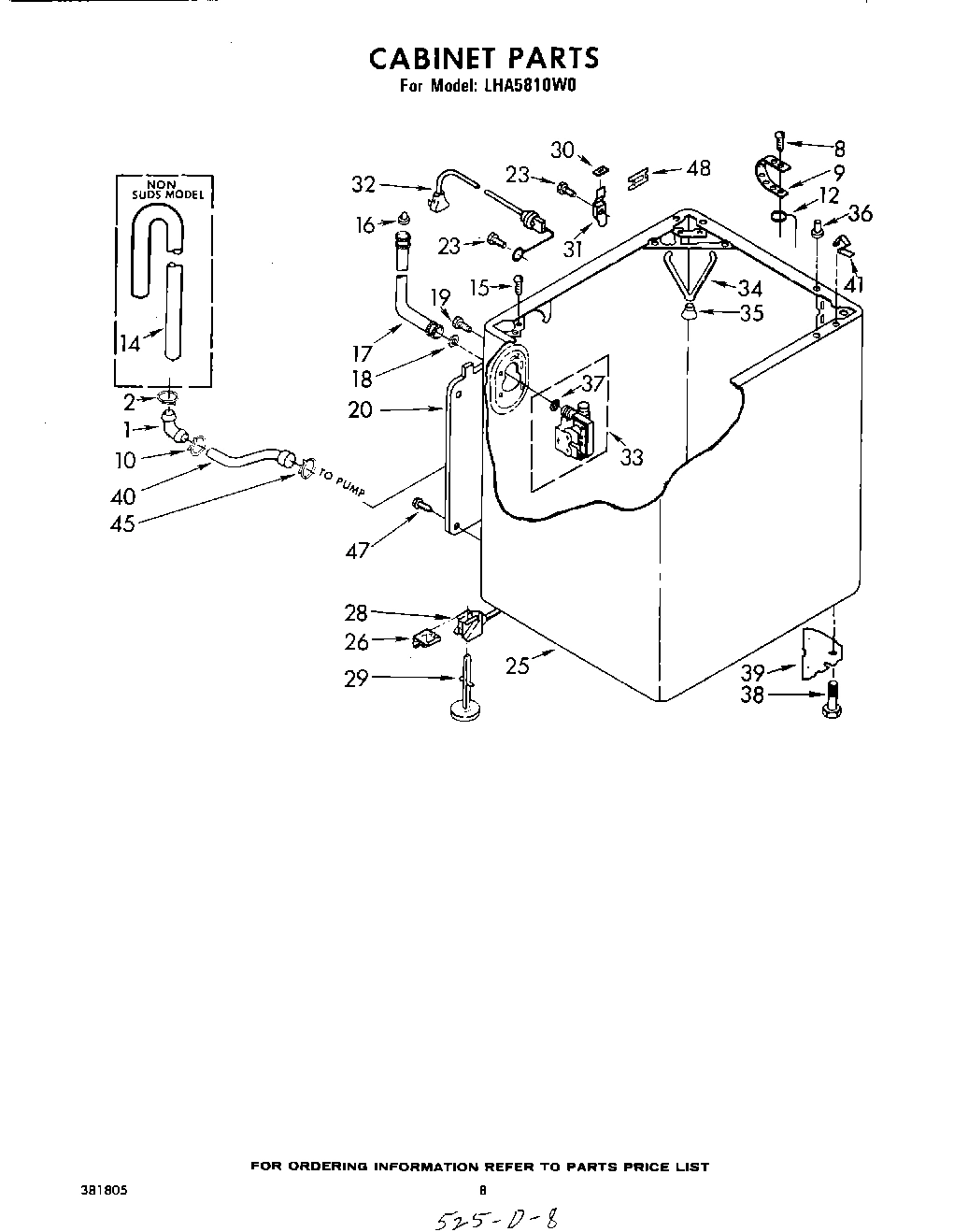

Cabinet (White) WPL 379101 Contact Us For Availability

Cabinet (Almond) WPL 379102 Contact Us For Availability

Cabinet (Coffee) WPL 379103 Contact Us For Availability

Cabinet (New Avocado) WPL 379104 Contact Us For Availability

Cabinet (Golden Harvest) WPL 379105 Contact Us For Availability

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

Washer, Retainer WPL 95083 Contact Us For Availability

Agitator WPL 358370 Contact Us For Availability

26

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.70

26

Gear, Main Drive WPL 353397 Contact Us For Availability

26

Stud & Washer WPL 369516 Contact Us For Availability

27

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

27

Pad, Gusset Cover (6) WPL 352434 Contact Us For Availability

27

Washer, Thrust WPL 363362 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

Seal WPL 351830 Contact Us For Availability

Leveling Link Assembly WPL 359059 Contact Us For Availability

Gearcase WPL 362906 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Switch, Water Level WPL 359711 Contact Us For Availability

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

Bolt, 5/16-24 x 1-1/8 (3) WPL 356512 Contact Us For Availability

Air Dome Assembly WPL 360804 Contact Us For Availability

18849 Whirlpool Pad Backorder WPL 18849 $9.13

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

Switch, Water Temperature (Alternate) WPL 370145 Contact Us For Availability

Switch, Water Temperature (Alternate) WPL 370146 Contact Us For Availability

Hinge, R.H. WPL 18775 Contact Us For Availability

Hinge, L.H. WPL 92657 Contact Us For Availability

Gasket, Tub (7) WPL 17235 Contact Us For Availability

Pinion, Drive WPL 84467 Contact Us For Availability

Clip, Tub Ring (2) WPL 359689 Contact Us For Availability

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Hose, Dispenser WPL 352978 Contact Us For Availability

Bracket, Control WPL 358467 Contact Us For Availability

Cord, Power (120 Volt) WPL 92667 Contact Us For Availability

Washer, Drive Pinion WPL 16024 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

Valve, Mixing (Alternate) WPL 358277 Contact Us For Availability

Valve, Mixing (Alternate) (Serviced Only as C WPL 358971 Contact Us For Availability

Ring, Retainer WPL 90094 Contact Us For Availability

34

16515 Whirlpool Clip Backorder WPL 16515 $11.62

34

Spring, Snubber WPL 357977 Contact Us For Availability

35

Snubber WPL 358336 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

36

Locator, Top (2) WPL 98669 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

37

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

39

Plate, Gusset (2) WPL 356459 Contact Us For Availability

Timer, 60 Hz. (C.C.A. Non-Suds) WPL 380257 Contact Us For Availability

Timer, 60 Hz. (Mallory Non-Suds) WPL 380261 Contact Us For Availability

Hose, Pump Discharge WPL 358560 Contact Us For Availability

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

Latch WPL 357249 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

Motor, Timer (60 Hz. WPL 362681 Contact Us For Availability

WPL 365941 WPL 365941 Contact Us For Availability

Nut (4) WPL 98023 Contact Us For Availability

Filter Assembly WPL 359296 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

42

Screw (2) WPL 176360 Contact Us For Availability

43

WPL 690300 WPL 690300 Contact Us For Availability

43

Pulley, Motor WPL 92216 Contact Us For Availability

43

Retainer WPL 357250 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

44

Spring WPL 94403 Contact Us For Availability

45

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

45

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

45

Hose, Pump To Filter WPL 357343 Contact Us For Availability

46

Motor (Emerson) (Alternate) 60 Hz. WPL 357822 Contact Us For Availability

46

Motor (General Electric) (Alternate) 60 Hz. WPL 370653 Contact Us For Availability

47

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

47

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

48

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

48

WPL 352090 WPL 352090 Contact Us For Availability

48

Plug, Cabinet (2) WPL 354179 Contact Us For Availability

49

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

49

WPL 352088 WPL 352088 Contact Us For Availability

50

Bear WPL 354195 Contact Us For Availability

50

Hose, Tub Outlet WPL 93553 Contact Us For Availability

51

WPL 98537 WPL 98537 Contact Us For Availability

51

Clip, Hose WPL 9421321 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

52

Manifold WPL 84091 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

53

Hose, Pump To Manifold WPL 92231 Contact Us For Availability

54

WPL 380113 WPL 380113 Contact Us For Availability

55

WPL 359719 WPL 359719 Contact Us For Availability

55

Bracket, Hose WPL 358339 Contact Us For Availability

56

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.59

56

WPL 362086 WPL 362086 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

57

WPL 359254 WPL 359254 Contact Us For Availability

57

WPL 370950 WPL 370950 Contact Us For Availability

57

Pump, Complete WPL 357729 Contact Us For Availability

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

WPL 359206 WPL 359206 Contact Us For Availability

WPL 351499 WPL 351499 Contact Us For Availability

WPL 351500 WPL 351500 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

59

Sleeve WPL 96175 Contact Us For Availability

60

WPL 90877 WPL 90877 Contact Us For Availability

60

Spring, Toggle WPL 96266 Contact Us For Availability

WPL 285134 WPL 285134 Contact Us For Availability

WPL 690296 WPL 690296 Contact Us For Availability

WPL 358116 WPL 358116 Contact Us For Availability

WPL 358770 WPL 358770 Contact Us For Availability

WPL 359327 WPL 359327 Contact Us For Availability

WPL 372845 WPL 372845 Contact Us For Availability

WPL 375962 WPL 375962 Contact Us For Availability

WPL 380476 WPL 380476 Contact Us For Availability

WPL 381805 WPL 381805 Contact Us For Availability

WPL 382255 WPL 382255 Contact Us For Availability

Pulley, Pump (Alternate) WPL 16113 Contact Us For Availability

Pulley, Pump (Alternate) WPL 359630 Contact Us For Availability

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

62

Lever, Valve WPL 355538 Contact Us For Availability

63

Rod, Connecting WPL 96264 Contact Us For Availability

64

Bearing Block Assembly WPL 87290 Contact Us For Availability

65

Wick, Oil WPL 96265 Contact Us For Availability

66

386011 Whirlpool Screw Backorder WPL 386011 $26.43

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

75

WPL 94612 WPL 94612 Contact Us For Availability

76

WPL 94611 WPL 94611 Contact Us For Availability

78

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

81

WPL 357535 WPL 357535 Contact Us For Availability

83

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

84

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

85

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

86

WPL 354975 WPL 354975 Contact Us For Availability

88

WPL 370959 WPL 370959 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

94

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

95

WPL 357645 WPL 357645 Contact Us For Availability

96

WPL 357633 WPL 357633 Contact Us For Availability

97

WPL 354764 WPL 354764 Contact Us For Availability

98

WPL 352821 WPL 352821 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 352827 WPL 352827 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability
